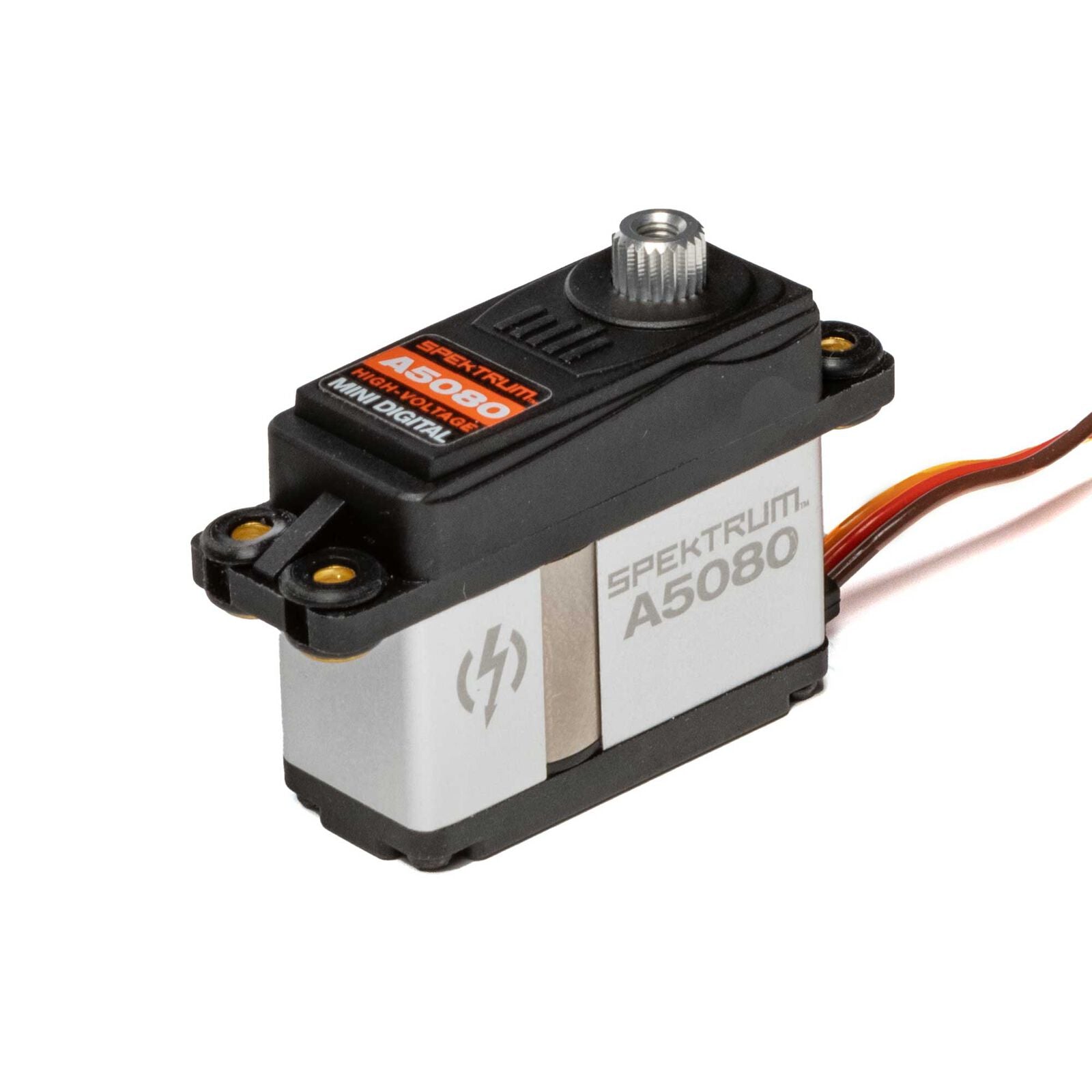

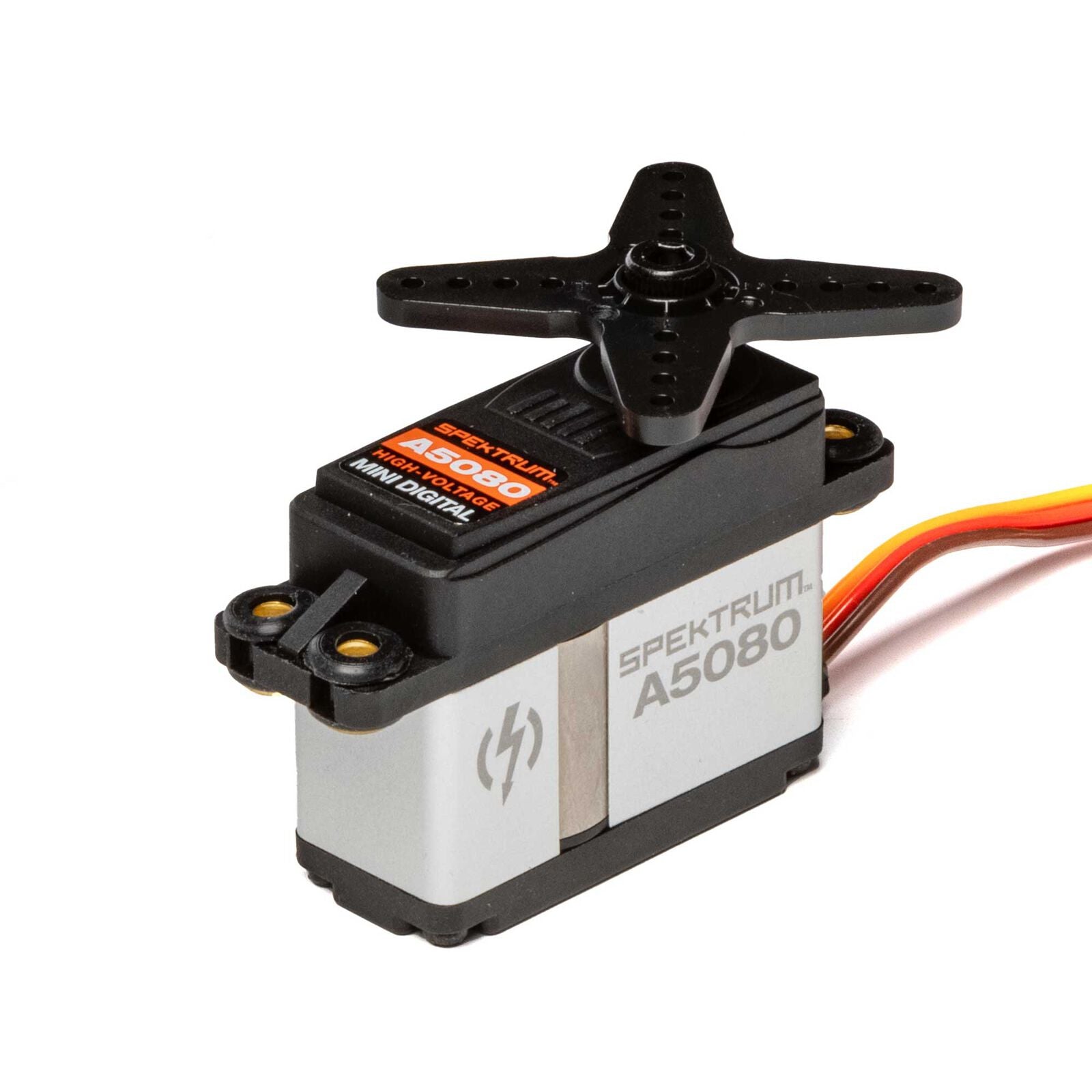

Spektrum A5080 MT/HS Mini Digital HV MG Servo (SPMSA5080)
$62.99
Skip to product information
Low StockIn Stock
Spektrum A5080 MT/HS Mini Digital HV MG Servo (SPMSA5080)
$62.99
In Stock
Arrives
Free shipping on orders $99+ (oversize items excluded).
Pick up today in Cumming, usually ready in 2 hours.
High Voltage
4.8V to 8.4V range
Metal Gear
Low wear durable drivetrain
Mini Size
Ideal for sport flyers
Fast Speed
0.094s response at 8.4V
High Torque
Up to 130 oz-in
Aluminum Case
Efficient heat dissipation cooling
Precision Control PerformanceCompact Power for Sport Aircraft
The Spektrum A5080 Mid Torque Mid Speed Mini Digital HV MG Servo delivers high-torque output and rapid speed in a compact form factor designed for 25-32 size sport scale RC airplanes and specialty model aircraft. High-voltage capable up to 8.4V, this digital mini servo provides up to 130 oz-in of torque and fast 0.094 sec/60° transit speeds.
High-Voltage Mini Digital ServoReliable Response for Scale Models
Engineered with an ultra-durable, low-wear metal gear drivetrain, the Spektrum A5080 Servo is supported by a single ball bearing drive shaft to ensure smooth and precise flight surface control. Its centerpiece aluminum case acts as an efficient heat sink to maintain cool operating temperatures during demanding maneuvers, while built-in over-current and temperature protection ensure continuous reliability.
Featuring tight resolution and low deadband, the Spektrum A5080 Mid Torque Mid Speed Mini Digital HV MG Servo offers rock-solid control response across a 200Hz to 333Hz operating frequency. Complete with mounting hardware and pre-installed grommets, it serves as an ideal upgrade for sport pilots demanding uncompromising quality from their RC aircraft control surfaces.
Technical SpecificationsDetailed Dimensions and Output Ratings
Part Type
Digital Servo
Servo Size Category
Mini
Input Voltage
4.8V - 8.4V (HV) (lightning)
Maximum Servo Speed
0.094 sec/60 deg @ 8.4V
Maximum Servo Torque
130 oz-in (9.4kg-cm) @ 8.4V (weight)
Gear Type
Metal
Motor Type
Brushed / Coreless
Bearing
Single BB
Spline Count
23-Tooth
Deadband
<1µs
Material
Aluminum / Plastic

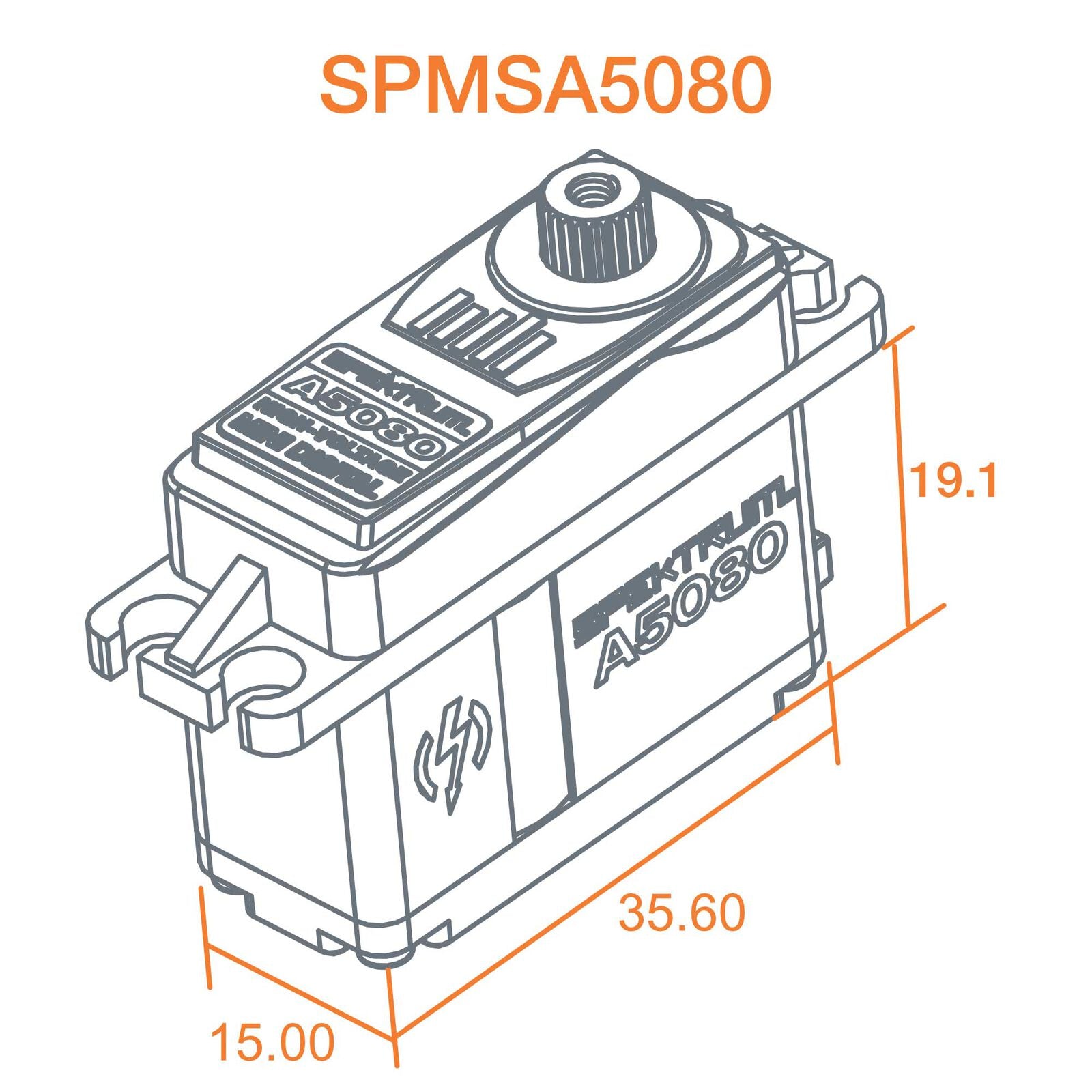

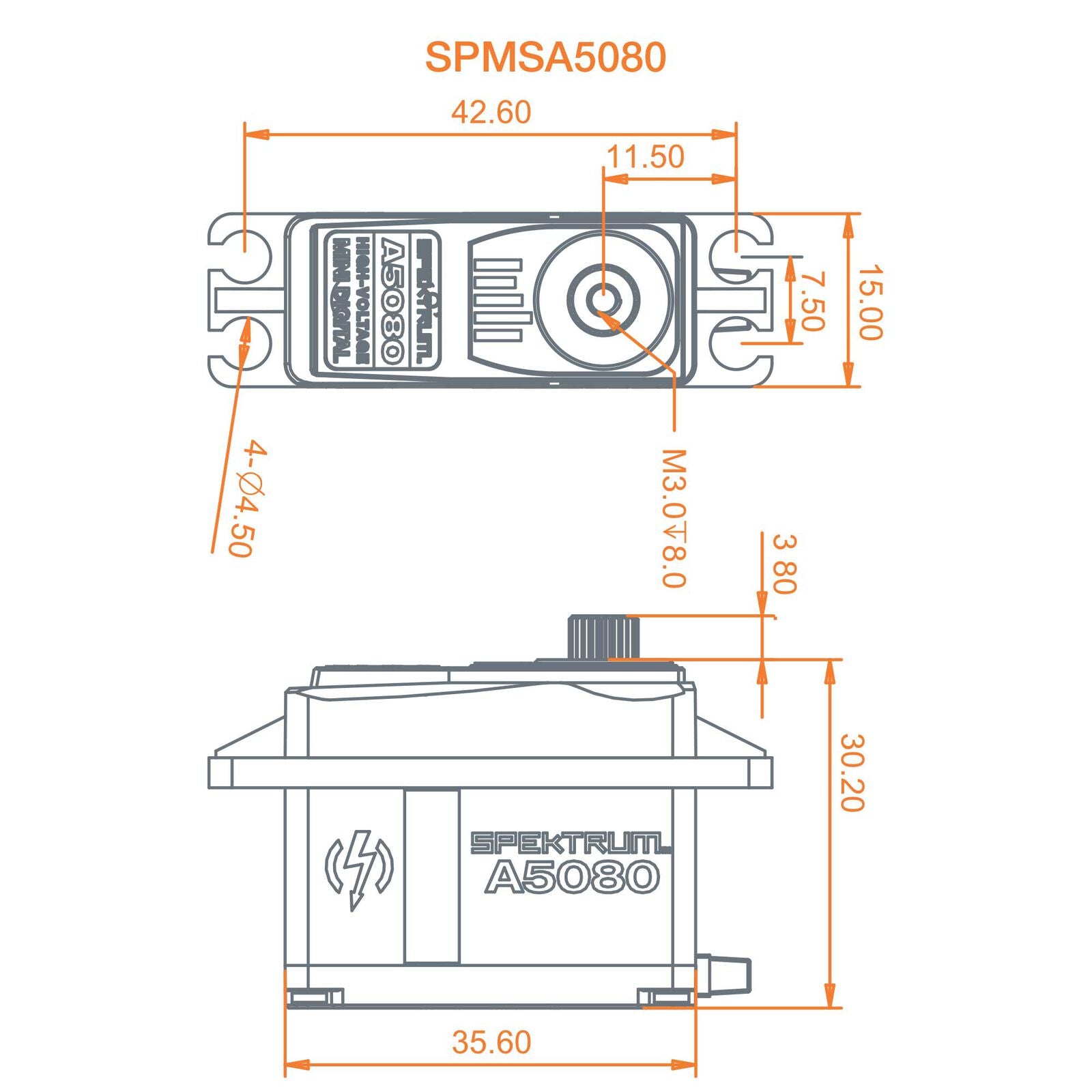

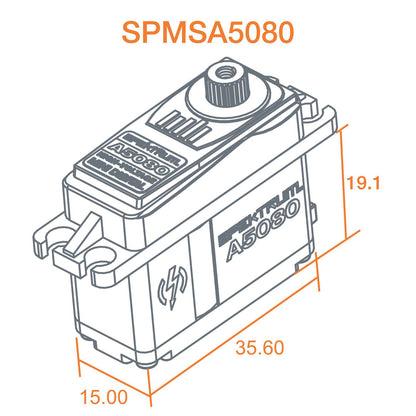

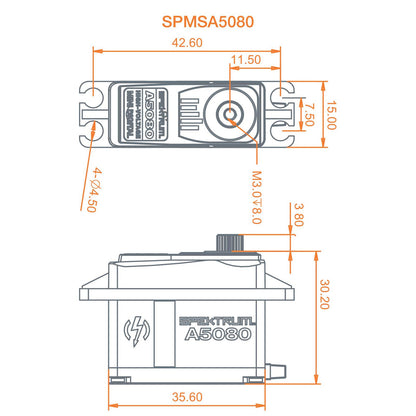

Product Length
1.4" (36 mm) (ruler)
Product Width
0.59" (15 mm) (ruler)
Product Height
1.18" (30 mm) (ruler)
Product Weight
1.2 oz (34g) (scale)
Key Servo FeaturesEngineered for Peak Flight Performance
HV CapabilityHigh Voltage capable from 4.8V to 8.4V input range
Compact Form FactorMini size optimized for parkflyer and sport model aircraft
Top-Tier OutputUp to 130 oz-in torque and 0.094s speed at 8.4V input
Aluminum Center CaseCenter case section efficiently dissipates heat during high loads
Metal Drive TrainTightly meshed low-wear all-metal gear configuration
Bearing SupportedSmooth output delivery backed by bearing support
Integrated ProtectionBuilt-in over-current and thermal safeguards
High ResolutionOperates cleanly on 200Hz to 333Hz drive frequencies
Frequently Asked QuestionsEverything you need to know
What voltage range does the Spektrum A5080 Mid Torque Mid Speed Mini Digital HV MG Servo accept?
The Spektrum A5080 servo accepts high voltage inputs ranging from 4.8V to 8.4V, allowing direct power from 2S LiPo receiver batteries without needing a separate regulator.
What scale of model aircraft is the Spektrum A5080 Mini Digital Servo designed for?
The mini-sized Spektrum A5080 servo is ideal for parkflyers, specialty aircraft, and 25 to 32 size sport model airplanes requiring compact, high-torque servos.
What spline count is used on the Spektrum A5080 Servo horn?
The Spektrum A5080 Mid Torque Mid Speed Mini Digital HV MG Servo uses a standard 23-tooth spline output shaft.

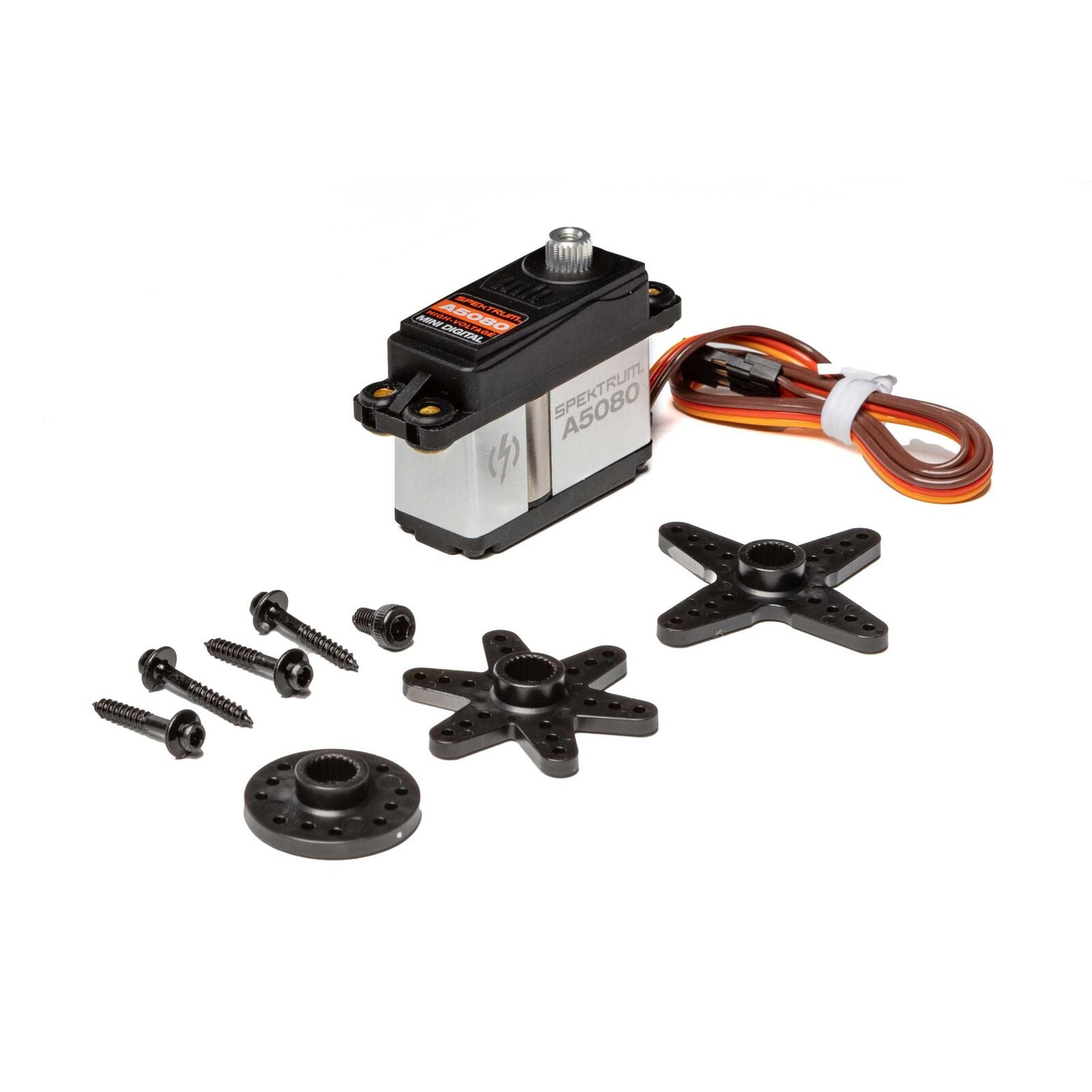

What accessories are included in the box with the Spektrum A5080 Servo?
Each Spektrum A5080 package includes one mini digital servo, four pre-installed mounting grommets and eyelets with mounting hardware, three plastic servo arms, and one mounting screw.
