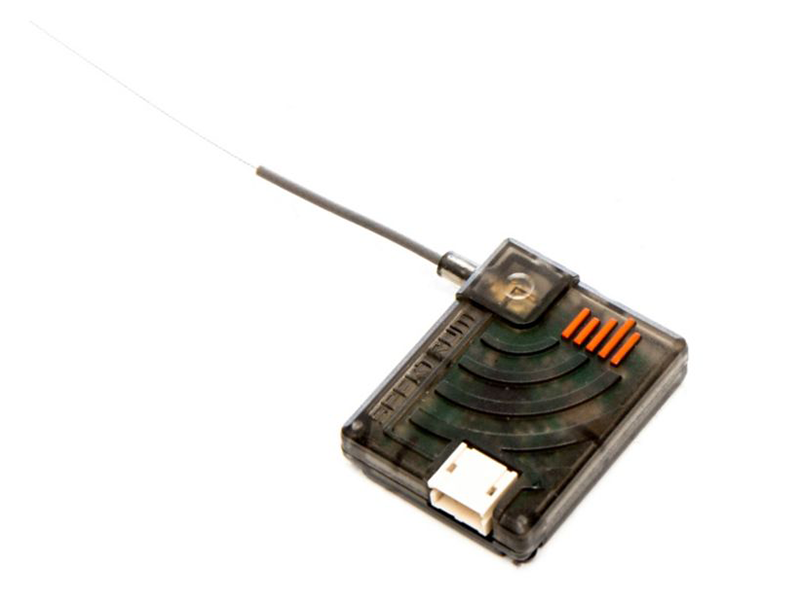

DSMX Remote Receiver
$39.99
Skip to product information
Only 1 Left!
DSMX Remote Receiver
$39.99
DSMX Protocol
Advanced RF Signal Security
Flexible Antenna
Dual Top Side Exit
Fast Response
Supports High Speed Frame Rate
In Stock
Next-Gen ReceptionSuperior Signal for RC Aircraft
The Spektrum DSMX Remote Receiver delivers exceptional signal reliability and range expansion for your RC aircraft radio system. Featuring an innovative repositionable antenna design, this remote receiver allows flexible top or side exit routing for seamless installation in tight fuselages and compact builds. Built with DSMX technology and backward DSM2 compatibility, it ensures rock-solid control performance for high-end radio systems.
Enhanced Signal IntegrationMaximize RF Link Reliability
Engineered for demanding radio control installations, the Spektrum DSMX Remote Receiver features an updated case design providing enhanced strain relief on the antenna lead. Ideal for upgrading Spektrum PowerSafe, telemetry, and main receivers like the AR636, AR7350, and AR9350, this unit creates crucial secondary receiving paths to eliminate dead zones. Included with a 24-inch receiver extension wire, it allows optimal physical separation within scale models, aircraft, and high-performance radio gear for unmatched link security.
Technical SpecificationsReceiver Specs and Compatibility
Compatible Main Receivers
Spektrum AR636, AR7350, AR9350, Telemetry & PowerSafe
Part Type
Remote Receiver
Modulation
DSMX / DSM2
Frame Rate
11ms / 22ms
Antenna Position
Top or Side Exit
Included Extension Length
24 inches
Band
2.4GHz
Voltage Range
3.5V - 9.6V
Key System FeaturesDesigned for Maximum Performance
Antenna Strain ReliefCase design protects antenna wire lead
Dual-Exit AntennaMount antenna exiting side or top for tight spaces
DSMX & DSM2 CompatibleFully backward compatible with DSM2 transmitters
High-Speed ResponseCompatible with fast 11ms and standard 22ms frame rates
Wide Receiver CompatibilityUpgrades Spektrum AR636, AR7350, AR9350 & PowerSafe receivers
Extension IncludedShips with a 24-inch remote receiver extension
Frequently Asked QuestionsEverything you need to know
What main receivers are compatible with the Spektrum DSMX Remote Receiver?
The Spektrum DSMX Remote Receiver is compatible with any Spektrum receiver featuring an available remote receiver port, including the AR636, AR7350, AR9350, Telemetry Receivers, and PowerSafe receivers.
Can I use the Spektrum DSMX Remote Receiver with a DSM2 main receiver?
No, DSMX remote receivers must be paired with a DSMX main receiver. However, the system retains backward compatibility with DSM2 transmitters when connected to a DSMX main receiver.
How do I route the antenna on the Spektrum DSMX Remote Receiver?
The Spektrum DSMX Remote Receiver features a repositionable antenna case design, allowing you to route the antenna lead through either the side or the top of the case for easy installation in cramped RC aircraft fuselages.
Does the Spektrum DSMX Remote Receiver come with an extension wire?
Yes, the Spektrum DSMX Remote Receiver includes one 24-inch extension wire in the package. Additional extensions are available separately in 6", 9", 12", 24", and 36" lengths.
