Erect Image Illuminated Right-Angle Viewfinder
$319.99
Skip to product information
Only 1 Left!
Erect Image Illuminated Right-Angle Viewfinder
$319.99
8x50 Optics
Clear aperture and powerful magnification
90° Eyepiece
Comfortable right angle viewing design
7° View Field
Wide field for quick alignment
Polar Reticle
Northern and southern reference markings
Red Illumination
Variable brightness control illuminator
Dual Focus
Objective lens and reticle adjustment
In Stock
Precision Polar AlignmentStreamline your equatorial mount setup

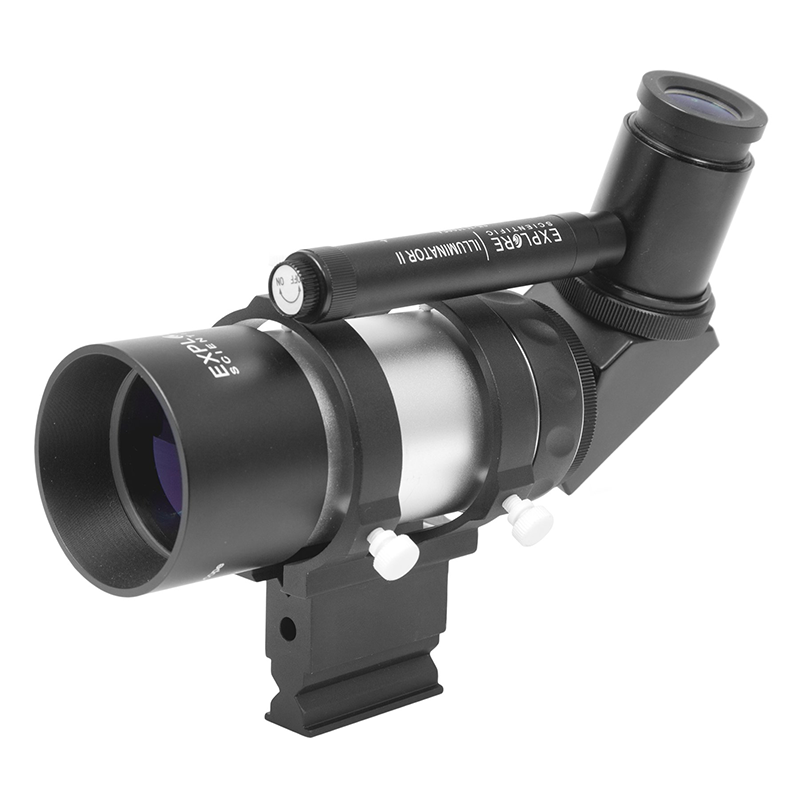

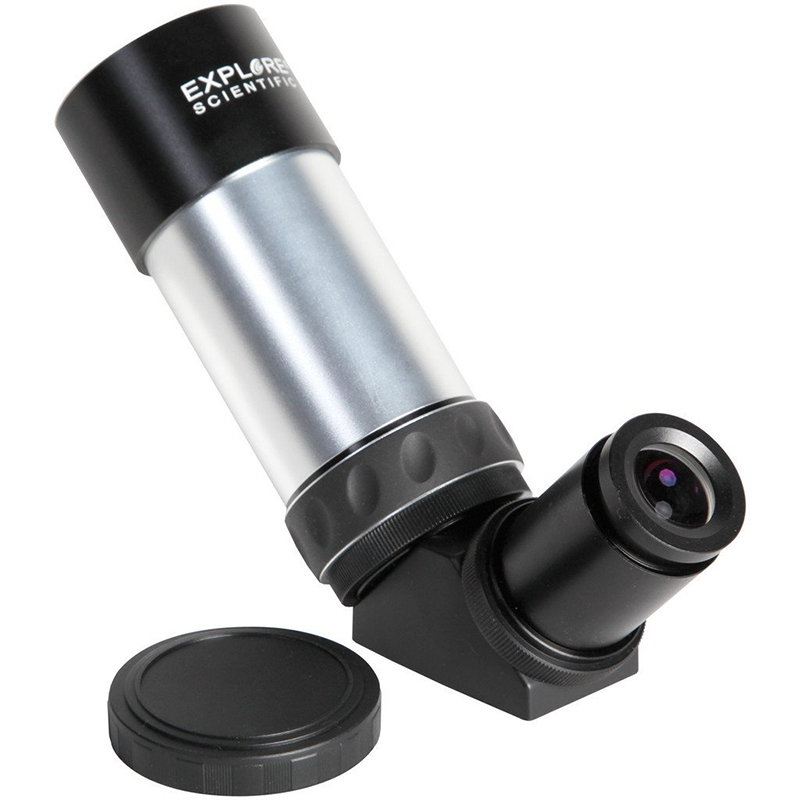

Achieve quick and highly accurate polar alignment for your equatorial mount using the Explore Scientific 8x50 Illuminated Polar Right Angle Finder Scope. Featuring a 90° erect image eyepiece and a wide 7° field of view, this optical finder makes finding celestial polar center effortless and comfortable. Equipped with the upgraded Illuminator II, you get extended battery life and adjustable reticle brightness for optimal night sky performance.
Enhanced Night Sky TargetingSuperior ergonomics meets illuminated precision optics
Designed for amateur astronomers and astrophotographers, the Explore Scientific 8x50 Illuminated Polar Right Angle Finder Scope eliminates neck strain during polar alignment procedures. Its integrated crosshair reticle includes accurate polar reference markings for both northern and southern celestial hemispheres. The variable brightness deep-red LED illumination preserves night vision while ensuring crosshair visibility against dark skies. Built with premium optical glass and dual precision focus adjustments for both the main objective and reticle, this finder scope is an essential upgrade for accurate celestial tracking on any equatorial telescope mount.
Technical SpecificationsDetailed parameters and design dimensions
Item Number
VFEI0850-RA (hash)
Reticle Type
Polar Alignment Crosshairs
Magnification
8x
Objective Lens Diameter
50mm
Field of View
7°
Viewing Angle
90° Right Angle
Image Orientation
Erect Image
Illuminator
Illuminator II Variable Red LED
Power Source
Two AAA Batteries
Weight
1 lb, 9.1 oz
Dimensions
200mm x 62mm x 112mm
Key Optical FeaturesEngineered for clarity and comfortable viewing
Right Angle Ergonomics90° eyepiece with erect image viewing prevents neck strain
Polar Alignment ReticleIncludes northern and southern polar reference markings
Variable IlluminationDeep-red LED reticle with power switch and brightness dial
Dual Focus ControlIndependent precision adjustments for both objective lens and reticle

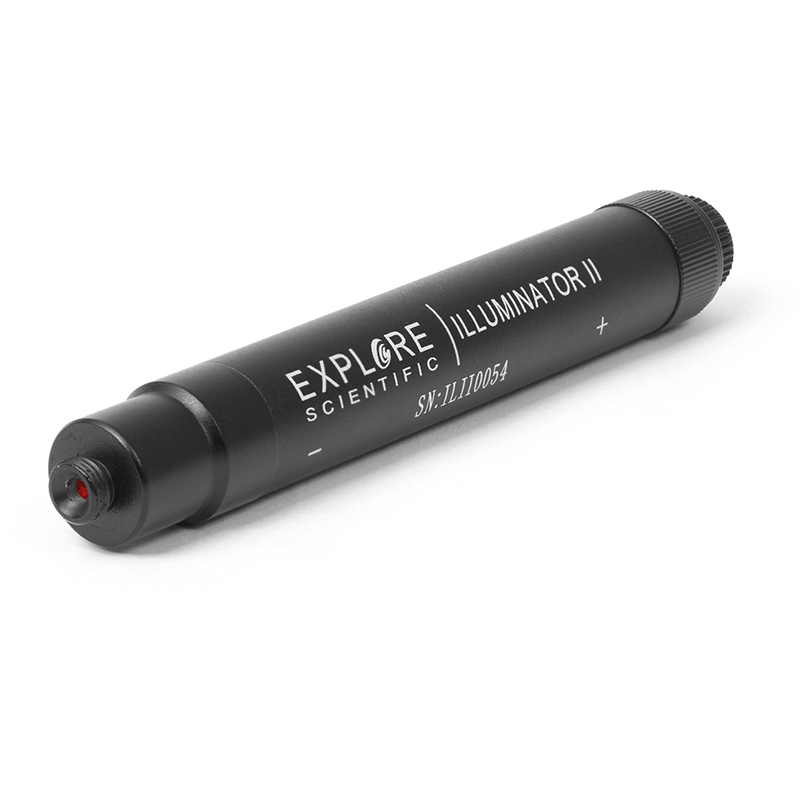

Extended Power LifeUpgraded Illuminator II module runs on standard AAA batteries
Wide Field of ViewGenerous 7-degree field of view for rapid target acquisition
Frequently Asked QuestionsEverything you need to know
What batteries does the Explore Scientific 8x50 Illuminated Polar Right Angle Finder Scope require?
The Explore Scientific 8x50 Illuminated Polar Right Angle Finder Scope uses two standard AAA batteries (not included) to power its Illuminator II LED module.
Does the Explore Scientific 8x50 Illuminated Polar Right Angle Finder Scope provide an erect image?
Yes, the Explore Scientific 8x50 Illuminated Polar Right Angle Finder Scope features a 90° right-angle eyepiece with erect image viewing, making target orientation intuitive.
How do you adjust the brightness on the Explore Scientific 8x50 Illuminated Polar Right Angle Finder Scope?
The illuminator on the Explore Scientific 8x50 Illuminated Polar Right Angle Finder Scope includes a variable brightness knob that doubles as the power switch, allowing smooth dimming to preserve your dark adaptation.
