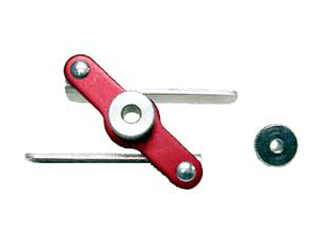

ROB309-Hinge Point Drill Jig
$7.49
Skip to product information
Only 1 Left!
ROB309-Hinge Point Drill Jig
$7.49
Hardened Steel
Built for long lasting durability
Dual Bushings
Includes two standard bushing sizes
Fully Adjustable
Fits all aircraft control surfaces
In Stock
Master Your HingingFlawless Control Surface Alignment
Take the guesswork out of model building with the Robart Hinge Point Drill Jig. Designed specifically for scale model aircraft, this tool ensures precise alignment and clean pilot holes every single time. It is an essential accessory for effortlessly installing hinge points on any RC plane control surface.
Precision Craftsmanship ToolEngineered For Accurate Aircraft Assembly
Achieving perfect alignment when installing pin hinges on RC airplanes can be challenging without the right equipment. The Robart Hinge Point Drill Jig features heavy-duty hardened steel construction built to withstand repeated shop use without wearing down. Its fully adjustable clamp mechanism centers precisely over trailing edges and control surfaces like ailerons, elevators, and rudders. Equipped with removable drill bushings for both 1/8-inch and 3/16-inch drill bits, this hinge point drill guide enables smooth, accurate drilling for maximum hinge holding strength and slop-free flight performance.
Tool SpecificationsDimensions Material and Tool Compatibility
Compatible Vehicles
RC Airplanes, Sailplanes, and Scale Models
Part Type
Hinge Installation Drill Guide
Material
Hardened Steel
Placement/Position
Control Surfaces, Trailing Edges, Wings, and Tail
Bushing Sizes Included
1/8 Inch & 3/16 Inch
Compatibility
Standard Robart Hinge Point Systems
Key FeaturesTop Benefits For Model Builders
Hardened Steel BodyDurable construction resists wear from repeated drilling operations
Removable BushingsIncludes 1/8 in. and 3/16 in. drill bushings for multiple hinge sizes
Self-Centering DesignCenters cleanly on various trailing edge thicknesses
Universal Surface FitAdjusts to fit ailerons, elevators, rudders, and flaps
Pro-Level AccuracyEnsures straight, slop-free hinge point installations every time
Frequently Asked QuestionsEverything you need to know
What drill bit sizes work with the Robart Hinge Point Drill Jig?
The Robart Hinge Point Drill Jig includes removable hardened steel bushings configured for standard 1/8-inch and 3/16-inch diameter drill bits.
Can the Robart Hinge Point Drill Jig adjust to different control surface thicknesses?
Yes, the Robart Hinge Point Drill Jig features an adjustable design that securely clamps and self-centers on various trailing edge and control surface thicknesses.
Is the Robart Hinge Point Drill Jig suitable for beginner RC airplane builders?
Absolutely. The Robart Hinge Point Drill Jig takes the guesswork out of drilling straight hinge holes, making it easy for both beginners and experienced builders to achieve professional results.
