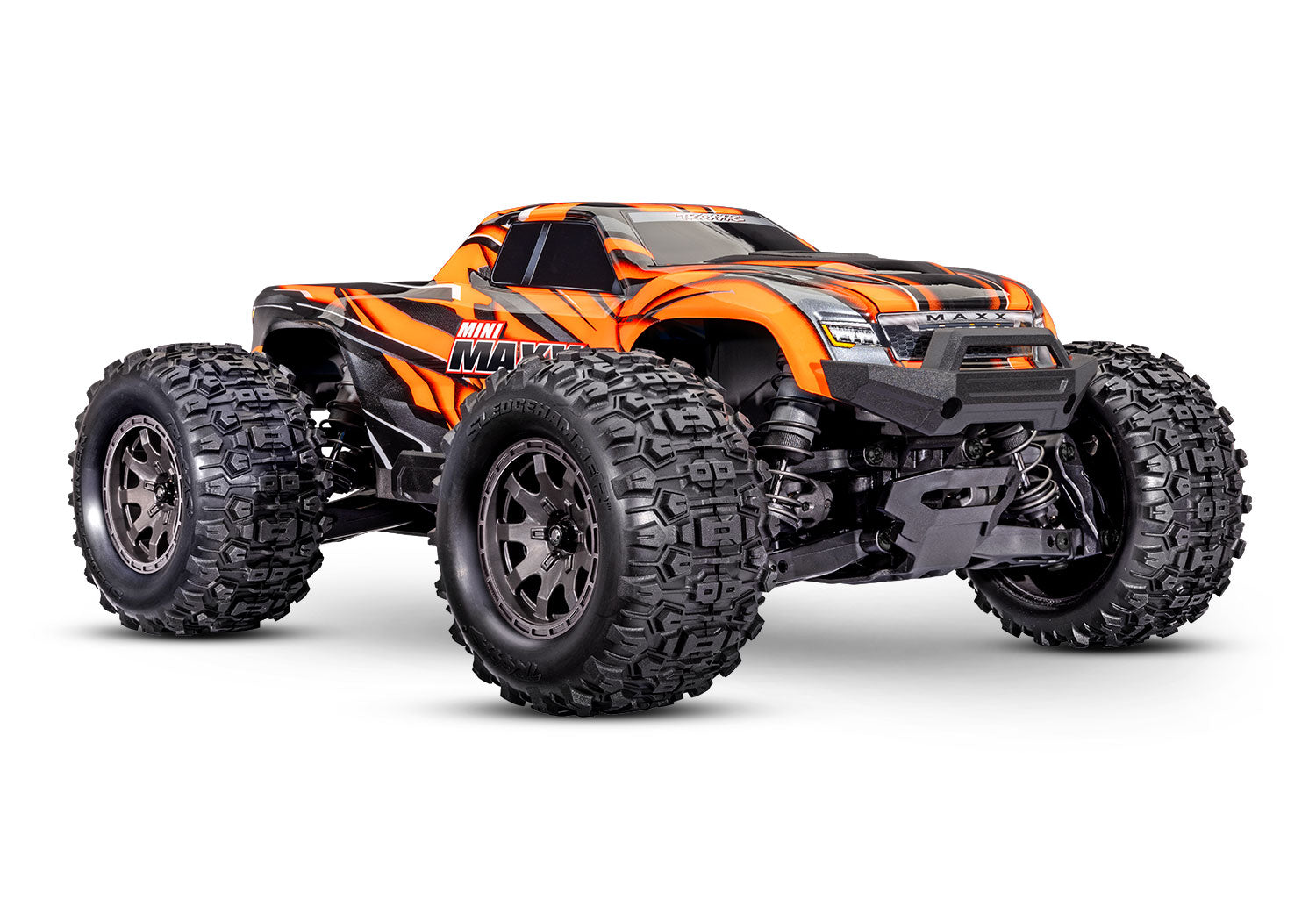

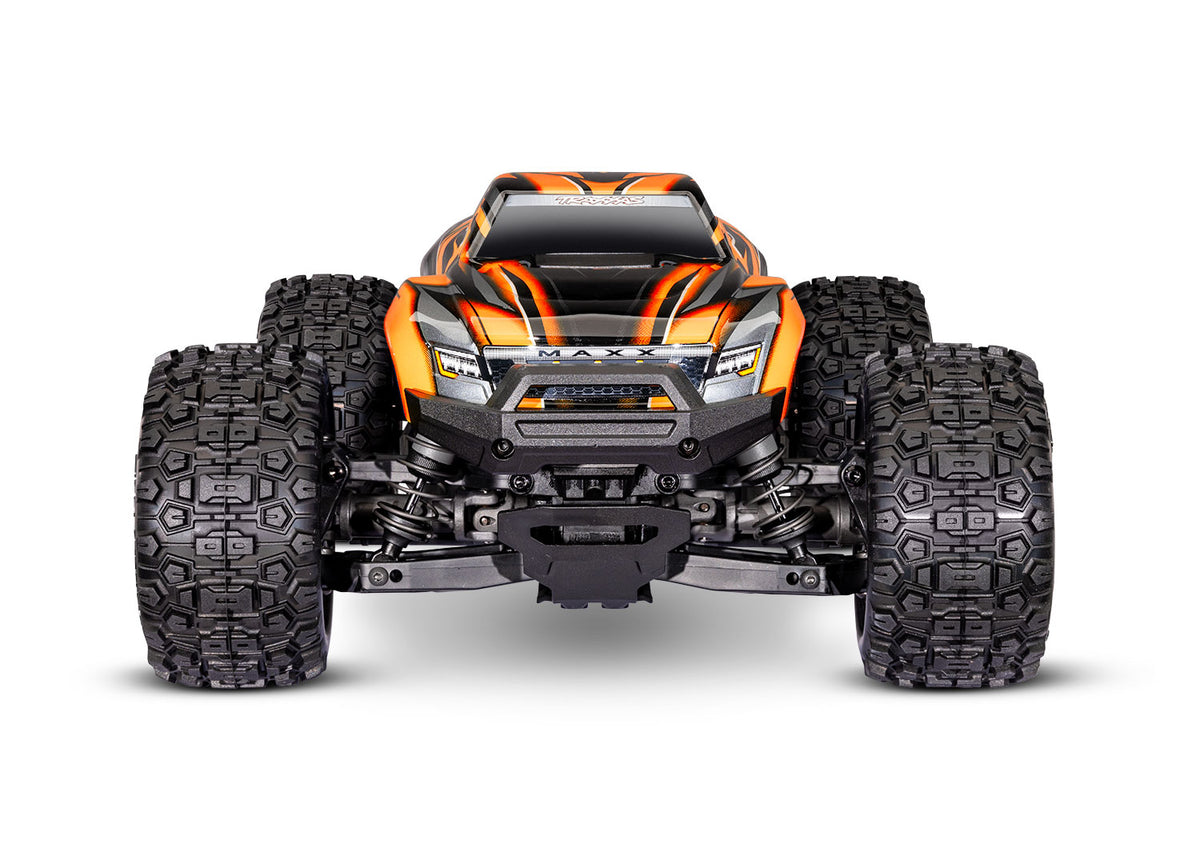

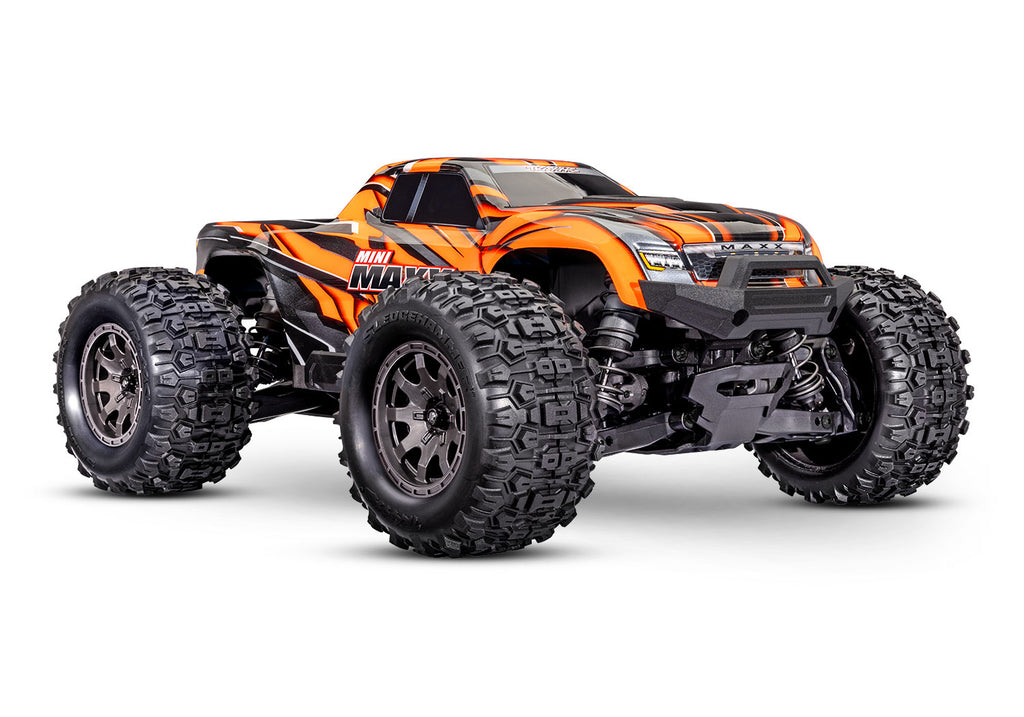

Mini Maxx BL-2s Orange
Mini Maxx BL-2s Orange
Mini Maxx BL-2s Orange
Overview:

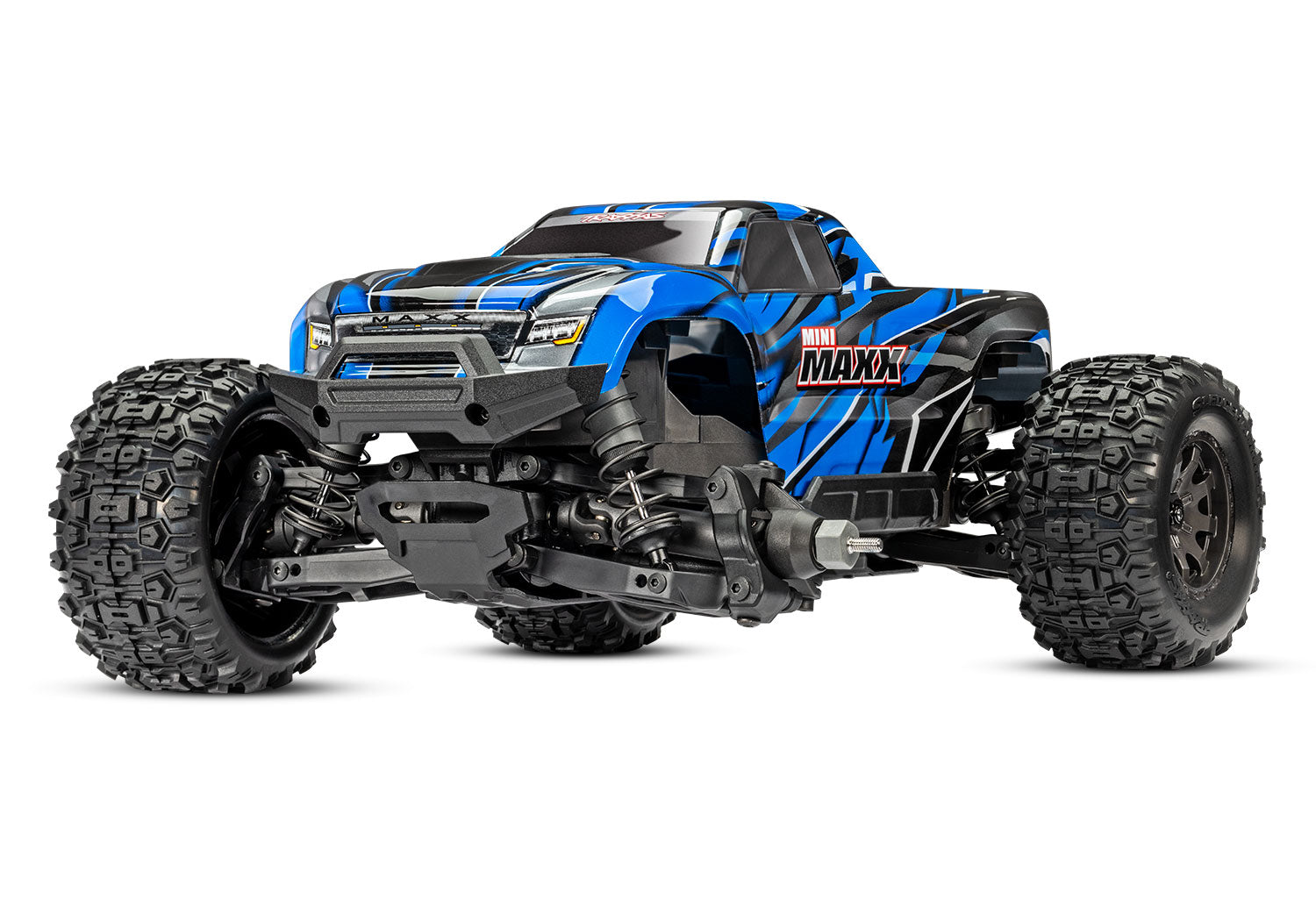

Overbuilt and over-the-top, the all-new Mini Maxx® captures the engineering, unmatched power, and extreme durability that defines Traxxas Maxx® performance. Mini Maxx is the perfect, take-anywhere size, delivering 30+ mph brushless speed and legendary Maxx toughness that slides easily into a backpack.

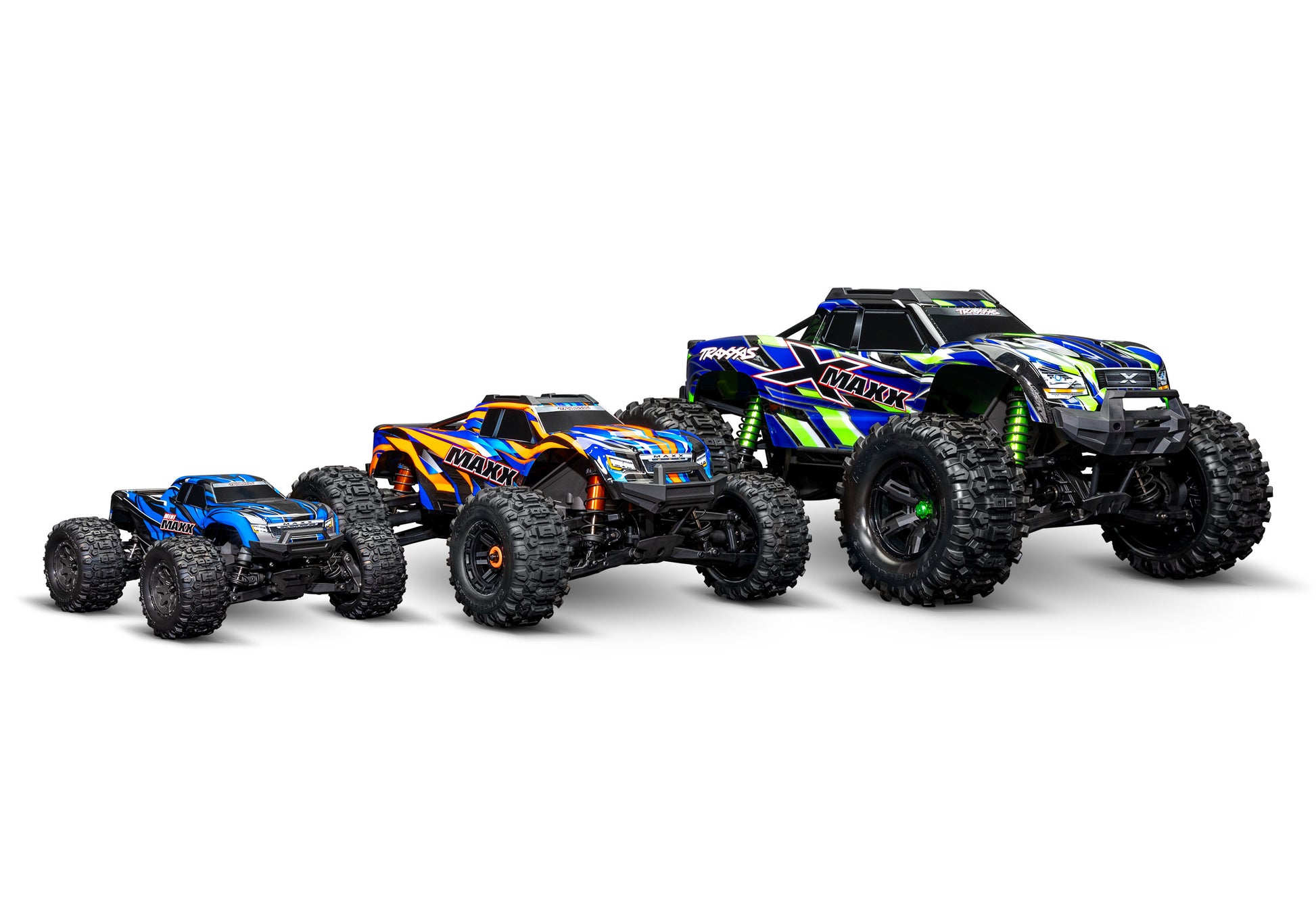

Maxx Performance

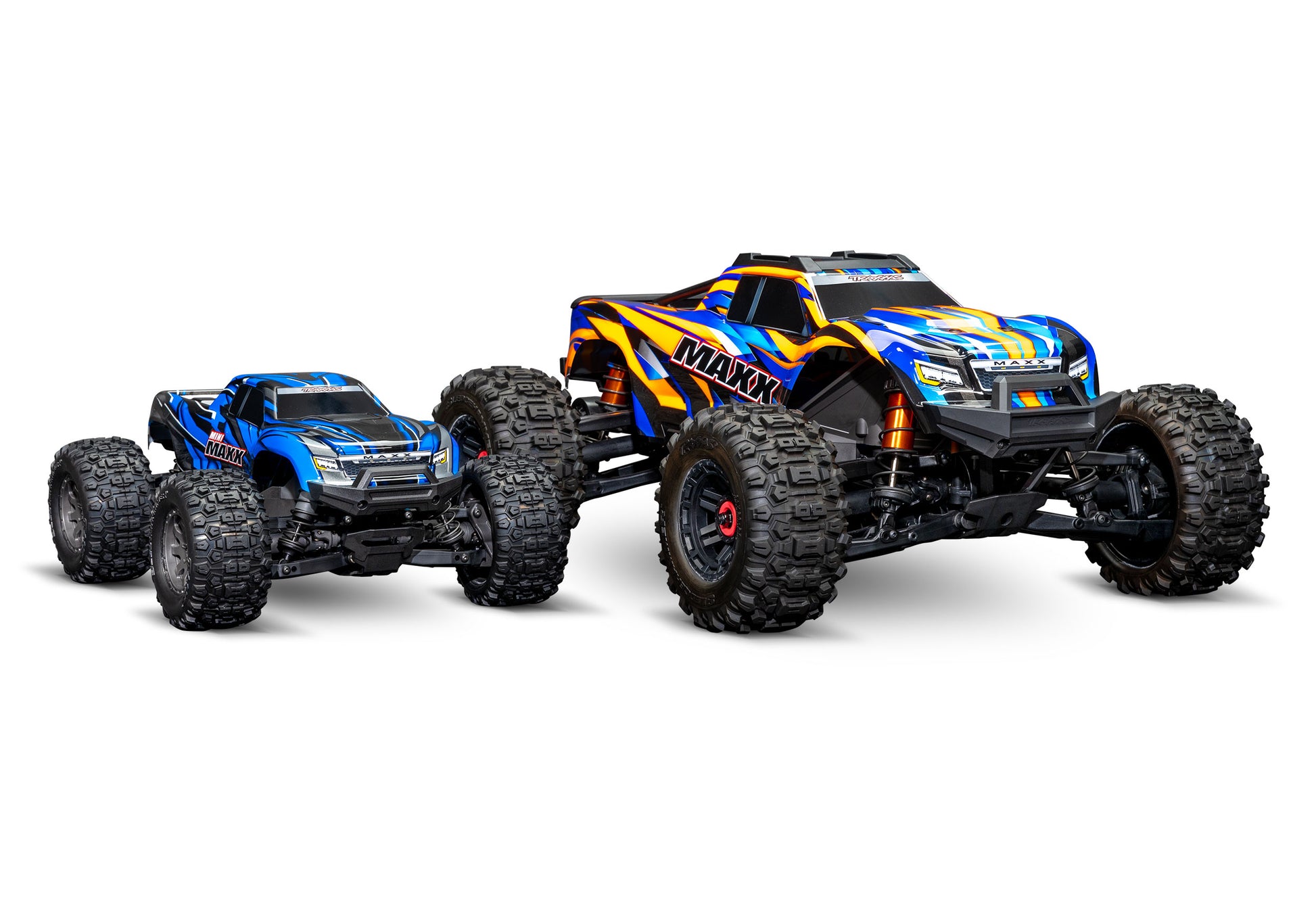

Mini Maxx does what the others can’t, in a fast, fun, and compact form that’s instantly recognizable and engineered to a zero-compromise standard for performance and durability. It’s a whole new way to experience Maxx-level fun in a powerful machine that continues the Maxx legacy for speed and absolute toughness.

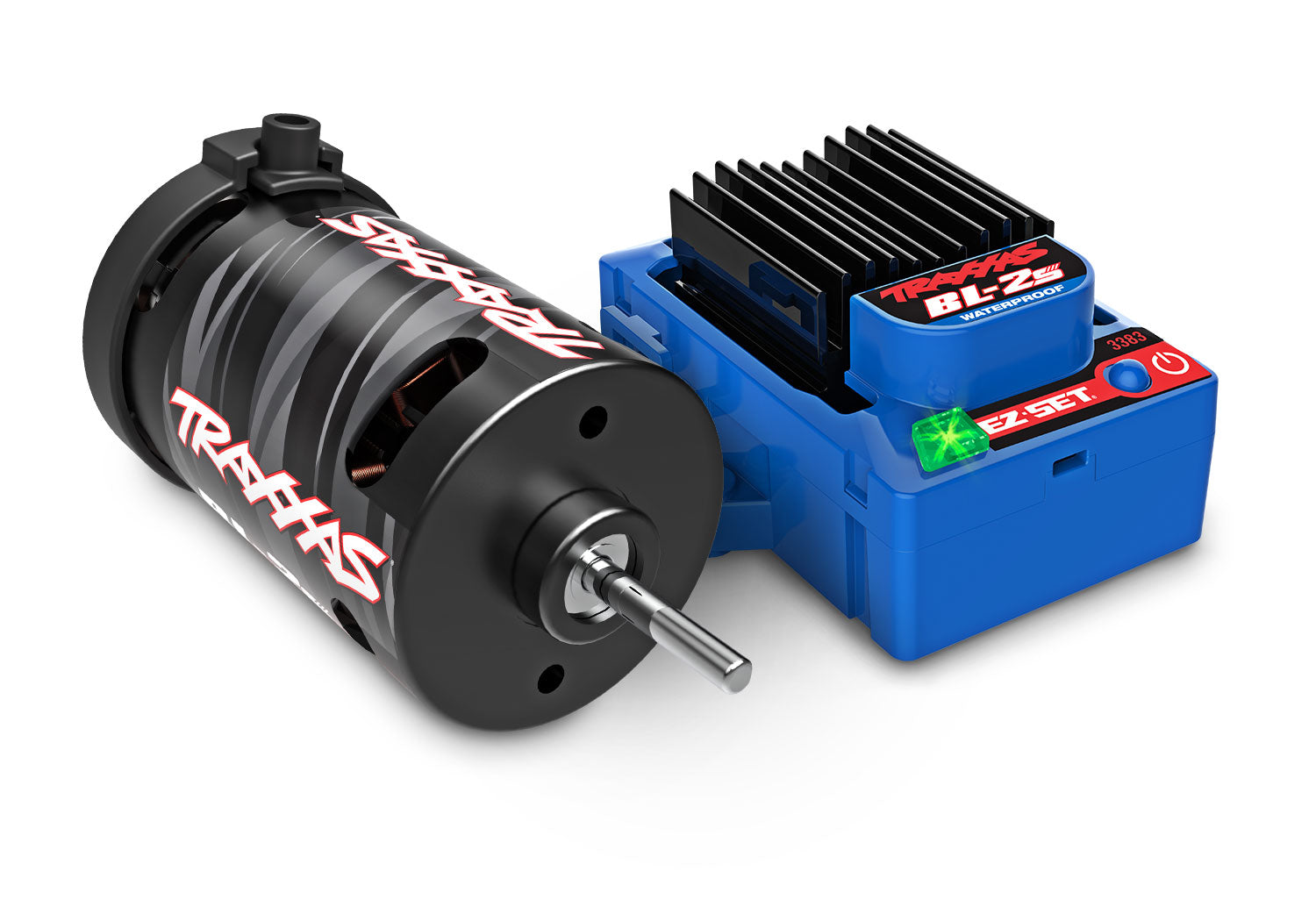

1/10 Scale Power System

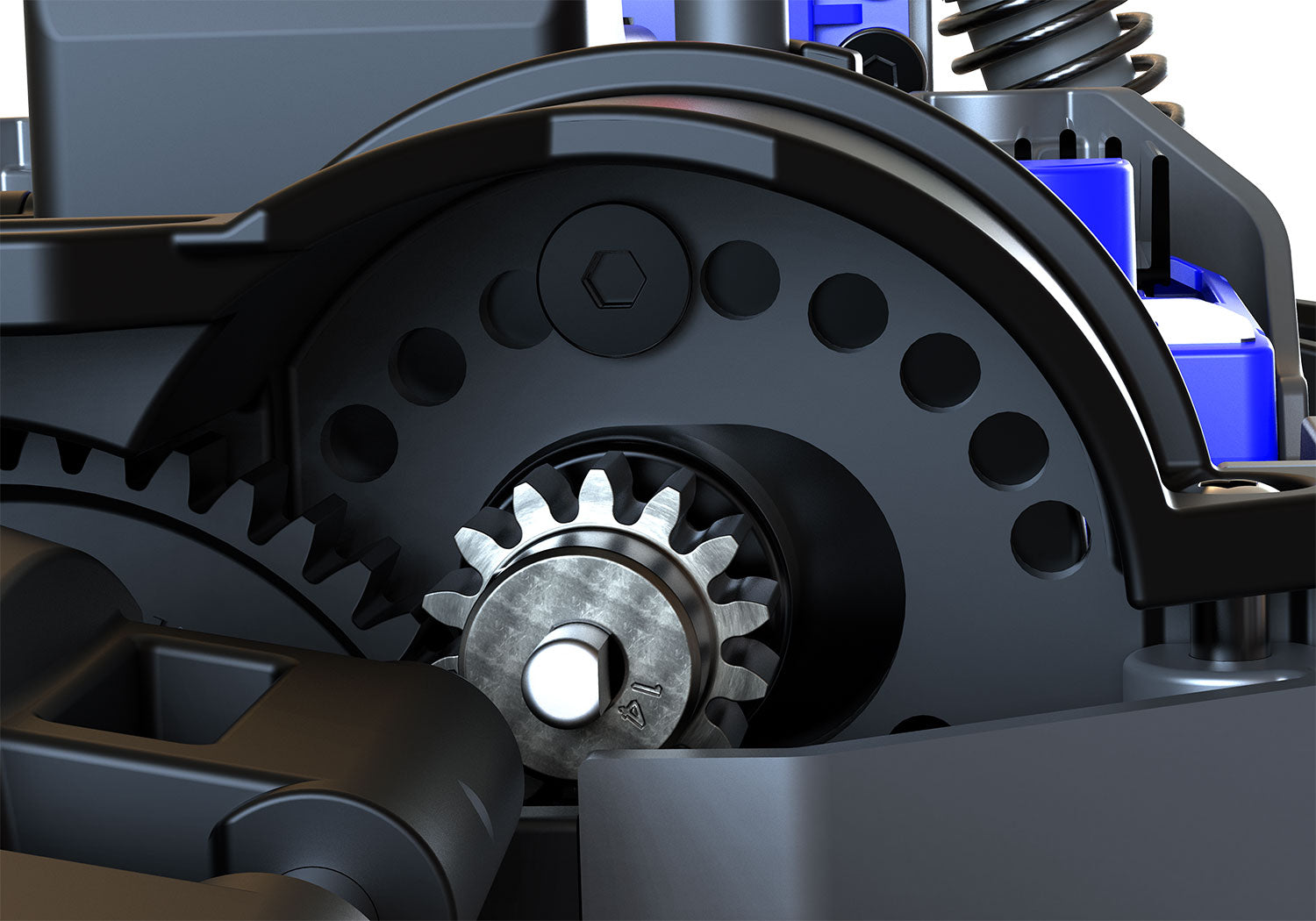

The BL-2s Brushless Power System is already proven to deliver extreme power and wheel-standing torque in Traxxas 1/10 scale vehicles. Installed in Mini Maxx, BL-2s power punches well above its weight for lightning-quick acceleration and 30+ mph top speed.

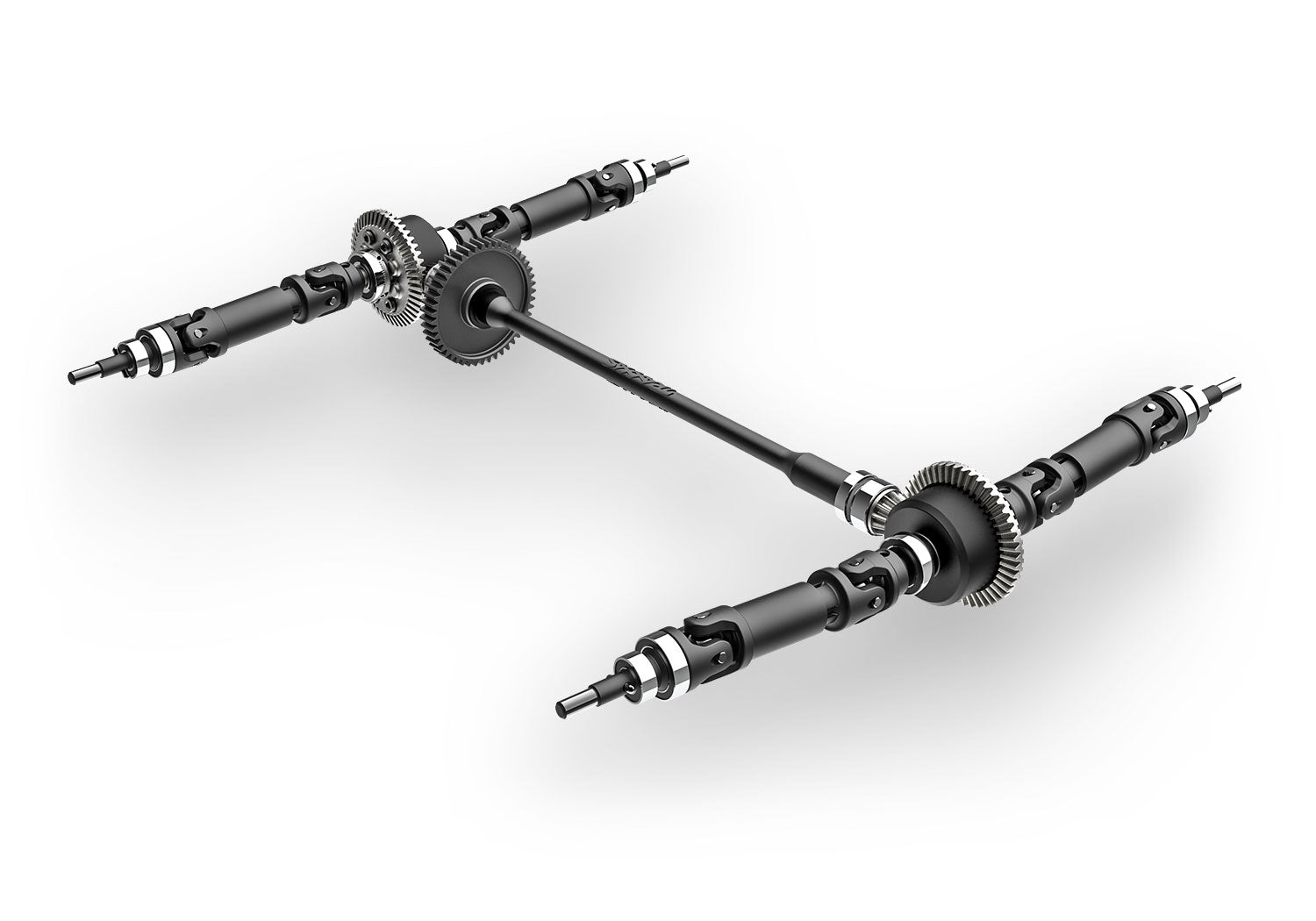

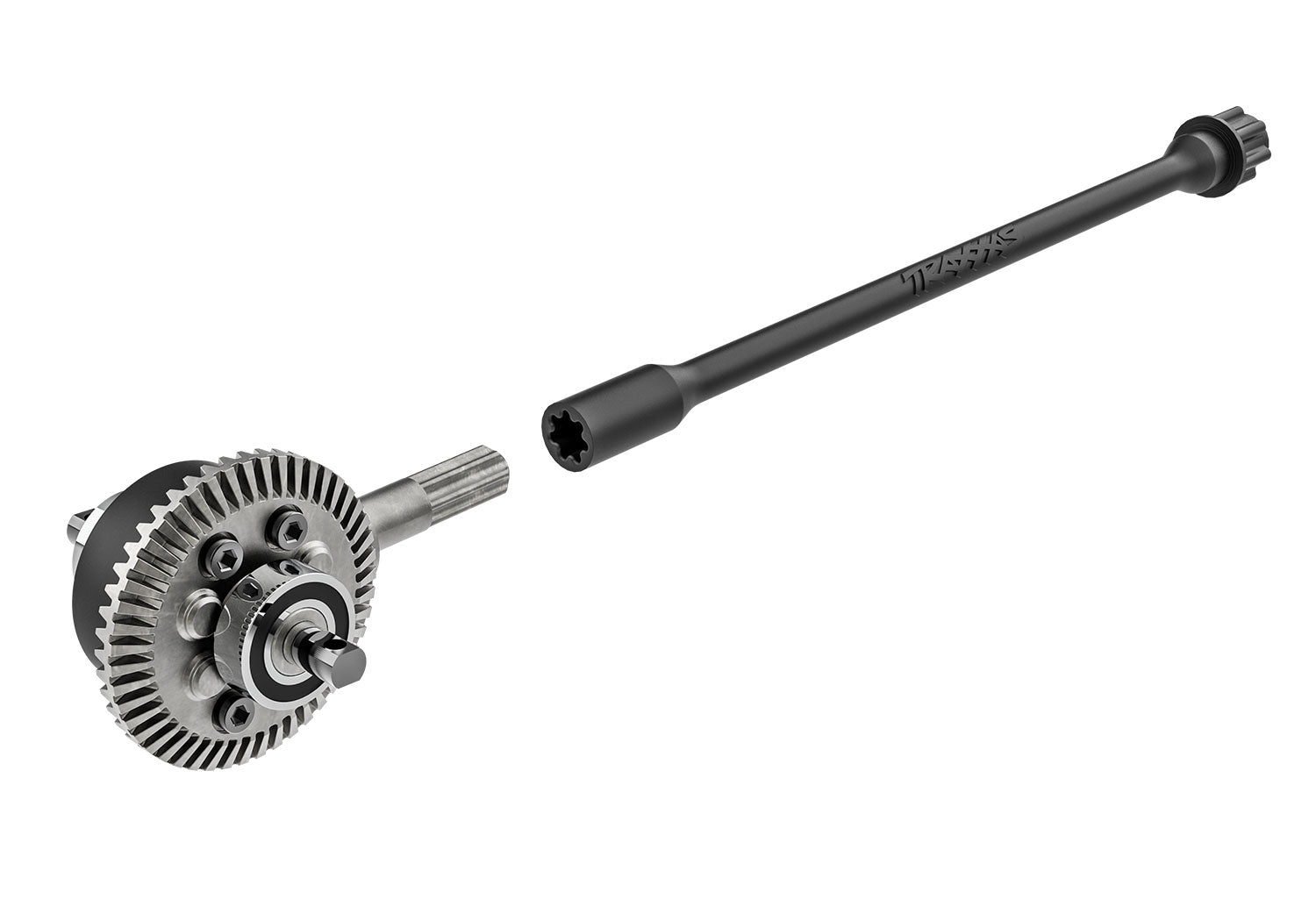

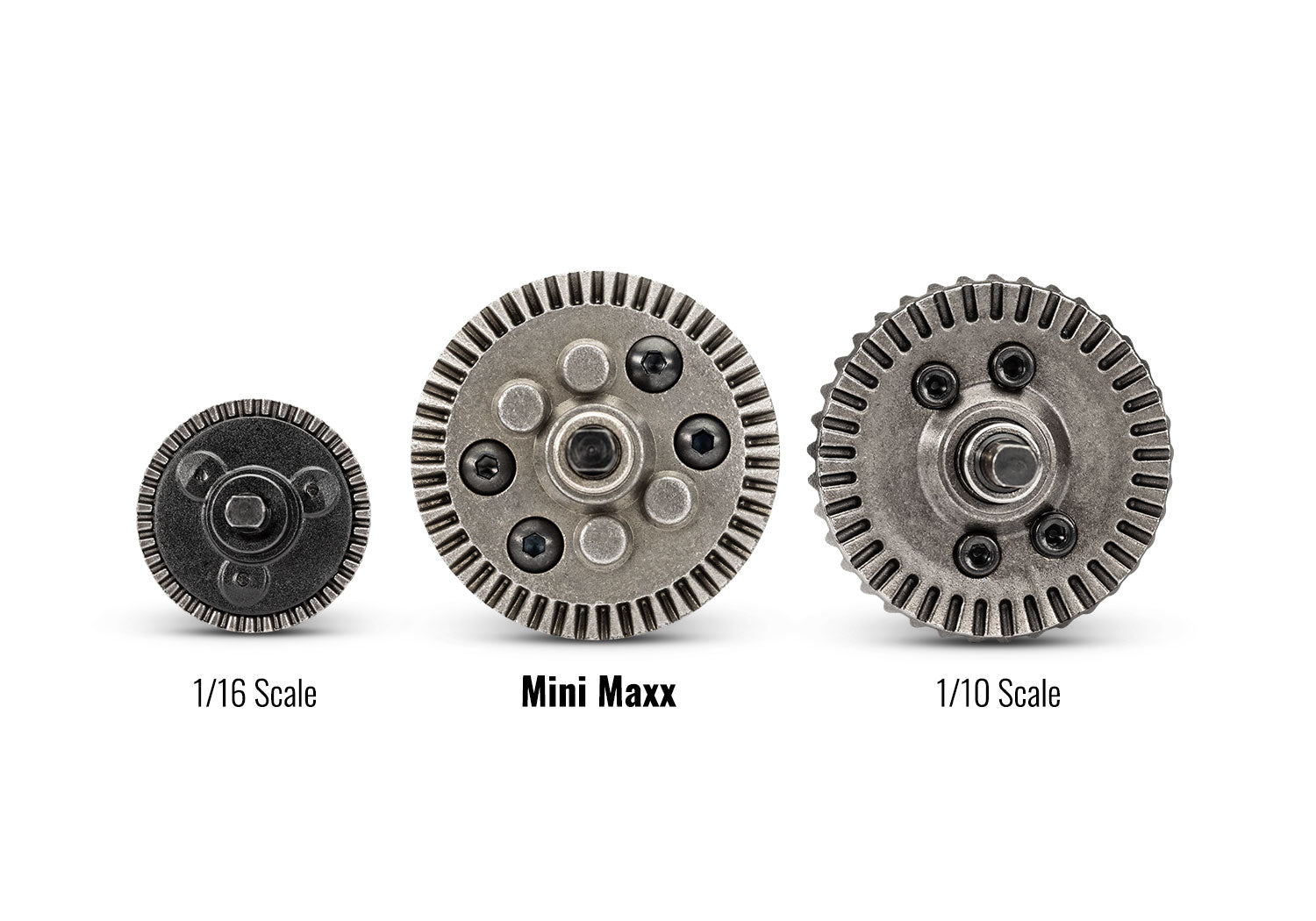

1/10 Scale 4X4 Driveline

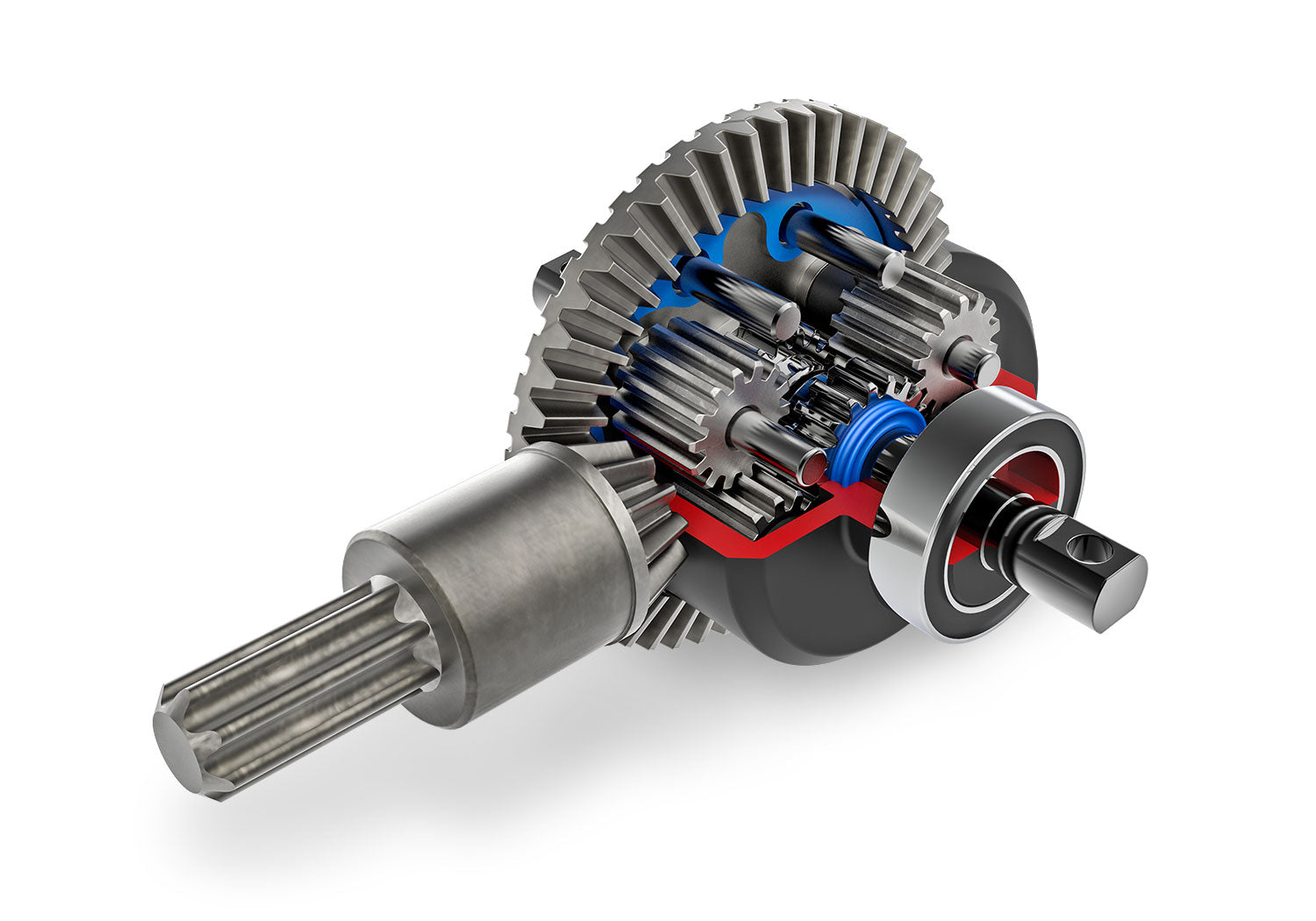

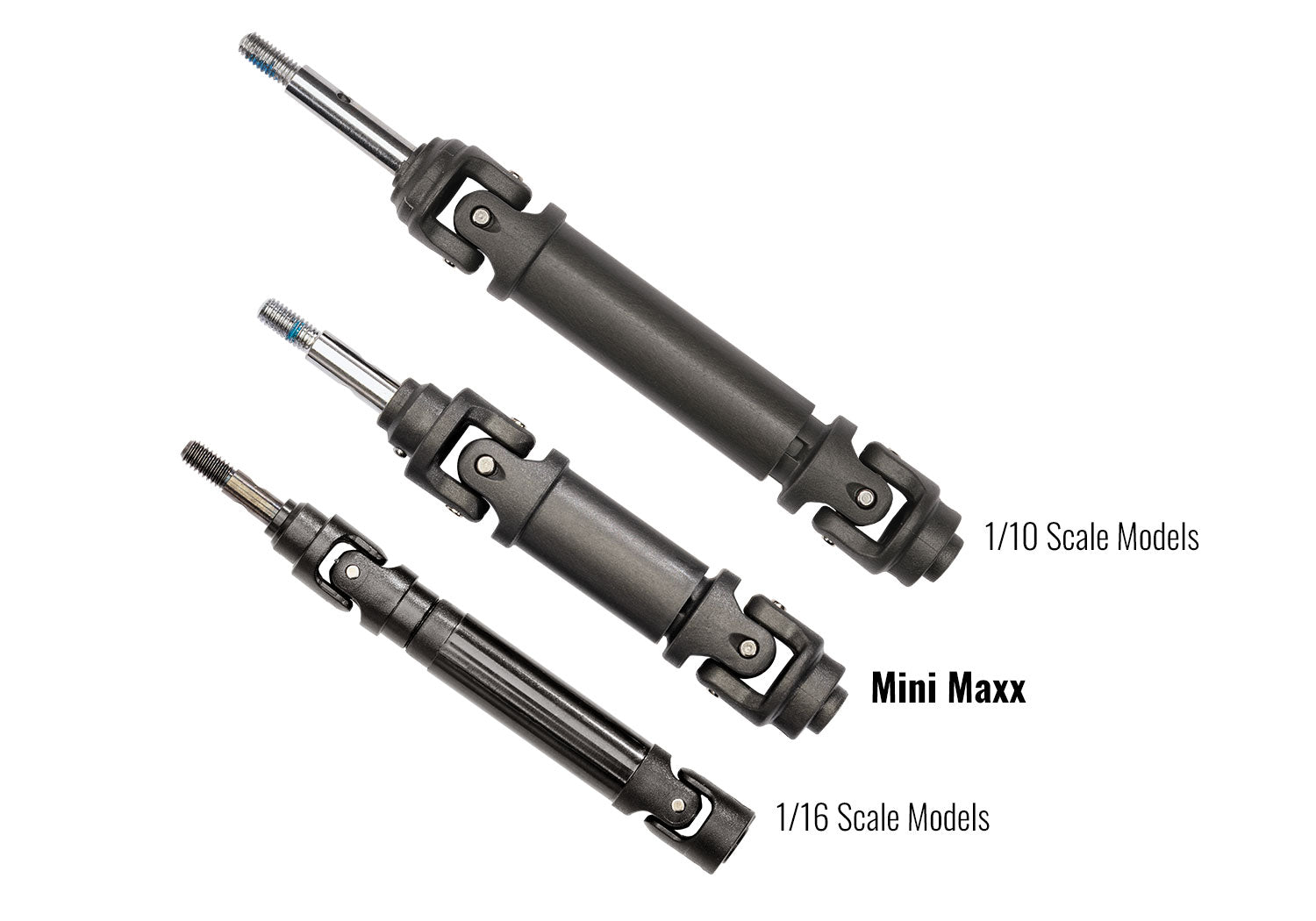

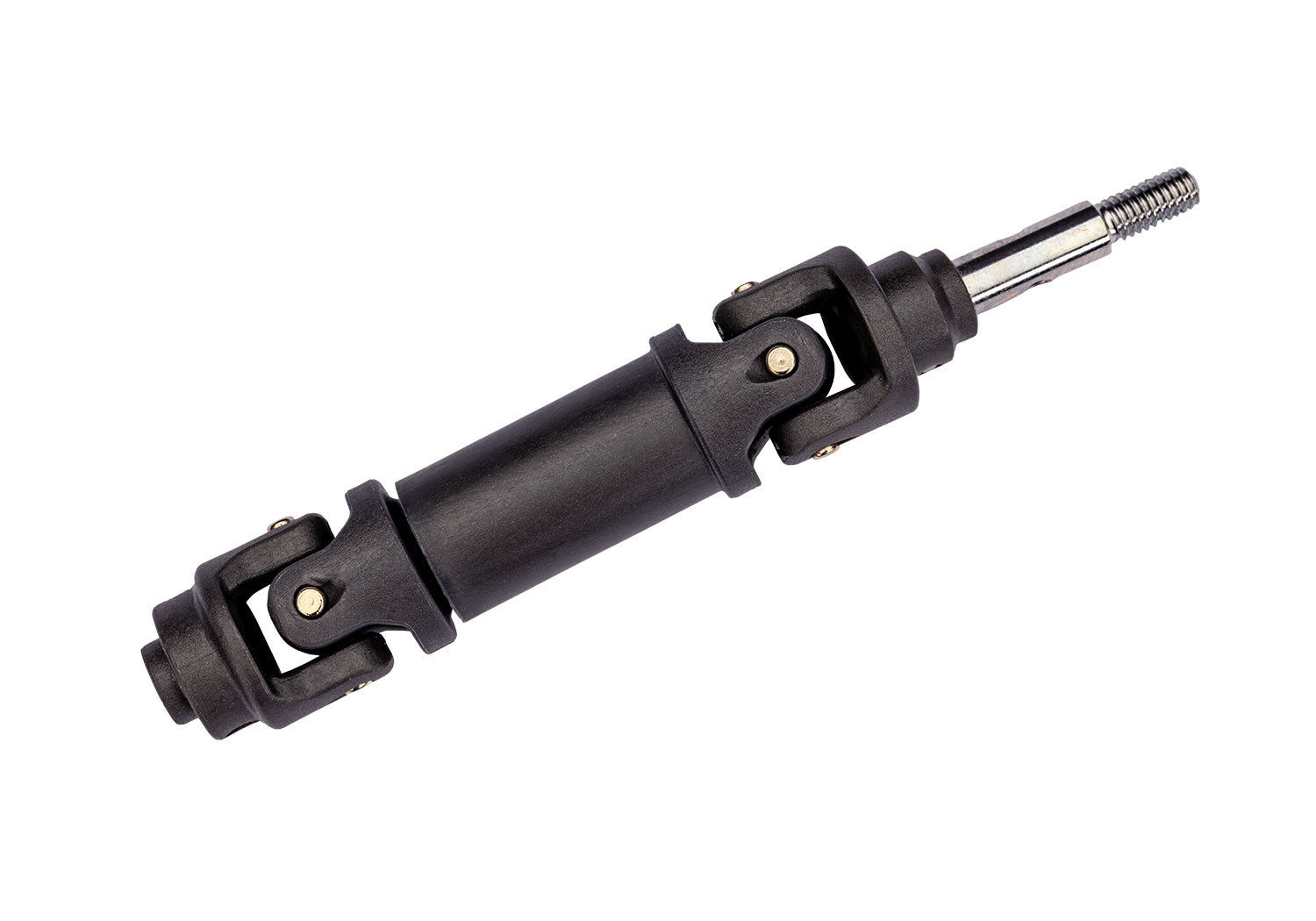

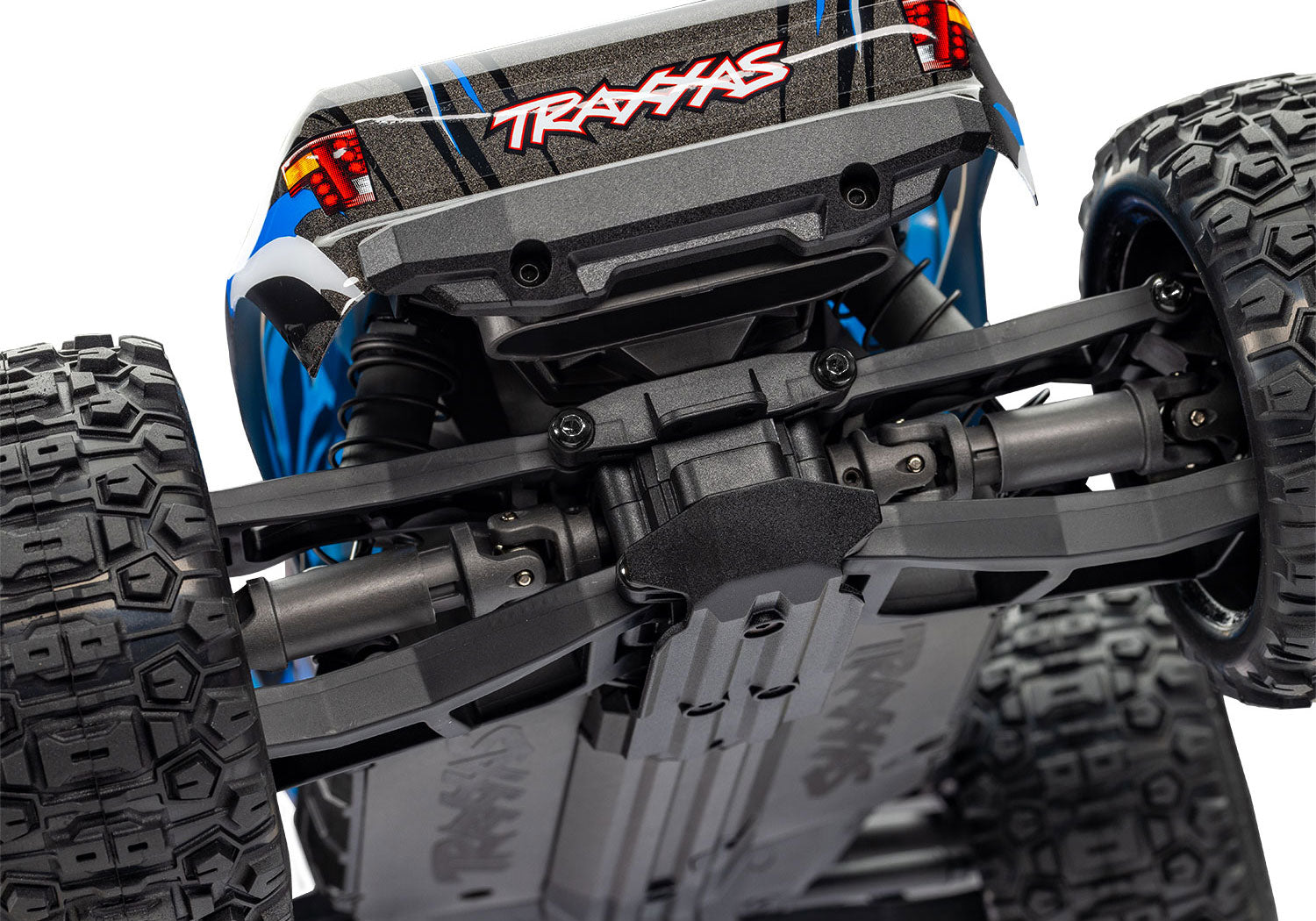

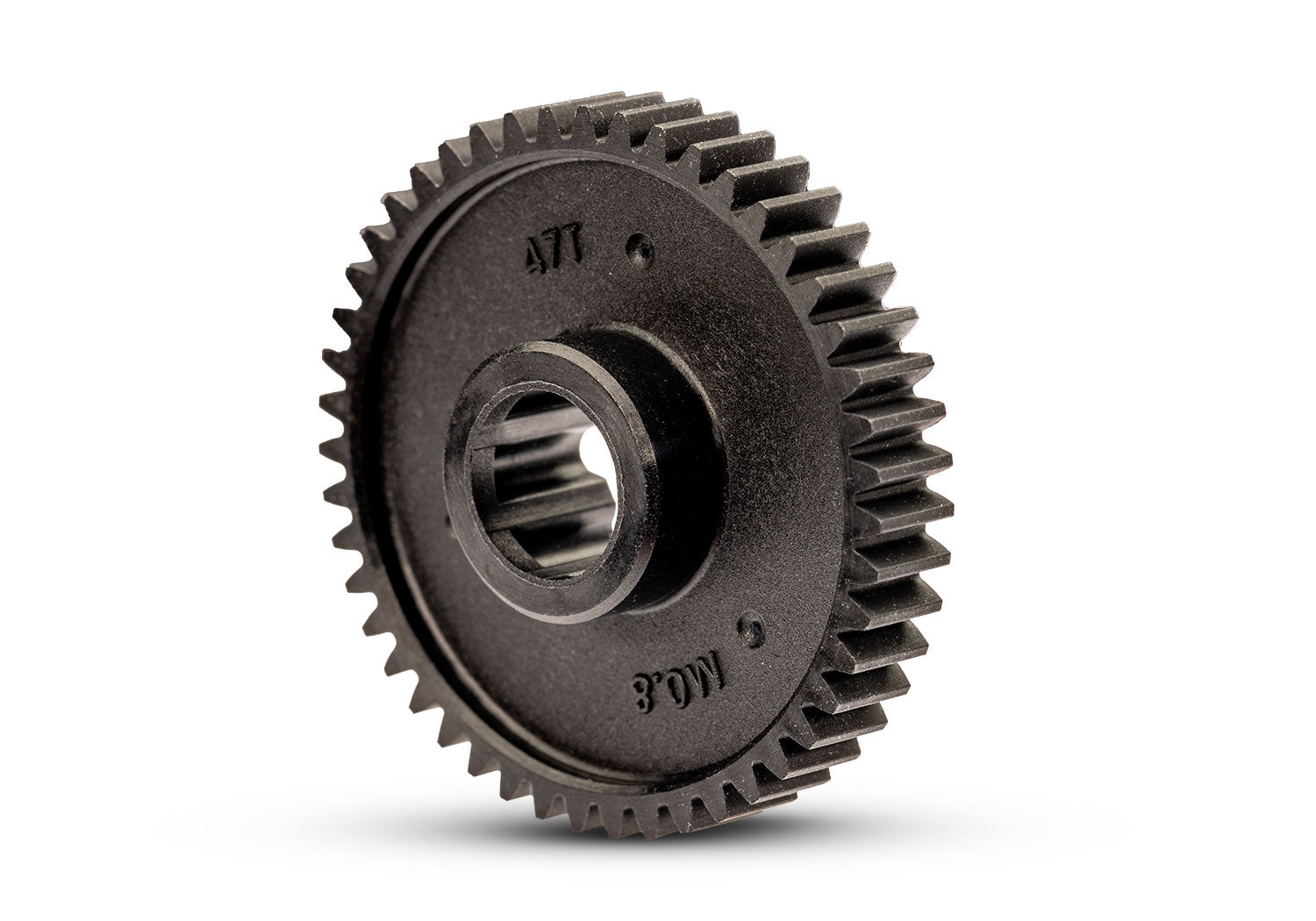

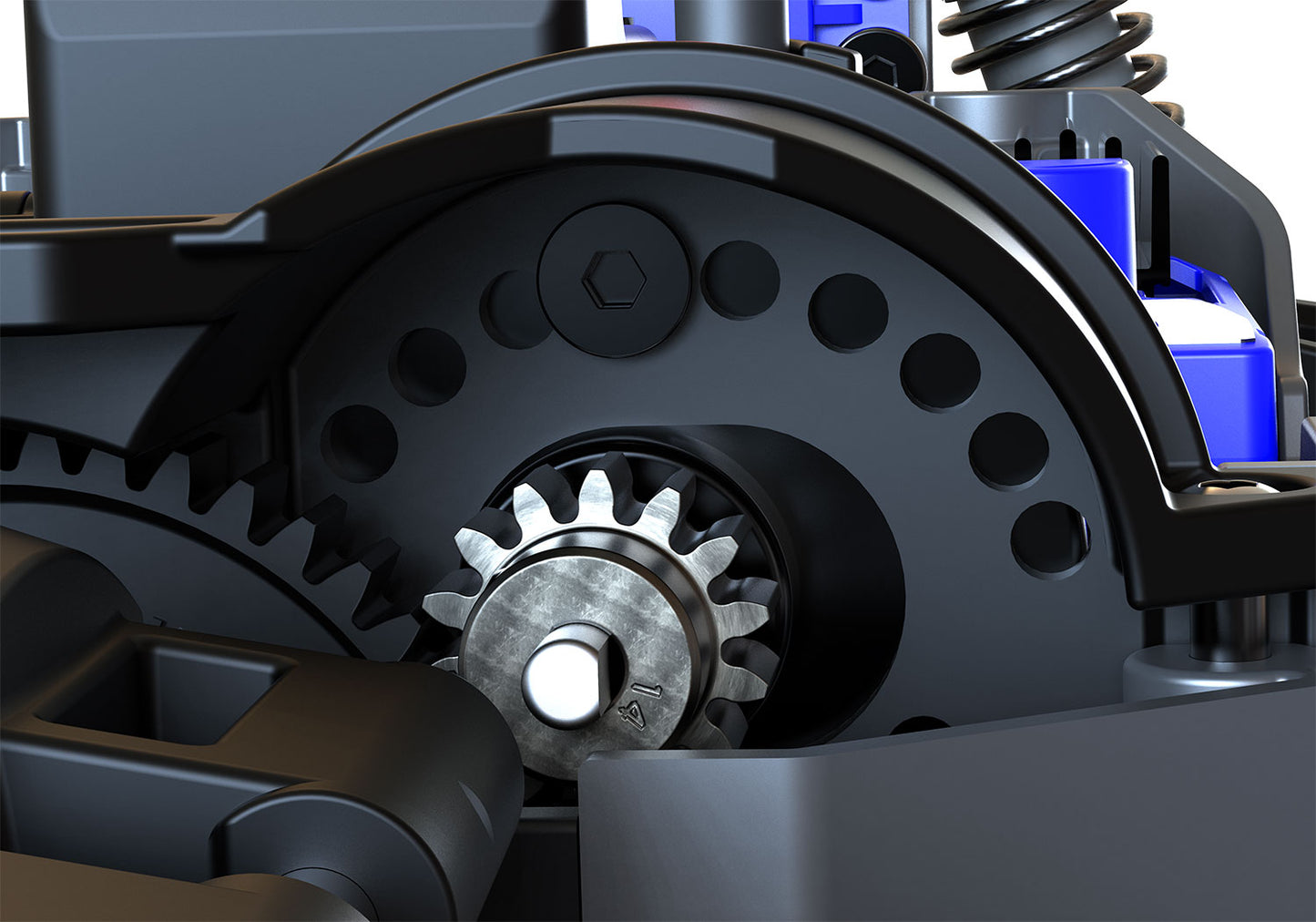

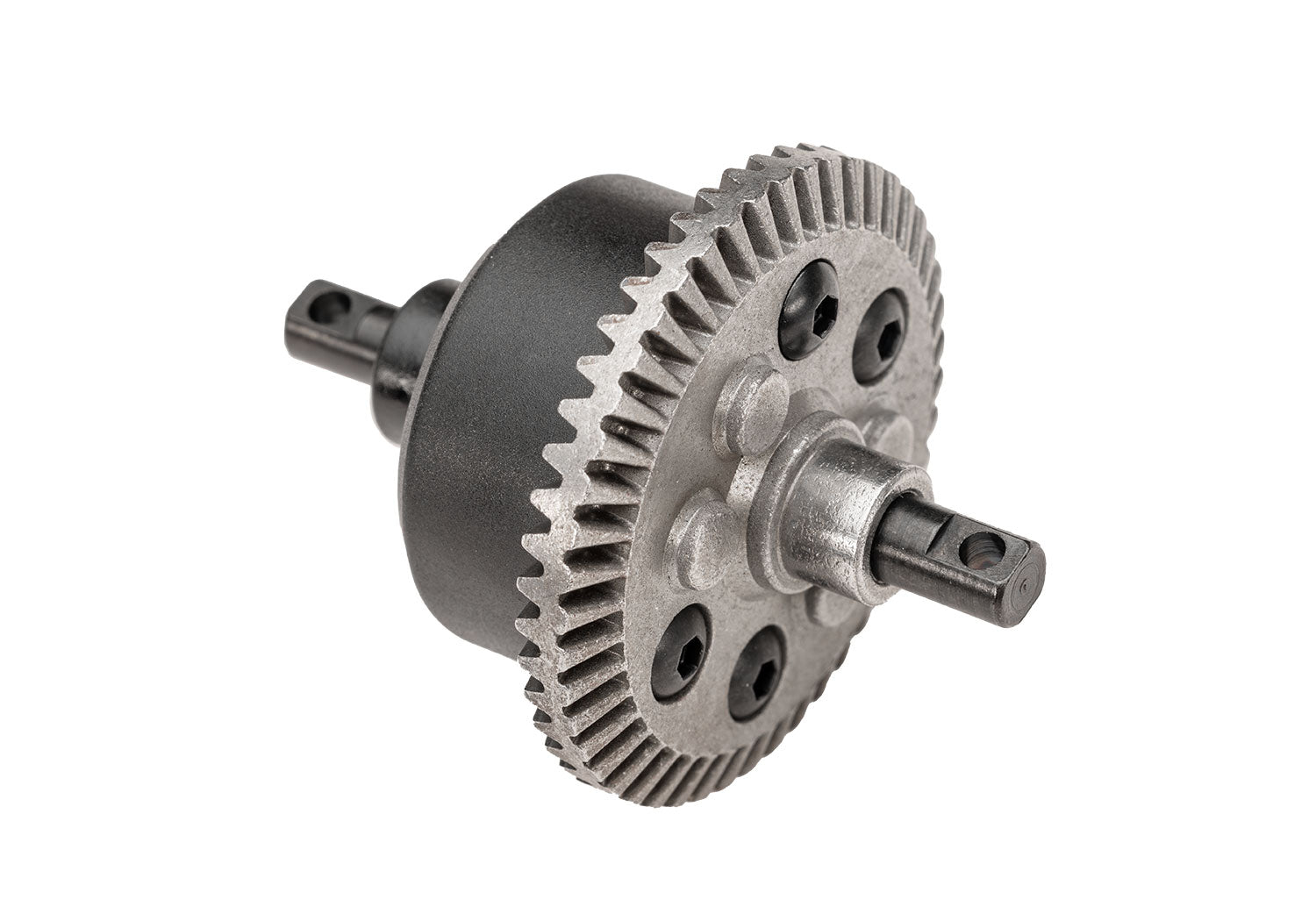

Mini Maxx is engineered to a higher standard with 1/10 scale 4X4 driveline components. Large steel- gear differentials, beefy 32-pitch gears, and heavy-duty U-joint driveshafts far exceed requirements for strength and long life.

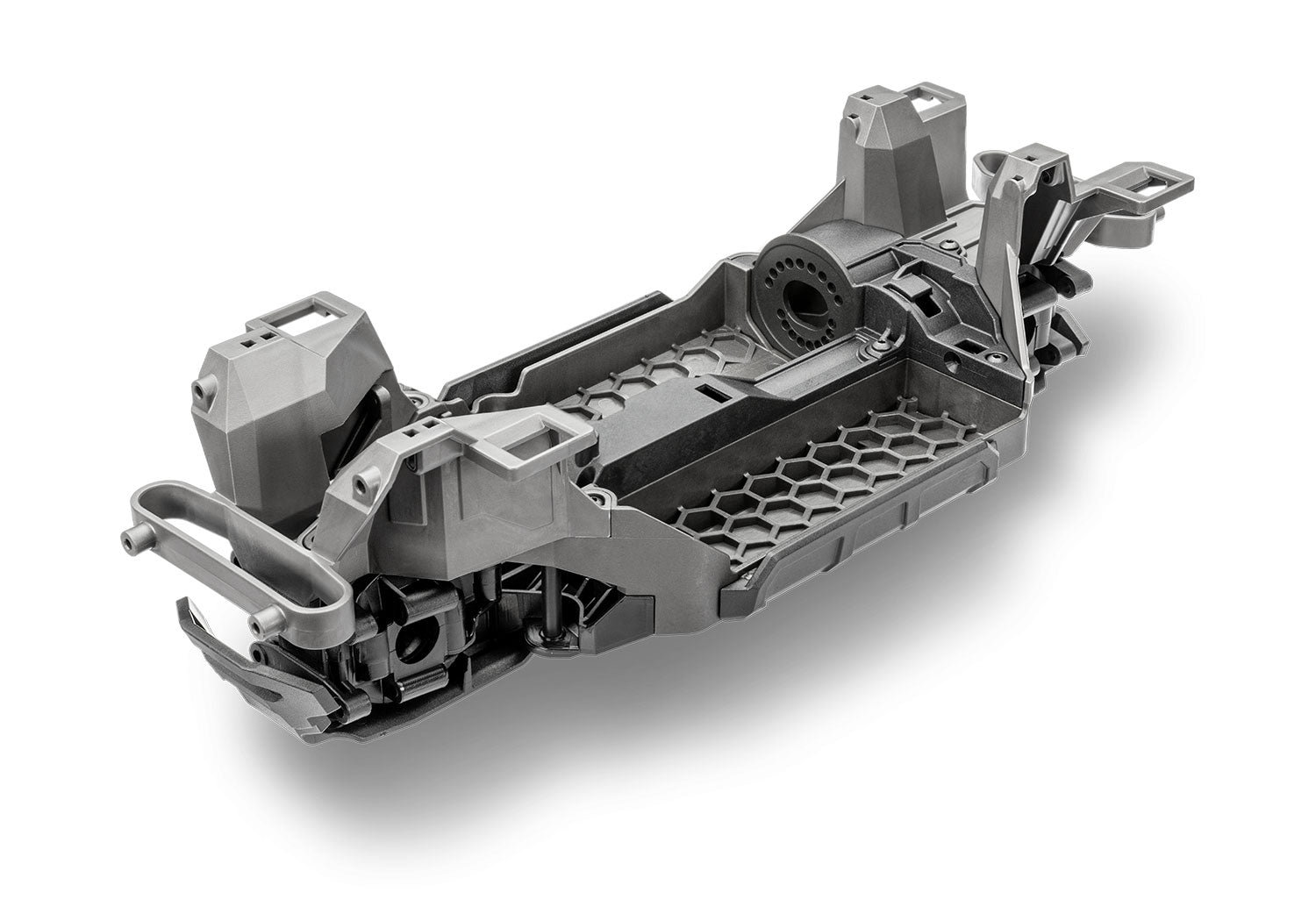

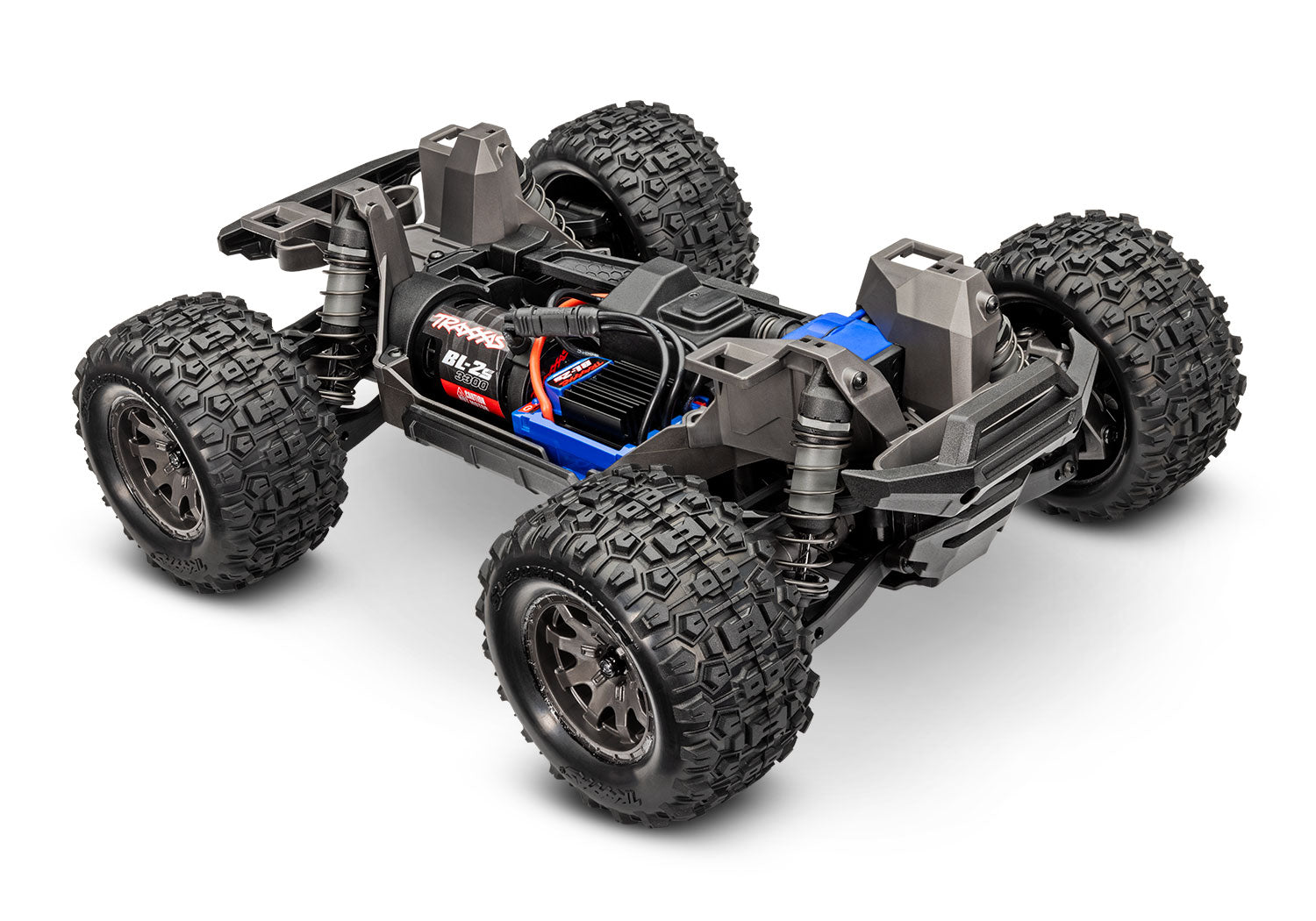

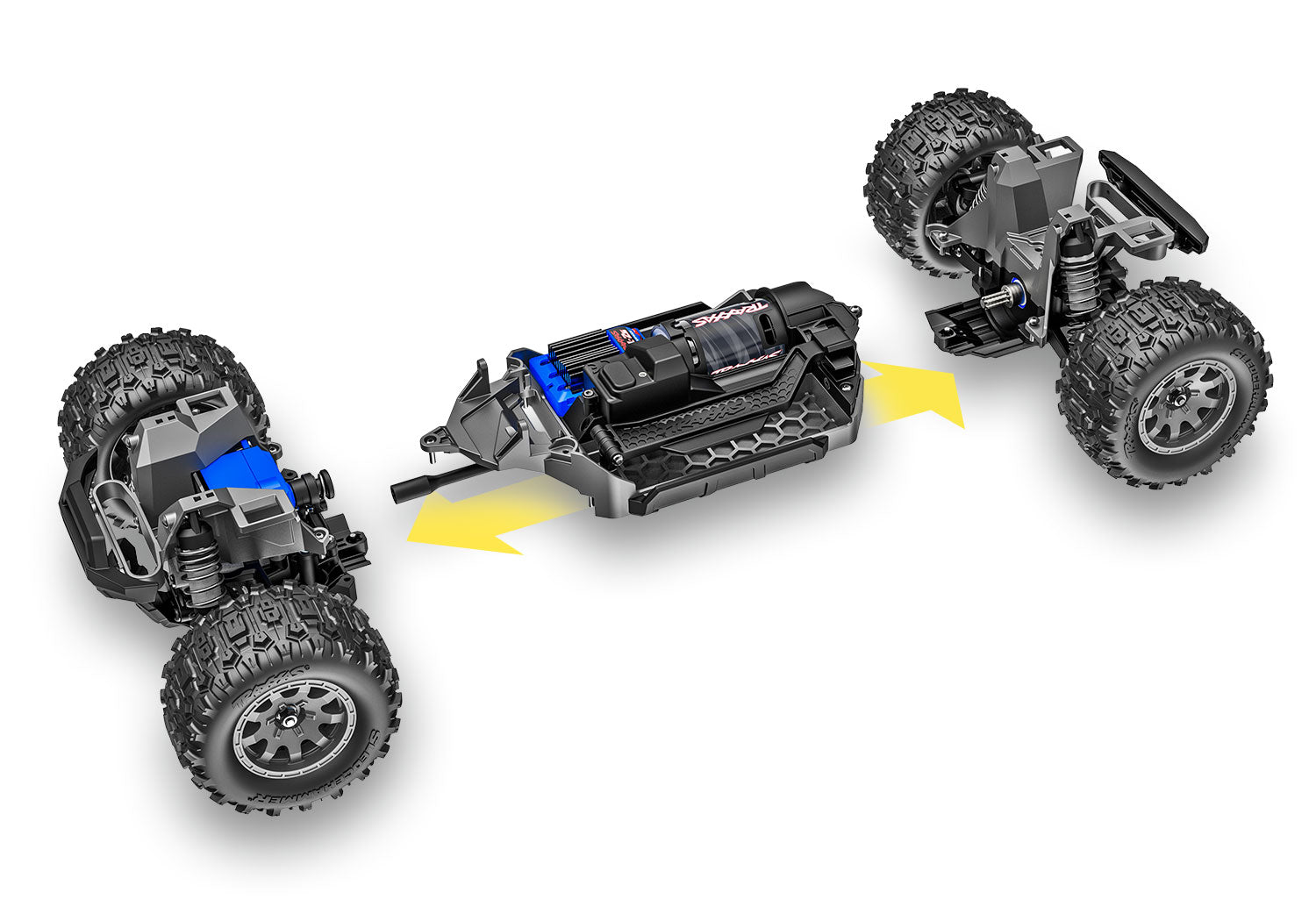

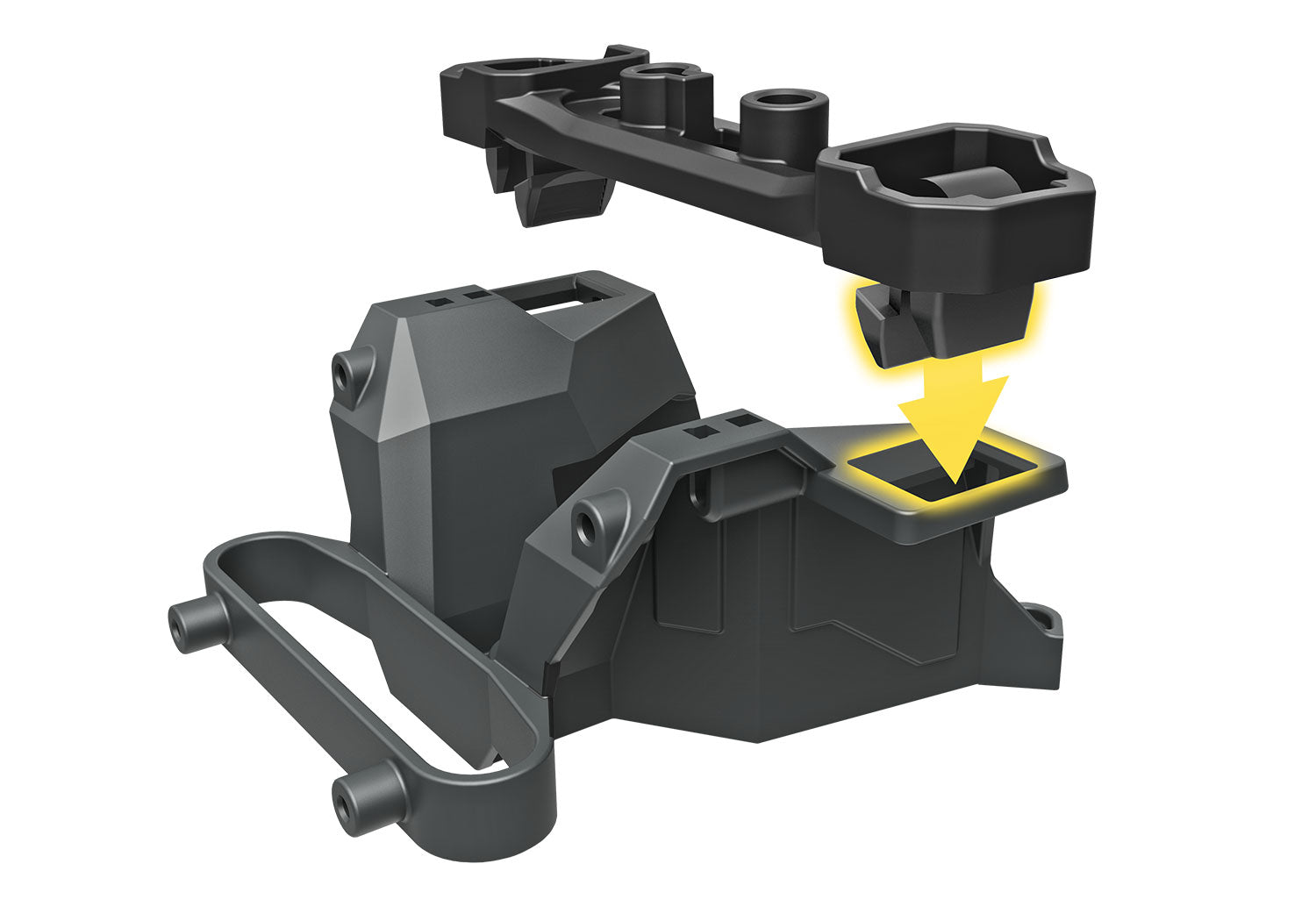

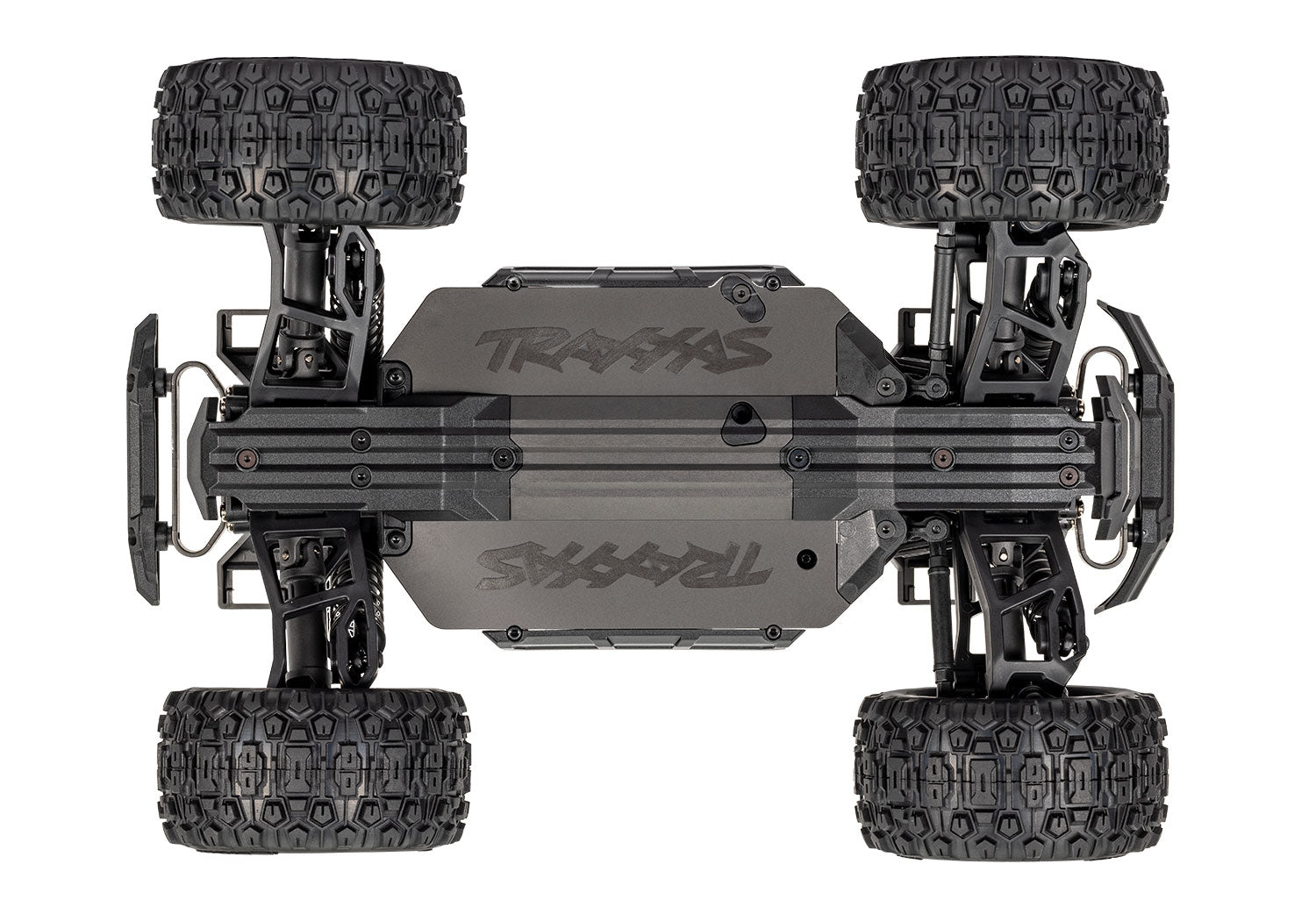

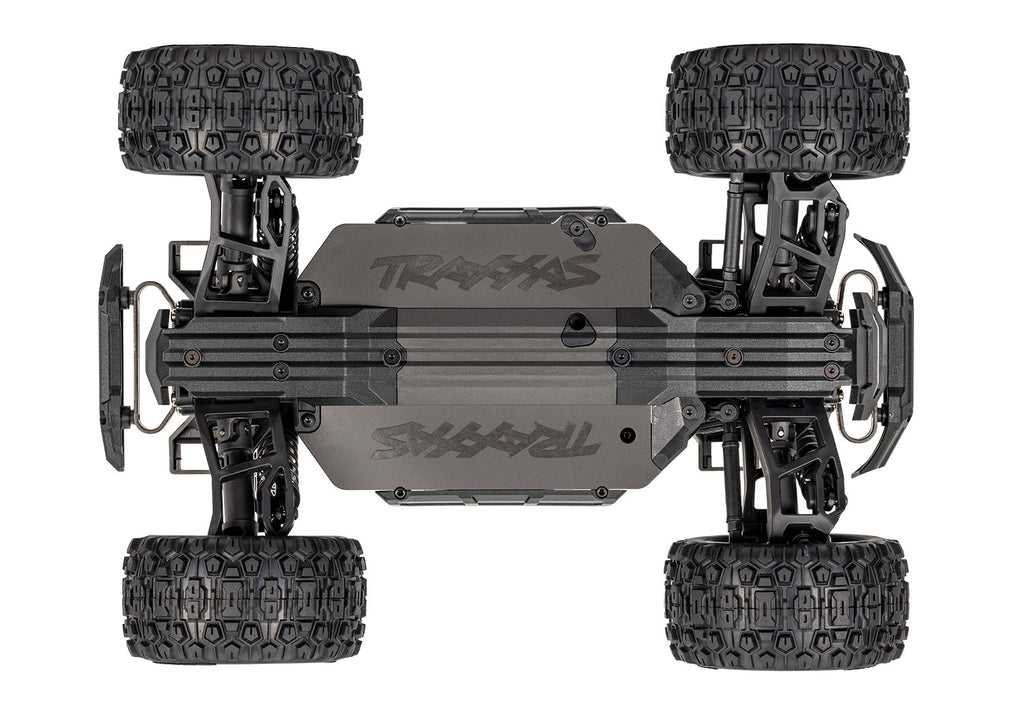

Maxx Chassis Technology

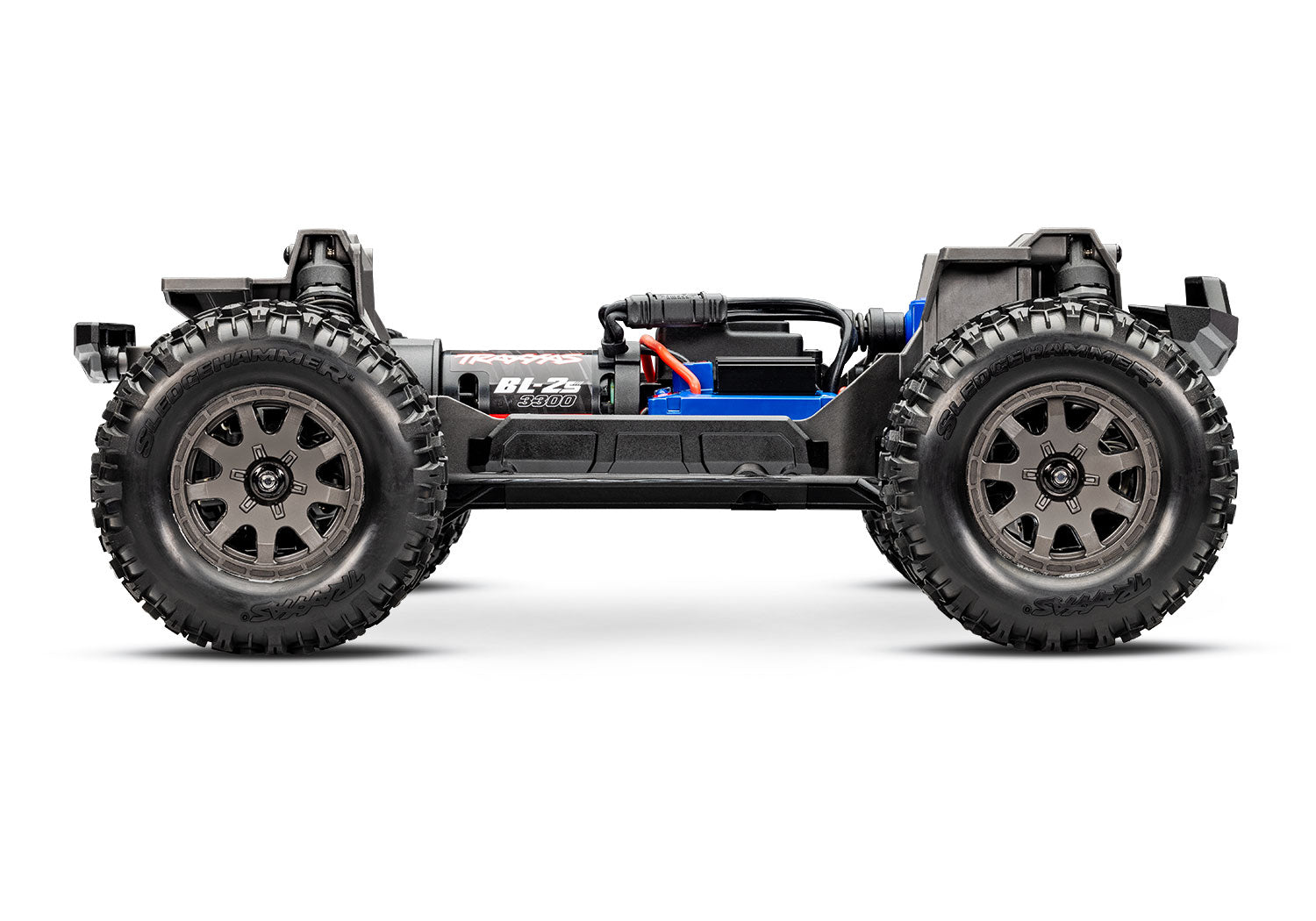

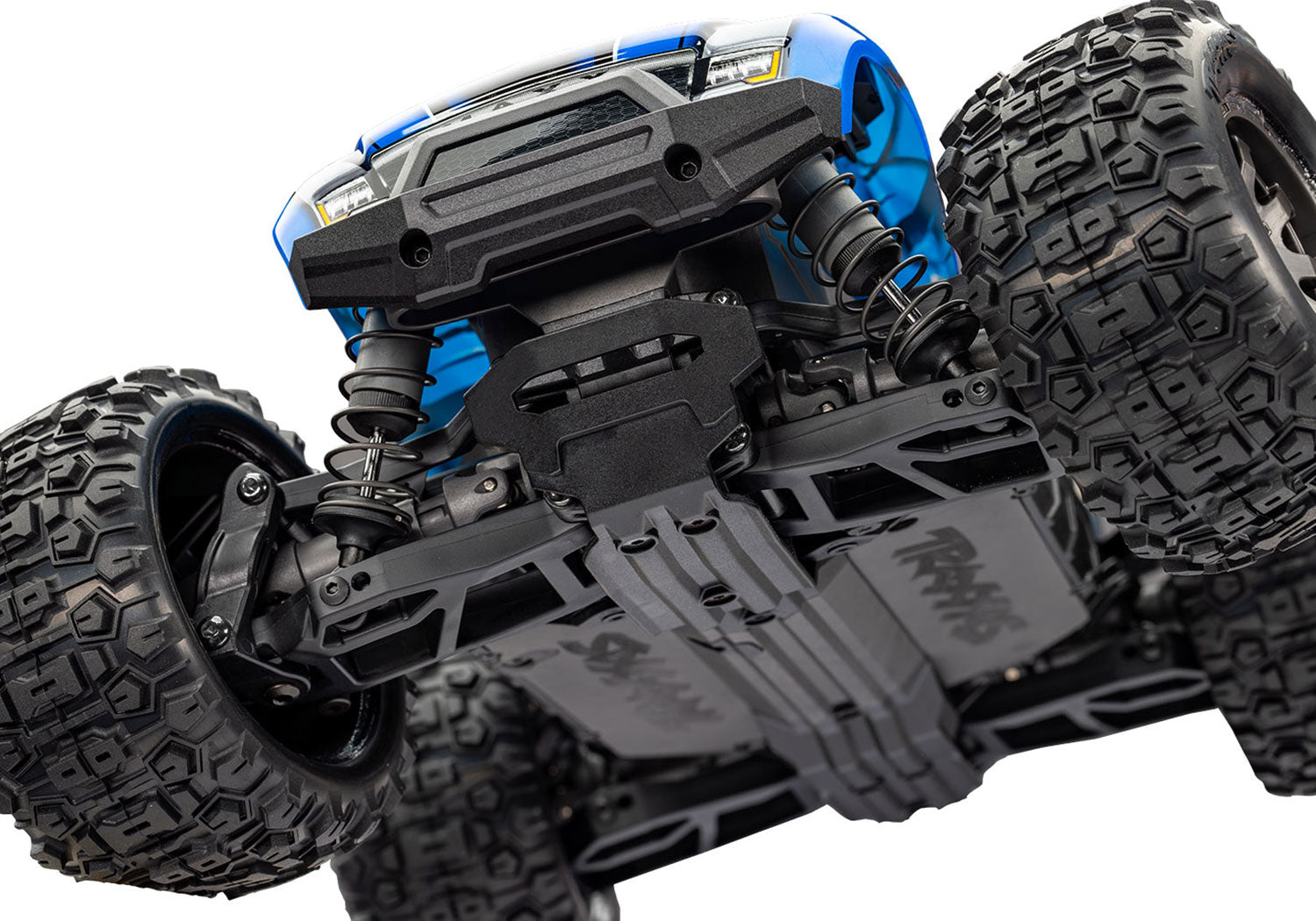

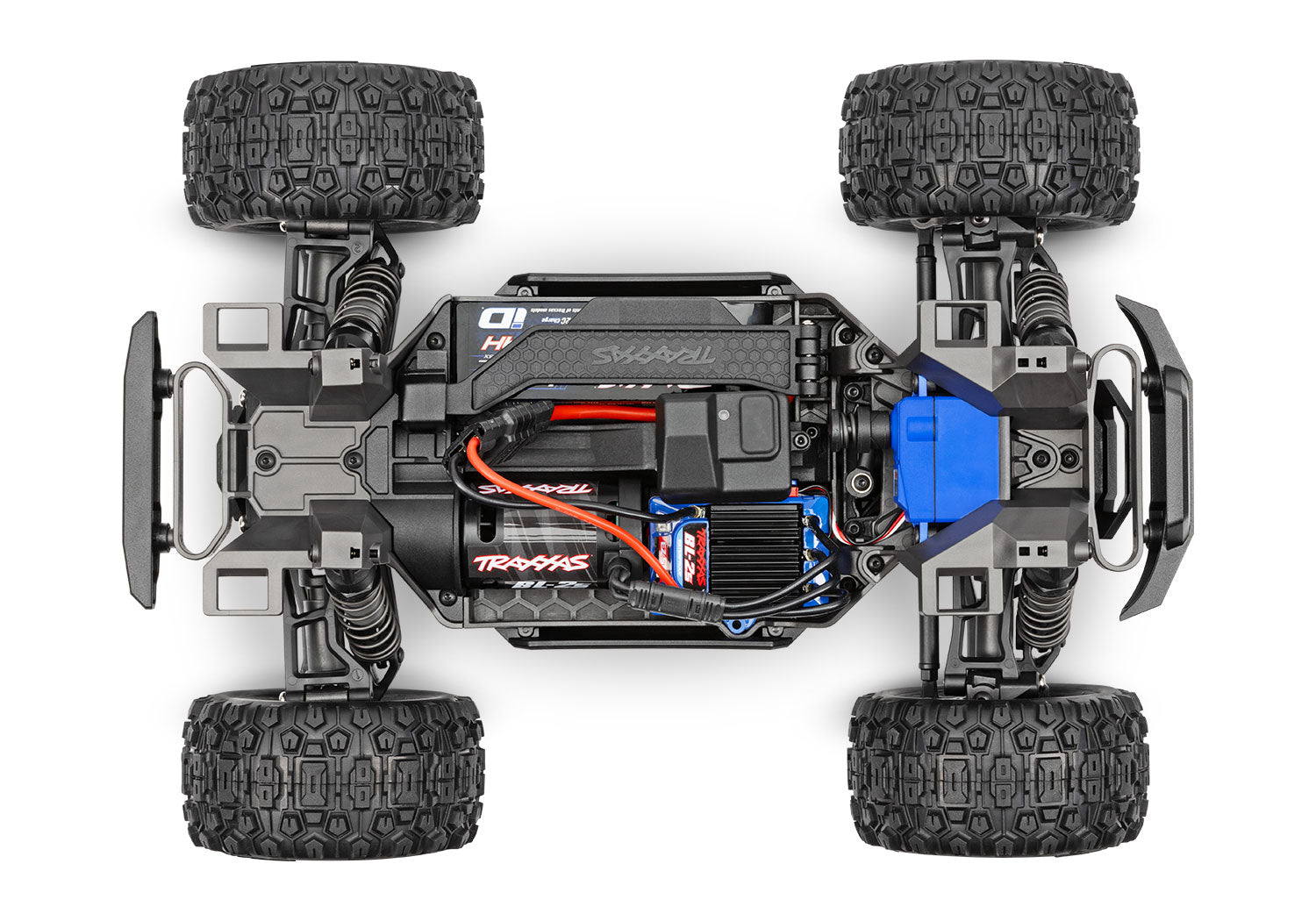

Mini Maxx fits in a backpack but it’s built to withstand all the bumps and bruises of the full-size world. Just one look at the rigid, unified structure and you know it’s a Maxx. A Maxx chassis is always engineered for ultimate strength, and Mini Maxx packs it all up in a supremely compact design.

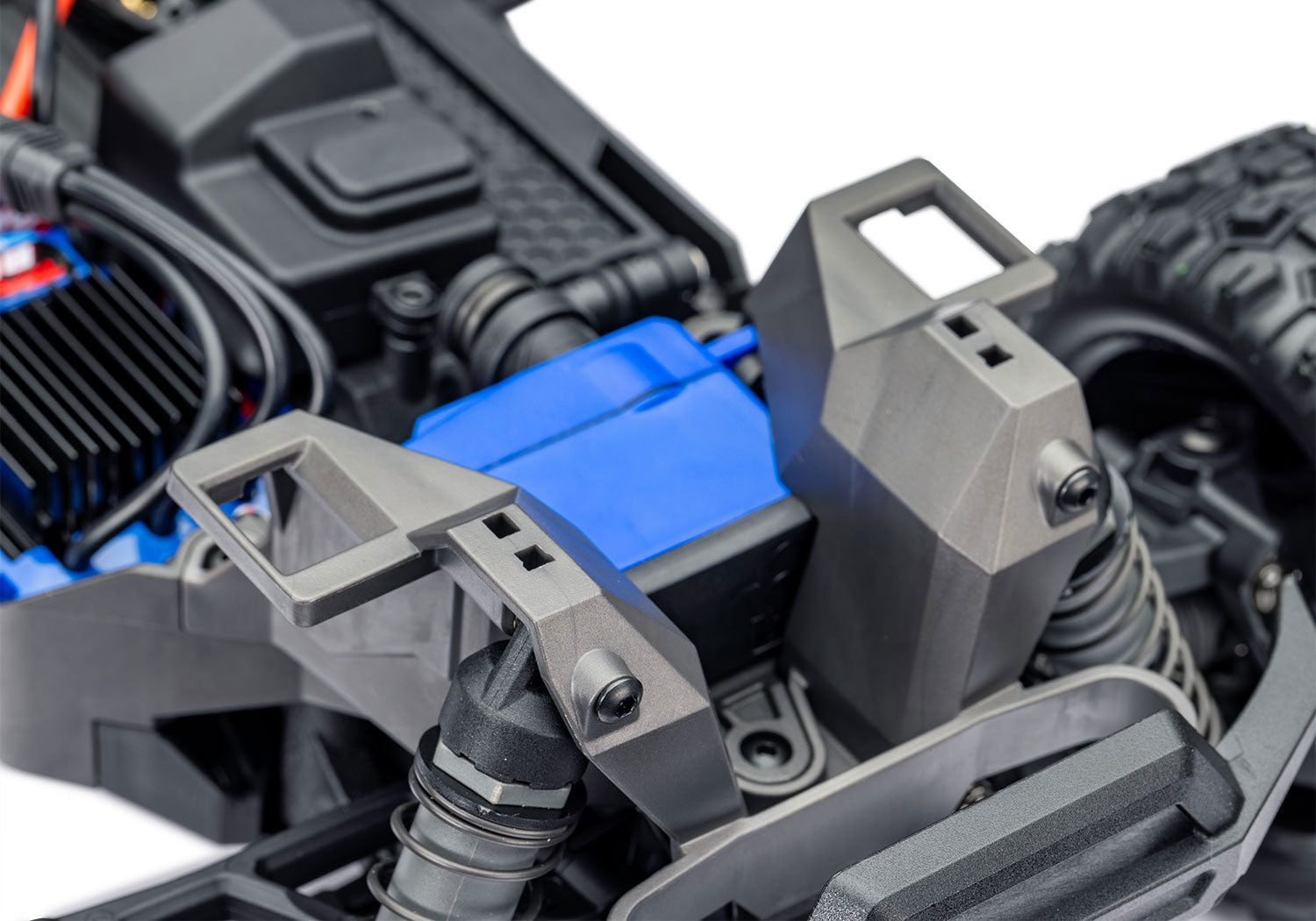

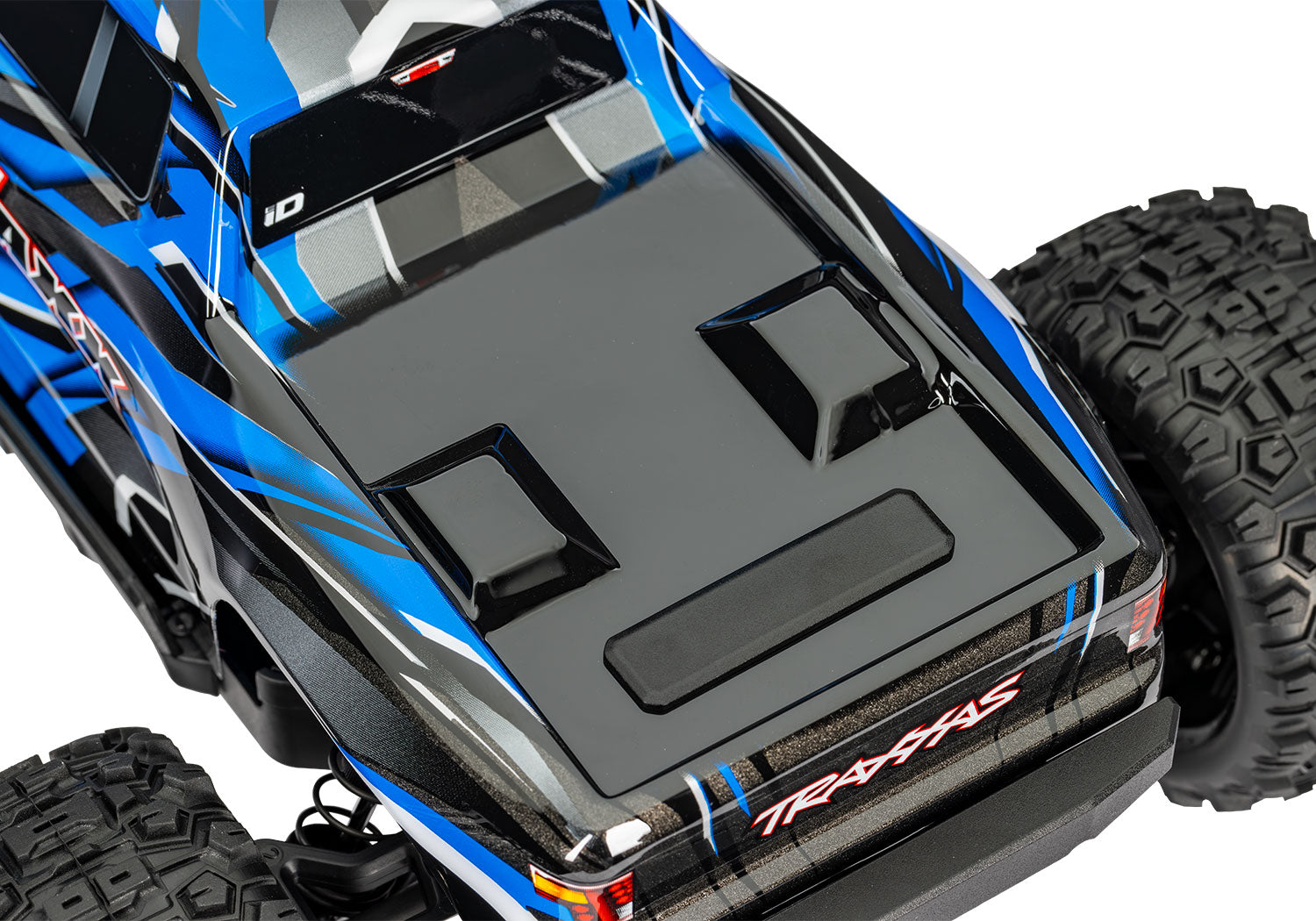

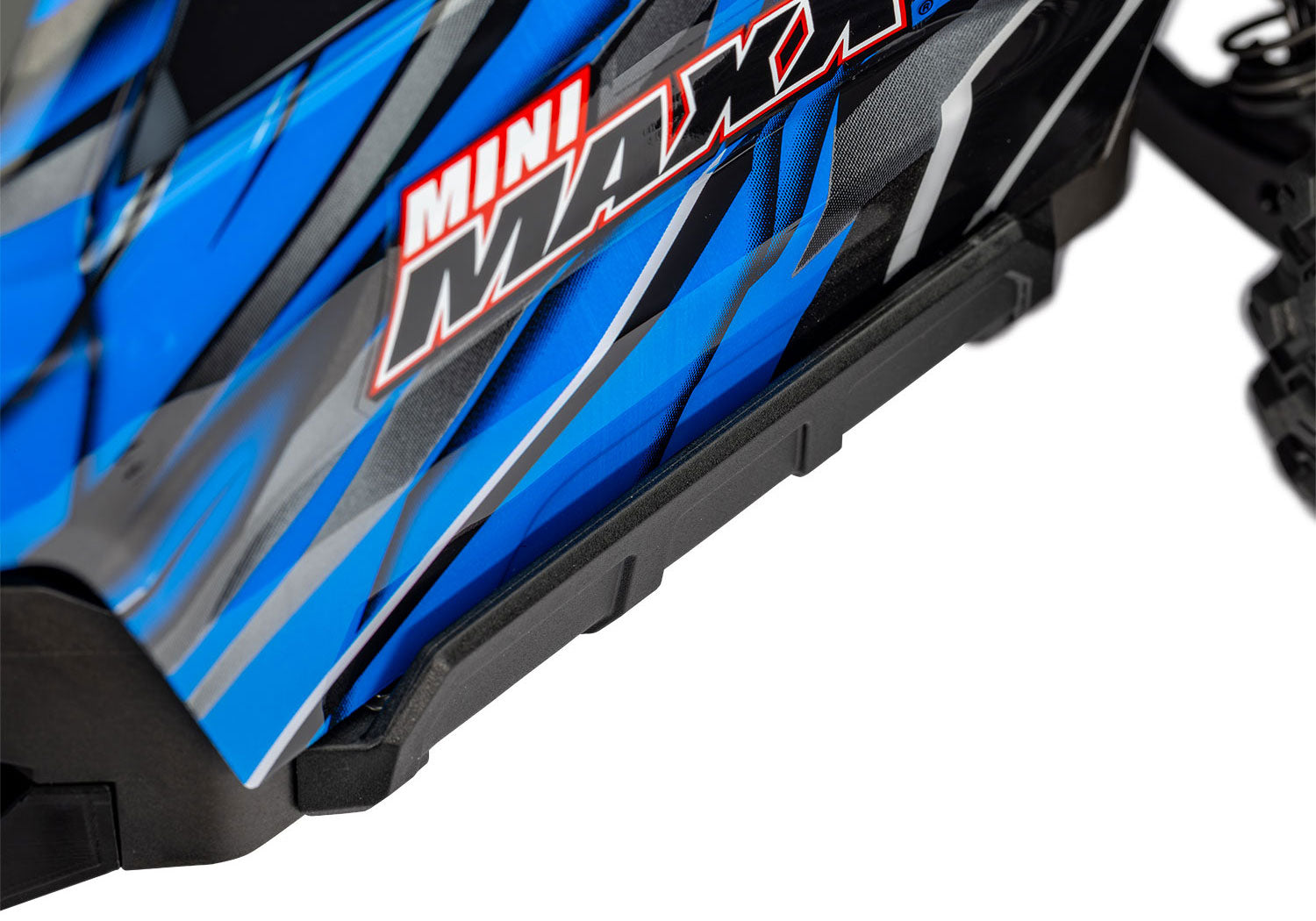

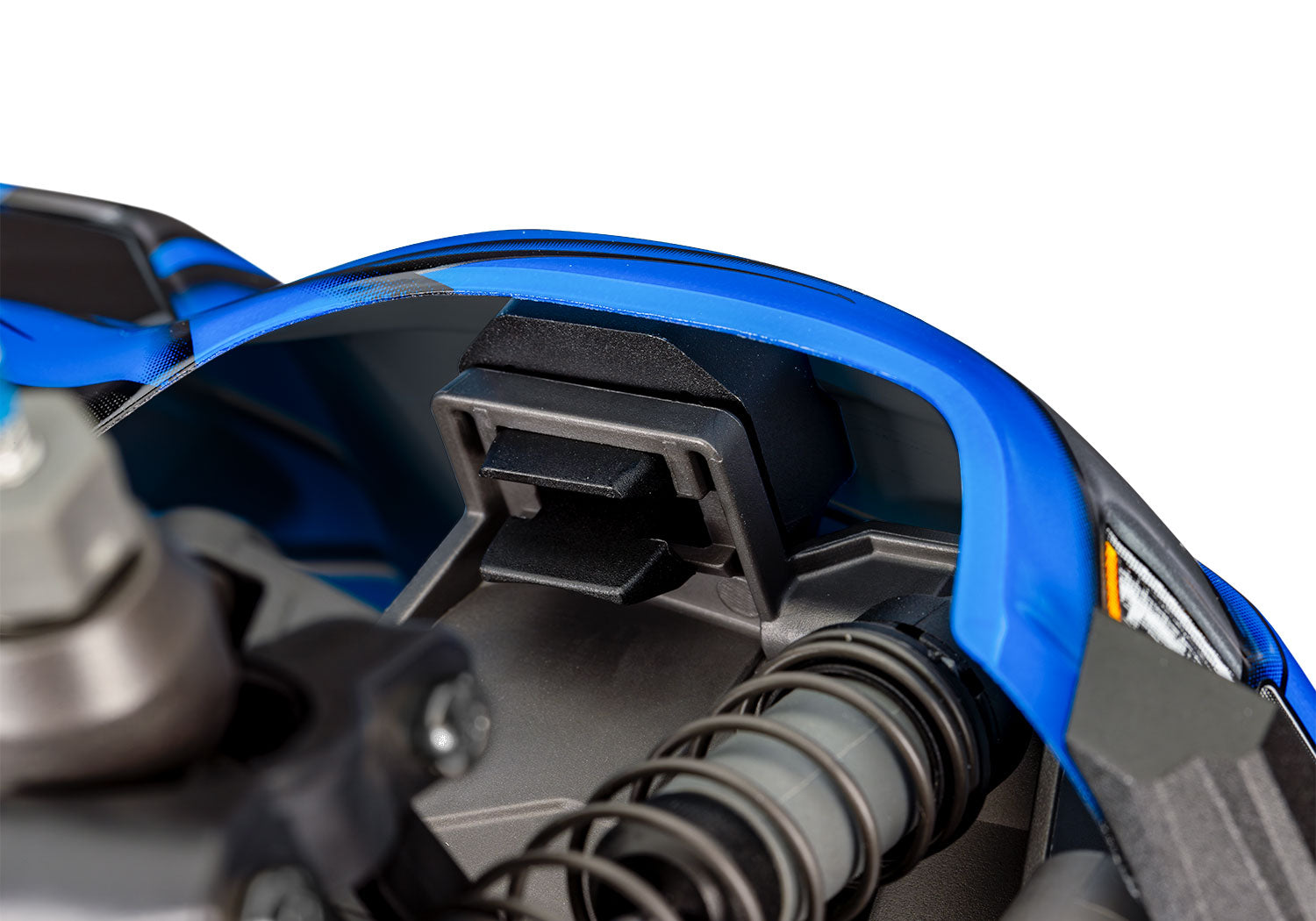

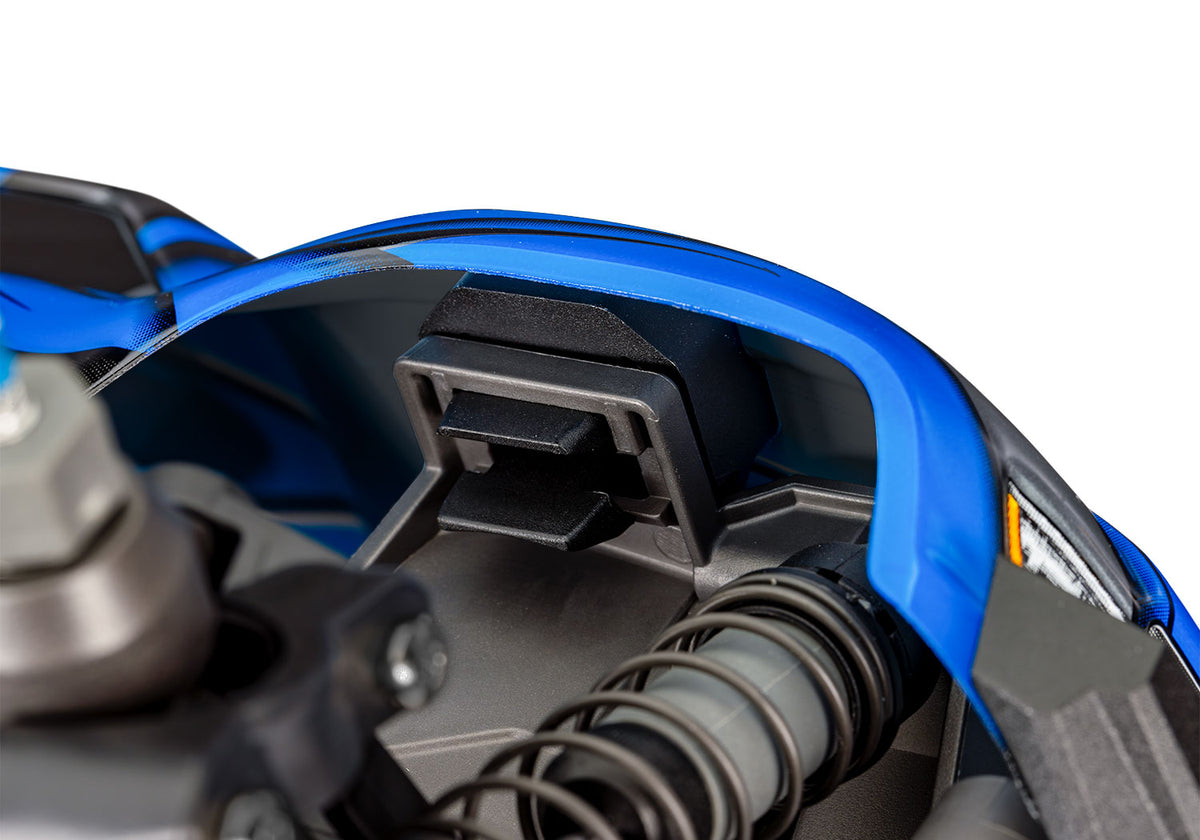

Clipless Body

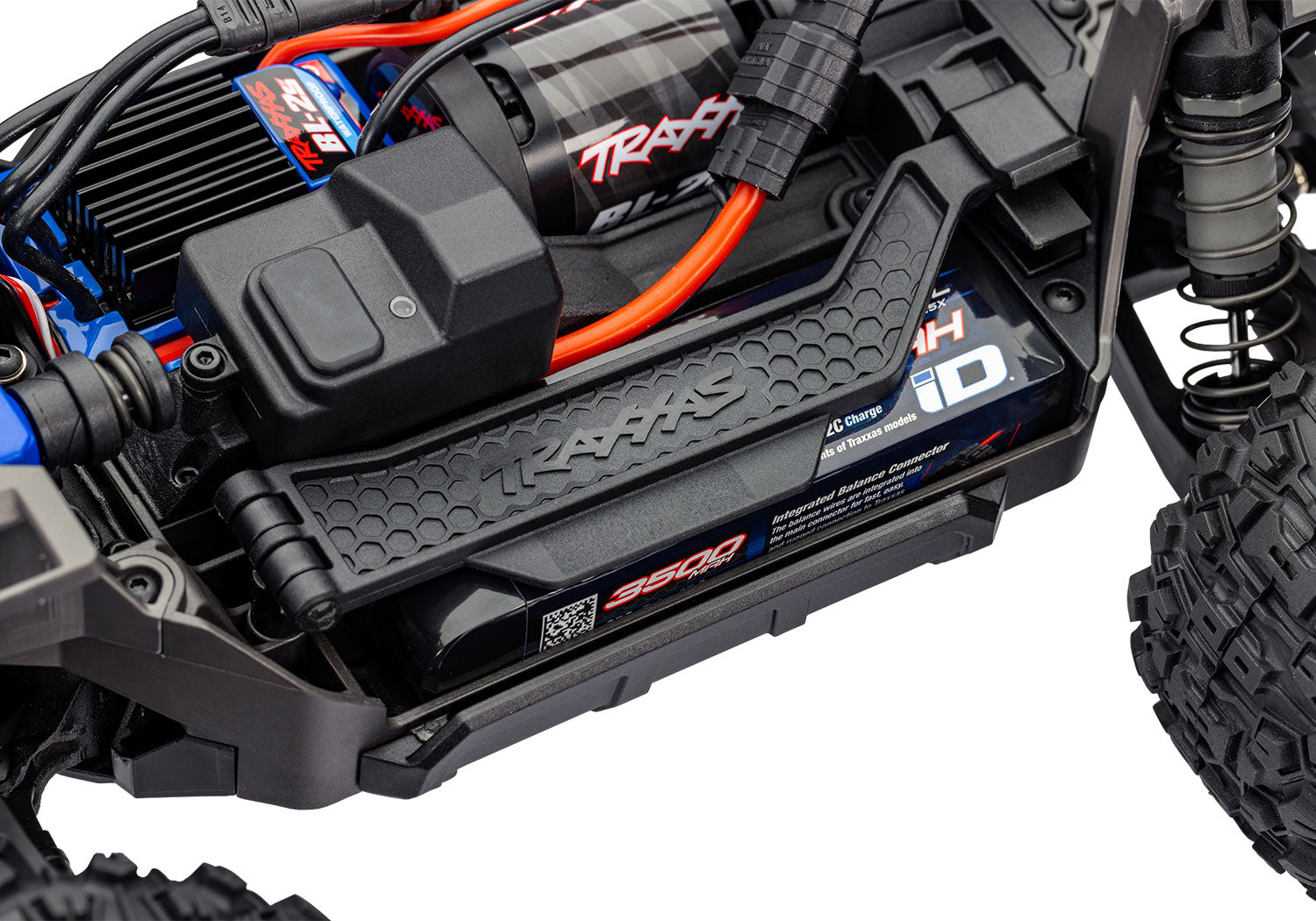

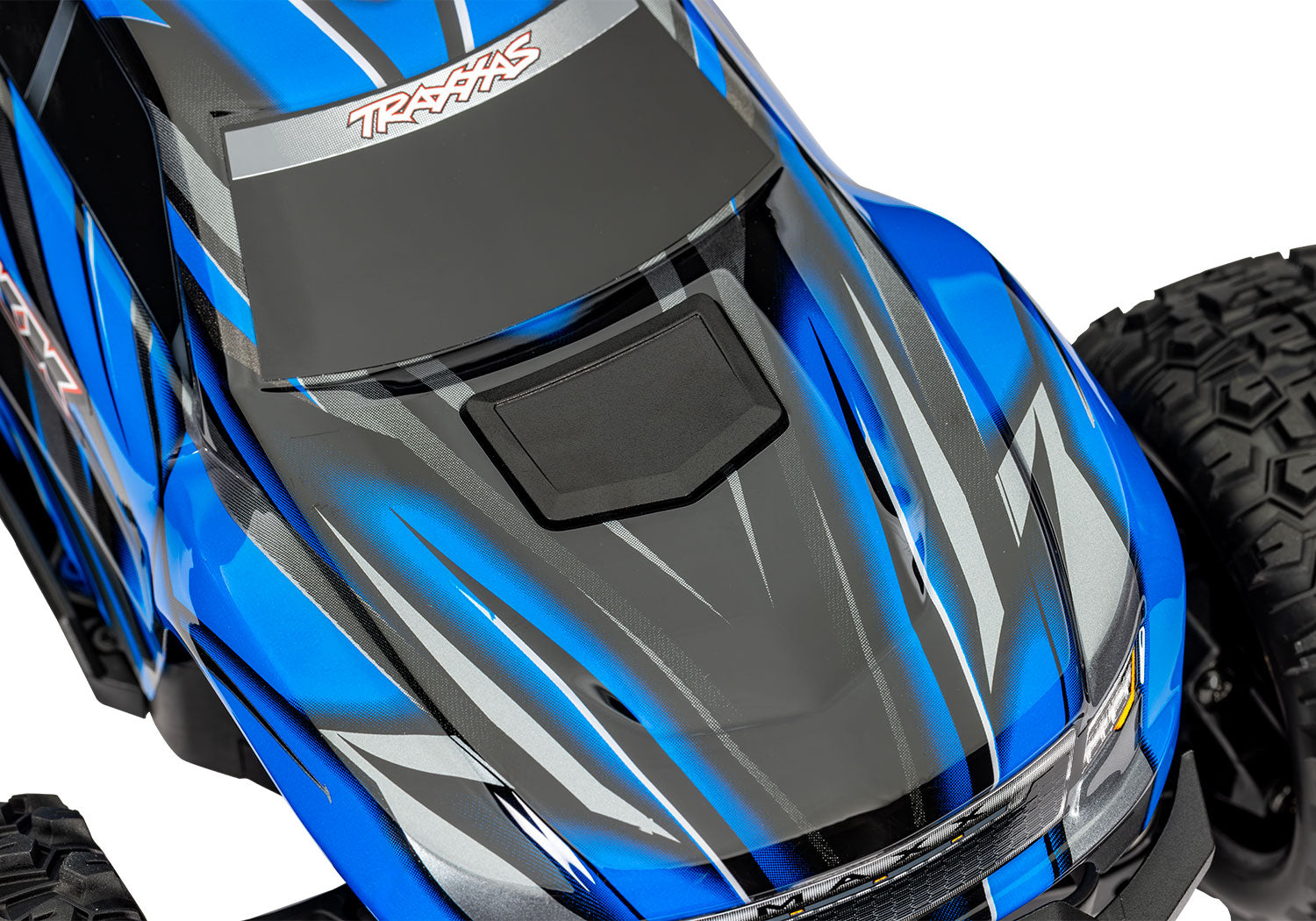

Mini Maxx’s innovative clipless body is rock solid and easy to use. Just drop the body onto the chassis and snap it into place for a secure hold. When it’s time to change the battery, depress the tabs under the wheel wells and lift to access the chassis in just seconds. Nothing else is faster or latches more securely.

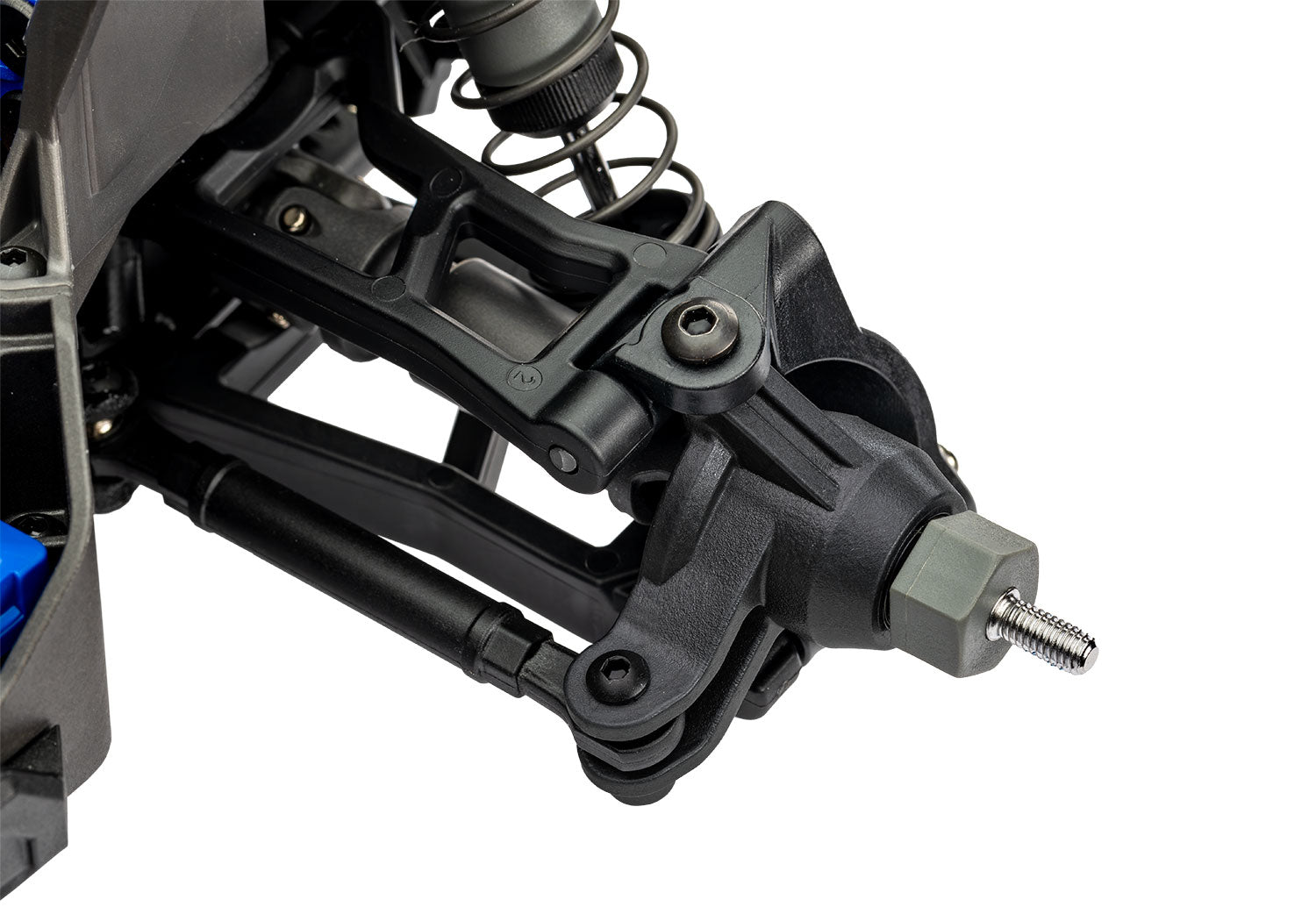

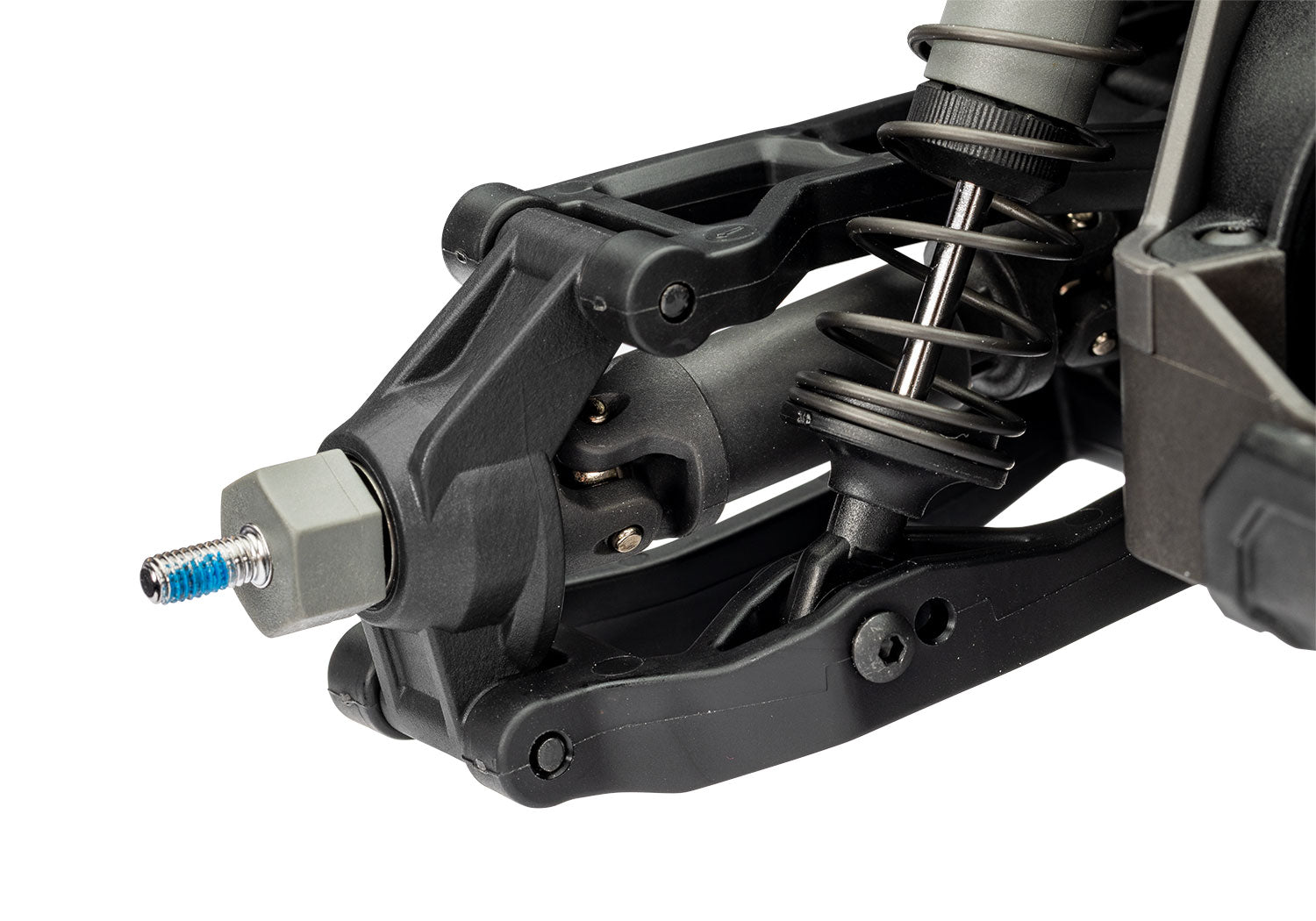

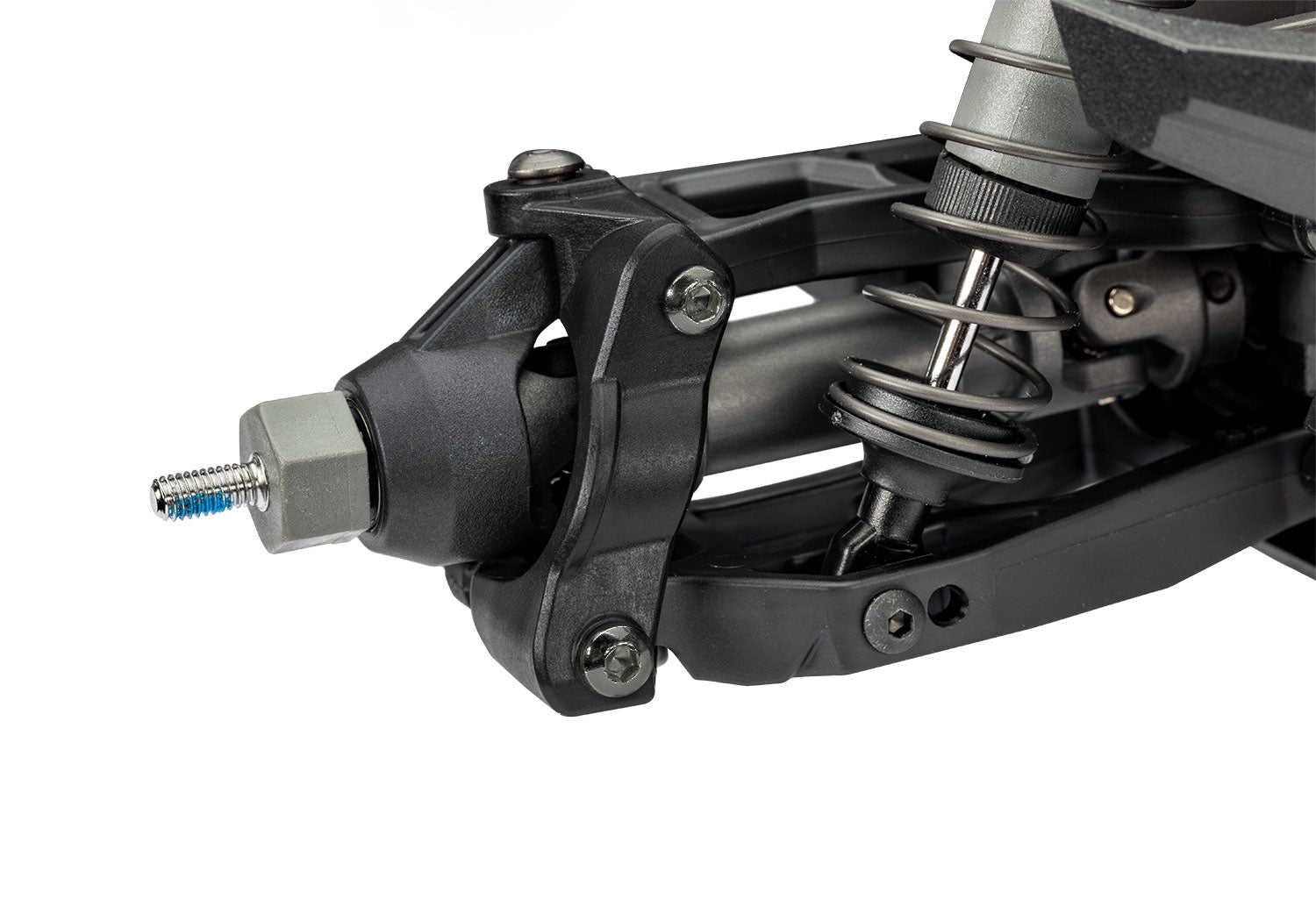

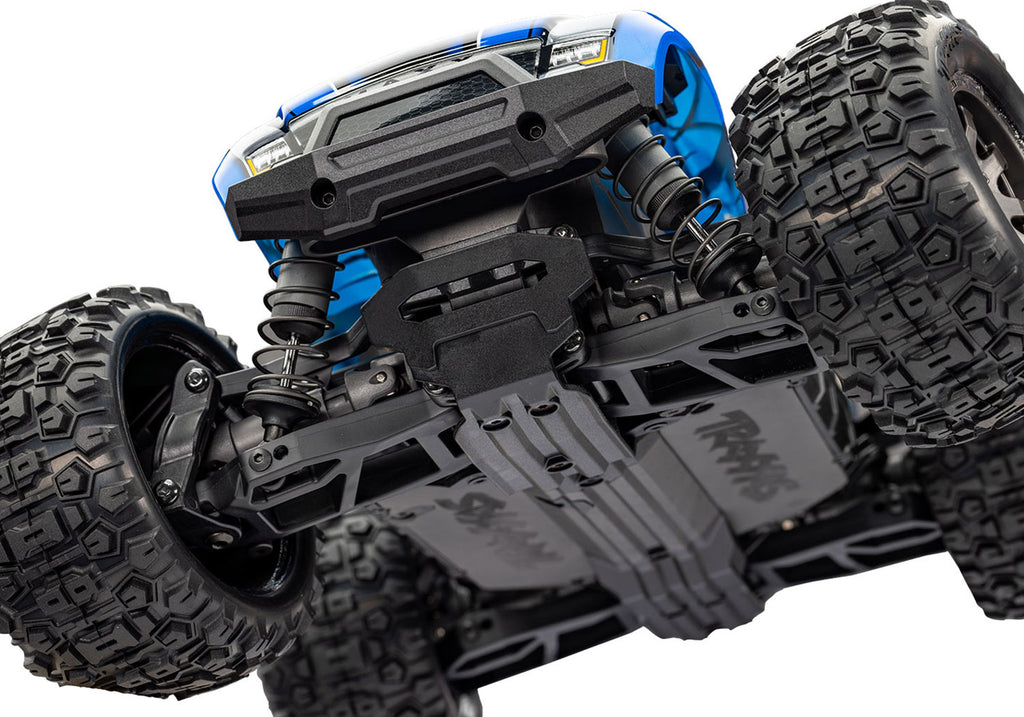

Long-Travel Suspension

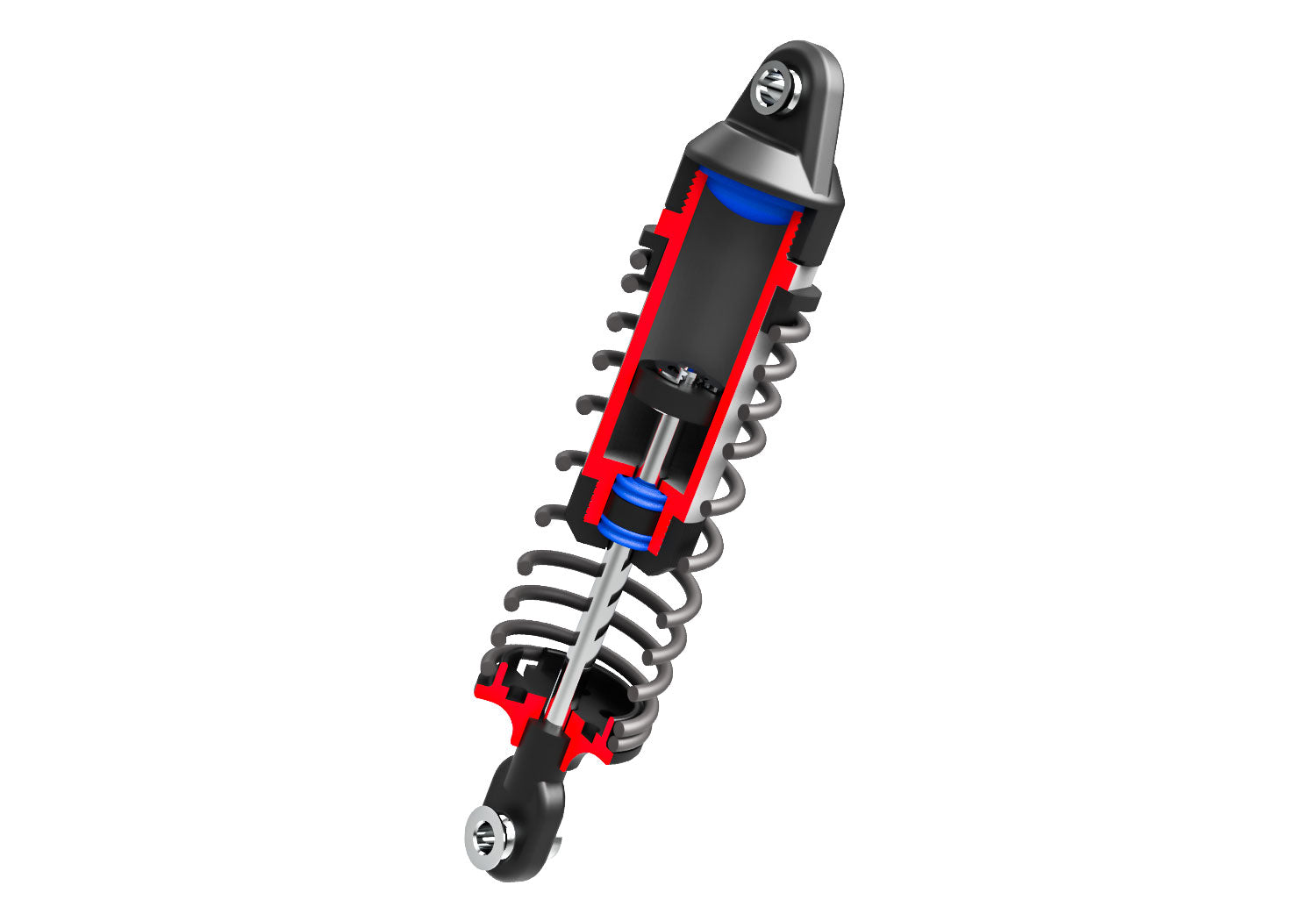

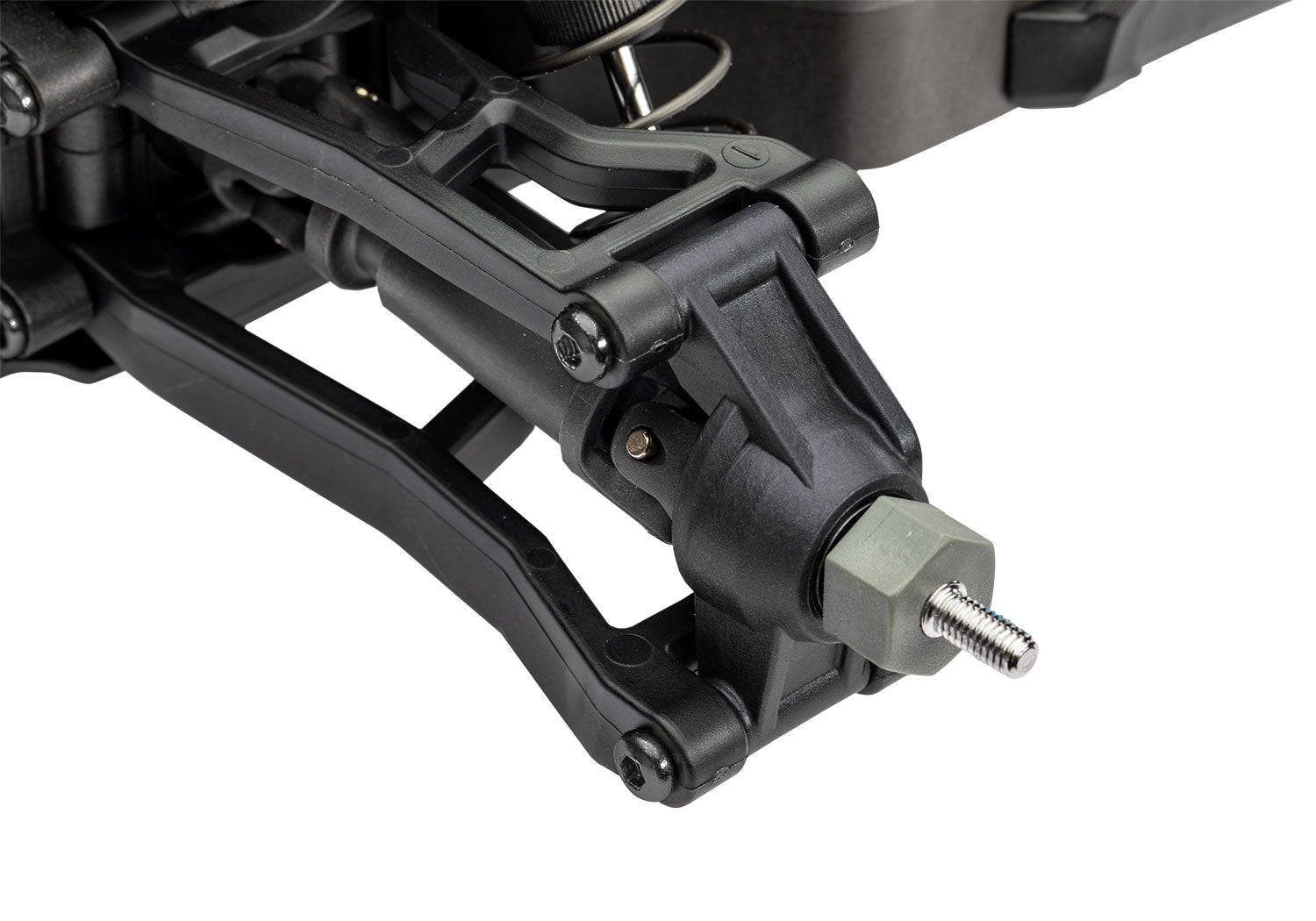

1/10 scale Ultra Shocks™ and a long-travel independent suspension deliver WideMaxx® handling and performance in a compact package. Mini Maxx’s beefy long travel suspension delivers superior strength and refined damping control to maintain composure over the roughest terrain.
Features:
- 30+ mph top speed
- BL-2s™ Brushless Motor
- Battery and Charger Included
- TQ™ 2.4 GHz Transmitter
- Clipless Body Mount System
- 1/10 Scale 4X4 Drivetrain
- Modular Composite Chassis
- Easy Battery Access

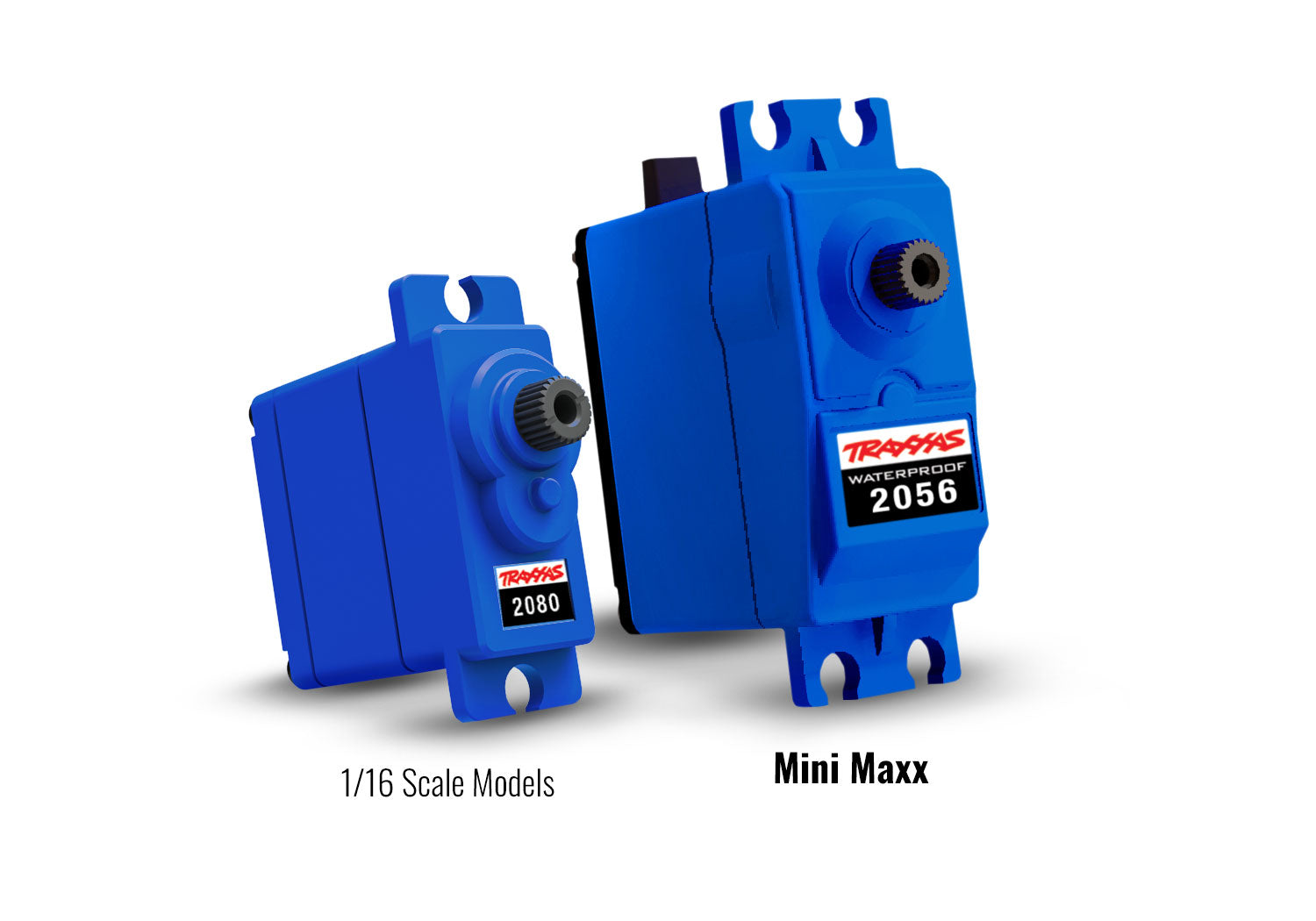

- 1/10 scale 2056 waterproof high-torque servo

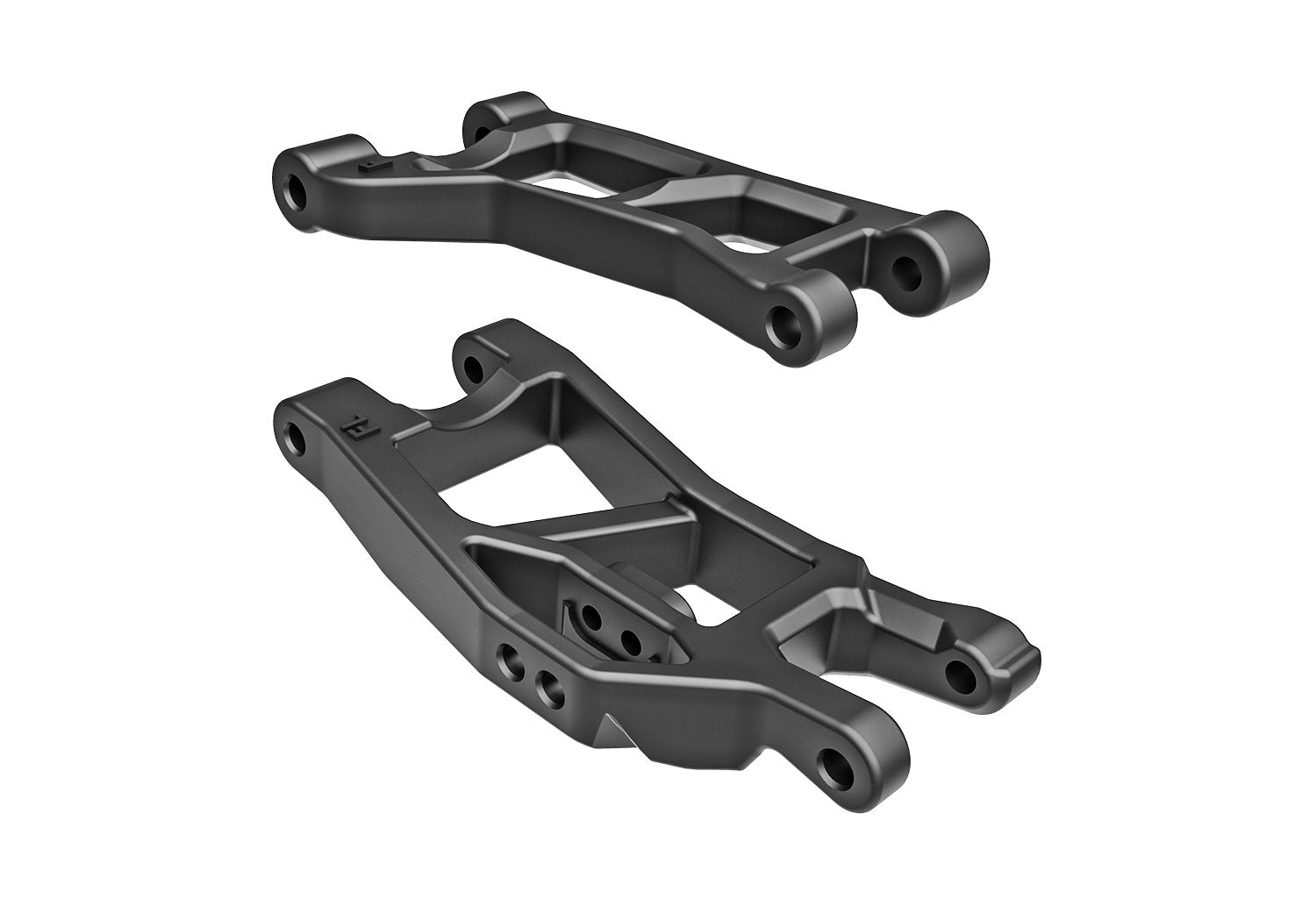

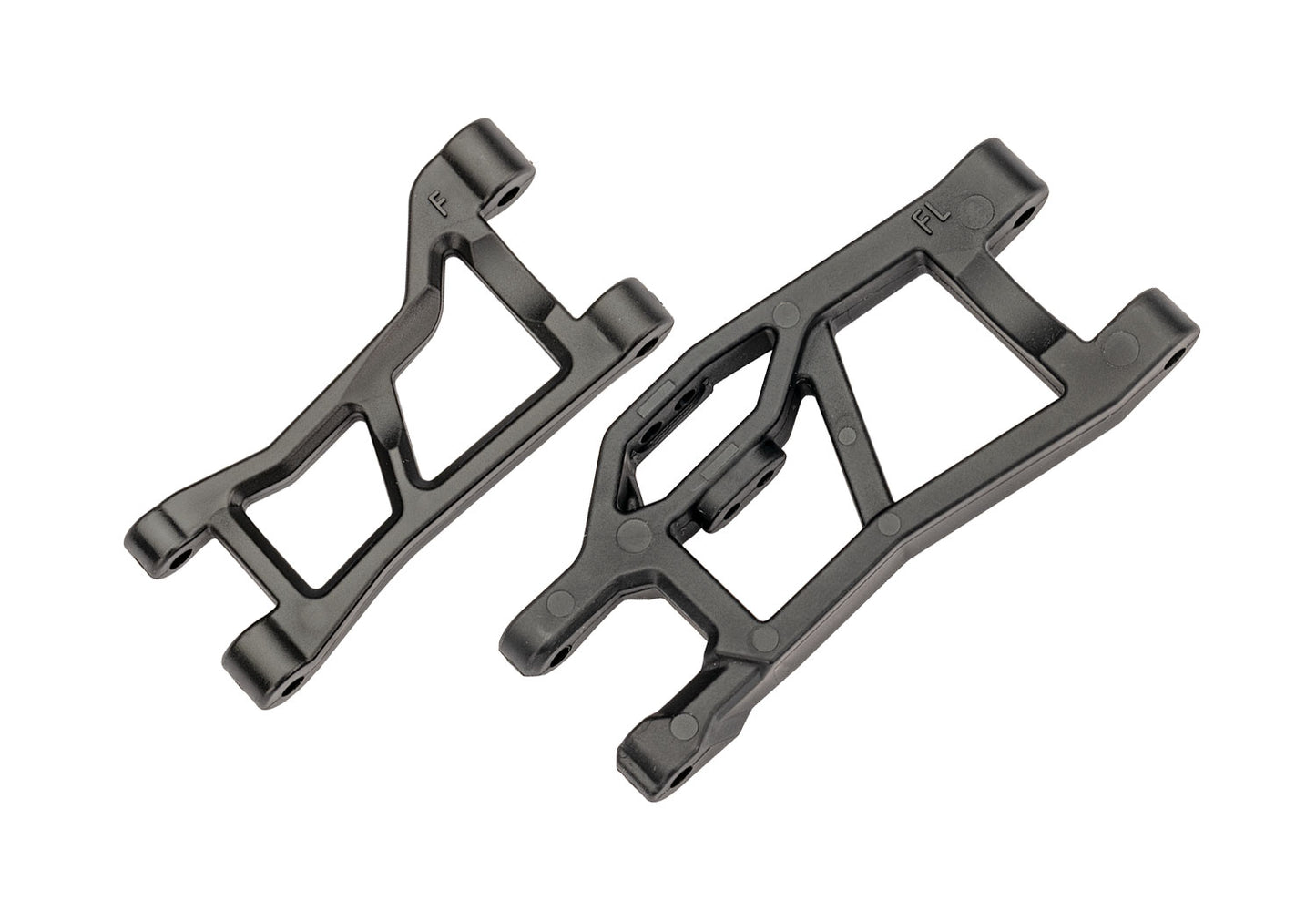

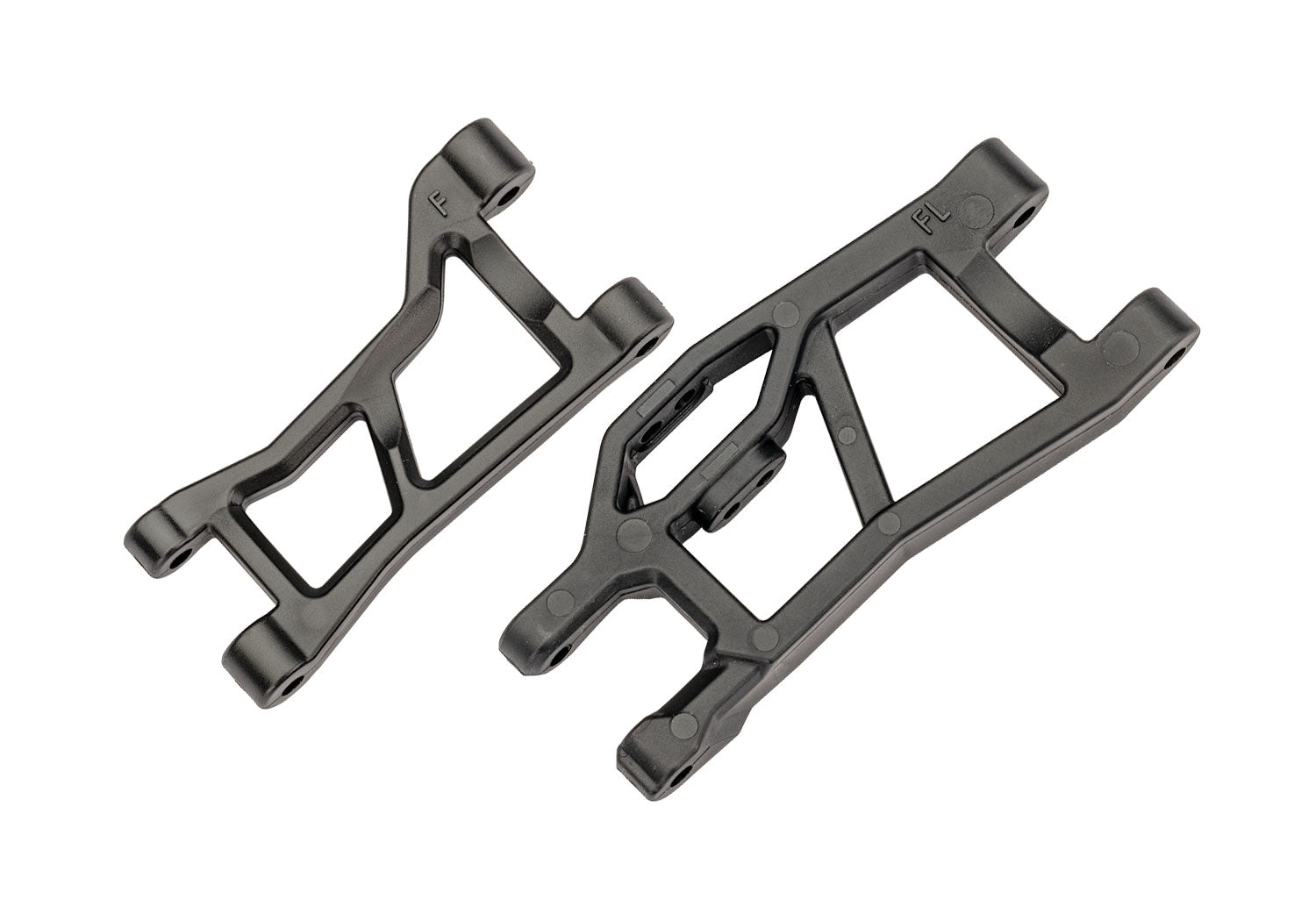

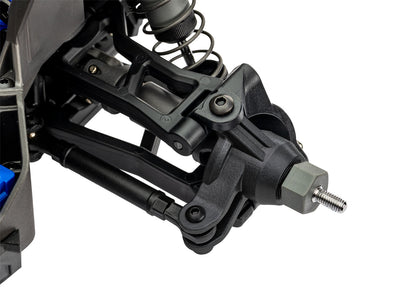

- Heavy-duty, double-shear suspension arms
- Oil-Filled Ultra Shocks

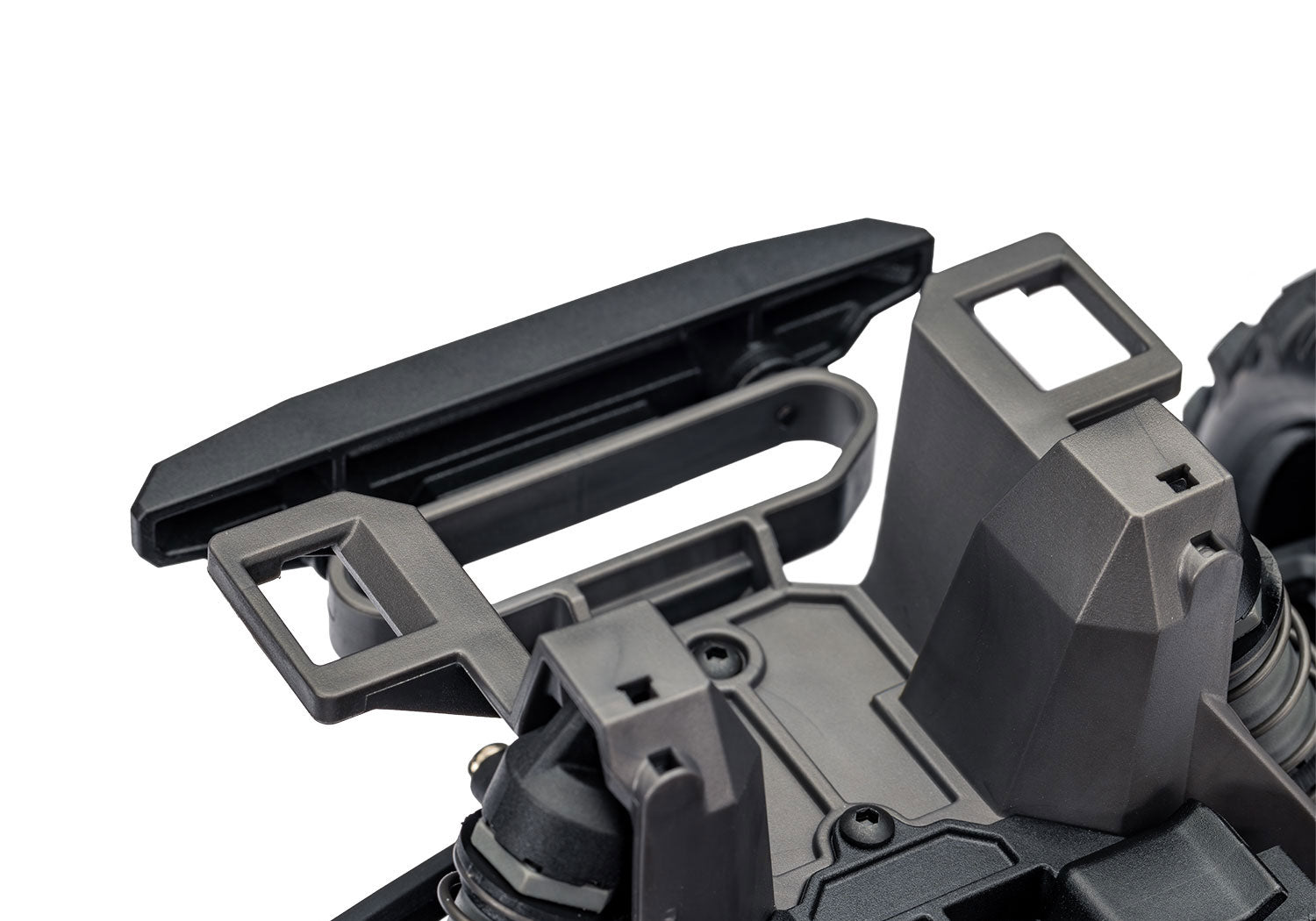

- Tough energy absorbing bumpers

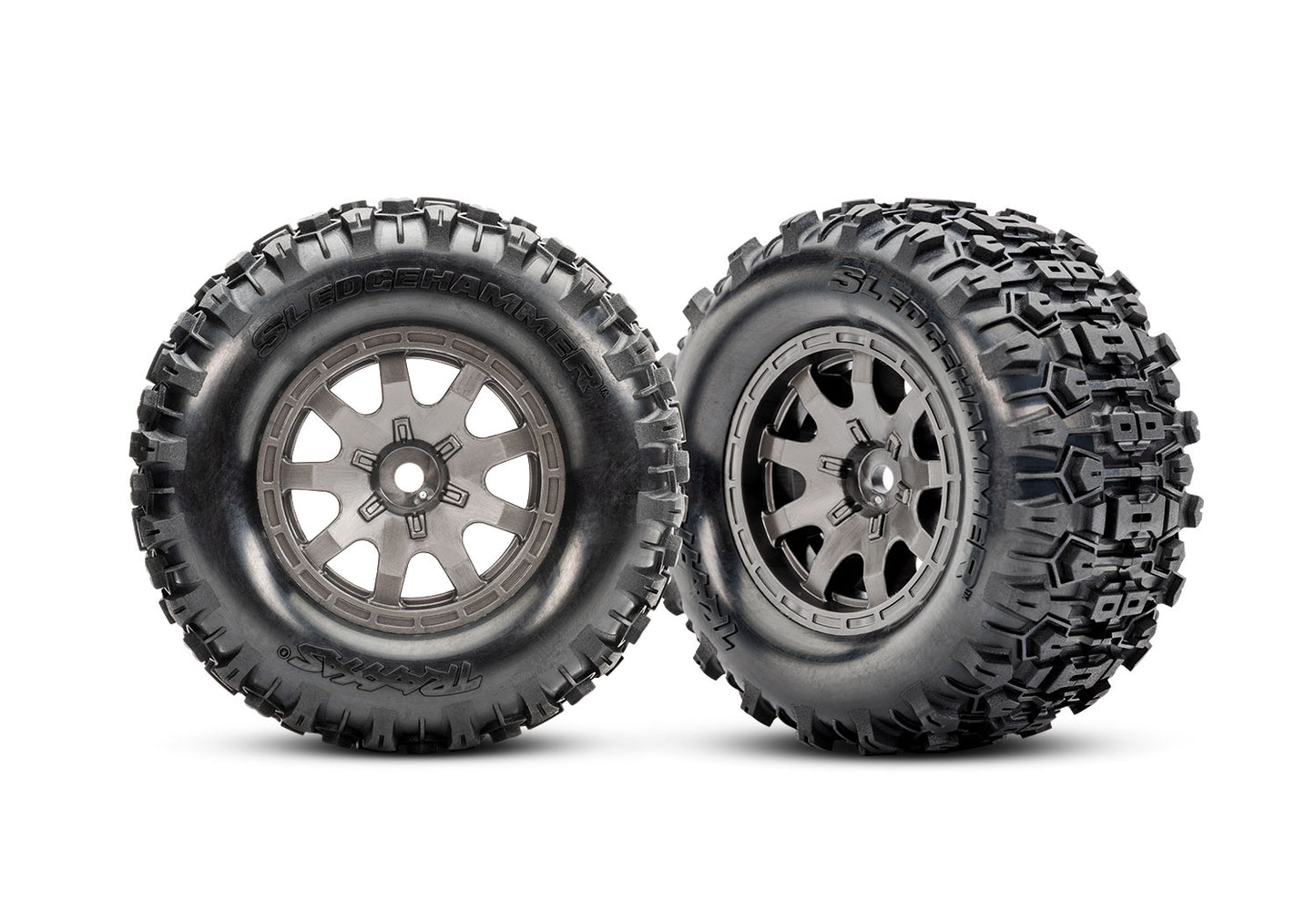

- Dual-profile black multi-spoke wheels

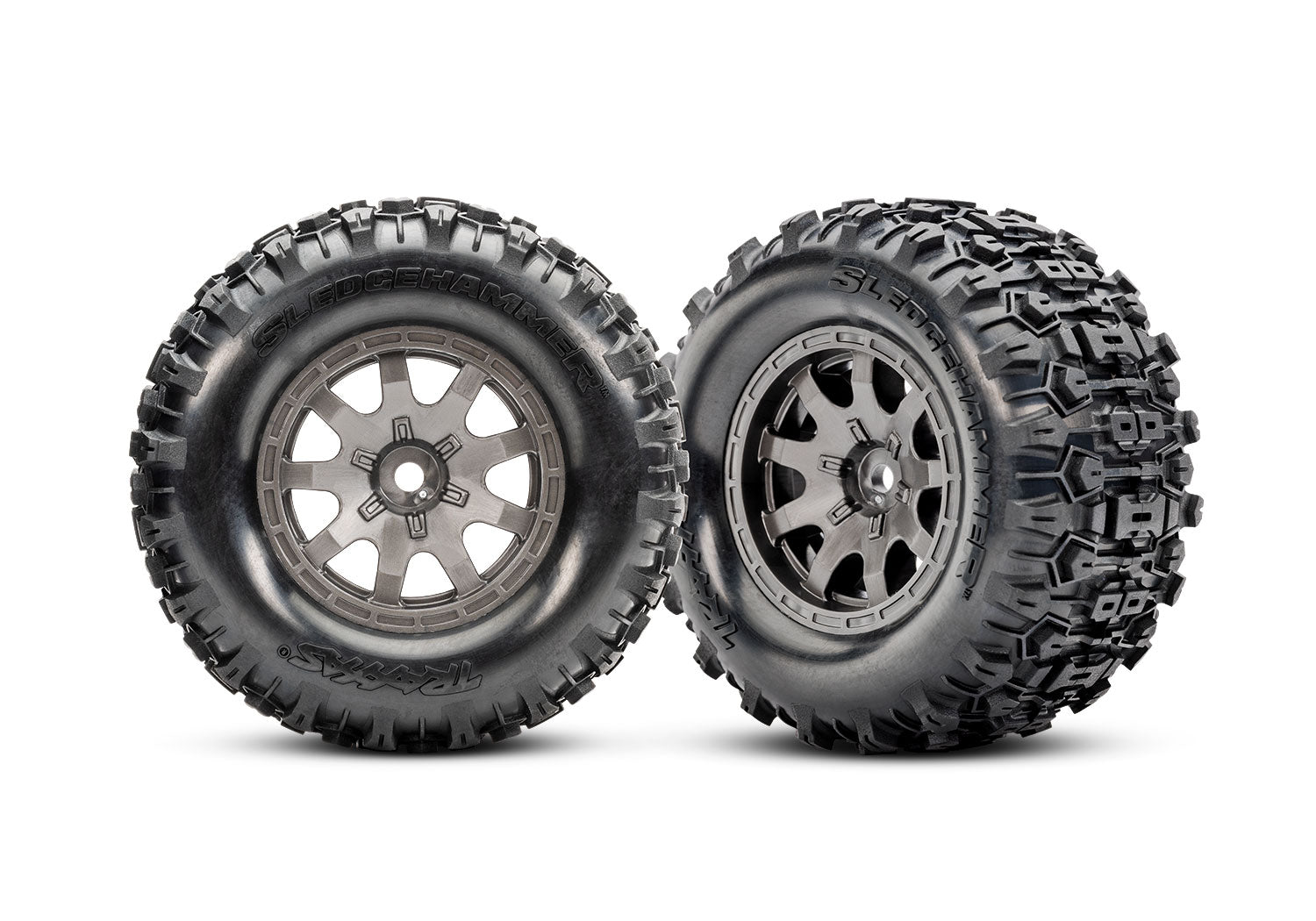

- 4″ Sledgehammer® tires with foam inserts
- Hex Hardware with Rust-Resistant Black Oxide Coating
- Sealed Ball Bearings
What’s In The Box:
(1) Mini Maxx Ready-To-Race monster truck
(1) BL-2s Brushless Power System

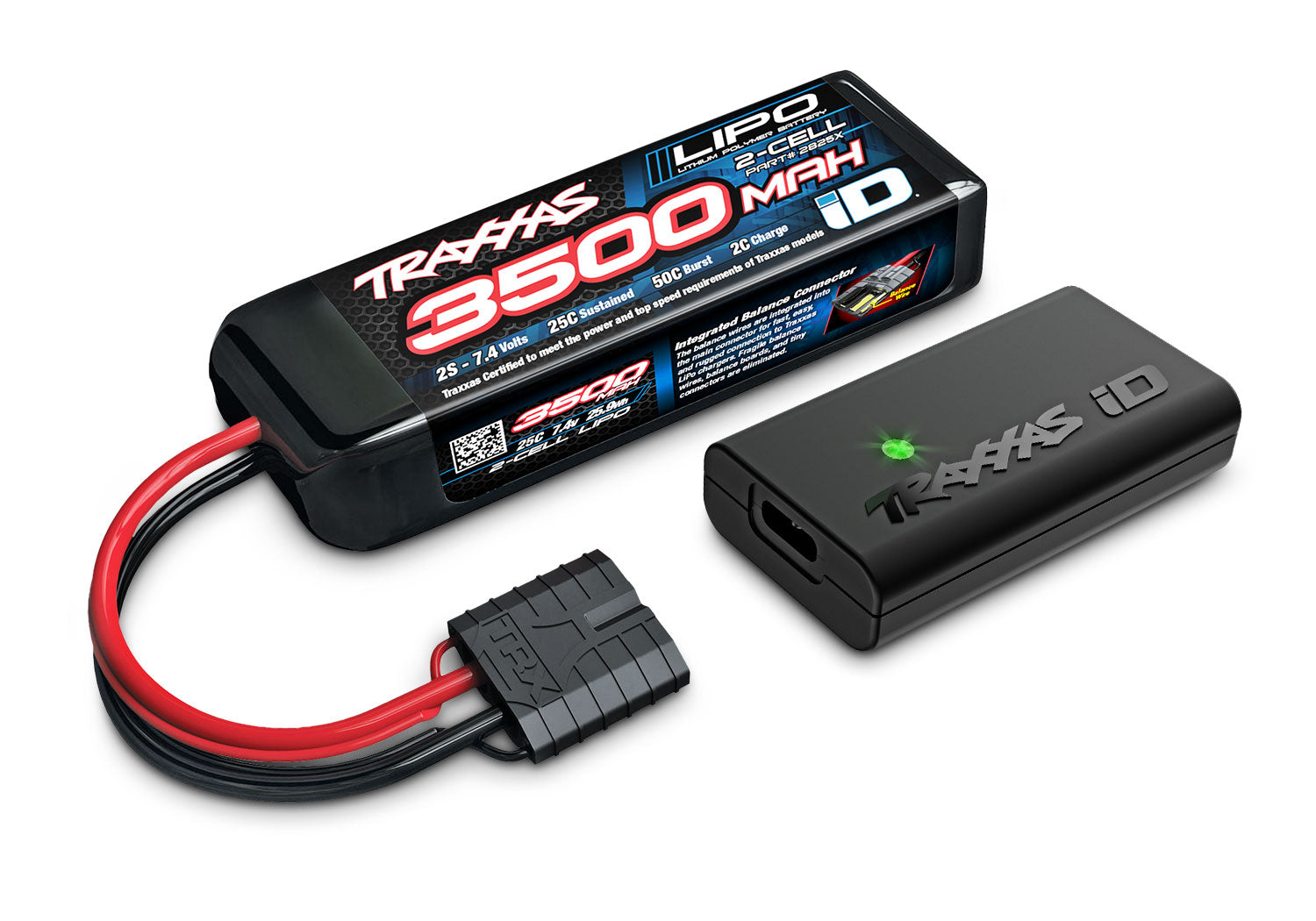

(1) 3500 mAh 2-cell LiPo battery
(1) 2-amp USB-C charger
(1) Quick Start Guide
(1) TQ 2.4 GHz radio system
(1) High quality maintenance tool set
What You’ll Need:
(4) AA alkaline batteries for the transmitter
(1) Power adapter 2912 and power cable 2916 recommended for peak charging performance.
Truck Specs | |
Length: | 13.58 inches (345 mm) |
Front Track: | 9.94 inches (253 mm) |
Rear Track: | 9.94 inches (253 mm) |
Ground Clearance: | 1.06 inches (27 mm) |
Weight: | 3.62 pounds (1.64 kg) |
Height: | 5.39 inches (137 mm) |
Wheelbase: | 8.66 inches (220 mm) |
Shock Length: | 3.45 inches (88 mm) |
Tire Diameter: | 3.93 inches (100 mm) |
Wheel Diameter: | 2.1″ (53 mm) outer, 2.6″ (66 mm) inner |
Speed Control: | BL-2s brushless ESC |
Motor (electric): | BL-2s sensorless brushless (3300 Kv) |
Transmission: | Direct-drive |
Overall Drive Ratio: | 9.20:1 |
Differential Type: | Planetary, steel gear |
Gear Pitch: | 32 |
Chassis Structure/Material: | Composite modular tub |
Brake Type: | Electronic |
Drive System: | Shaft-driven 4WD |

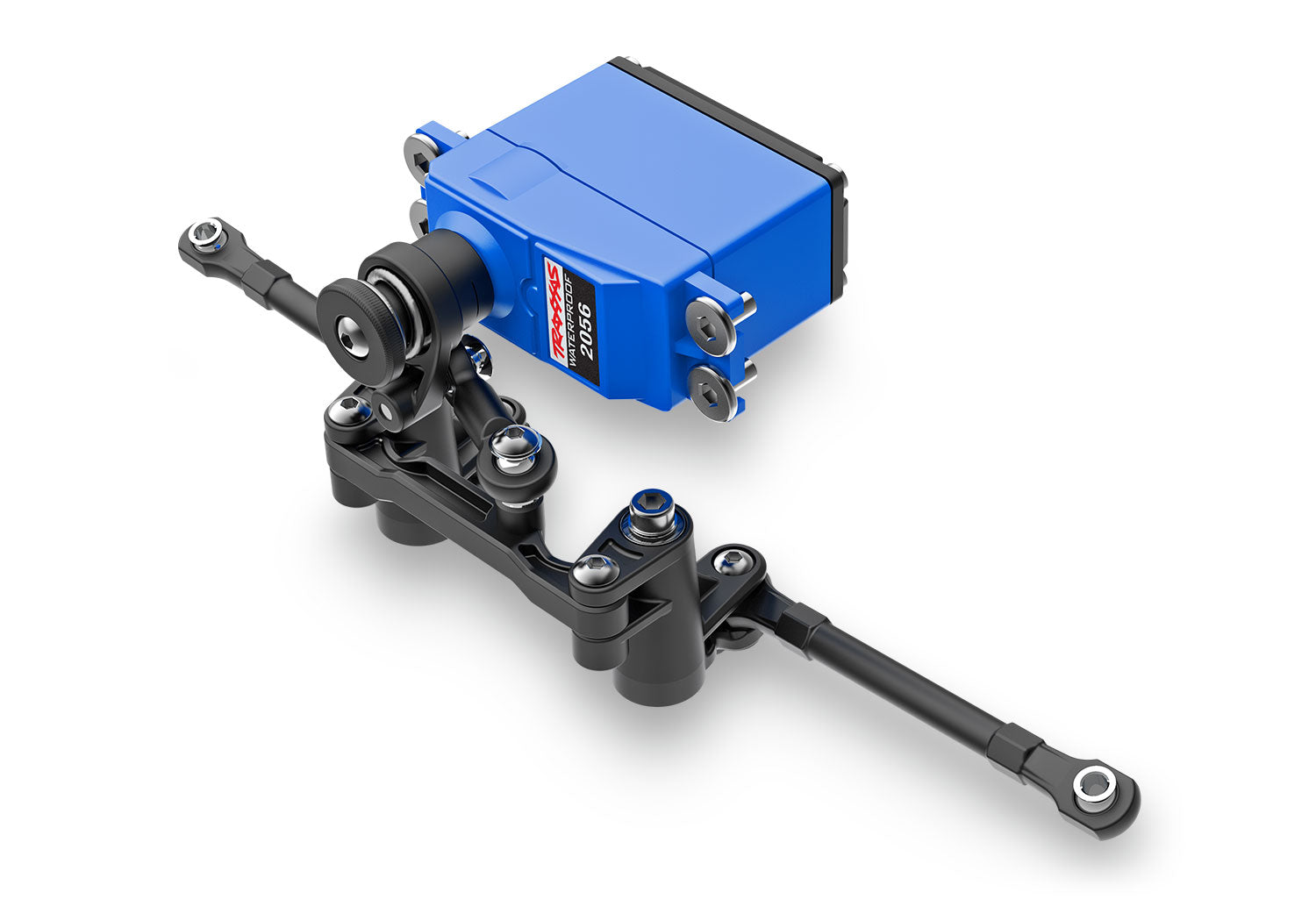

Steering: | Double-shear bellcrank |
Wheels & Tires: | Dual-profile wheels with pre-glued Sledgehammer® tires |
Radio System: | TQ™ 2.4 GHz (2-channel) |
Servo: | Waterproof high-torque 2056 |
Top Speed: | 30+ mph |
Skill Level: | 1 |
Battery Tray: | 113 mm L x 41 mm W x 22 mm H |
Required Batteries: | 4 “AA” (transmitter) |
Motor Specs | |
Type: | BL-2s 3300 Kv sensorless brushless motor |
Weight: | 7.51 ounces (213 g) |
Length: | 3.15 inches (80 mm) |
Diameter: | 1.42 inches (36 mm) |
Connector Type: | Traxxas Quick Connect Motor Plug |
ESC Specs | |
Input Voltage (cells): | 6-7 Cells NiMH / 2s LiPo |
Case Size: | 1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm) |
Weight: | 3.07 ounces (87 g) |
BEC Voltage: | 6.0 volts |
Reverse Delay: | Yes, with lockout |
Thermal Protection: | Two-stage thermal shutdown |
Ports: | Auxiliary fan |
