OSMW Comet 25 Kit

Comet Laser-Cut R/C Kit

Overview:

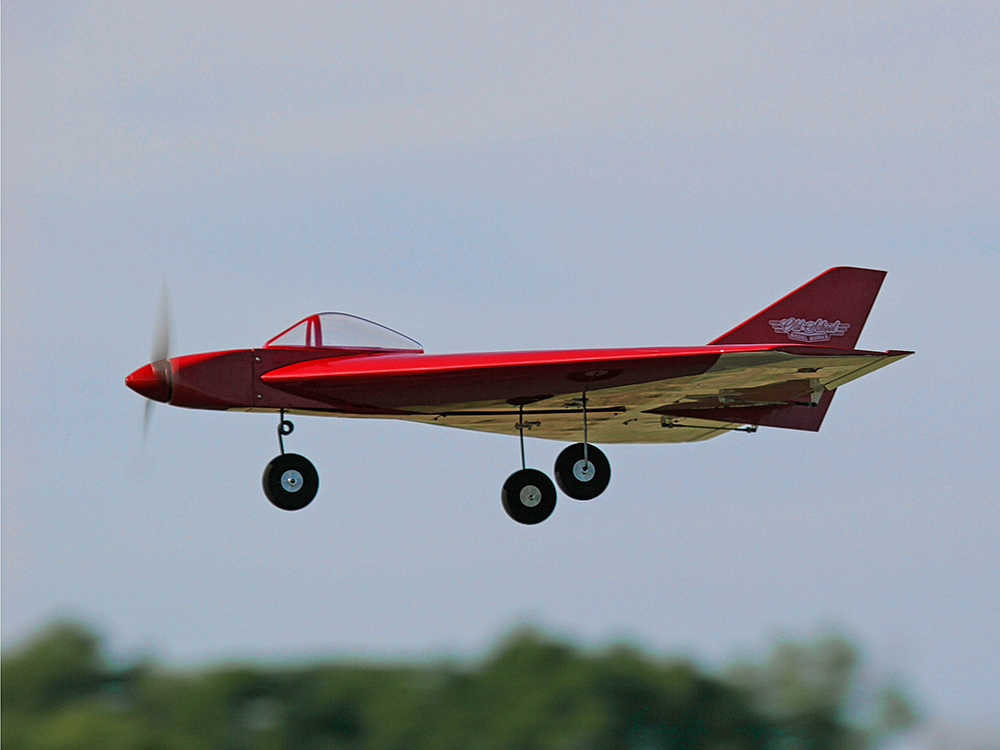

With a wingspan of 39.5 inches, the Comet captures all of the jet-age looks and excitement of the sleek 1950’s design it’s based on.

With the included jigs, this delta wing can easily be built by those with experience in constructing built-up kits. Please note that this is NOT a beginner's kit - it requires building and flying experience to be successful. Flying the Comet is a blast. It’s not overly quick and has pleasing flight characteristics that make it fun to fly. Even at low speeds it is well behaved and has no surprising tendencies.

The Comet can be powered with either an electric or glow power plant. We’ve designed the fuselage with built-in hatches so you have quick access to either your batteries, fuel tank & radio system.

Features:

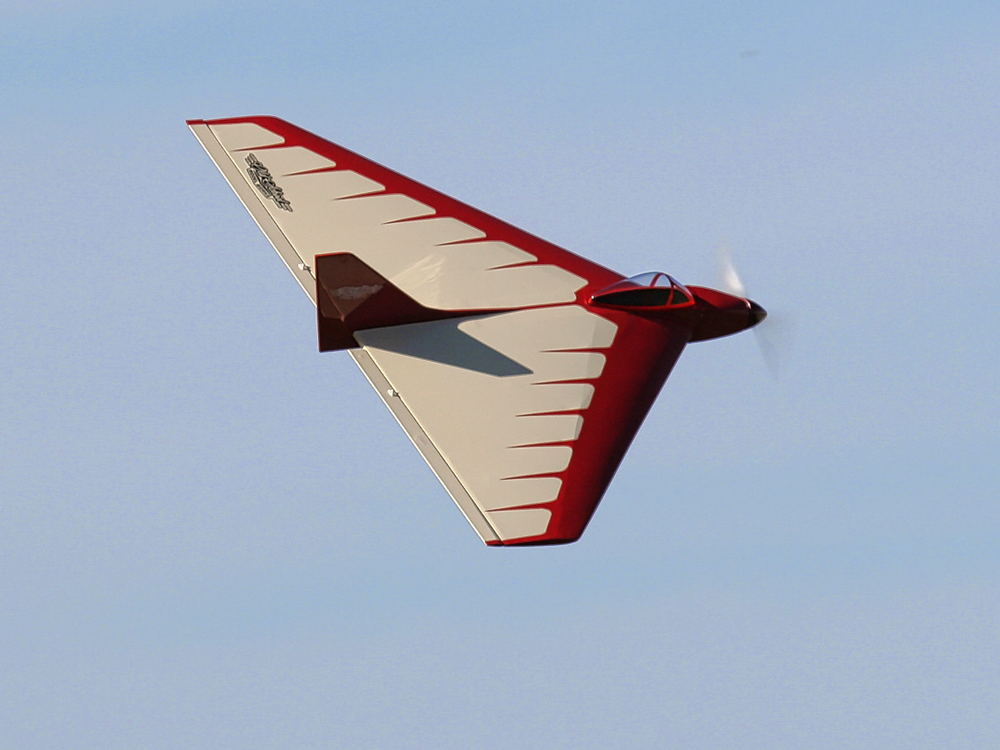

• A Retro, Delta Wing
  Flying the Comet is a blast. It gives jet-like looks and stability without being overwhelmingly fast. Stability at all speeds make it easy to fly and easy to land.

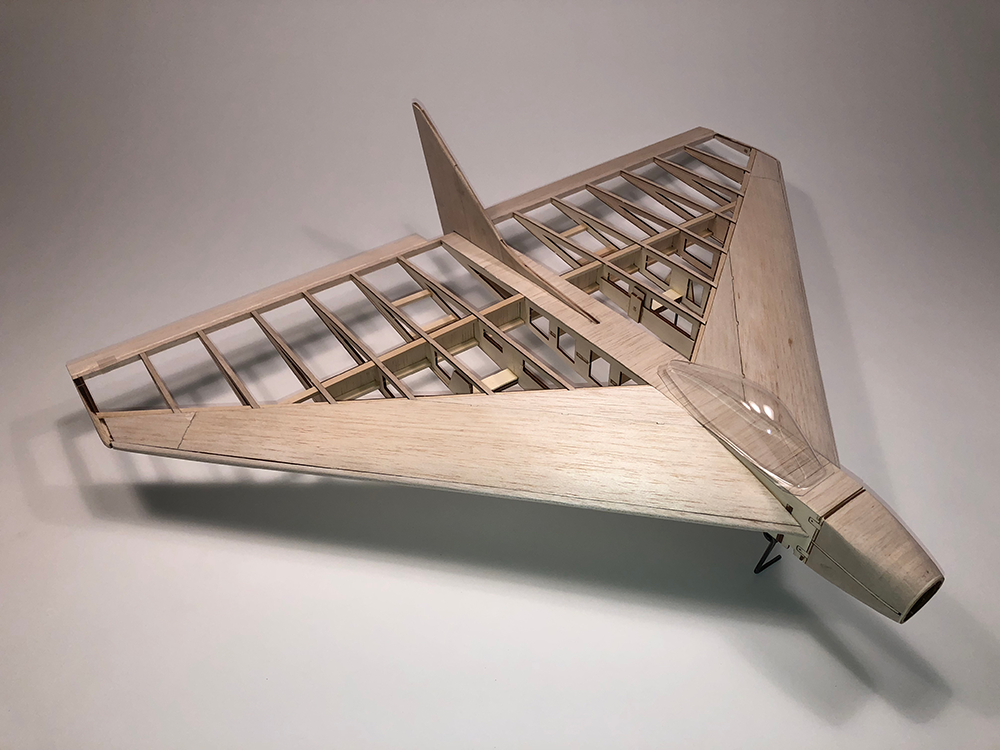

• WEB-LOCK Construction
  There's nothing else like it. Build our wings, straight and true - with a minimum amount of fuss.

• Premium USA Hardware
  Included in each Old School Model Works kit is a premium hardware package. We only source our hardware from brand-name, USA manufacturers to guarantee the best quality.

• Rugged Landing Gear
  We include sturdy, pre-bent main gear, steerable nose gear assembly, and wheel collars. The 1/8" diameter wire can absorb quite a bit of abuse for those no-so-good landings.

• Bottom Hatch
  Held in place with thumbscrew, this hatch gives you easy access to batteries or fuel.

• Canopy
  Also included is a clear, pre-formed plastic canopy.

Required Radio:
4 channel system (with elevon mixing)
(3) 40-70 in./oz. servos for elevons and rudder
(1) 40-70 in./oz. servo for throttle (if using a glow engine)

Required Power:
Electric: .25-sized brushless motor, 60amp esc, 3S LiPo
Glow (.19-.30 engine, 4 ounce tank, fuel tubing)

Additional items needed to complete the Comet kit:
   • 4 channel radio and servos (elevon mixing is needed, so a radio with mixing is needed)
   • Propeller
   • Engine/Motor mount & mounting hardware
   • Pushrods (two 5” for elevons, one 18” for rudder, one 12” for throttle if glow powered)
   • Clevises for the pushrods (6 if electric, 8 if glow)
   • Three 3” diameter main wheels
   • Covering

Wingspan: 39.5 inches

Wing Area: 470 square inches

Length (airframe only): 32 inches

Weight: 3 - 3.5 pounds

Radio:
• 4 channel system (with elevon mixing)
• 3, 40-70 in./oz. servos for elevons and rudder;
• 1, 40-70 in./oz. servo for throttle (if using a glow engine)

Power:
• Electric: .25-sized brushless motor, 60amp esc, 3s lipo
• Glow (.19-.30 engine, 4 ounce tank, fuel tubing)

• 4 channel radio and servos (elevon mixing is needed, so a radio with mixing is needed)
• Propeller
• Engine/Motor mount & mounting hardware
• Pushrods (two 5” for elevons, one 18” for rudder, one 12” for throttle if glow powered)
• Clevises for the pushrods (6 if electric, 8 if glow).
• Three 3” diameter main wheels
• Covering
