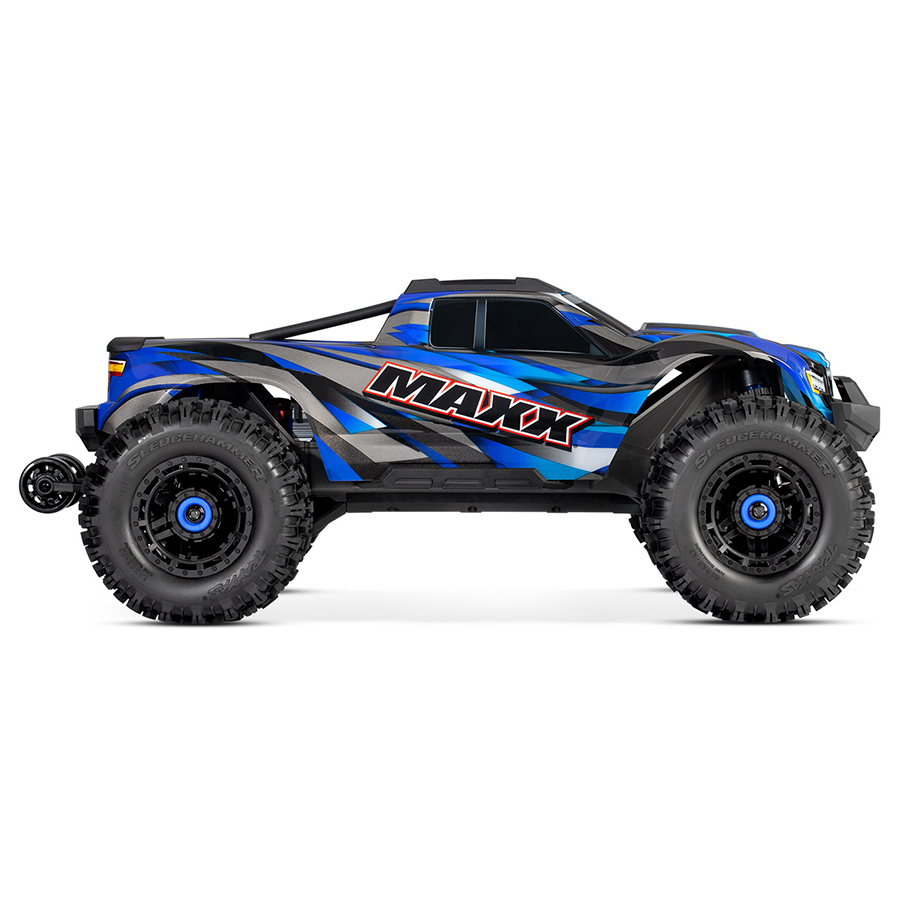

1/10 Maxx w/WideMaxx®, 4WD, RTR (Requires battery & charger): Blue

Meet the Newest MAXX®


Now with WideMAXX®

Overview:

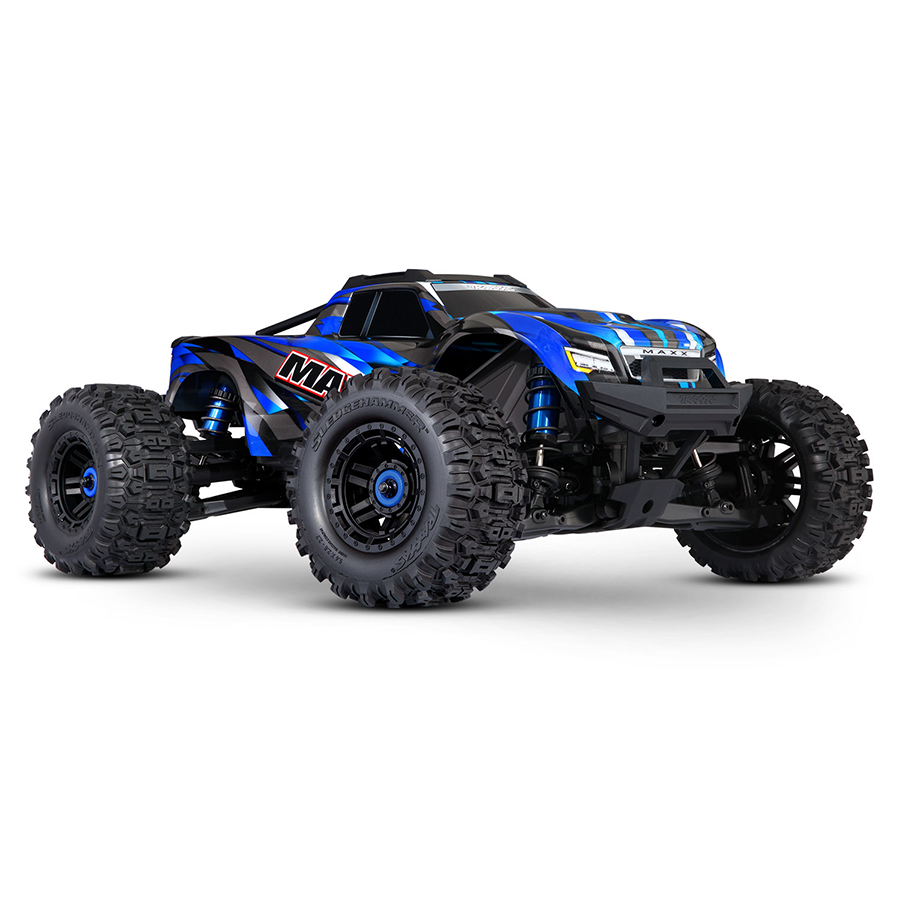

The Traxxas X-Maxx® is a giant that forever changed the face of RC monster trucks. Its radical cutting-edge design, massive size, brutal strength, and unmatched power transformed X-Maxx into the stuff of legends. The 1/10 Traxxas Maxx® expertly packages X-Maxx’s innovative design elements and jaw-dropping strength into a lighter, more compact, even more ferocious beast. Now the newest Maxx is even bigger, with a longer wheelbase, beefier Sledgehammer® tires, and that incredible WideMaxx® stance for even more intense action. Let the fun begin!

NEW on MAXX

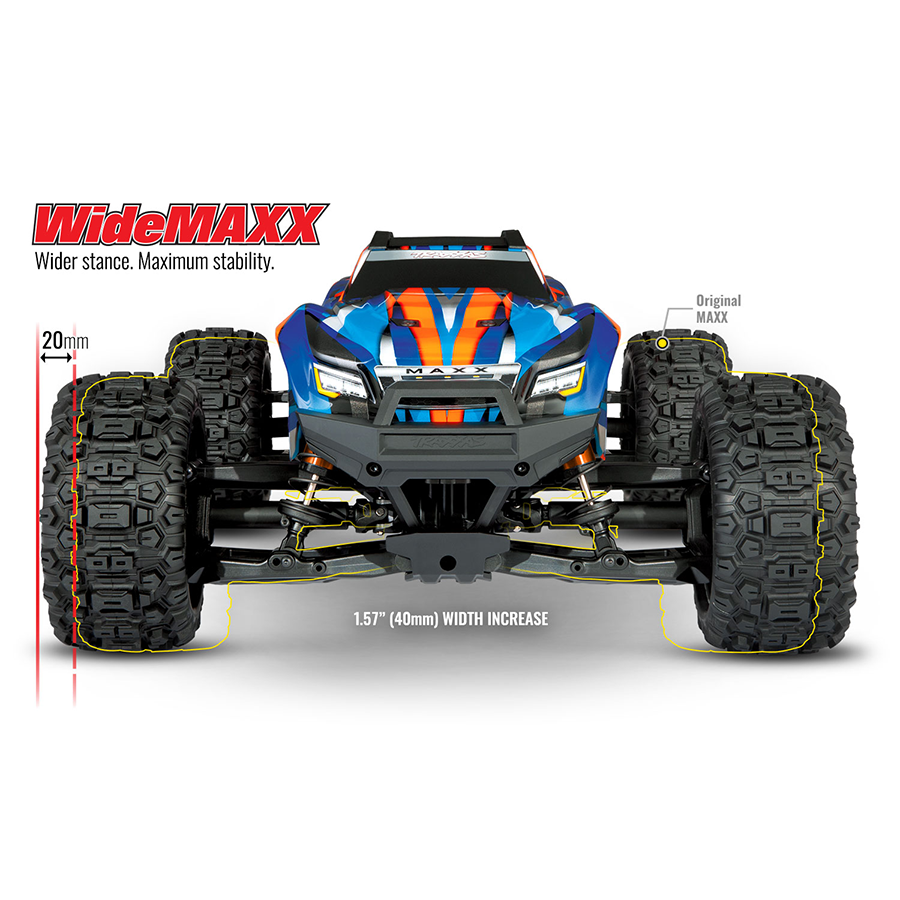

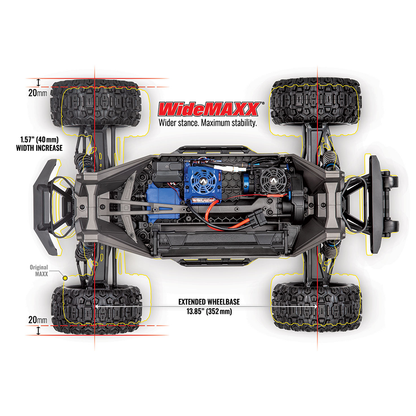

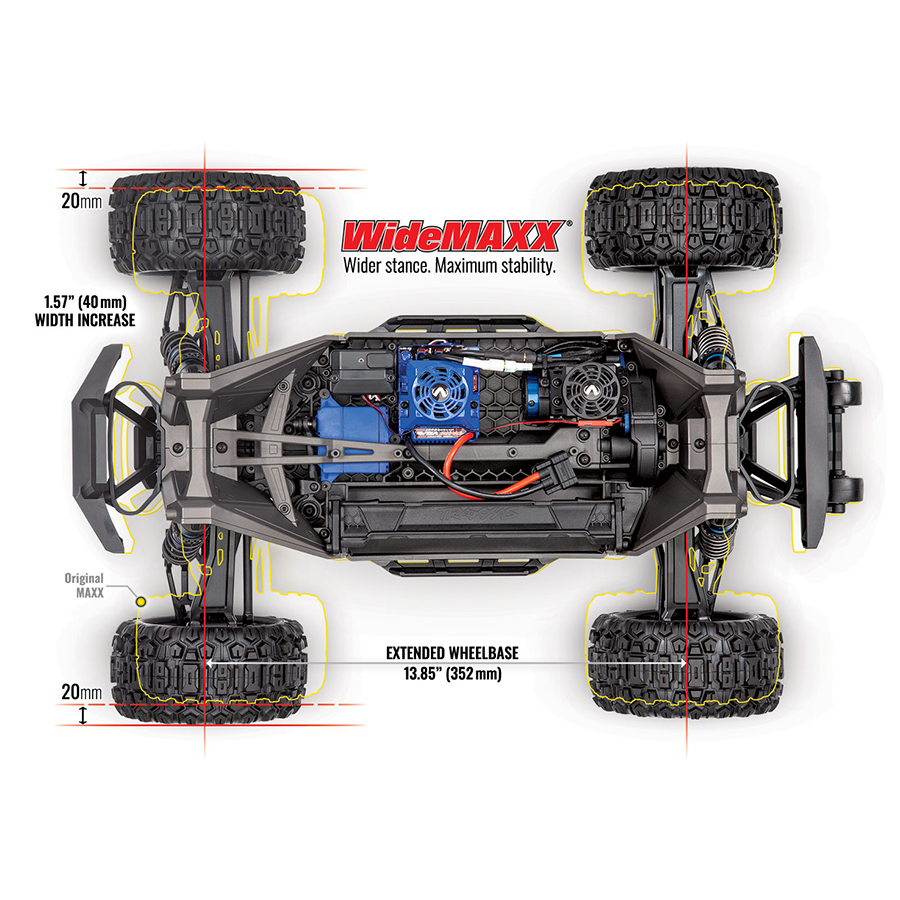

WIDEMAXX® FROM THE START WideMaxx stance stretches the wheels out over 1.5 inches (40 mm) wider for even greater stability.

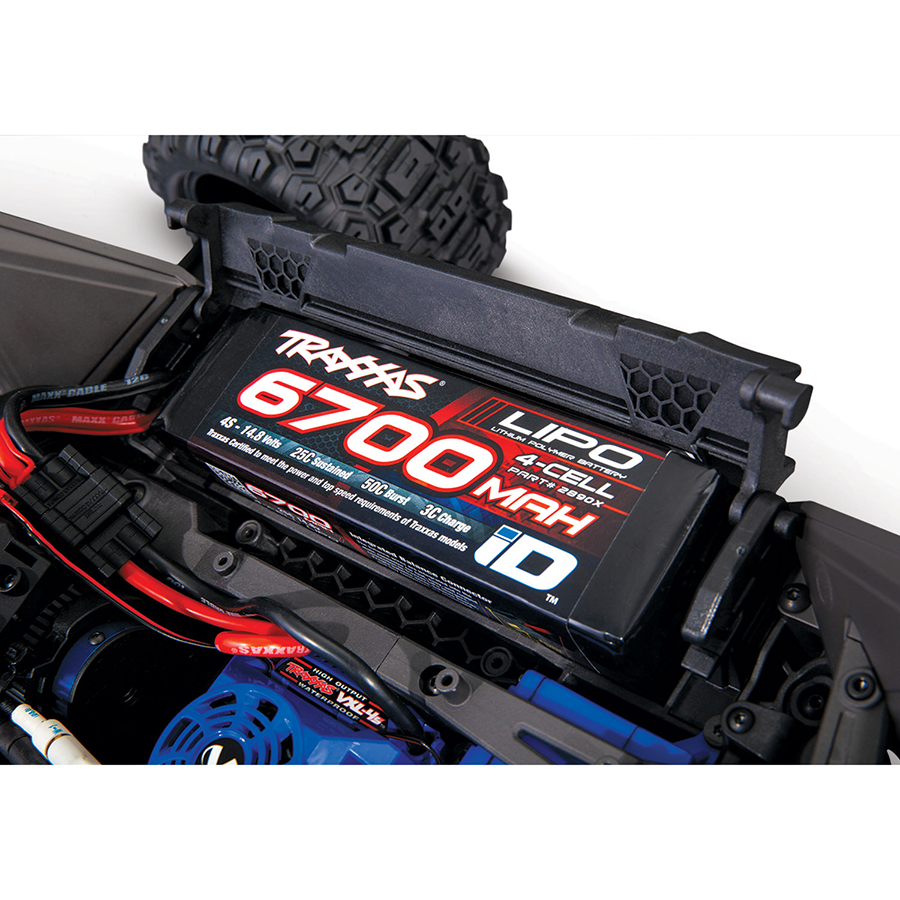

LONGER CHASSIS The extended chassis length now accommodates our most powerful batteries, the same 6700mAh 4-cell LiPo batteries used in the X-Maxx.

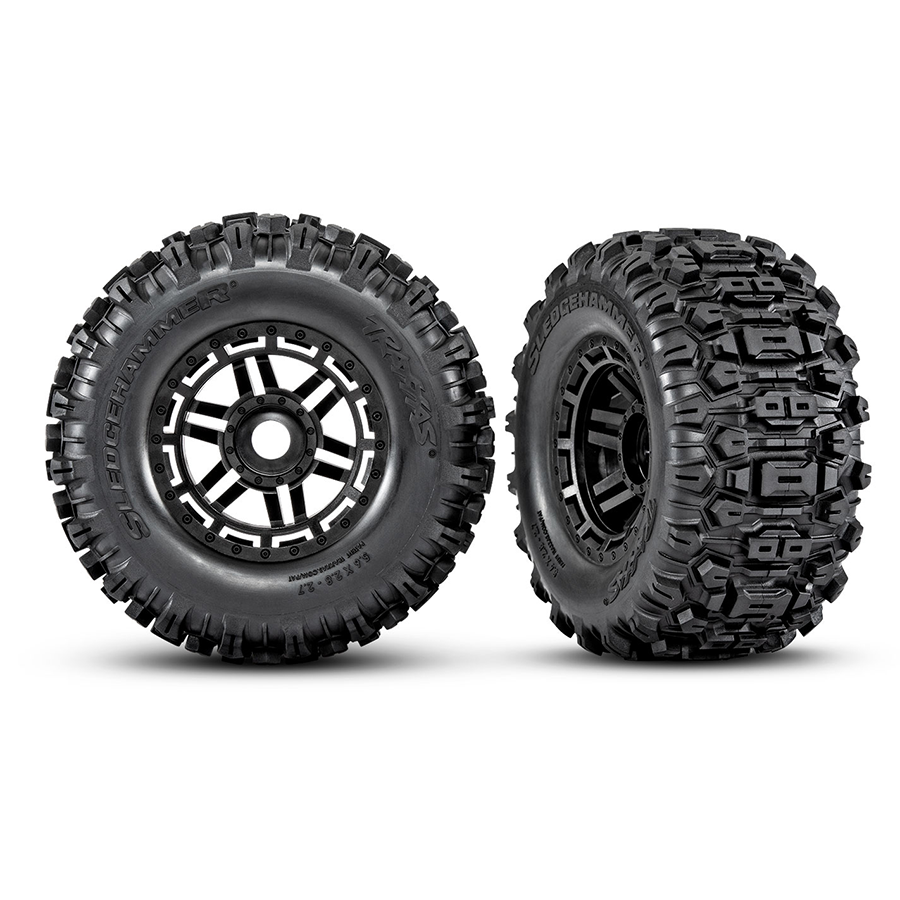

SLEDGEHAMMER® TIRES Taller Sledgehammer tires feature an aggressive open-block tread design that clears away mud and debris for unrivaled traction.

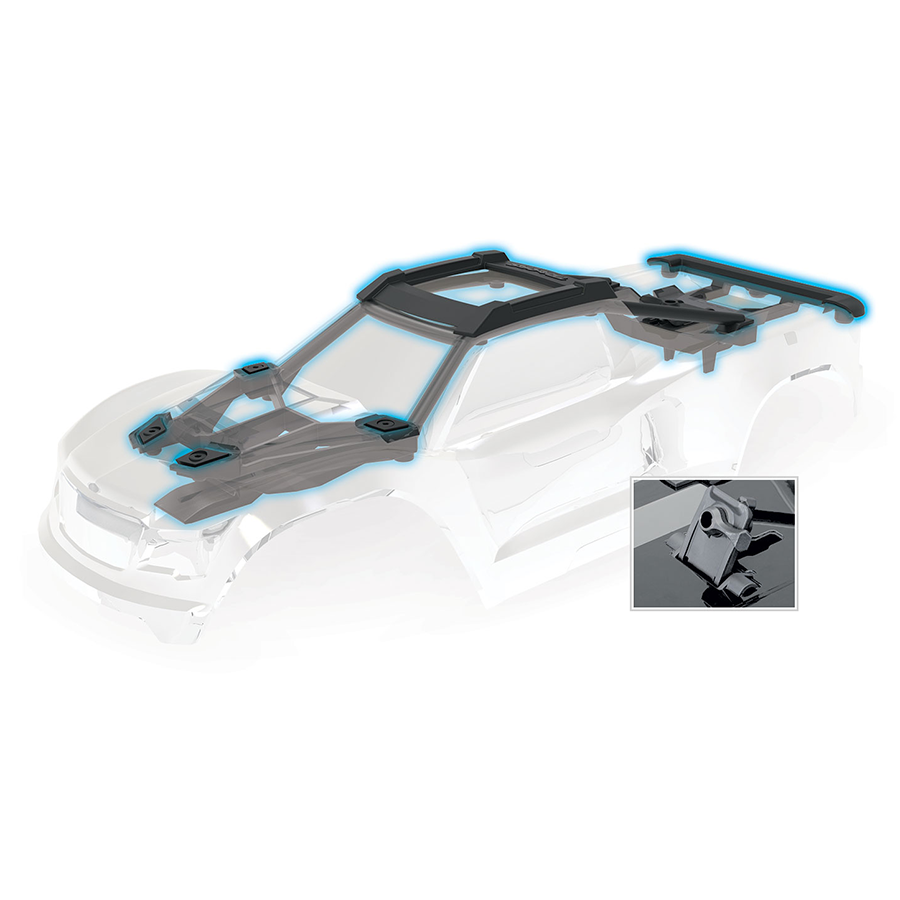

SIX NEW COLORS Maxx makes a statement with six all-new ProGraphix® clipless bodies with our brightest and boldest color options yet.

THE MAXX EXPERIENCE Maxx turns up the dial on fun with even more of what you crave. The new Maxx doubles down on strength and durability with a longer and wider stance for greater stability to match its blistering 60+ mph performance. Bury the throttle, fly through corners, and let the new Maxx turn your wildest full-throttle dreams into reality.

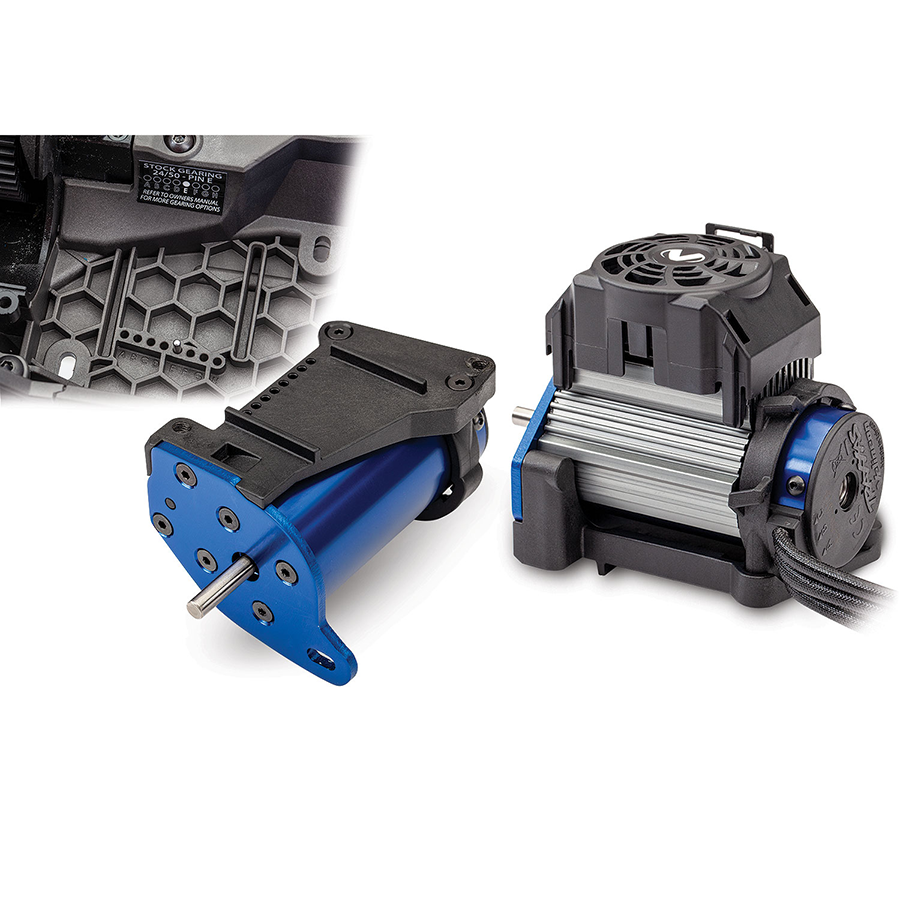

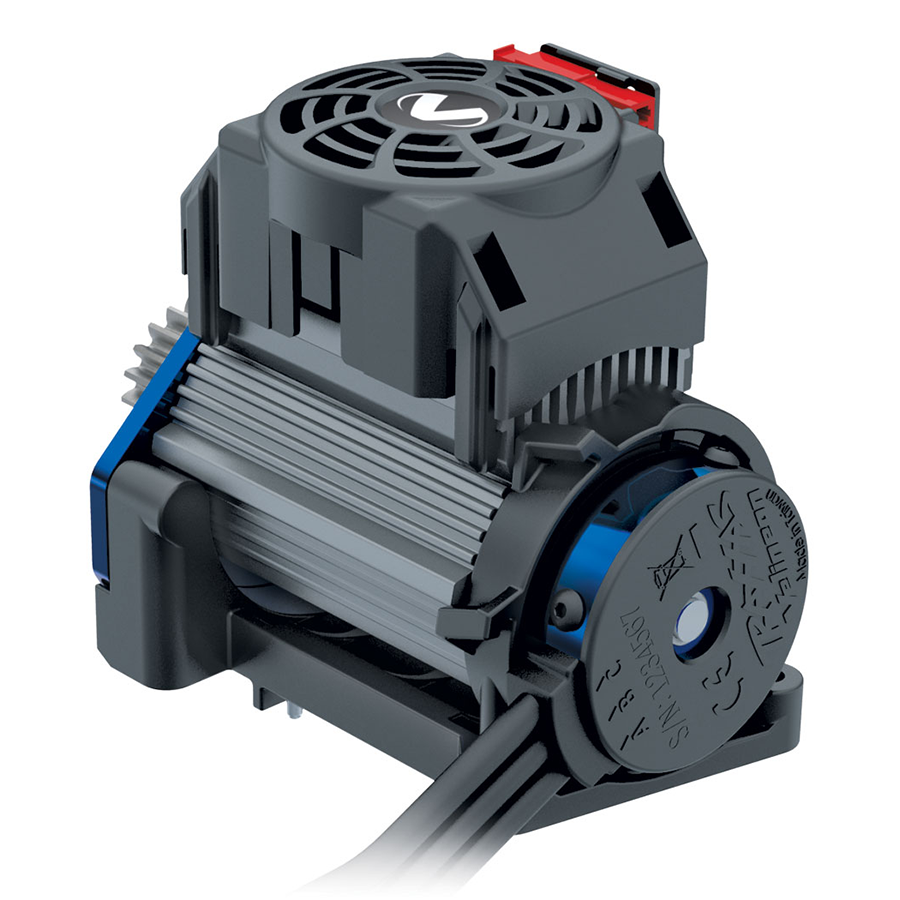

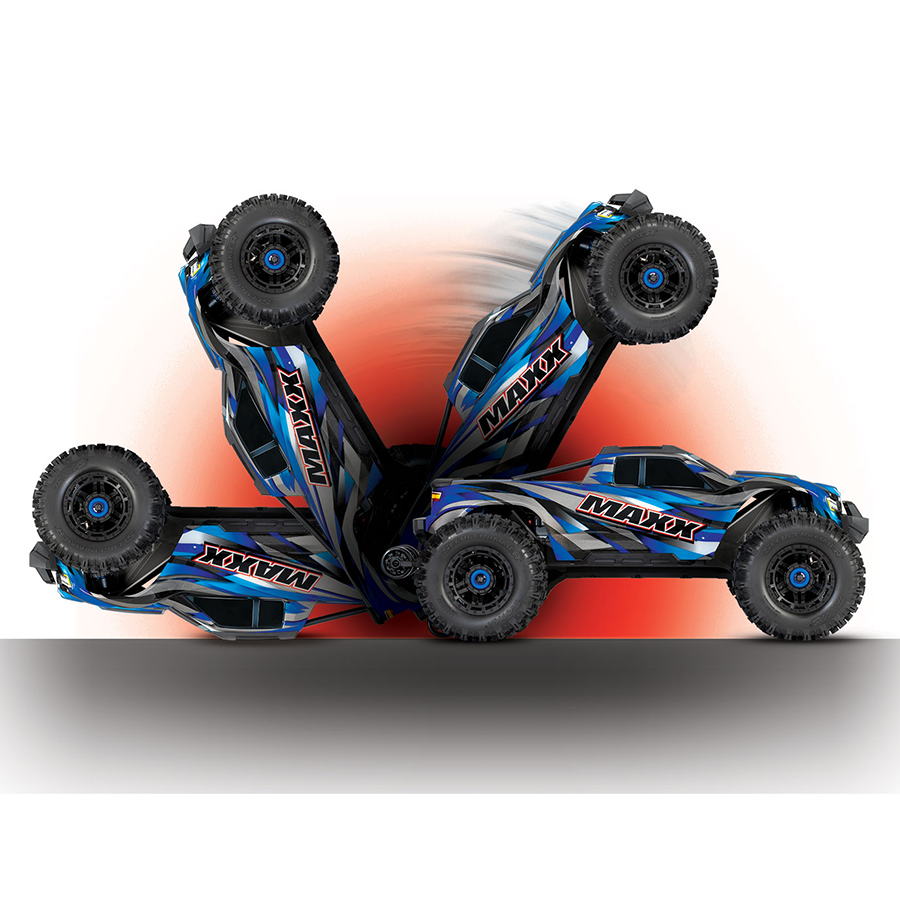

60+ MPH MAXX® MUSCLE Traxxas Velineon® brushless power hits hard with massive 4s punch for an awe-inspiring 60+ mph top speed and effortless wheelies on demand. The high-output 540XL motor features a beefy 5 mm shaft, aluminum heat sink, and a powerful fan. Of course it’s all fully protected with Traxxas’ innovative waterproofing.

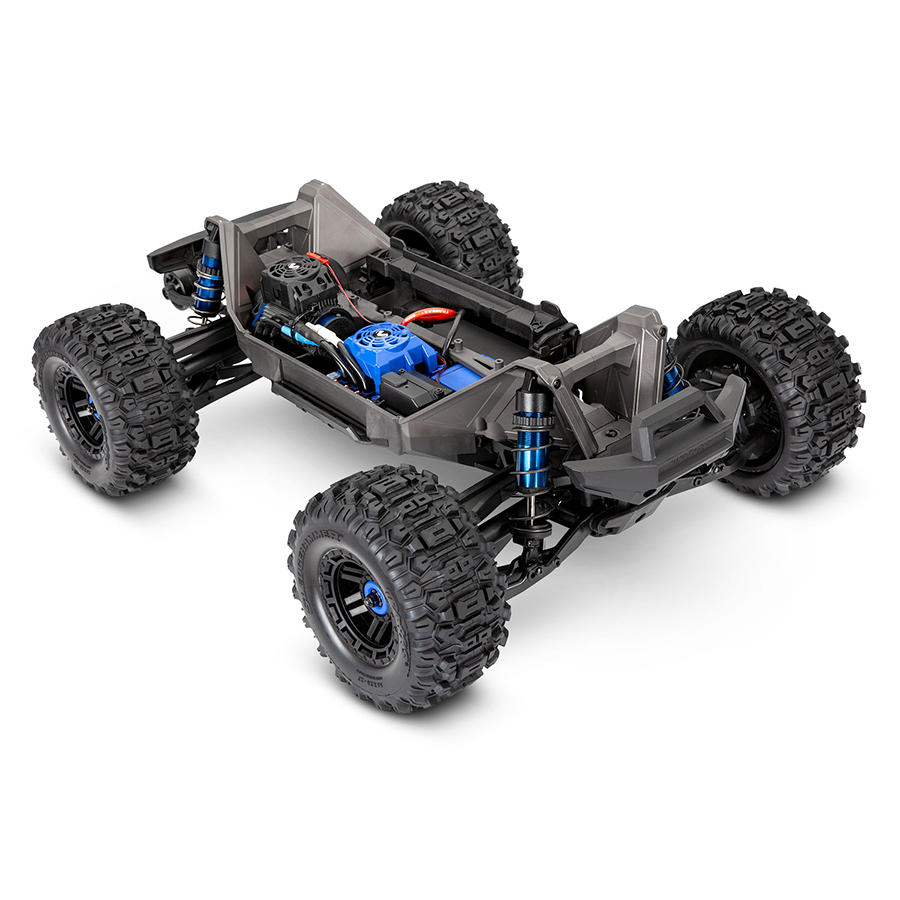

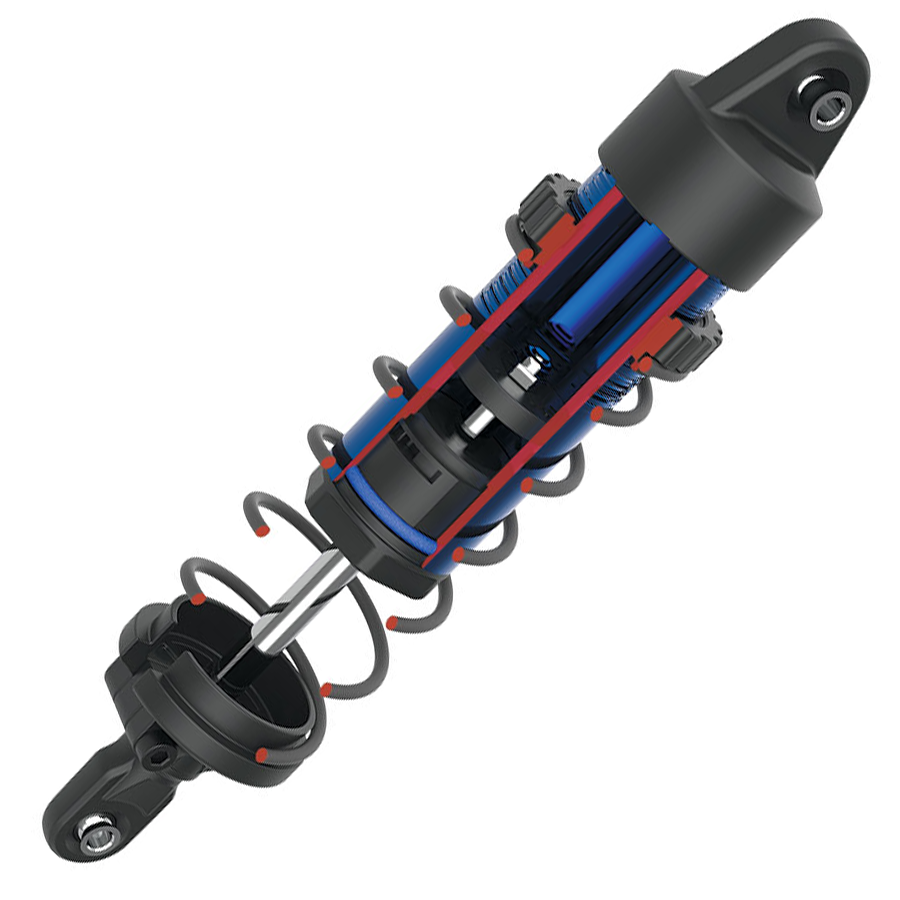

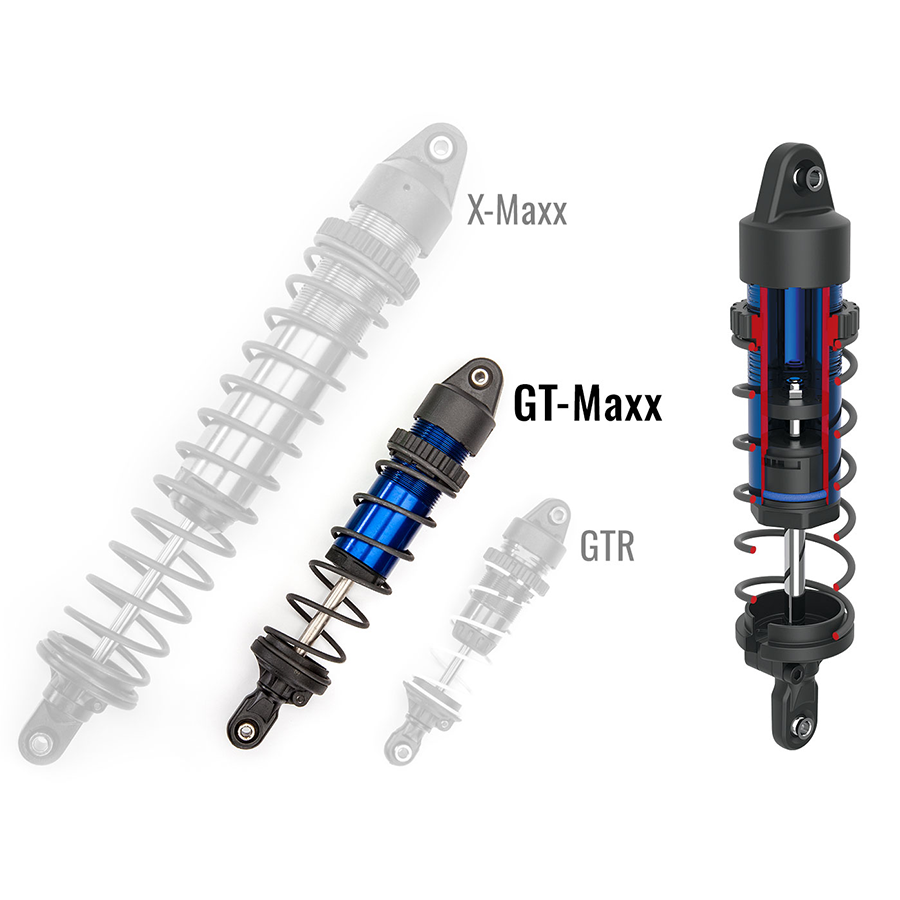

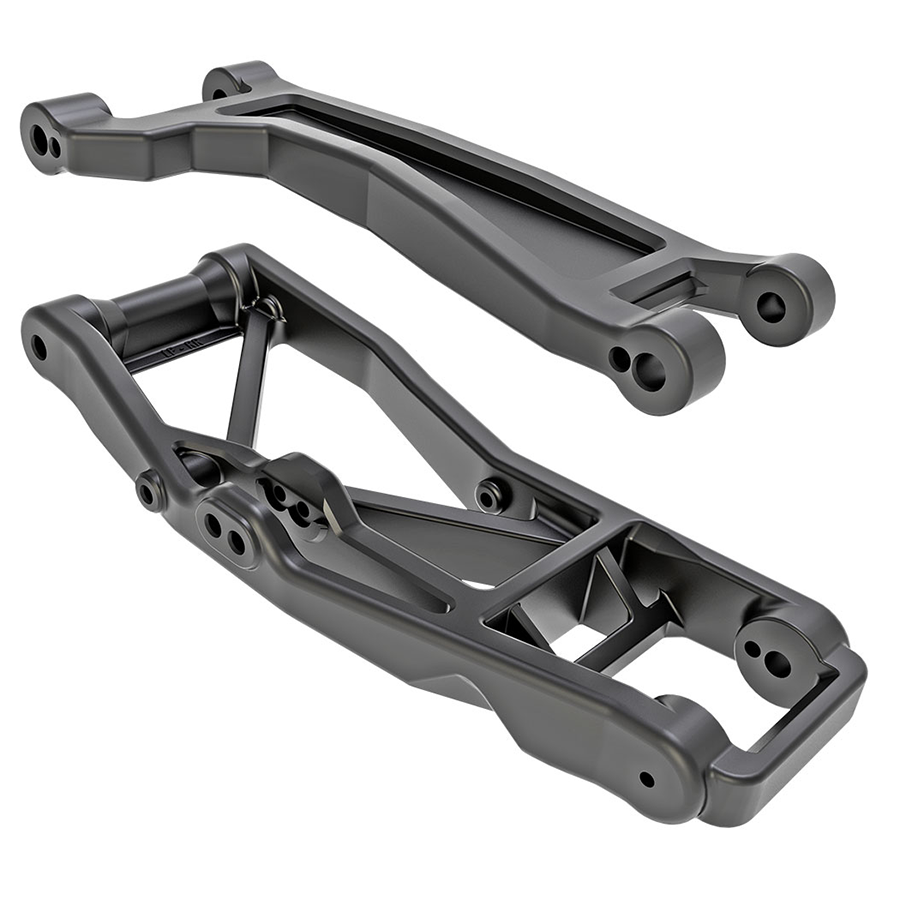

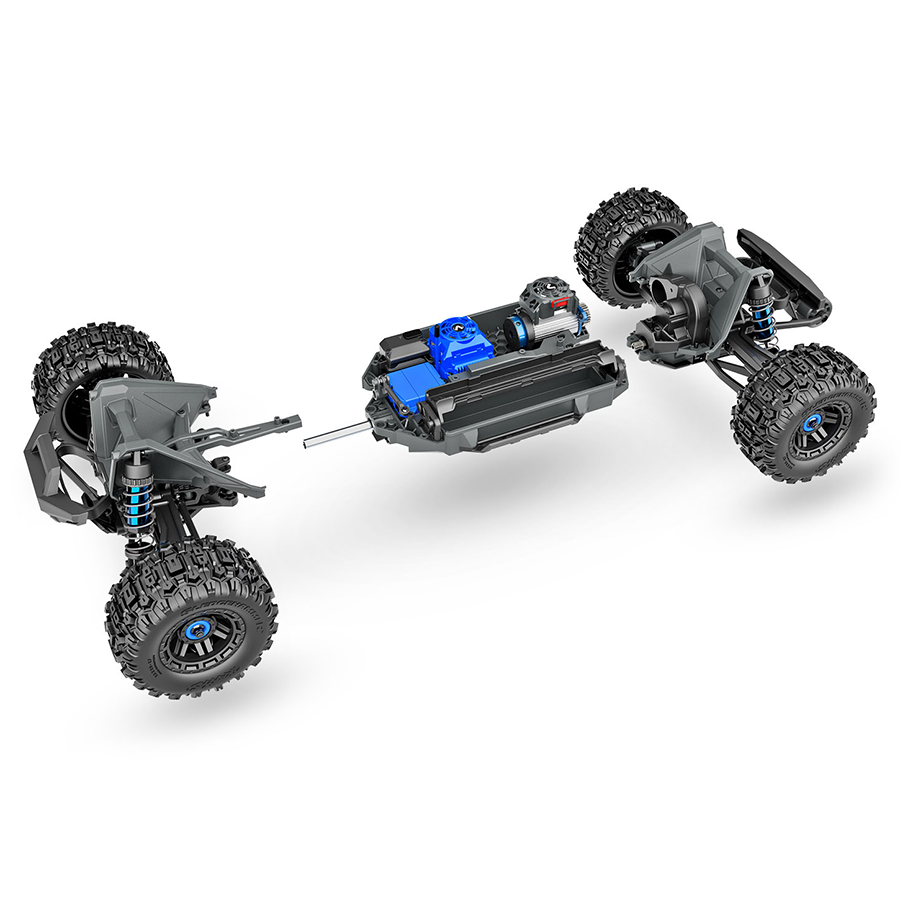

TRAXXAS TOUGH™ Maxx is overbuilt with components found on much larger and heavier vehicles to withstand extreme punishment and intense driving action. The Maxx chassis absorbs and dissipates impact energy across the entire structure for superior strength. Huge threaded-aluminum GT-Maxx shocks with oversized shafts soak up massive jumps for high-flying fun at every turn.

What’s In The Box:
(1) Maxx, Ready-To-Race® model with Traxxas 540XL brushless motor
(1) VXL-4s waterproof electronic speed control with integrated telemetry
(1) Quick Start Guide
(1) TQi™ 2.4GHz radio system
(1) High quality maintenance tools

What You’ll Need:

  • LiPo Battery - Traxxas recommends a 4-cell 14.8V Power Cell LiPo battery for maximum performance. A 3-cell 11.1V LiPo battery will operate the vehicle with reduced performance. NiMH batteries are not supported.
  • LiPo Balance Charger with iD™ - Traxxas EZ-Peak Live 4s-capable charger is recommended for easy and fast charging performance (model #2971).
  • AA Alkaline Batteries - Four AA alkaline batteries for the transmitter.

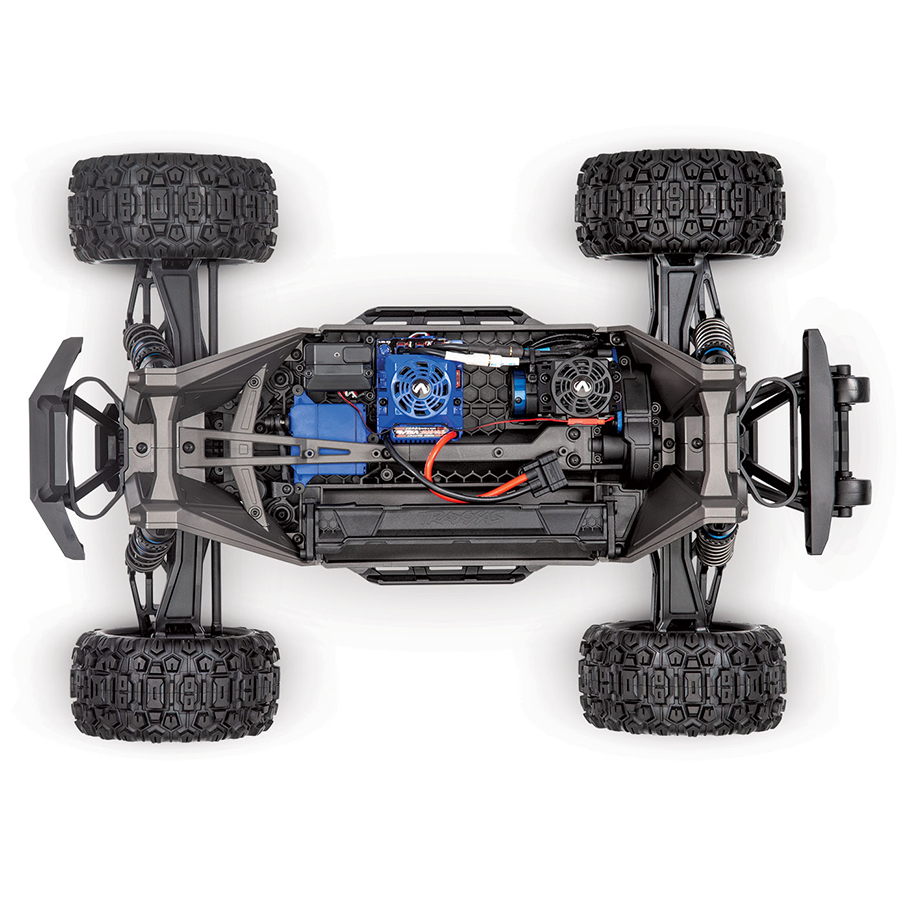

Truck
Length: 22.50 inches (572mm)
Front Track: 15.95 inches (405mm)
Rear Track: 15.95 inches (405mm)
Ground Clearance (lowest skid): 1.90 inches (49mm)
Ground Clearance (center skid): 2.6 inches (67mm)
Weight: 10.40 lbs (4.7kg)
Height (ride): 9.12 inches (232mm)
Wheelbase: 13.85 inches (352mm)
Shock Length: 4.90 inches (124mm)
Tire Diameter: 5.64 inches (143mm)
Wheel Diameter: 2.8 / 3.6 inches (70 / 92mm)
Speed Control: Velineon VXL-4s
Motor (electric): 540XL (2400 kV)

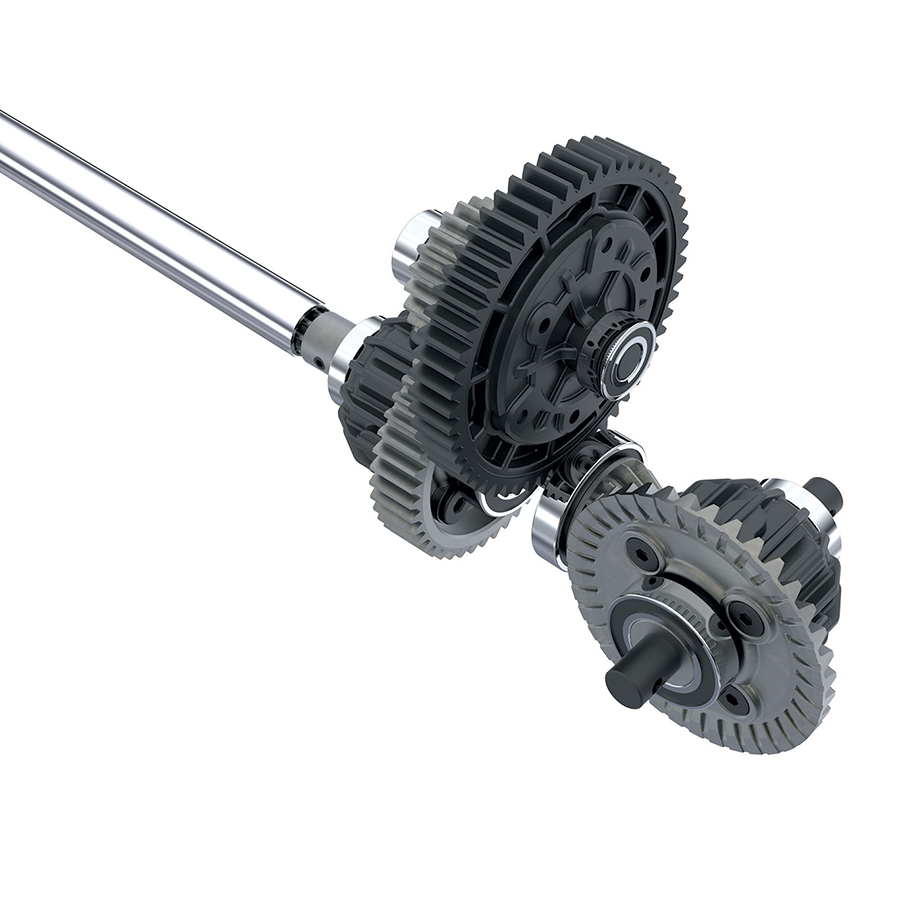

Transmission: Single-Speed

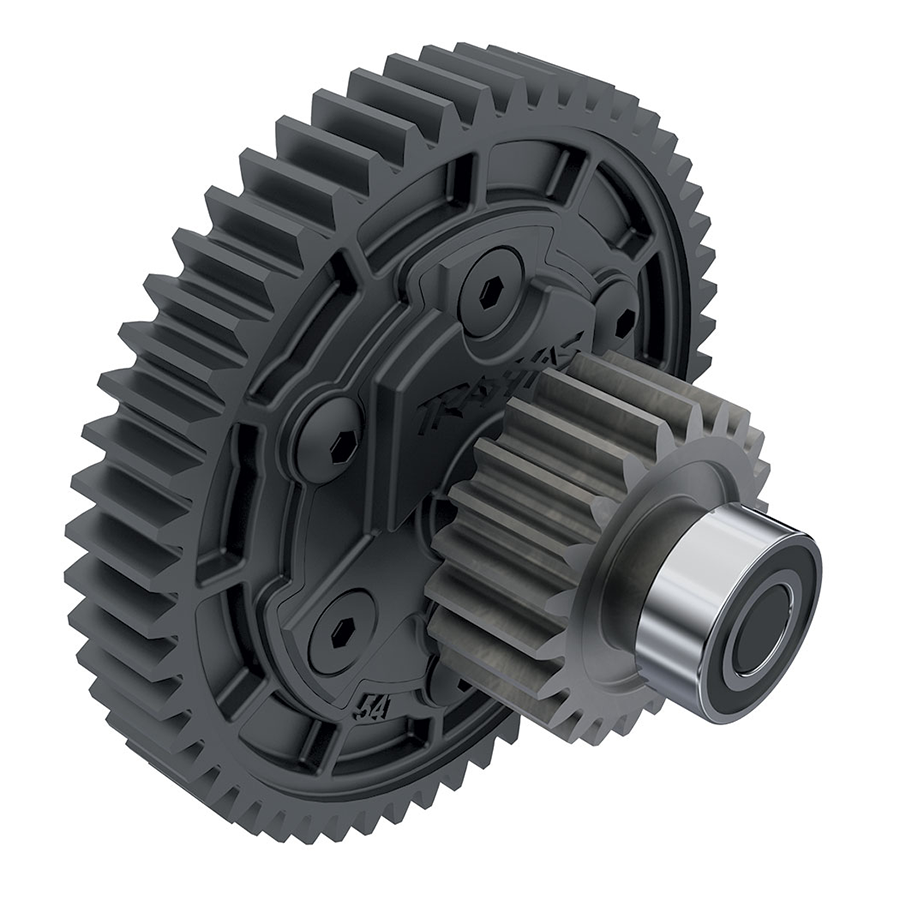

Overall Drive Ratio: 12.37 (23/50 motor pinion and spur gear)

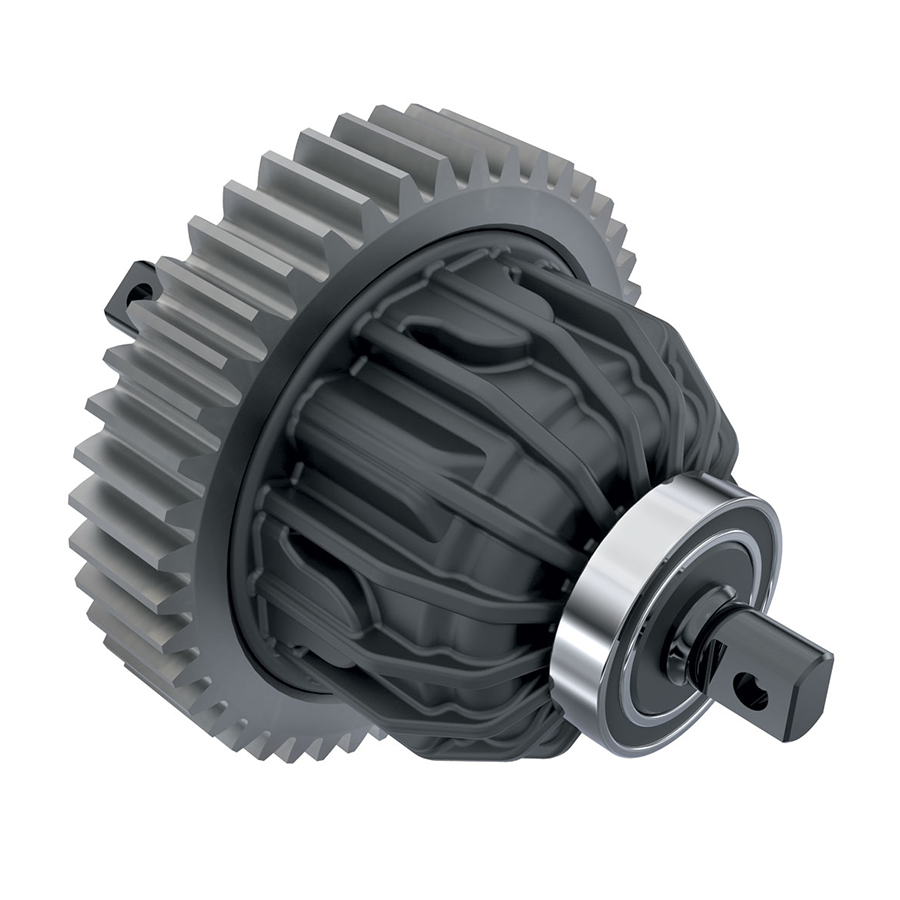

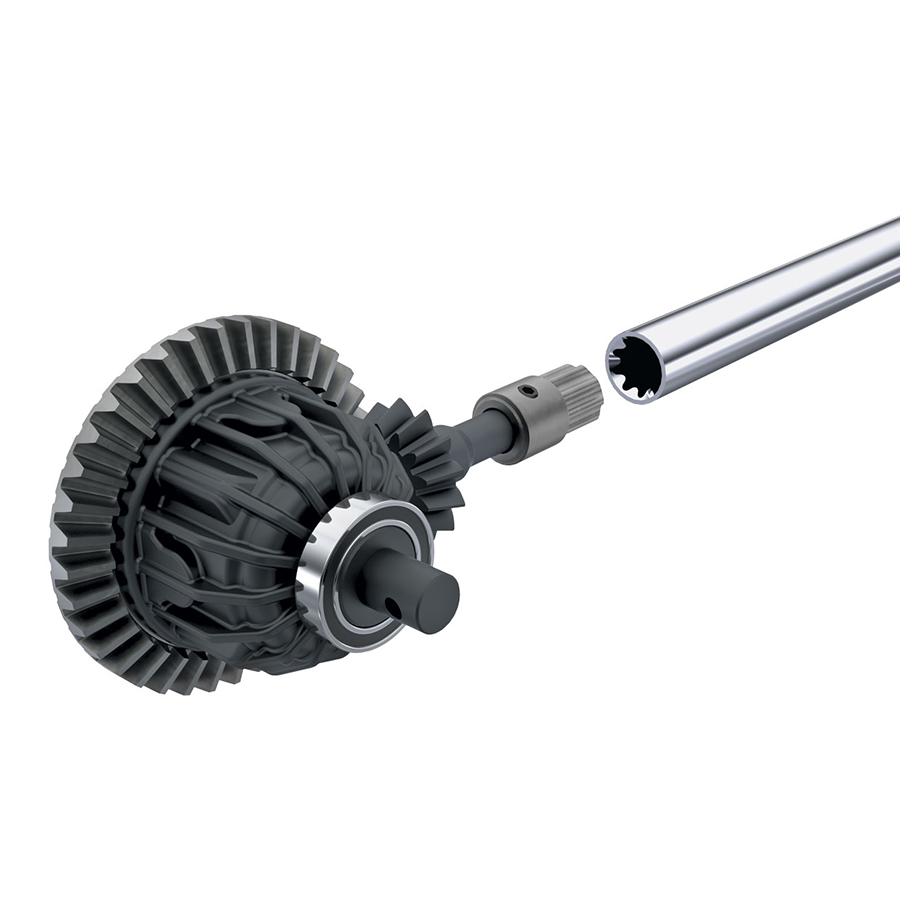

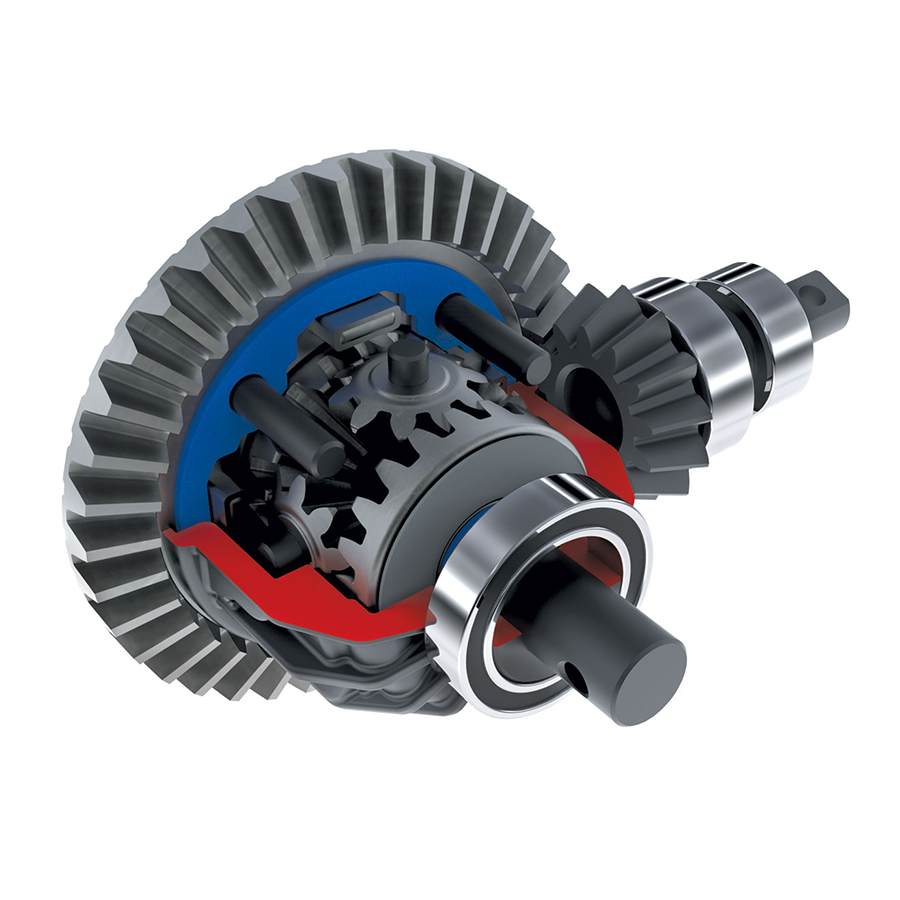

Differential Type: Sealed, hardened steel bevel, limited slip
Gear Pitch: Module 1.0

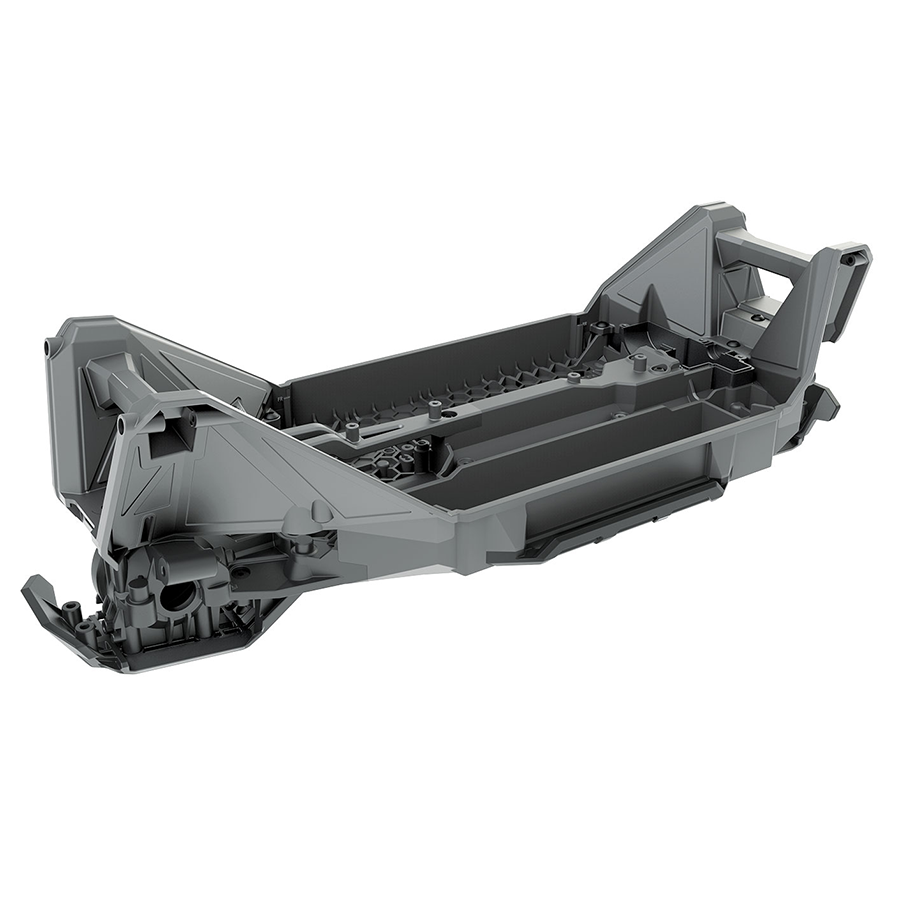

Chassis Structure/Material: Composite Modular Tub
Brake Type: Electronic

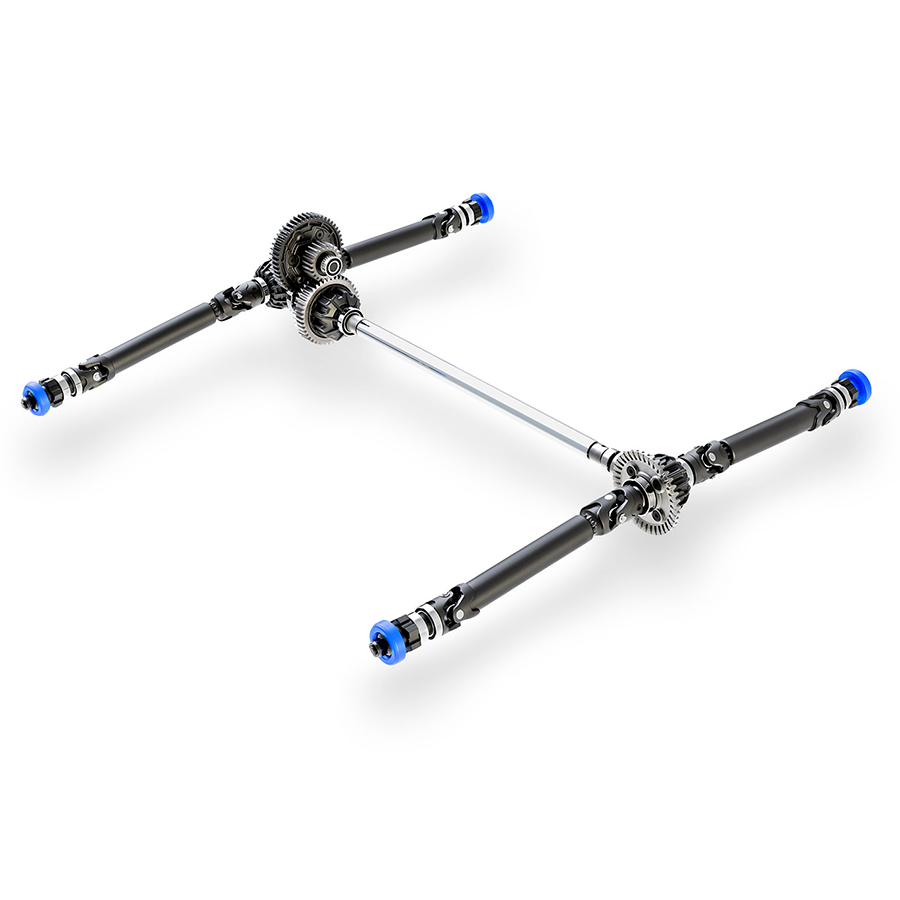

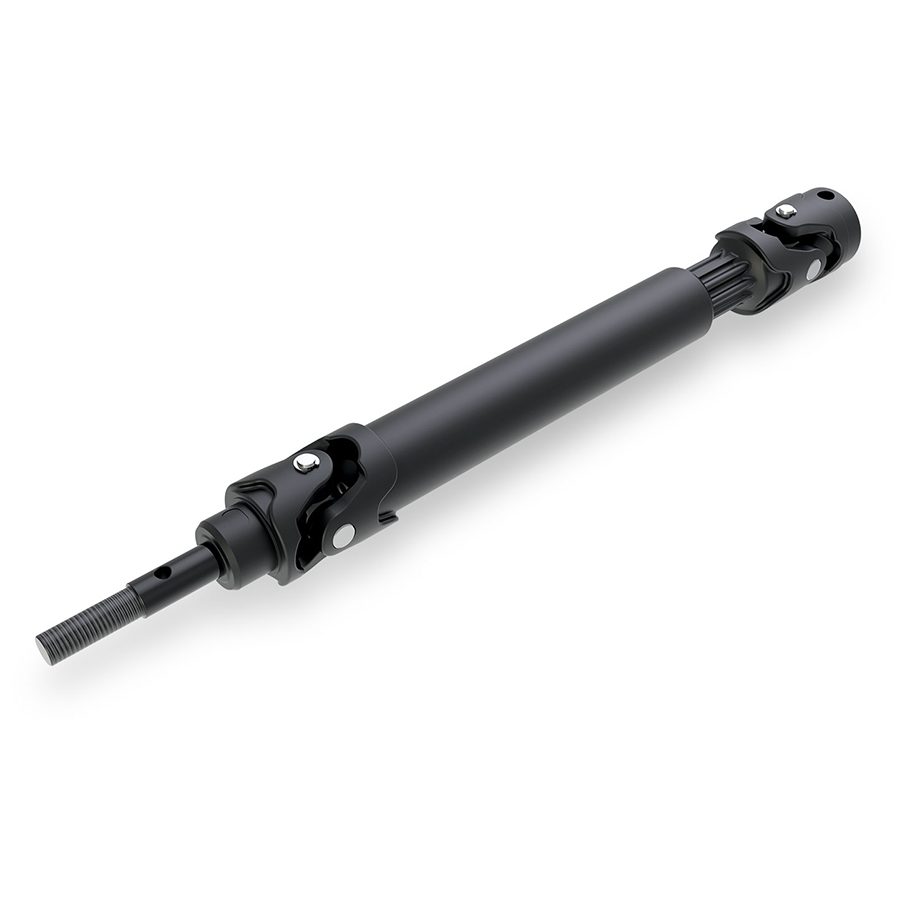

Drive System: Shaft-driven 4WD
Steering: Double-shear bellcrank
Wheels & Tires: 2.8” wheels, pre-glued Sledgehammer® Tires & foam inserts; 5.6x2.8–3.6

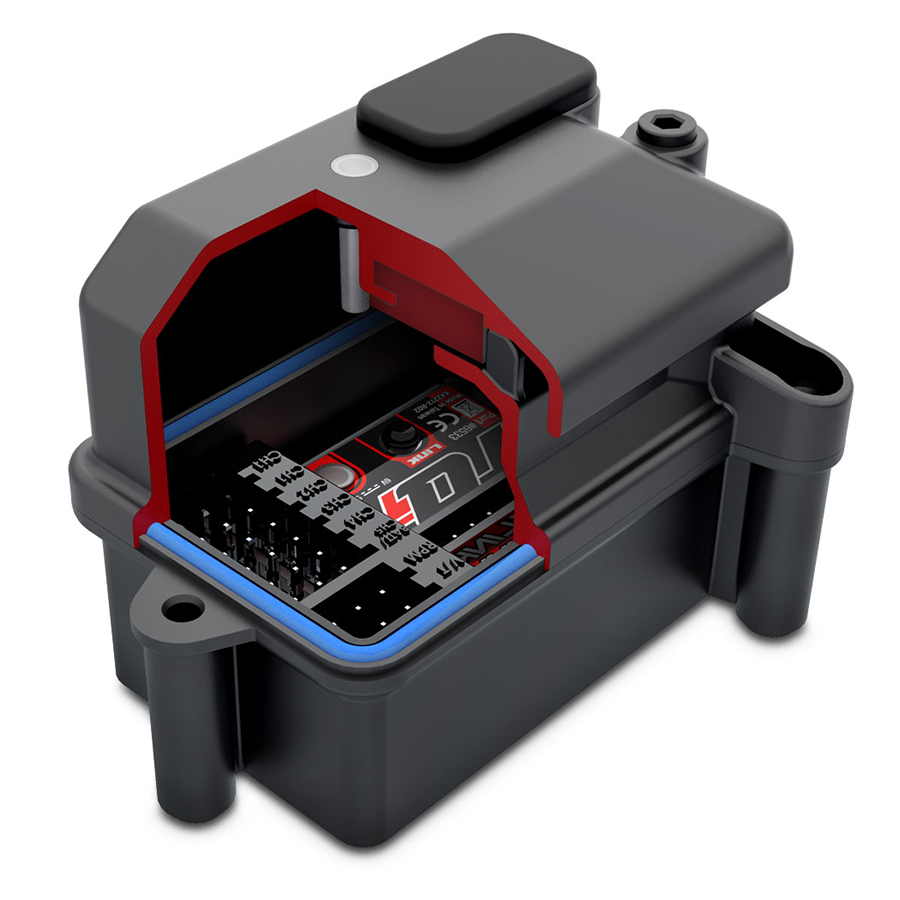

Radio System: 2-Channel, TQi™ 2.4GHz Transmitter with TSM® receiver

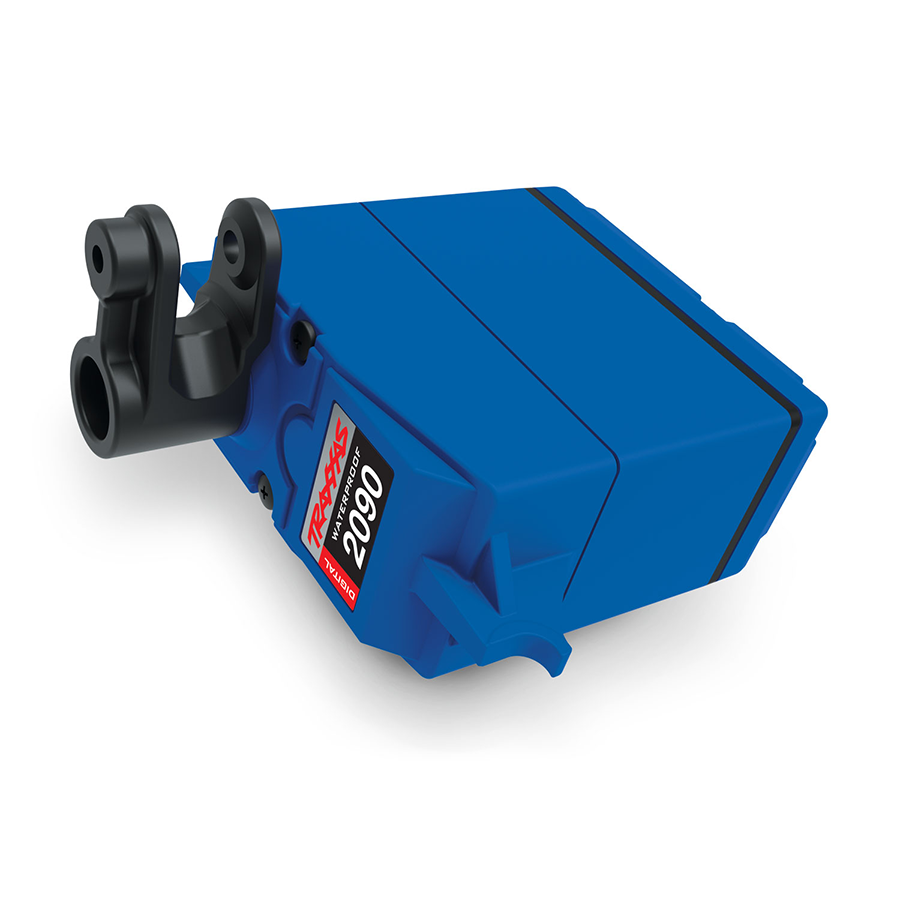

Servo: Torque: 285oz-in.
Top Speed: 60+ MPH with 4S LiPo battery and optional gearing (sold separately)
Skill Level: 4
Battery Tray: 186mm L x 48mm W x 43mm H
Required Batteries: 4 “AA” (transmitter)

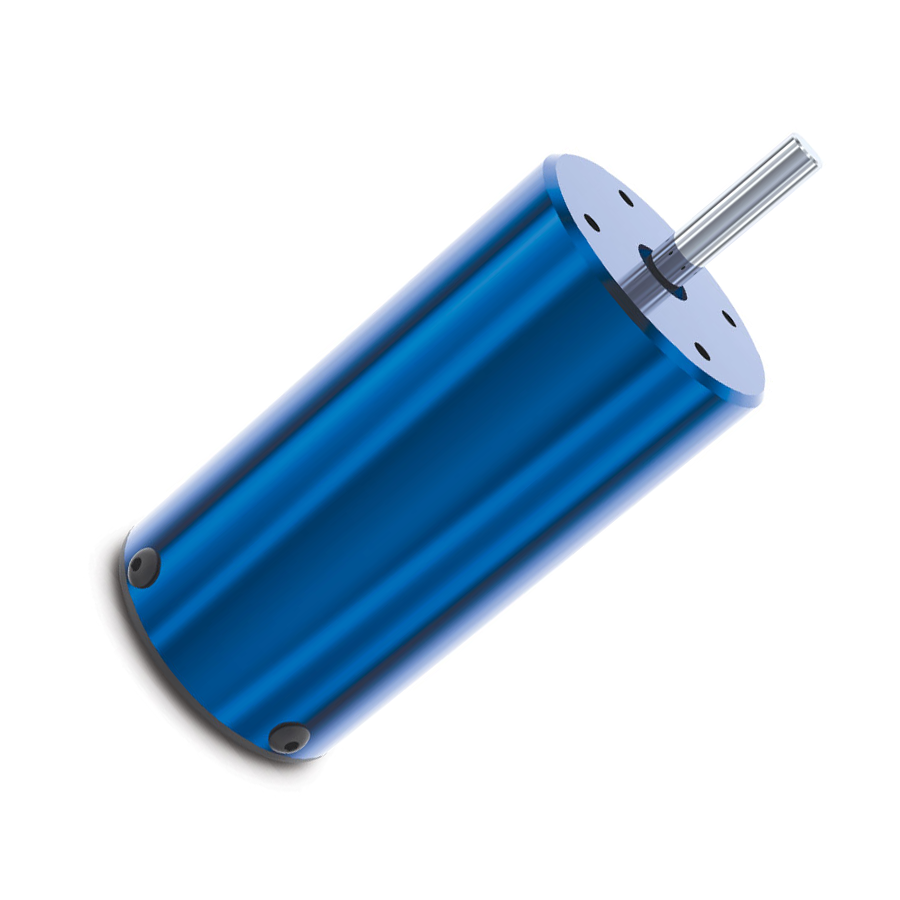

Motor
Type: 2400 kv sensorless brushless
Weight: 317g (11.18oz)
Length: 3.58 inches (91mm)
Diameter: 1.41 inches (36mm)
Connector Type: Traxxas 6.5mm bullet connectors

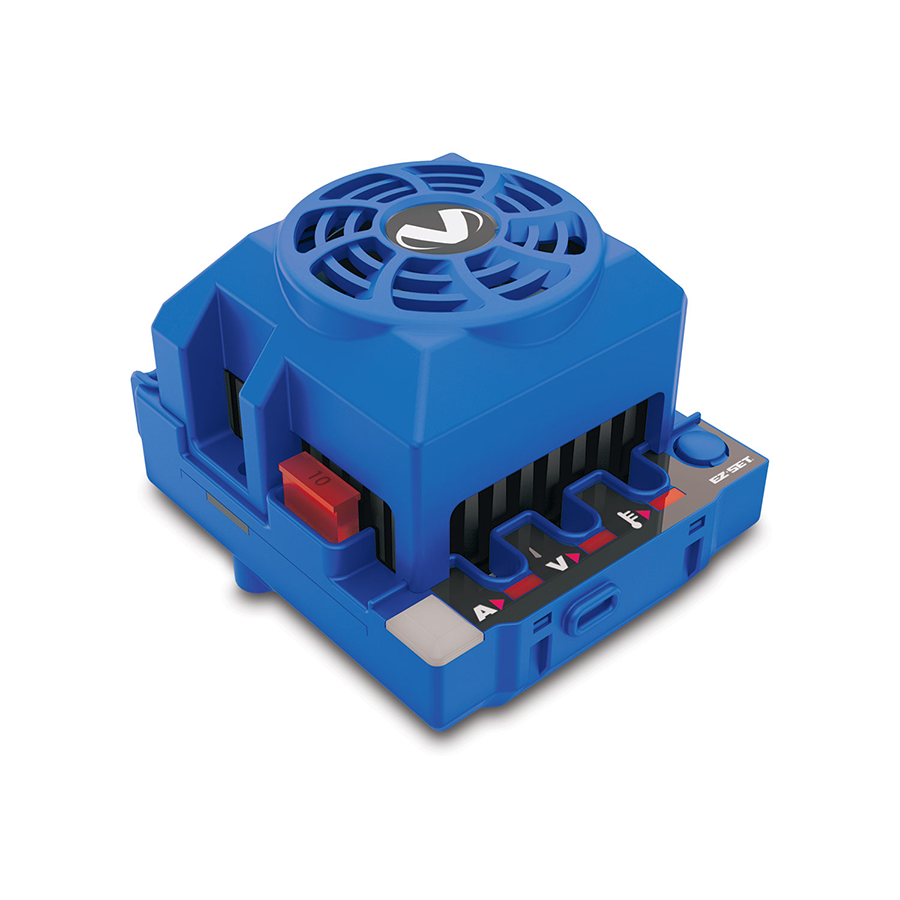

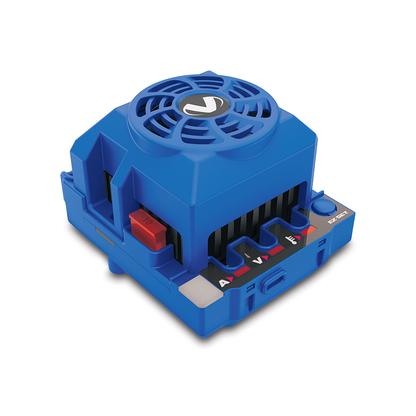

ESC
Input Voltage: 3S–4S LiPo (11.1V – 16.8V)
Case Size: 2.83 inches (72mm) x 2.32 inches (59mm) x 1.93 inches (49mm)
Weight: 201g (7.09oz)
BEC Voltage: 6.0 V
BEC Current Continuous: 10 A
BEC Current Peak: 20 A
Motor Connectors: Traxxas 6.5mm bullet connectors
Battery Connectors: Traxxas High-Current Connectors
Power Wire: 10-gauge Maxx Cable
Ports: RX input, auxiliary fan, Traxxas accessory port
