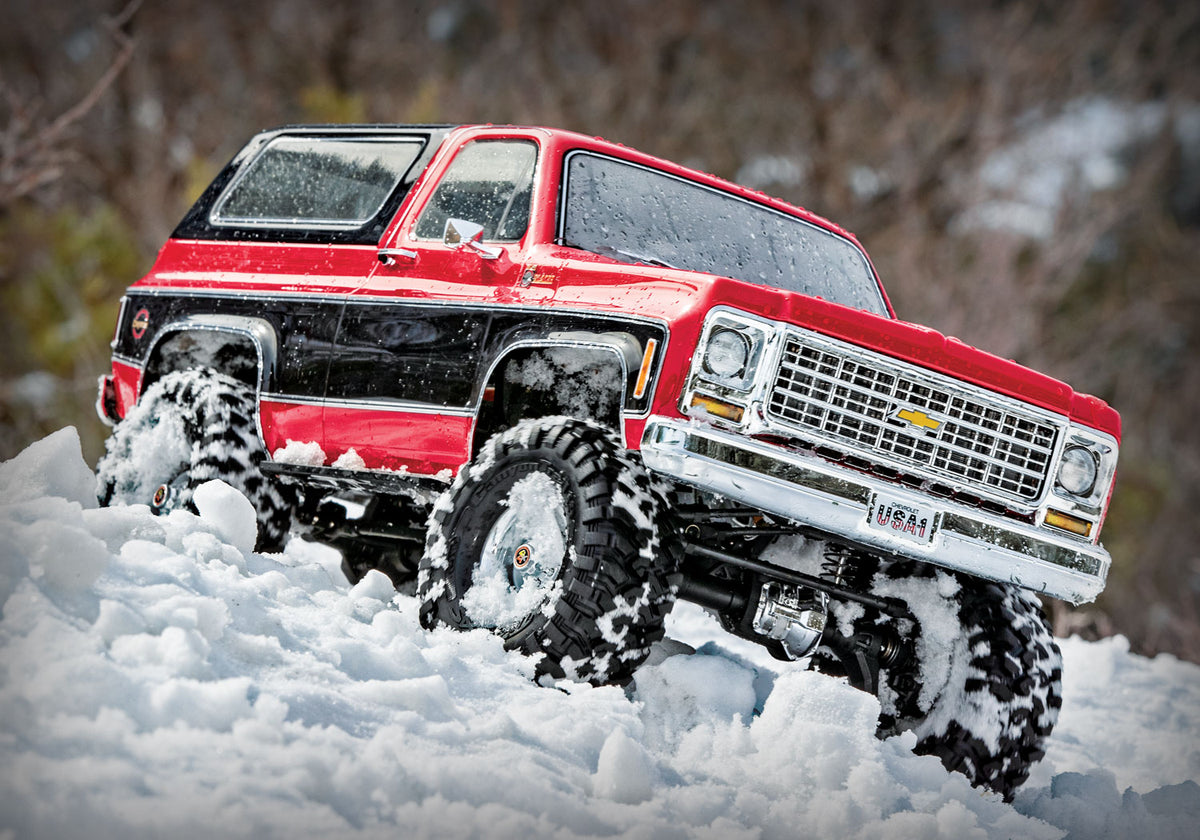

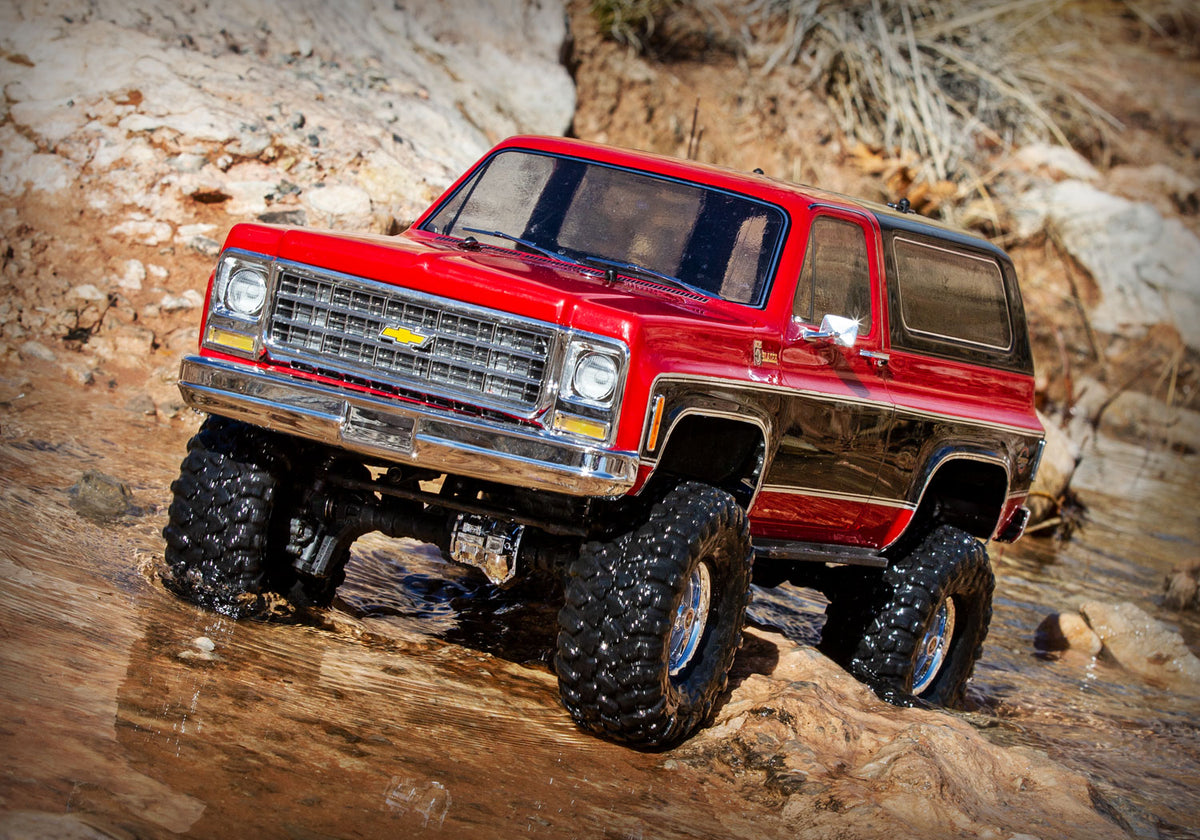

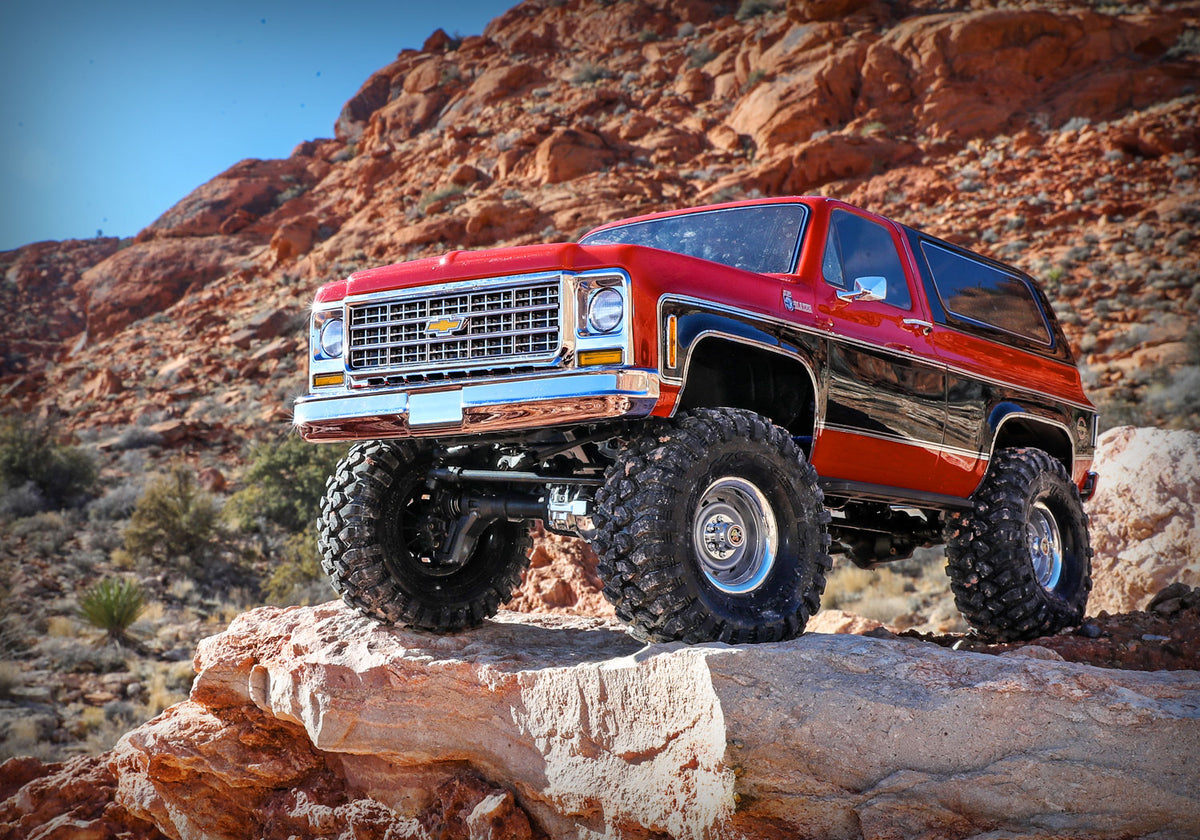

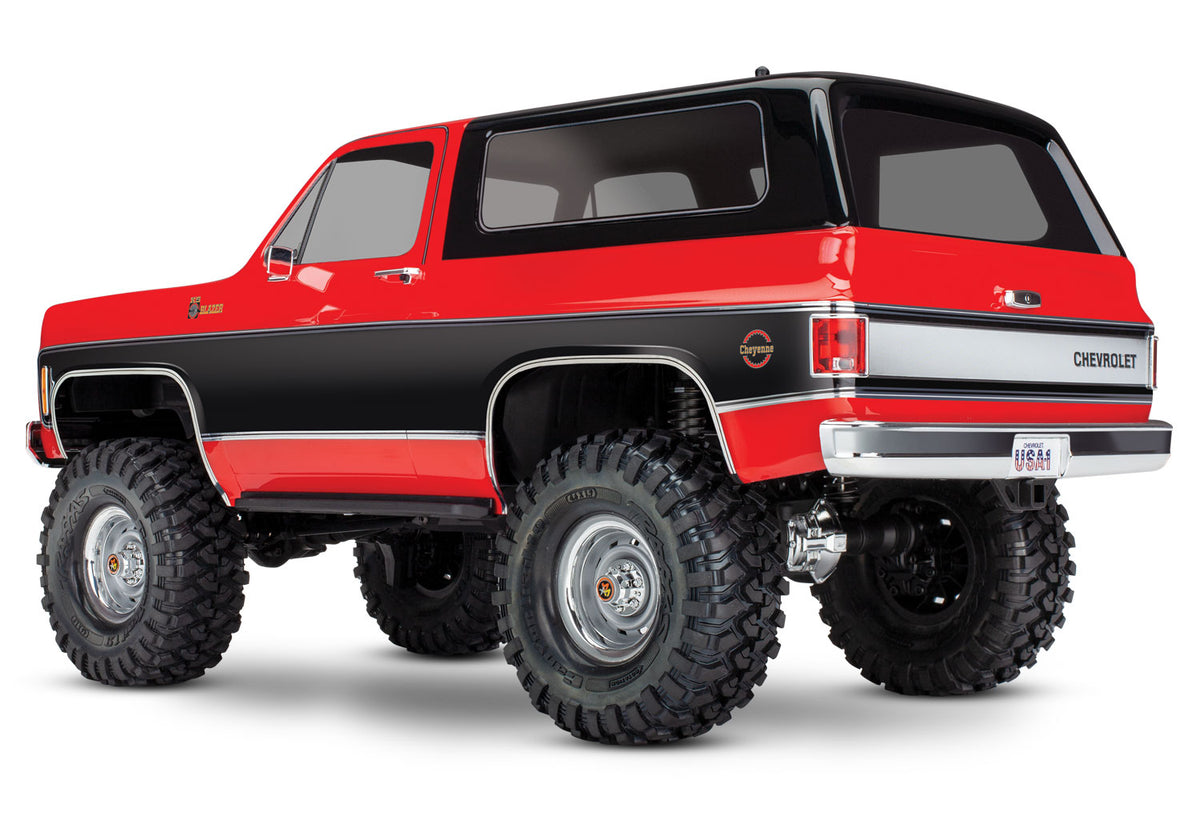

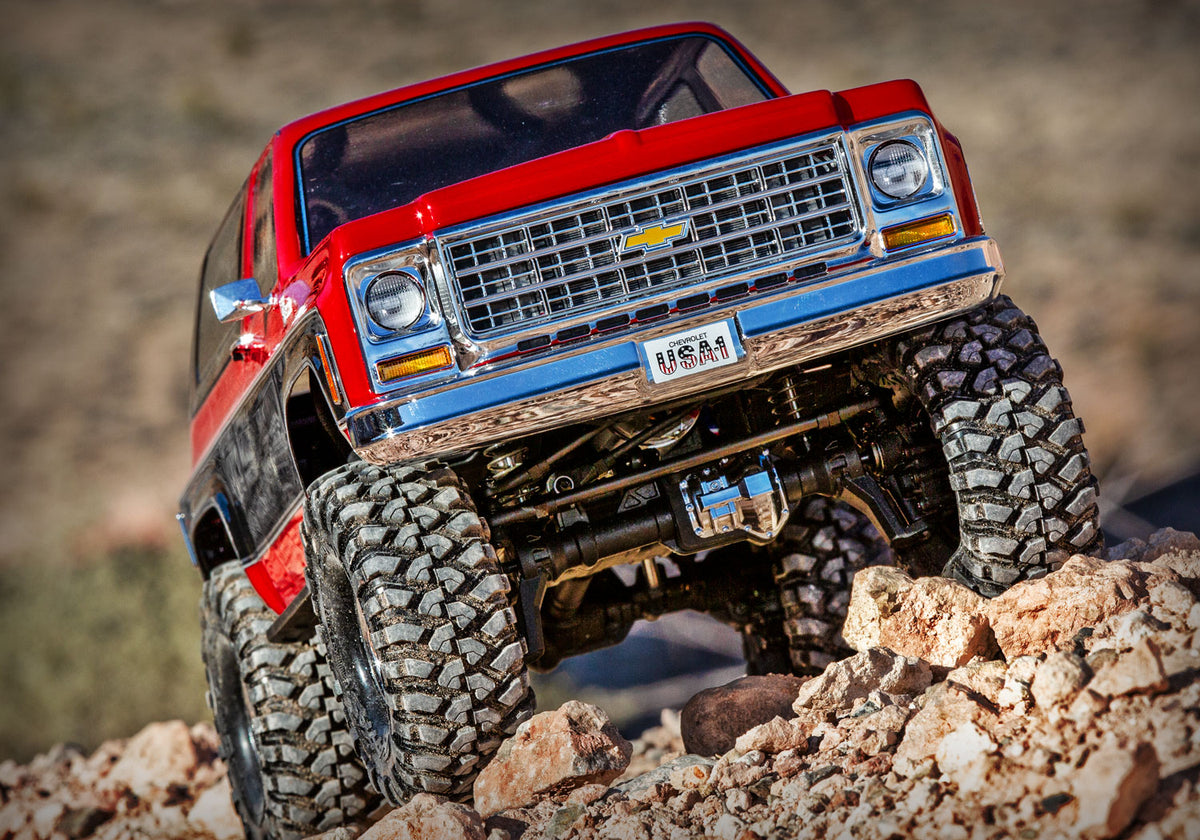

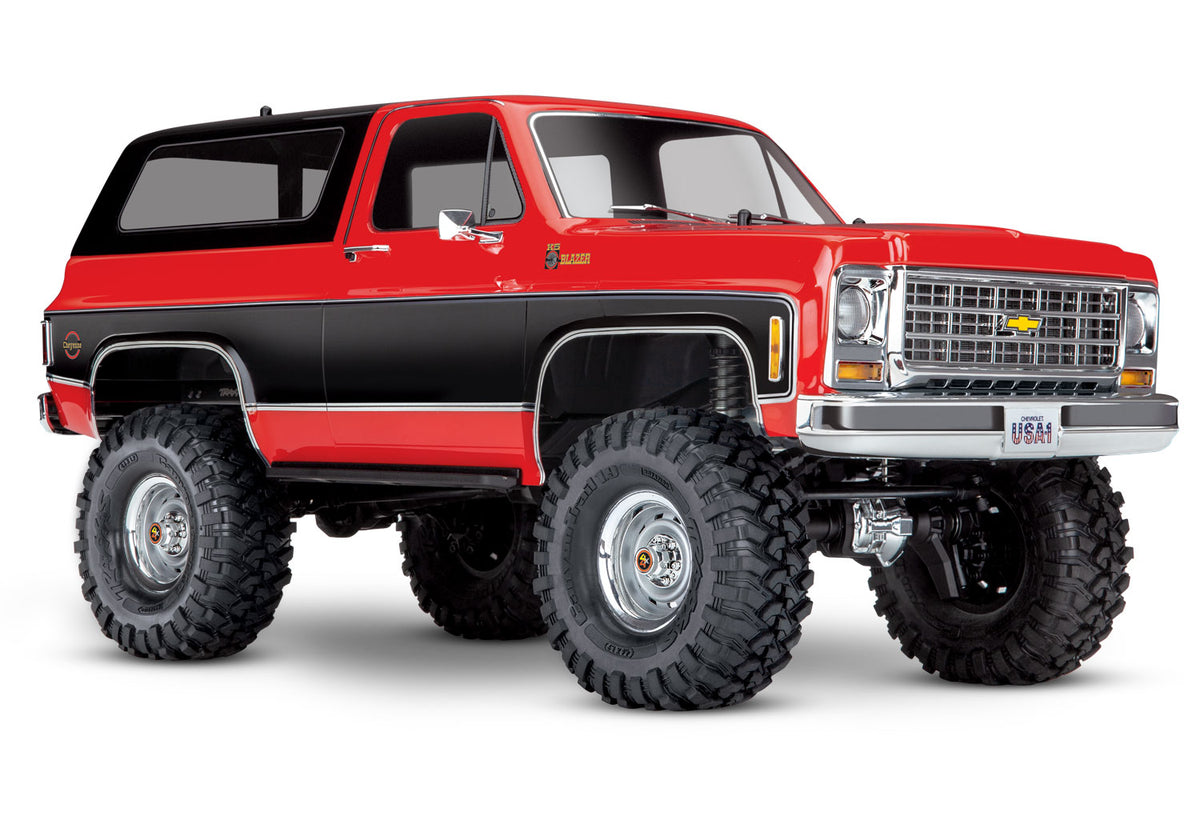

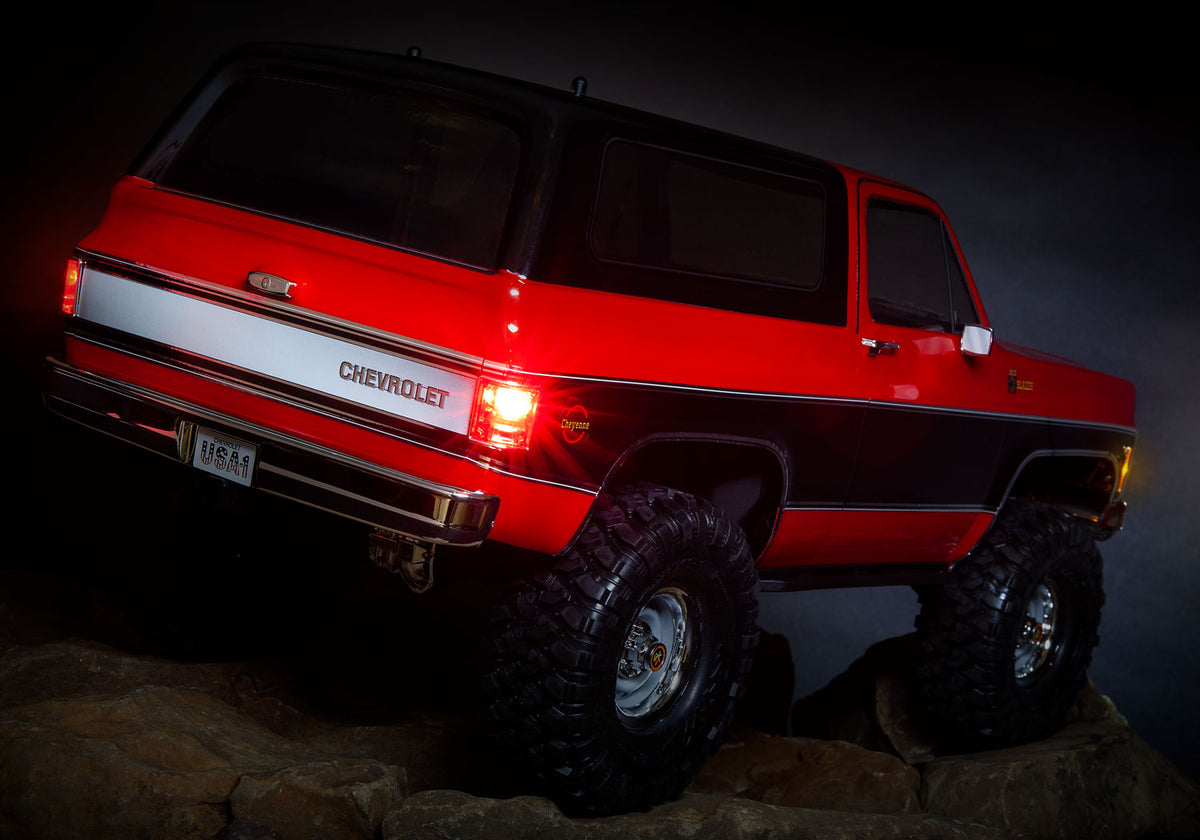

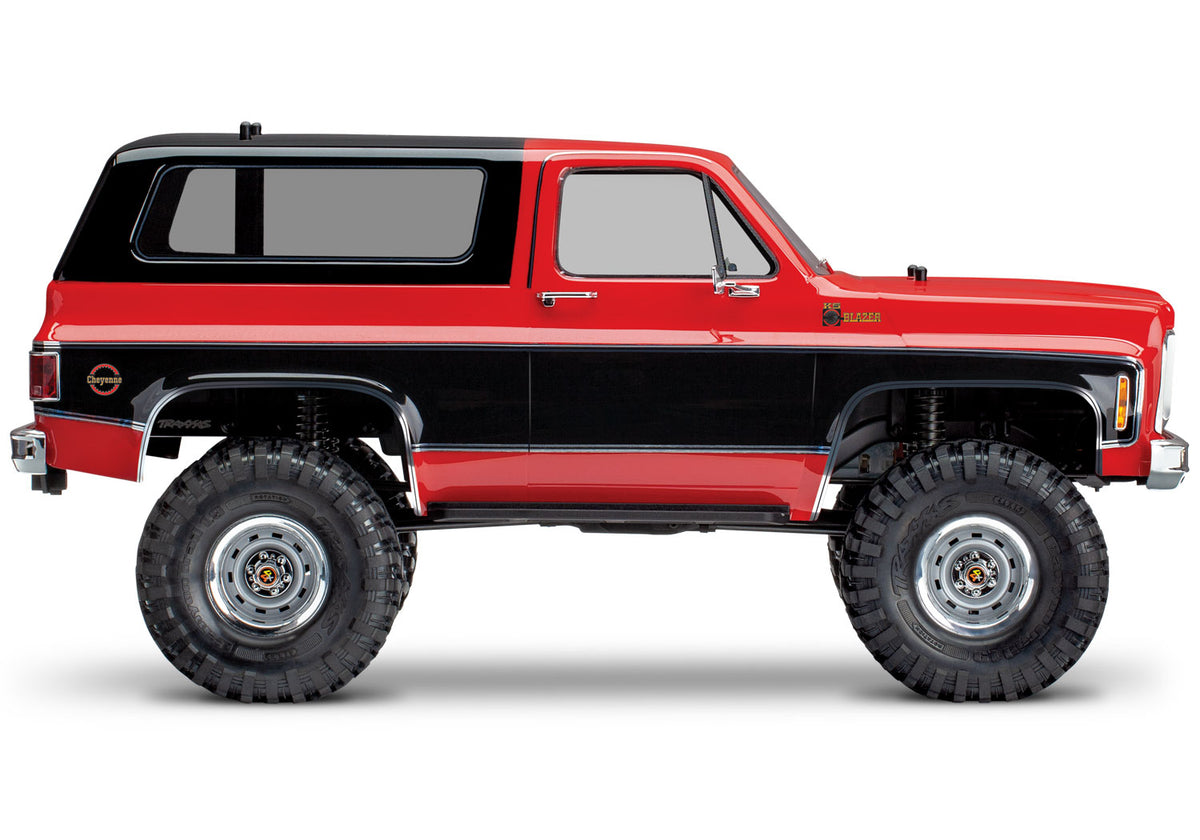

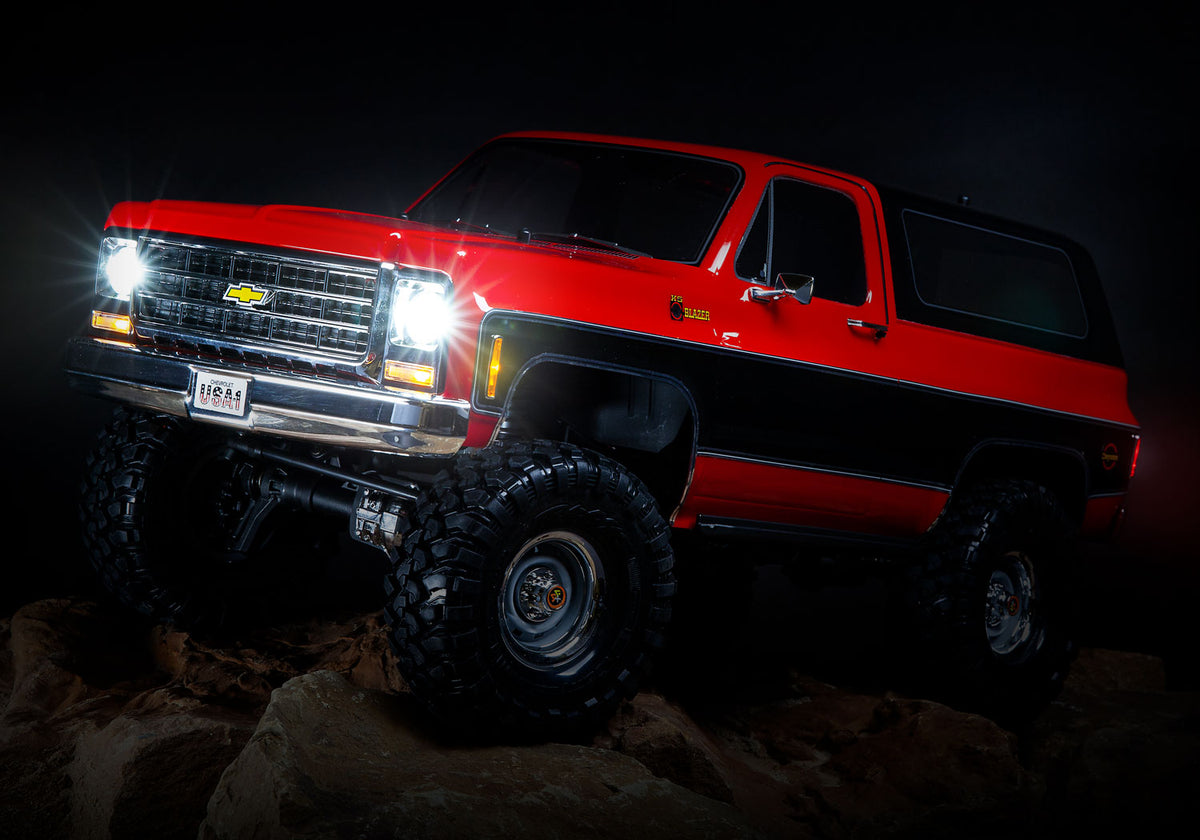

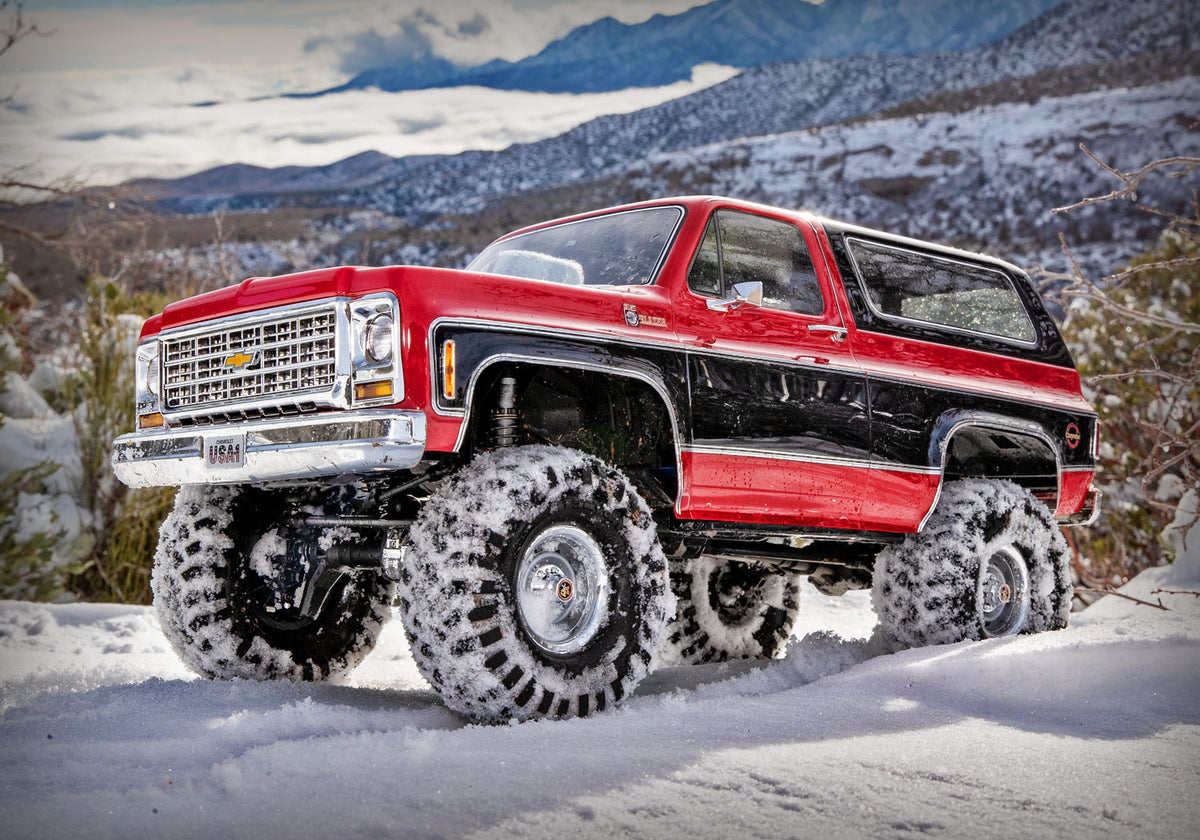

1/10 TRX-4 '79 Blazer 4WD, RTD (Requires Battery & Charger): Red

Overview:

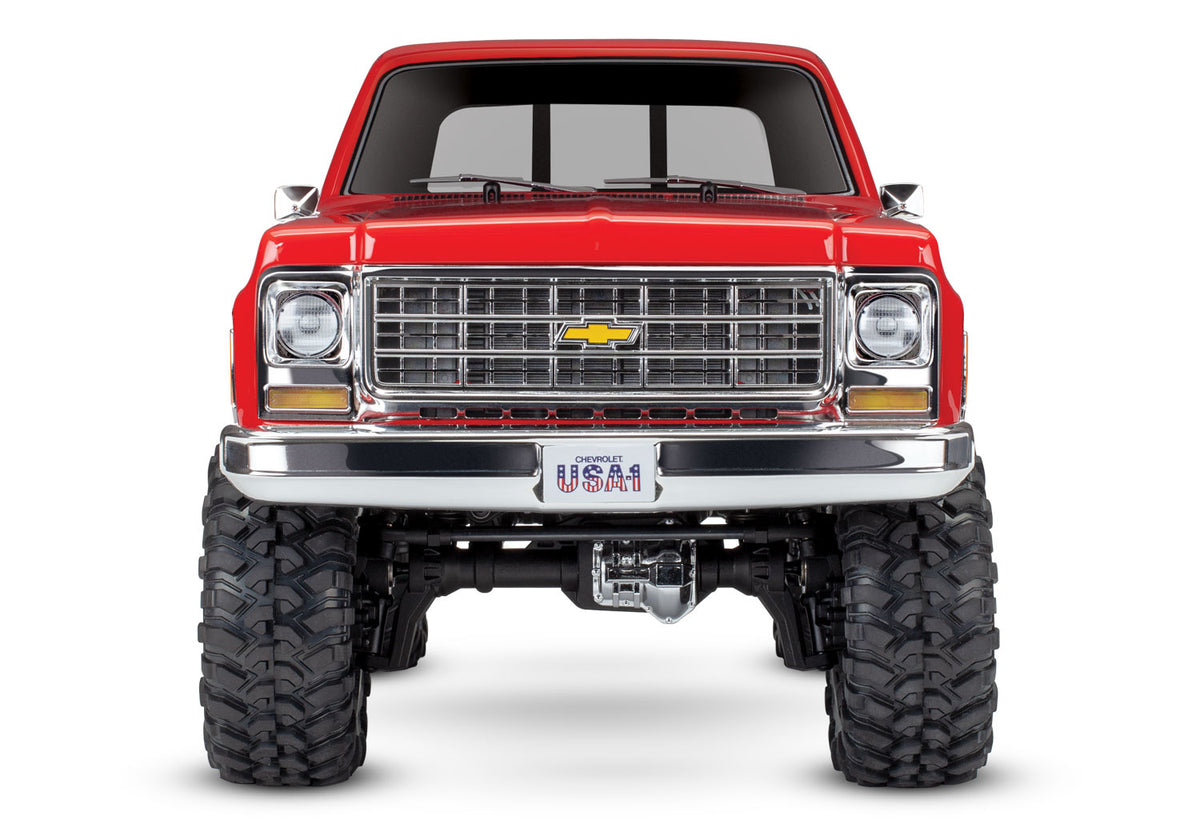

Introduced in 1969, the Chevrolet Blazer was General Motors’ two-door entry into the booming sport utility market. Its shorter wheelbase and capable suspension instantly made it a favorite in the 4X4 world, earning the love of enthusiasts and collectors. Traxxas honors the rich history of the Blazer with this beautifully detailed reproduction of the 1979 K5 Blazer built on the renowned TRX-4® chassis. Outfitted with replica Rally wheels, a highly detailed chrome grill, and a full complement of scale details, the TRX-4 Blazer combines the iconic style of the Blazer with toughness and technology that could only come from Traxxas.

What’s In The Box:
(1) TRX-4, Ready-To-Race® model
(1) XL-5 HV waterproof electronic speed control
(1) Titan™ 21T reverse rotation motor
(1) TQi™ 2.4GHz radio system with cruise control
(1) High quality maintenance tools

Needed for Completion:
(1) Batteries - TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2S–3S) batteries.
(1) Charger - Traxxas EZ-Peak Live charger is recommended for easy and fast charging performance (model #2971).
(4) AA Alkaline Batteries - Four AA alkaline batteries for the transmitter.

'79 Blazer Vehicle
Length: 20.62 inches (524mm)
Front Track: 9.78 inches (249mm)
Rear Track: 9.78 inches (249mm)

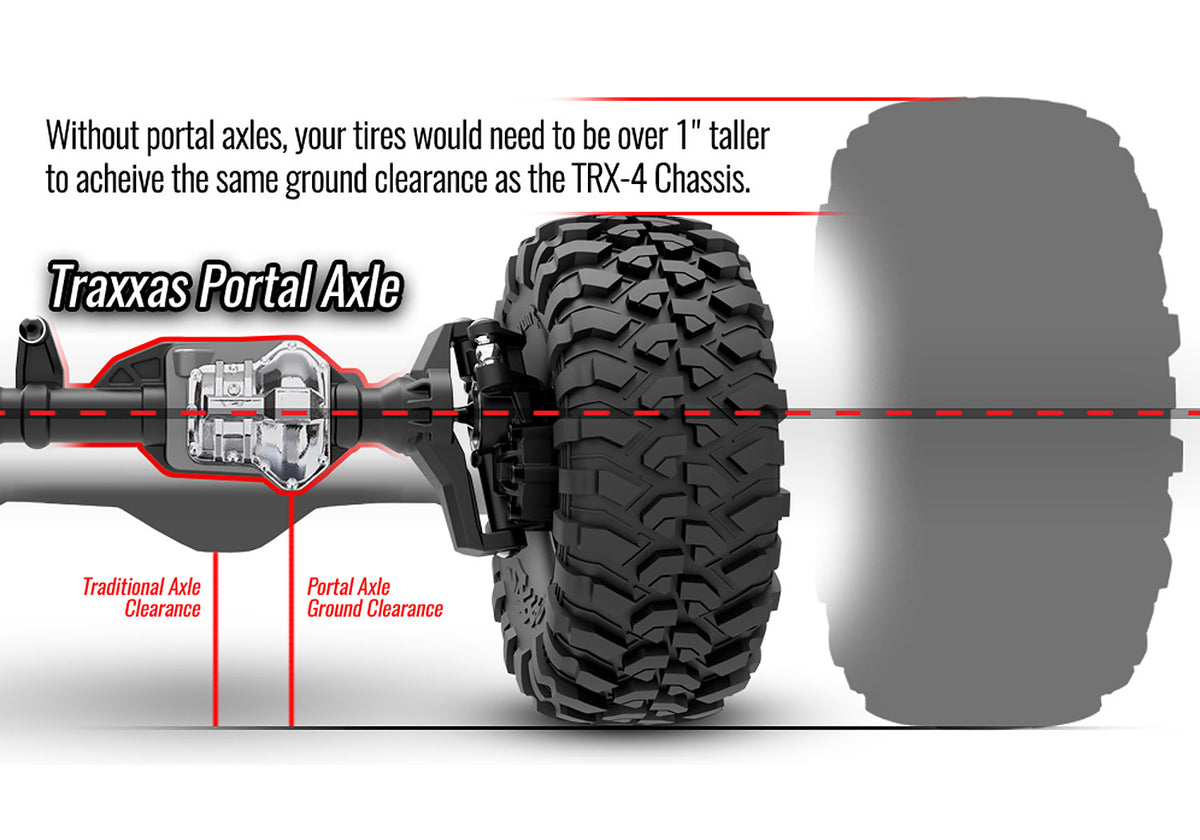

Ground Clearance: 3.14 inches (80mm)
Weight: 6.26lb (2.84kg)
Height (overall): 10.05 inches (255mm)

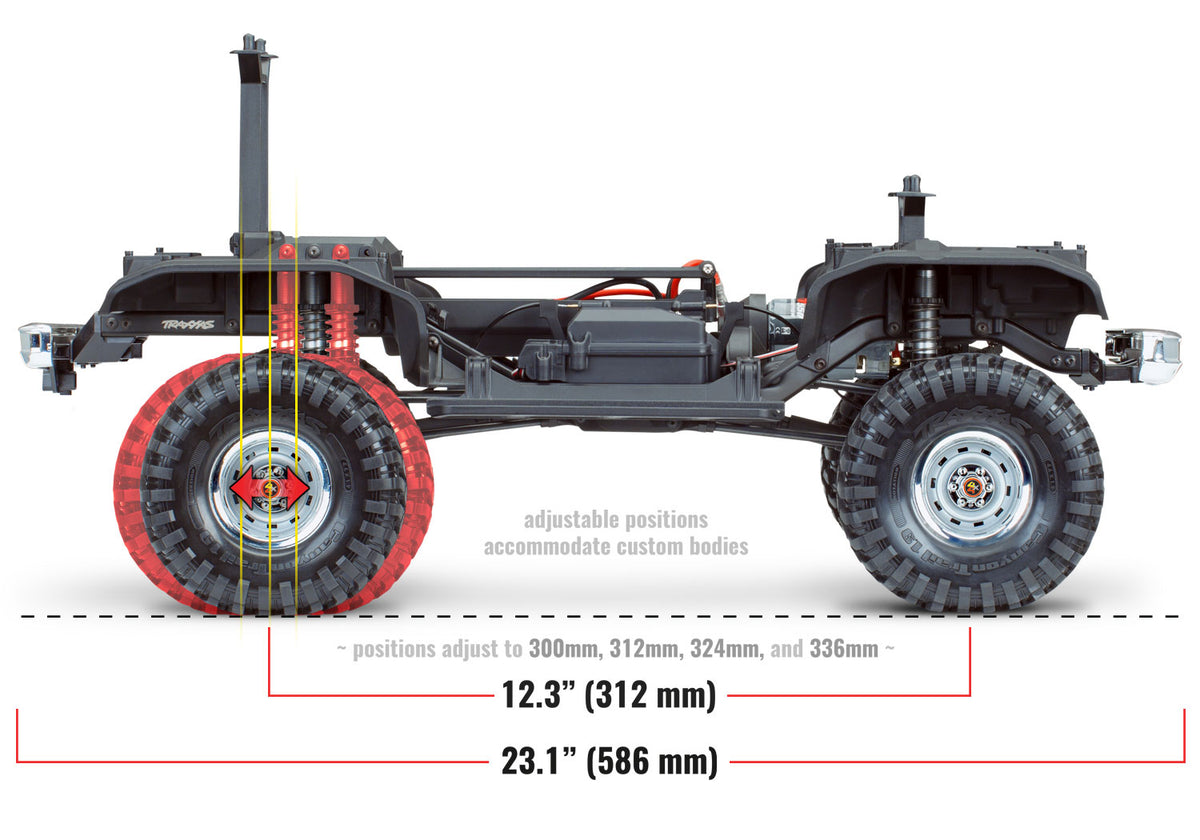

Wheelbase: 12.28 inches (312mm)
Approach Angle: 59°
Departure Angle: 47°
Breakover Angle: 59°

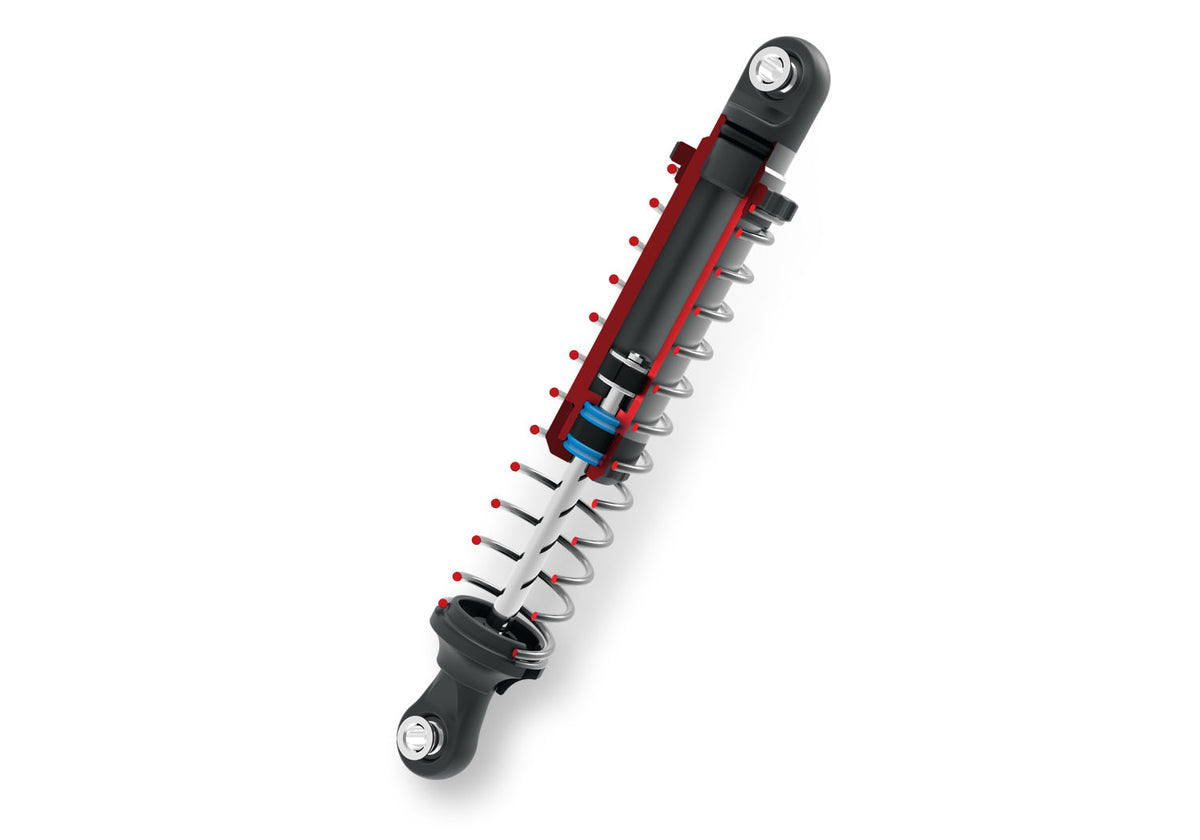

Front Shock Length: 3.54 inches (90mm)
Rear Shock Length: 3.54 inches (90mm)

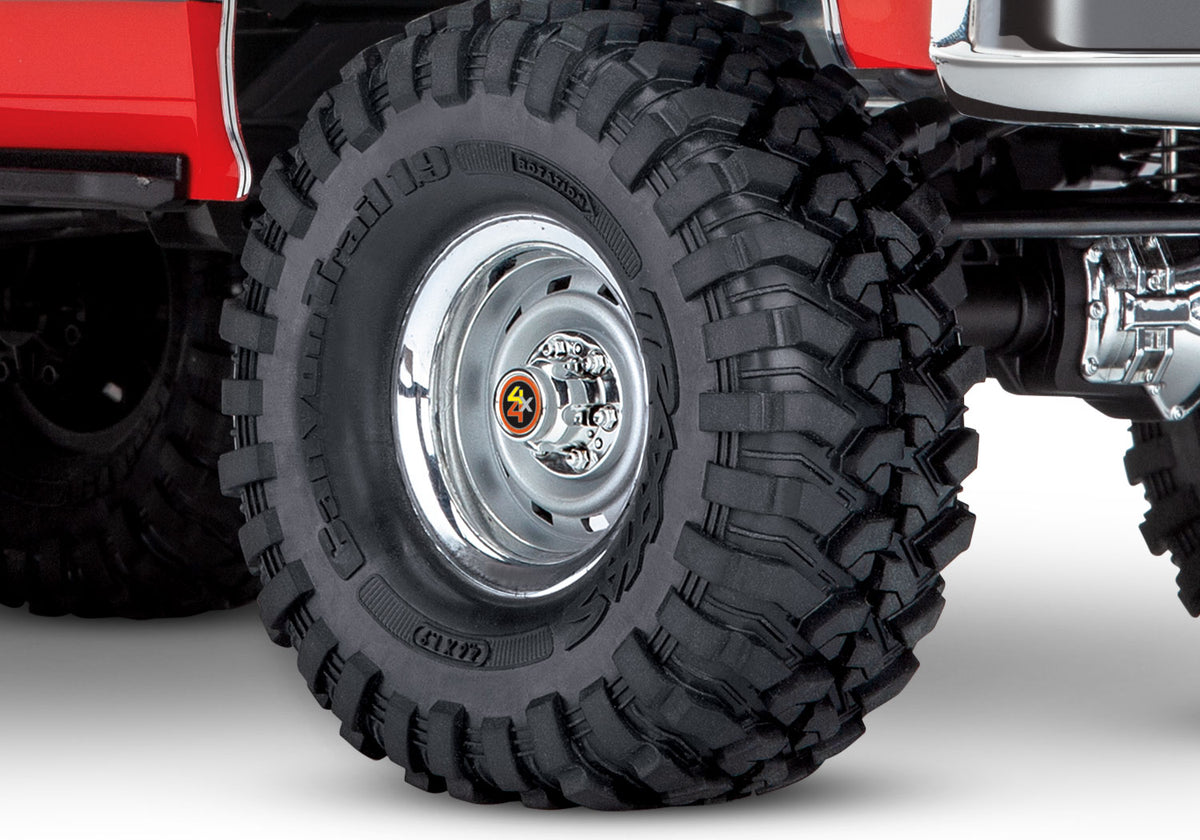

Front Wheels: 1.9 x 1.02 inches (49 x 26mm)
Rear Wheels: 1.9 x 1.02 inches (49 x 26mm)
Front Tires: 4.64 x 1.89 inches (118 x 48mm)
Rear Tires: 4.64 x 1.89 inches (118 x 48mm)
Hex Size: 12mm
Speed Control: XL-5 HV
Motor (electric): 21T Reverse Rotation

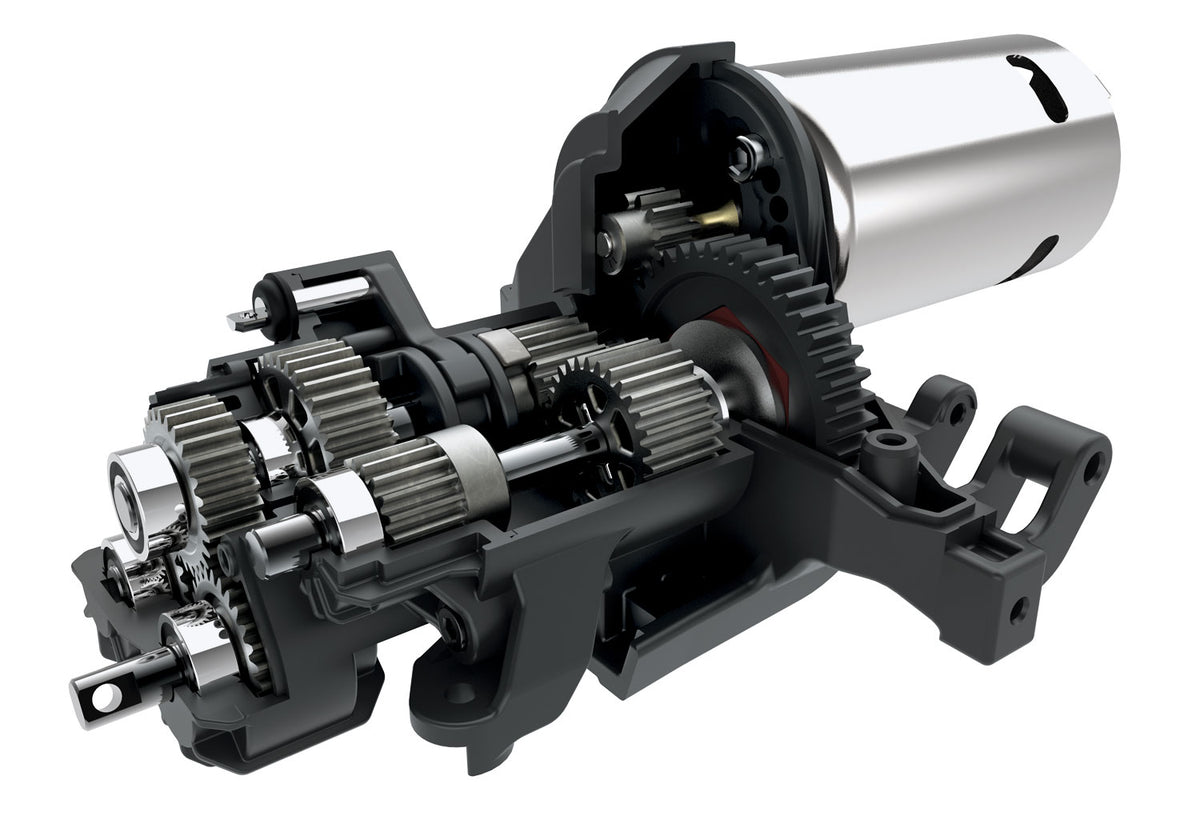

Transmission: 2-speed Hi-Lo, Remote Shifting
Gear Pitch: 32P

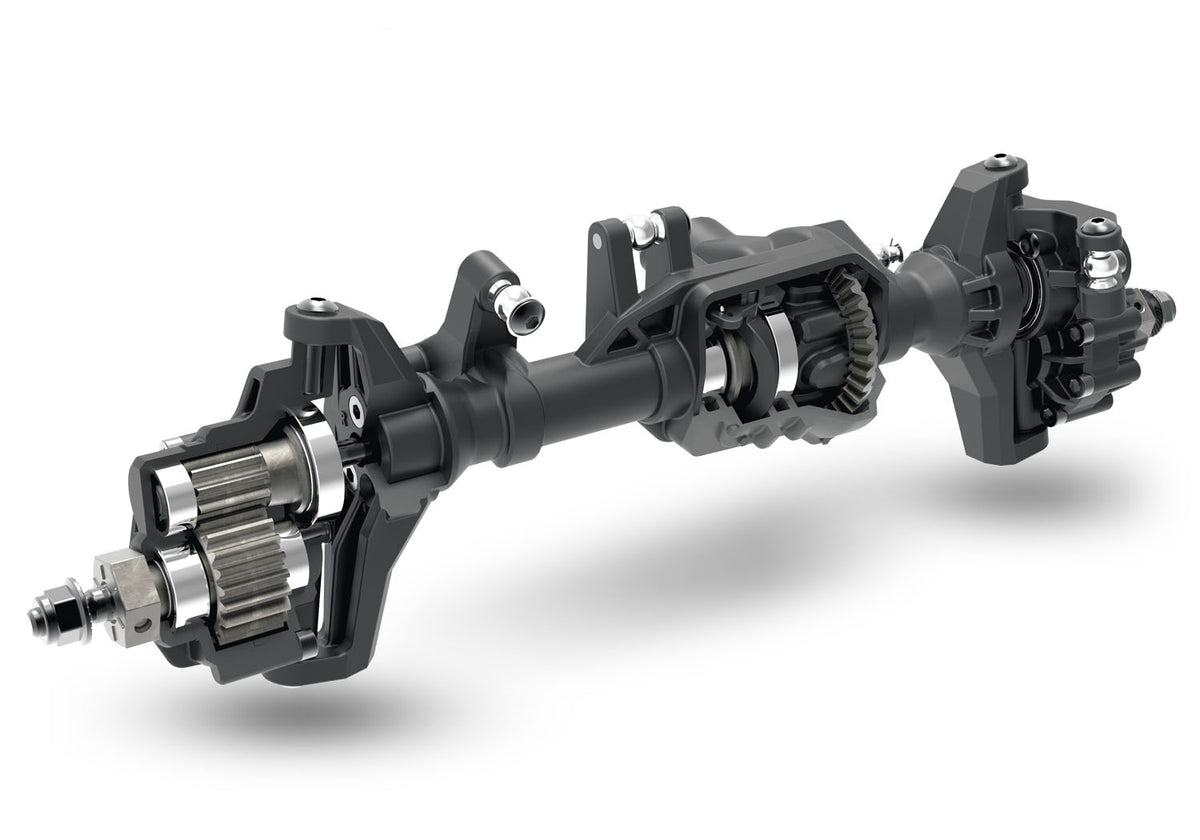

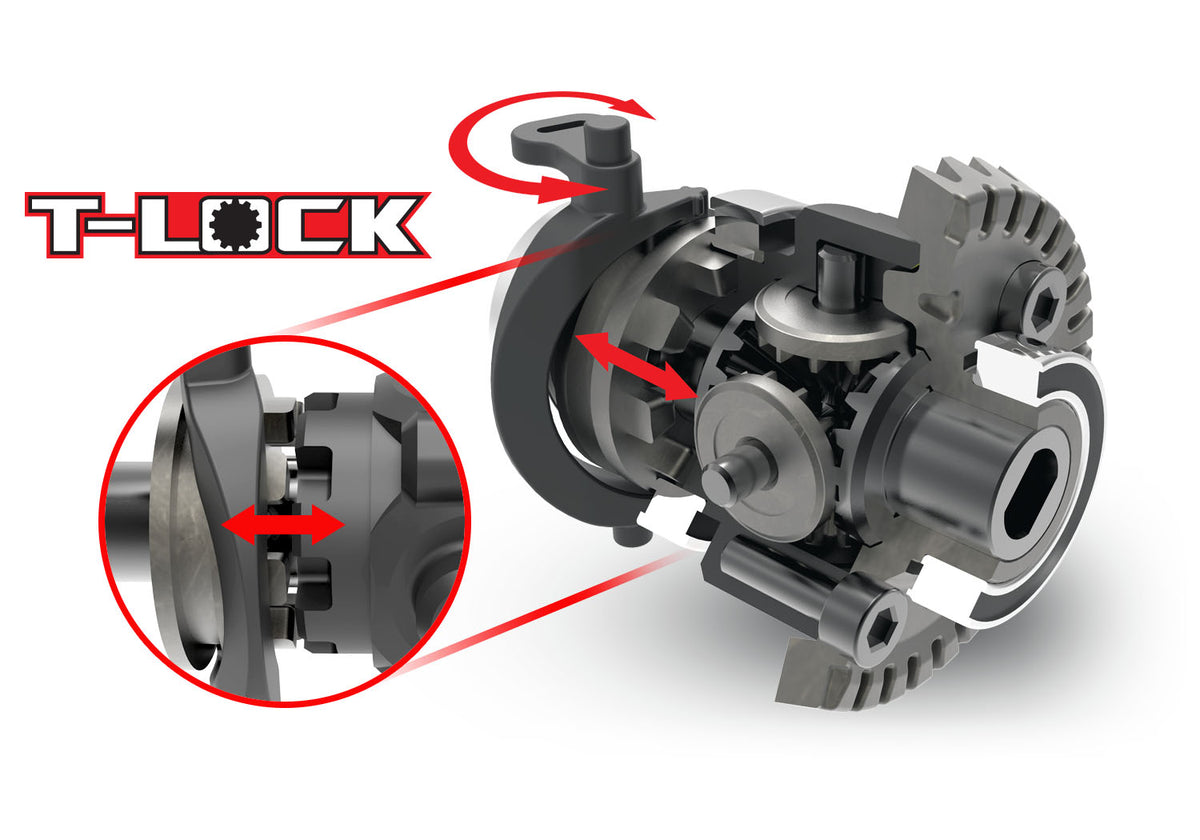

Differential Type: 4 Gear, Remote Locking

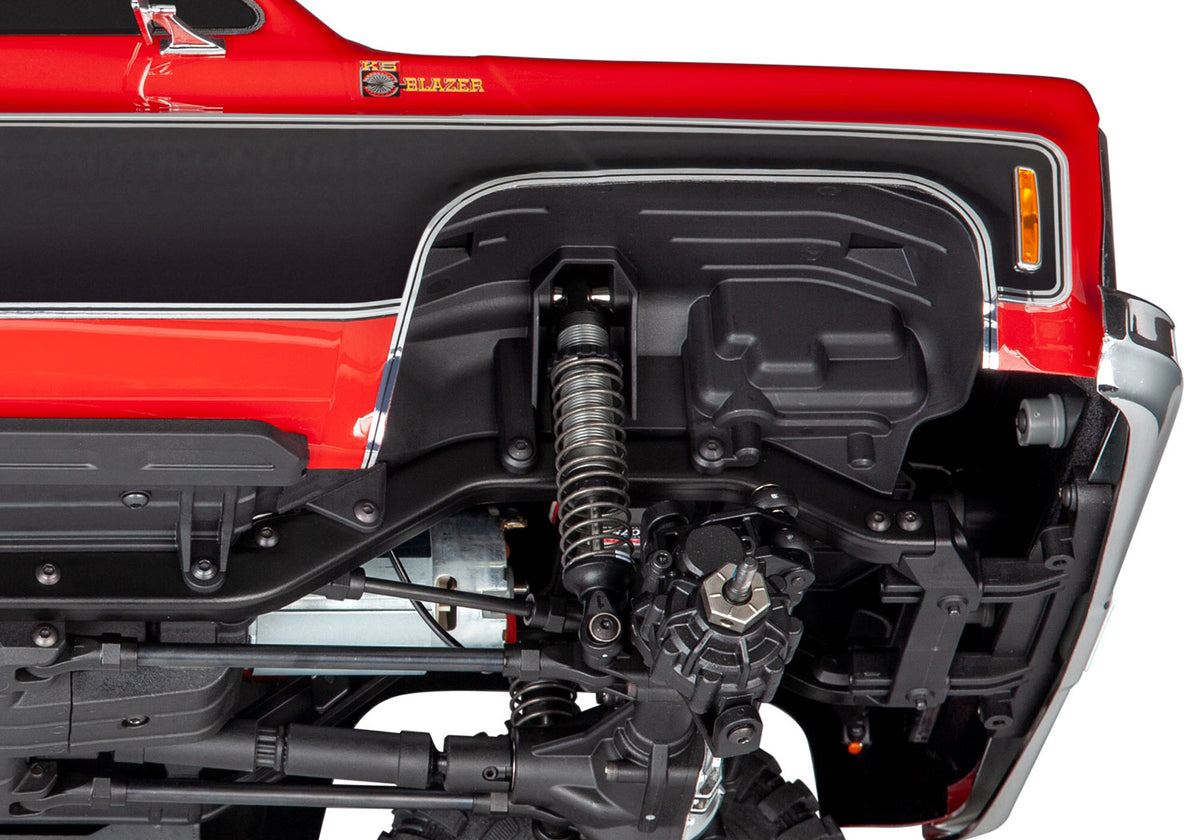

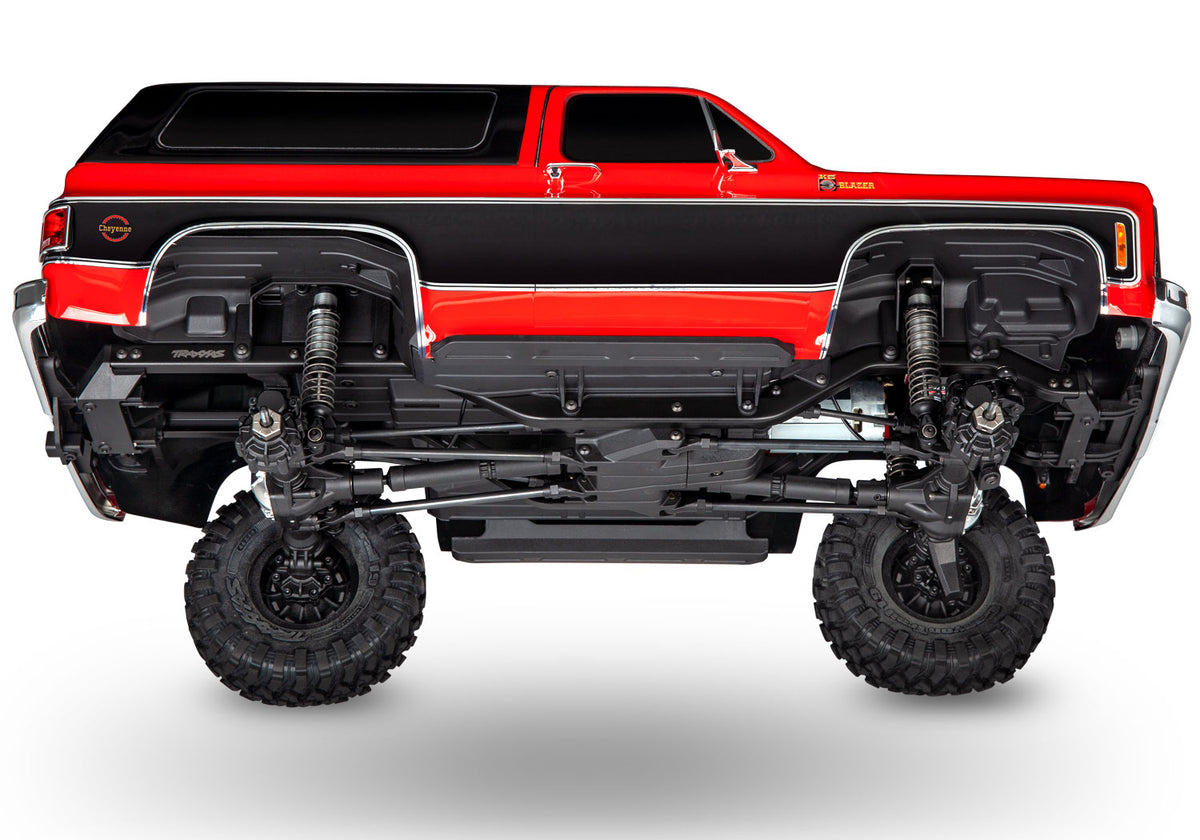

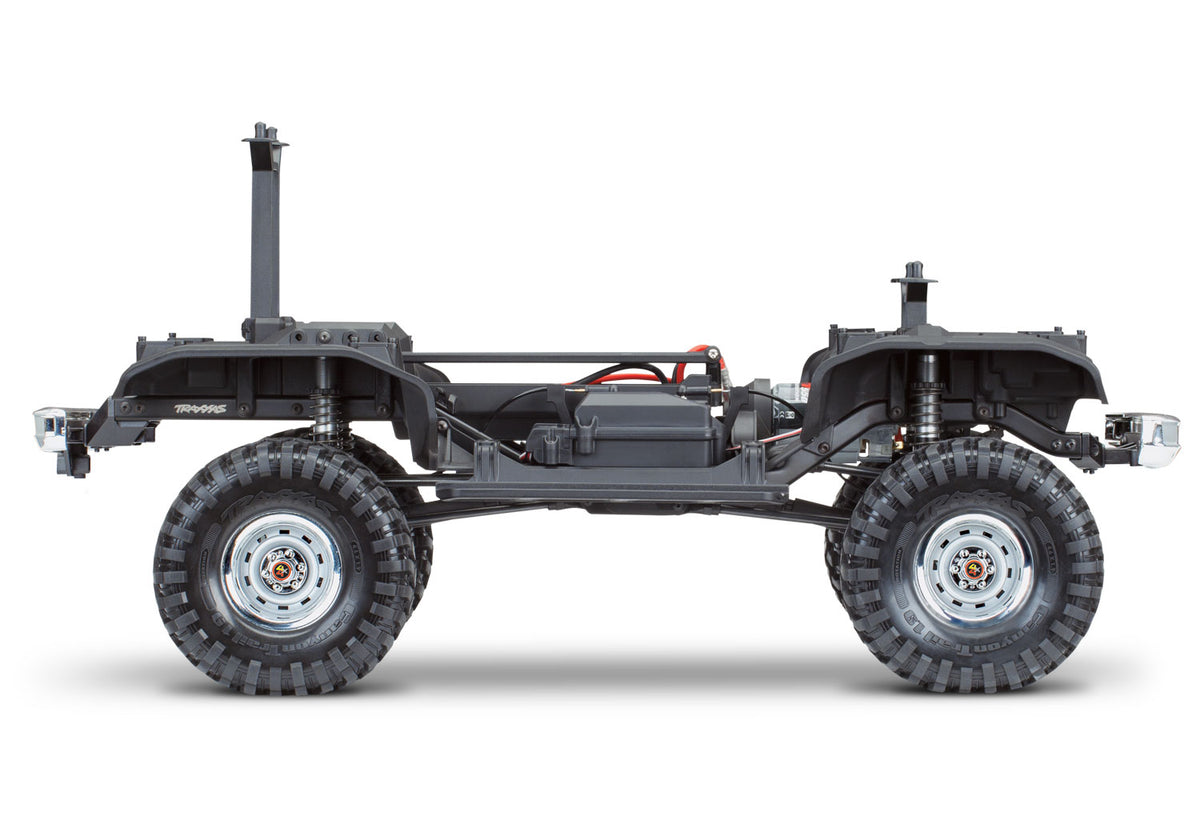

Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type: Electronic “Hill Hold”

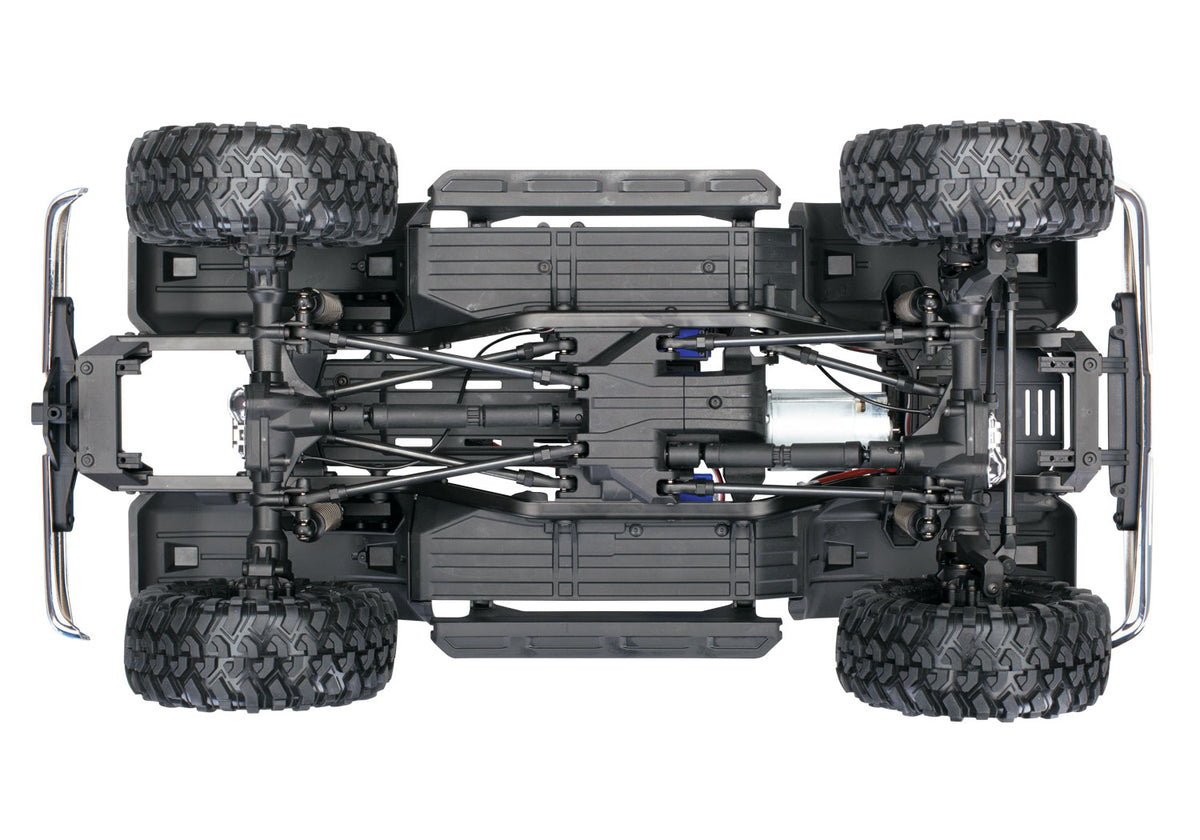

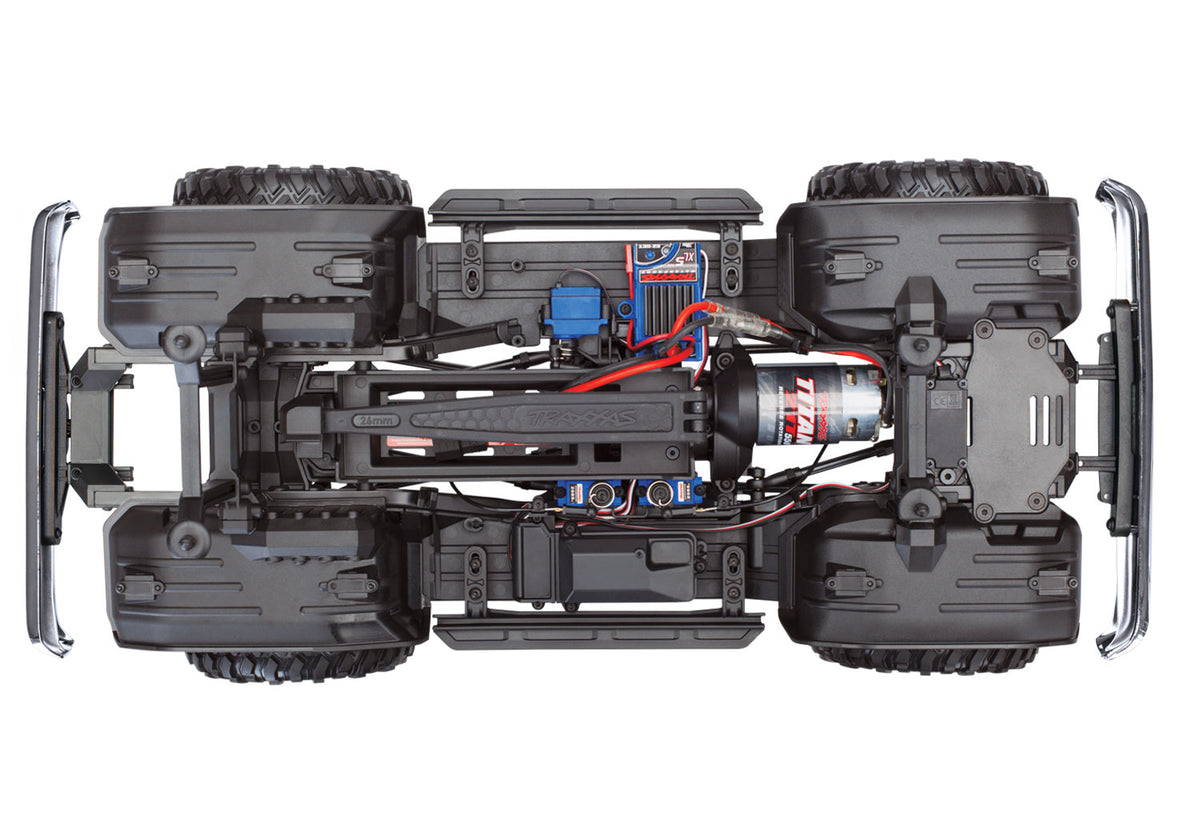

Drive System: Shaft Driven 4WD

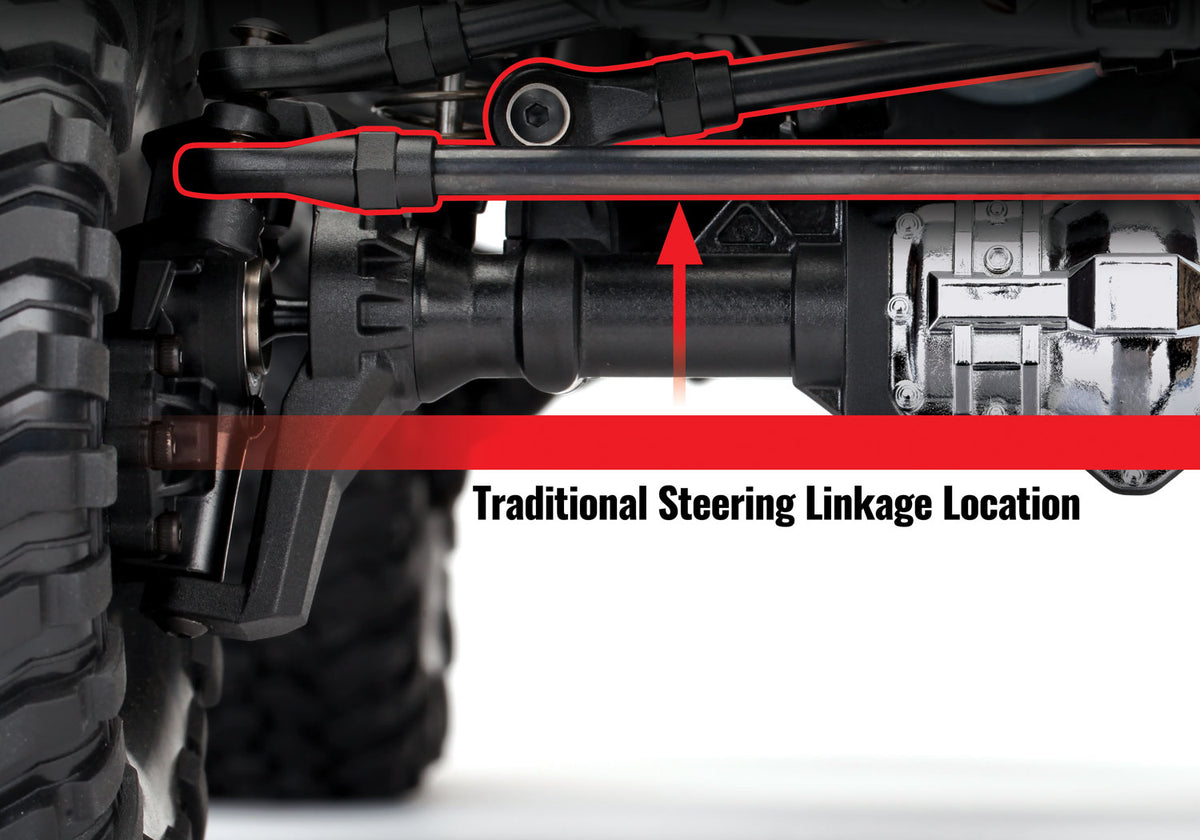

Steering: Chassis Mounted Servo

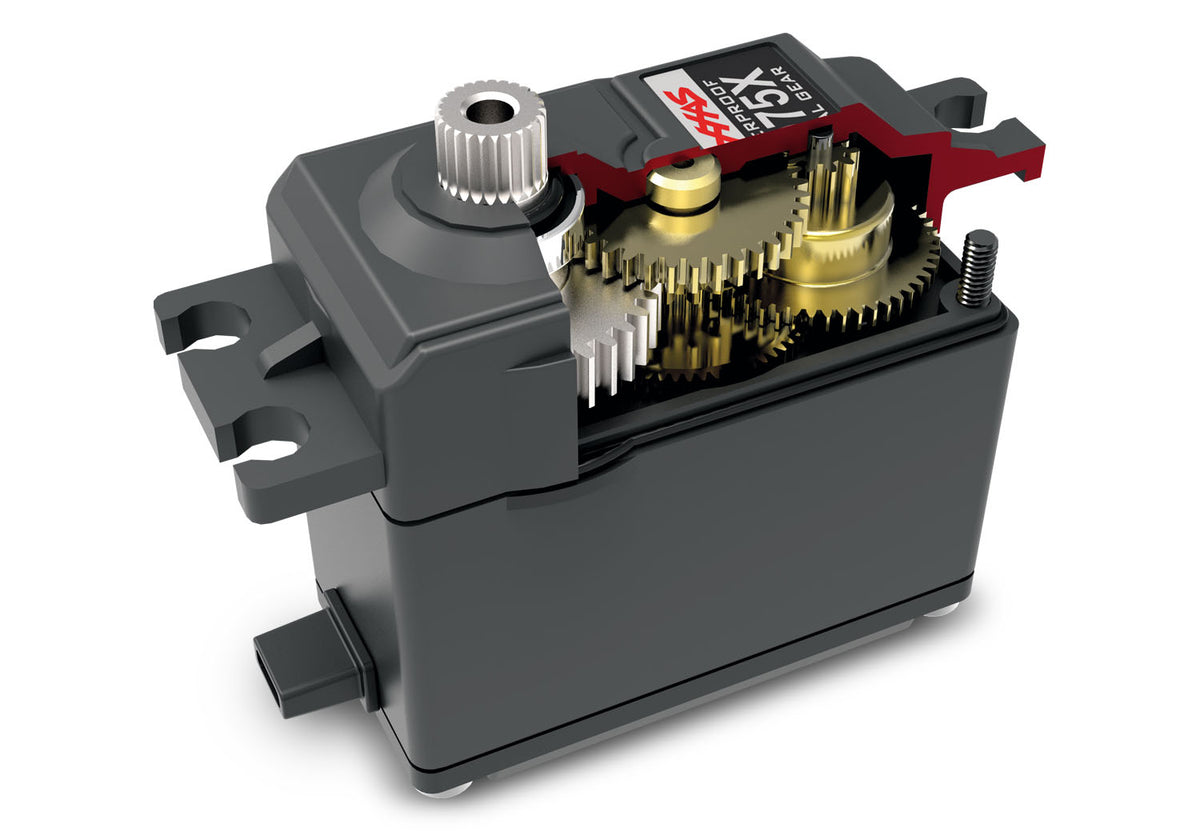

Servo: 2075X Metal Gear
Transmitter: TQi™ 2.4 GHz 4-Channel Transmitter
Receiver: 6533
Skill Level: 1
Battery Tray: 158.75 L x 47 W x 23/26mm H

Motor
Type: High-torque brushed motor
Size: 550
Weight: 390g (13.76oz)
Length: 3.071” (78mm) overall length, 2.25” (57mm) can length, 1.532” (38.9mm diameter)
Turns: 21T reverse rotation
Voltage: 16.8V

Electronic Speed Control
Input Voltage: 6–7 Cells NiMH, 2–3S LiPo
Case Size: 1.23” W x 2.18” D x 1.04” H
Weight: 2.6oz (74g)
Motor Limit: 21-turns (550 size)
On Resistance Forward: 0.004 Ohms
On Resistance Reverse: 0.004 Ohms
Peak Current - Forward: 100A
Peak Current - Reverse: 100A
Braking Current: 60A
Continuous Current: 18A
BEC Voltage: 6.0 VDC
BEC Current: 1A
Power Wire: 14 Gauge / 5”
Input Harness Wire: 26 Gauge / 14.5”
Transistor Type: MOSFET
PWM Frequency: 1700Hz
Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
Thermal Protection: Thermal Shutdown
Profile selection: Sport Mode: 100% FWD, 100% brakes, 100% REV
Race Mode: 100% FWD, 100% brakes, no REV
Training Mode:* 50% FWD, 100% brakes, 50% REV
Trail Mode: 100% FWD, 100% Brake, 100% REV, Trail-Tuned Brake on Neutral
Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral
Single-button setup: Yes, Traxxas EZ-Set®
