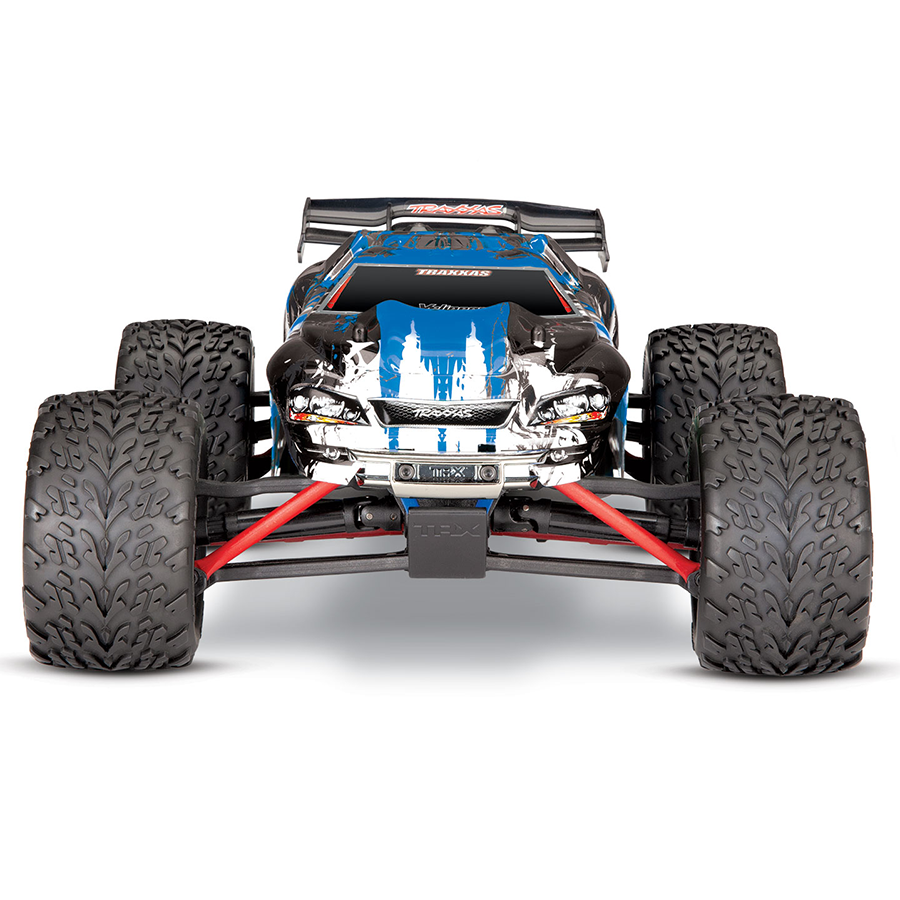

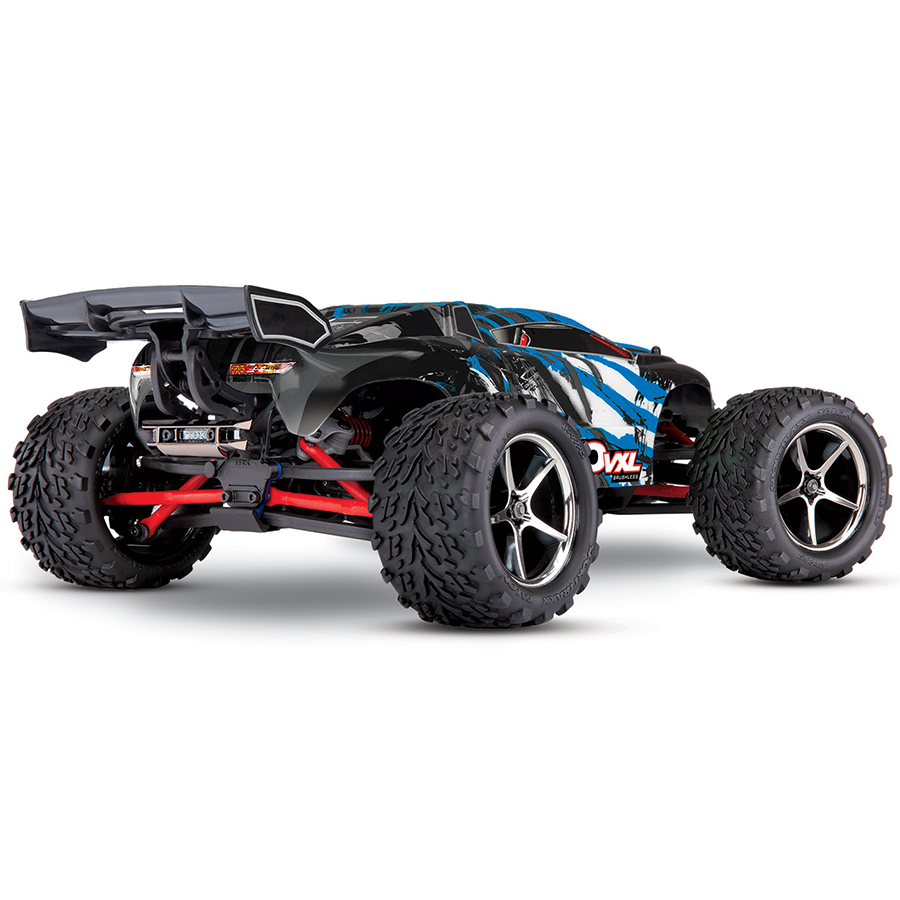

1/16 E-Revo: 4X4 Monster Truck w/USB-C: Blue

Overview:

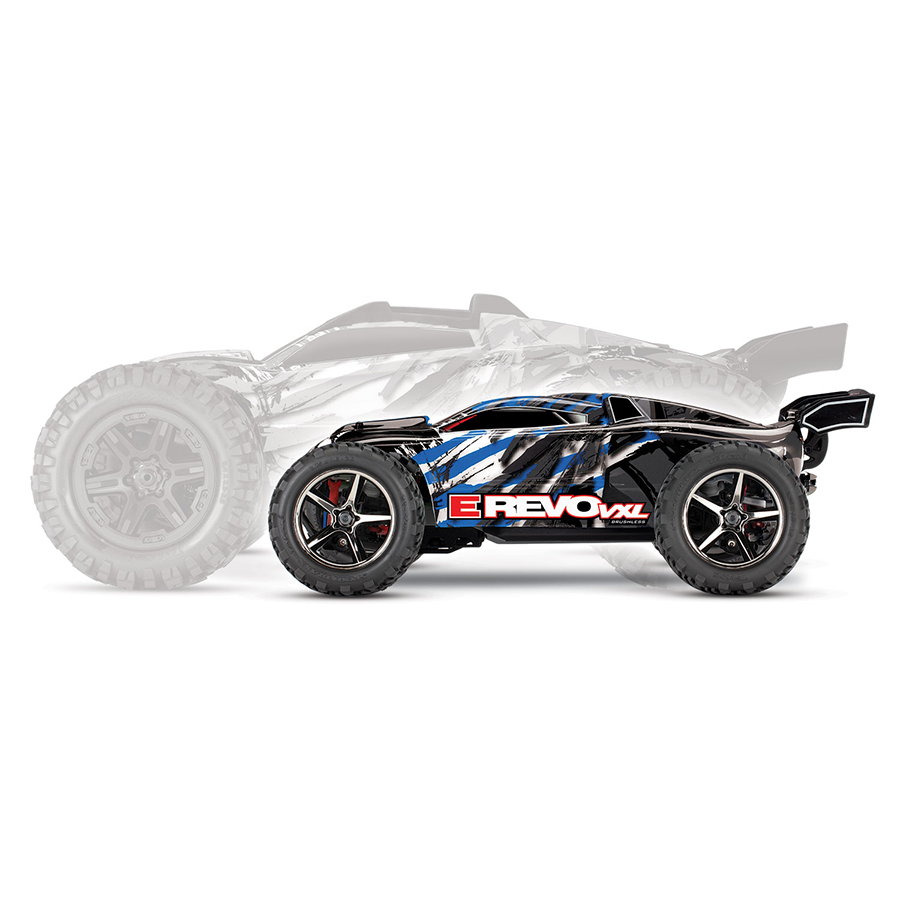

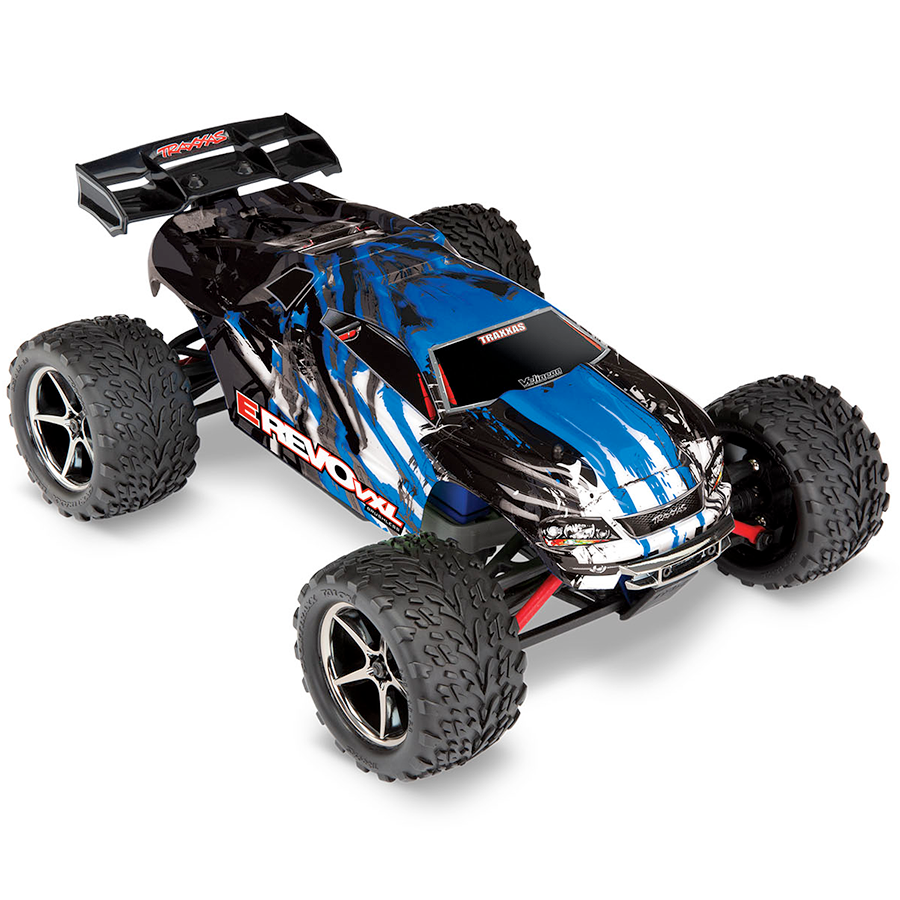

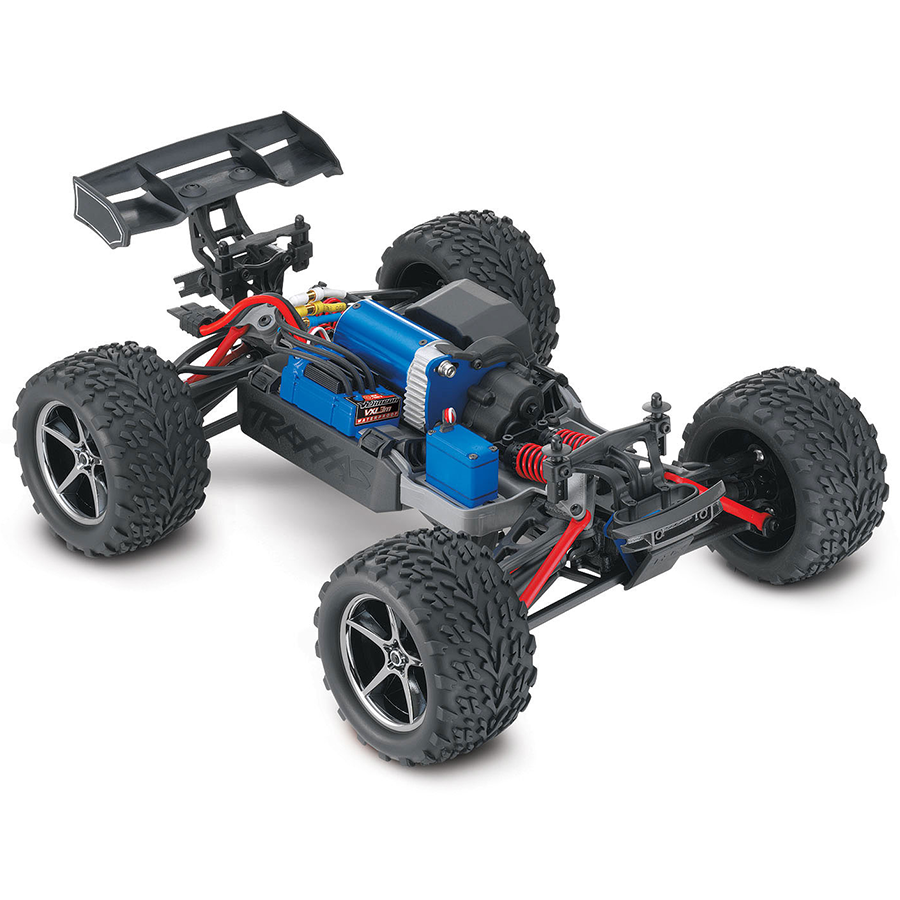

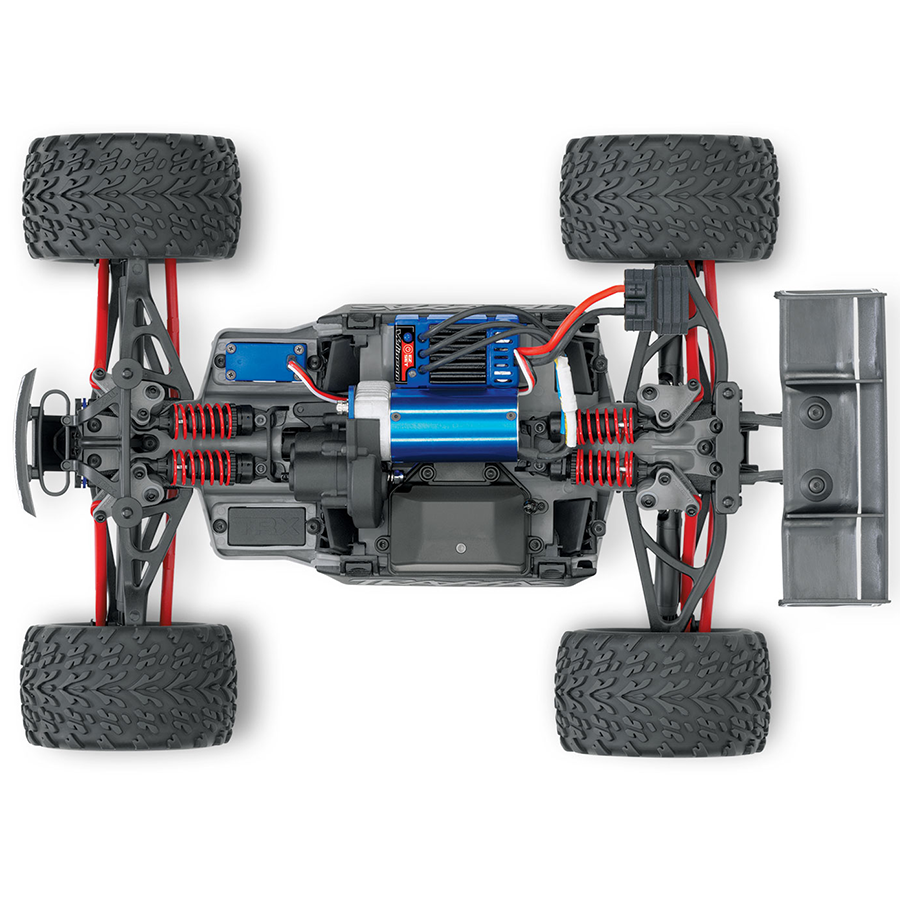

1/16 E-Revo® VXL takes all the track-proven innovation of the full-size E-Revo VXL and scales it down to a convenient go-anywhere size. E-Revo's rocker-actuated suspension has been expertly adapted to 1/16 scale with its oil-filled, threaded-body GTR shocks. This superior technology provides capability, performance, and tuning functions at the absolute pinnacle of truck design. E-Revo's monocoque chassis balances strength and weight to far surpass the standards of the "mini" category.

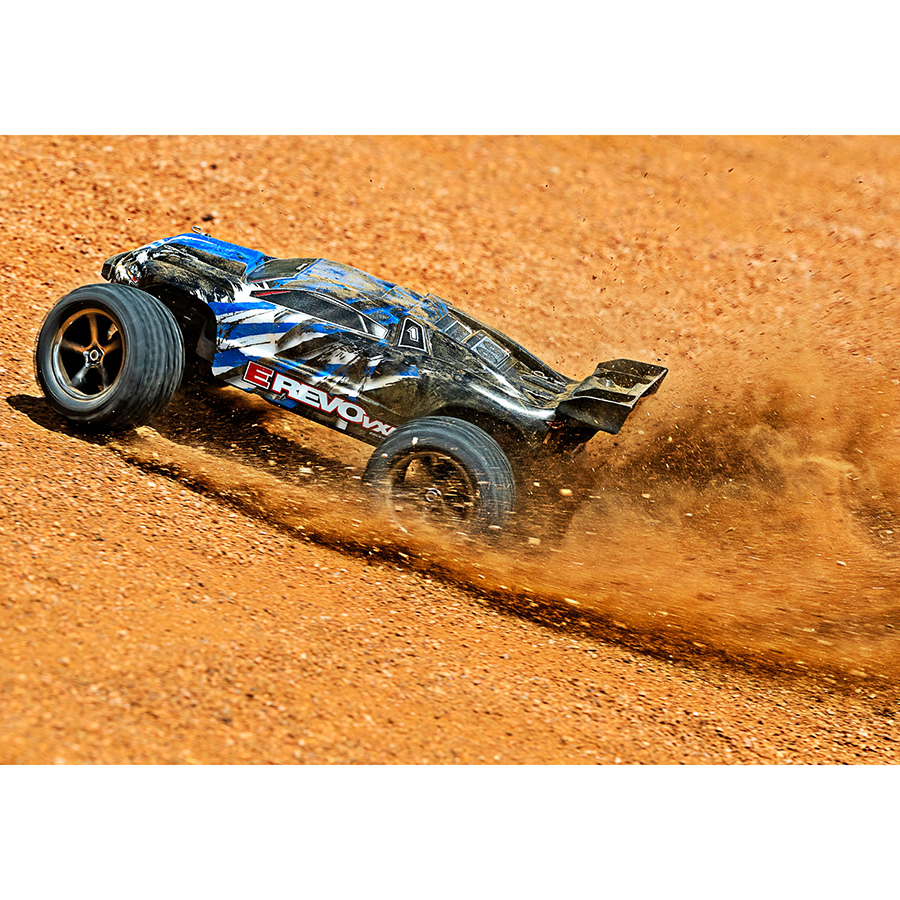

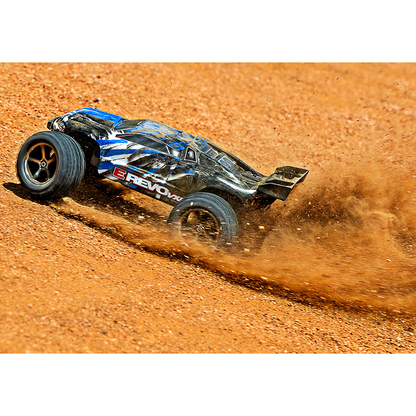

Class-Leading Speed

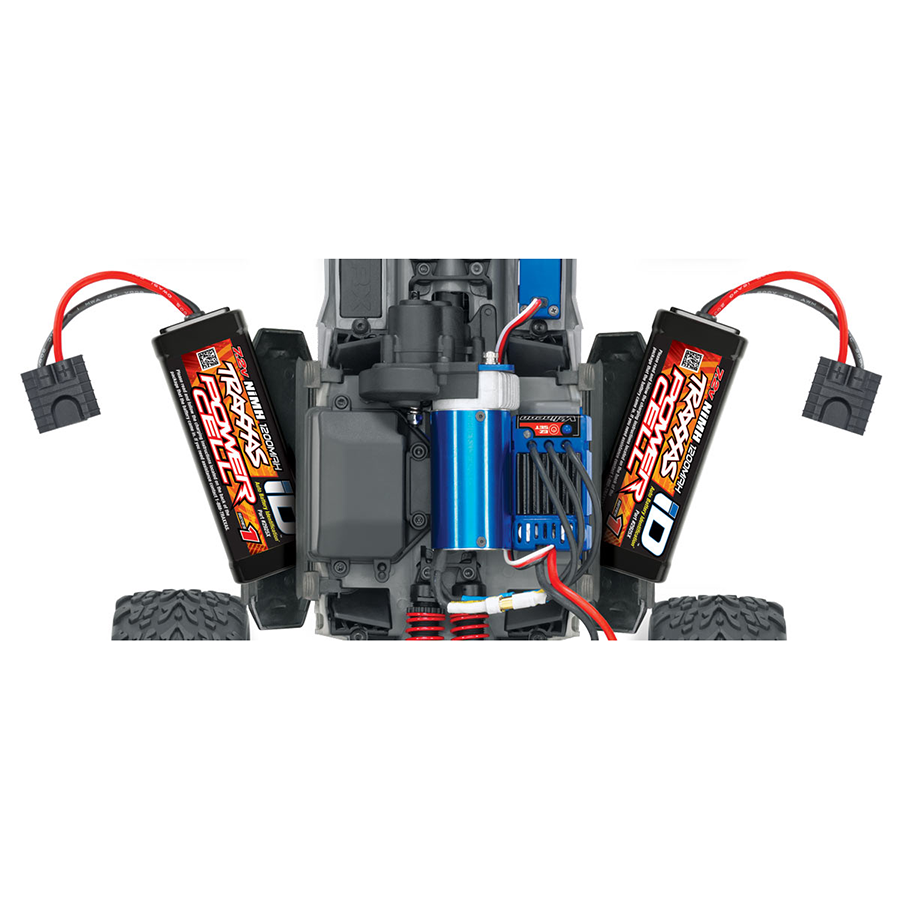

Some mini-models are "fast for a mini." That's not good enough for Traxxas. The 1/16 E-Revo VXL is just plain fast. At 30+ mph with the included 6-cell NiMH battery, E-Revo VXL is faster than most mini models and even 1/10 scale electric RTR trucks. Install a second 6-cell battery to unleash the Velineon Brushless Power System's full fury, and E-Revo VXL jumps to over 50 mph.

Velineon Brushless Power

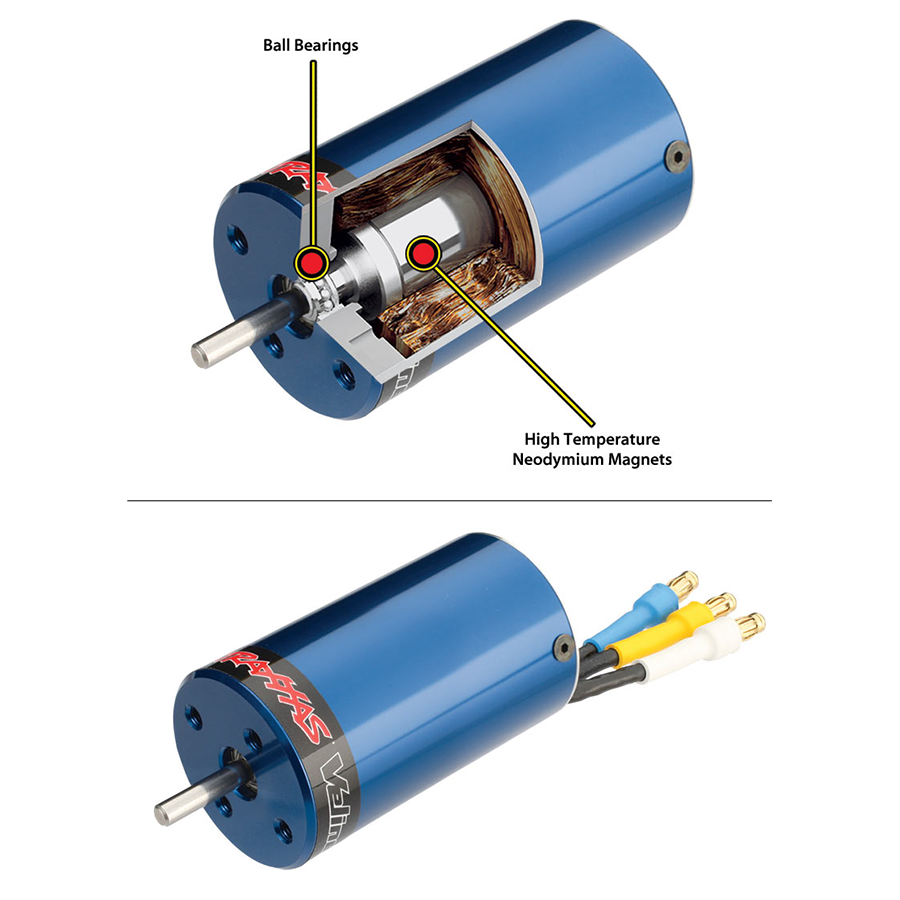

Built specifically for Traxxas 1/16 scale models, the VXL-3m™ speed control and Velineon® 380 motor represent the latest in brushless technology. Fully LiPo compatible with low-voltage detection for 2s and 3s packs and rated for 6-12 NiMH cells, this potent, powerful combo gives E-Revo VXL precise throttle control and blistering top speed. The Velineon 380 is built with high-speed ball bearings, sintered rotor, neodymium magnets, and gold plated 3.5 mm connectors. It all adds up to 50,000 rpm of pure power and speed!

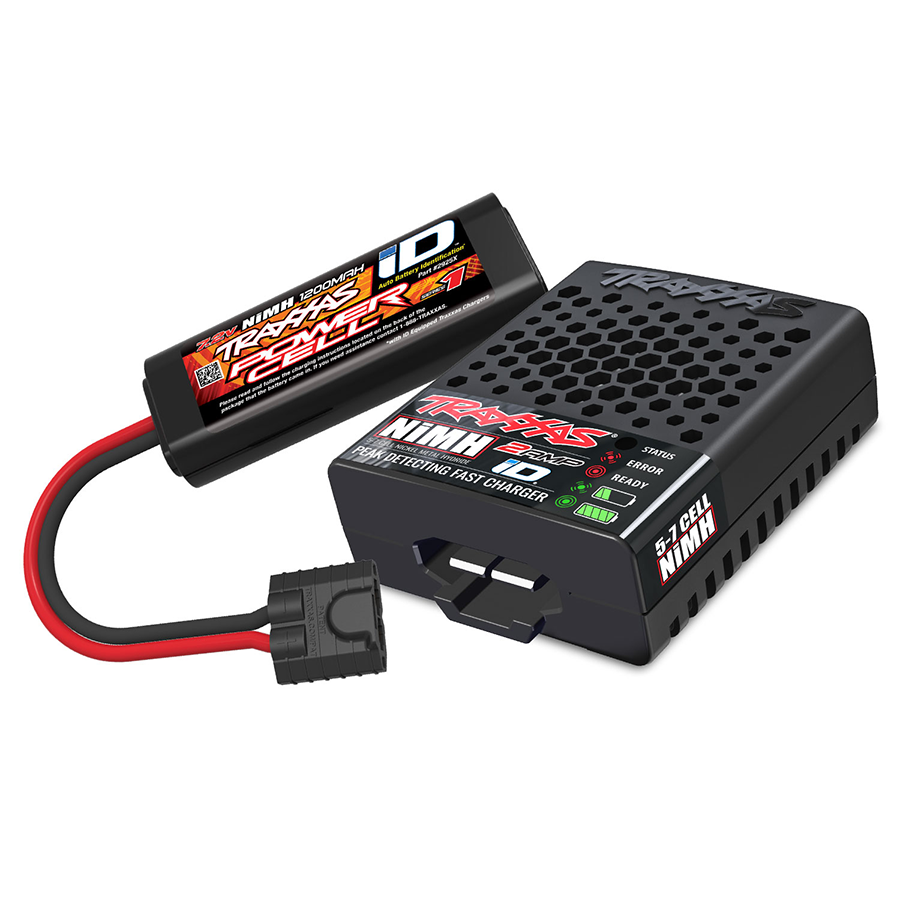

Battery and Charger Included!

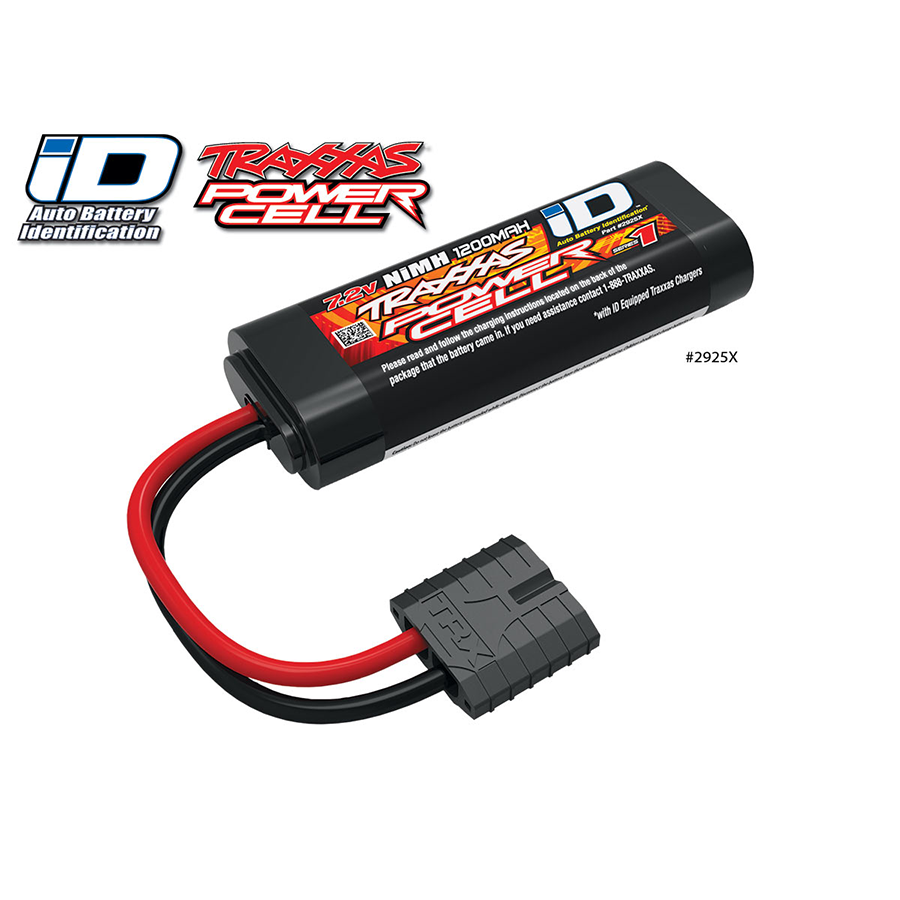

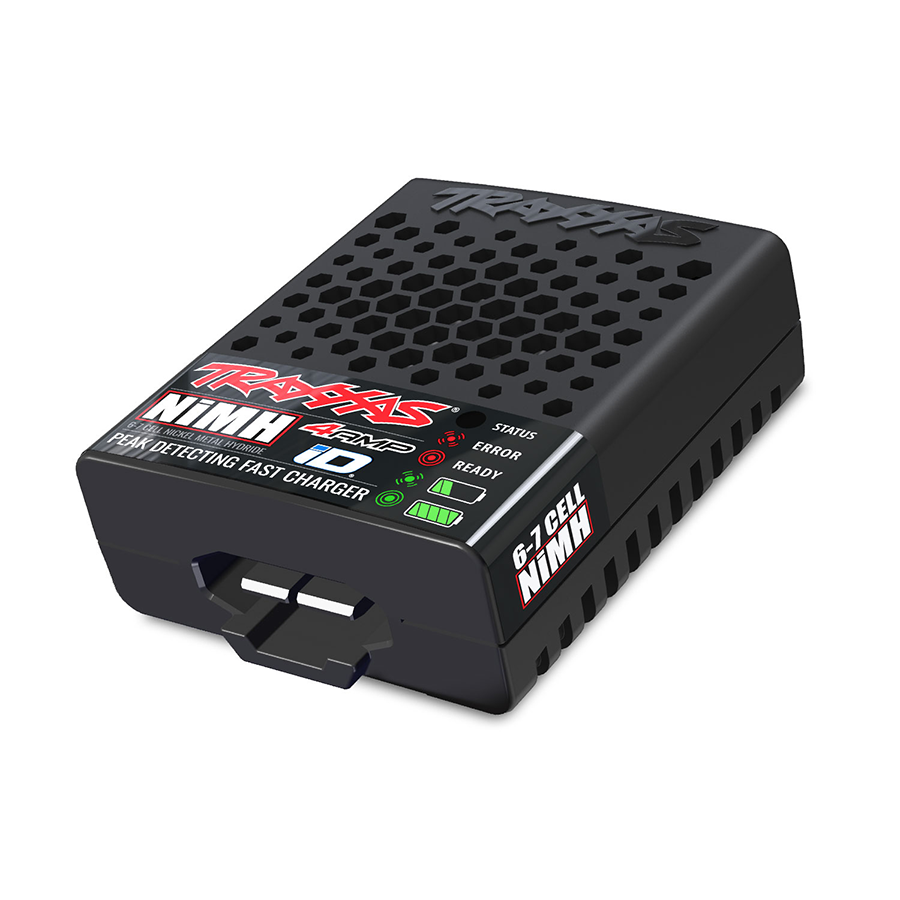

1/16 E-Revo includes a powerful 7.2 volt 1200 mAh Traxxas Power Cell rechargeable NiMH battery pack to reach its 30+ mph top speed. Fast 2-amp charging is available virtually anywhere thanks to the included USB-C battery charger with iD® technology. Power adapter and cable sold separately. For maximum charge rate use Traxxas 2912 45-watt power adapter and 2916 100-watt power cable. The Traxxas iD system is the easiest and safest way to charge your Traxxas batteries. The charger automatically recognizes the iD battery and optimizes the charge settings as soon as you plug it in. There’s no guesswork involved, just fast, reliable charging every time.

100% Fully Assembled and Ready-To-Race®

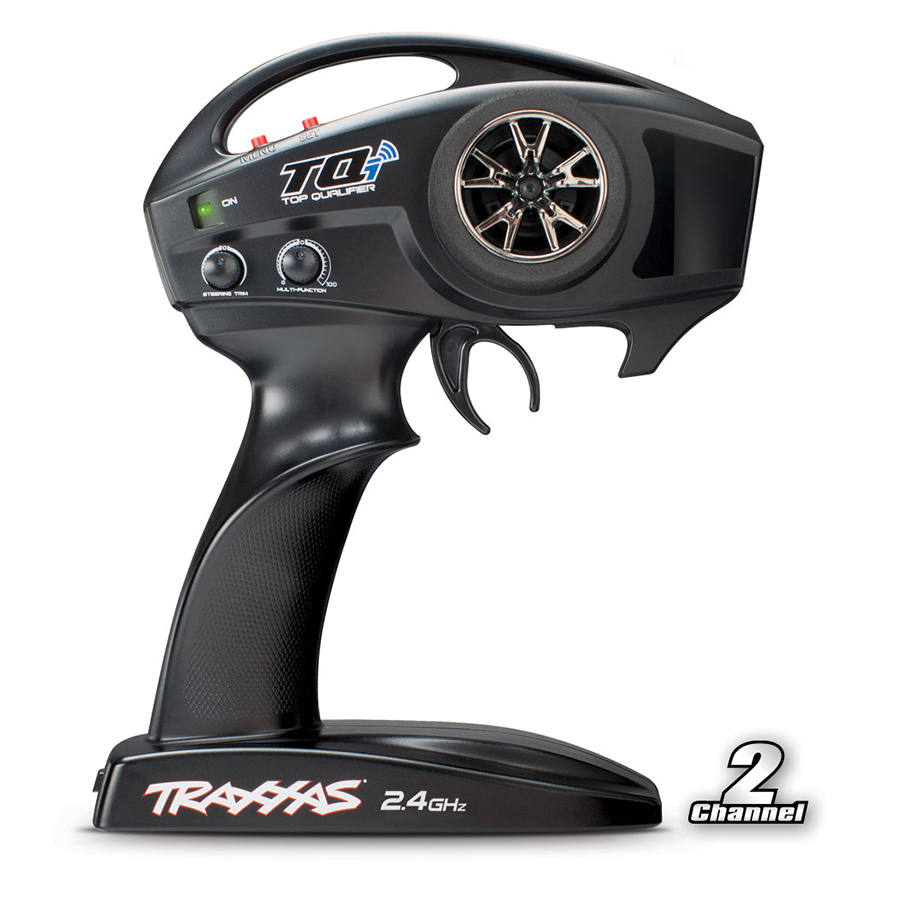

1/16 E-Revo VXL comes Ready-To-Race out of the box with the TQi 2.4 GHz 2-channel radio system, waterproof VXL-3m ESC, and included 7.2 V battery and charger. With over 30 years in the hobby industry, Traxxas goes the extra mile to ensure that your RC experience is easy and fun. A staff of skilled representatives is on-hand to answer your questions via phone, chat, or email.

Quick Features:

  • Traxxas Stability Management (TSM)®
  • 7.2 volt Traxxas Power Cell NiMH battery with iD®
  • 2-amp USB-C fast charger

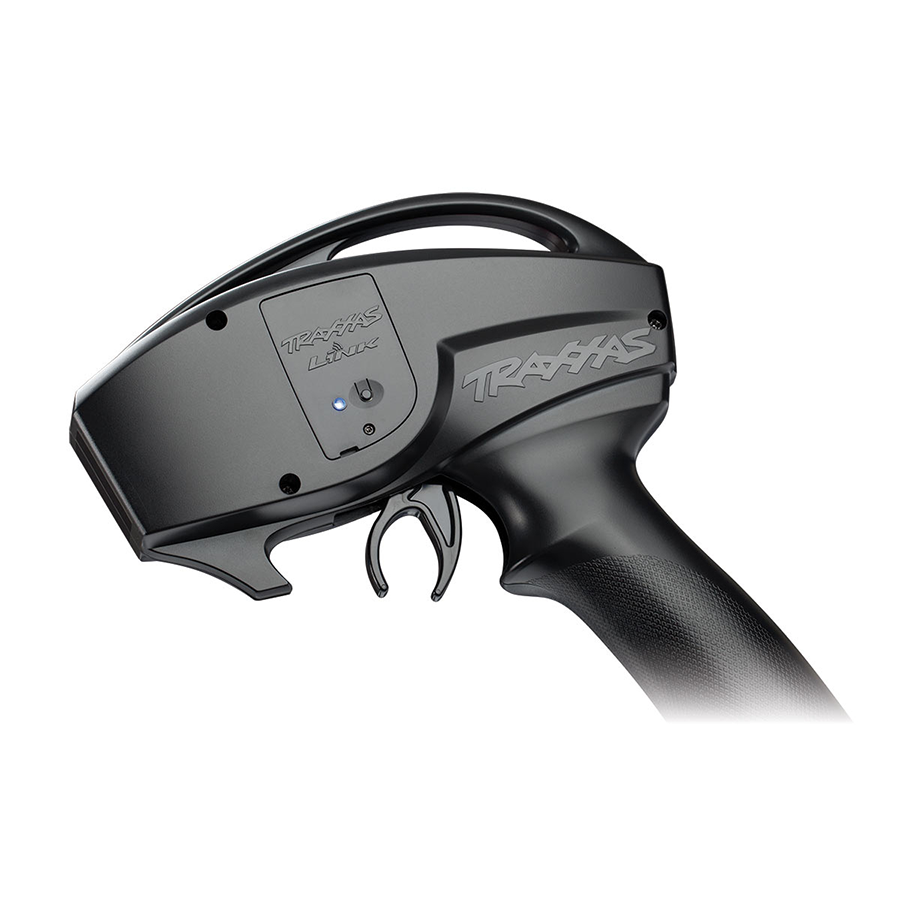

  • TQi™ 2.4 GHz transmitter and receiver
  • 30+ mph with included NiMH battery
  • 50+ mph with additional NiMH battery

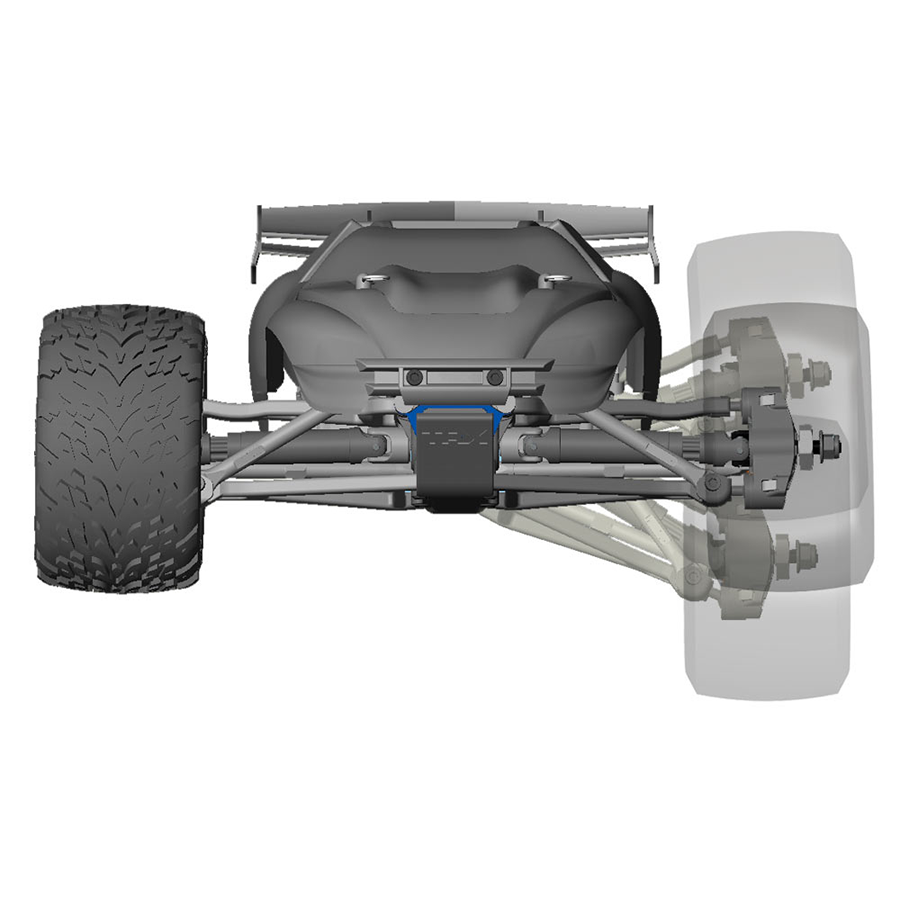

  • Rocker-actuated suspension for superior handling and control
  • Full-time 4WD
  • Velineon® 380 brushless motor
  • Waterproof electronics
  • Torque-Control™ slipper clutch
  • Sealed differentials
  • All-terrain tires with foam inserts

Detailed Features:

  • Traxxas Stability Management (TSM)®
  • 2-amp USB-C fast charger
  • 7.2 volt NiMH battery pack with iD®

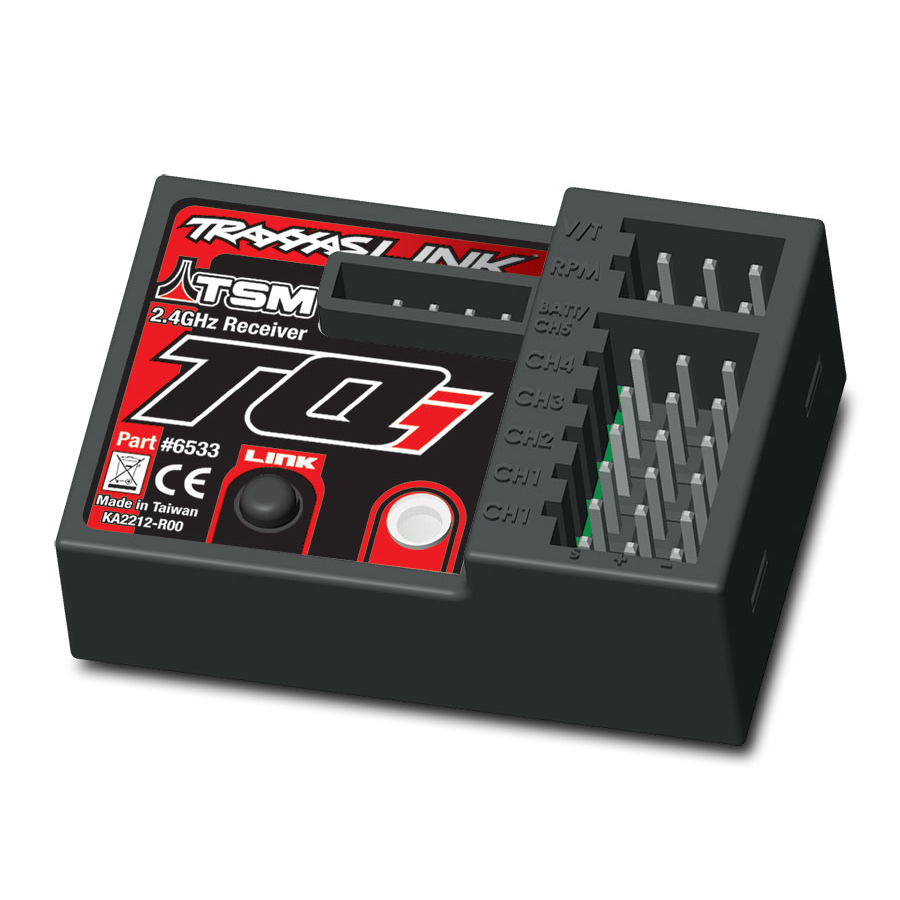

  • TQi™ 2.4 GHz radio system
  • Race-inspired suspension and chassis design
  • Powered by the Velineon® brushless power system

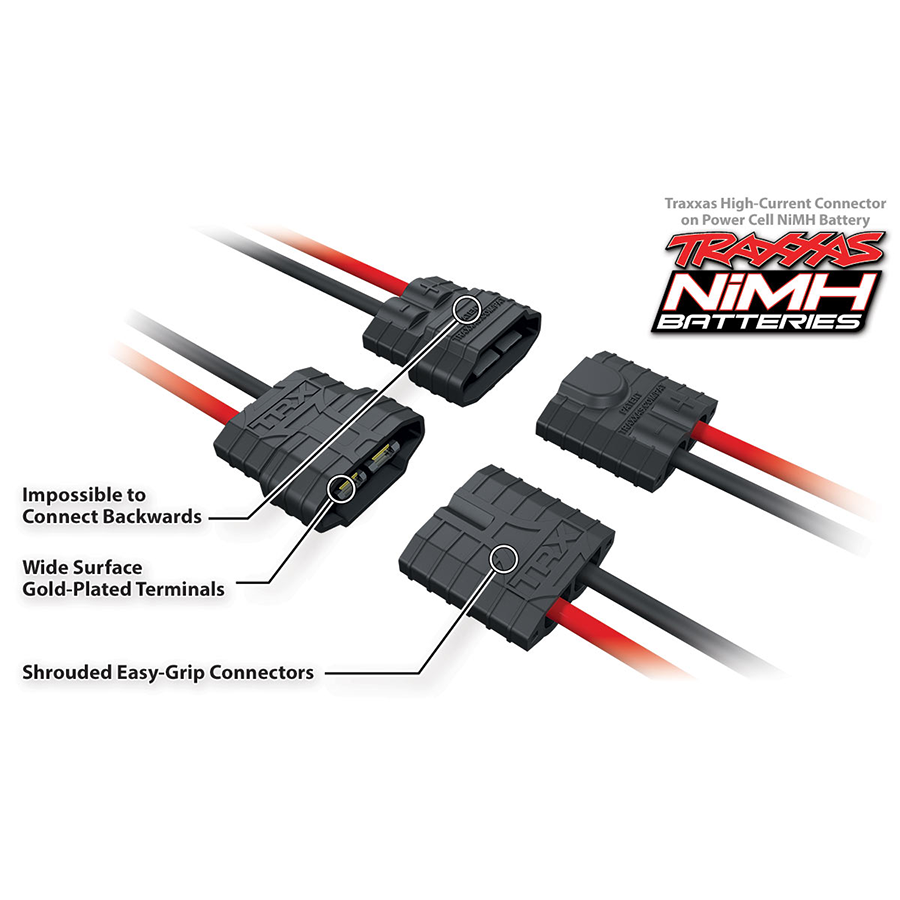

  • Patented Traxxas High-Current Connector allows high-capacity battery packs to deliver maximum voltage
  • Velineon VXL-3m electronic speed control
    • LiPo and NiMH compatible with two-stage low-voltage detection
    • Sport Mode – forward / brake / reverse
    • Race Mode – forward / brake
    • Patented Training Mode™ - 50% forward / brake / 50% reverse
  • Velineon 380 Brushless Motor
    • High-performance sensorless design
    • High-strength Neodymium magnets
    • Efficient, high-speed ball bearings
    • Precision-balanced rotor
    • Gold-plated 3.5 mm bullet connectors

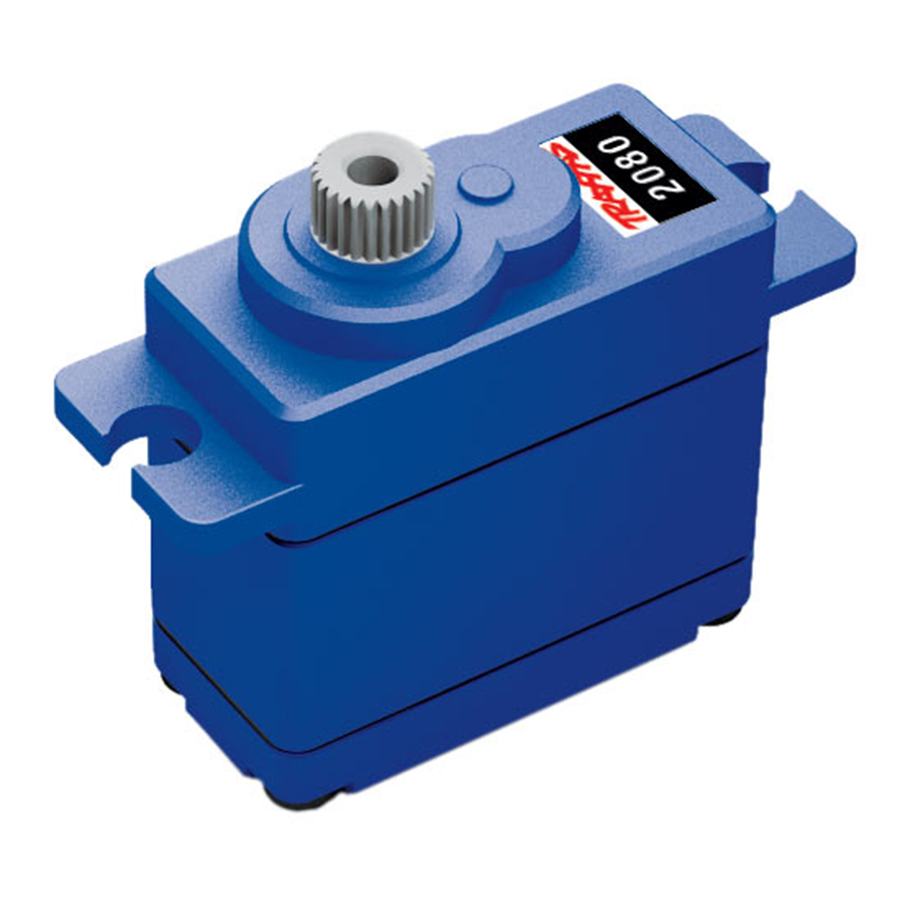

  • Digital high-torque waterproof micro steering servo

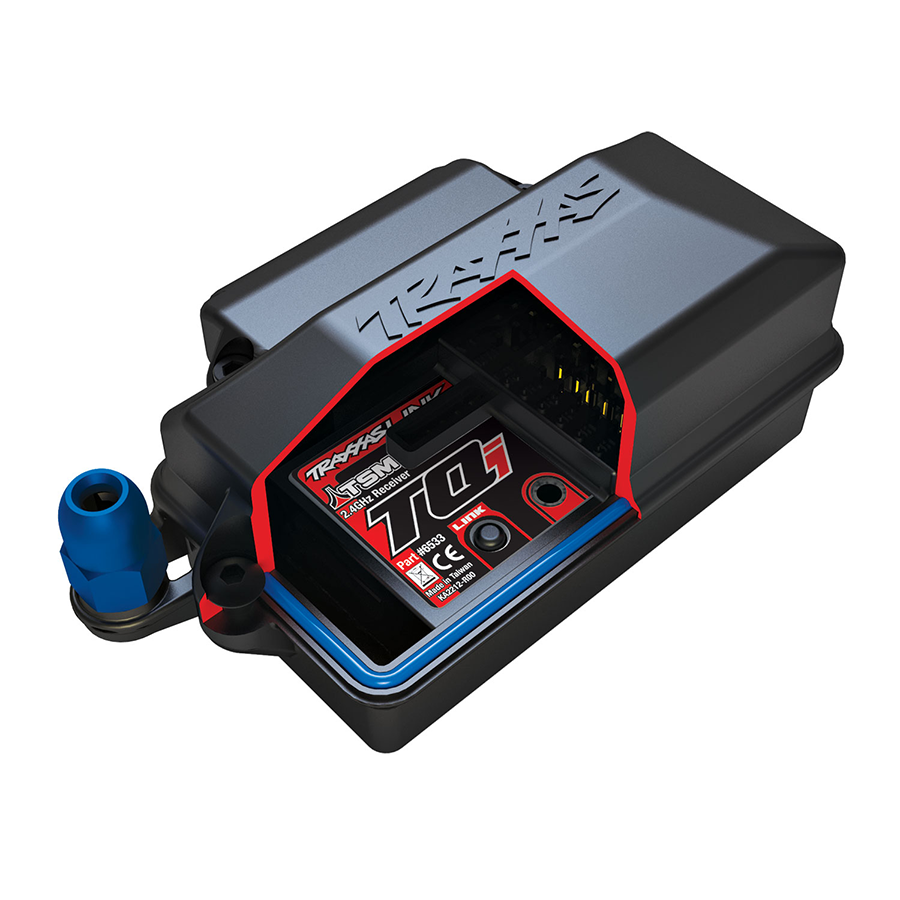

  • Waterproof receiver box

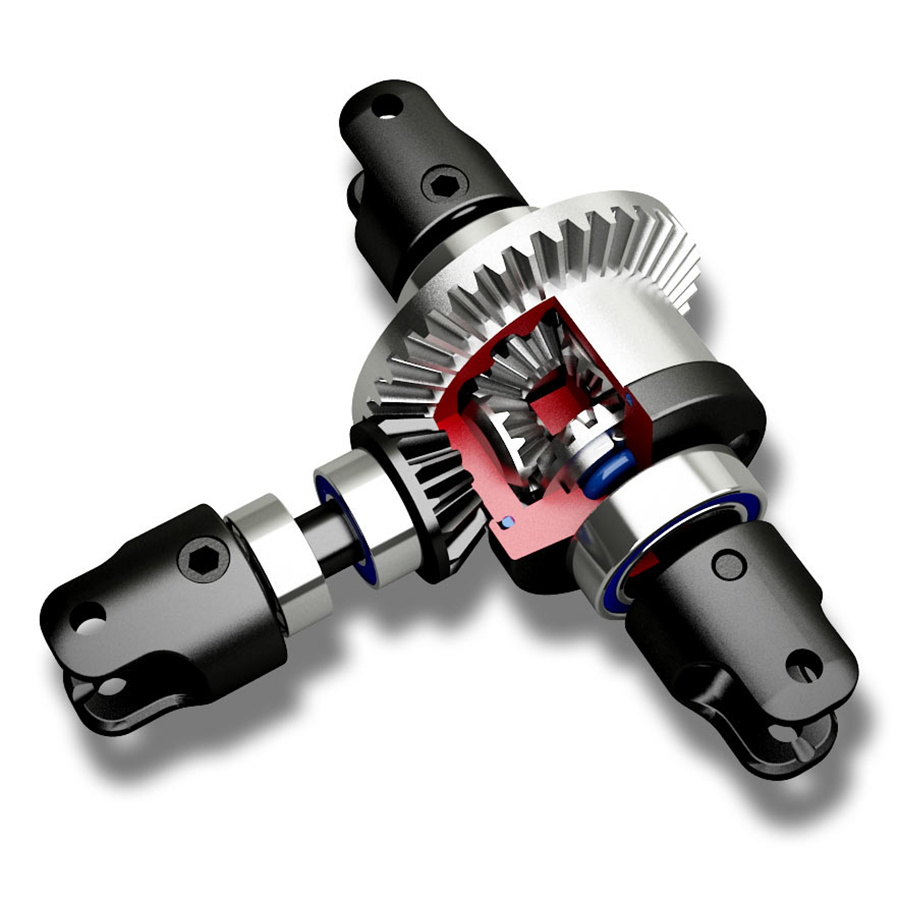

  • Sealed, silicone-filled differentials
  • Torque-Control™ slipper clutch

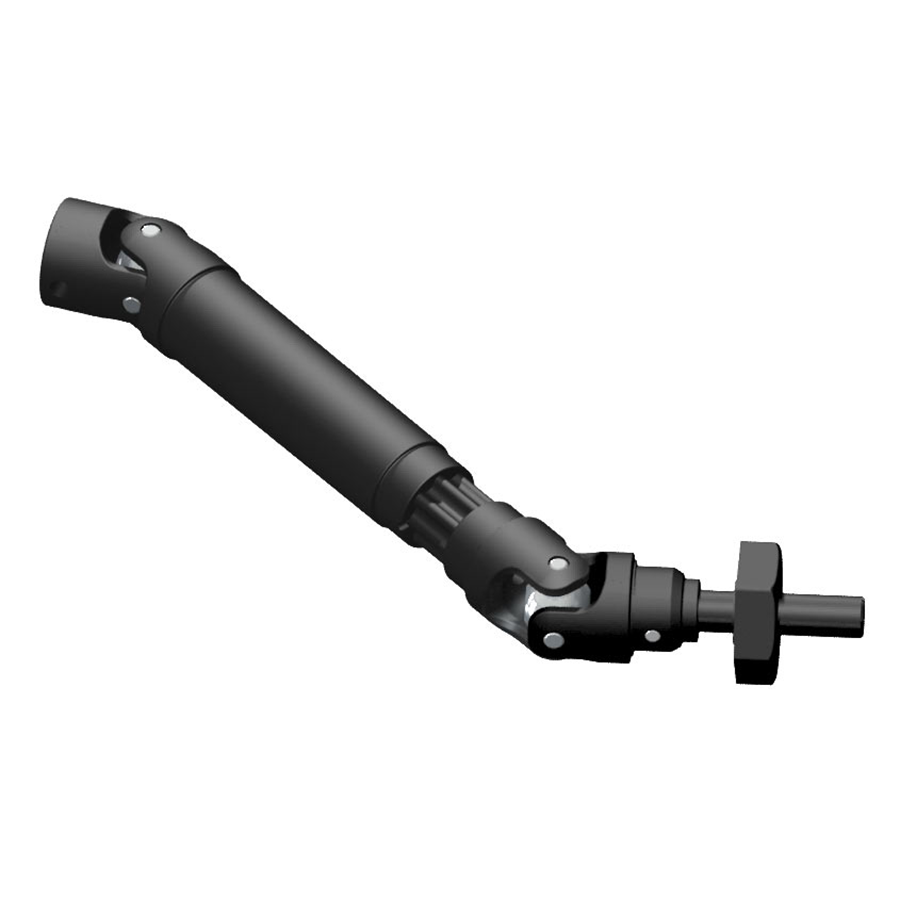

  • Telescoping U-joint driveshafts
  • Rubber-sealed ball bearings
  • External gear cover with easy slipper access

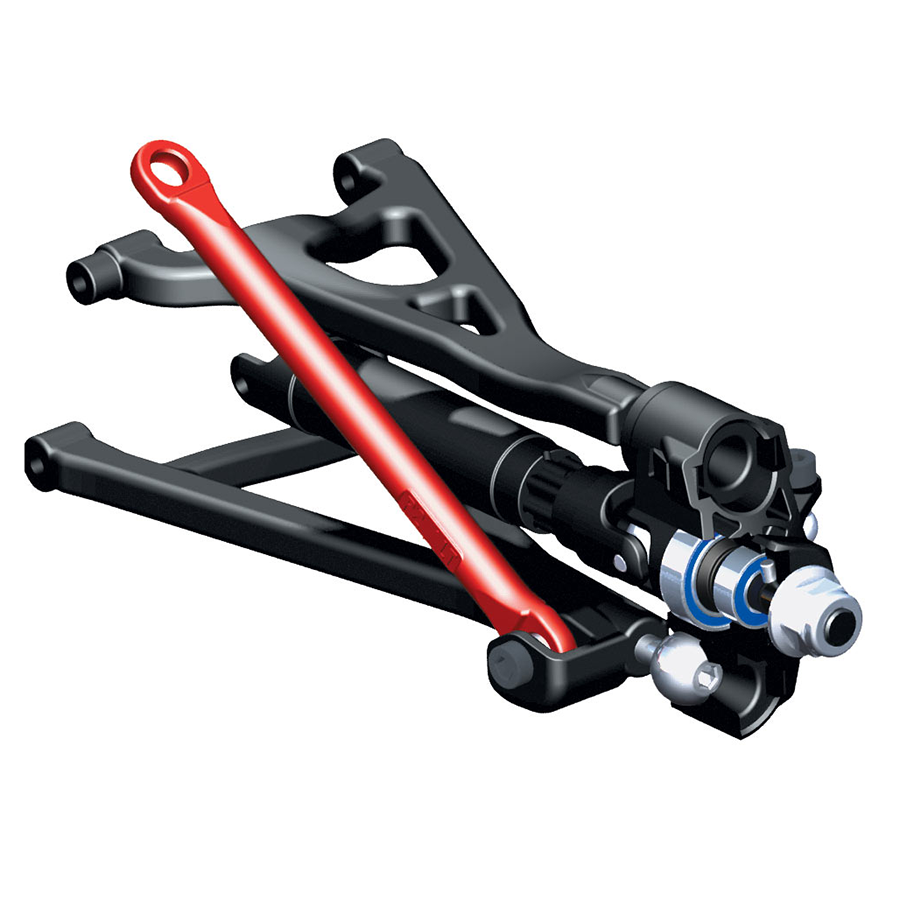

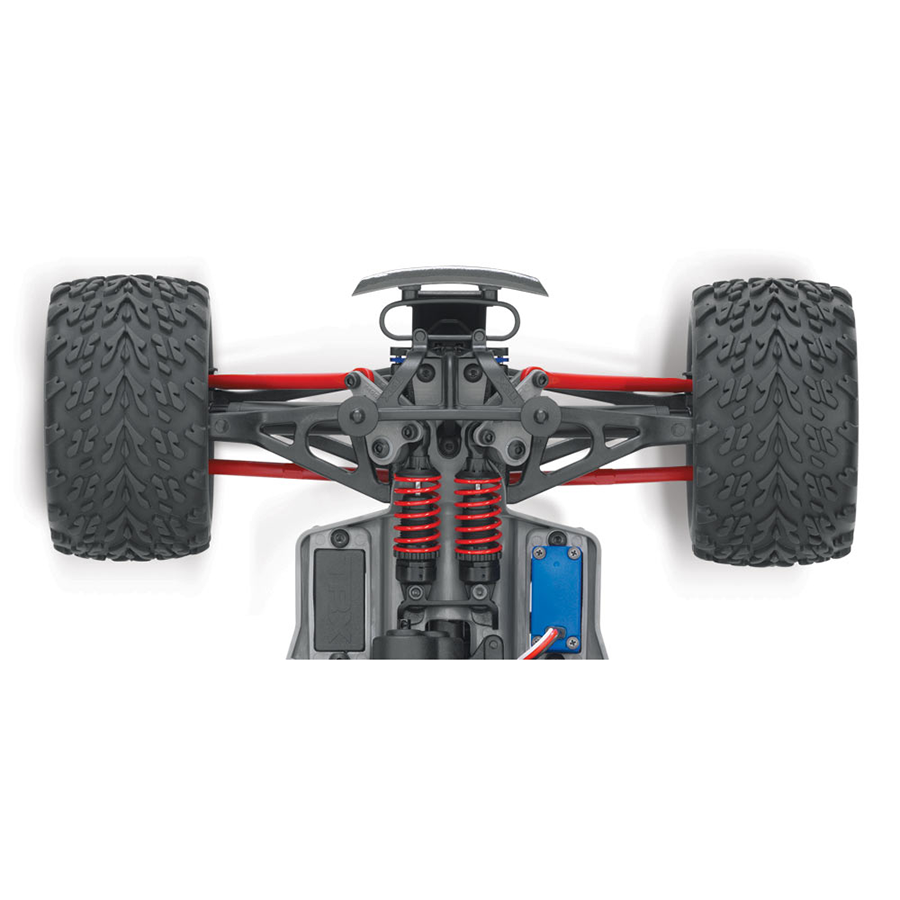

  • Rocker-actuated shocks provide true progressive damping and spring rates

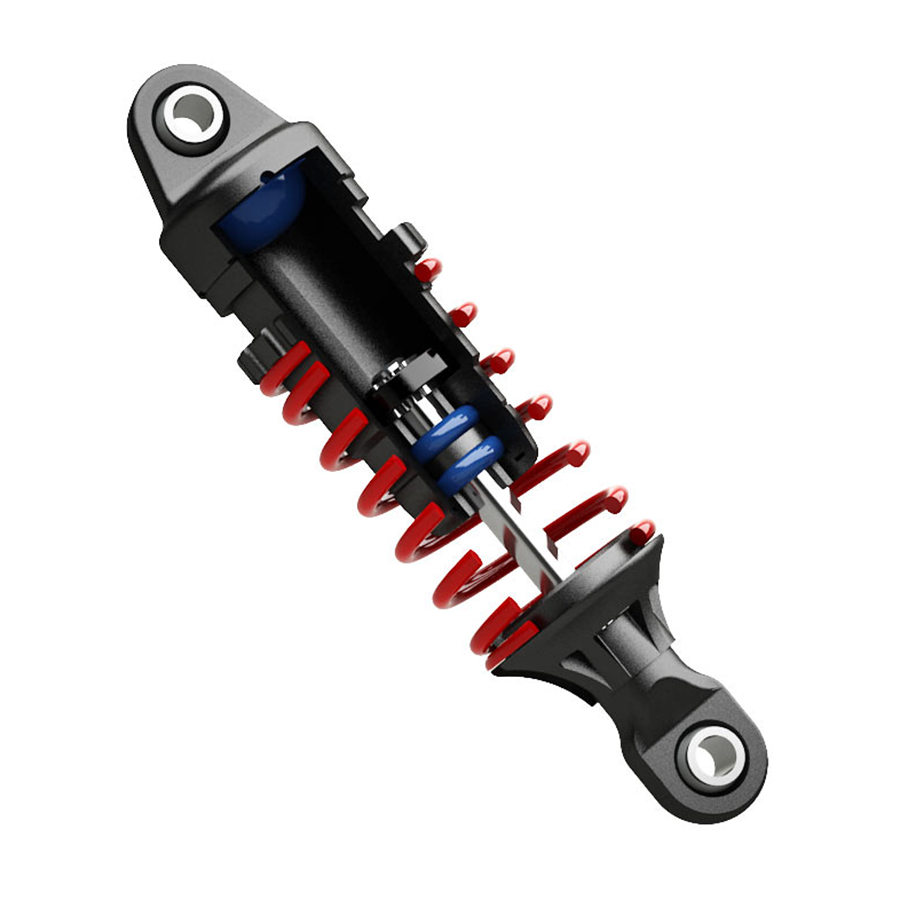

  • Threaded oil-filled shocks permit precise preload adjustments with smooth, consistent damping

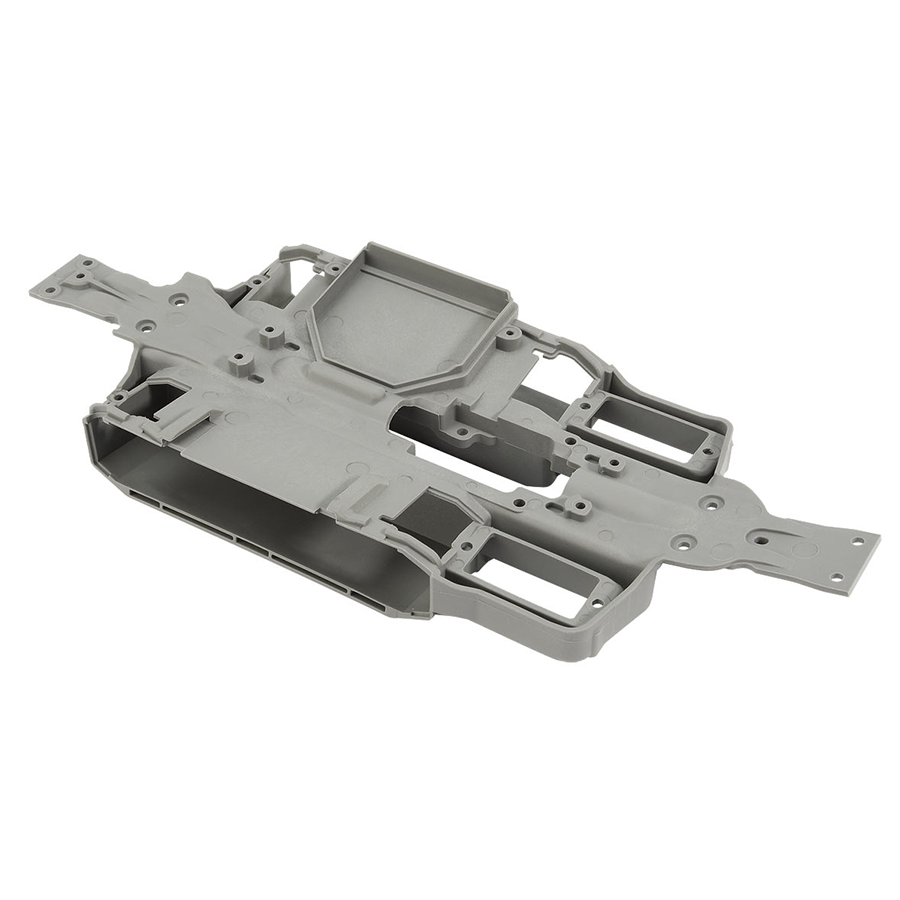

  • Fiber-composite monocoque chassis

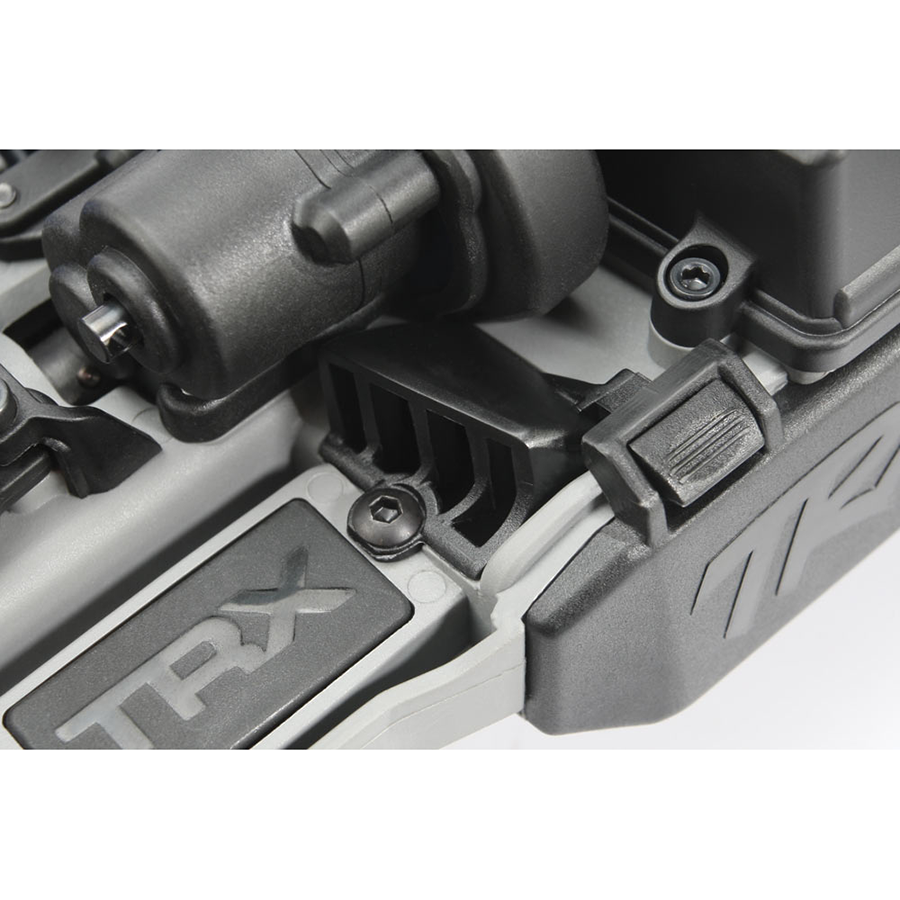

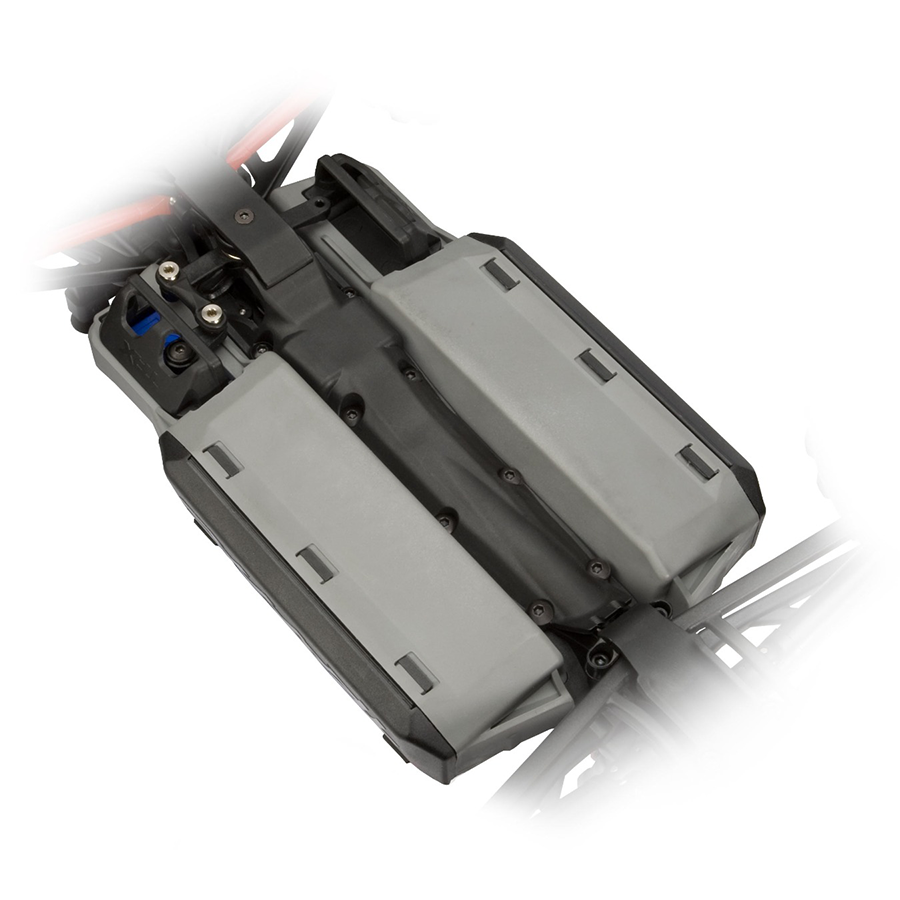

  • Integrated battery compartments with intake and exit cooling vents
  • Quick-release battery doors for fast pack changes
  • Scale all-terrain front and rear tires offer superior on- and off-road traction

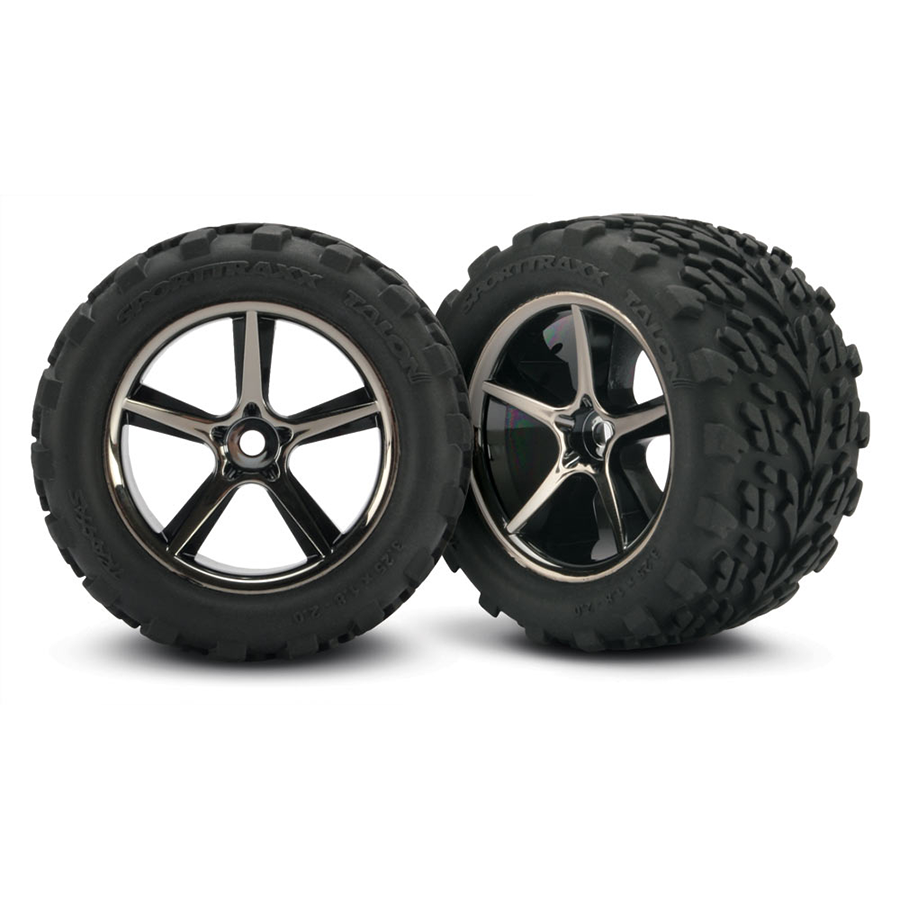

  • Pre-glued Talon™ tires with high-performance foam inserts
  • Black-chrome Gemini 5-spoke wheels

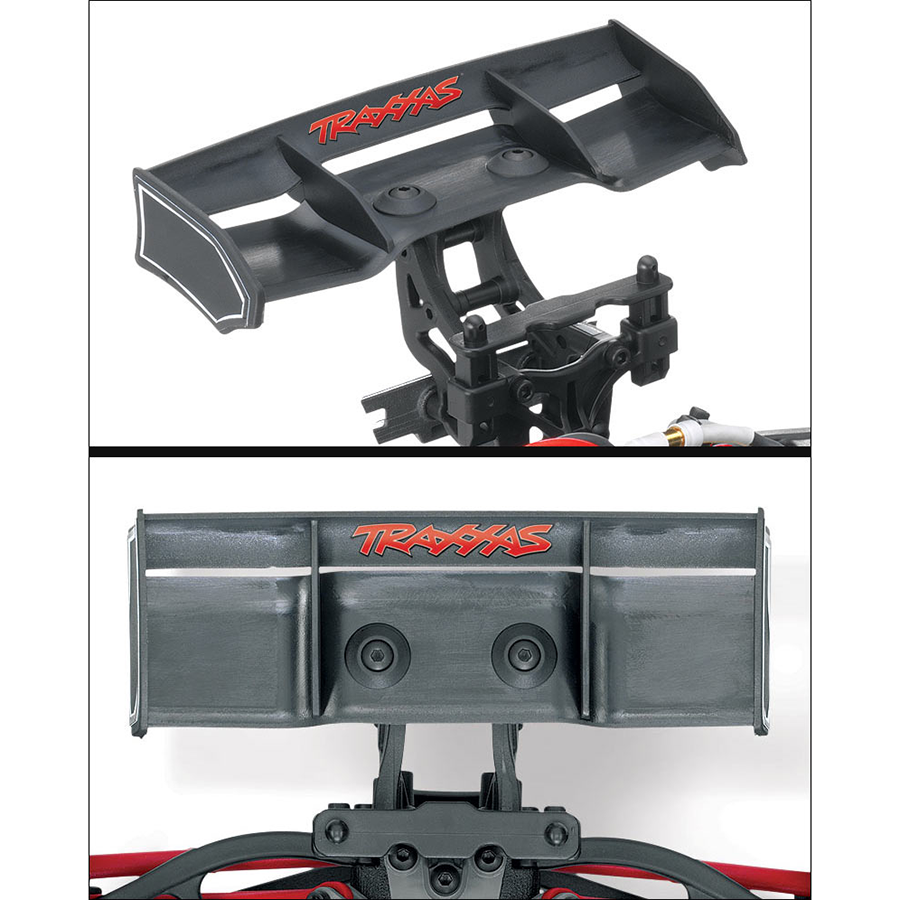

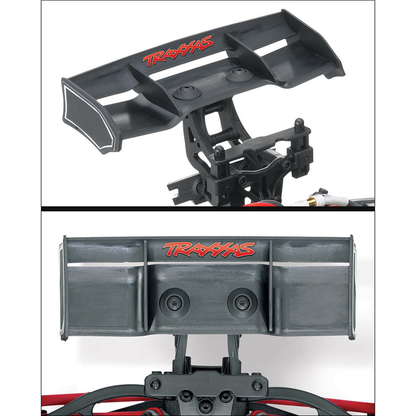

  • High-downforce rear wing
  • Full line of genuine Traxxas accessories available
1/16th E-REVO Brushless VXL
Length: 12.9 inches (328 mm)
Front Track: 9.4 inches (239 mm)
Rear Track: 9.4 inches (239 mm)
Weight: 38 ounces (1.09 kg)
Height (overall): 4.6 inches (117 mm)
Wheelbase: 7.9 inches (202 mm)
Front Shock Length: 48 mm
Rear Shock Length: 48 mm
Front Tires (pre-glued): Talon™ 2.0″
Rear Tires (pre-glued): Talon™ 2.0″
Front Wheels: 2.0″ Gemini (black-chrome)
Rear Wheels: 2.0″ Gemini (black-chrome)
Electronic Speed Control: Waterproof Velineon® VXL-3m™
Motor (electric): Velineon 380 brushless

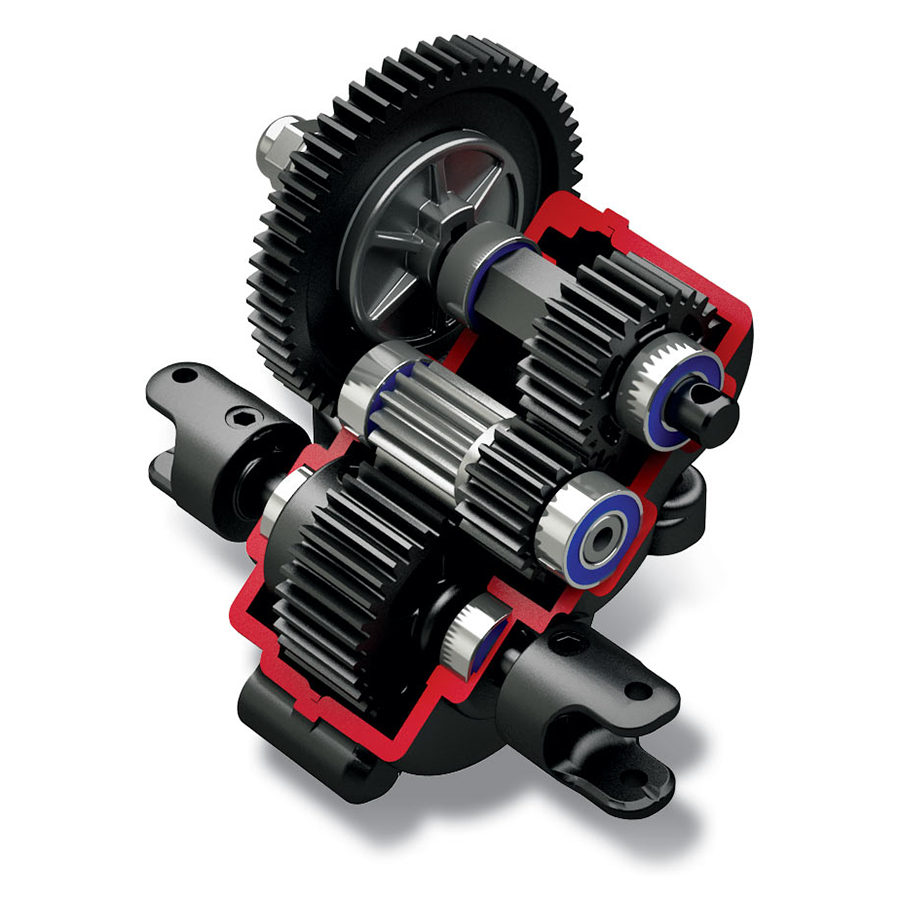

Transmission: Heavy duty single speed
Gear Ratio (internal): 5.04:1, (reversed input: 9.72:1)
Overall Drive Ratio: 9.00 (stock, out-of-box)
Differential Type: Sealed, hardened steel bevel
Gear Pitch: 48 pitch
Chassis Structure/Material: Molded composite Nylon monocoque
Brake Type: Electronic
Drive System: Shaft-driven 4WD
Steering: Bellcrank
Radio System: TQi™ 2.4 GHz w/TSM®
Top Speed: 30+ mph (50+ mph with dual batteries)
Skill Level: 2
Included Batteries: 6-cell NiMH with iD®
Included Charger: 2-amp USB-C fast charger
Required Batteries: 4 "AA" (transmitter)

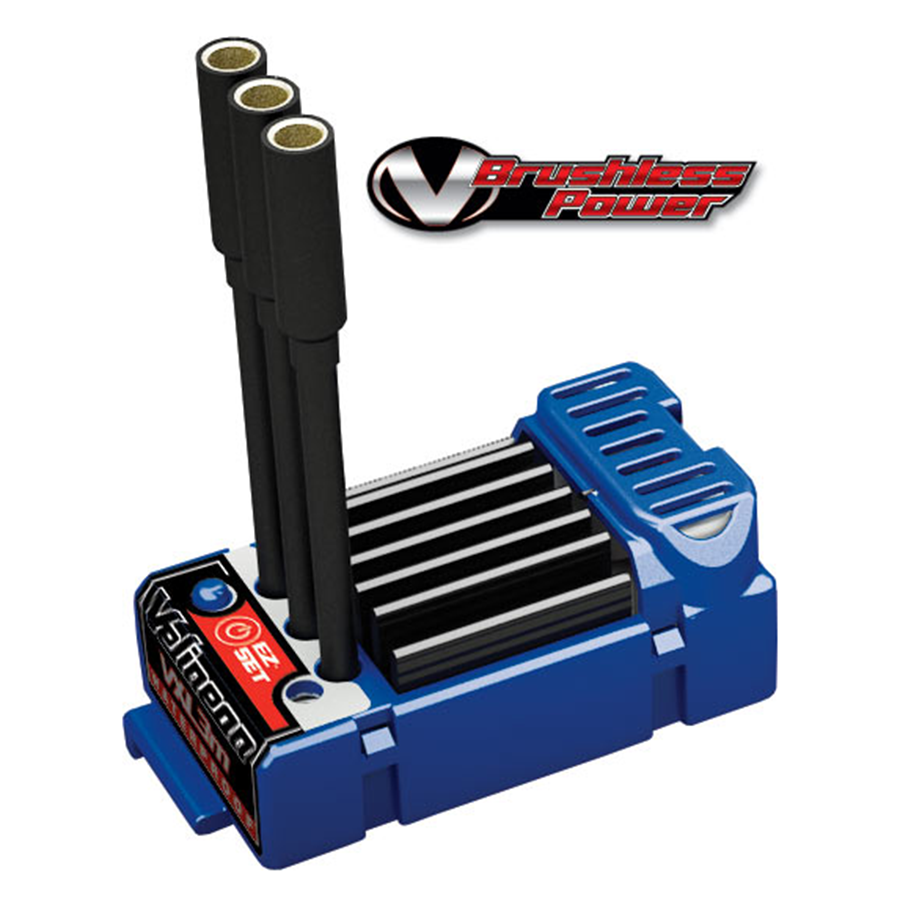

VXL-3m Waterproof ESC
Input voltage: 6 to 12 cells NiMH, 2s to 3s LiPo
Case Size: 26.5 mm W x 46.5 mm D x 22 mm H
Weight: 38 grams
Motors: Sensorless brushless
Motor Limit: None
On Resistance: 0.0005 ohms
BEC Voltage: 6 volts
Motor / Battery Wiring: 16-gauge Maxx® Cable
Transistor Type: MOSFET
Low Voltage Detection: 2-stage indicators, switchable (on or off)
Thermal Protection: 2-stage thermal shutdown
Profile selection: Sport Mode: 100% fwd, 100% brakes, 100% rev.
Race Mode: 100% fwd, 100% brakes, no rev.
Training Mode: 50% fwd, 100% brakes, 50% rev.
Single-button setup: Traxxas EZ-Set®
Battery Input Connector: Traxxas High-Current Connector
Motor Connector: 3.5 mm bullet connectors
