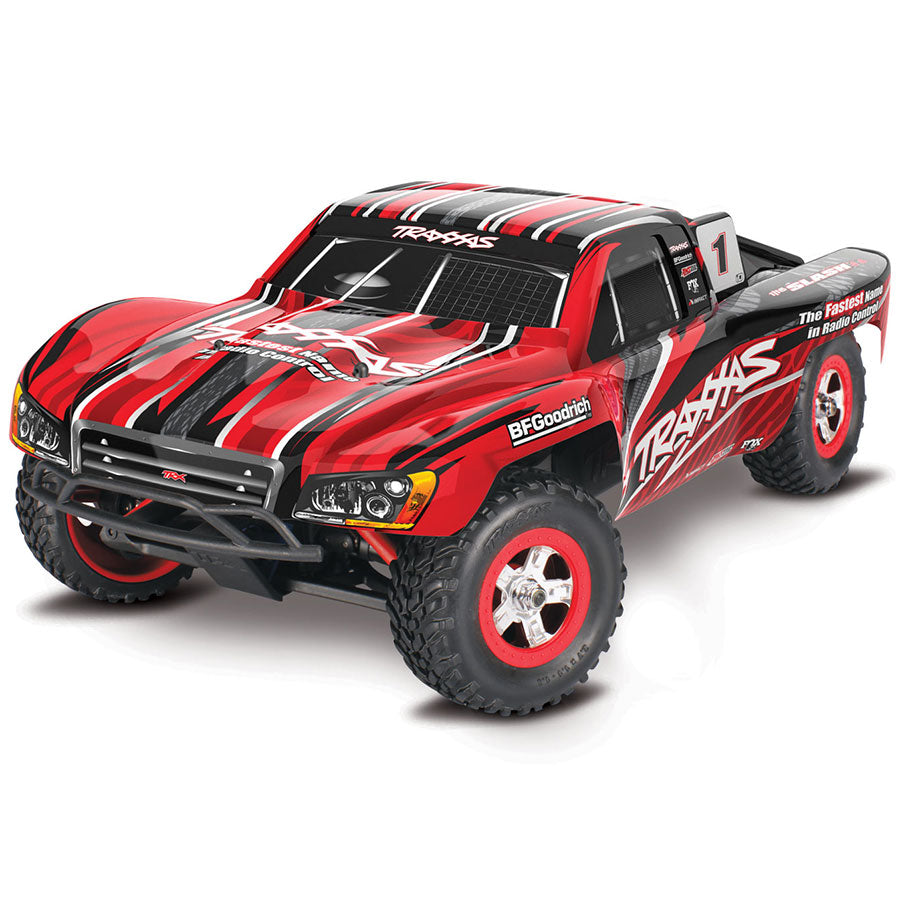

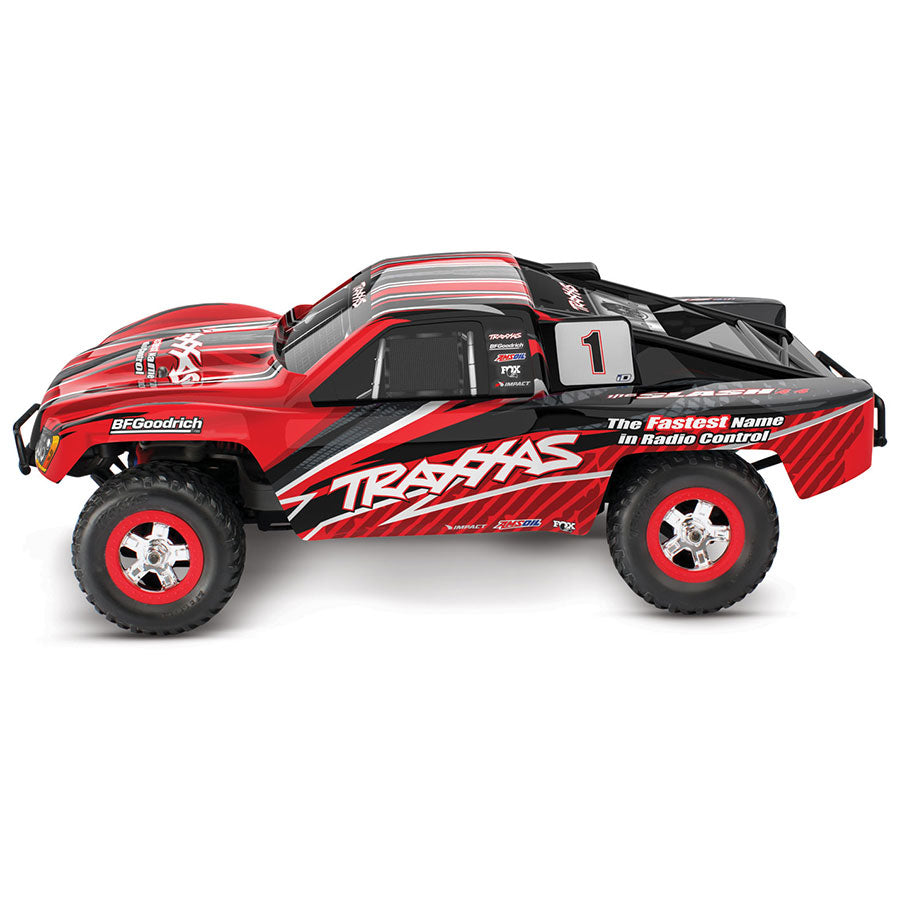

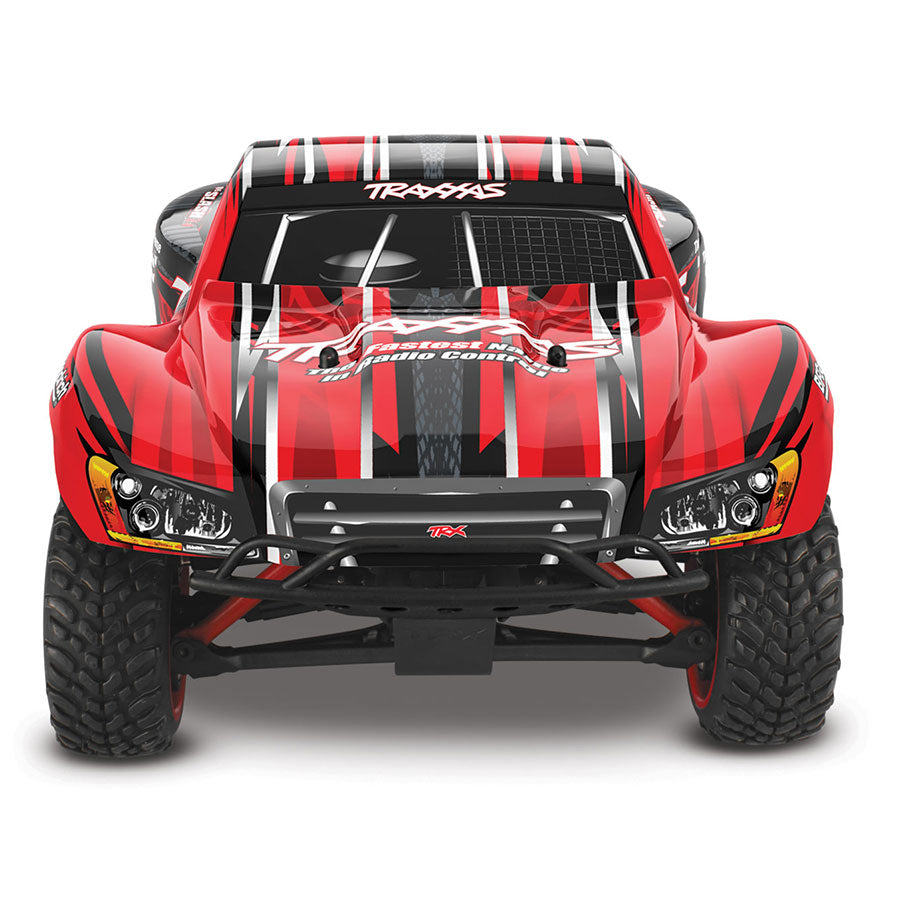

1/16 Slash: 4X4 Short Course Truck w/USB-C: Red
1/16 Slash: 4X4 Short Course Truck w/USB-C: Red
1/16 Slash: 4X4 Short Course Truck w/USB-C: Red
Overview:

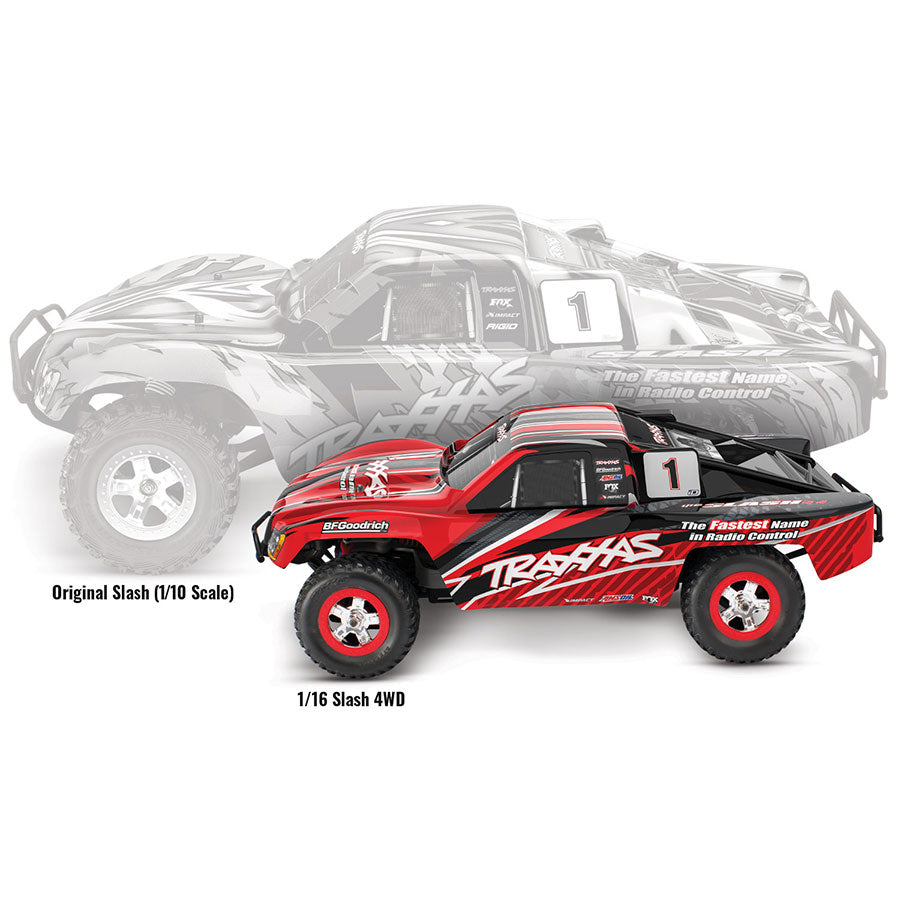

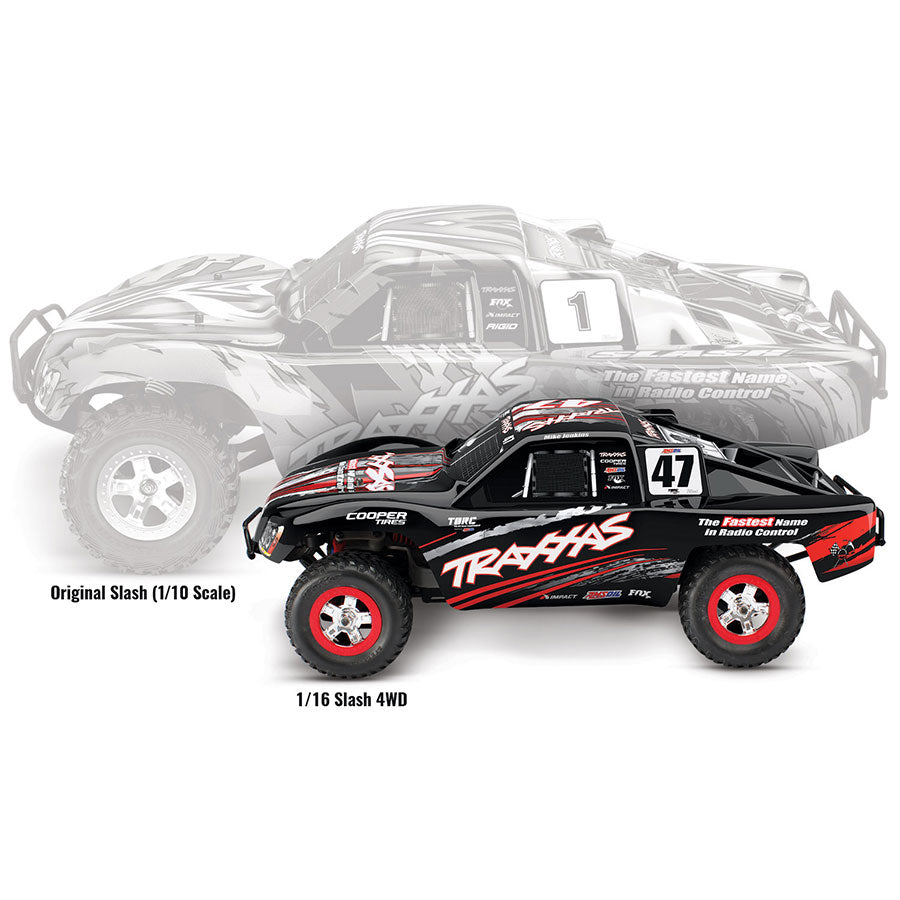

The Traxxas Slash 4X4 set the standard for short-course fun and versatility with speed, power, and track-ready handling. Now you can experience the fun of wheel-to-wheel Slash 4X4 racing in 1/16 scale Titan® 550 power. At 14 inches long, the 1/16 Slash 4X4 is about half the size of the 1/10-scale Slash 4X4, but don't call it a "mini". This is a whole new category of RC performance and fun that no mere mini-model can match. Beneath the tough Race Replica polycarbonate shell, you'll find sophisticated suspension technology and chassis design with the quality and durability you expect from Traxxas.
Modified Muscle

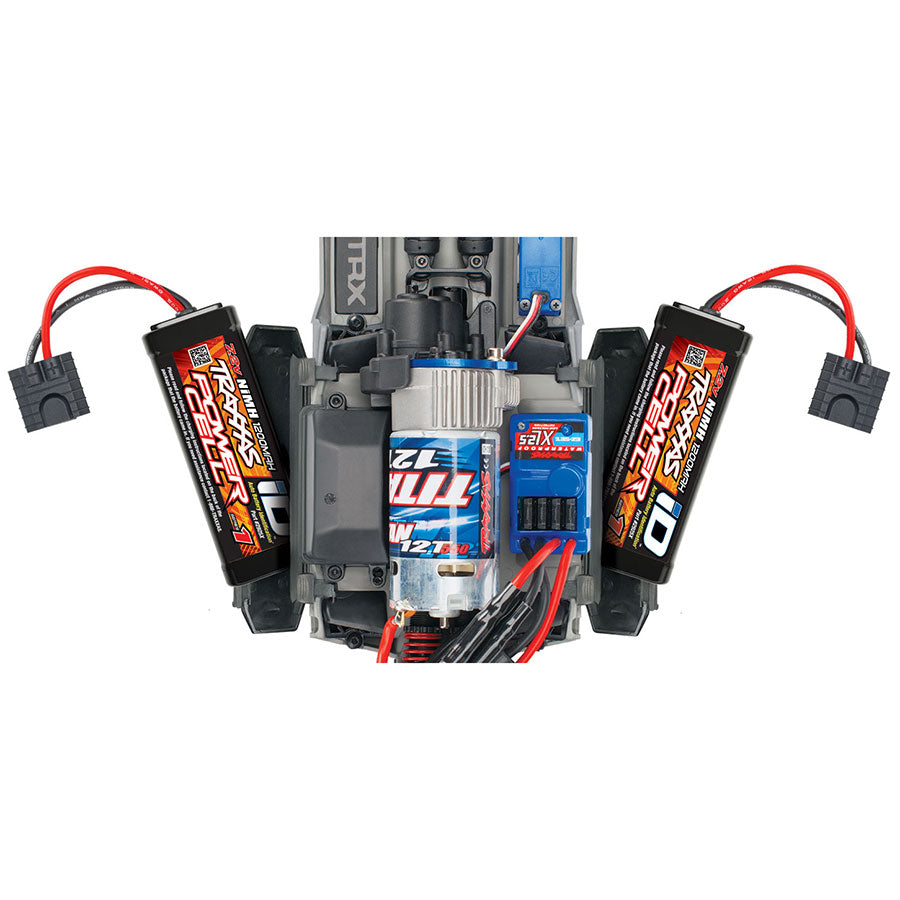

Leave it to Traxxas to put the huge torque of the Titan 550 motor into the 1/16 Slash for incredible acceleration and monster power. The Titan 12T motor delivers exciting performance with long-lasting performance. An integrated cooling fan pulls cool air through vent tunnels molded into the motor plate to keep temperatures down. The XL-2.5 electronic speed control comes standard with three drive profiles, low voltage detection, thermal shutdown protection, gold-plated connectors, and incredibly low resistance.
Battery and Charger Included!

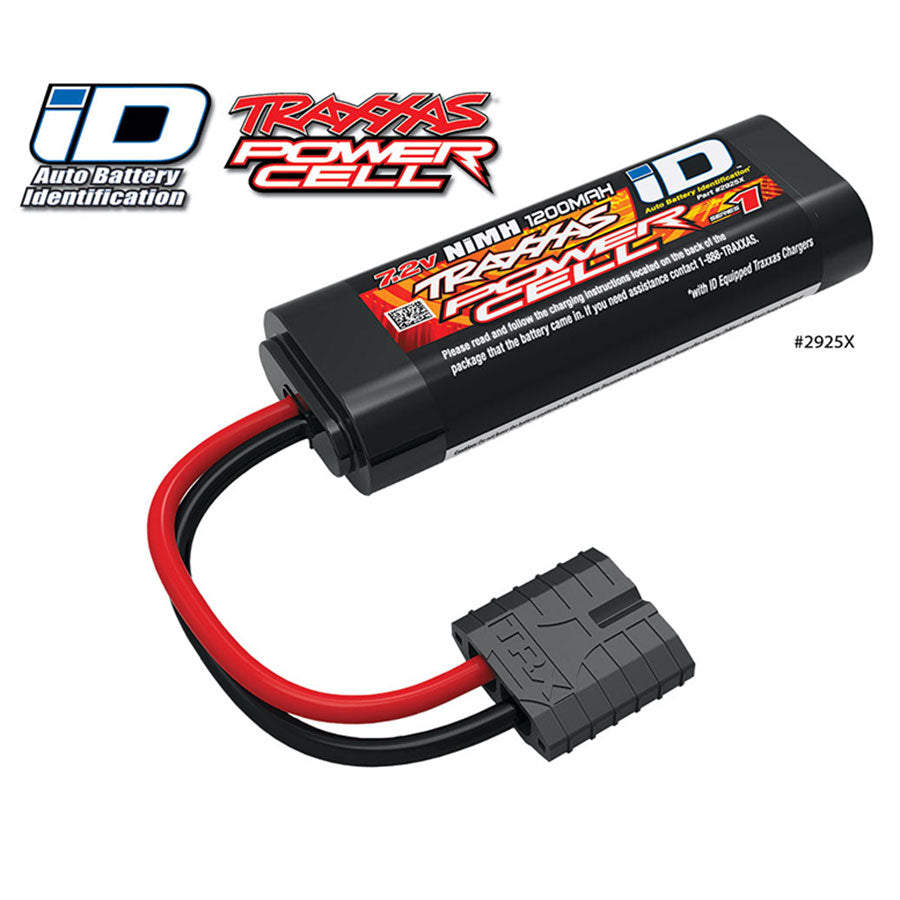

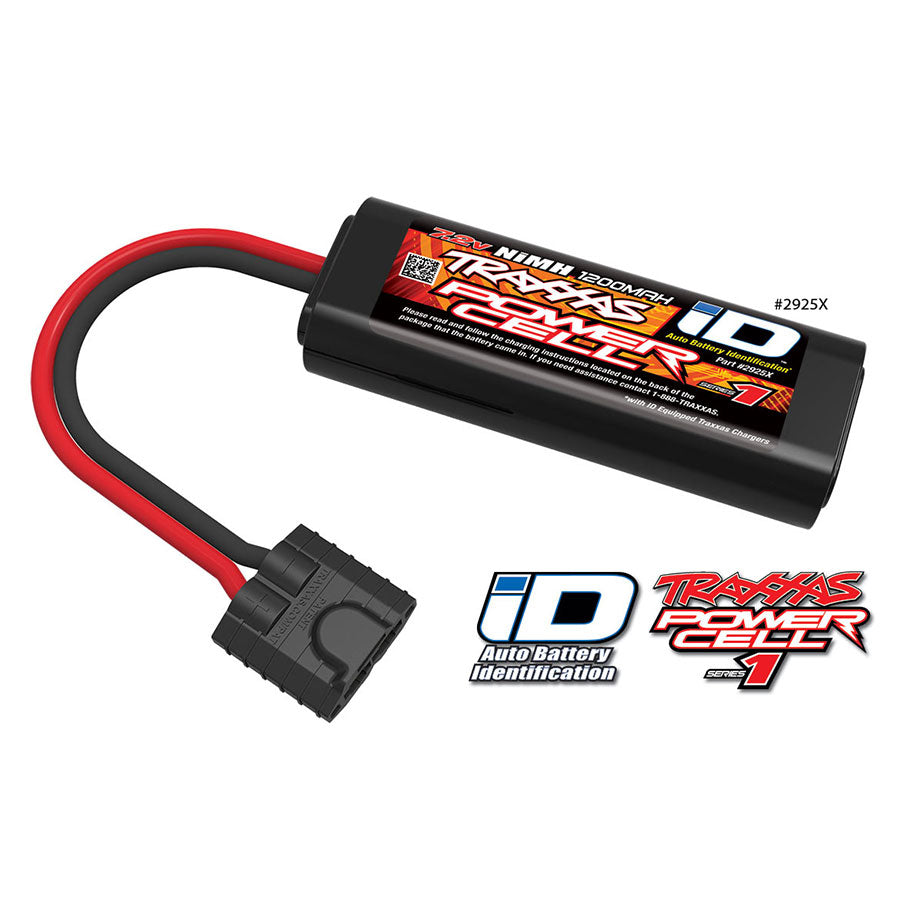

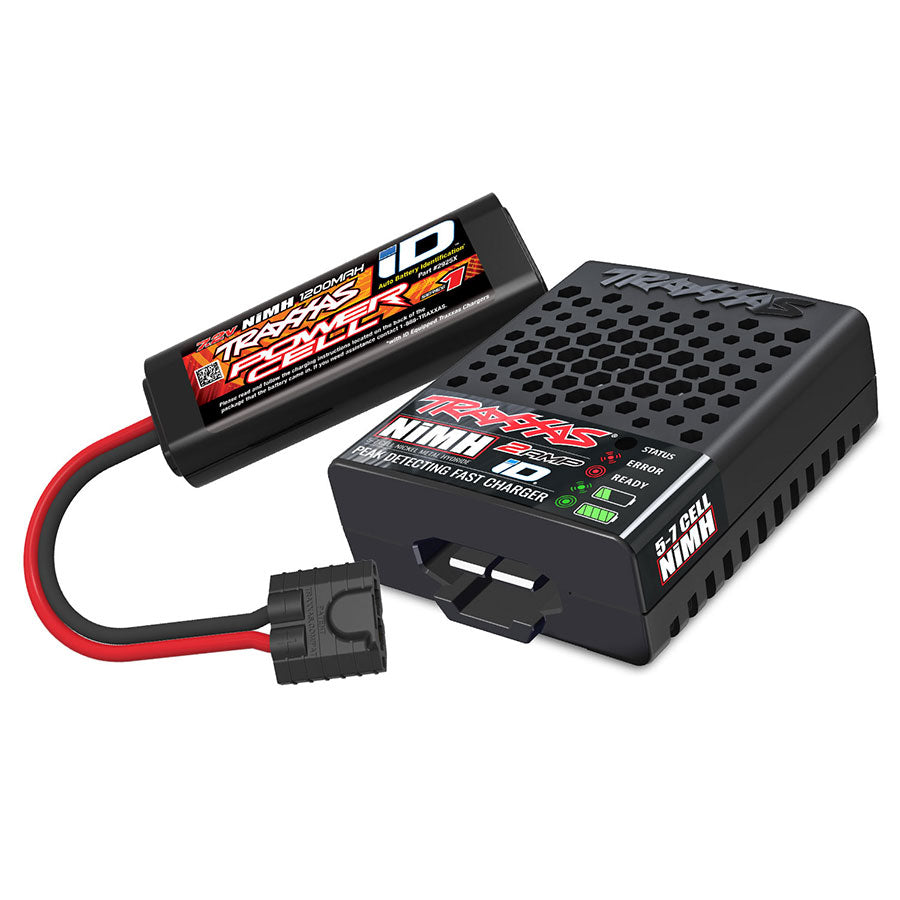

1/16 Slash includes a powerful 7.2 volt 1200 mAh Traxxas Power Cell rechargeable NiMH battery pack to reach its 30+ mph top speed. Fast 2-amp charging is available virtually anywhere thanks to the included USB-C battery charger with iD® technology. Power adapter and cable sold separately. For maximum charge rate use Traxxas 2912 45-watt power adapter and 2916 100-watt power cable. The Traxxas iD system is the easiest and safest way to charge your Traxxas batteries. The charger automatically recognizes the iD battery and optimizes the charge settings as soon as you plug it in. There’s no guesswork involved, just fast, reliable charging every time.
100% Assembled and Ready-To-Race®
1/16 Slash comes Ready-To-Race out of the box with the TQ™ 2.4 GHz 2-channel radio system, waterproof XL-2.5™, and included 7.2 V battery and charger. With over 30 years in the hobby industry, Traxxas goes the extra mile to ensure that your RC experience is easy and fun. A staff of skilled representatives is on-hand to answer your questions via phone, chat, or email.
Quick Features:
- 7.2 volt iD®-equipped Traxxas Power Cell NiMH battery
- 2-amp USB-C fast charger
- Race replica paint and graphics
- Full-time 4WD for superior handling and control
- TQ™ 2.4 GHz radio system
- XL-2.5™ electronic speed control
- Titan® 12T 550 motor
- Waterproof electronics for all-weather driving excitement
Detailed Features:
- 2-amp USB-C fast charger
- 7.2-volt Power Cell NiMH battery with iD®

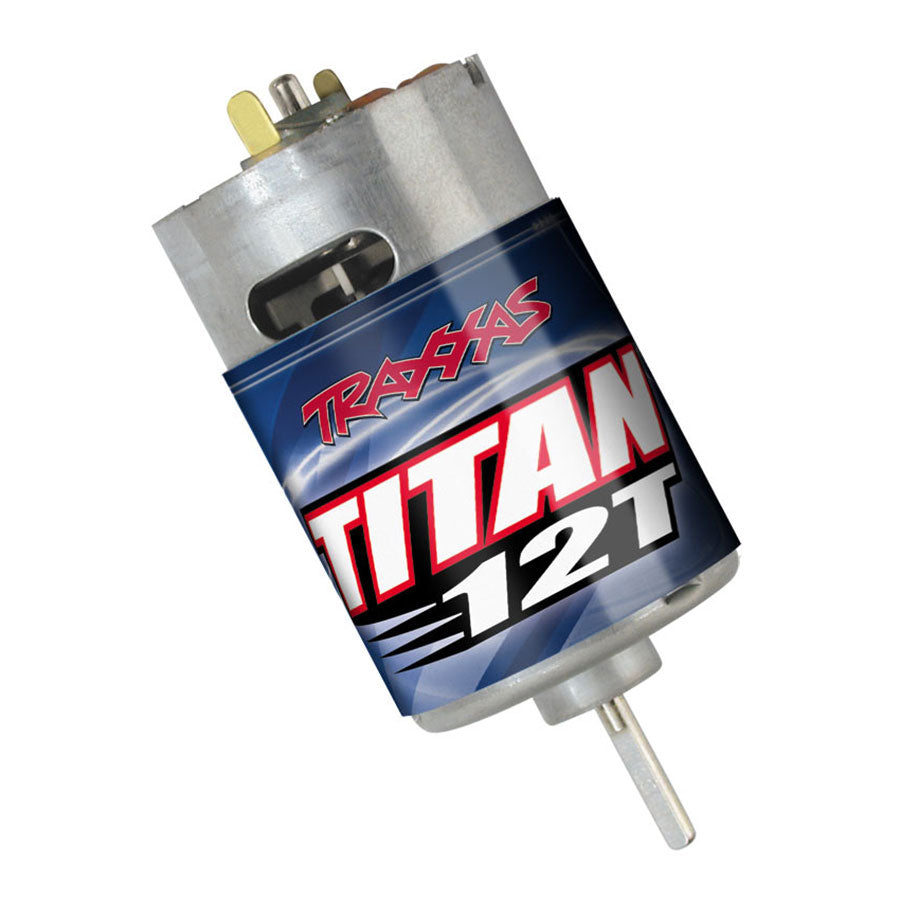

- Powerful Titan® 12-turn 550 motor

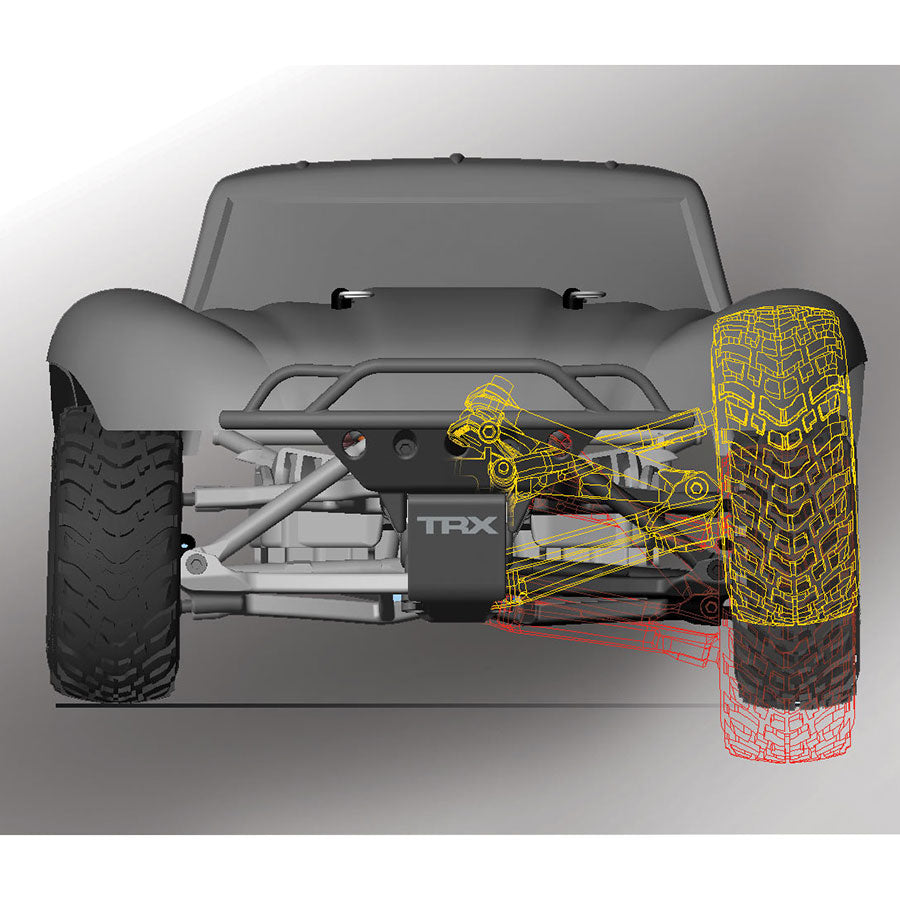

- Race-inspired suspension and chassis design
- XL-2.5™ waterproof electronic speed control
- LiPo and NiMH compatible with two-stage low-voltage detection
- Programmable with three drive profiles:
- Sport Mode – Fwd / Brake / Rev
- Race Mode – Fwd / Brake
- Patented Training Mode – 50% Fwd / Brake / 50% Rev
- EZ-Set® one-button setup
- Multi-color LED
- Thermal shutdown protection
- Efficient, low-loss MOSFET design
- High-capacity heat sink

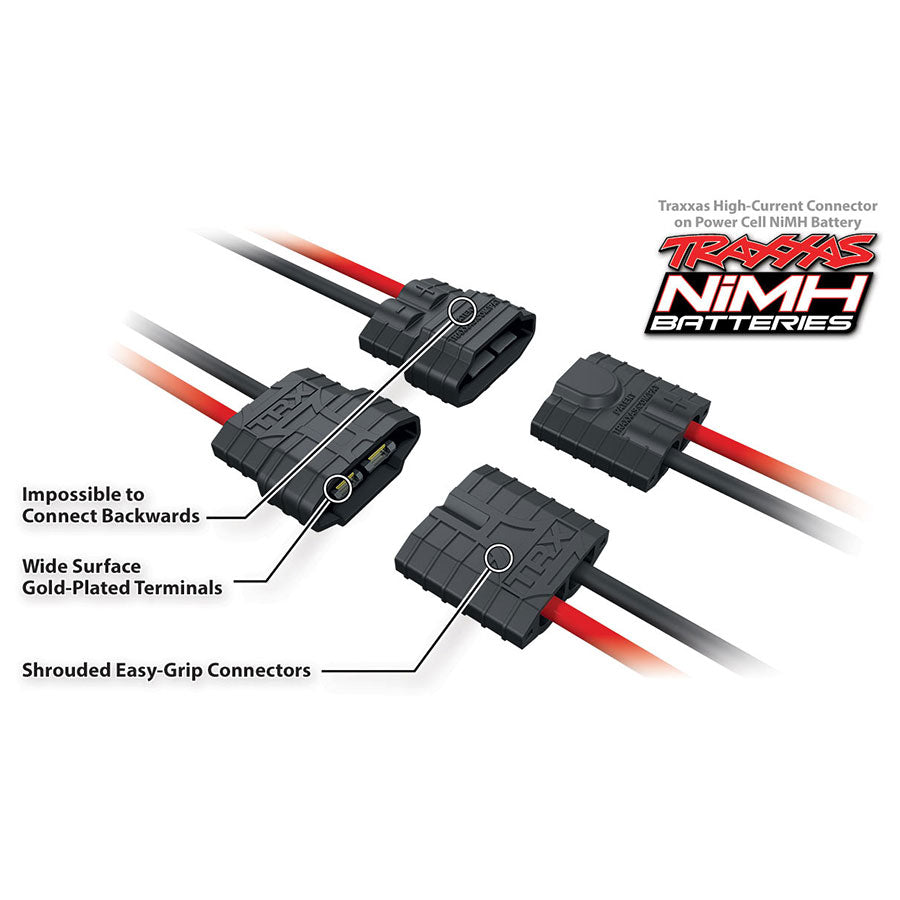

- Patented Traxxas High-Current Connector allows high-capacity battery packs to deliver maximum voltage

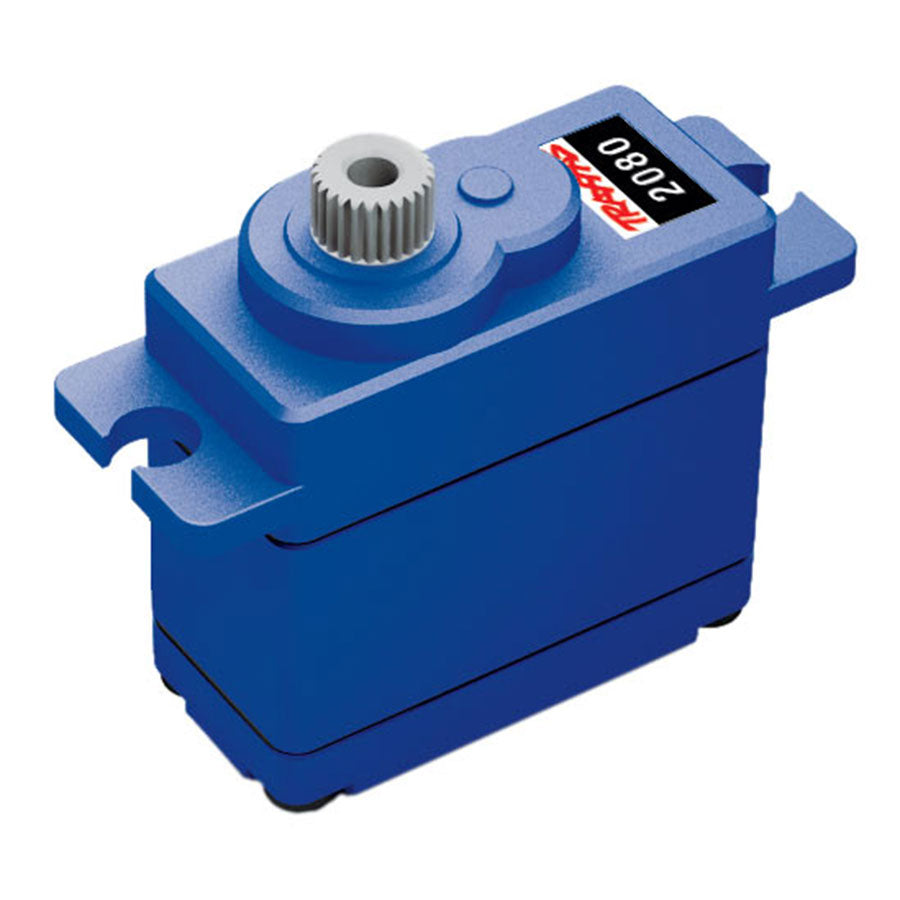

- Digital high-torque waterproof micro steering servo

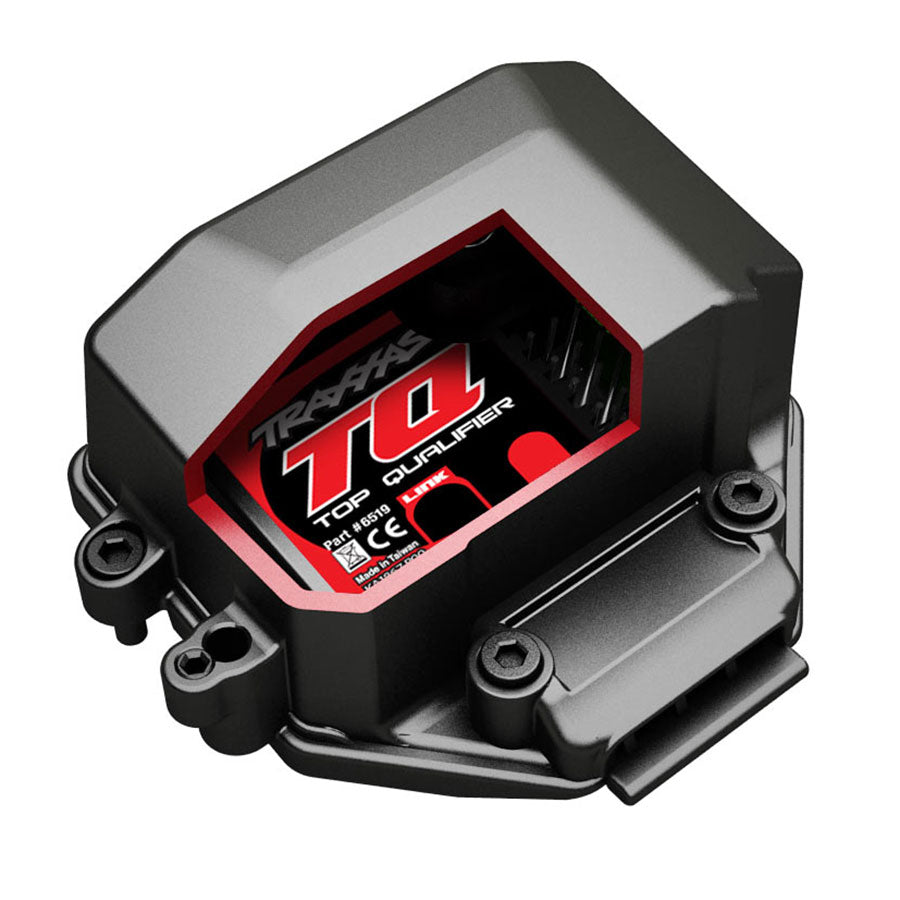

- Waterproof receiver box

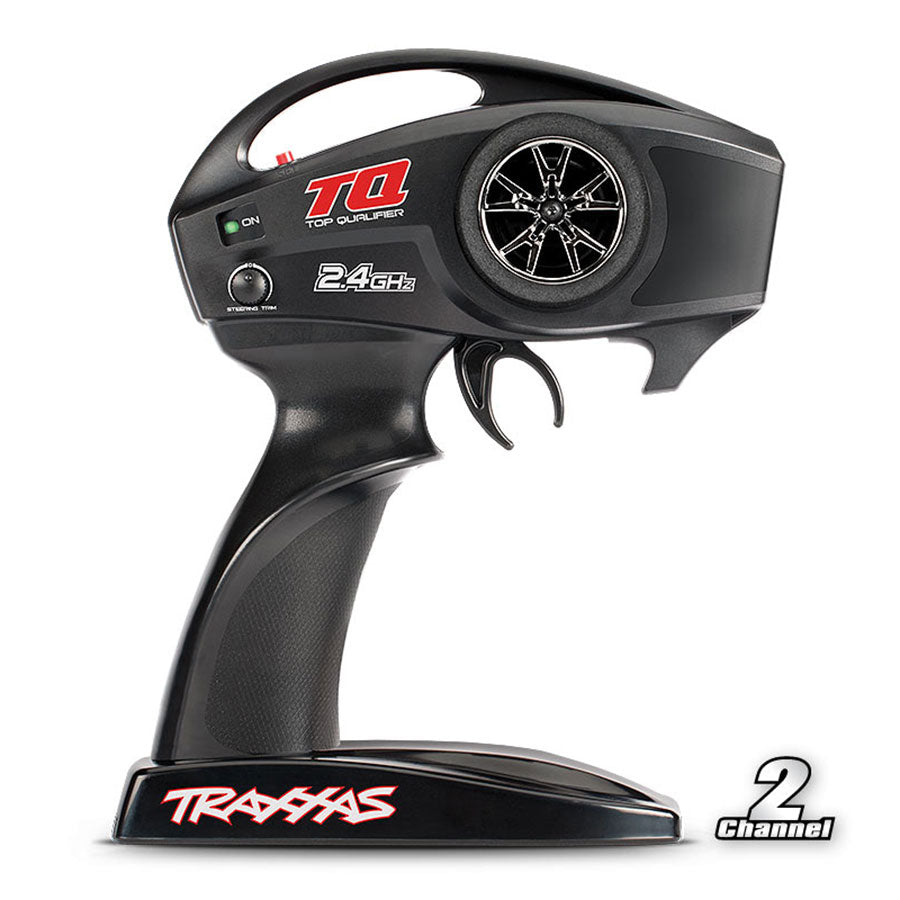

- TQ™ 2.4 GHz transmitter

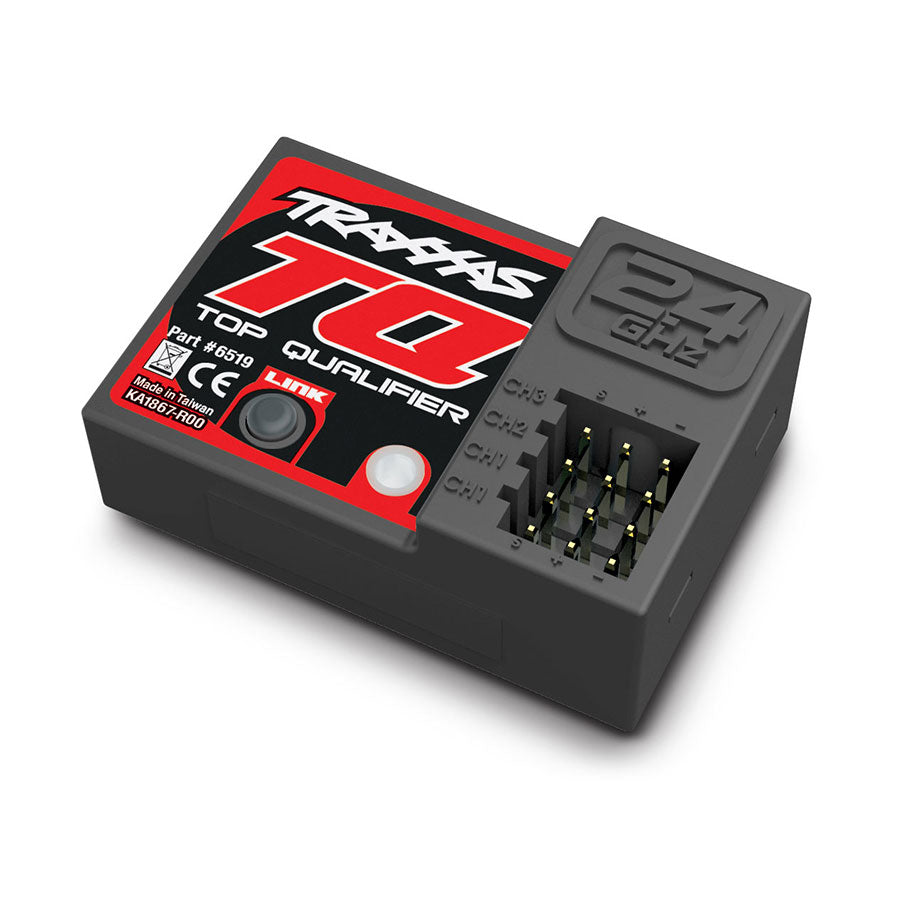

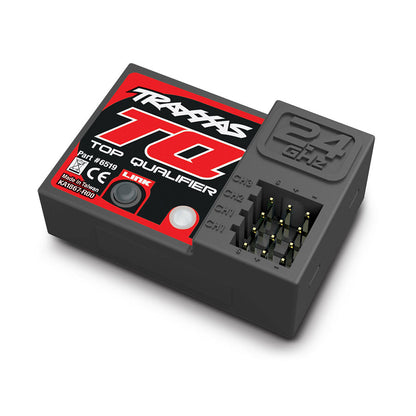

- Traxxas 3-channel micro receiver

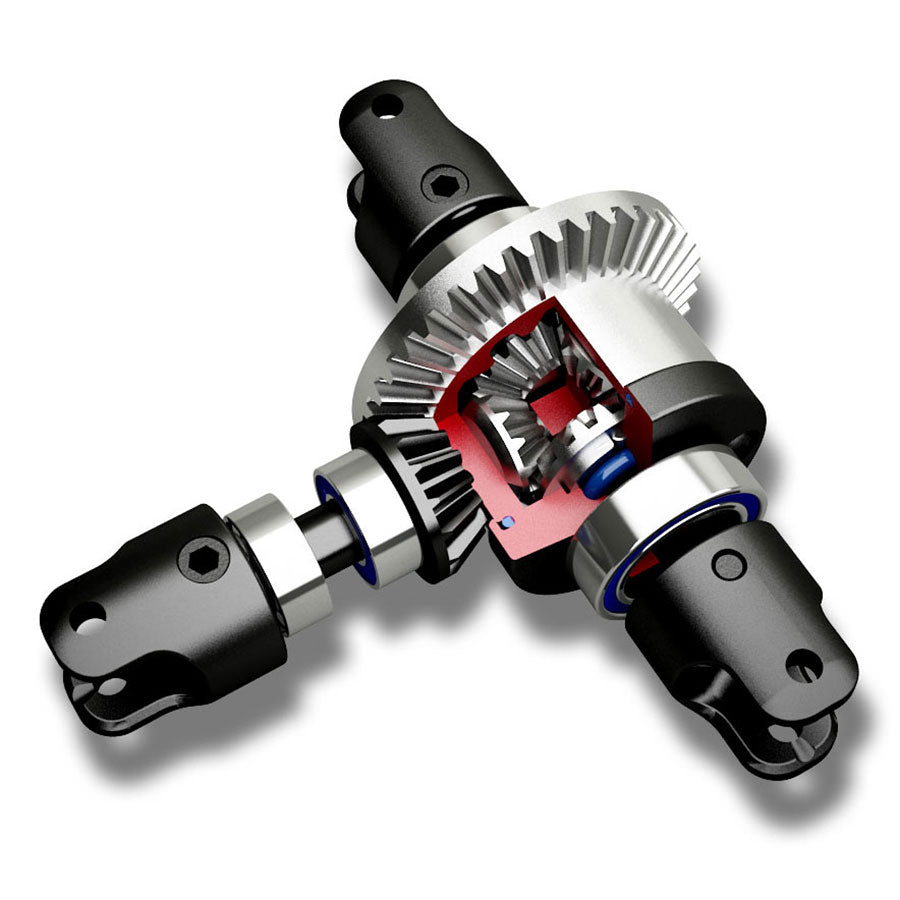

- Sealed, silicone-filled differentials
- Torque-Control™ slipper clutch

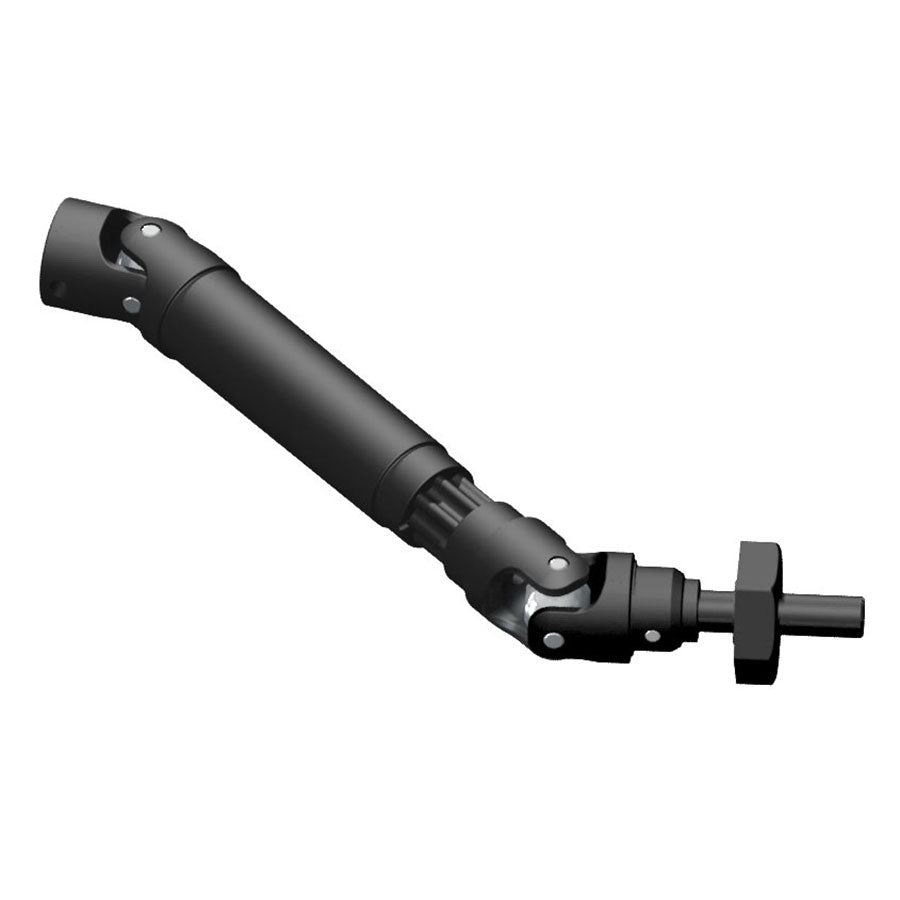

- Telescoping universal-joint driveshafts
- Rubber-sealed ball bearings
- External gear cover with easy slipper access

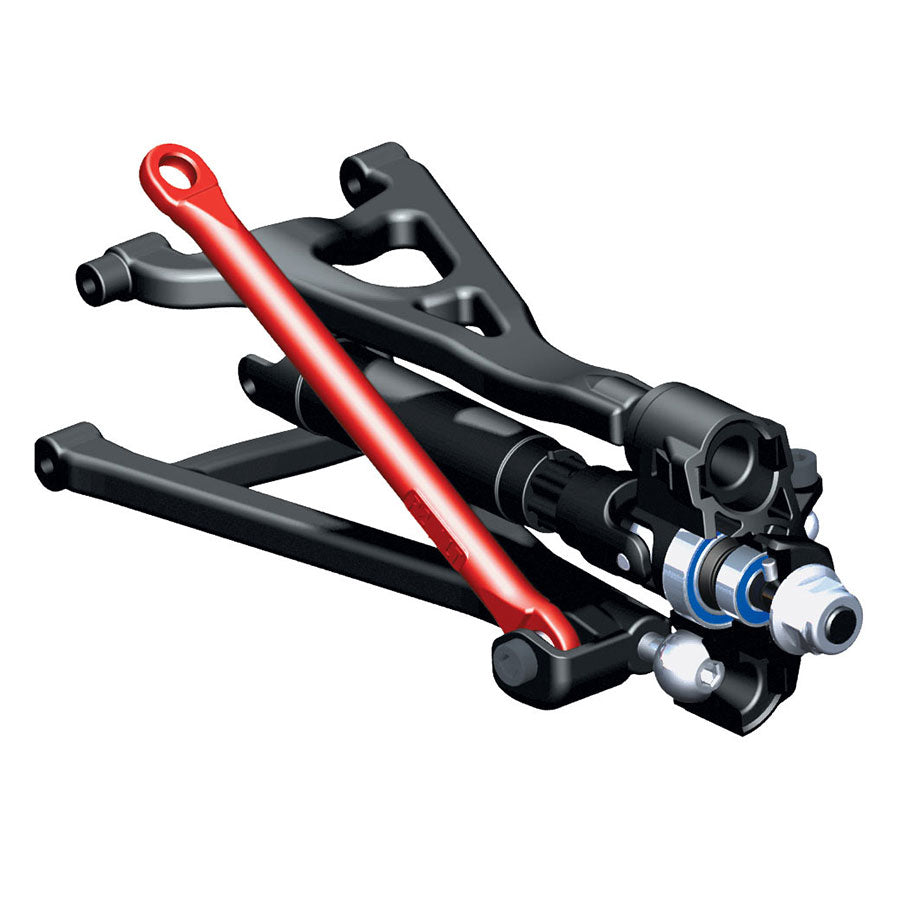

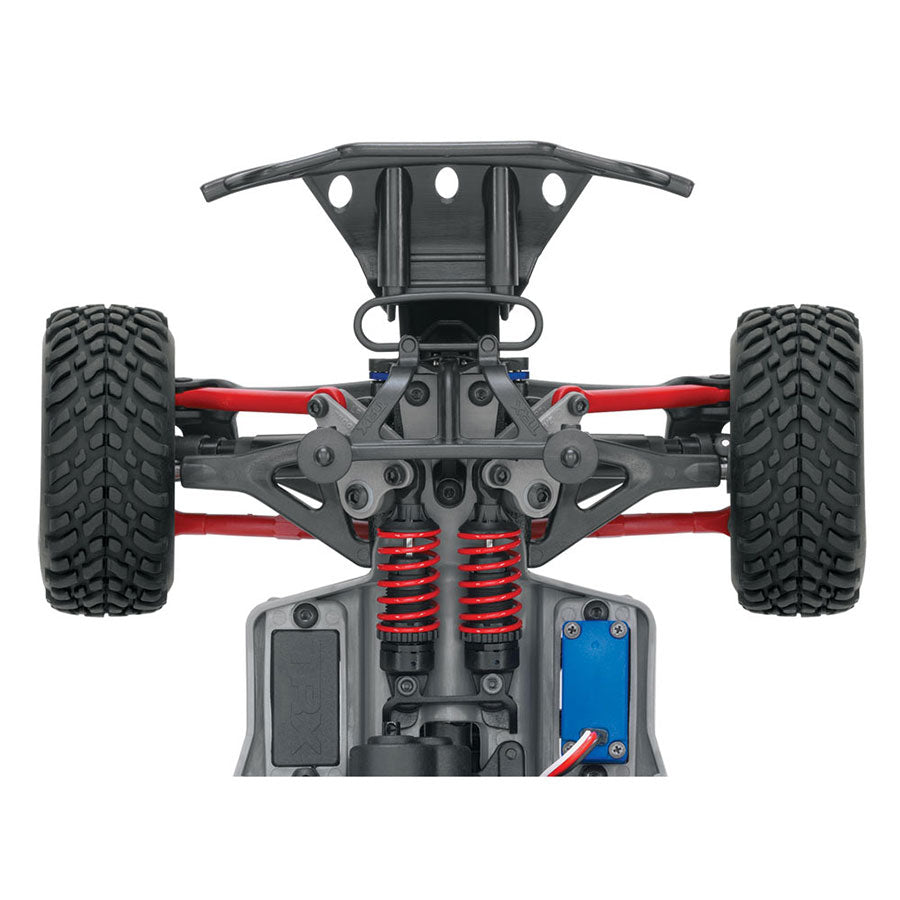

- Rocker-actuated shocks provide true progressive damping and spring rates

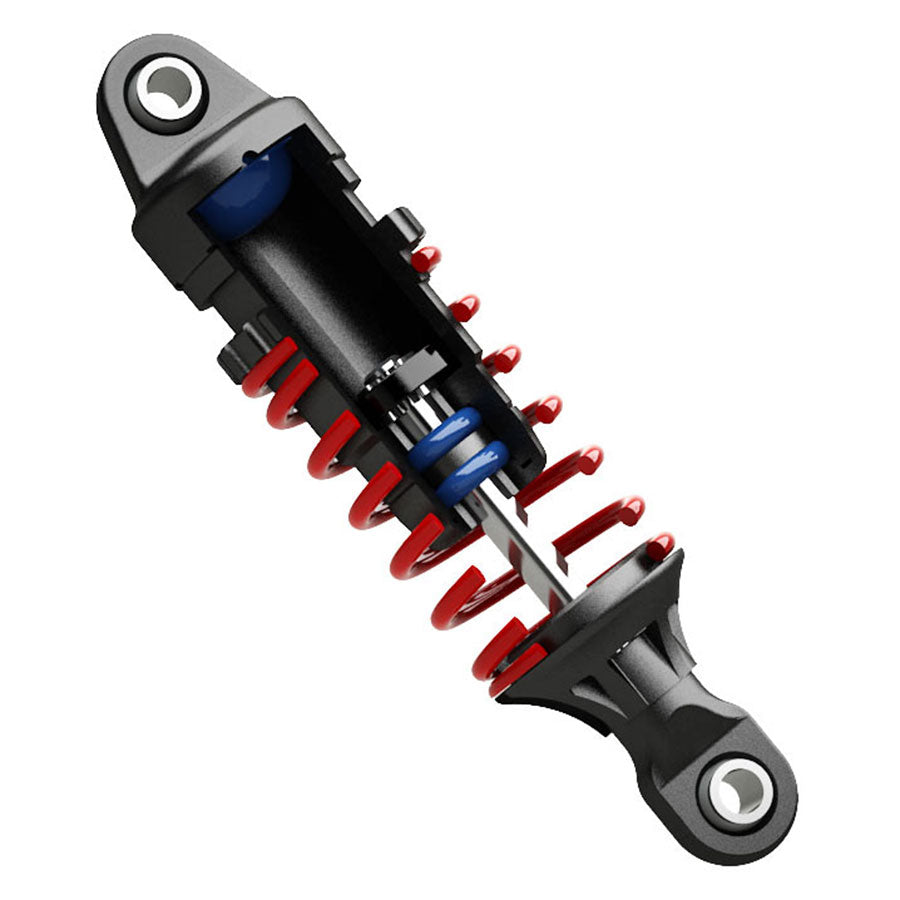

- Threaded, oil-filled shocks permit fast, precise preload adjustments with smooth, consistent damping

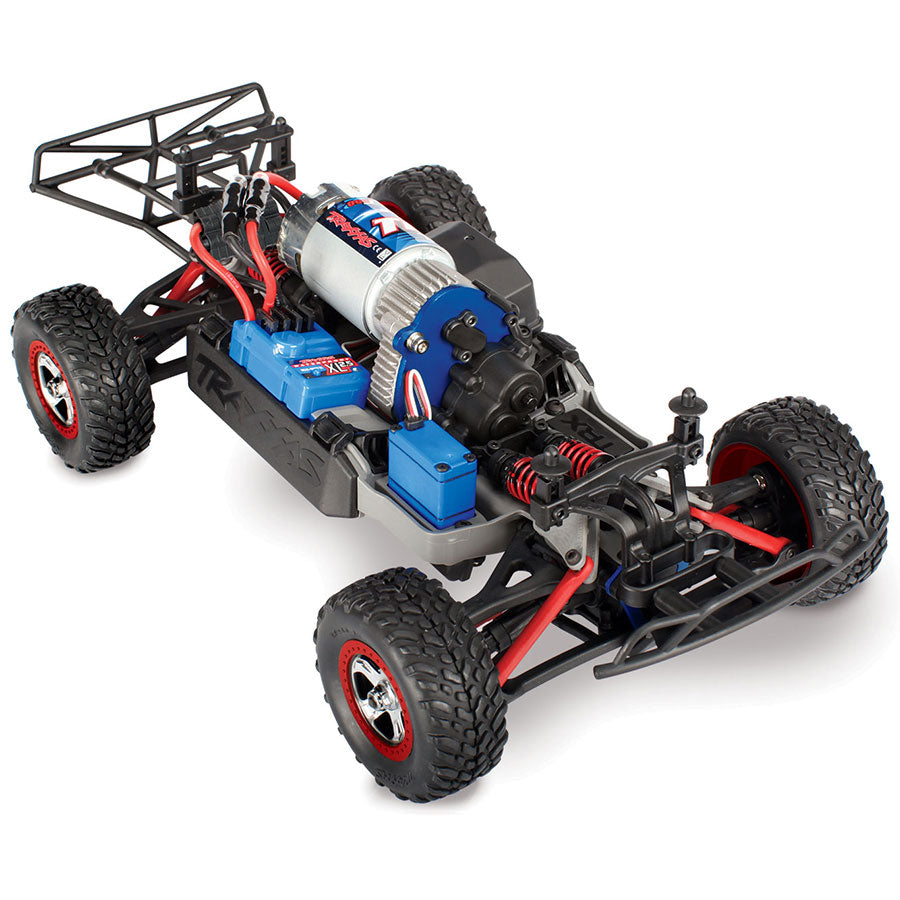

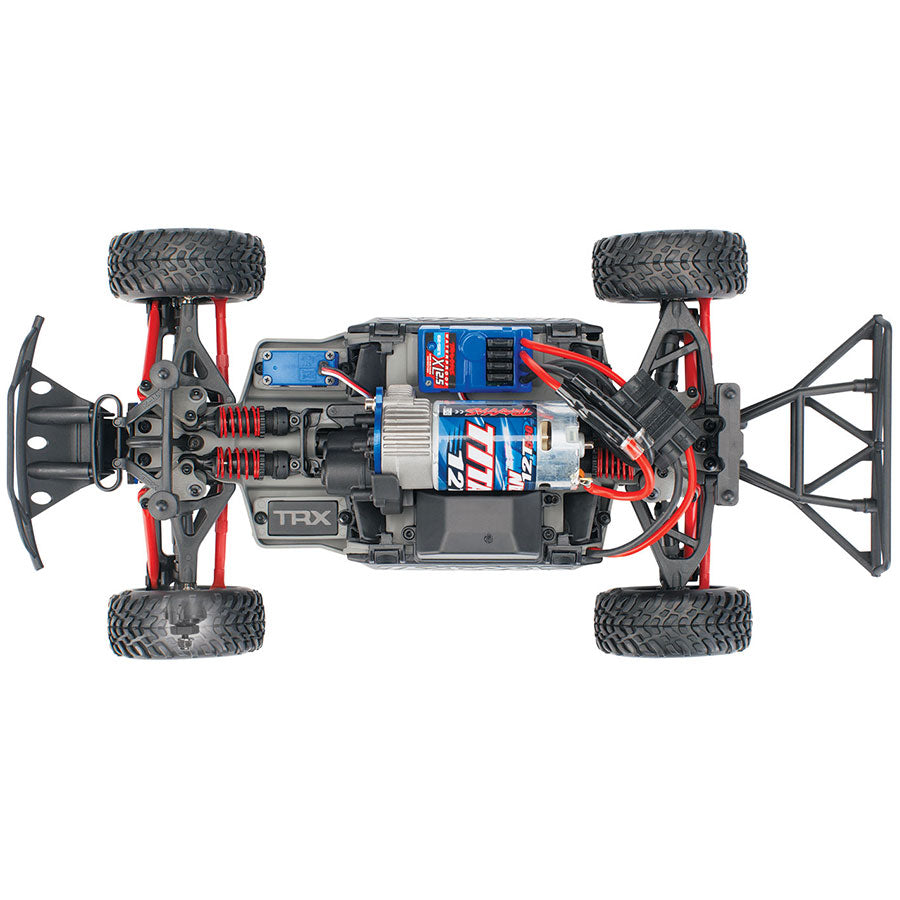

- Fiber-composite monocoque chassis

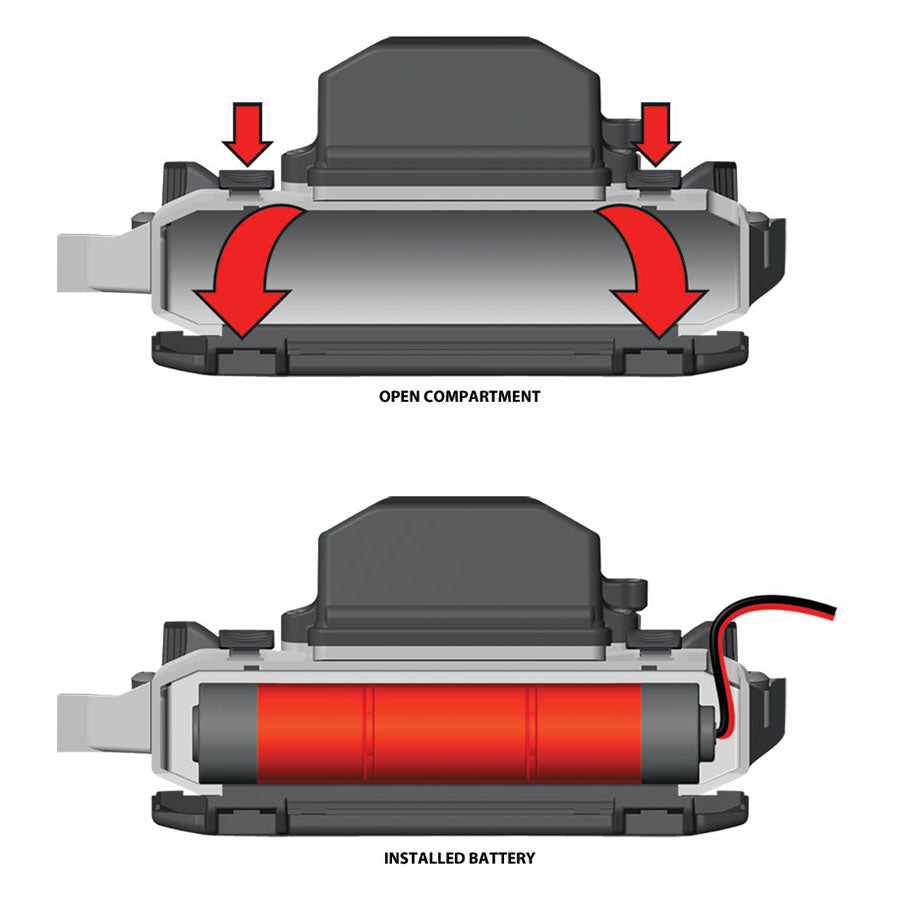

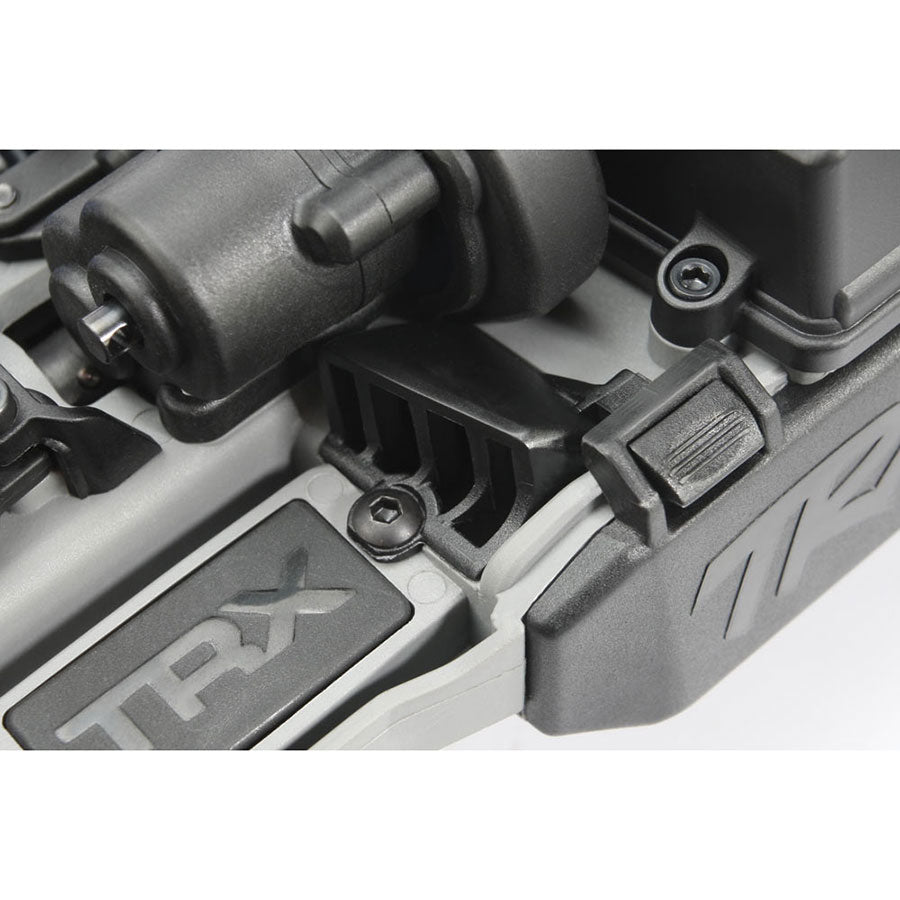

- Integrated battery compartments with intake and exit cooling vents
- Quick-release battery doors for fast pack changes

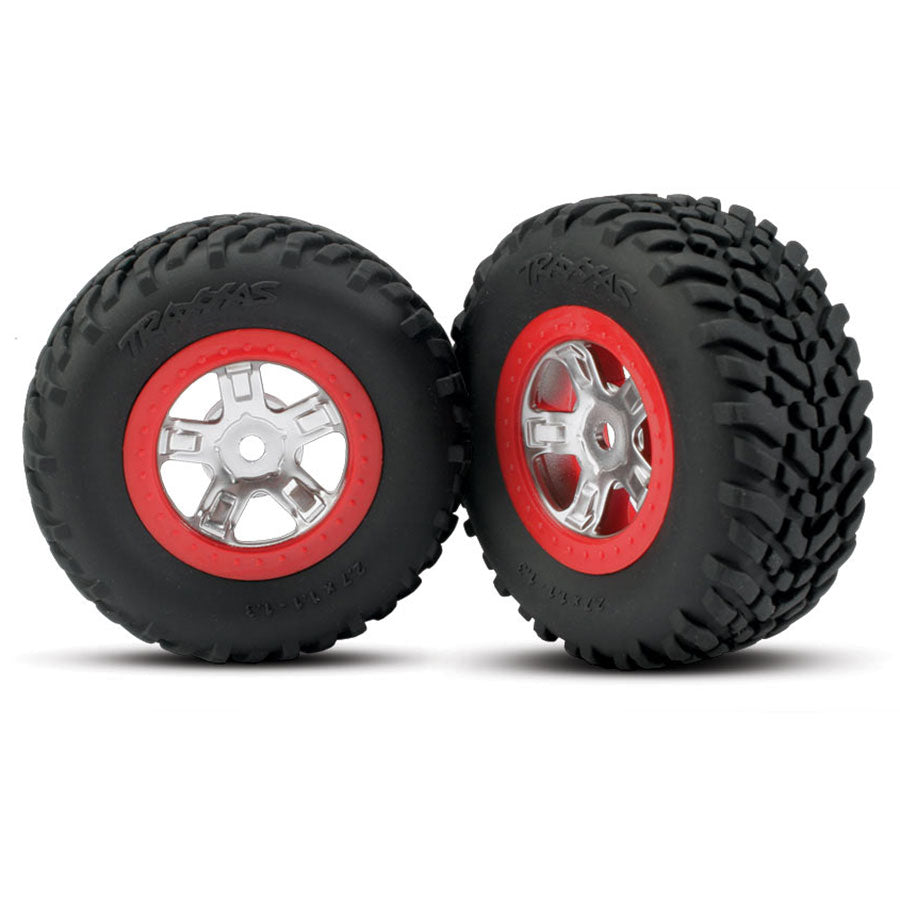

- Pre-glued all-terrain tires with high-performance foam inserts
- Satin-chrome beadlock-style wheels
- ProGraphix® race replica bodies
1/16 SLASH 4X4 (70054-8) | |
Length: | 14 inches (356 mm) |
Front Track: | 7.3 inches (185 mm) |
Rear Track: | 7.3 inches (185 mm) |
Weight: | 35 ounces (1000 g) |
Height (overall): | 4.92 inches (125 mm) |
Wheelbase: | 8.1 inches (206 mm) |
Front Shock Length: | 48 mm |
Rear Shock Length: | 48 mm |
Front Tires (pre-glued): | All-terrain 1.6″ |
Rear Tires (pre-glued): | All-terrain 1.6″ |
Front Wheels: | Dual-bead 35/47 mm, 12 mm hex hub |
Rear Wheels: | Dual-bead 35/47 mm, 12 mm hex hub |
Electronic Speed Control: | Waterproof XL-2.5™ |
Motor (electric): | Titan® 12T |

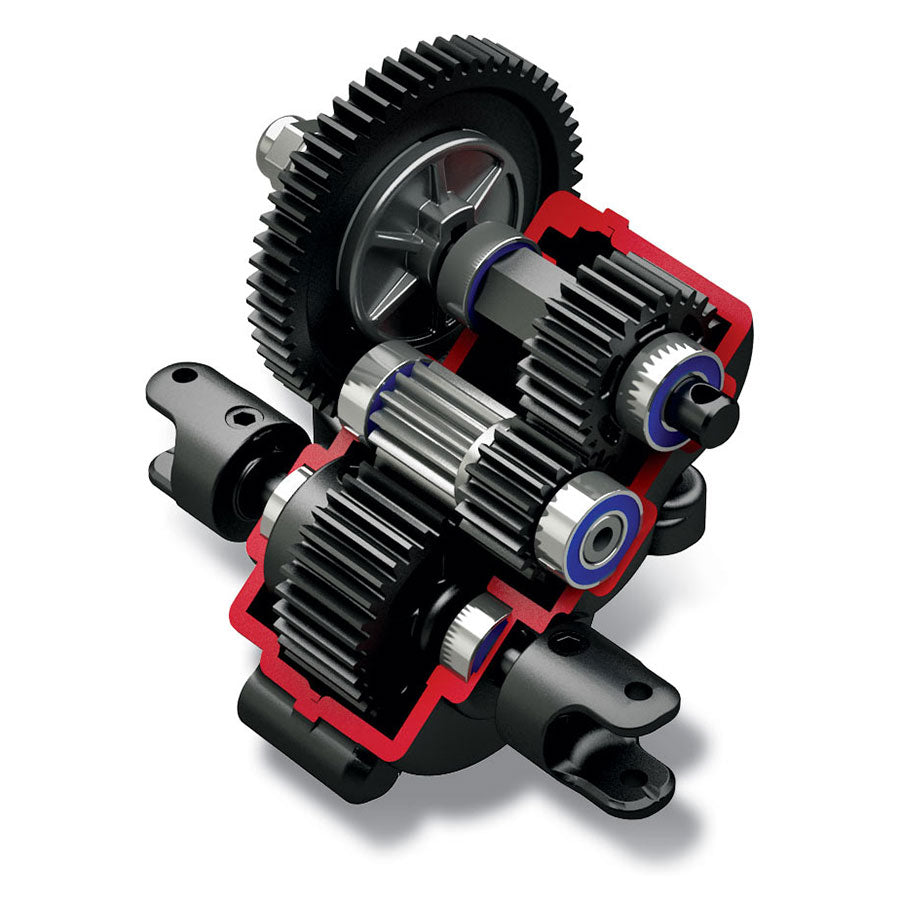

Transmission: | Heavy-duty with steel idler gear |
Gear Ratio (internal): | 5.04:1, (reversed input: 9.72:1) |
Overall Drive Ratio: | 7.32:1 (stock, out-of-box) |
Differential Type: | Hardened steel bevel, sealed |
Gear Pitch: | 48 pitch |
Chassis Structure/Material: | Molded composite Nylon monocoque |
Brake Type: | Electronic |
Drive System: | Shaft-driven 4WD |
Steering: | Bellcrank |
Radio System: | Traxxas TQ™ 2.4 GHz (2-Channel) |
Skill Level: | 1 |
Included Batteries: | 6-cell Power Cell iD® NiMH battery with 2-amp USB-C fast charger |
Required Batteries: | 4 "AA" (transmitter) |

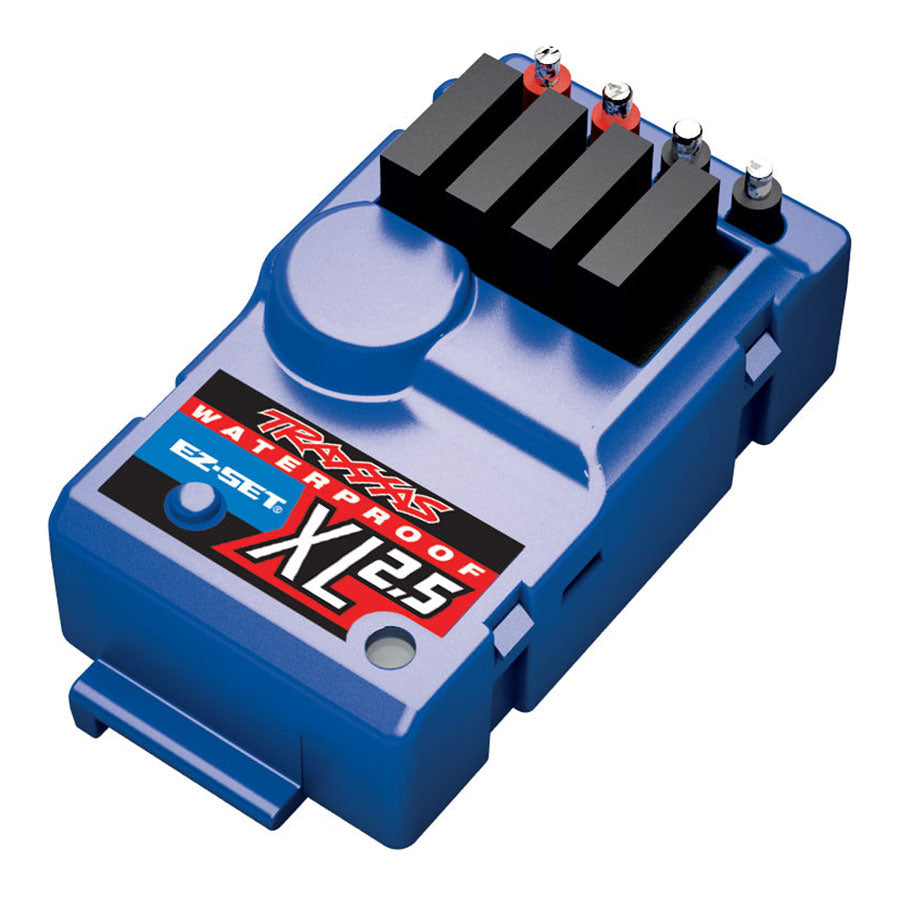

XL-2.5™ WATERPROOF ESC | |
Input Voltage: | 7.2 V NiMH, 7.4 V (2s) LiPo |
Case Size: | 26.5 mm x 46.5 mm x 22 mm |
Weight: | 33 grams |
Motor Limit: | 10-turns |
On Resistance (@Trans): | 0.008 ohms |
Reverse Delay: | None |
BEC Voltage: | 6.0 volts |
Power Wire: | 16 gauge / 40 mm |
Input Harness Wire: | 26 gauge / 130 mm |
Motor Wires: | 26 gauge / 130 mm |
Transistor Type: | MOSFET |
Low Voltage Detection: | 2-stage indicators, switchable (on and off) |
PWM Frequency: | 2300 Hz |
Thermal Protection: | Thermal shutdown |
Profile selection: | Sport Mode: 100% FWD, 100% brakes, 100% REV Race Mode: 100% FWD, 100% brakes, no REV Training Mode: 50% FWD, 100% brakes, 50% REV |
Single-button setup: | Traxxas EZ-Set® |
