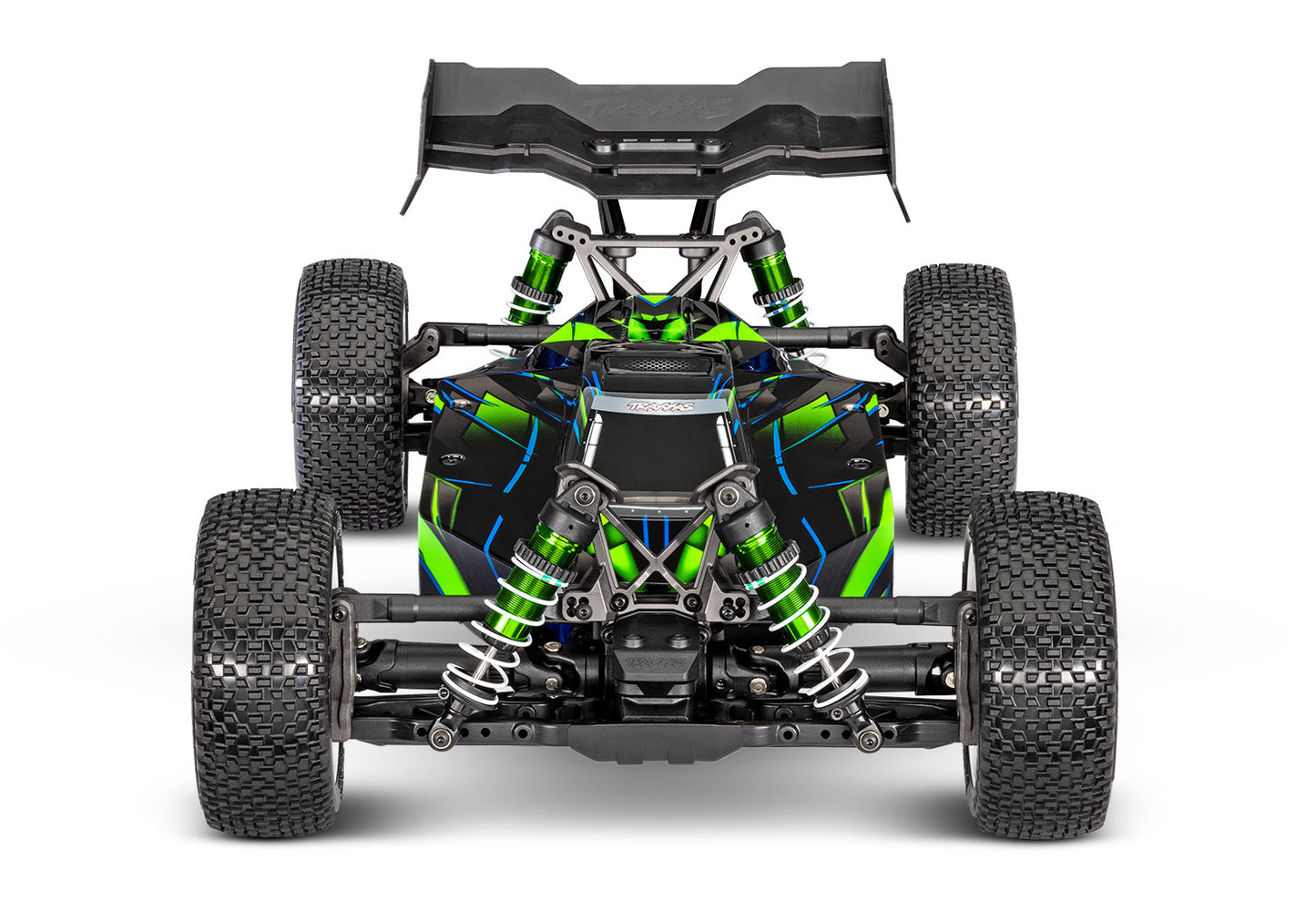

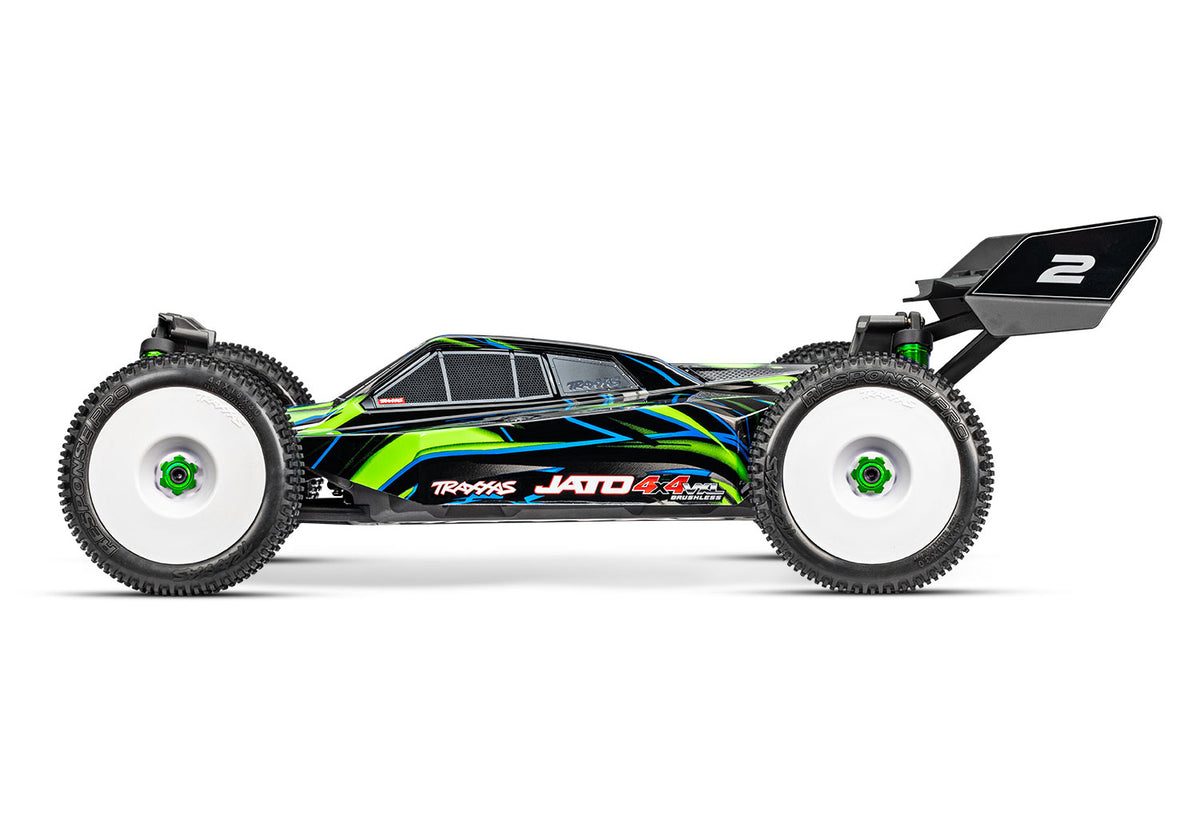

1/8 Jato 4X4 BL-4s (Requires battery & charger): Green
1/8 Jato 4X4 BL-4s (Requires battery & charger): Green
1/8 Jato 4X4 BL-4s (Requires battery & charger): Green
Overview:
Engineered For Drivers

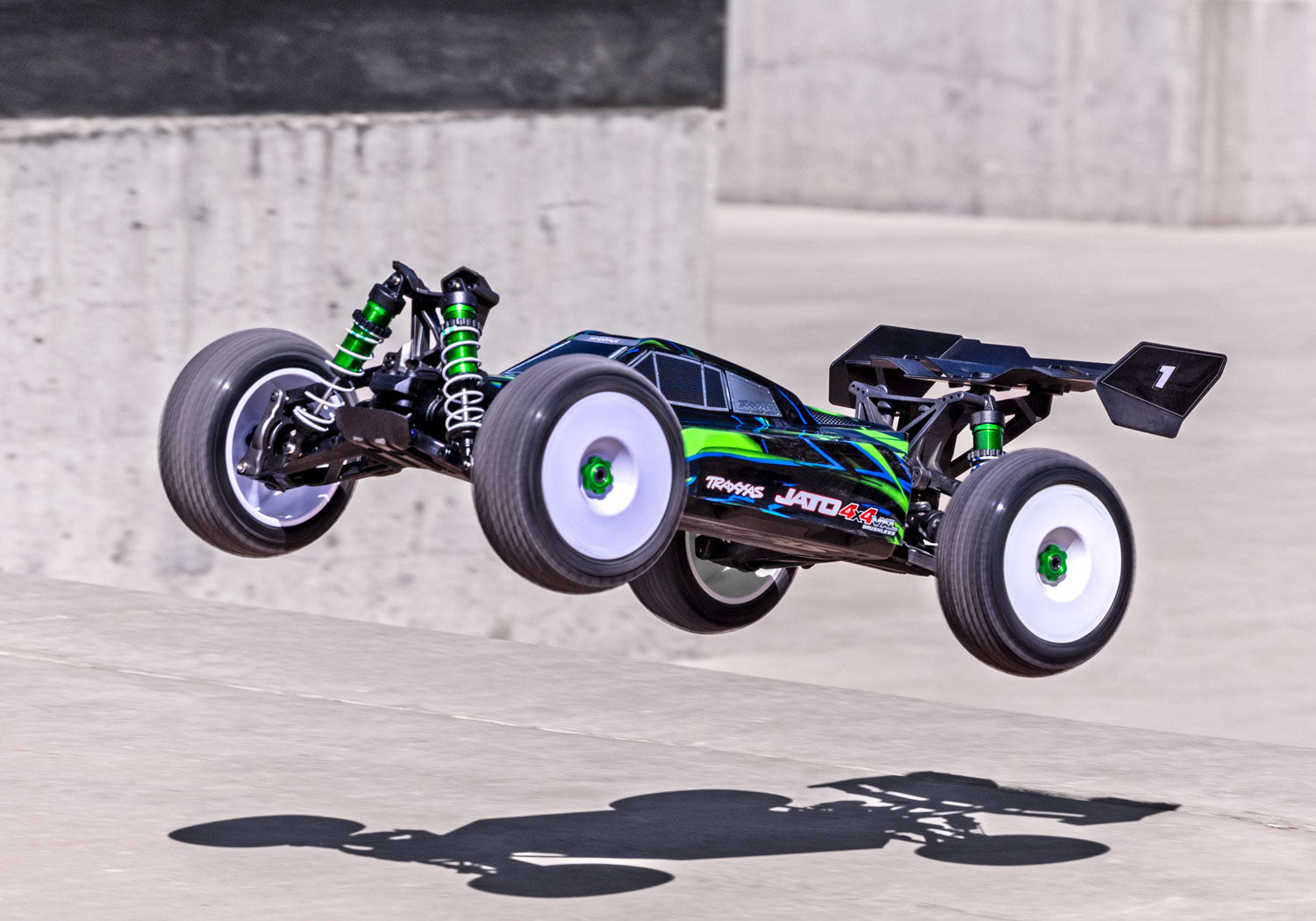

Jato® 4X4 VXL rewrites the book on buggy performance with 60+ mph* speed and laser-focused precision. An ultra-low-CG chassis with optimal weight distribution allows Jato 4X4 to corner on rails with predictable handling at every turn. Outfitted with Traxxas’ toughest Extreme HD components, Jato 4X4 is equipped to transform extreme 4S Velineon® horsepower into all-day fun.
Extreme 4S Power

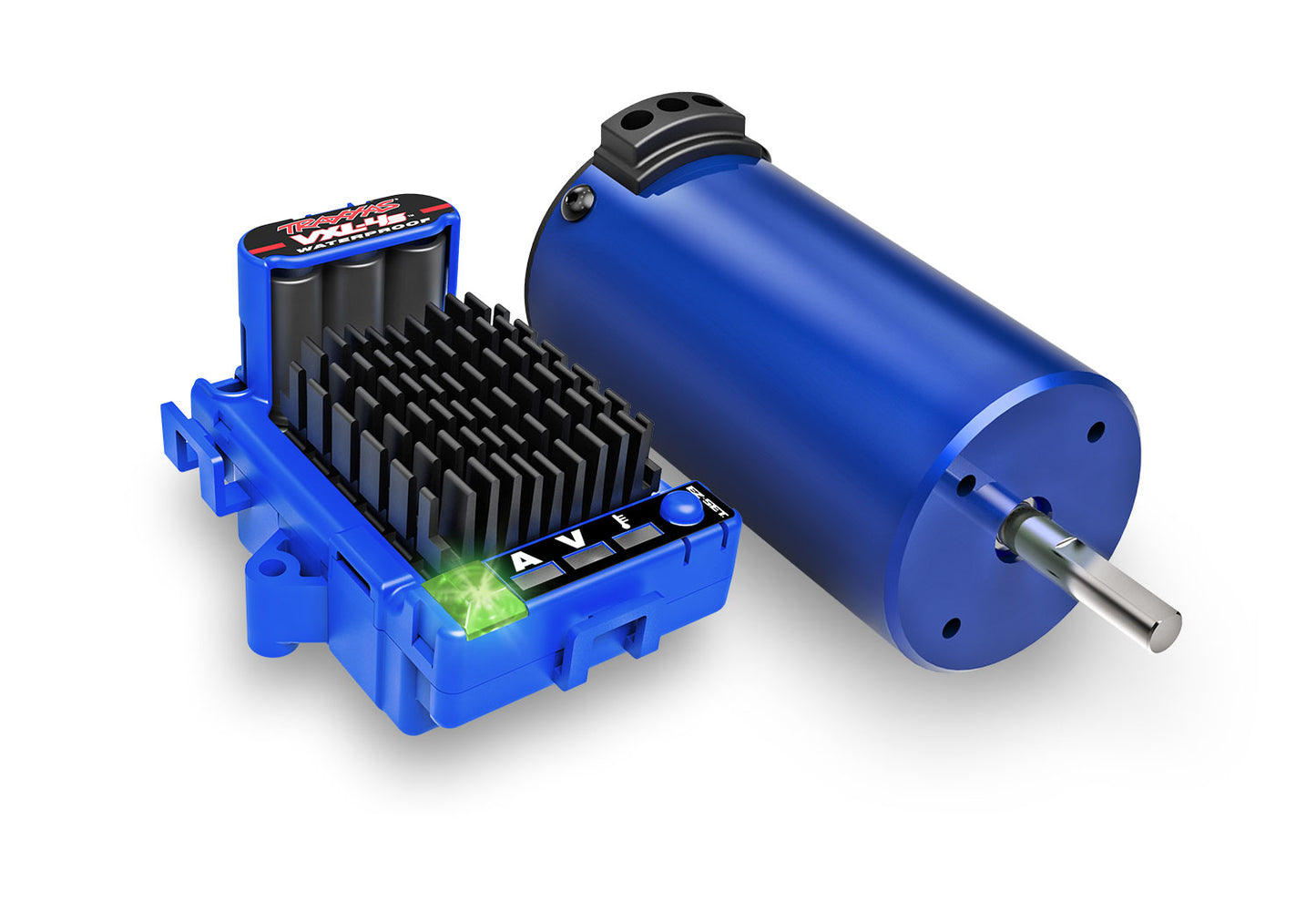

Jato 4X4 packs the same Velineon 540XL brushless motor found in the Maxx® extreme monster truck. It’s the largest motor Traxxas has ever offered in a buggy, and it’s backed by a new VXL-4s™ speed control with built-in telemetry and selectable 6.0 or 7.4-volt BEC. With 4s LiPo power on tap, Jato 4X4 VXL defies the laws of physics as it rockets its way to 60 mph and beyond with unrelenting acceleration.
Track-Ready Handling

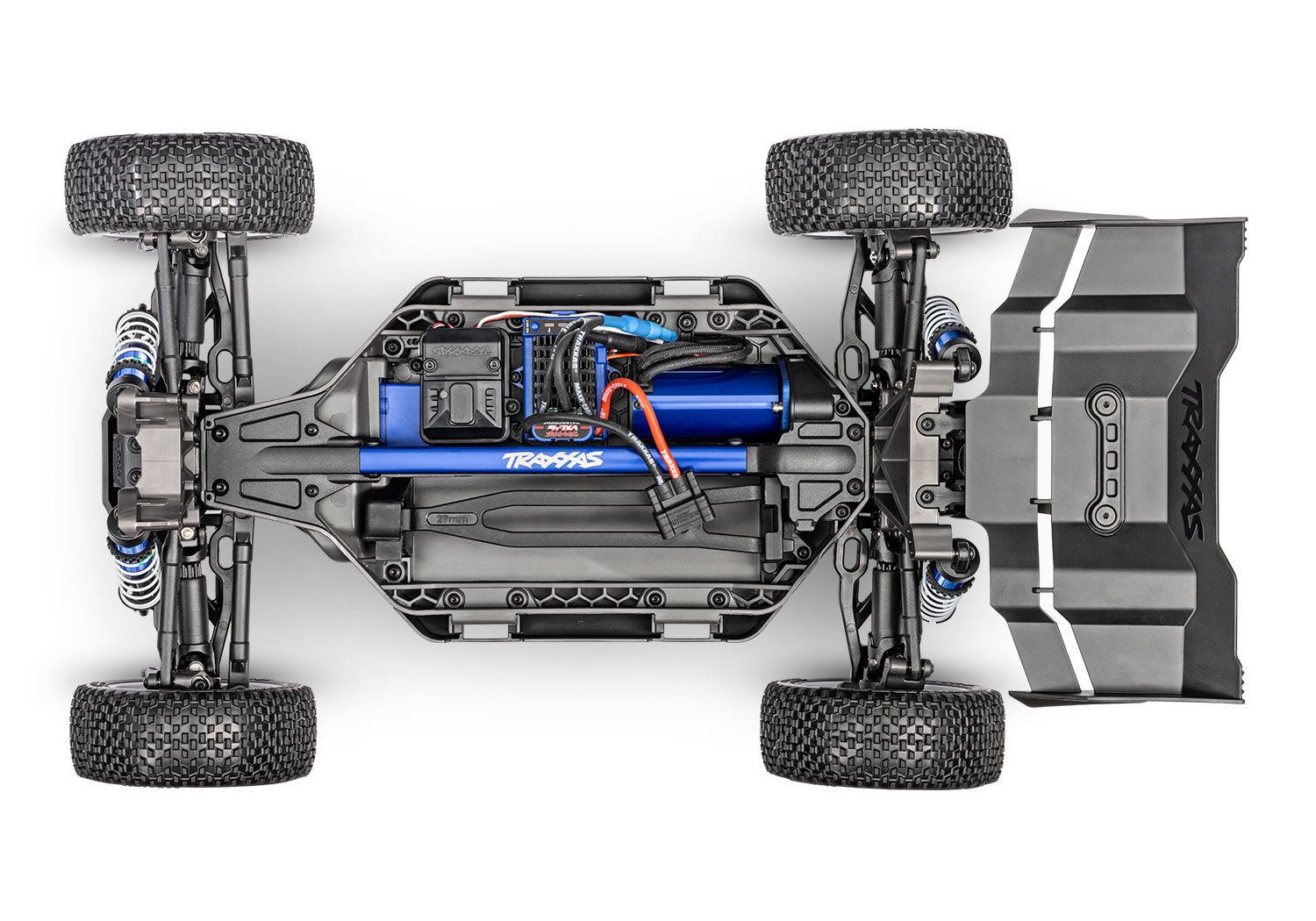

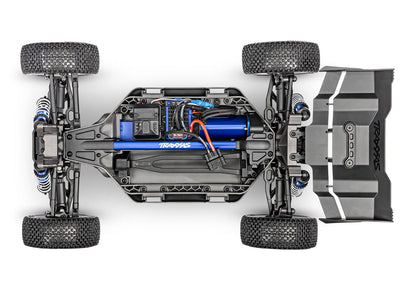

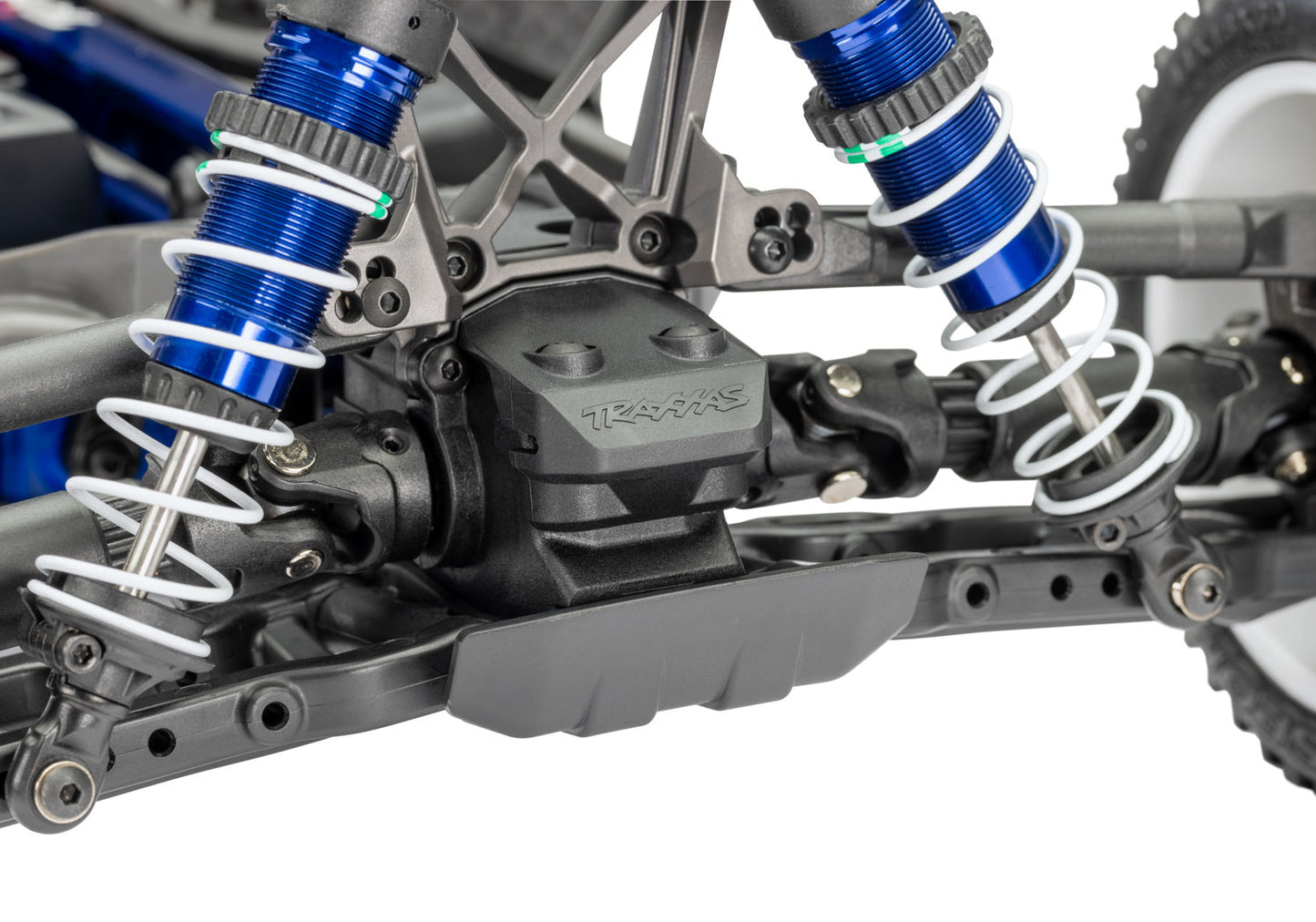

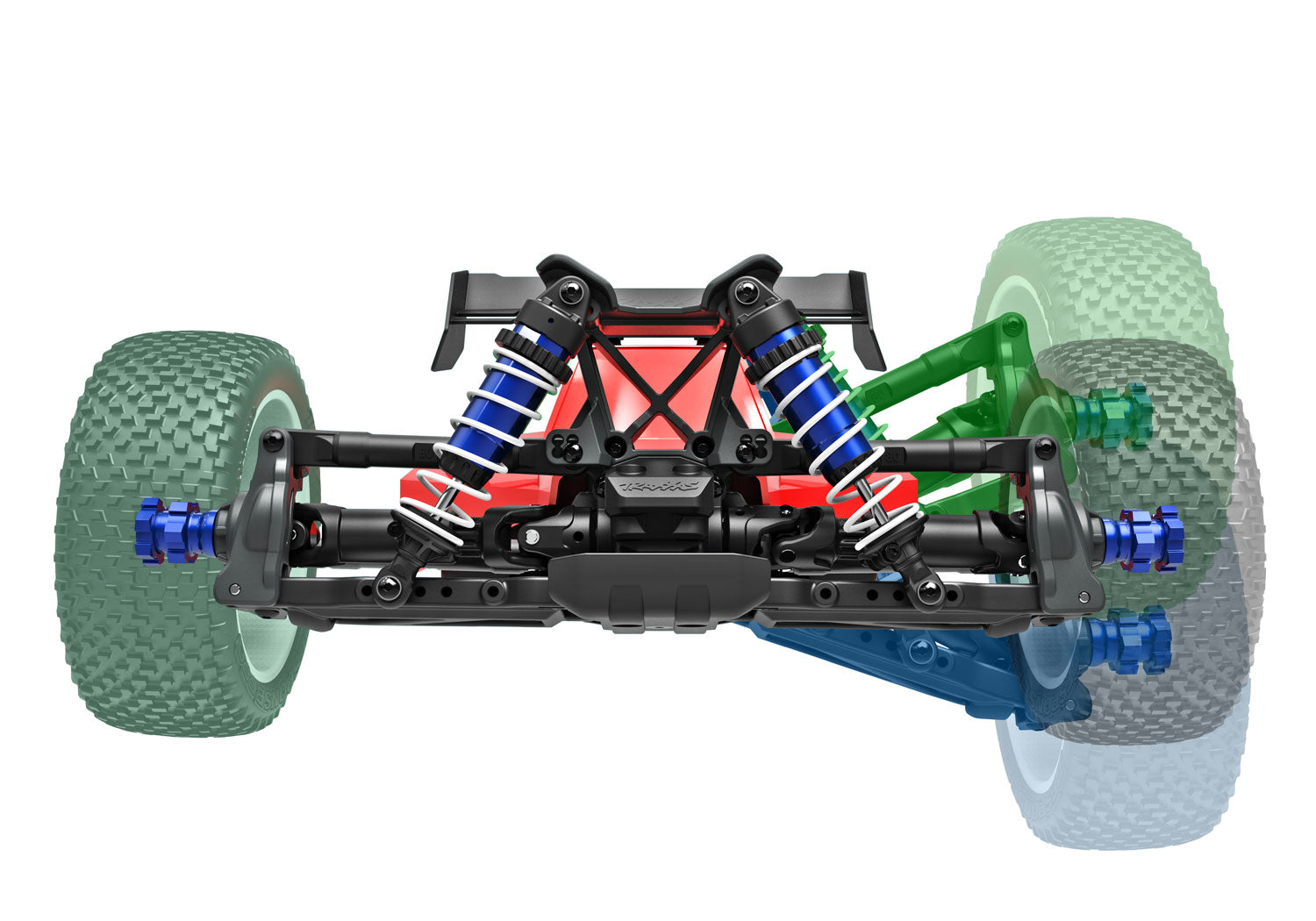

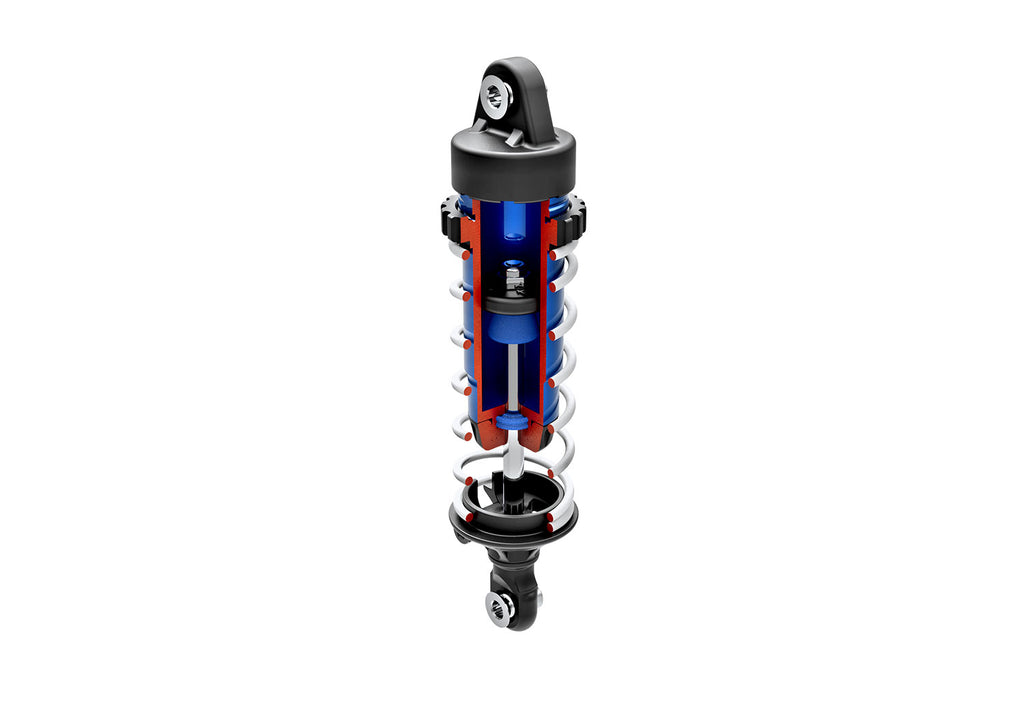

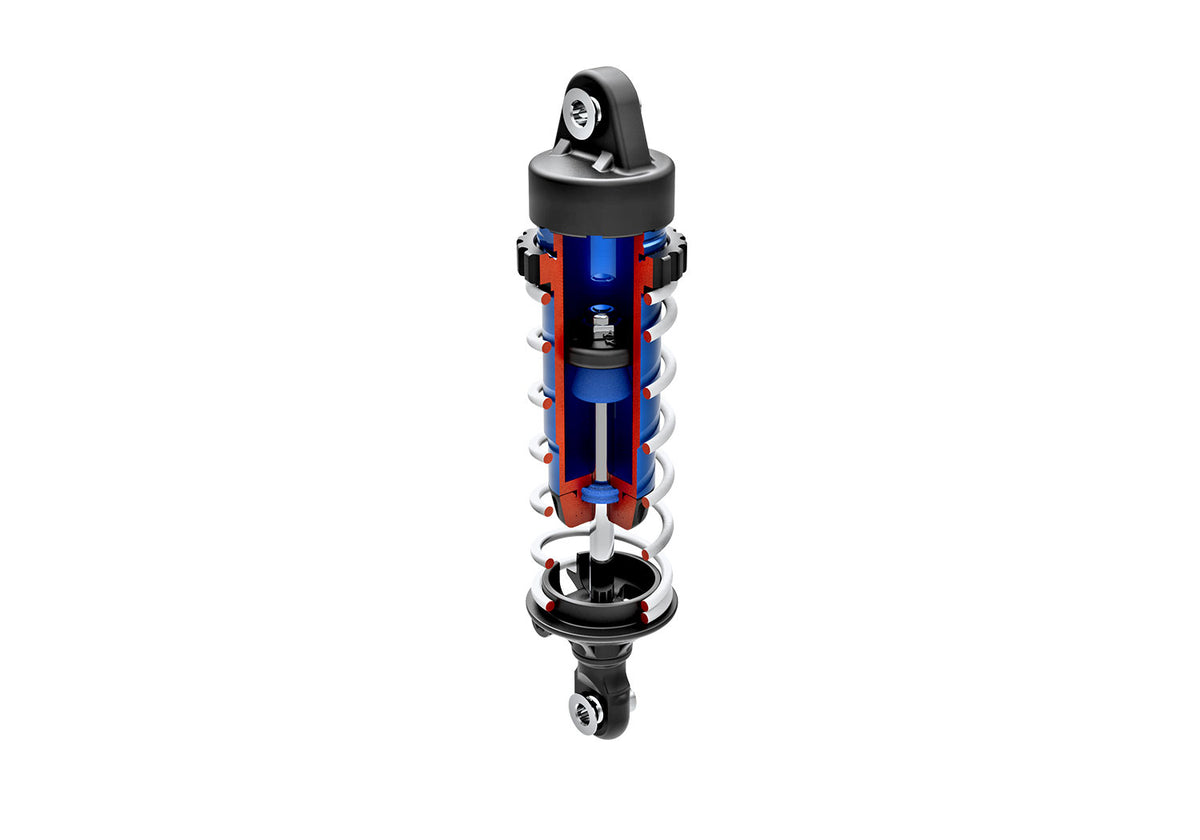

Jato 4X4 VXL sits low and wide, concentrating its weight below the driveshafts for razor-sharp handling and perfect weight distribution. Aluminum XX-long GTR shocks in the front and rear maximize traction by keeping Jato 4X4 VXL’s ultra-soft Response Pro tires in constant contact with the ground. Add the optional sway bar kit (sold separately) for flat cornering and game-changing track performance.
Extreme Strength

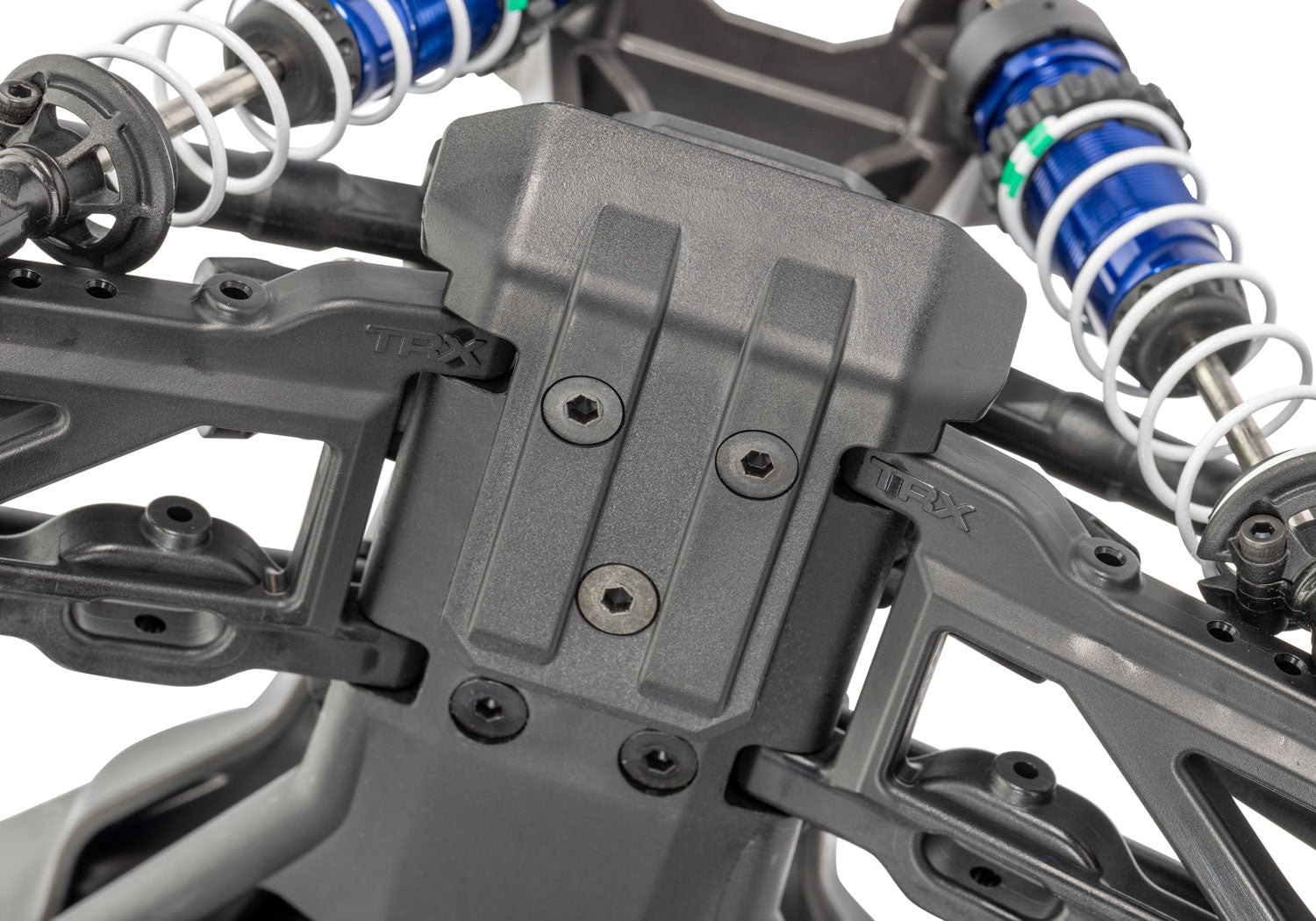

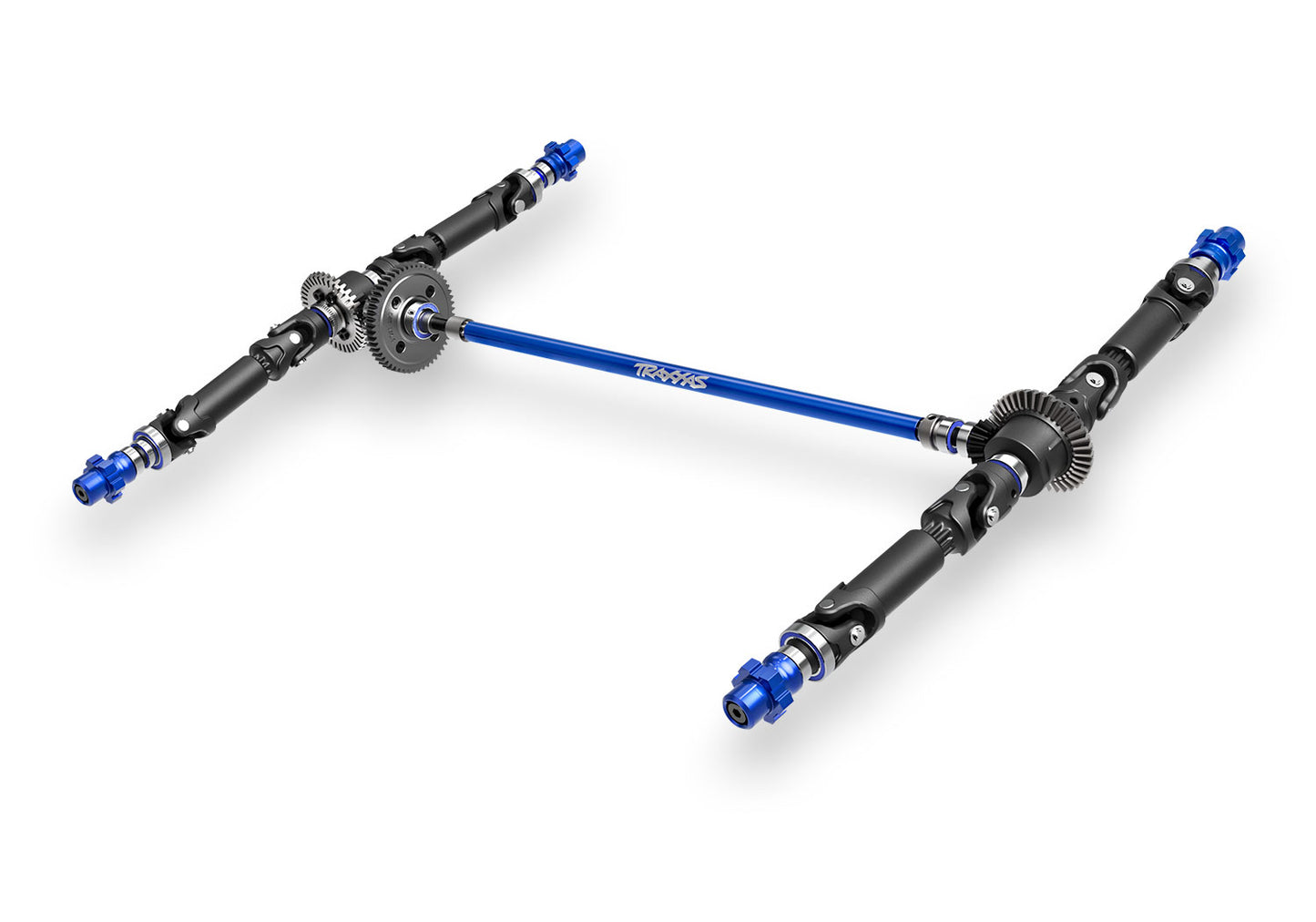

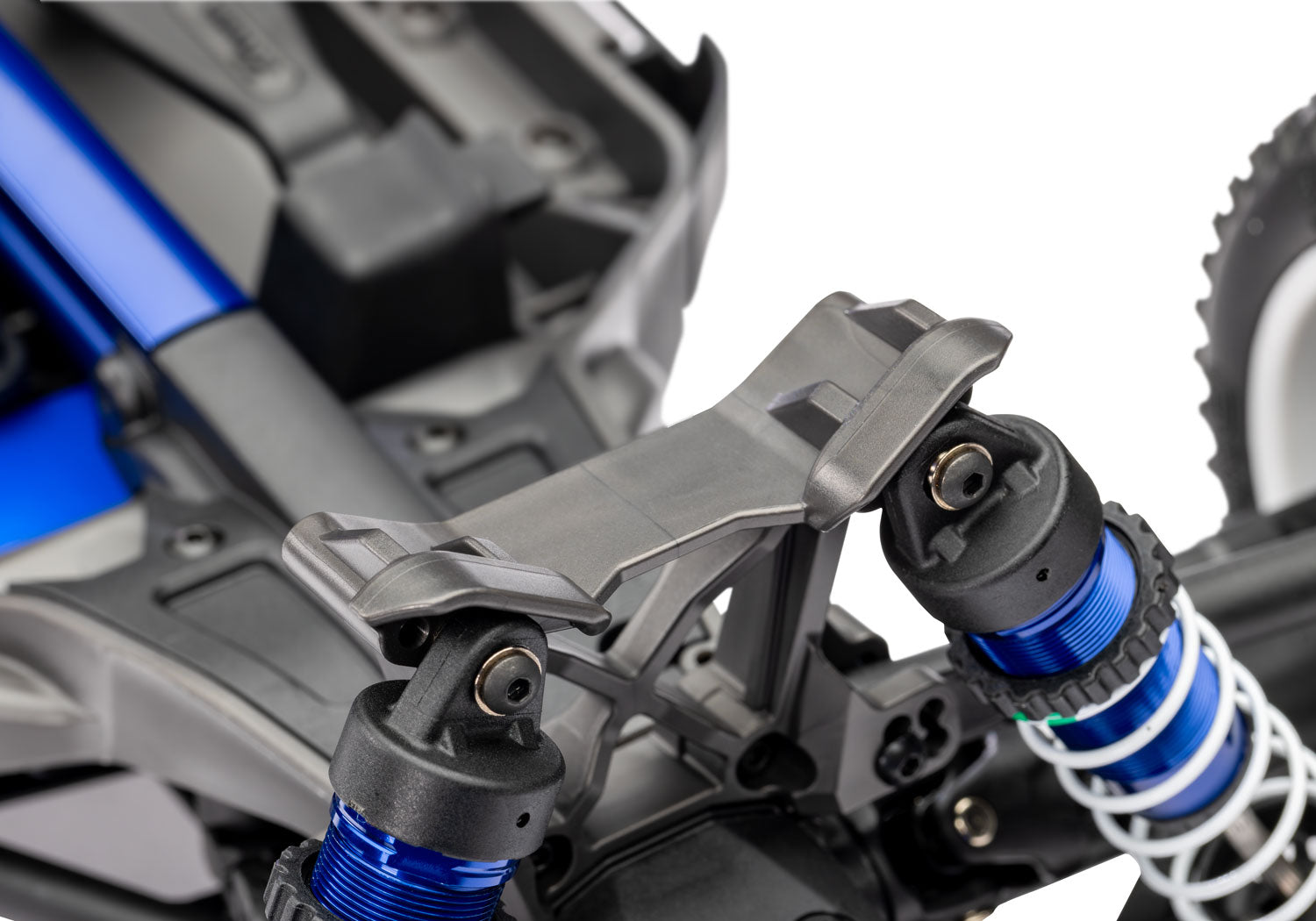

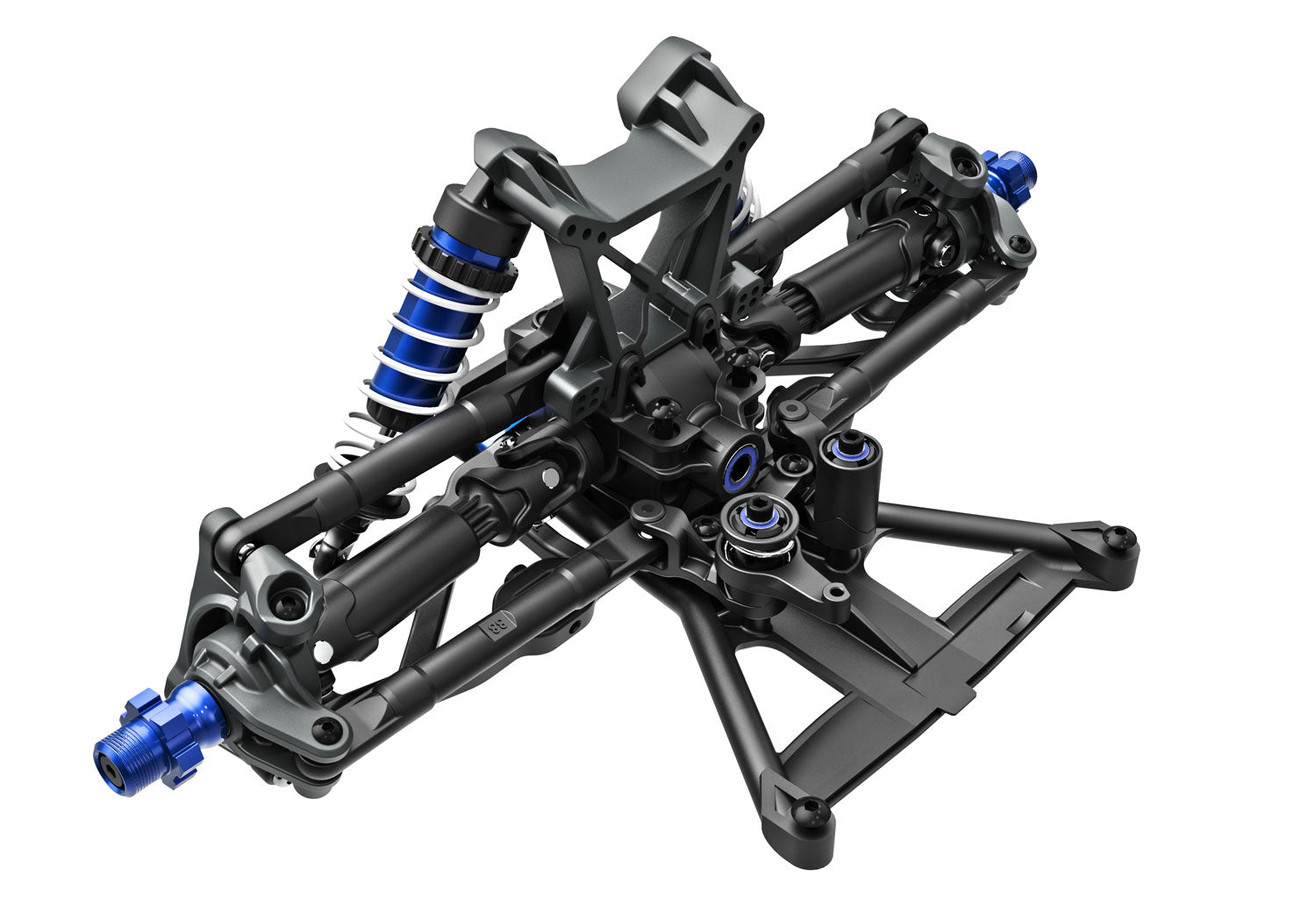

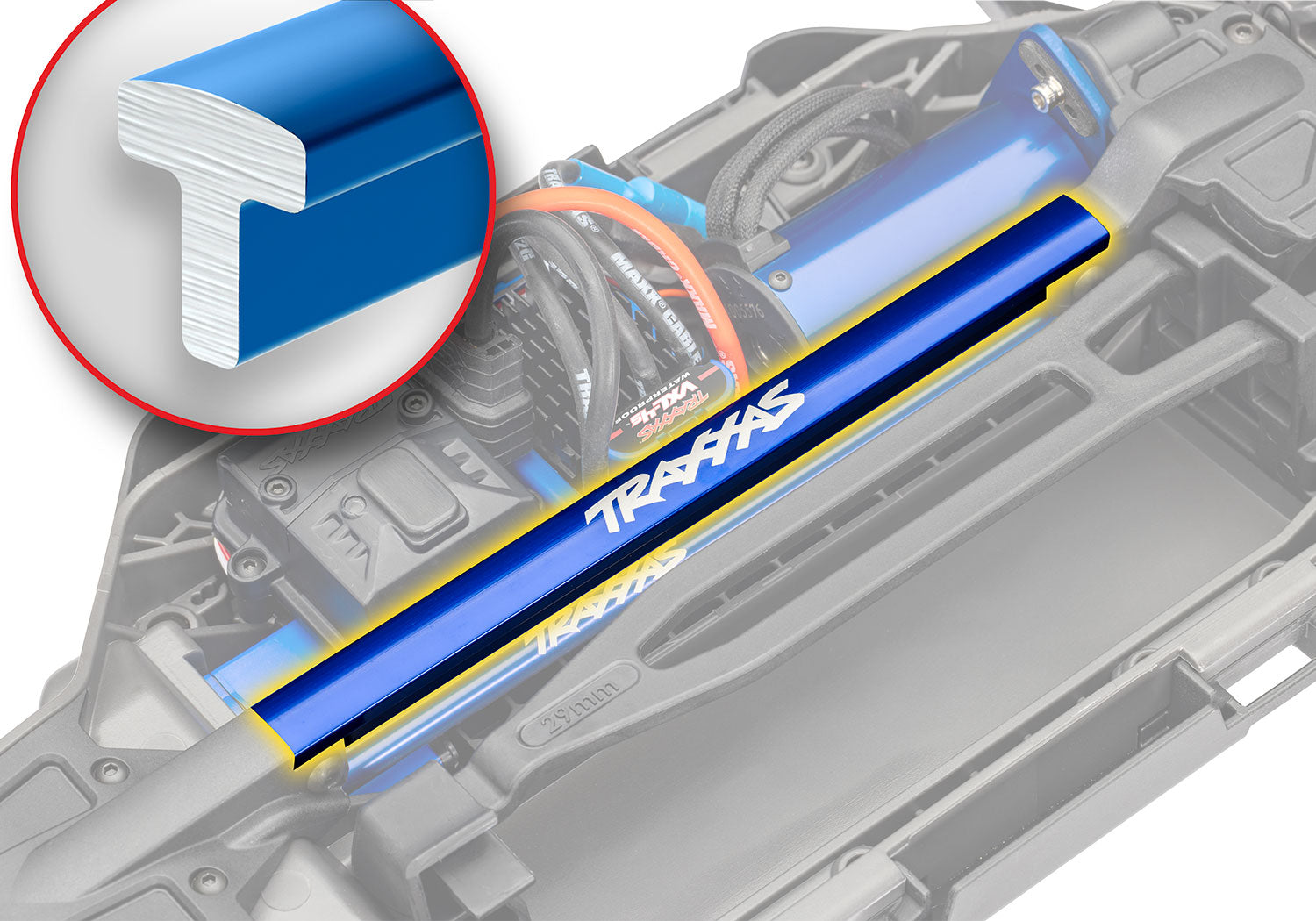

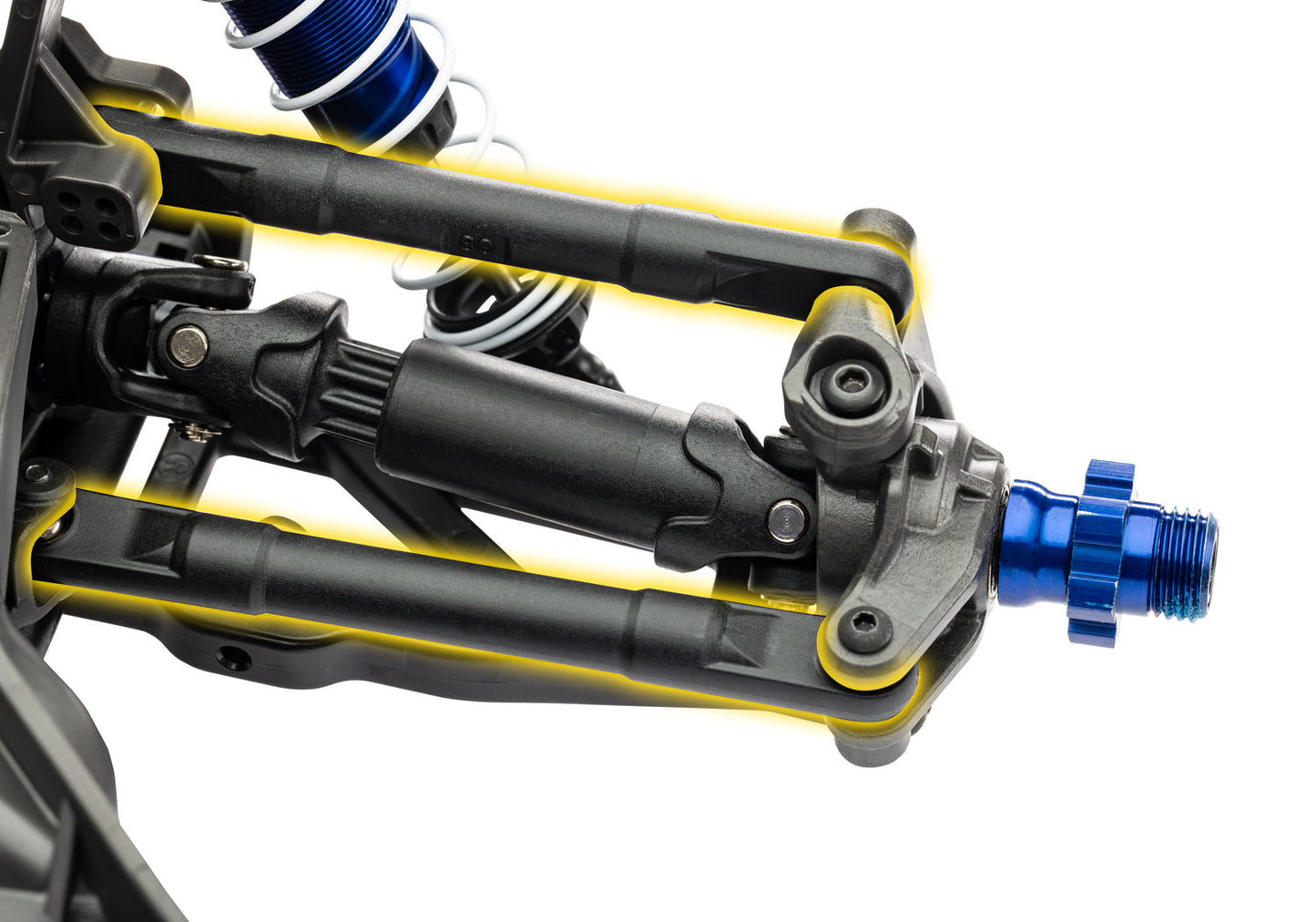

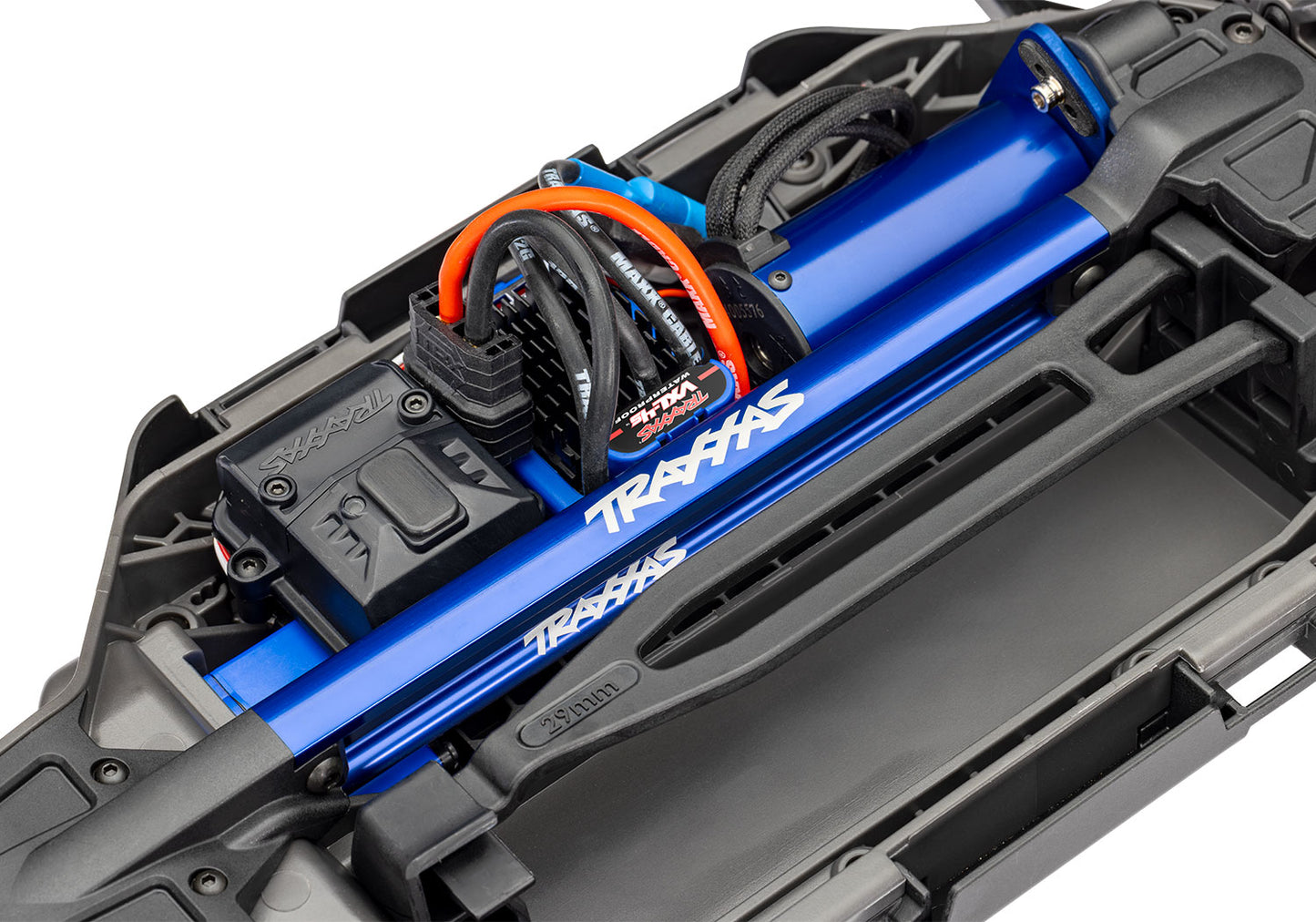

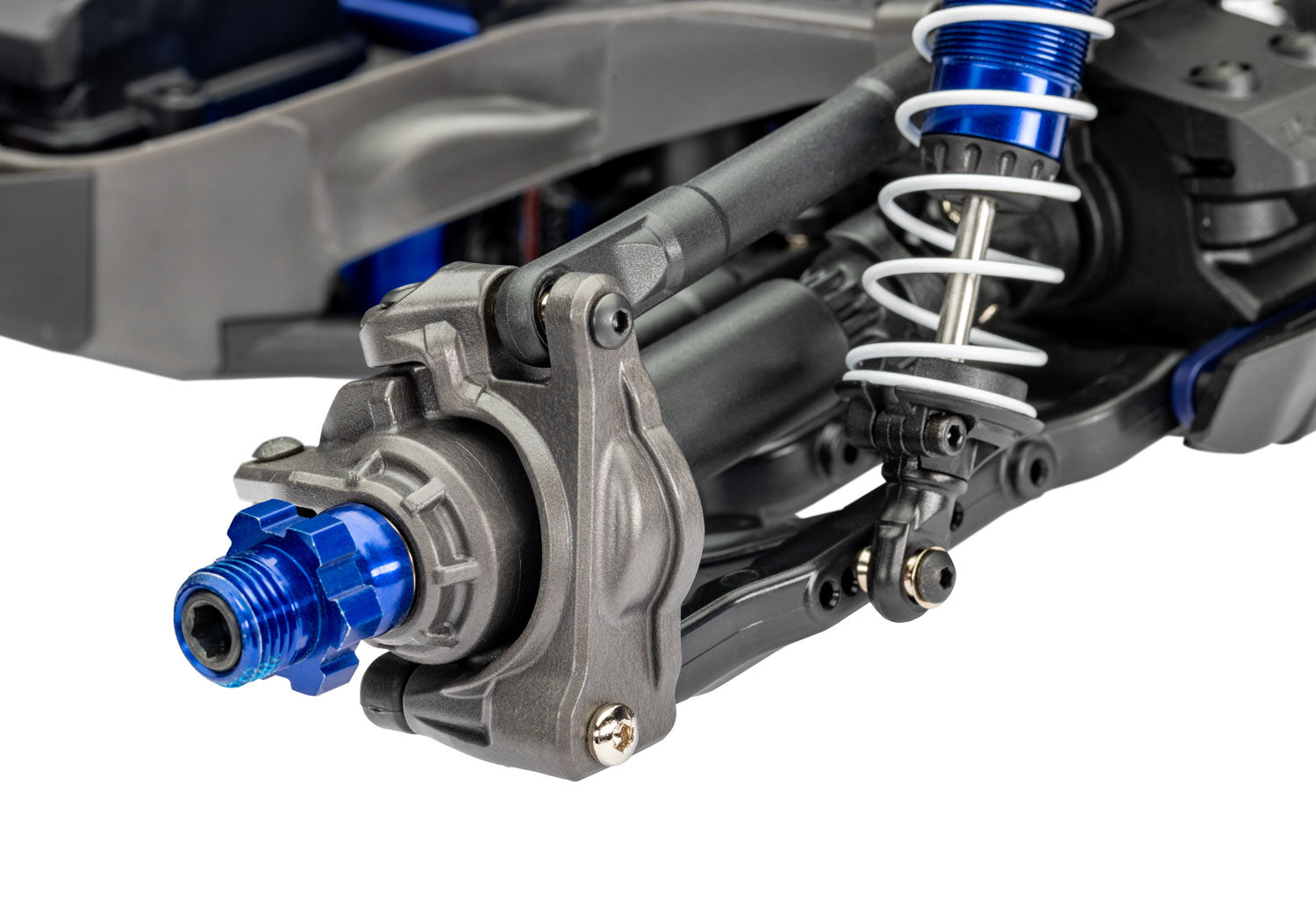

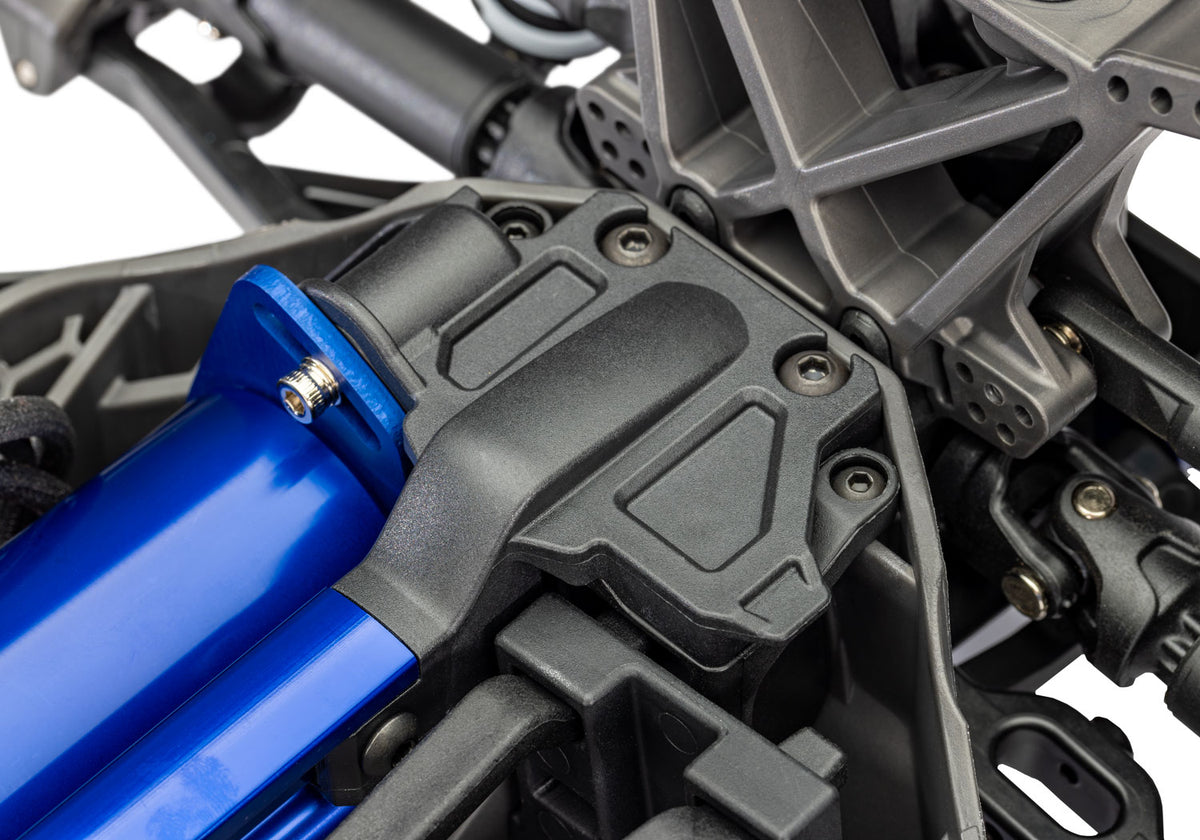

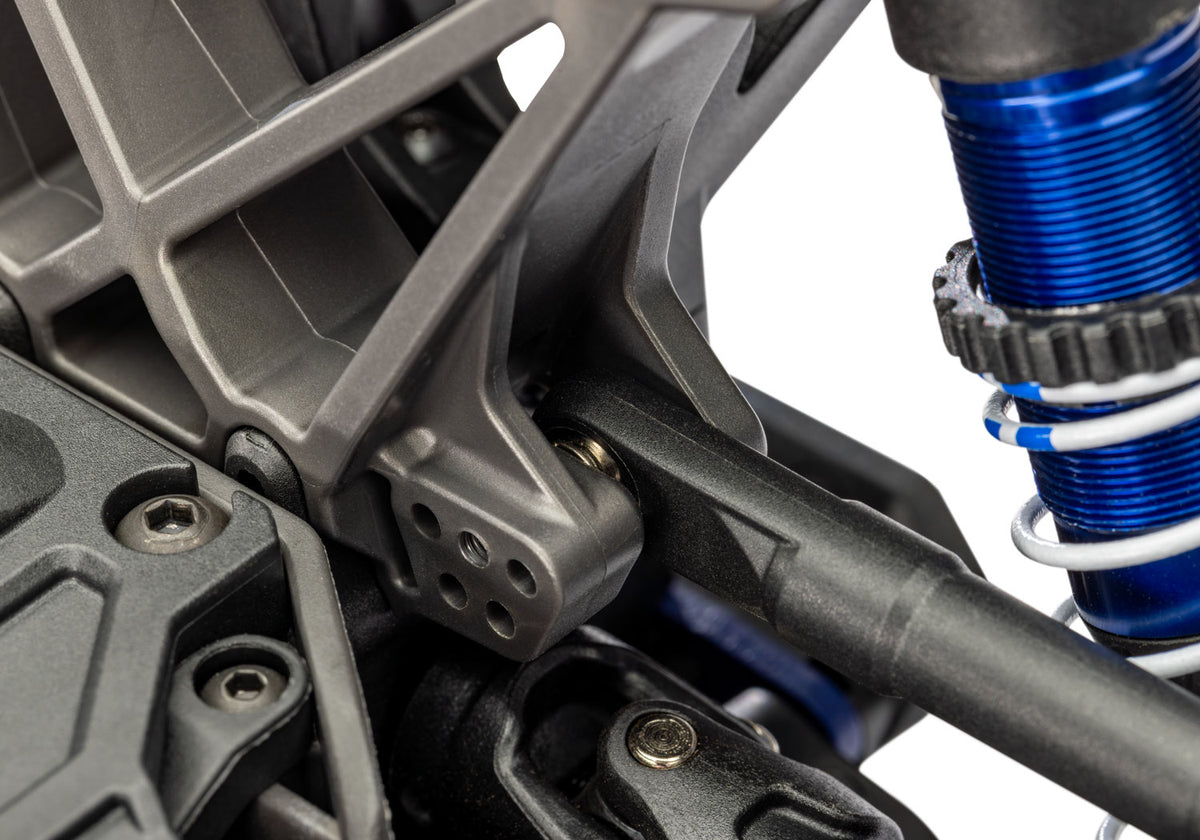

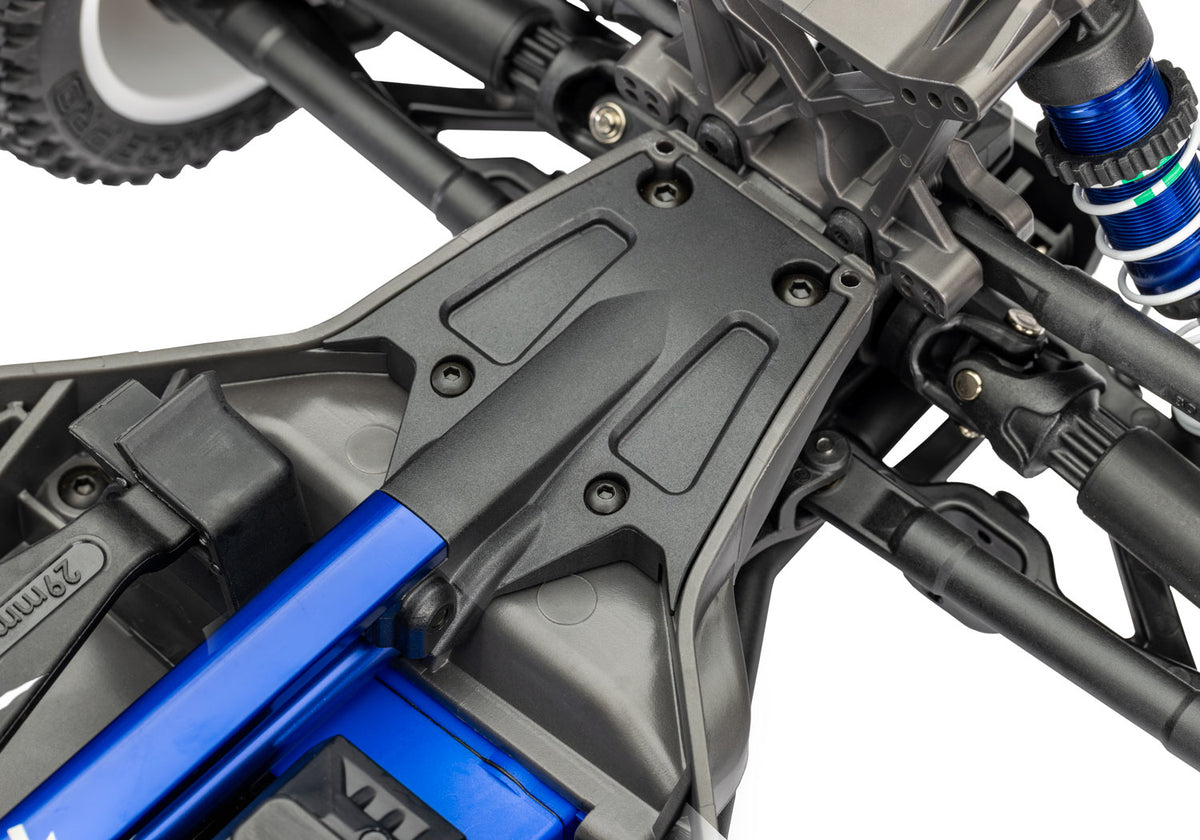

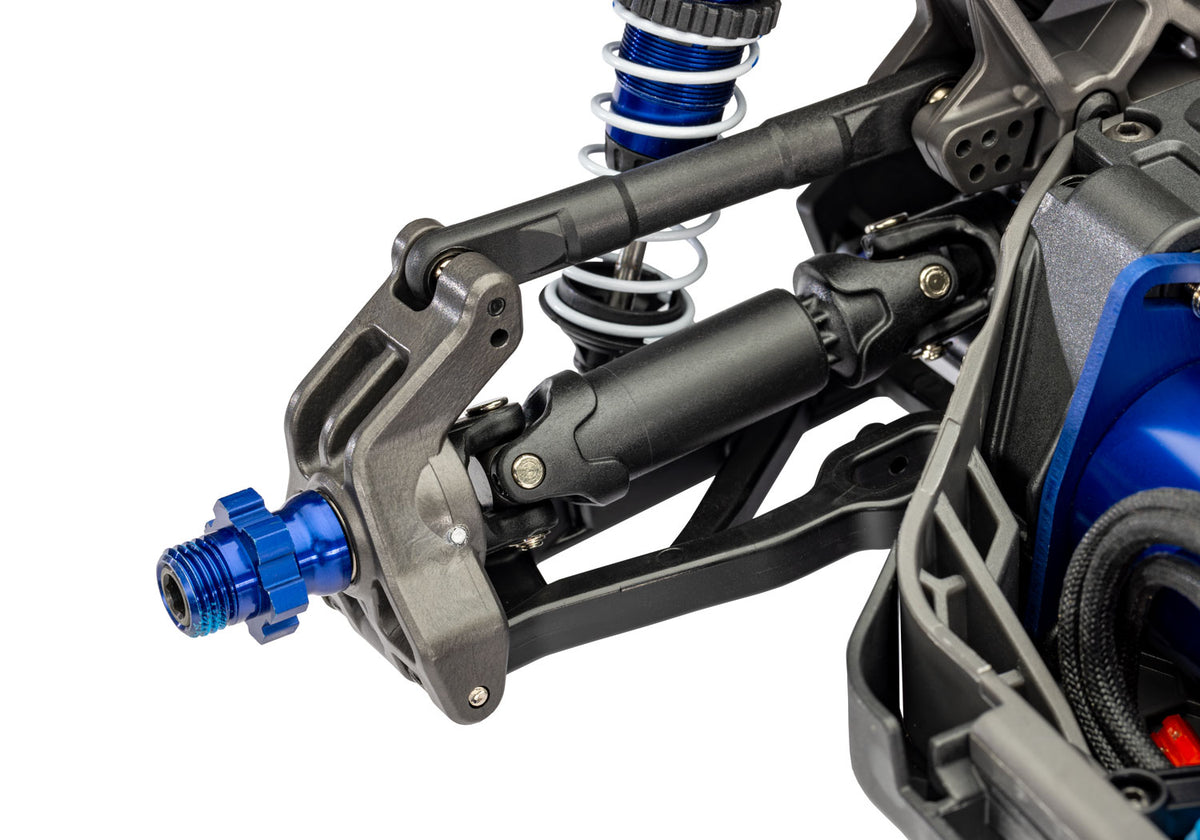

Factory-installed Extreme Heavy Duty driveline and suspension components give Jato 4X4 VXL all the durability of Traxxas’ toughest offroad trucks. An aluminum T-Bar reinforces the chassis with Extreme HD shock towers to support the suspension. Huge Maxx-Duty® driveshafts transform the 540XL motor’s brutal torque into massive 4-wheel roost without breaking a sweat.
Clipless Buggy Body

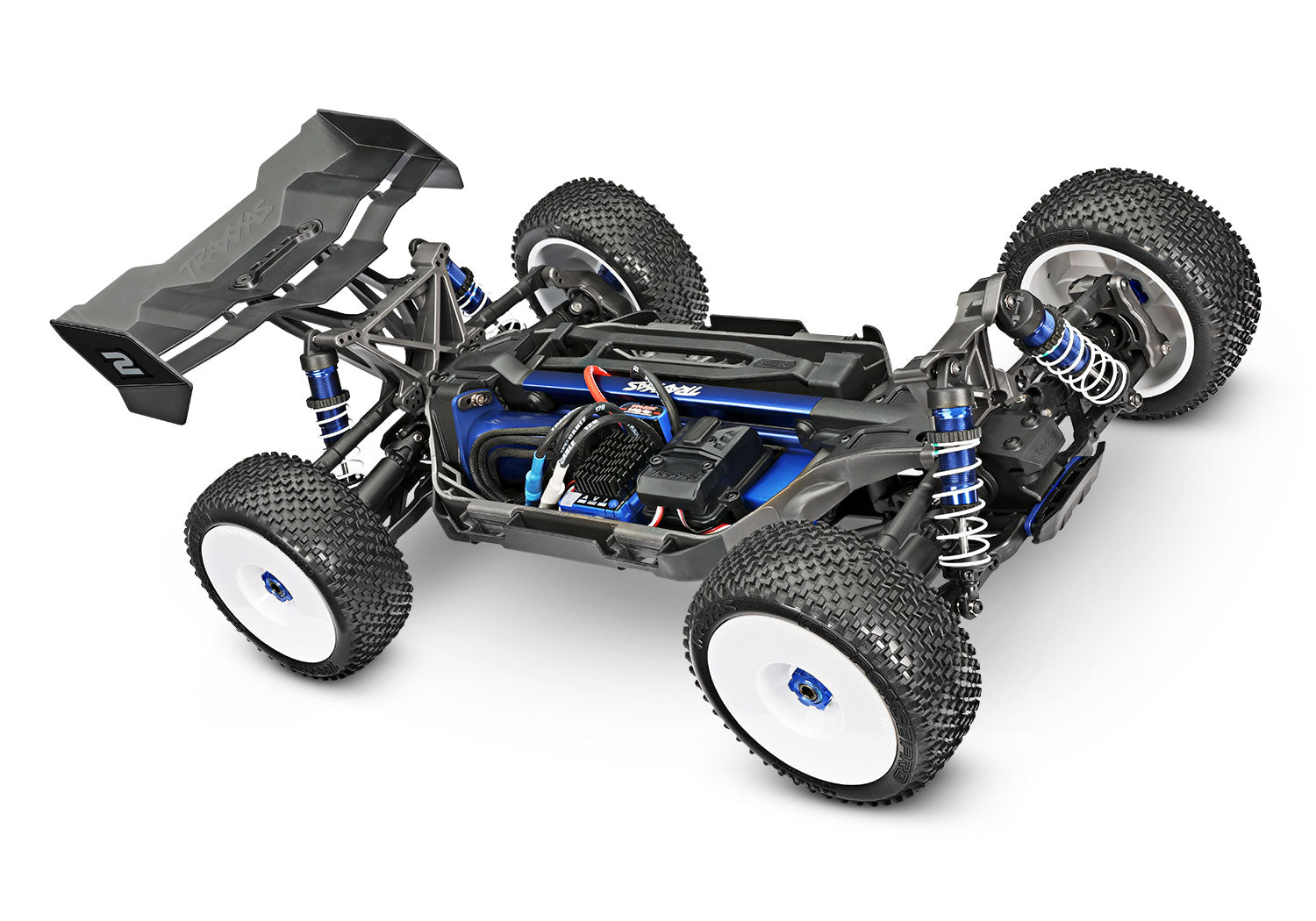

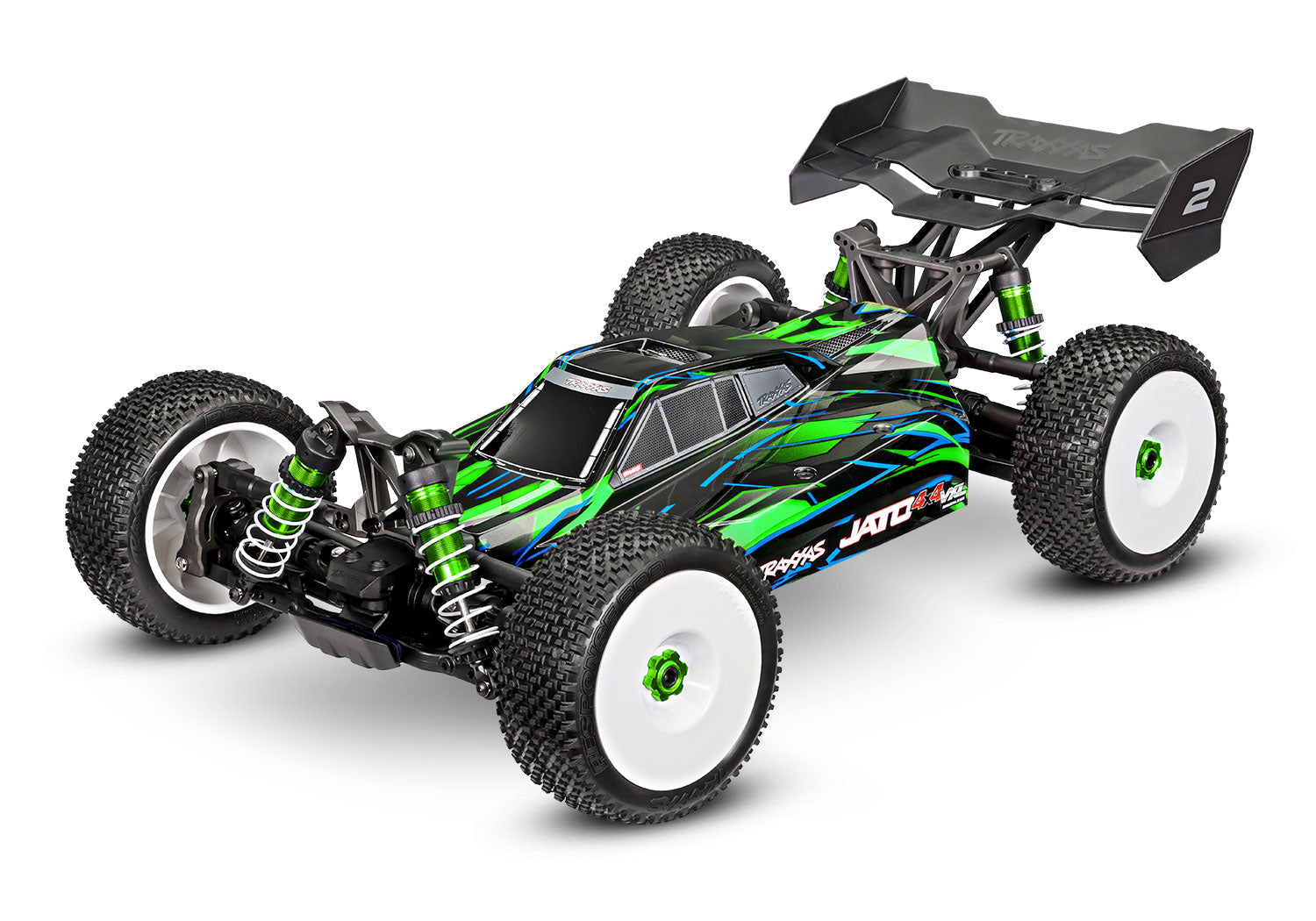

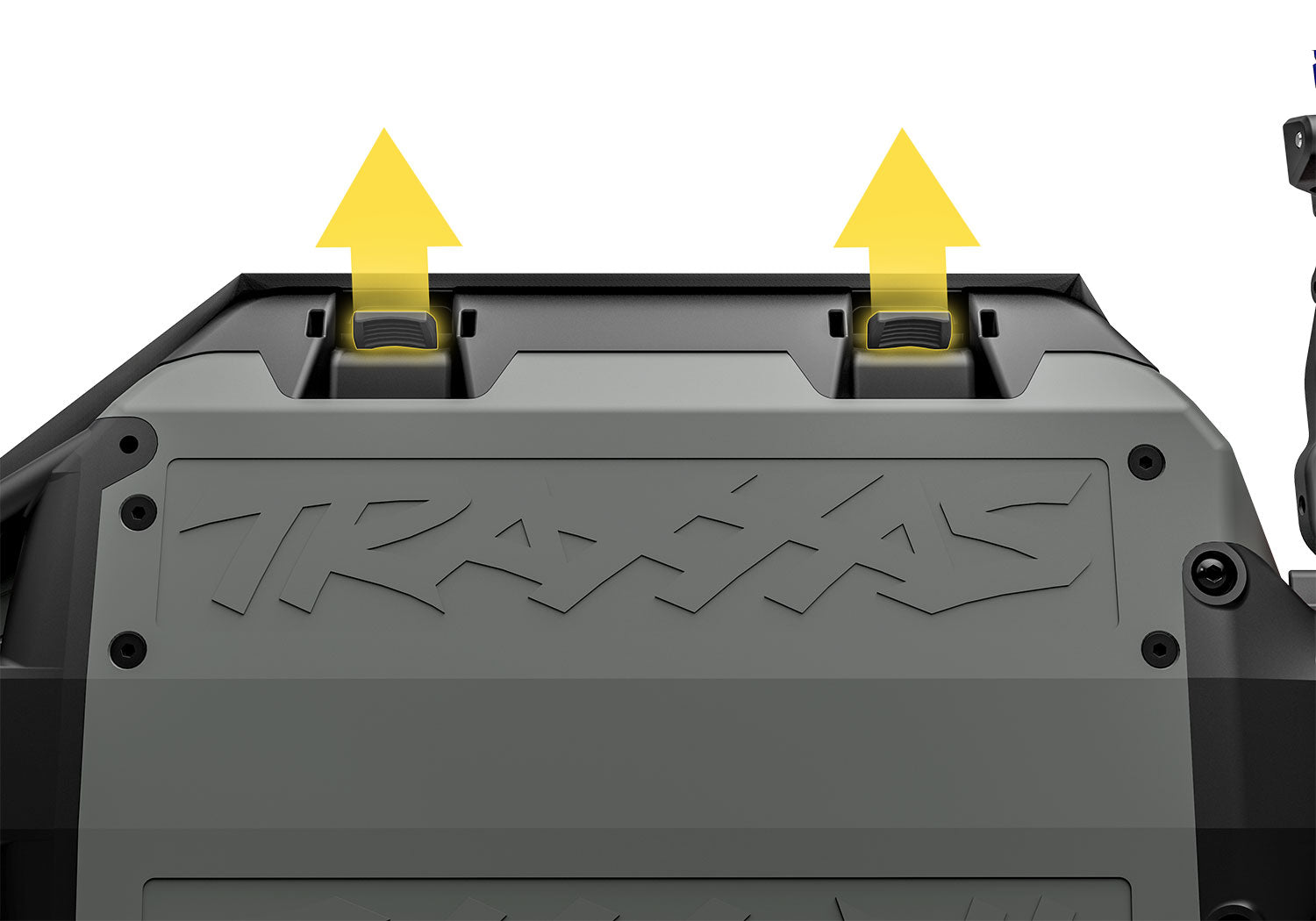

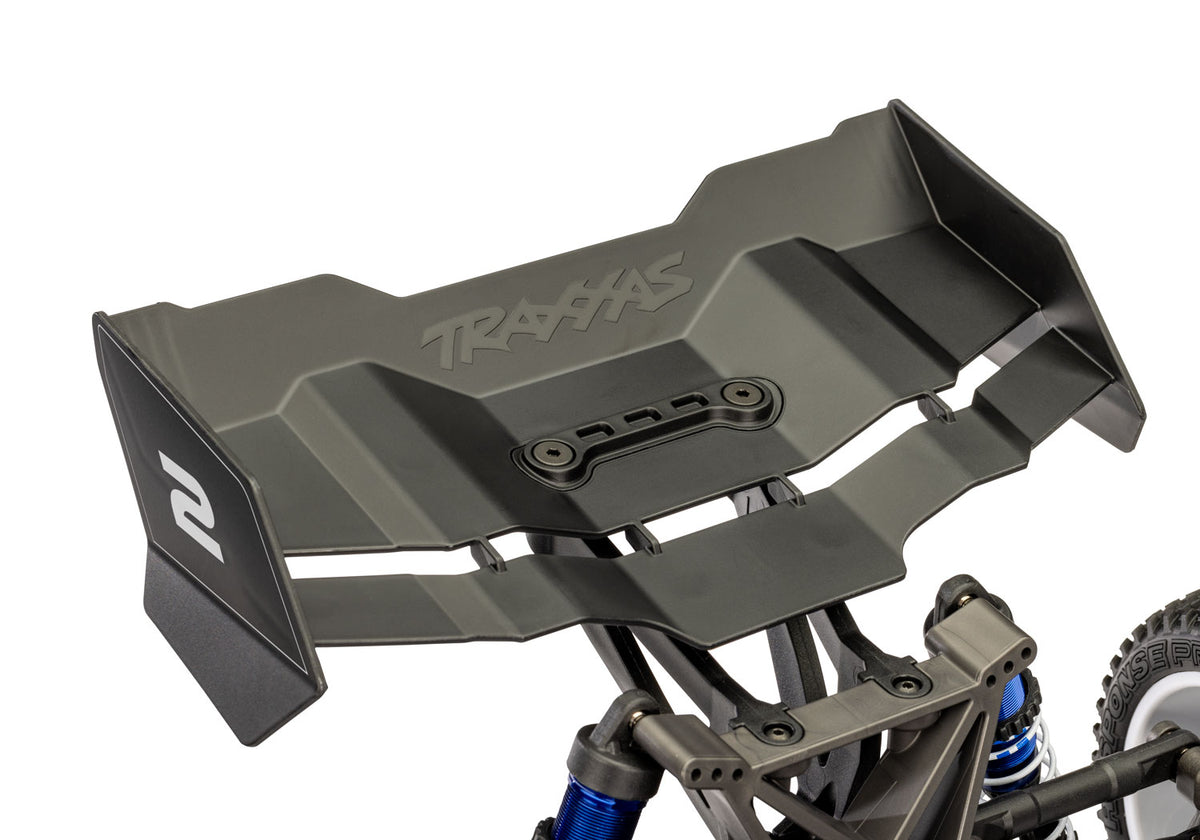

Jato 4X4 VXL’s form-fitted clipless body cuts through the wind and eliminates the parachuting effect for stable performance at speed. Tough clipless side latches hold the body securely in place but release in just seconds for fast battery swaps. Jato 4X4 VXL incorporates the high-downforce wing from Sledge® to keep its chassis planted with rugged rollover protection as an added benefit.
Features:
- Extreme Velineon® VXL-4s ESC with 540XL Brushless Motor

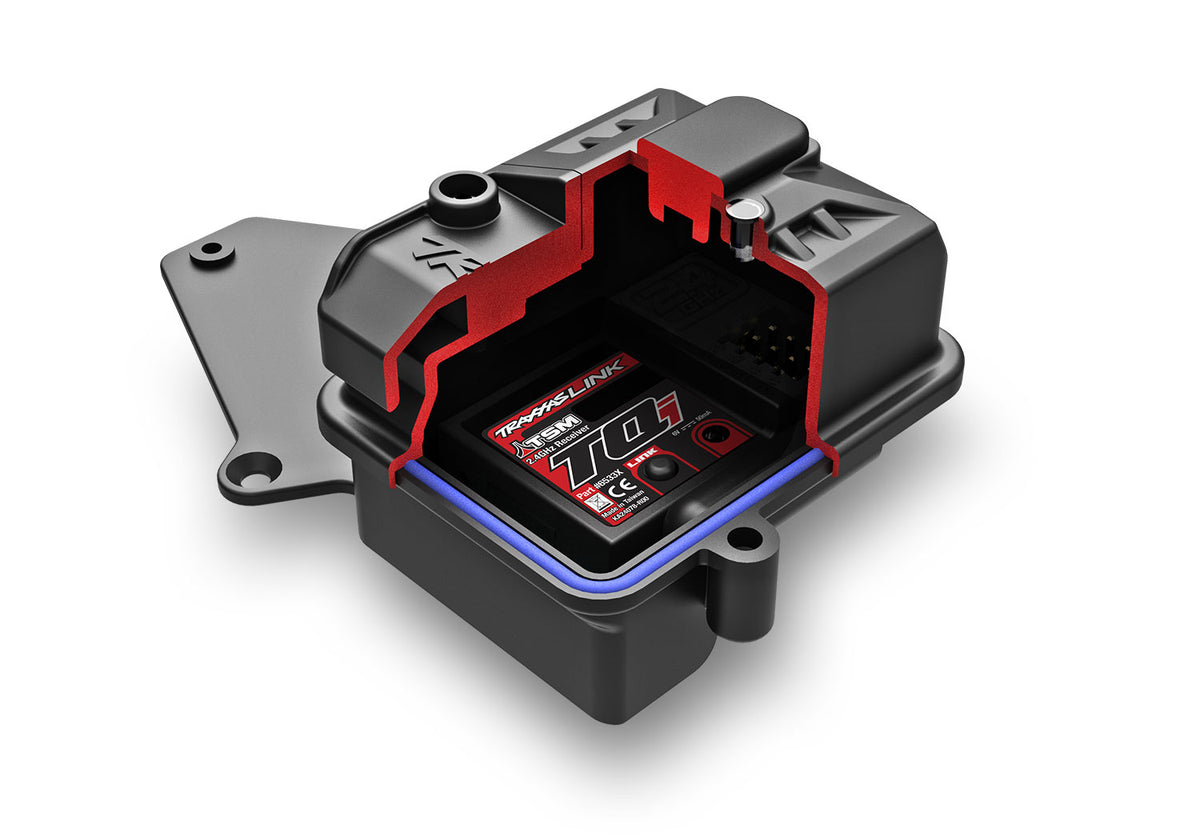

- TQi™ 2.4 GHz High-Output Radio System with Traxxas Stability Management® (TSM)

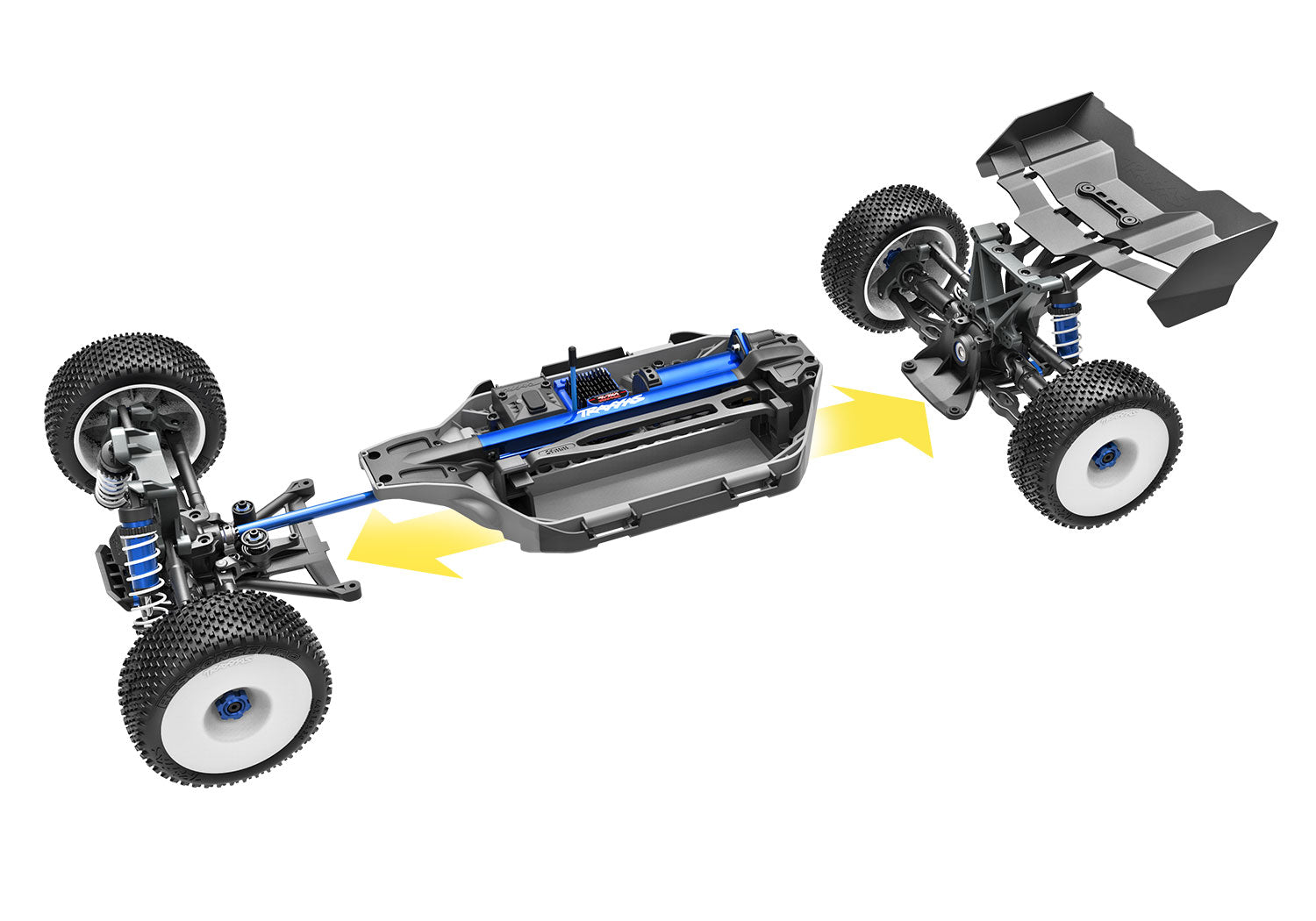

- Factory-Installed 4WD Extreme Heavy-Duty Upgrade Kit Ultra Responsive Low-CG Modular Chassis with Aluminum Chassis Stiffener
- Pre-Painted Clipless Buggy Body with Wing
What’s In The Box:
- Jato 4X4 with VXL-4s ESC and 540XL motor
- Quick Start Guide
- TQi 2.4 GHz radio system
- High quality maintenance tools
Vehicle Specs | |
Length: | 20.4 inches (517 mm) |
Front Track: | 12 inches (305 mm) |
Rear Track: | 12 inches (305 mm) |
Ground Clearance: | 1.02 inches (26 mm) (center) |
Weight (no battery): | 5.6 pounds (2.54 kg) |
Height (overall): | 7 inches (179 mm) |
Wheelbase: | 12.6 inches (320 mm) |
Shock Length (front): | 3.98 inches (101 mm) - XX-long |
Shock Length (rear): | 3.98 inches (101 mm) - XX-long |
Speed Control: | Velineon® VXL-4s™ electronic speed control |
Motor (electric): | Velineon® 540XL brushless |

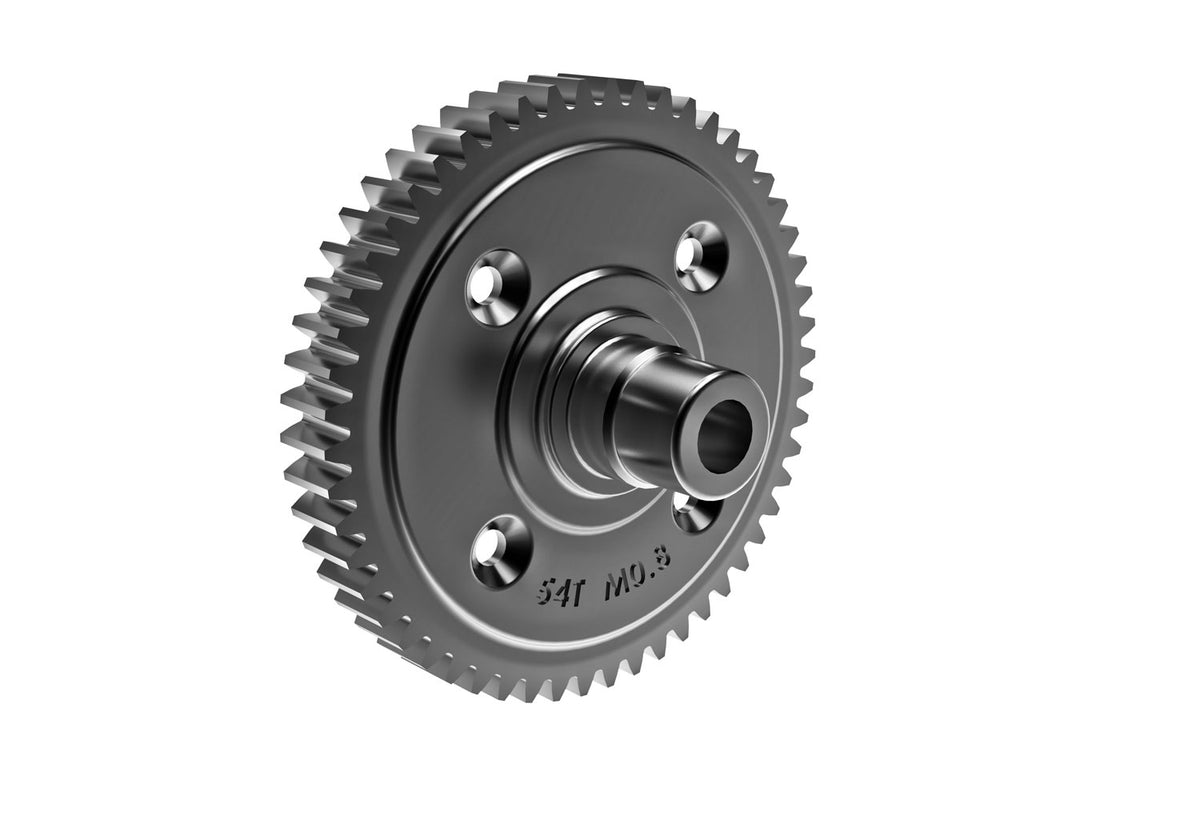

Overall Drive Ratio: | 10.16:1 |
Differential Type: | Hardened steel bevel, sealed, limited slip |
Gear Pitch: | 32 |
Chassis Structure/Material: | Composite tub |

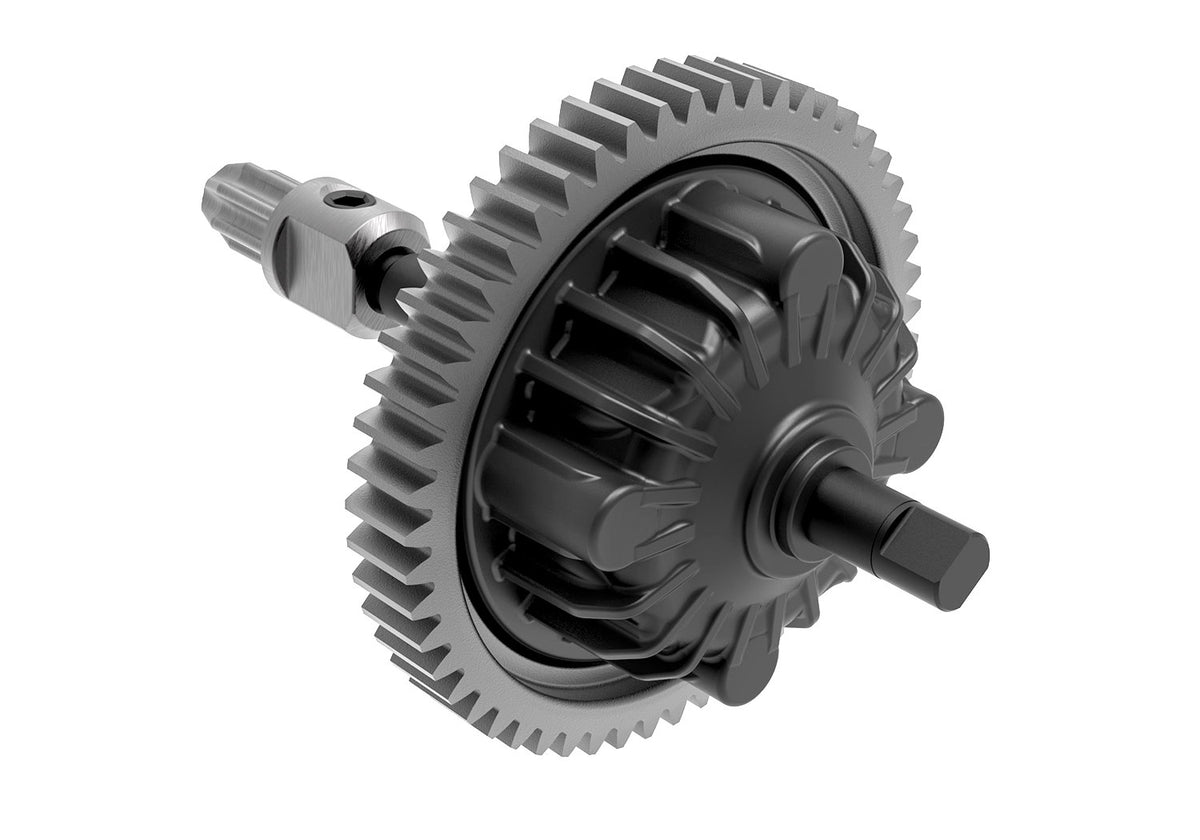

Drive System: | Shaft-driven 4X4 with Torque-Biasing Center Drive |
Steering: | Dual-bellcrank with integrated servo saver |
Tires: | Response Pro S1-compound with foam inserts |
Tire Diameter: | 4.5 inches (114 mm) (front and rear) |
Wheels (front/rear): | 3" dished wheels |
Wheel Diameter: | 3" inches (78 mm) |
Radio System: | TQi™ 2.4 GHz (2-channel) |
Servo: | Waterproof digital 2075 servo (125 oz-in torque) |
Skill Level: | 1 |
Battery Compartment (L/W/H): | 165 mm x 50 mm x 35 mm |
Required Batteries: | 4 “AA” (transmitter), Vehicle (see manual) |
Motor Specs | |

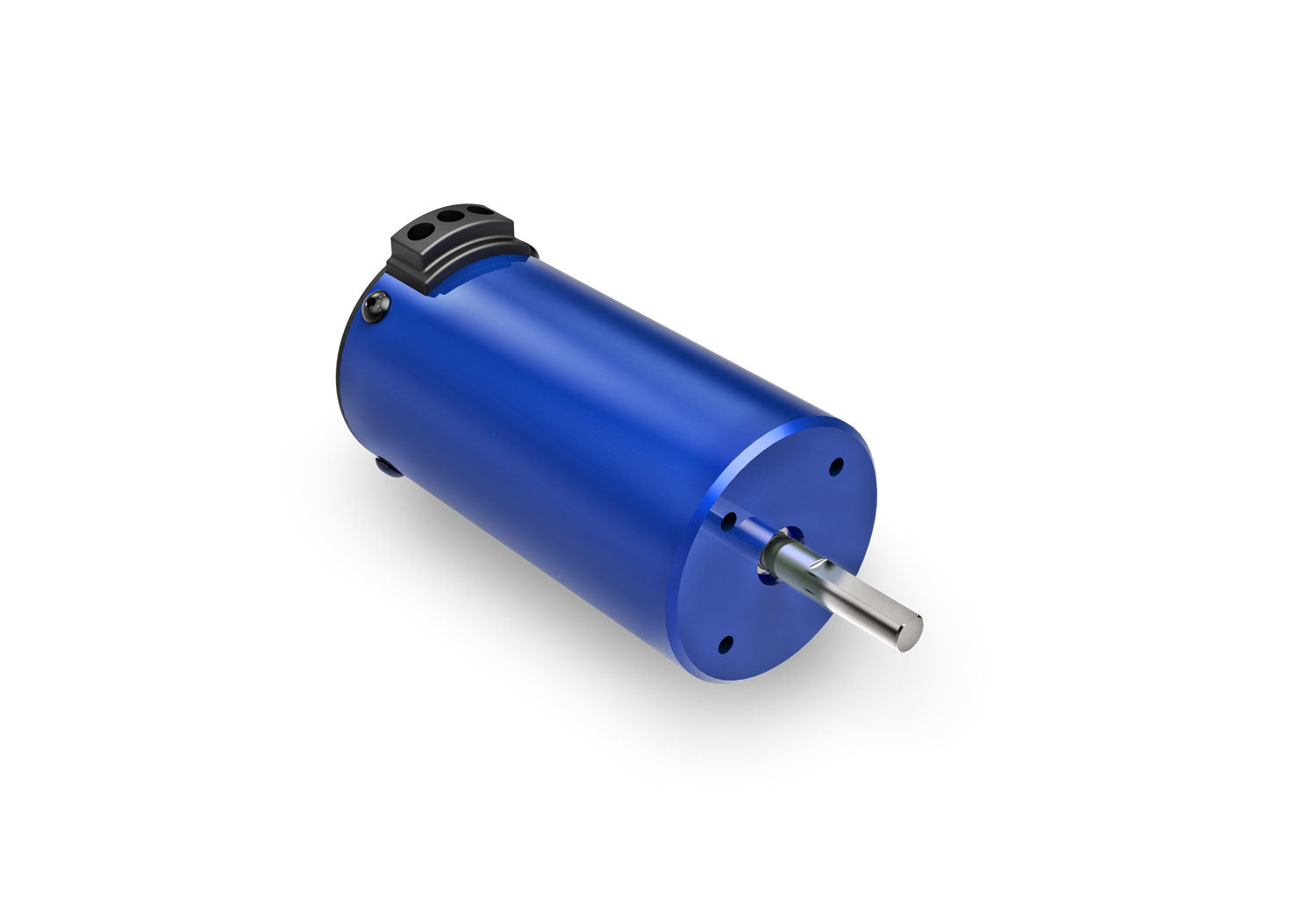

Type: | Velineon 540XL 2400 Kv sensorless brushless |
Weight: | 11.18 ounces (317 g) |
Length: | 3.58 inches (91 mm) |
Diameter: | 1.41 inches (36 mm) |
Connector Type: | Traxxas 6.5 mm bullet connectors |

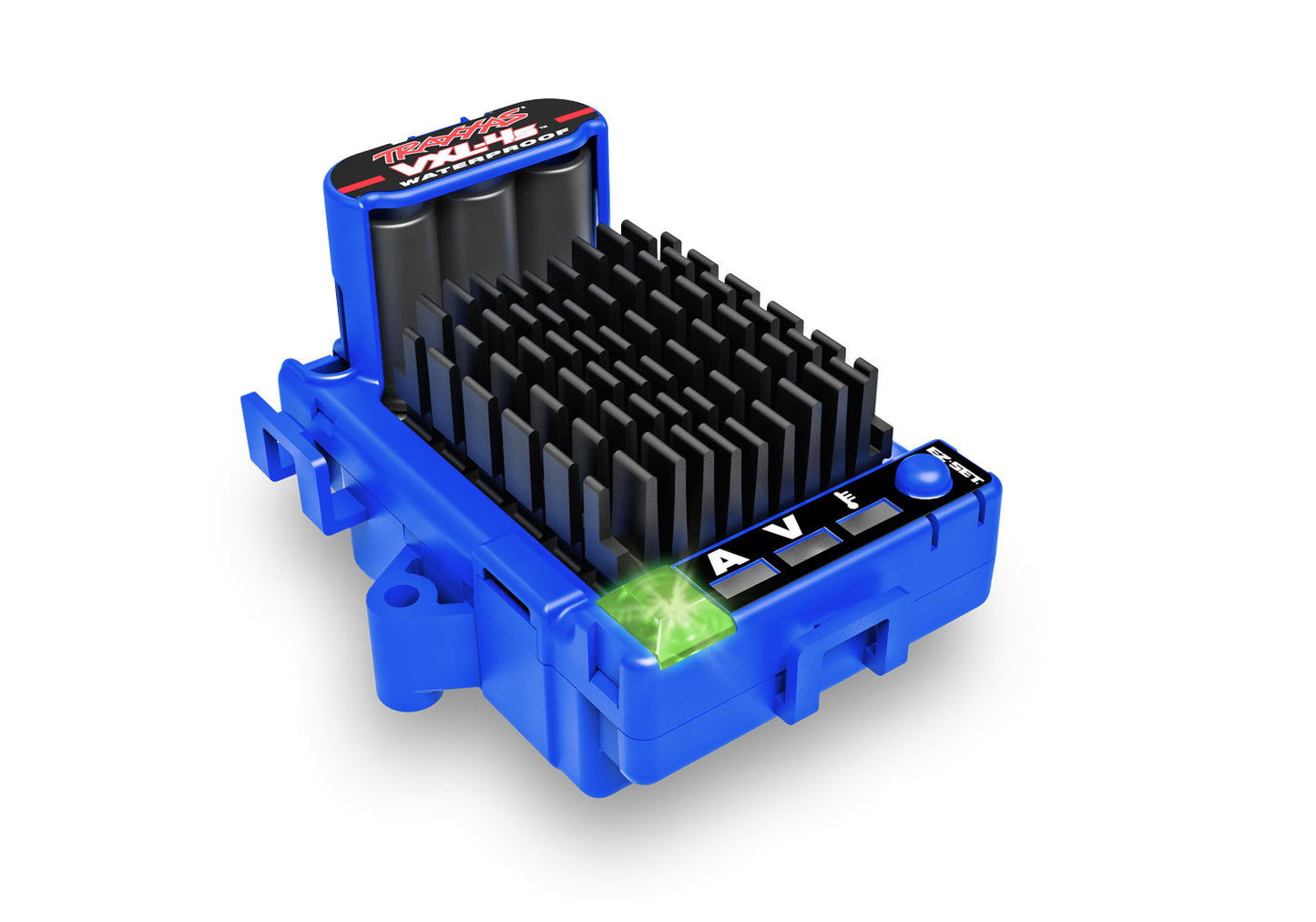

ESC Specs | |
Input Voltage (cells): | 2S-4S LiPo (7.4 V - 16.8 V) |
Case Size: | 2.40" (61 mm) x 2.09" (53 mm) x 1.42" (36 mm) |
Weight: | 4.20 ounces (119 g) |
BEC Voltage: | Selectable 6.0 or 7.4 volts |
Motor Connectors: | Traxxas 6.5 mm bullet connectors |
Battery Connectors: | Traxxas High-Current Connectors |
Thermal Protection: | Two-stage thermal shutdown |
Ports: | RX input, auxiliary fan connector |
