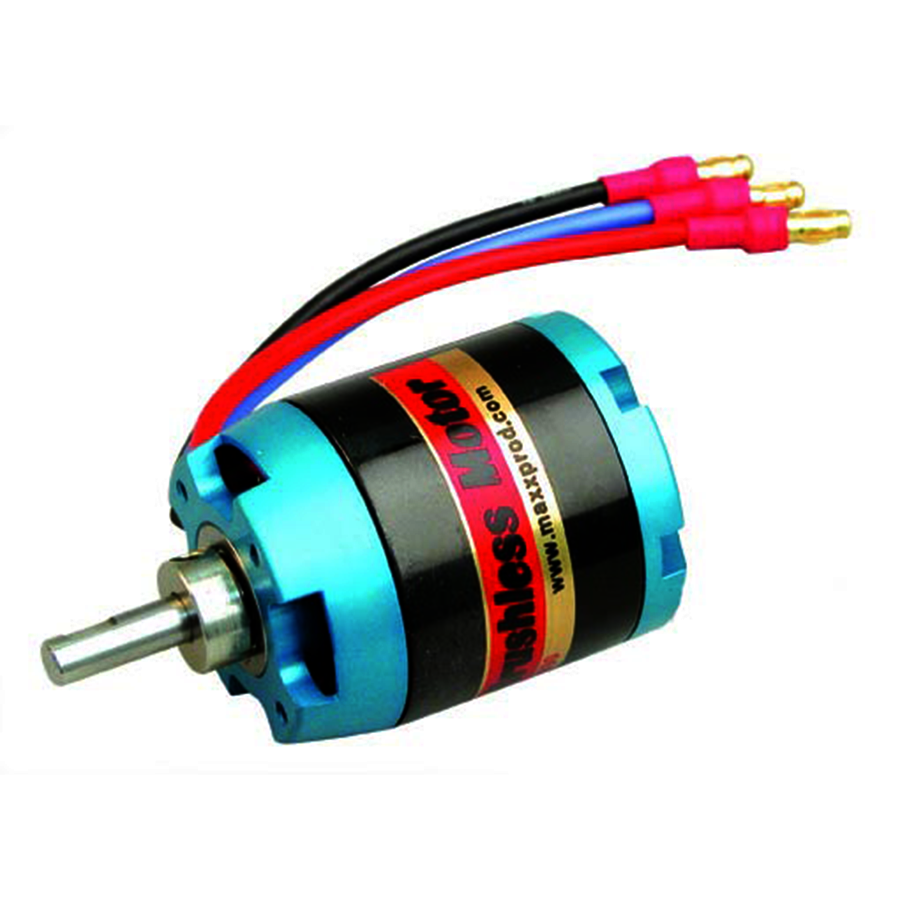

Himax HC3528-800 Outrunner Brushless Motor, 450 Watt
Himax HC3528-800 Outrunner Brushless Motor, 450 Watt
Regular price
$95.95
Regular price
$0.00
Sale price
$95.95
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Availability:
Sorry we are out of stock but have more on the way.
You will earn 47 Electron Reward Points on this product!
Click to find out more about our points program and save big!
Low Price Promise!
Click to find out more about our low price promise
Himax Brushelss HC3528-1000 (450W)
Overview:
Himax Brushless motors are manufactured to high standards for the discerning modeler. Designed for lightweight, high efficiency, high torque, and durability Himax Outrunner motors are sure to make today’s radio controlled models perform. Please read the entire operating manual to ensure correct functionality and best performance.
The HC3528-1000 motor is made for medium size models weighing 43-56 oz (~1.6kg) for 3D flight, up to 96 oz (~2.7kg) for aerobatic flight and up to 144oz (~4kg) for leisurely flight.

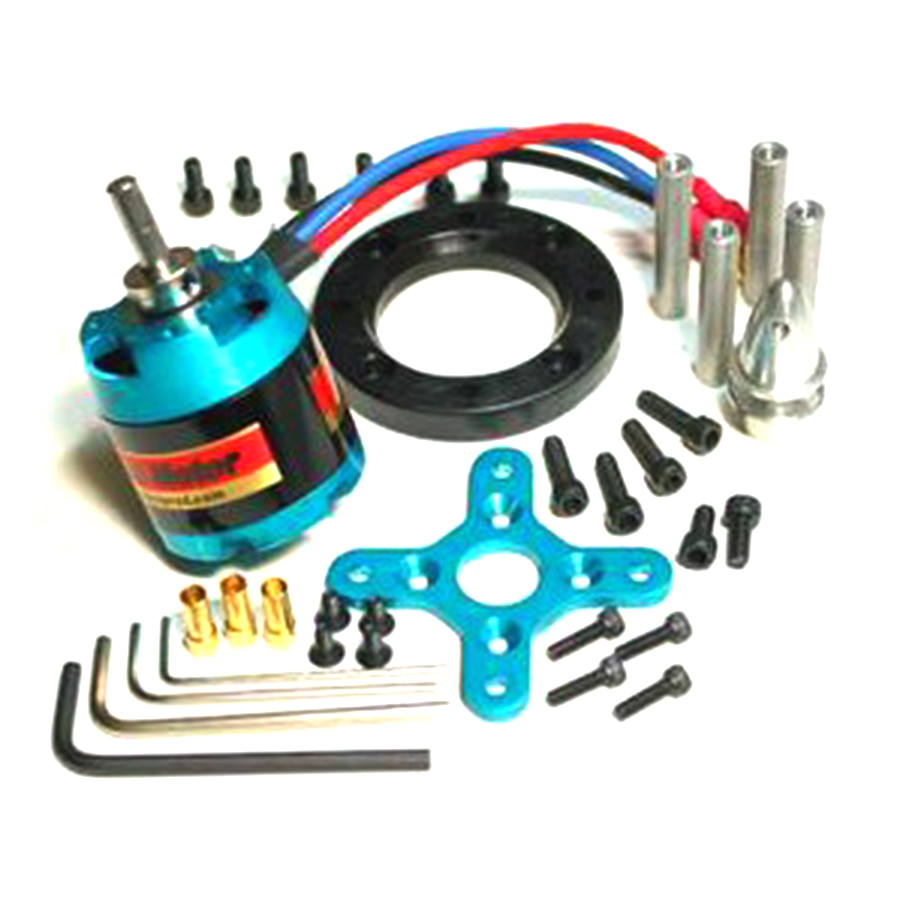

Accessories (included):
(1) Prop Adapter
(3) Female 3.5mm connectors
(4) Motor Mounting Screws

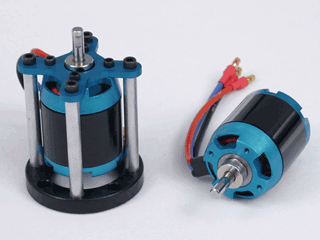

(1) Motor Mount Kit
(2) Hex Keys
| Weight: | 197g, (6.9oz), Motor only |
| Max Power: | 450W (This is dependent on several factors) |
| Max RPM: | 20,000 RPM |
| Diameter: | 35.2mm, (1.39”) |
| Length: | 54.2mm (2.13”) |
| Shaft Diameter: | 5.0mm (.1969”) |
| Mount Screw Thread: | 4-40, max depth 5mm, on 25mm, (1.0”) circle |
| Maximum Case Temperature: | 65°C, (149°F) |
