Overview:

The Starfield 0.8x adjustable reducer and flattener makes finding the correct back focus easy! Fighting with adapters is a thing of the past! By adjusting the reducer to achieve 55mm of back focus is simple, and if more adjustment is needed for fine tuning all that is needed is a small twist. If you are using accessories such as filter wheels and rotators you can not still get the required back focus.

Just add up the thickness of all the accessories, plus the distance to your sensor and adjust based on the table below and then set the reducer to the number that is calculated. The reducer attaches directly to the Géar 80 / 90 mm telescope focuser by removing the Axil lock.

Using the supplied 1.5mm Allen key, loosen off the three screws a half turn and then unscrew the lock. Thread the reducer onto the focuser.

This Reducer can also be used for other Telescopes than from 70mm to 102mm aperture

102 mm / focal ratio f/7 - 55 mm
90 mm / focal ration f/6 - 56 mm
80 mm / focal ratio f/7 - 57.6 mm
80 mm / focal ratio f/6 - 59.6 mm
70 mm / focal ratio f/6 - 61.6 mm

Filters can be added inside the reducer.

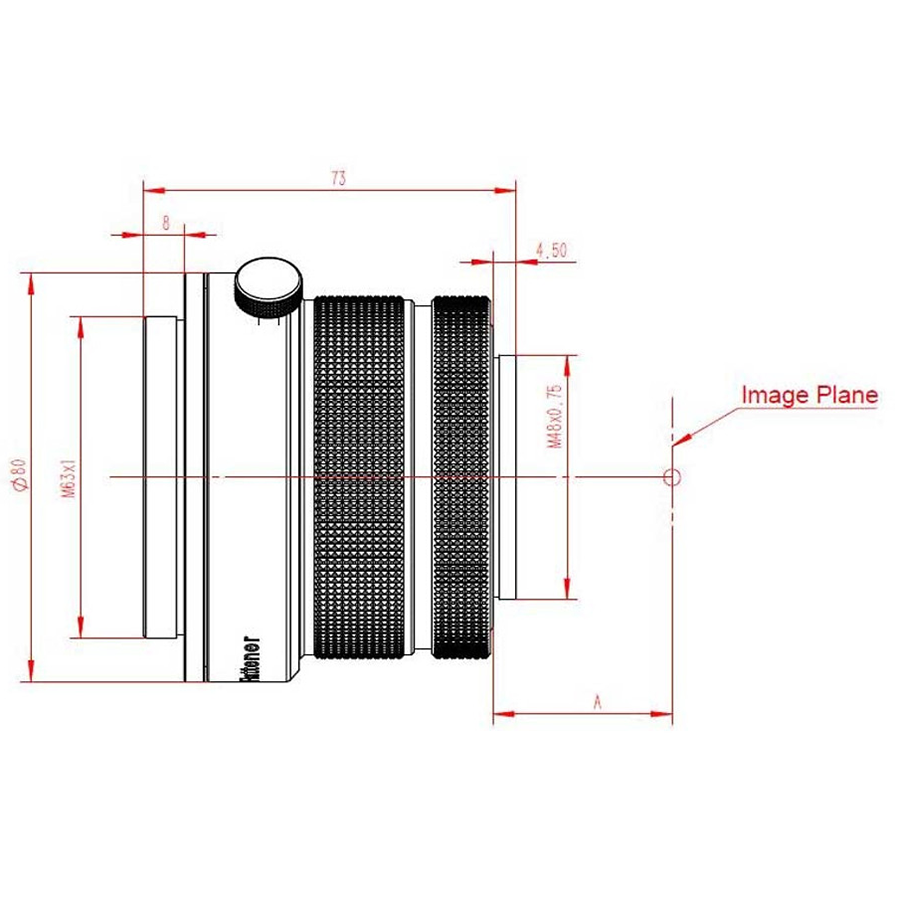

Technical Details:

• Design: Corrector and reducer for refractor telescopes
• Telescopic connection: M63x1 external thread
• Camera connection: M48x0.75 external thread
• Reduction factor: 0.8 xLenses:3 lenses with ED element
• Coating: Multi-coating and internal blackening
• Working distance: Variable (adjustable)
• Adjustment range of the distance: 0-17 mm stepless
• Suitable for: Refractor telescopes from 102 mm to 155 mm aperture with focusers from 2.5"
