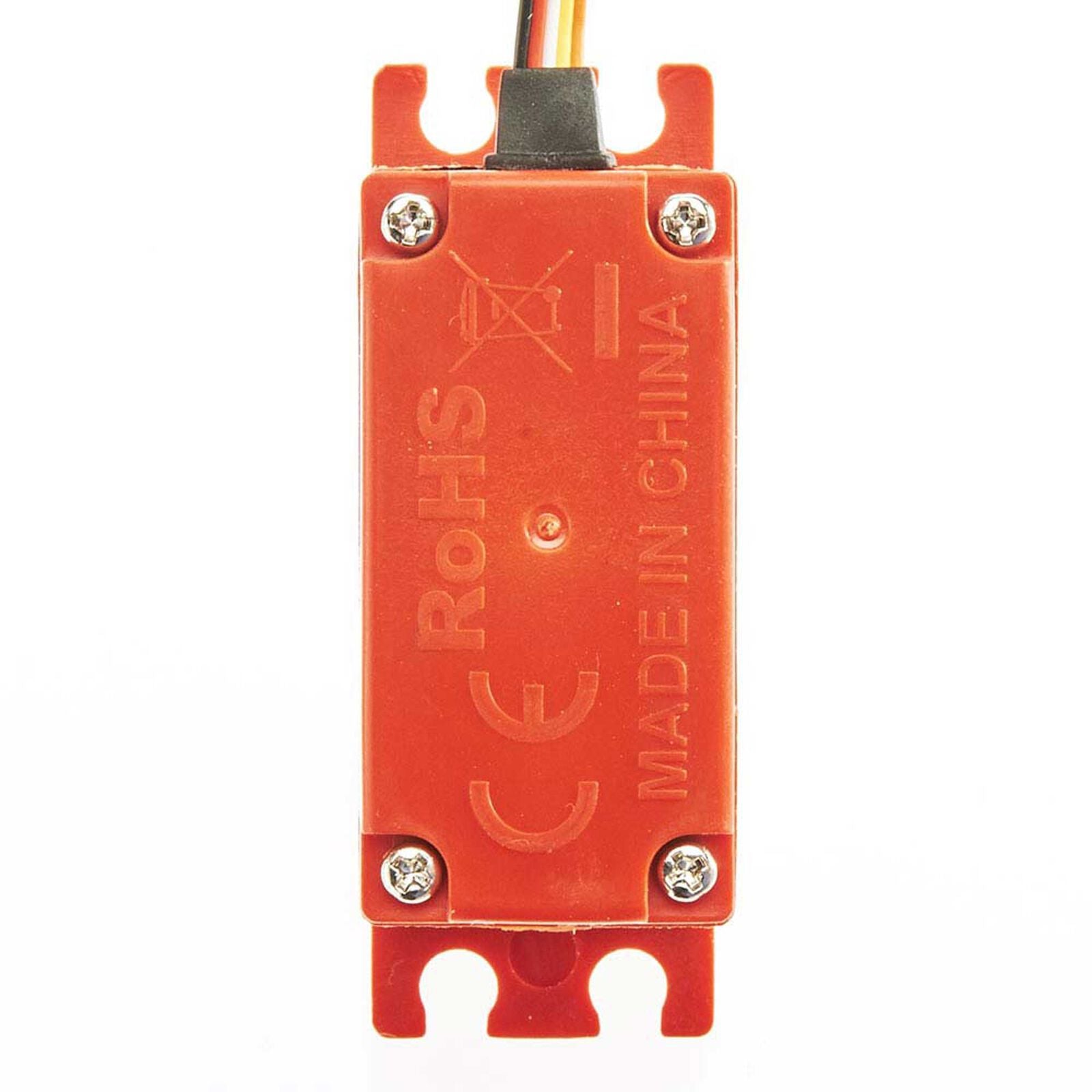

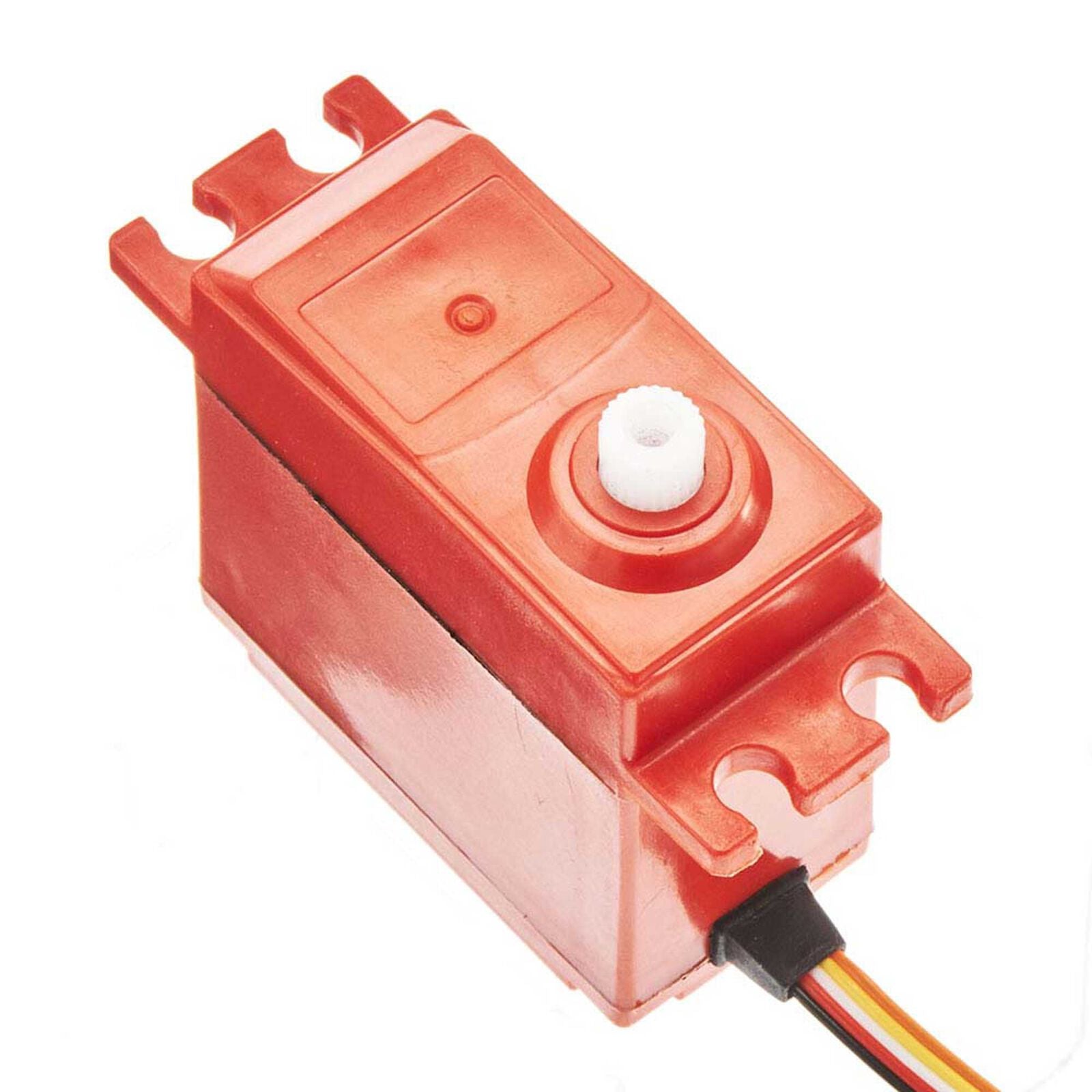

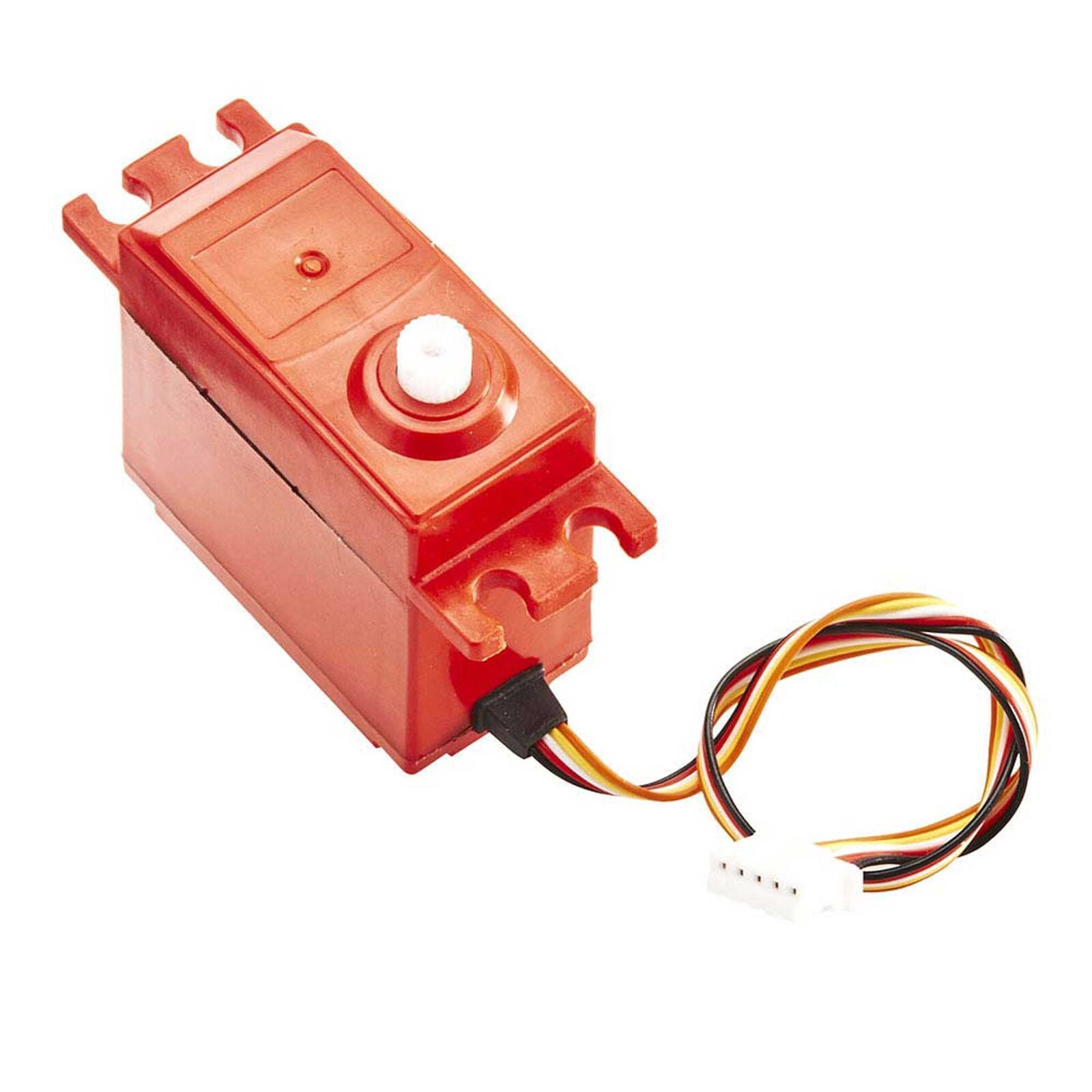

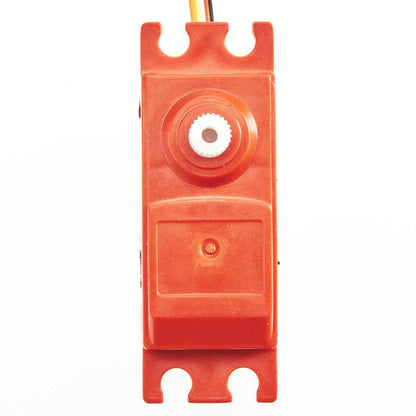

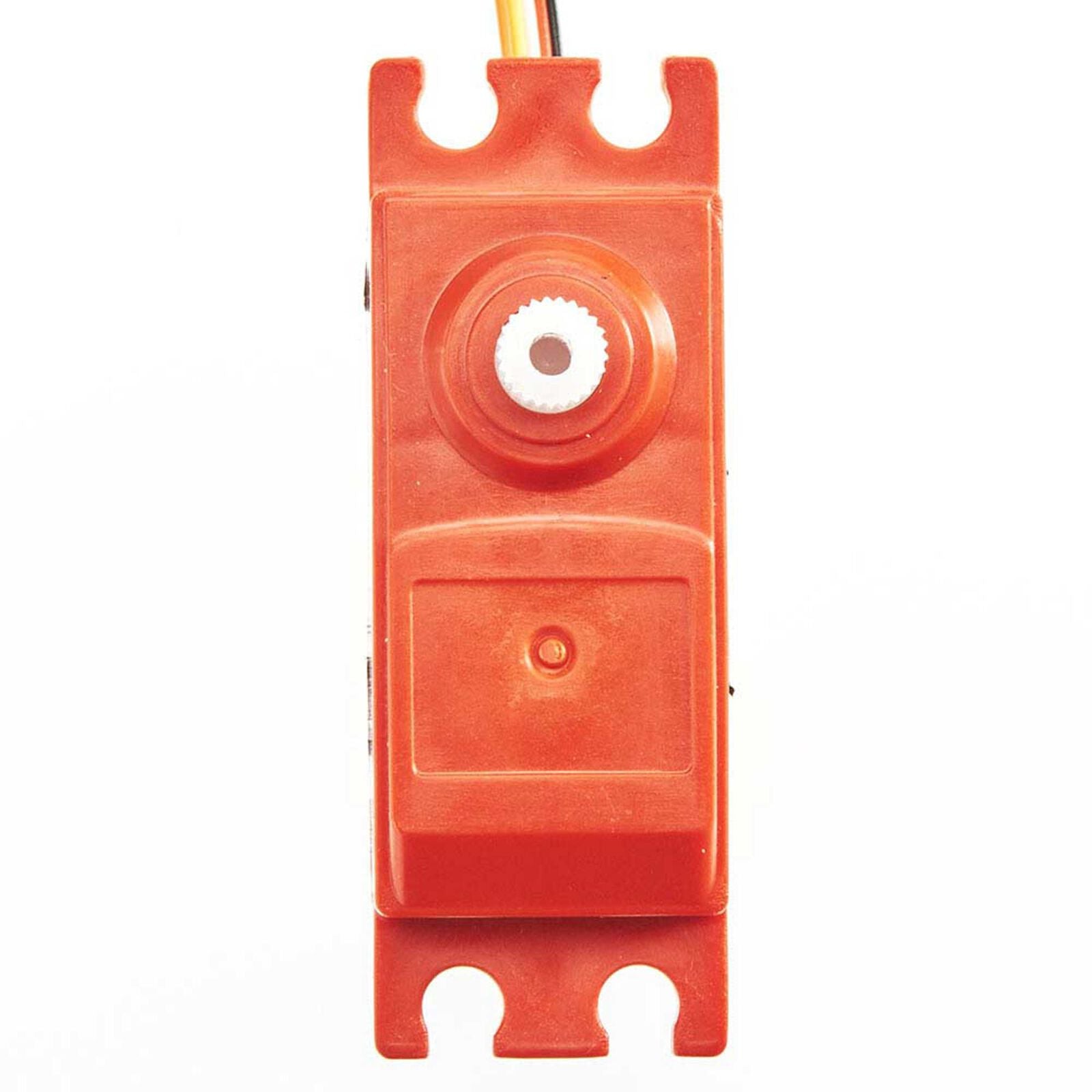

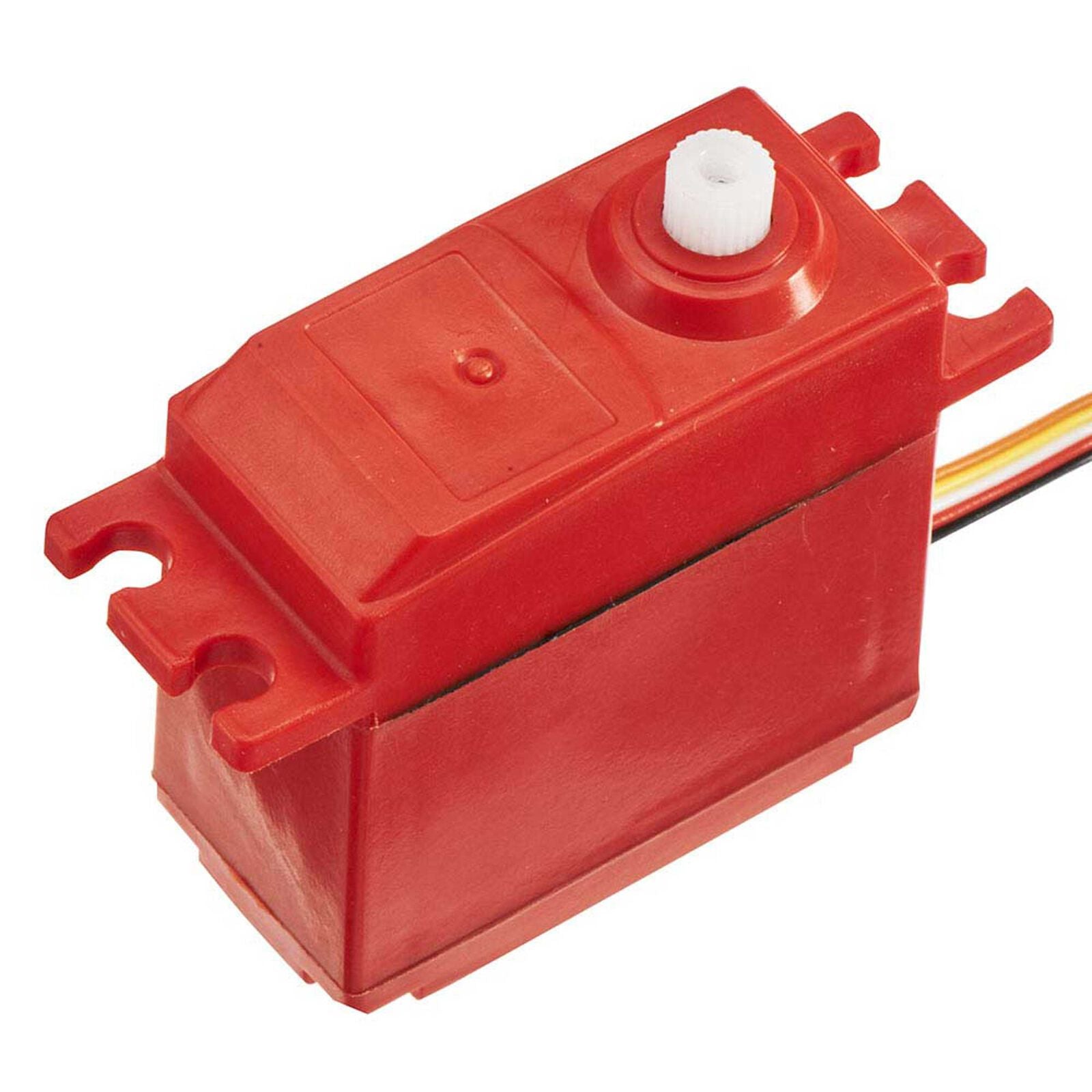

ADS-5 SRS Servo
Overview:
The ADS-5 SRS Servo is designed to give you fast and precise steering. Resilient to the elements and built from hard-wearing materials.
Features:
- Connector: 5-pin connector
- Gears: HD Composite
- Spline: 25 Tooth
- Dimensions: 40 x 38 x 20mm (Excluding mounting tabs) - Industry standard size
- Wire Length: 150mm
- Speed: 0.16s @5V
- Torque: 70oz-in (5kg-cm) @5V
Compatibility:
- 1/10 GRANITE VOLTAGE 2WD Brushed Mega Monster Truck RTR (ARRMA - ARA102727)
| Manufacturer #: | AR390239 |
| Servo Size Category: | Standard |
| Connector Wire Length: | 5.9" (150 mm) |
| Product Width: | 0.78" (20 mm) |
| Product Height: | 1.49" (38 mm) |
| Product Length: | 1.57" (40 mm) |
| Maximum Servo Torque: | 70oz/in @ 5.0V |
| Maximum Servo Speed: | 0.16 sec/60 deg @ 5.0V |
| Servo Operating Voltage: | 4.8 - 5.5V |
| Servo Type: | Analog |
| Connector Type: | 5-pin |
| Application: | Granite Voltage |
| Spline Count: | 25 - Tooth |
| Water-Resistant: | Yes |
