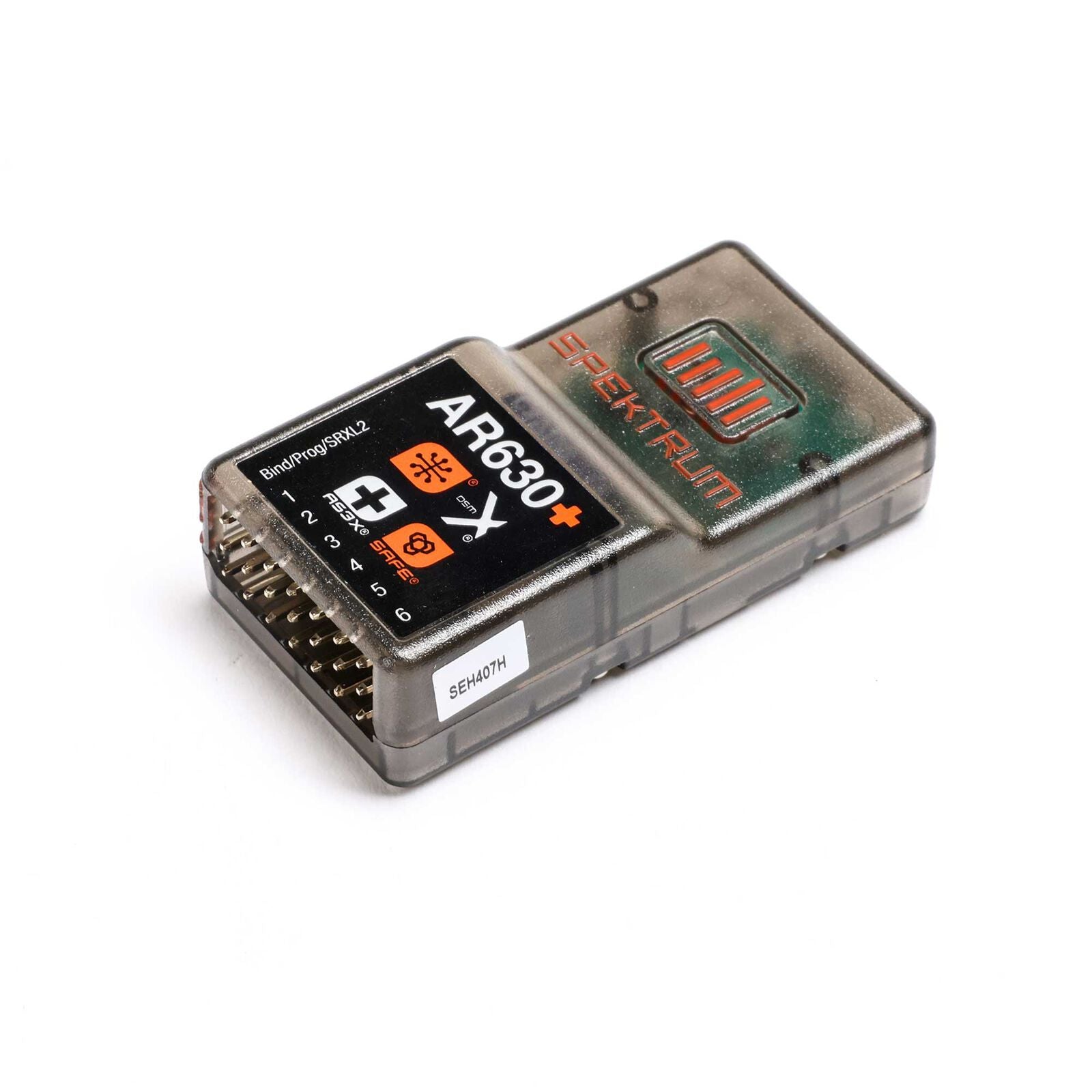

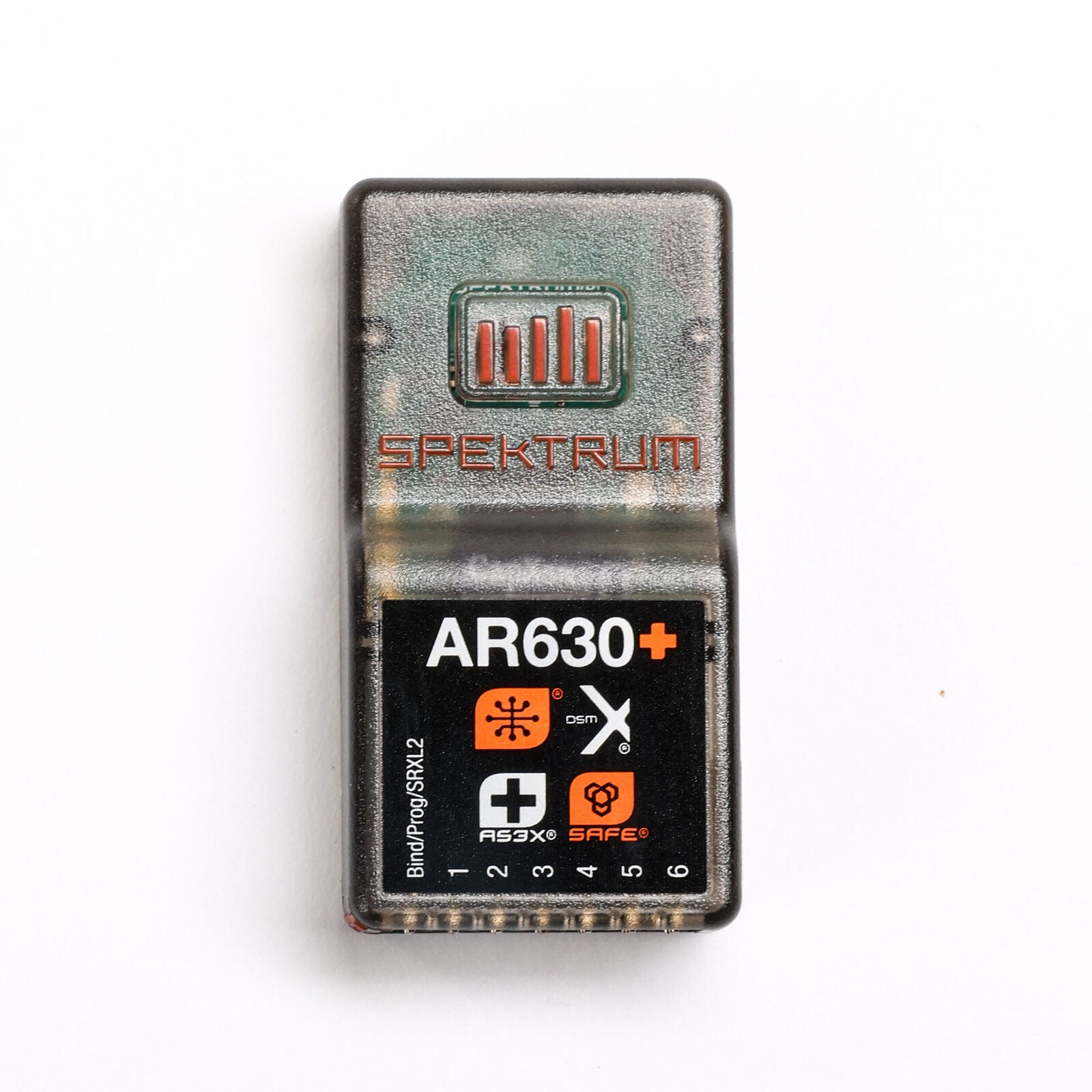

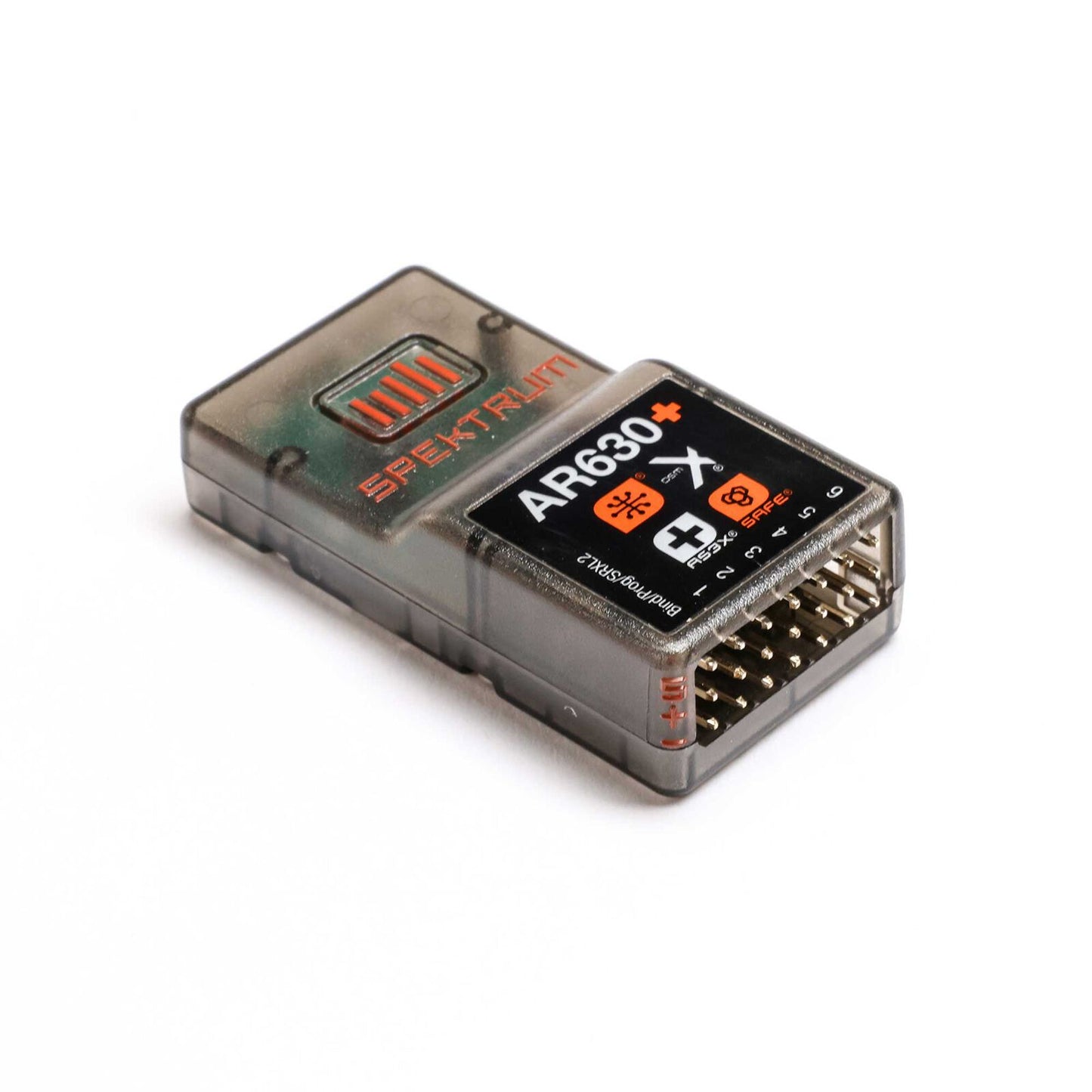

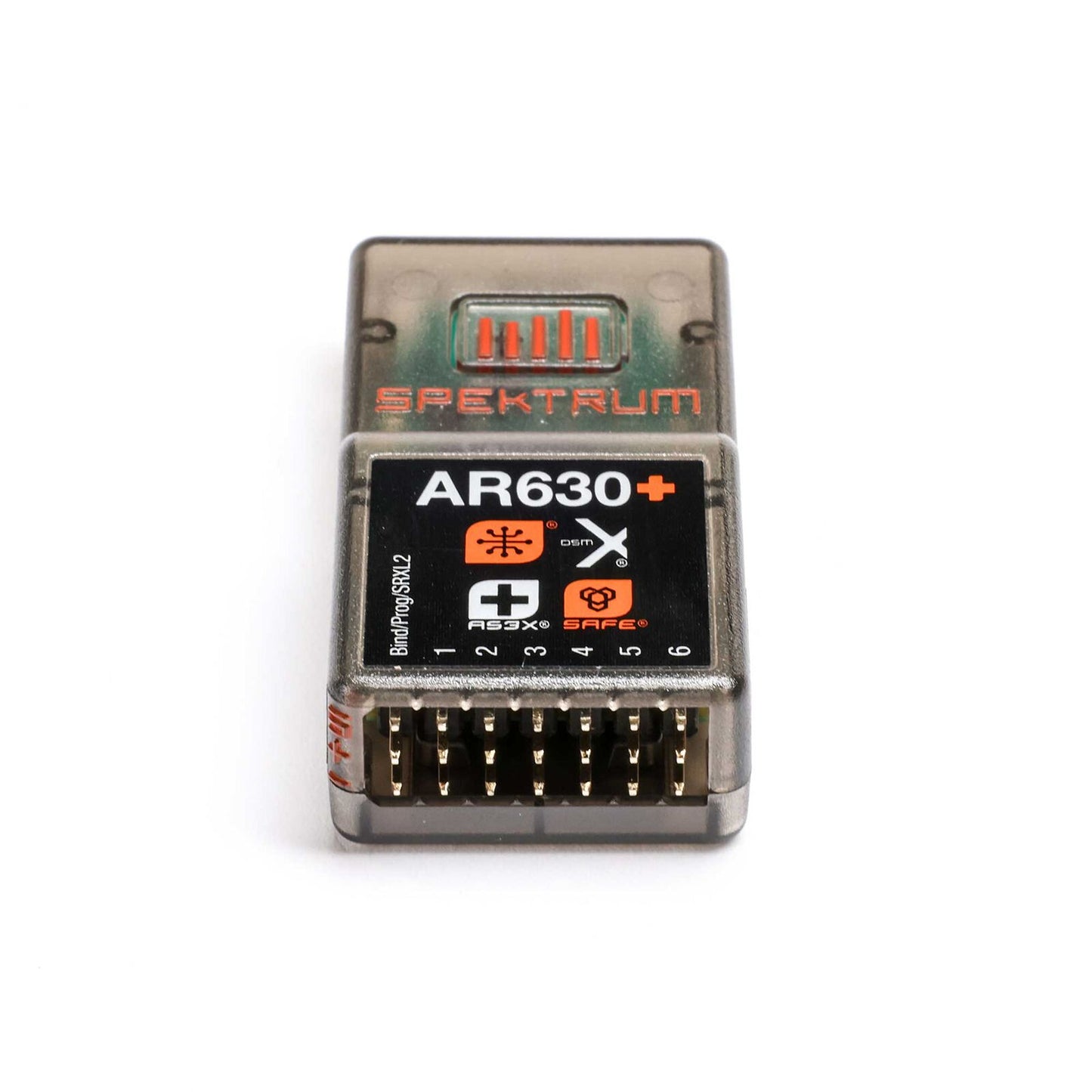

AR630+ 6 Channel AS3X+ & SAFE Receiver

AR630+ DSMX 6-Channel AS3X+ & SAFE Receiver

Overview:

The AR630+ features fly-by-range telemetry, a bind button for easy binding with no plugs necessary, SmartSafe technology, Hold Last, and preset failsafe types set through Forward Programming. It also features Smart Telemetry support and Smart Throttle support. Additionally, Smart Model Files allow BNF models to be stored on the receiver to automatically set the model at bind.

With Smart Technology, the normal servo connector delivers the throttle signal to the ESC, and the ESC sends telemetry data like voltage and current back to the receiver. The AR630+ receiver throttle port (Channel 1 port only) will automatically detect when a Smart-compatible ESC is connected. ESCs with Smart and IC series connectors can also pass along battery data from compatible Spektrum Smart batteries. Spektrum Avian ESCs are compatible with the AR630+ receiver for Smart Technology features.

For Smart to function, you must have a Smart ESC paired with a Smart Telemetry receiver and a Spektrum DSMX transmitter with telemetry. An update for your transmitter may be required for Smart features. See www.spektrumrc.com to register and update your transmitter. If a standard ESC or servo is plugged into the throttle port on the AR630+ receiver, the throttle port will operate normally (PWM signal) like any conventional RC system.

Please Note: These transmitters do not support Forward Programming devices: DX6i, DX6G2 (EU Version), DX7, DX7S, DX7SE, DX7G2 (EU Version), DX8, non-computer transmitters.

Features:

• Antenna-less design for easy installation and increased performance
• Built-in AS3X+ Stabilization System with SAFE flight envelope protection
• AS3X+ and SAFE set up through Forward Programming directly from your Spektrum transmitter
• Ready to use with Spektrum Smart ESCs for one-wire telemetry data without the need for modules, links, and wires
• DSMX protocol receiver with DSM2 backward compatibility
• Streamlined, end-pin design in a lightweight hard case
• Bind button allows for easy binding and eliminates the need for a bind plug
• Fly-by range telemetry support
• Standard servo connectors

In The Box:

(1) Spektrum AR630+ AS3X+ / SAFE Receiver
(1) Product Manual

Needed to Complete:

(1) Spektrum Telemetry Capable Transmitter
