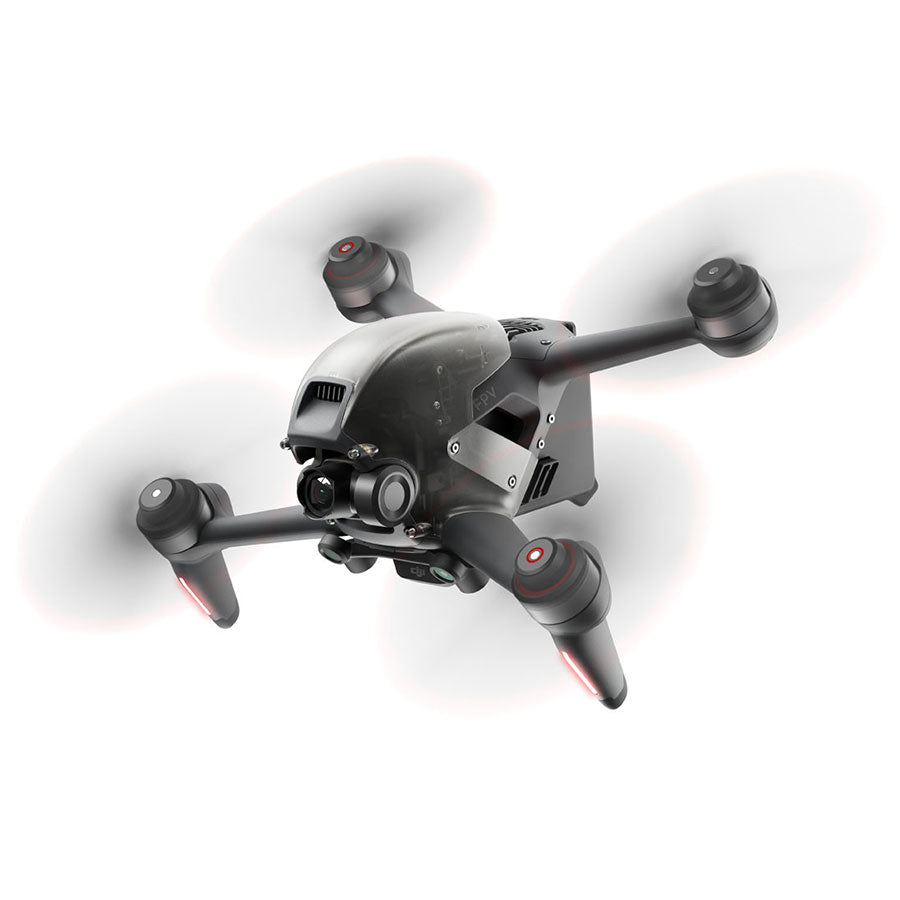

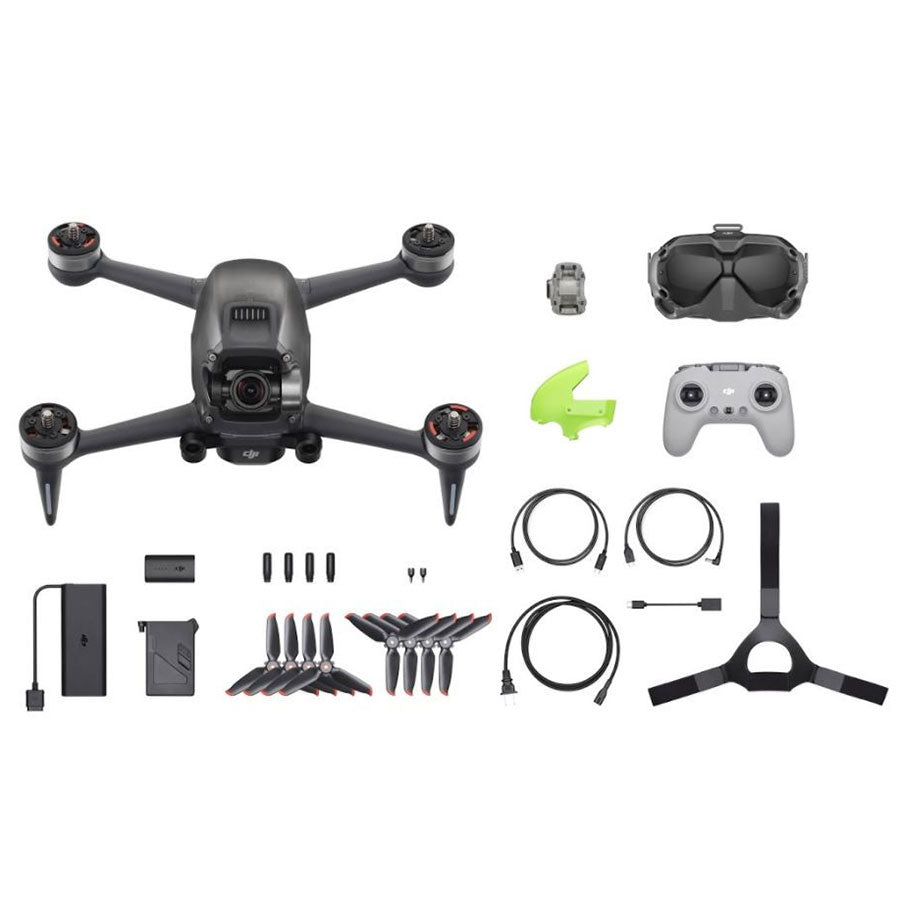

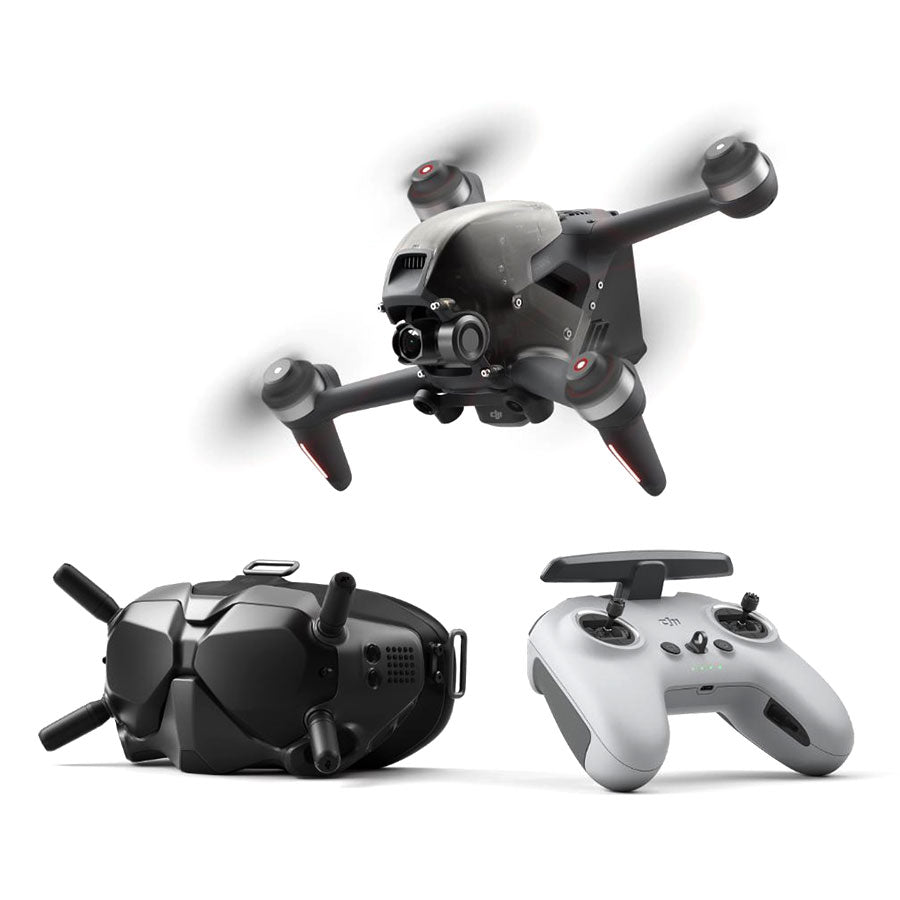

FPV Combo
FPV Combo
Footnotes:
1. Before flying DJI FPV, check local laws and regulations. Ensure that your flights are conducted safely and in accordance with all local laws and regulations.
2. The 150° FOV is only applicable when shooting at 50 or 100 fps.
3. Obstacle sensing is only available when the aircraft is in N mode. In this mode, DJI FPV will automatically decelerate when it detects obstacles, but it will not automatically stop.
4. To ensure flight safety when using M mode, it is recommended to have another person present to observe the flight environment. To obtain a more precise control experience when using M mode, adjust the F1 screw on the back of the thrust control stick (right side if flying in Mode 1, left side if flying in Mode 2) to disable recentering.
5. The DJI FPV aircraft supports two video coding formats, while the DJI FPV Goggles V2 only supports H.264.
6. In 810p/120fps Low-Latency mode, the video transmission latency is lower than 28ms; in 810p/60fps High-Quality mode, the video transmission latency is lower than 40ms.
7. FCC-compliant. Measurements were taken in unobstructed environments free of interference. Always follow local rules and regulations and fly your drone within your visual line of sight unless otherwise permitted.
8. The highest video transmission bitrate is 50 Mbps. Measured in an open, outdoor environment with no obstacles or interference.
9. DJI Care Refresh (DJI FPV) is a service plan that provides you with greater peace of mind during flight. DJI Care Refresh (DJI FPV) provides replacements for a small additional cost. If you purchase DJI Care Refresh (2-Year Plan), you will also enjoy an extension of the original warranty by up to two years (extension duration varies by region). For more information, contact DJI Support.
10. The DJI Virtual Flight app currently supports only iOS devices.
11. This function will be available in a future firmware update. Transmitted images from the goggles to the app can be sent to a smartphone via cable (USB-C to USB-C or USB-C to lightning).
12. The Fly Spots feature is currently available only in Mainland China. All flight locations displayed by the Fly Spots feature are based on voluntarily-shared location tags from SkyPixel users. DJI never collects or shares user data without user consent. Always check and follow the applicable rules wherever you fly.
Camera |
|
Sensor |
1/2.3” CMOS Effective pixels: 12 million |
Lens |
FOV: 150° 35mm Format Equivalent: 14.66 mm Aperture: f/2.8 Focus Mode: Fixed Focus Focus Range: 0.6 m to ∞ |
ISO |
100-12800 |
Shutter Speed |
1/50-1/8000 s |
Still Photography Modes |
Single shot |
Max Image Size |
3840×2160 |
Photo Format |
JPEG |
Video Resolution |
4K: 3840×2160 at 50/60fps FHD: 1920×1080 at 50/60/100/120fps |
Video Formats |
MP4/MOV (H.264/MPEG-4 AVC, H.265/HEVC) |
Max Video Bitrate |
120 Mbps |
Color Profile |
Standard, D-Cinelike |
RockSteady EIS |
Available |
Distortion Correction |
Available |
Supported File Formats |
exFAT (recommended) FAT32 |
Gimbal |
|
Mechanical Range |
Tilt: -65° to 70° |
Controllable Range |
Tilt: -50° to 58° |
Stabilization |
Single-axis (tilt), electronic roll axis |
Max Control Speed |
60°/s |
Angular Vibration Range |
±0.01° (N mode) |
Electronic Roll Axis |
Available (can stabilize footage when the aircraft is tilted at angles of up to 10°) |

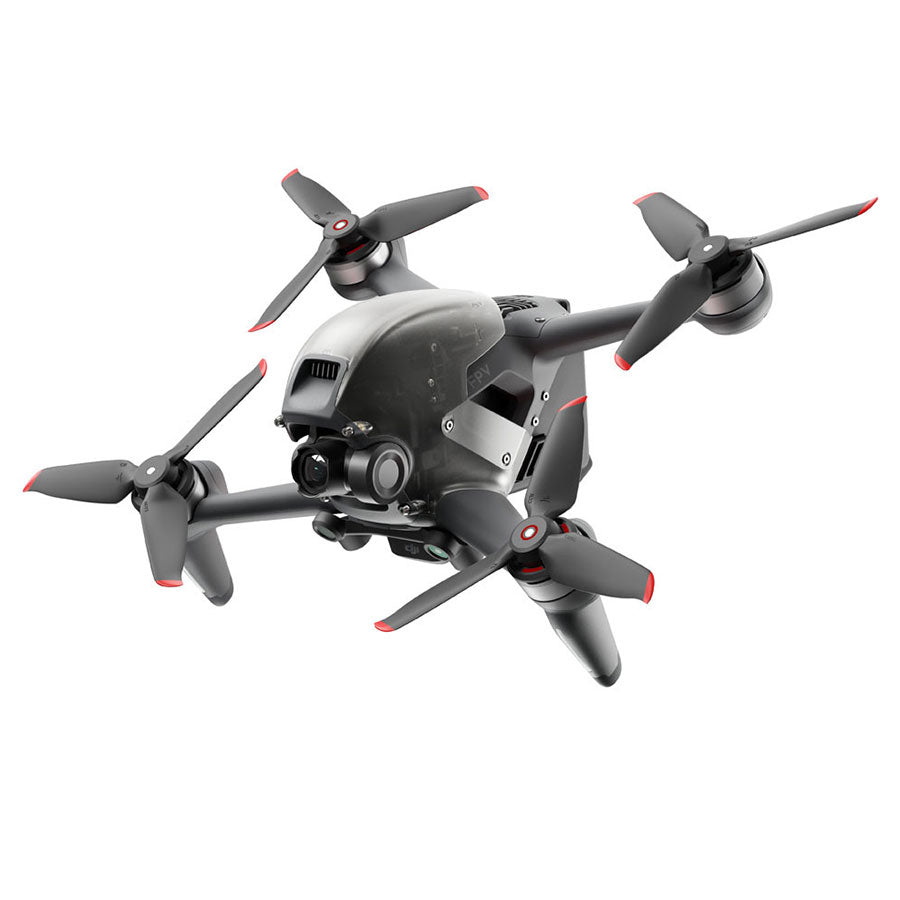

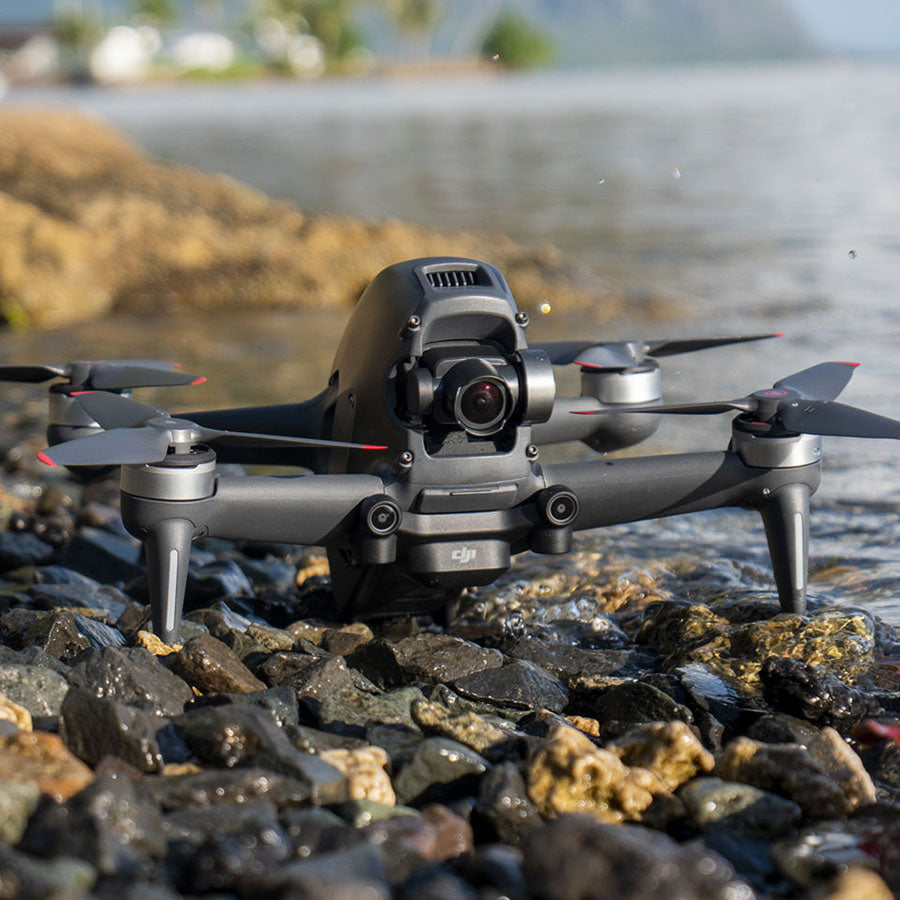

Aircraft |
|
Takeoff Weight |
Approx. 795 g |
Dimensions |
255×312×127 mm (with propellers) 178×232×127 mm (without propellers) |
Diagonal Distance |
245 mm |
Max Ascent Speed |
M mode: No limit S mode: 15 m/s N mode: 8 m/s |
Max Descent Speed |
M mode: No limit S mode: 10 m/s N mode: 5 m/s |
Max Speed |
140 kph; M mode: 39 m/s (27 m/s in Mainland China) S mode: 27 m/s N mode: 15 m/s |
Max Acceleration |
0-100 kph: 2 s (in ideal conditions while flying in M mode) |
Max Service Ceiling Above Sea Level |
6,000 m |
Max Flight Time |
Approx. 20 mins (measured while flying at 40 kph in windless conditions) |
Max Hover Time |
Approx. 16 mins (measured when flying in windless conditions) |
Max Flight Distance |
16.8 km (measured while flying in windless conditions) |
Max Wind Speed Resistance |
39-49 kph (25-31 mph) |
Operating Temperature |
-10° to 40° C (14° to 104° F)
|
Transmitter Power (EIRP) |
2.400-2.4835 GHz FCC: ≤ 31.5dBm CE: ≤ 20 dBm SRRC: ≤ 20 dBm MIC: ≤ 20 dBm 5.725-5.850 Ghz FCC: ≤ 31.5 dBm CE: ≤ 14 dBm SRRC: ≤ 25.5 dBm |
Number of Antennas |
Four |
GNSS |
GPS+GLONASS+GALILEO |
Hovering Accuracy Range |
Vertical: ±0.1 m (with Vision Positioning) ±0.5 m (with GPS positioning) Horizontal: ±0.3 m (with Vision Positioning) ±1.5 m (with GPS positioning) |
Supported SD Cards |
microSD (up to 256 GB) |
Internal Storage |
N/A |
Sensing System |
|
Forward |
Precision Measurement Range: 0.5-18 m Obstacle Sensing: Available in N mode only FOV: 56° (horizontal), 71° (vertical) |
Downward (dual vision sensors + ToF) |
ToF Effective Sensing Height: 10 m Hovering Range: 0.5-15 m Vision Sensor Hovering Range: 0.5-30 m |
Downward Auxillary Light |
Single LED |
Operating Environment |
Refers to non-reflective, discernible surfaces Diffuse reflectivity >20% (e.g. walls, trees, people) Adequate lighting conditions (lux >15 in normal indoor lighting conditions) |
Charger |
|
Input |
100-240 V, 50/60 Hz, 1.8 A |
Output |
Battery charging interface: 25.2 V ± 0.1 V 3.57 A ± 0.1 A (high current) 1 A ± 0.2 A (low current) USB Port: 5V/2A (×2) |
Rated Power |
86 W |
Intelligent Flight Battery |
|
Battery Capacity |
2000 mAh |
Voltage |
22.2 V |
Max Charging Voltage |
25.2 V |
Battery Type |
LiPo 6S |
Energy |
44.4 Wh@0.5C |
Discharge Rate |
Standard: 10C |
Weight |
295 g |
Charging Temperature |
5° to 40° C (41° to 104° F) |
Max Charging Power |
90 W |
Video Transmission |
|
Operating Frequency |
2.400-2.4835 GHz 5.725-5.850 GHz |
Communication Bandwidth |
40 MHz (Max.) |
Live View Mode |
Low-Latency Mode: 810p/120fps ≤ 28ms High-Quality Mode: 810p/60fps ≤ 40ms |
Max Video Bitrate |
50 Mbps |
Transmission Range |
10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC) |
Audio Transmission Support |
Yes |

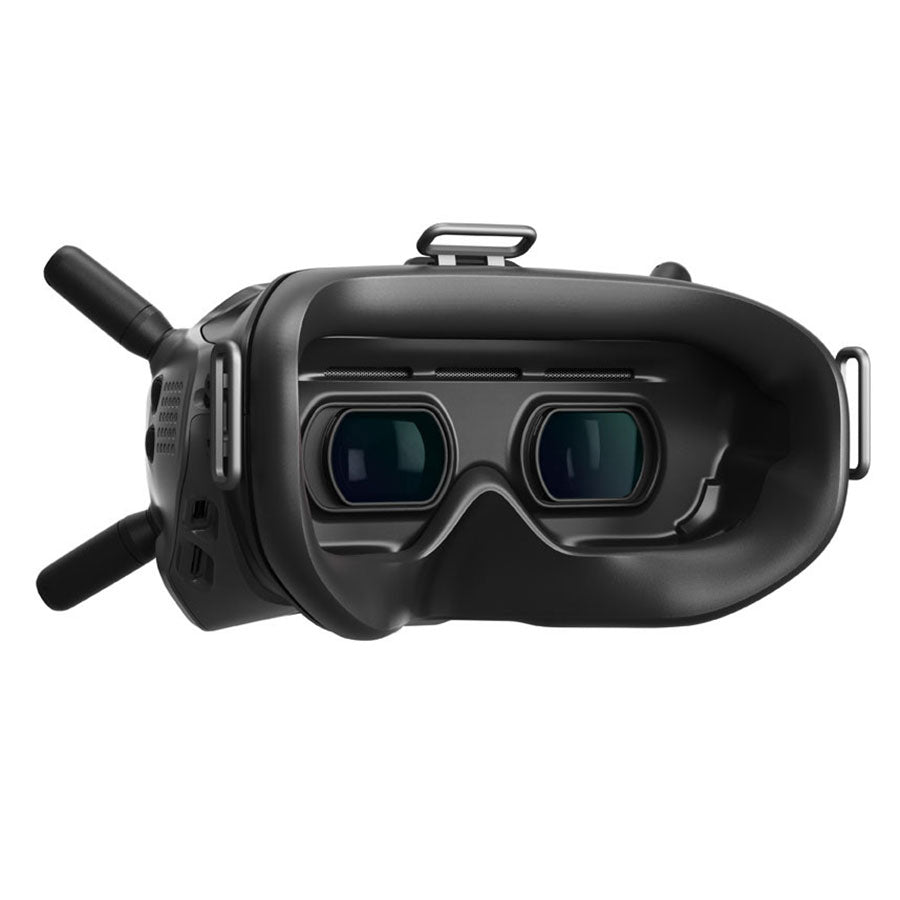

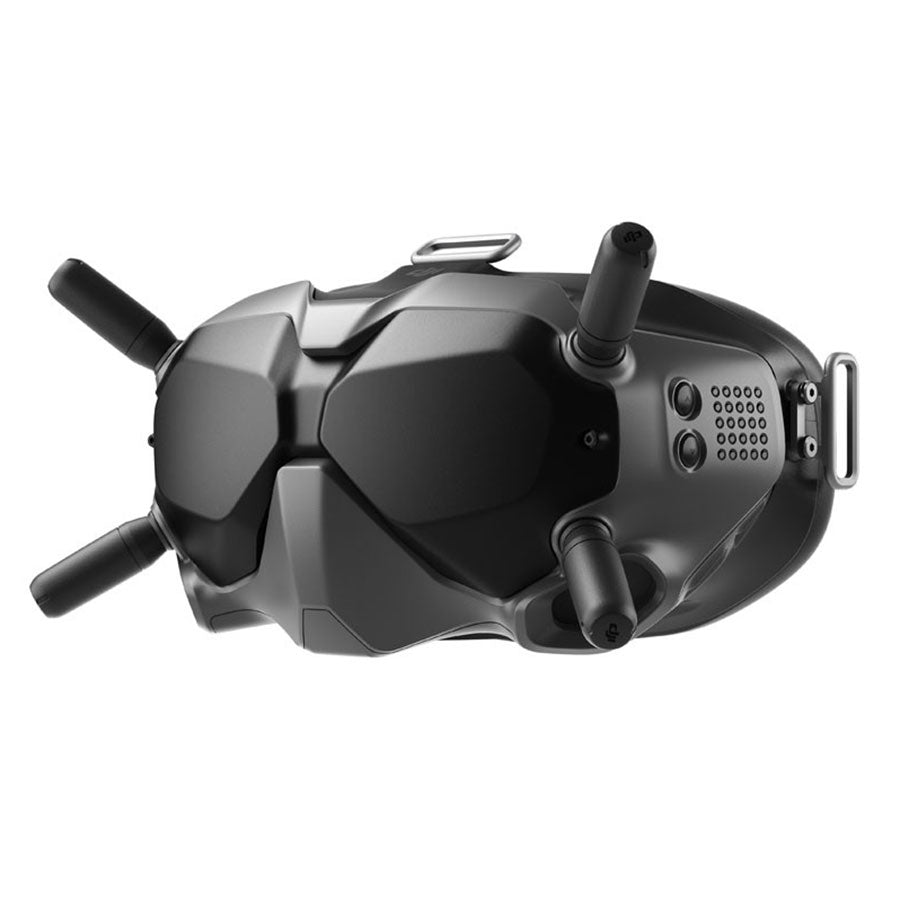

DJI FPV Goggles V2 |
|
Weight |
Approx. 420 g (headband and antennas included) |
Dimensions |
184×122×110 mm (antennas excluded) 202×126×110 mm (antennas included) |
Screen Size |
2-inches (×2) |
Screen Refresh Rate |
144 Hz |
Communication Frequency [1] |
2.400-2.4835 GHz 5.725-5.850 GHz |
Transmitter Power (EIRP) |
2.400-2.4835 GHz FCC: ≤ 28.5 dBm CE: ≤ 20 dBm SRRC: ≤ 20 dBm MIC: ≤ 20 dBm 5.725-5.850 GHz FCC: ≤ 31.5 dBm CE: ≤ 14 dBm SRRC: ≤ 19 dBm |
Communication Bandwidth |
40 MHz (Max.) |
Live View Mode |
Low-Latency Mode: 810p/120fps ≤ 28ms* High-Quality Mode: 810p/60fps ≤ 40ms* * A 150° FOV is available when shooting at 50 or 100 fps. For other frame rates, the FOV will be 142°. |
Max Video Bitrate |
50 Mbps |
Transmission Range [2] |
10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC) |
Video Format |
MP4 (Video format: H.264) |
Supported Video and Audio Playback Formats |
MP4, MOV, MKV (Video format: H.264; Audio format: AAC-LC, AAC-HE, AC-3, MP3) |
Operating Temperature |
0° to 40° C (32° to 104° F) |
Power Input |
Dedicated DJI Goggles batteries or other 11.1.-25.2 V batteries. |
FOV |
FOV: 30° to 54°; Image size: 50-100% |
Interpupillary Distance Range |
58-70 mm |
Supported microSD Cards |
microSD (up to 256 GB) |
DJI FPV Goggles Battery |
|
Capacity |
1800 mAh |
Voltage |
9 V (Max.) |
Type |
LiPo 2S |
Energy |
18 Wh |
Charging Temperature |
0° to 45° C (32° to 113° F) |
Max Charging Power |
10 W |
Battery Life |
Approx. 110 minutes (measured in an environment of 25°C at maximum brightness level) |

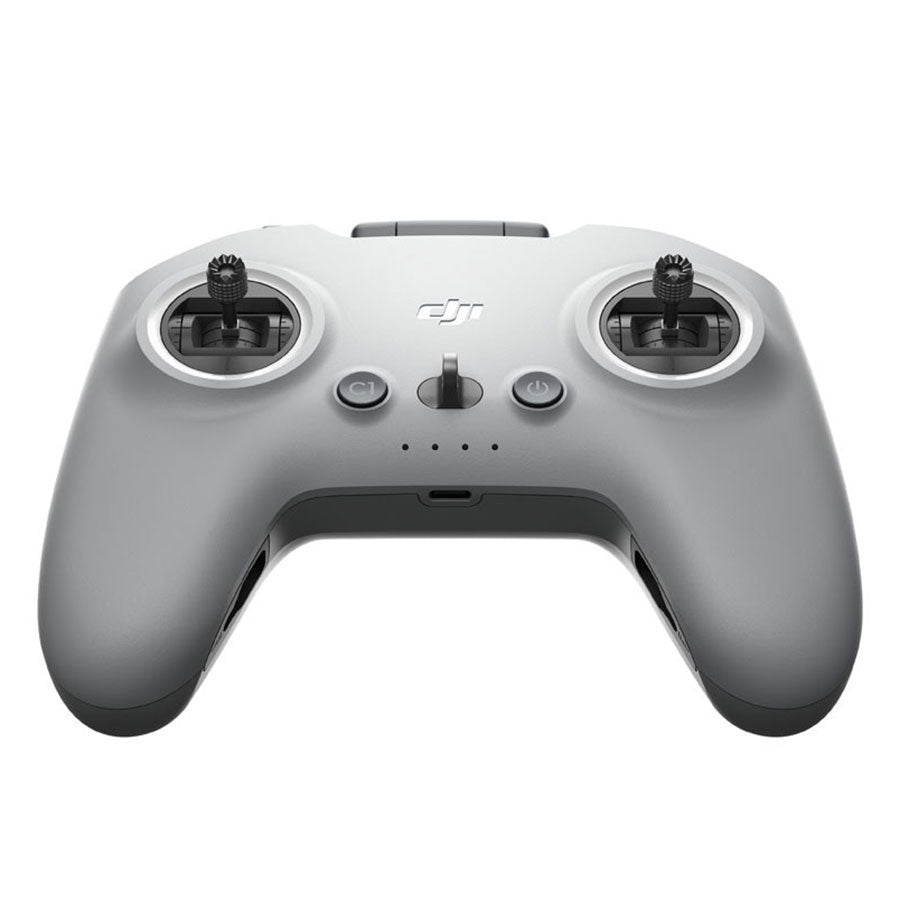

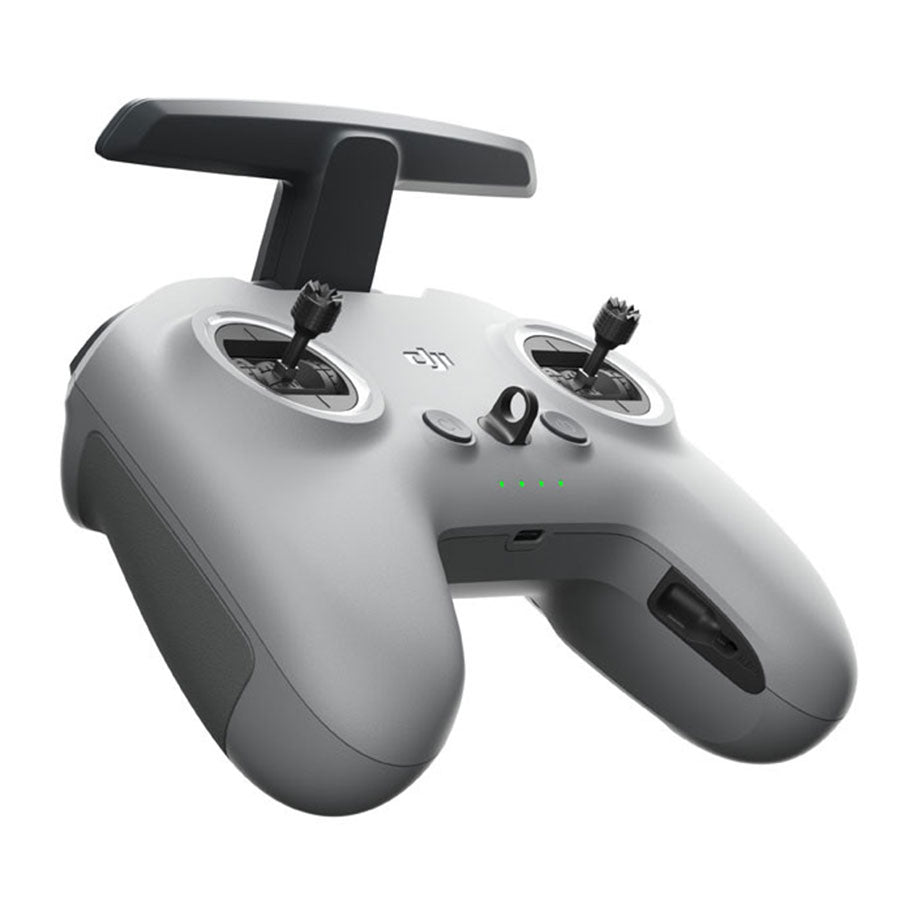

DJI FPV Remote Controller |
|
Operating Frequency |
2.400-2.4835 GHz 5.725-5.850 GHz |
Transmitter Power (EIRP) |
2.400-2.4835 GHz FCC: ≤ 28.5 dBm CE: ≤ 20 dBm SRRC: ≤ 20 dBm MIC: ≤ 20 dBm 5.725-5.850 GHz FCC: ≤ 31.5 dBm CE: ≤ 14 dBm |
Max. Transmission Distance |
10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC) |
Gimbal Dimensions |
190×140×51 mm |
Weight |
346 g |
Battery Life |
Approx. 9 hours |
Charging Time |
2.5 hours |
Motion Controller |
|
Model |
FC7BMC |
Weight |
167 g |
Operating Frequency Range |
2.400-2.4835 GHz; 5.725-5.850 GHz |
Max Transmission Distance (unobstructed, free of interference) |
10 km (FCC), 6 km (CE/SRRC/MIC) |
Transmitter Power (EIRP) |
2.4 GHz: ≤28.5 dBm (FCC), ≤20 dBm (CE/ SRRC/MIC) 5.8 GHz: ≤31.5 dBm (FCC), ≤19 dBm (SRRC), ≤14 dBm (CE) |
Operating Temperature Range |
-10° to 40° C (14° to 104° F) |
Battery Life |
300 minutes |
microSD card |
|
Supported microSD cards |
Max 256 GBUHS-I Speed Grade 3 |
Recommended microSD cards |
SanDisk High Endurance U3 V30 64GB microSDXC SanDisk Extreme PRO U3 V30 A2 64GB microSDXC SanDisk Extreme U3 V30 A2 64GB microSDXC SanDisk Extreme U3 V30 A2 128GB microSDXC SanDisk Extreme U3 V30 A2 256GB microSDXC Lexar 667x V30 128GB microSDXC Lexar High Endurance 128GB U3 V30 microSDXC Samsung EVO U3 (Yellow) 64GB microSDXC Samsung EVO Plus U3 (Red) 64GB microSDXC Samsung EVO Plus U3 256GB microSDXC Netac 256GB U3 A1 microSDXC |
Footnotes
1. Due to local policy and regulation restrictions, the 5.8 GHz frequency band is currently banned in certain countries, including but not limited to Japan, Russia, Israel, Ukraine, and Kazakhstan. Please use the 2.4 GHz frequency band when operating in these locations. Always check local rules and regulations before use, as they may change over time.
2. Maximum flight range specification is a proxy for radio link strength and resilience, not aircraft battery capability. It only refers to the maximum, one-way flight distance. Data was measured in an open environment without interference. Please pay attention to the return prompt on the DJI Fly app during actual flight. Refer to the following applicable standard in different countries and regions:
FCC: United States, Australia, Canada, Hong Kong, Taiwan, Chile, Colombia, Puerto Rico, and other regions; SRRC: Mainland China;
CE: UK, Russia, France, Germany, Portugal, Spain, Switzerland, Macau, New Zealand, UAE, and other regions;
MIC: Japan.
DJI FPV Quick Start Guide v1.2.
DJI FPV Disclaimer and Safety Guidelines v1.2.
DJI FPV DJI Motion Controller User Manual v1.0.
DJI FPV Goggles V2 User Guide.
DJI FPV Remote Controller 2 User Guide.
DJI FPV DJI Motion Controller User Guide.
DJI FPV Propeller Guards User Guide.
DJI FPV Drone Arm Bracers User Guide.
Flight Safety
1. What should I be cautious of when operating DJI FPV?
- Do not fly in areas with heavy signal interferences such as areas with strong Wi-Fi signals;
- Do not fly your aircraft too far away or at too low of an altitude;
- Make sure that you are flying the aircraft in a safe and unrestricted area. For detailed regulations, please consult your local laws and regulations;
- Always follow local laws and regulations when flying with FPV goggles on;
- Before flying, it is recommended to update all relevant firmware to ensure you have the latest information regarding restricted flight areas.
2. What should I be cautious of when operating DJI FPV with multiple pilots in the same area?
Signal interference may occur when multiple DJI FPV units are operating simultaneously. To avoid this, follow the instructions below:
- Maintain a safe distance of at least three meters between each aircraft. Power on and choose a frequency channel for each aircraft one at a time. Avoid using the same frequency channel as other pilots. If live feeds begin to blur, restart the device;
- If the frequency channel you choose is close to another pilot's channel, ensure that your aircraft is a safe distance from their goggles;
- Maintain a safe distance between each pair of goggles;
- If your live feed becomes blurry due to multiple DJI FPVs flying in the same area, land your aircraft and restart.
3. What precautions should be taken when using DJI FPV in a new country or region for the first time?
- When using DJI FPV in a new country or region for the first time, make sure you check and follow local radio frequency laws and regulations. Connect to the DJI Fly app using the goggles and the software will automatically tune the system settings to be in adherence with local laws and regulations.
4. What precautions should be taken when using the DJI FPV Goggles V2?
- Always follow local laws and regulations;
- During flight, always pay attention to any on-screen prompts or alerts;
- When using the goggles, avoid exposing the screens to direct sunlight as they may become damaged.
5. What precautions should be taken when taking off or landing DJI FPV?
- Before takeoff, make sure that the propellers are correctly installed, the sensors are correctly calibrated, the batteries are fully charged, and there are no obstacles around the aircraft such as pedestrians, buildings, or trees;
- Before landing, determine a safe landing area with a flat surface away from water and make sure no pedestrians or obstacles are nearby. Also, make sure the aircraft is in N mode in preparation for landing;
- Before your first flight, make sure you have viewed all relevant official product information and tutorials in order to be fully aware of operating procedures and safety requirements.
6. What coverage does DJI Care Refresh offer?
- DJI Care Refresh is a comprehensive and reliable protection plan that offers accidental damage coverage for DJI FPV. DJI Care Refresh (1-Year Plan) includes up to two replacements in one year. DJI Care Refresh (2-Year Plan) includes up to three replacements in two years in addition to the standard two-year product warranty that starts from the date of purchase.
