DS76 7.5 Gram Sub Micro Servo Heli

DS76 7.5 Gram Sub Micro Servo Heli

1 2
$21.99
$0.00 $21.99
Sale Sold out
Shipping calculated at checkout.
ⓘ $0.00 Tax Collected Outside GA
Availability: Sorry we are out of stock but have more on the way.
SKU: 100007831
Part #: EFLRDS76
UPC: 605482036969
MFG: E-flite
Live Help Chat
rewards icon
You will earn 10 Electron Reward Points on this product! Click to find out more about our points program and save big!
low price promise icon
Low Price Promise! Click to find out more about our low price promise
View full details

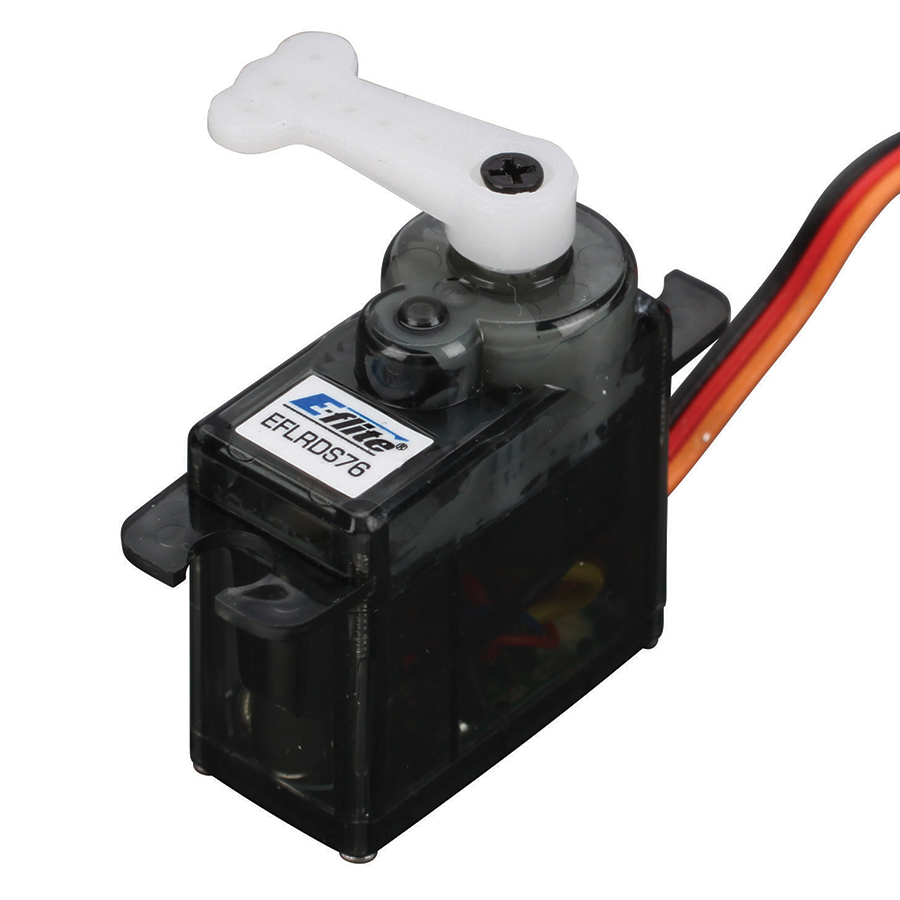

7.6-Gram DS76 Digital Sub-Micro Servo

Overview:

Digital high speed, high torque, precise centering servo is perfect for electric, park flyer, and high-performance 3D models, micro and mini electric helicopters, hand launch gliders. Replacement servo for the Blade 450 3D Heli.

Features:

  • Digital amplifier for superior accuracy, response and holding torque
  • High speed, .11 sec @ 60° @ 4.8V for quick control response
  • High torque, 24.2 oz-in (1.75 kg-cm) @ 4.8V
  • Precise Centering - less than 1°
  • Lightweight, just 7.6 grams
  • Universal connector compatible with major brand receivers
  • Includes complete mounting hardware

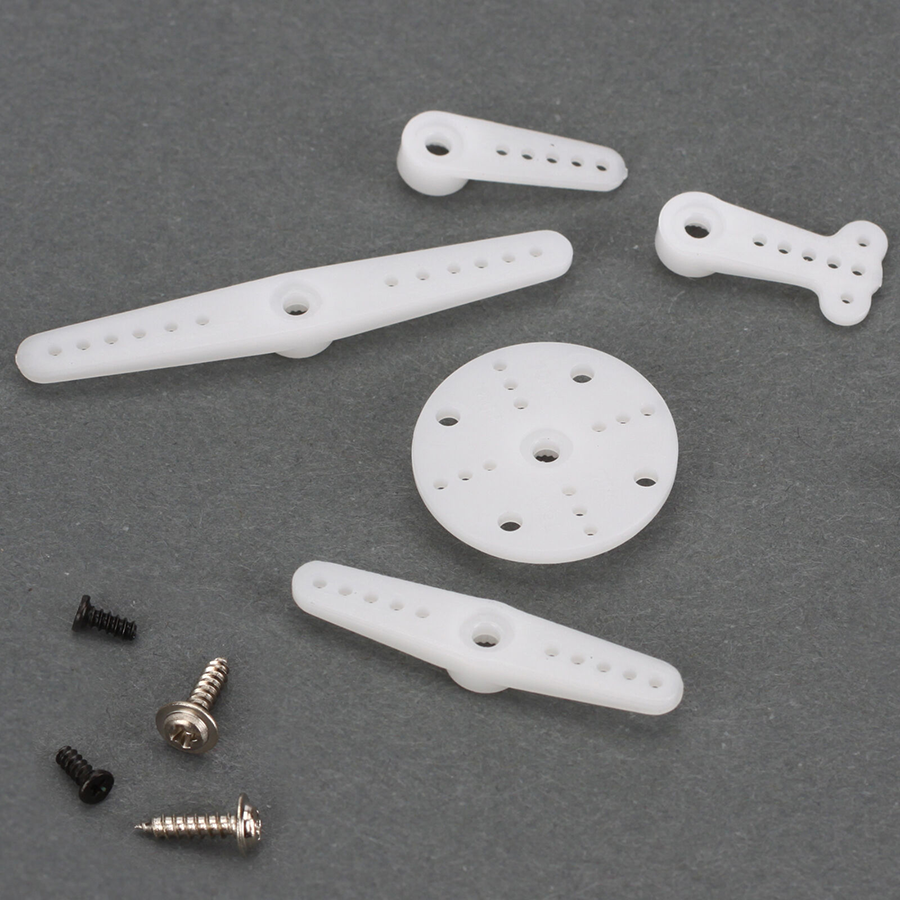

  • Includes multiple servo arms including an extra-long 3D servo arm for extreme throws

Technical Details:

  • Current Draw Idle: 27mA @ 4.8V
  • Current Draw Stall: 473mA @ 4.8V
  • Gear Type: Plastic
  • Maximum Servo Torque: 24.2 oz-in (1.75kg-cm) @ 4.8V; 28.0 oz-in (2.00kg-cm) @ 6.0V
  • Servo Operating Voltage: 4.8 - 6.0V
  • Servo Size Category: Sub-Micro
  • Servo Type: Digital
