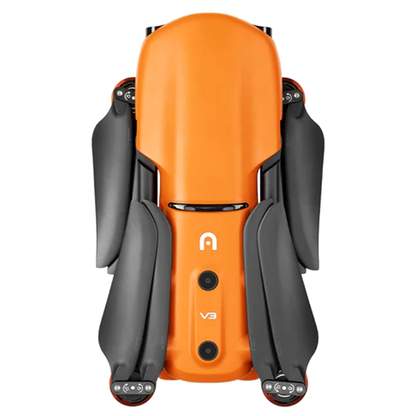

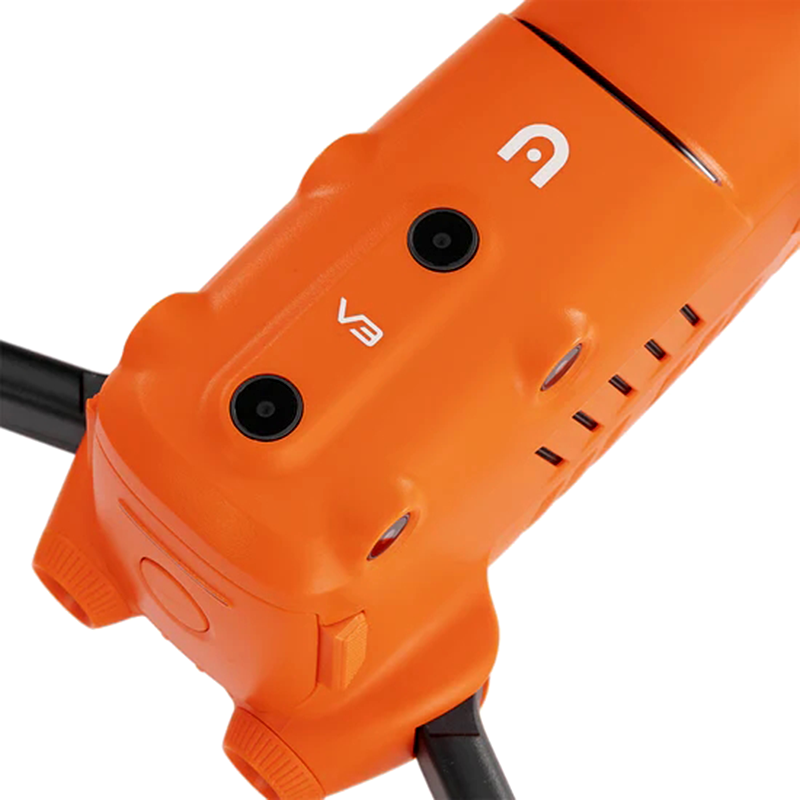

EVO II Pro 6K Rugged Bundle V3
Overview:

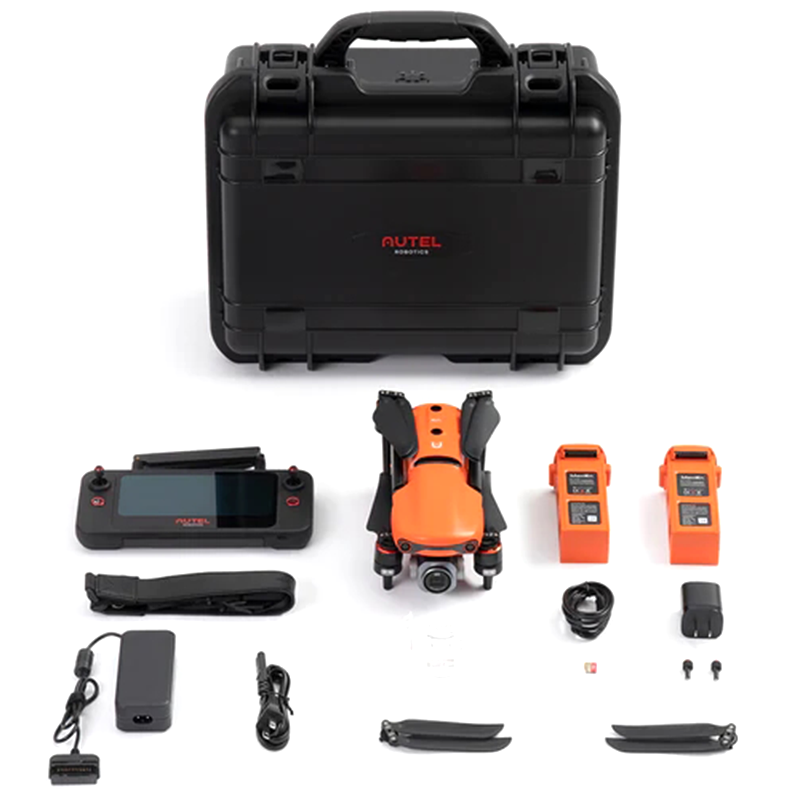

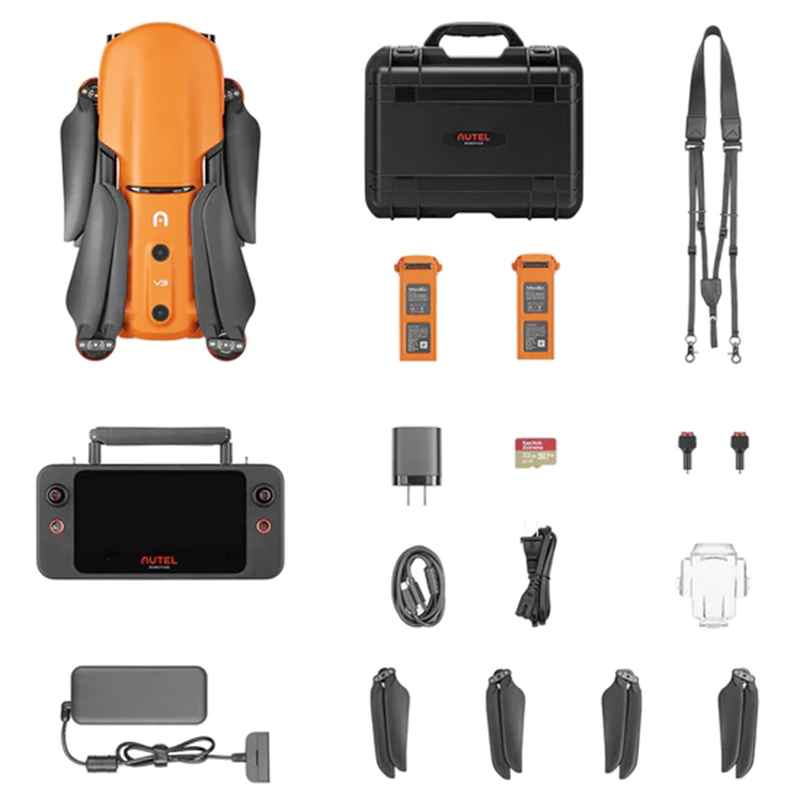

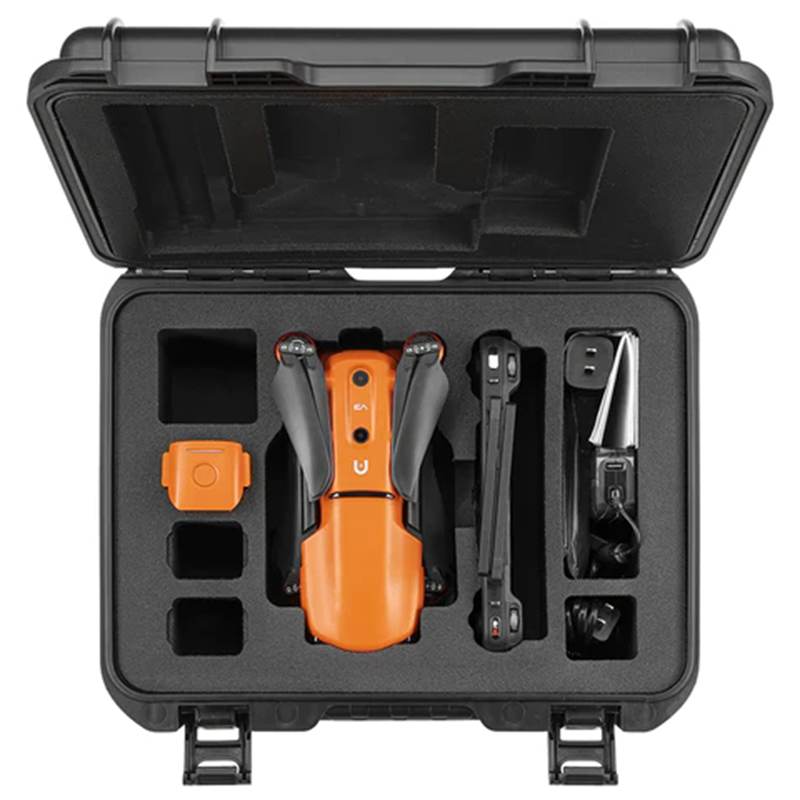

Autel Robotics EVO II Pro 6K Drone Rugged Bundle contains the drone and accessories in a military-grade hard case for easy transport and gives your gear ultimate protection. The precision-cut foam case stores and protects the EVO II, 3 spare batteries, controller, charging hub, spare props and charger.
Autel Robotics EVO II Pro

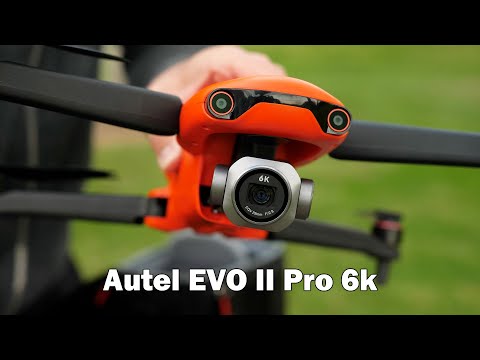

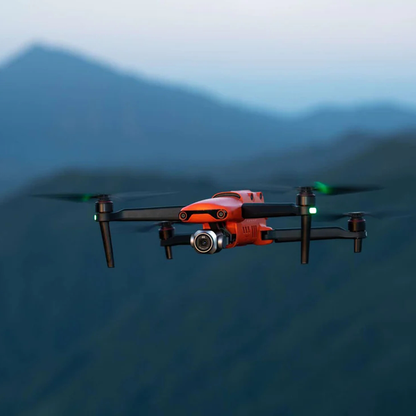

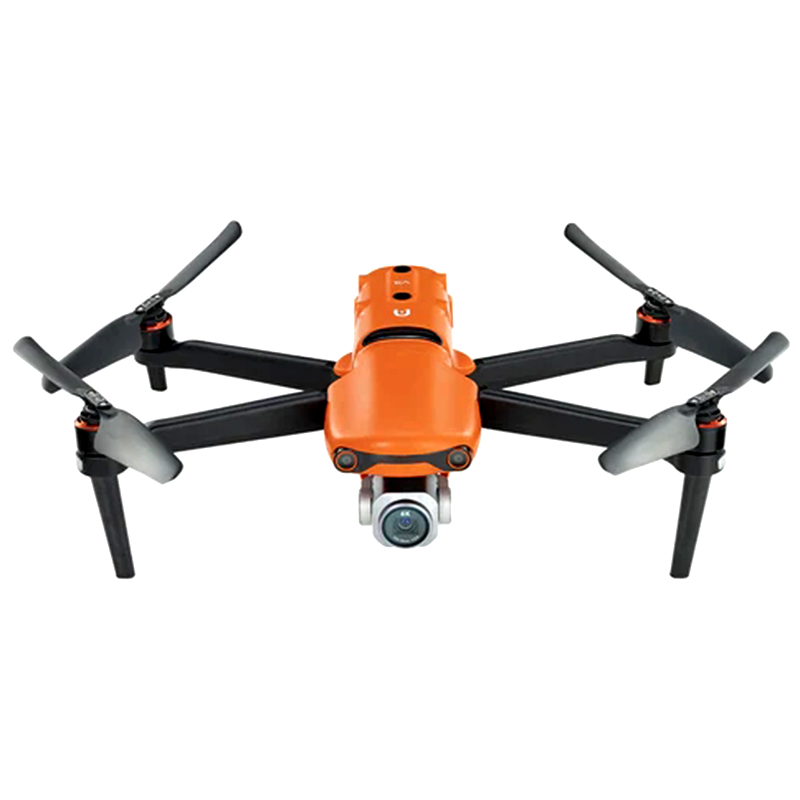

Autel EVO 2 Pro ultra-HD video camera drone featured a 1-inch sensor with 6K video and 20MP photo. Capture stunning detail not previously possible on an aerial platform of this size. An adjustable aperture from f/2.8 - f/11, HDR and intuitive camera controls make this the perfect choice for any aerial cinematographer or mapping pilot.
Aircraft |
|
| Takeoff weight | 1191 g |
| Max takeoff weight | 2000 g |
| Wheelbase | 397 mm |
| Size (L×W×H) | 230×130×108mm （folded） 457×558×108mm （unfolded） |
| Maximum service ceiling altitude | 7000 m |
| Max ascent speed | 8 m/s (Ludicrous) |
| Max descent speed | 4 m/s (Ludicrous) |
| Max horizontal flight speed | 20m/s (Ludicrous) |
| Max flight distance (no wind) | 25 km |
| Max tilt angle | 33° (Ludicrous) |
| Max angular velocity | 120°/s |
| Max flight time (no wind) | 40 min |
| Max hovering time (no wind) | 35 min |
| Operating temperature range | -10℃ ~ 40℃ |
| Maximum resistance to wind | Level 8 |
| Operating frequency | 902-928 MHz (FCC Only) 2.400-2.4835 GHz 5.725-5.850 GHz (non-Japan) 5.650-5.755 GHz (Japan Only) |
| Transmission power | 900M FCC/ ISED：≤31dBm 2.4G FCC/ ISED：≤32dBm SRRC/CE/MIC/RCM：≤20dBm 5.8G (non-Japan) ; 5.7G (Japan) FCC/ISED/SRRC/MIC：≤33dBm CE/ RCM：≤14dBm |
| Hovering accuracy | Vertical: ±0.1 m (when the visual positioning is working normally); ±0.5 m (when GPS works normally) Horizontal: ±0.3 m (when the visual positioning is working normally); ±1.5 m (when GPS works normally) |
| GNSS | GPS/Beidou/Glonass/Gallieo |
| Internal storage | 8GB |
| SD storage | Max. support 256GB (UHS-3 or Class 10) |
Gimbal |
|
| Gimbal | 3-axis stabilization |
| Mechanical range | Tilt: -135° to +45°; Pan: -100° to +100° |
| Controllable rotation range | Tilt: -90° to +30°; Pan: -90° to +90° |
| Max control speed (Tilt) | 300°/s |
| Angular Vibration Range | ±0.005° |
Sensing System |
|
| Sensing system type | Omnidirectional sensing system |
| Forward | Accurate measurement range: 0.5-18 m Effective sensing speed: <12m/s Viewing angle: Horizontal: 60°, Vertical: 80° |
| Backward | Accurate measurement range: 0.5-16 m Effective sensing speed: <12m/s Viewing angle: Horizontal: 60°, Vertical: 80° |
| Upward | Accurate measurement range: 0.5-10 m Effective sensing speed: <5m/s Viewing angle: Horizontal: 65°, Vertical: 50° |
| Downward | Accurate measurement range: 0.5-10 m Effective sensing speed: <5m/s Viewing angle: horizontal: 100°, vertical: 80° |
| Left and right | Accurate measurement range: 0.5-10 m Effective sensing speed: <5m/s Viewing angle: horizontal: 65°, vertical: 50° |
| Operating Environment | Forward, Backward and Sides: Surface with clear pattern and adequate lighting (lux > 15) Upward: Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.) Downward: Surface with clear pattern and adequate lighting (lux > 15) Detects diffuse reflective surfaces (>20%) (walls, trees, people, etc.) |

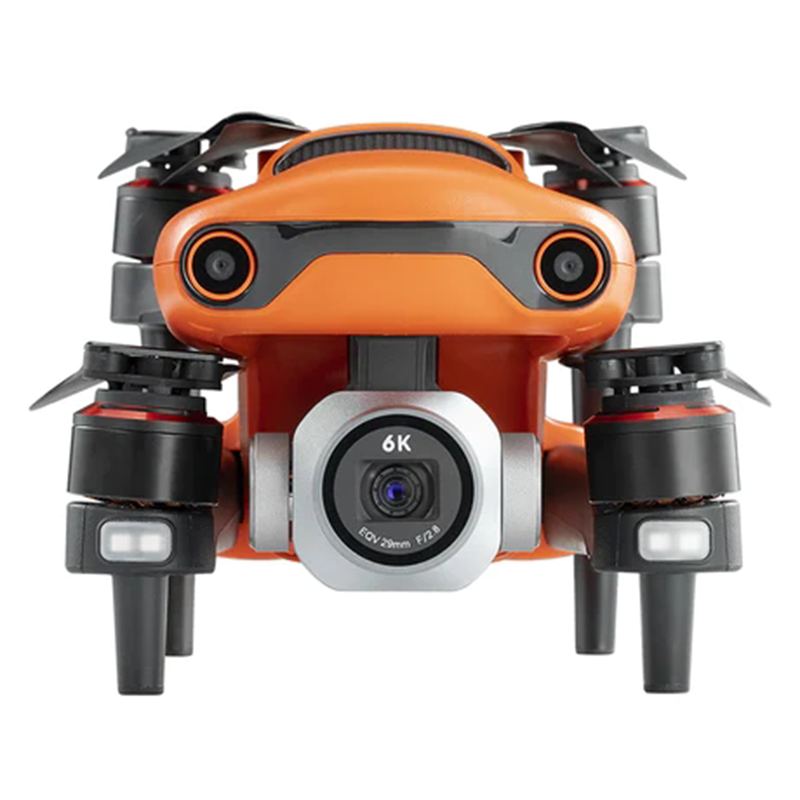

Camera |
|
| Sensor | 1 inch CMOS; 20M pixels |
| Lens | FOV: 82° 35 mm format equivalent focal length: 29 mm Aperture: f/2.8 - f/11 Focus range: 0.5 m to infinity |
| ISO range | Video: 100-44000 Photo: 100-6400 |
| Shutter speed | Photo mode: 1/8000 ~ 8s Other: 1/8000 ~ 1/frame rates |
| Zoom | 1-16x (up to 3x lossless zoom) |
| Photo mode | Single shot/Burst shooting/AEB/Time Lapse/HDR |
| Maximum photo size | 5472×3648 (3:2) 5472×3076 (16:9) 3840×2160 (16:9) |
| Image Format | JPG (default) / DNG / JPG+DNG |
| Photo mode | 5472x3076P30/P25/P24 3840×2160P60/P50/P48/P30/P25/P24 2720×1528P60/P50/P48/P30/P25/P24 1920×1080P60/P50/P48/P30/P25/P24 |
| Video format | MP4 / MOV (MPEG-4 AVC/H.264, HEVC/H.265) |
| Max bitrate | 120Mbps |
| Supported file system | FAT32/exFAT |
Remote Controllor & Transmission |
|
| Operating frequency | 902-928MHz (FCC Only) 2.400-2.4835GHz 5.725-5.850GHz (non-Japan) 5.650-5.755GHz (Japan Only) |
| Transmission power | FCC：≤33dBm CE：≤20dBm@2.4G，≤14dBm@5.8G SRRC：≤20dBm@2.4G，≤33dBm@5.8G/5.7G |
| Max Transmission Distance (unobstructed, free of interference) | FCC：15km CE： 8km |
| Display screen | 2340×1080 60fps |
| Battery | 1900mAh |
| Operating time | ~2 hours (Max. Brightness) ~4 hours (50% Brightness) |
| Charging time | 90 minutes |
| Internal Storage | ROM 128GB + expandable storage via micro-SD card |
Battery |
|
| Capacity | 7100 mAh |
| Voltage | 11.55 V |
| Battery type | LiPo 3S |
| Energy | 82 Wh |
| Weight | 365 g |
| Charging temperature range | 5℃ to 45℃ |
| Storage temperature and humidity | -10~30℃，65±20%RH |
| Recommended storage temperature | 22-28℃ |
| Max charging power | 93W |
| Charging time | 90 minutes |
Charger |
|
| Input | 100-240 V, 50/60 Hz, 1.5A |
| Output | 13.2 V @ 5 A 5V@3A 9V@2A 12V@1.5A |
| Voltage | 13.2±0.1V |
| Rated power | 66W |
Multi-Charger |
|
| Voltage | 13.2 V |
| Charging temperature range | 5℃ to 45℃ |
