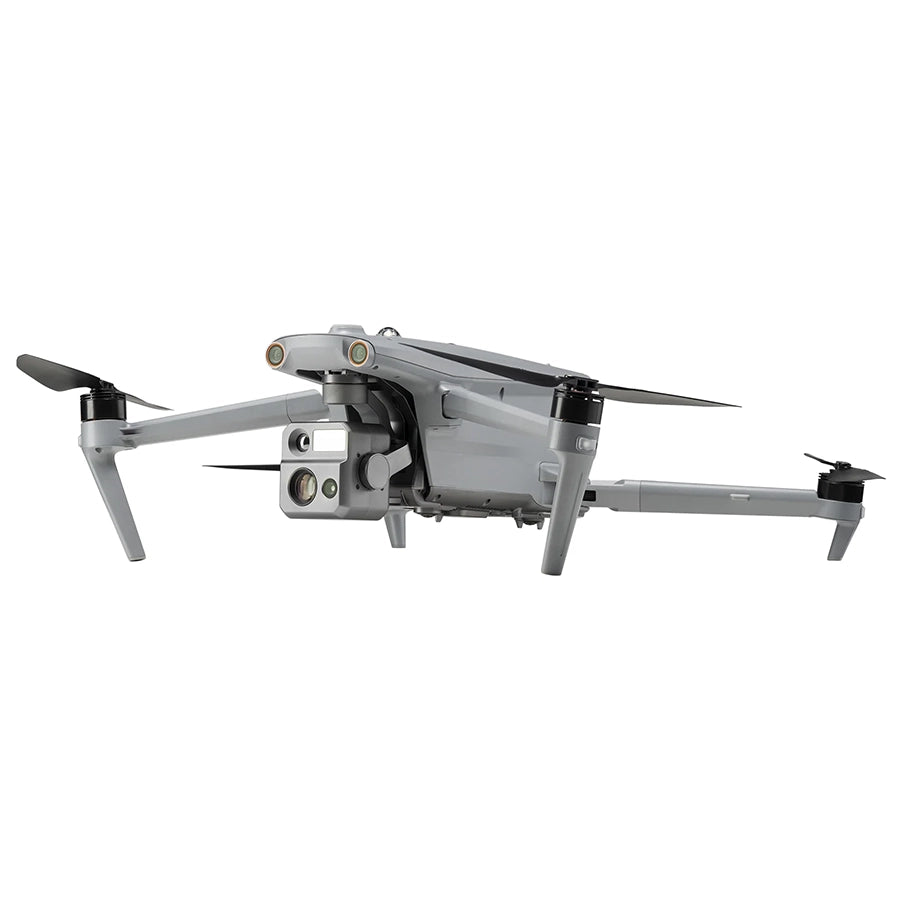

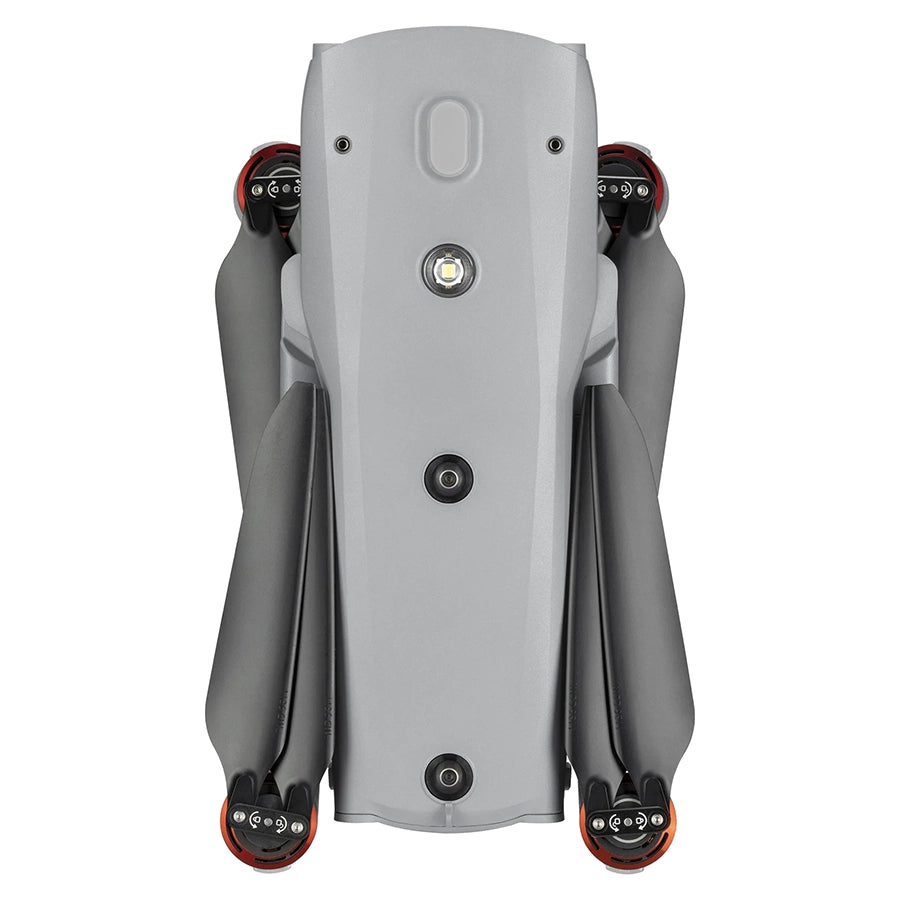

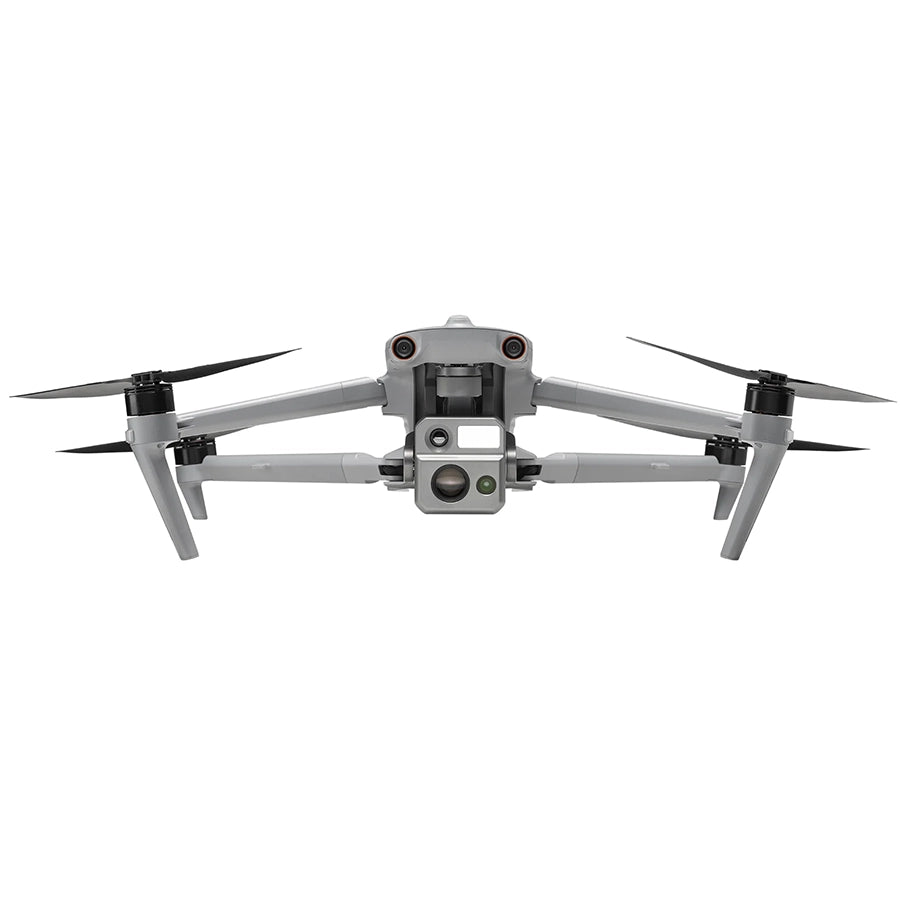

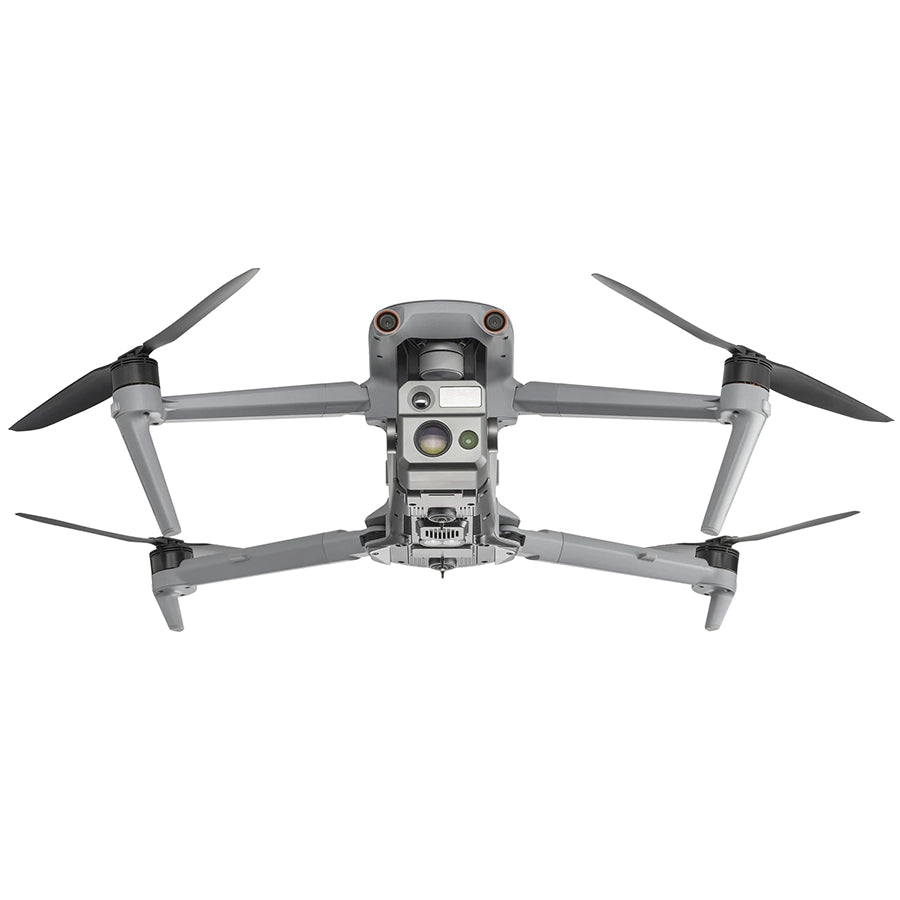

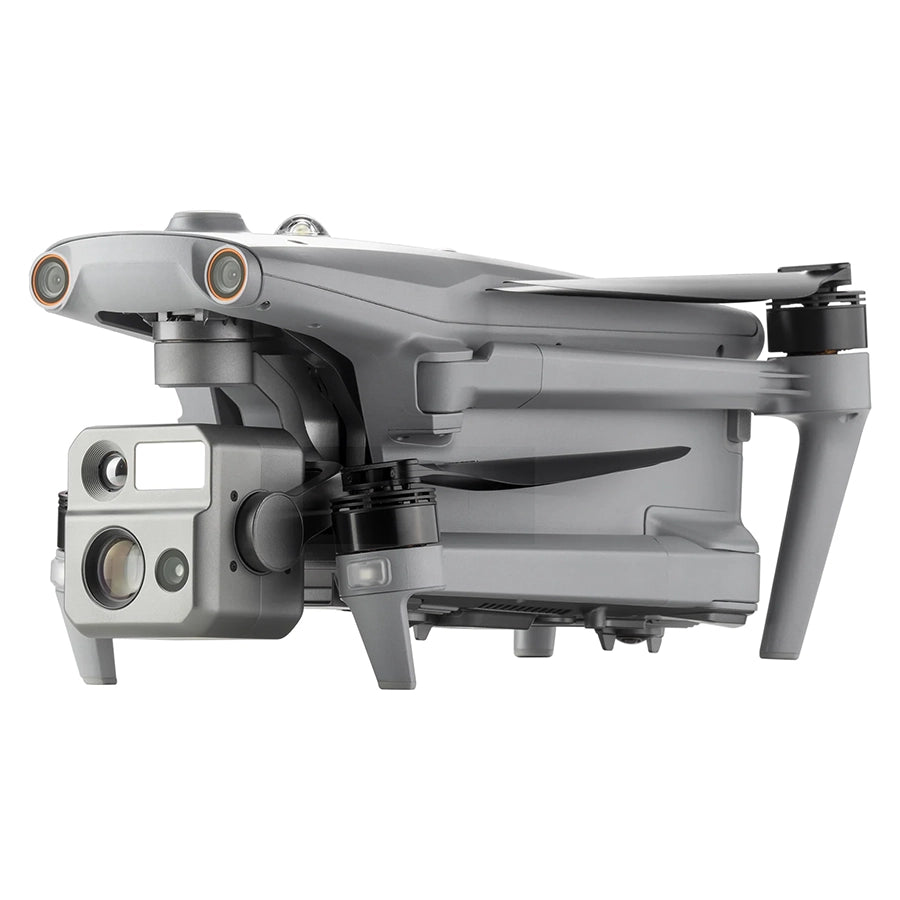

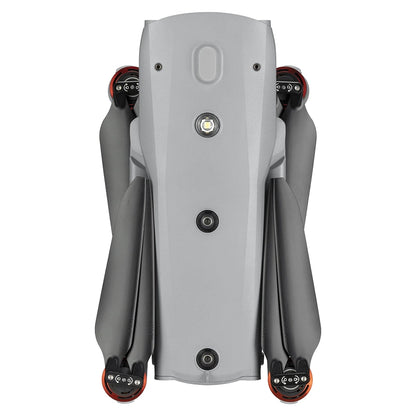

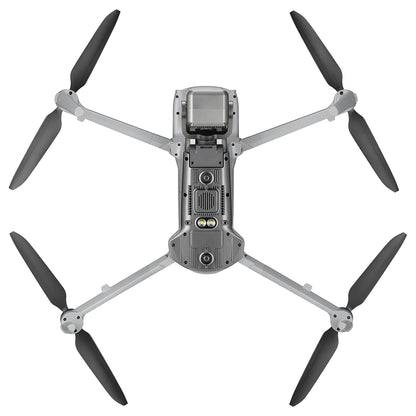

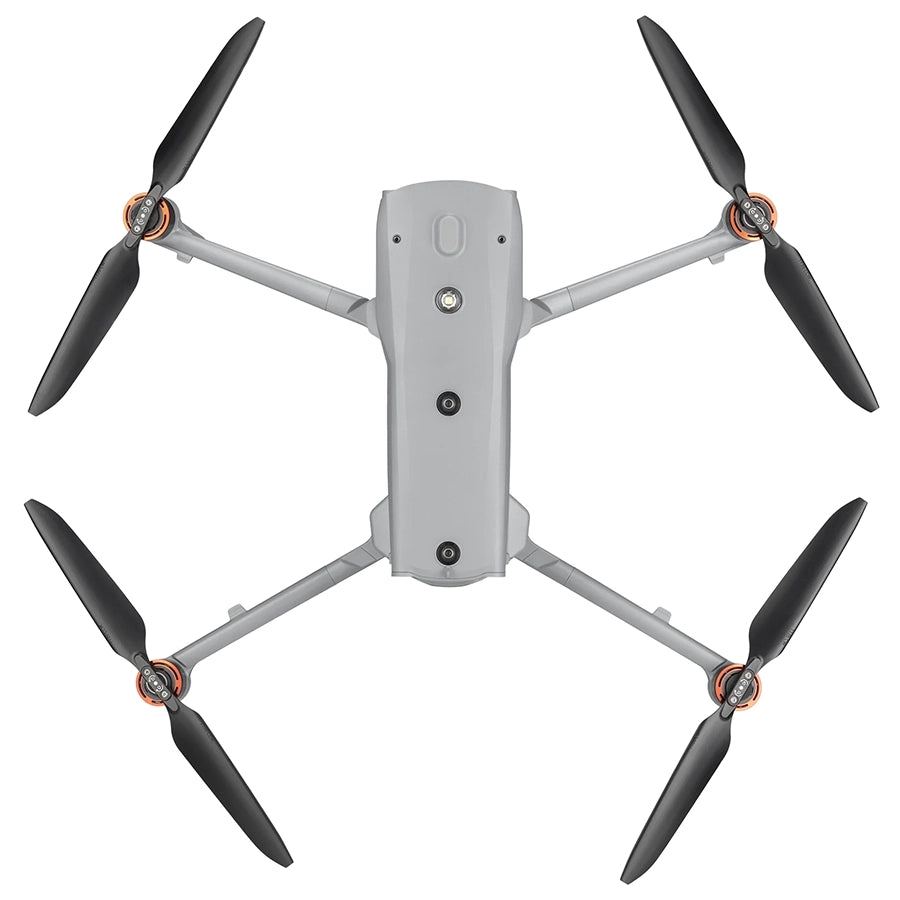

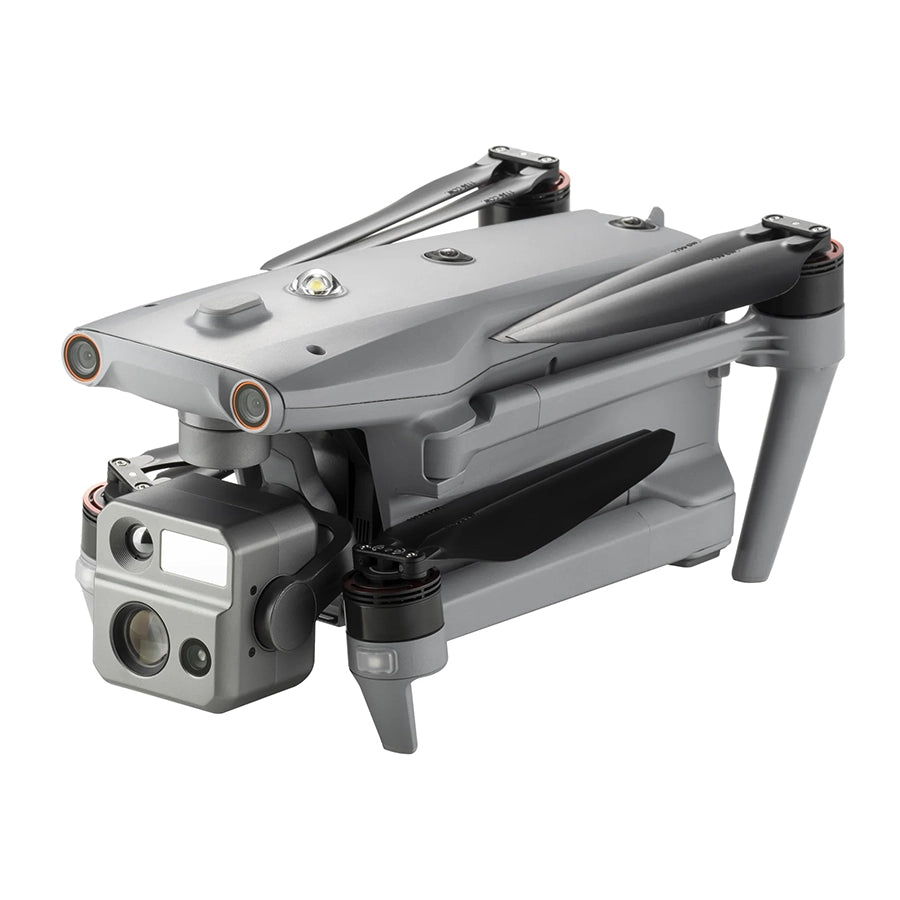

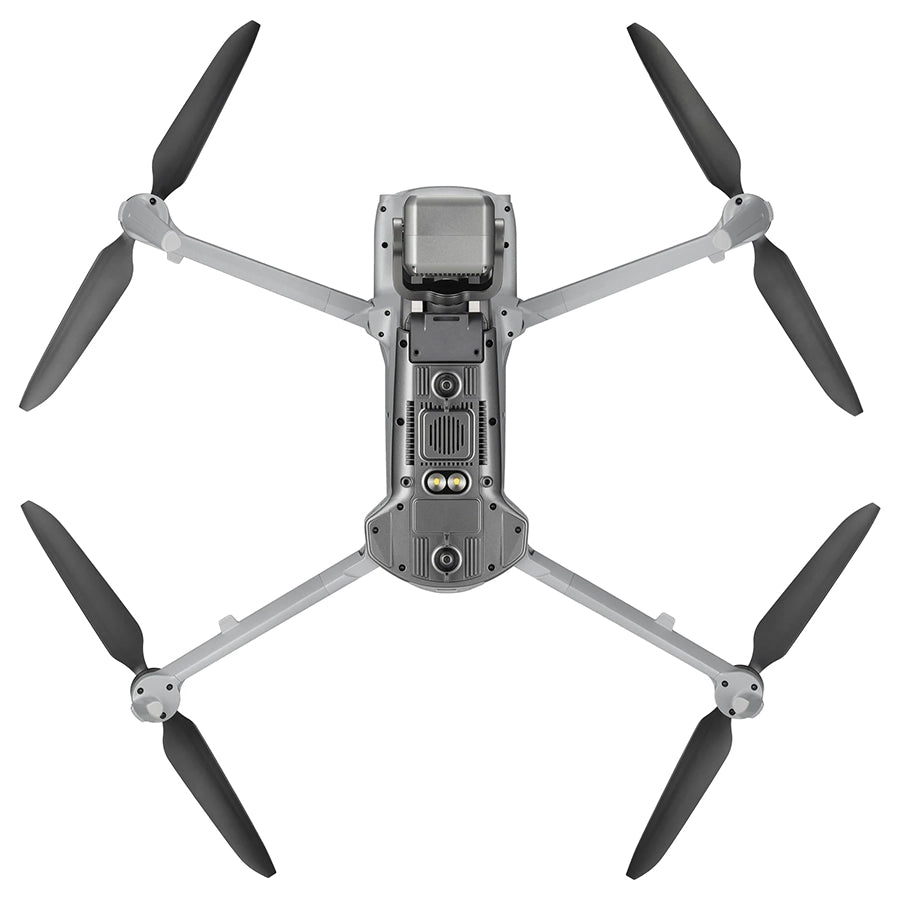

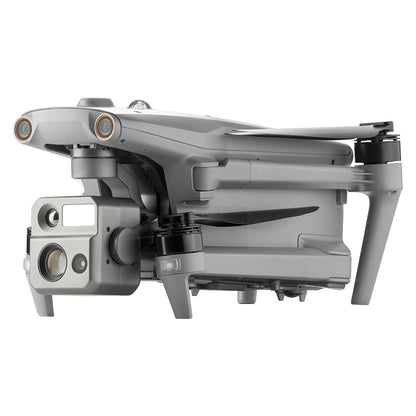

Autel EVO Max 4N Bundle
Overview:
The EVO Max 4N is a high-performance drone featuring a starlight camera for low-light visibility, a thermal camera, and a laser rangefinder for precise tracking. It boasts advanced autonomous navigation and 720° obstacle avoidance and operates effectively in GPS-denied areas. Enhanced by A-Mesh technology for drone networking and Autel SkyLink 3.0 for secure communications, the EVO Max 4N is ideal for complex, demanding environments.
Armed with 720-degree obstacle avoidance and A-Mesh 1.0 networking support, the EVO Max Series is the next generation of intelligent, agile drones. The EVO Max 4N represents a night-ops-ready entry into the series, equipped with its starlight night vision, zoom and thermal cameras, as well as full laser ranging capabilities.

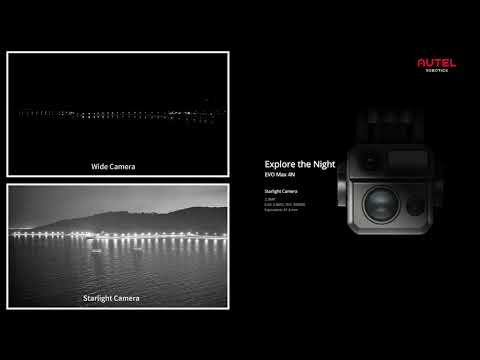

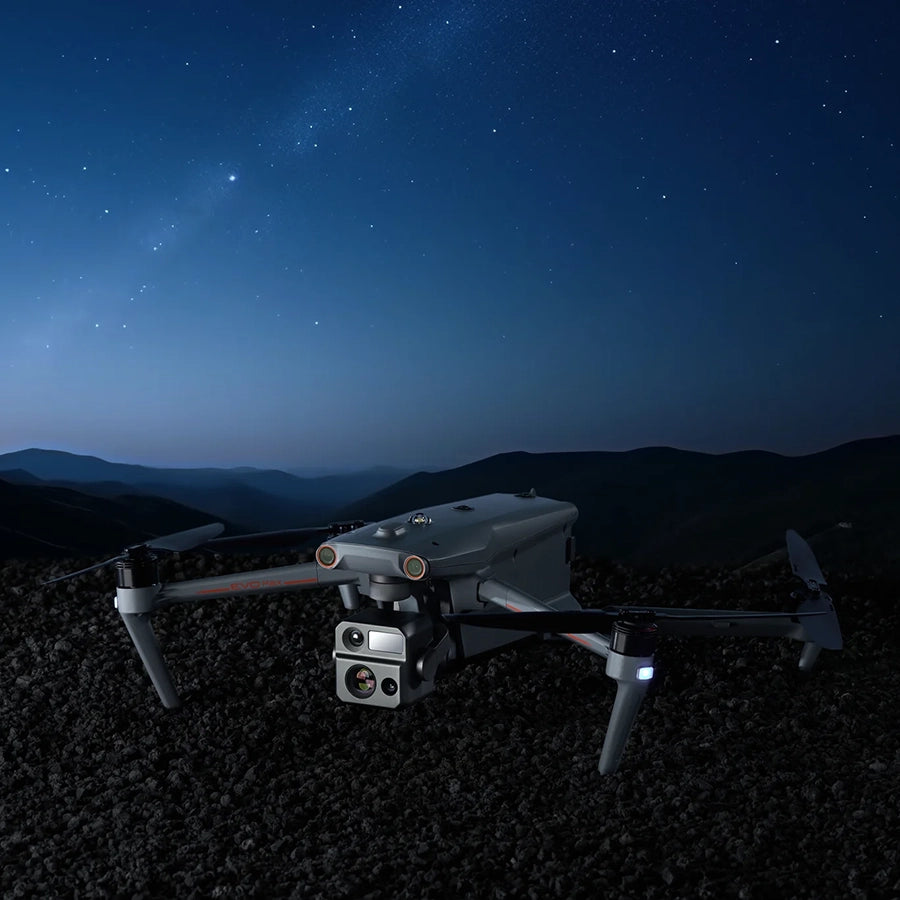

With its exceptional starlight camera, the drone can operate in lighting conditions as low as 0.0001 Lux, bringing unparalleled performance in the dark. Night surveys, emergency responses, and more - all possible with the EVO Max 4N.
Features:
- Starlight Night-Vision Camera — as low as 0.0001 LUX and ISO ranges from 100-450,000
- Lock Targets and Track at Night
- Autel SkyLink 3.0 | 12.4 miles Transmission Range
- 720° Obstacle Avoidance
- A-Mesh 1.0 | Mesh Networking Technology
- 3D Map Planning | Multiple Mission Types | Data Security
- Navigation in GPS Denied Environments
- 42 mins Max Flight Time

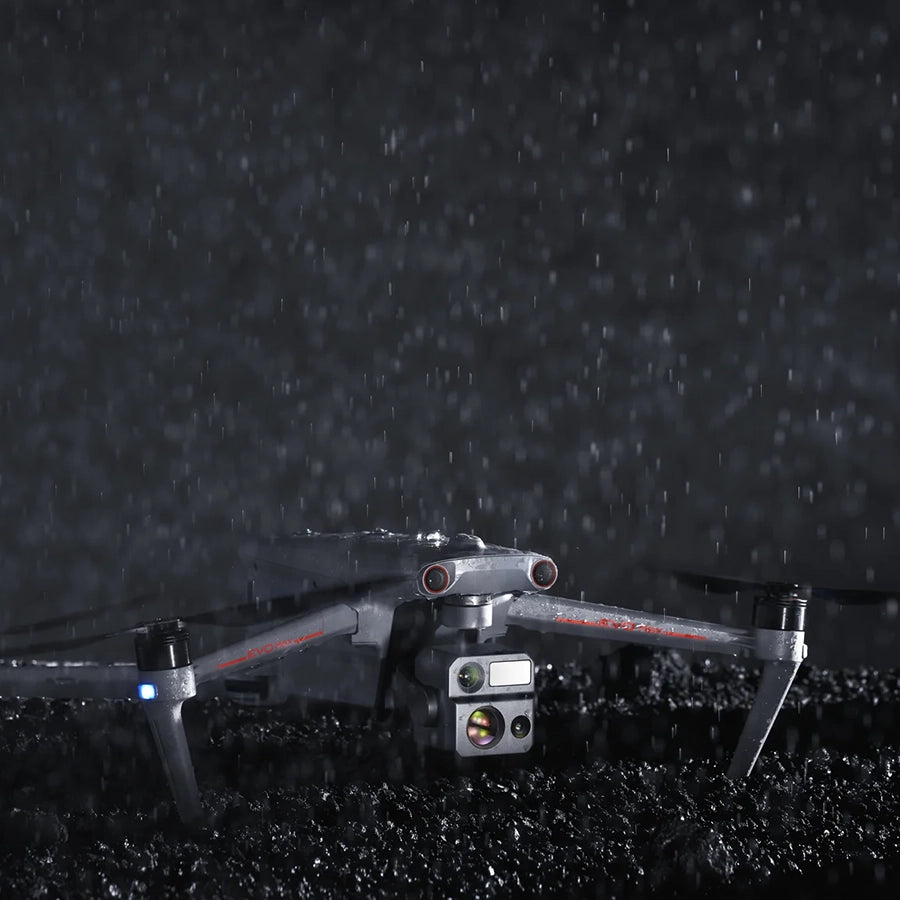

- IP43 ingress protection and -20° F～122° F temperature operation range

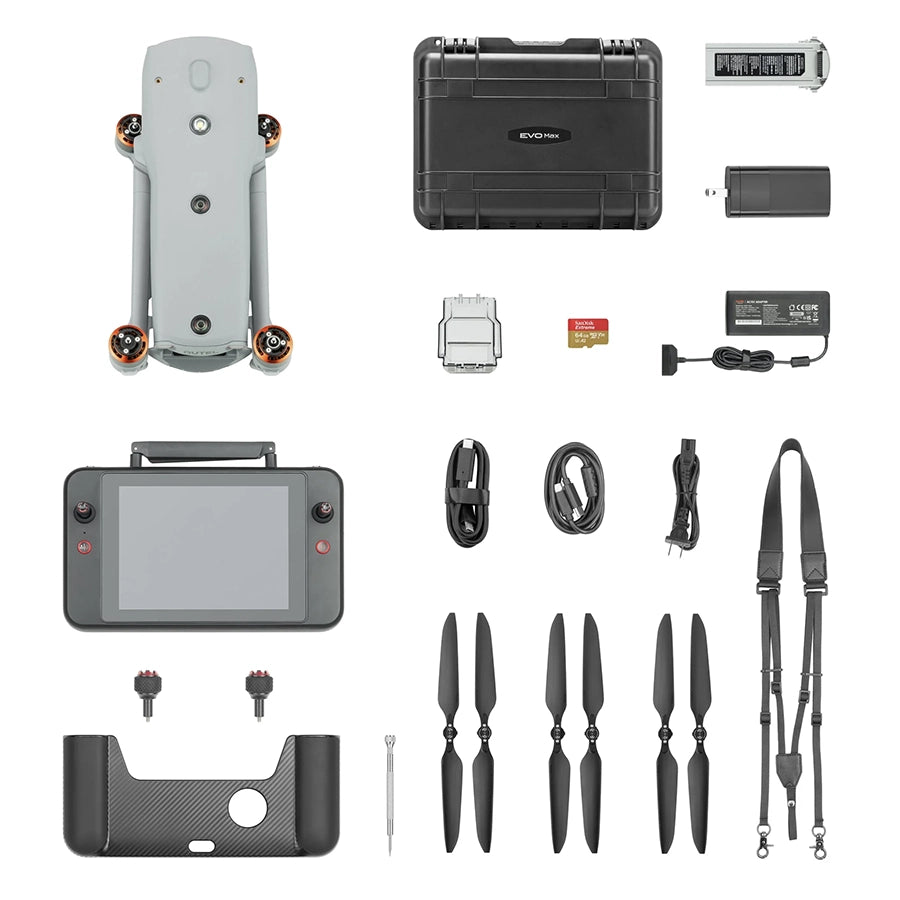

What's Included:
(1) Autel EVO Max 4N with Triple Sensor Payload
(1) Autel Max 4N Intelligent Flight Battery
(1) Autel Max 4N Battery Charger with Power Cable
(3) Autel Max 4N Propeller Pairs
(1) Autel Smart Controller V3 with Smart Controller Cover
(1) Autel Smart Controller Charger with USB Charging Cable
(1) Autel Smart Controller Lanyard
(1) Autel Max 4N Rugged Hard Case with Custom Foam
| Aircraft | |
| Weight: | 3.57 lbs (1620g, battery and gimbal included) |
| Max. Takeoff Weight: | 4.41 lbs (1999 g) |
| Dimensions: | 576×660×149 mm(fold, incl. propellers) 340×407×148 mm(fold, excl. propellers) 257×136×133 mm (unfold, excl. propellers) |
| Diagonal Wheelbase: | 464mm |
| Max Ascent Speed: | 8m/s |
| Max Descent Speed: | 6m/s |
| Max Horizontal Speed: | 23m/s (windless near sea level) |
| Maximum Takeoff Altitude: | 13,124 ft (4000m) |
| Max Flight Time (windless): | 42 mins |
| Max Hover Time (windless): | 38 mins |
| Max Wind Resistance: | 27mph (Takeoff and landing can withstand wind speeds up to 27 mph (12 m/s)) |
| IP Rating: | IP43 |
| Max Tilt Angle: | 35° |
| Max Angular Velocity: | Pitch: 300°/s; Yaw: 120°/s |
| Operating Temperature: | -20℃～+50℃ |
| Operating Frequency: | 2.4G/5.2G*/5.8G/900MHz* *5.2GHz is only applicable for FCC, CE, and UKCA regions. 900MHz is only applicable for FCC regions. |
| GNSS: | GPS+Galileo+BeiDou+GLONASS |
| Transmitter Power (EIRP): | 2.4GHz: <33dBm（FCC）, <20dBm(CE/SRRC/MIC) 5.8GHz: <33dBm(FCC), <30dBm(SRRC), <14dBm(CE) 5.15-5.25GHz: <23dBm (FCC/SRRC/MIC) 5.25-5.35GHz: <30dBm(FCC), <23dBm (SRRC/MIC) |
| Hovering Accuracy: | Vertical: ±0.1 m (Vision System enabled); ±0.5 m (GNSS enabled); ±0.15 m (RTK enabled); Horizontal: ±0.3 m (Vision System enabled); ±0.5 m (GNSS enabled); ±0.1 m（RTK enabled）； |
| Gimbal | |
| Mechanical Range: | Pitch: -135° to 45° Roll: -45° to 45° Yaw: -45° to 45° |
| Controllable Range: | -90° to 30° |
| Stable system: | 3-axis mechanical gimbal (pitch, roll, pan) |
| Max. Control Speed (pitch): | 200º/s |
| Angular Vibration Range: | <0.005° |

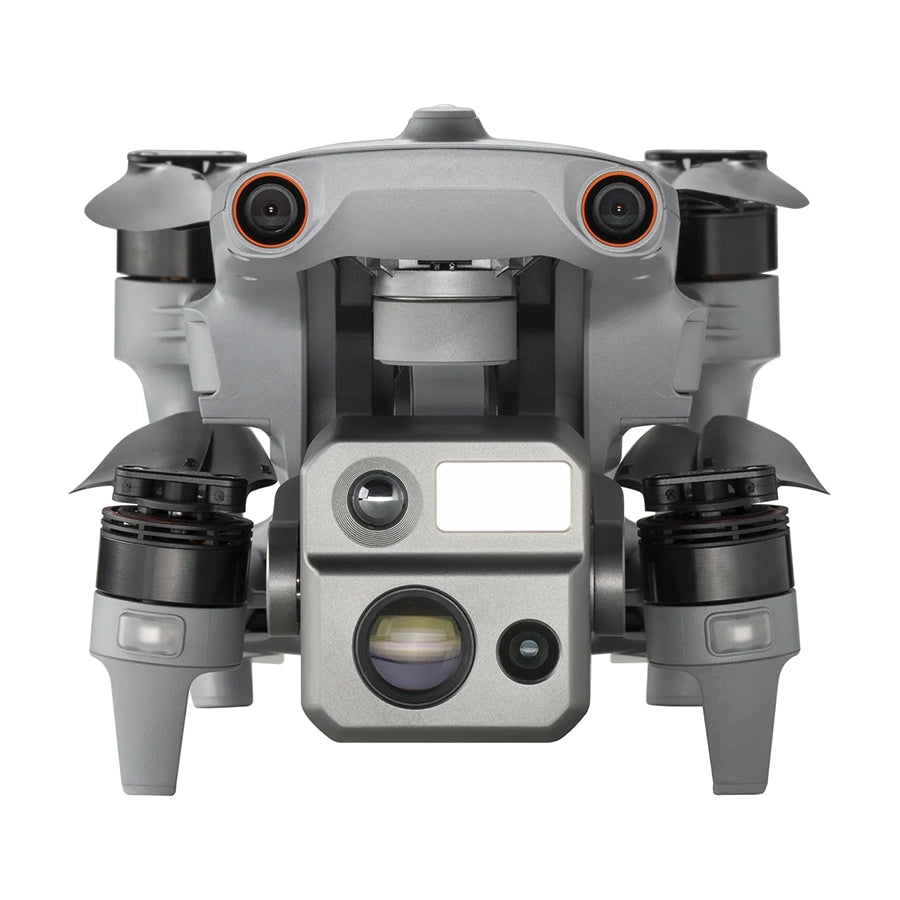

| Starlight Camera | |
| Sensor: | Effective Pixels: 2.3M |
| Lens: | Focal length: 35mm (equivalent: 41.4mm) Zoom Range:1-8×(synced zoom supported) Exposure Compensation ±3EV 0.3EV/step |
| ISO Range: | Auto:IOS100-ISO450000 Super Sensitive Mode:Auto IOS100-ISO450000 |
| Electronic Shutter Speed: | Photo: 8s ~ 1/8000 Video: 1s ~ 1/8000 |
| Max Photo Size: | 8000×6000 |
| Max. Video Resolution: | 7680×4320 |
| Wide Camera | |
| Sensor: | 1/1.28 CMOS, Effective pixels: 50M, Night mode: 12.50M |
| Lens: | DFOV：85° Focal length: 4.5 mm (equivalent: 23 mm) Aperture: f/1.9 |
| AF motor: | 8-wire SMA, PDAF focus |
| Exposure Compensation: | ±3EV 0.3EV/step |
| ISO Range: | Auto: Photo: ISO100~ISO6400 Video: ISO100~ISO64000 (Night mode: up to ISO64000) Manual: Photo: ISO100~ISO12800 Video: ISO100~ISO6400 |
| Electronic Shutter Speed: | Photo: 8s ~ 1/8000 Video: 1s ~ 1/8000 Max. Video Resolution: 3840×2160 |
| Photo Size: | 8192×6144 4096×3072 |
| Thermal Camera | |
| Thermal Imager: | Uncooled VOx Microbolometer |
| Lens: | DFOV: 61° Aperture: 9.1mm Focus: f/1.0 |
| Infrared Temperature Measurement Accuracy: | 26.6~37.4 ℉ or reading ±3% (using the larger value) @ambient temperature -4℉ to 140℉ |
| Video Resolution: | 640×512 |
| Photo Size: | 640×512 |
| Pixel Pitch: | 12 um |
| Temperature Measurement Method: | Center measurement, pot measurement, Rectangular measurement |
| Temperature Measurement Range: | -4℉ to 302℉, 32℉ to 1022℉ (-20°C to 150°C, 0 to 550°C) |
| Temperature Alert: | High and low temperature alarm thresholds, reporting coordinates and temperature values |
| Palette: | White Hot/Black Hot/Searing/Rainbow/Grey/Ironbow/Cold and Hot |
| Laser Rangefinder | |
| Measurement Accuracy: | ±1m |
| Measuring Range: | 1.2km |
| Image Transmission | |
| Operating Frequency: | 2.4G/5.2G*/5.8G/900MHz* *5.2GHz is only applicable for FCC, CE, and UKCA regions. 900MHz is only applicable for FCC regions. |
| Max Transmission Distance: | 20km (FCC), 8km (CE) (unobstructed, free of interference) |
| Independent Networking: | 7.9-inch Smart Controller |
| Transmitter Power (EIRP): | 2.4GHz: <33dBm（FCC）, <20dBm(CE/SRRC/MIC) 5.8GHz: <33dBm(FCC), <30dBm(SRRC), <14dBm(CE) 5.15-5.25GHz: <23dBm (FCC/SRRC/MIC) 5.25-5.35GHz: <30dBm (FCC), <23dBm (SRRC/MIC) |
| Autonomy | |
| Non-GPS Hovering and Manual Flight: | Indoor: Horizontal error ≤3cm （At least have texture at one direction） Outdoor: Daytime: Within 500m flight height, horizontal error <0.01×height Night: Manual flight is controllable within 100m flight height |
| Non-GPS Return-to-Home: | Within 500m flight height, horizontal error of Return-to-Home point < 30cm |
| Automatic Obstacle Rerouting: | High Speed Obstacle Rerouting: Flight speed up to 45mph(20m/s) when Min. safety distance to obstacle is 4.9ft (1.5m) High Precision Obstacle Rerouting: Flight speed could reach 6.7mph(3m/s) when Min. safety distance to obstacle is 1.6ft (0.5m) |
| Multi-target Recognition and Tracking: | Target identification types: people, vehicles, boats Number of targets detected: 64 |
| Comprehensive recognition accuracy: | >85% |
| Millimeter-wave Radar Sensing System | |
| Frequency: | 60Ghz~64Ghz* |
| Size: | 1.5×0.55×0.08 in （L×W×H） |
| Weight: | 0.07oz (2g) |
| EIRP: | 18dBm |
| Sensing Range: | Upward: 5.9~787.4in (0.15~20m) Downward: 3.9~4724.4in (0.1~120m) Forward and Backward (Standard/Comfortable): 0.82~98.43ft (0.25~30m) Forward and Backward（Ludicrous）: 1.64~196.85ft (0.5~60m) |
| FOV: | Horizontal（6dB）：±60°，Vertical（6dB）：±30° |
| Speed Measurement Range: | ± 134mph (60m/s) |
| Speed Measurement Accuracy: | ≤1% |
| Max. Target Detection Number: | 32 |
| Visual Sensing System | |
| Obstacle Sensing Range: | Forward/Upward/Downward/Backward/Sideward: 0.2~50m |
| FOV: | Forward/Backward/Sideward: 60°(H)，80°(V) Upward/Downward: 360°(H)，190°(V) |
| Controller | |
| Screen: | 7.9 inch, 2000 nits max. brightness, 2048×1536 resolution |
| External Battery: | Capacity: 5800mAh Voltage: 11.55V |
| Battery Type: | Li-on |
| Energy: | 67Wh |
| Charing time: | 120mins |
| Intelligent Lithium Ion Battery | |
| Operating Time: | 3 hours (Max. brightness) 4.5 hours (50% brightness) |
| Max Transmission Distance (with interference): |
FCC: 20km CE: 8km |
| IP Rating: | IP43 |
| Storage: | 128G |
| GNSS: | GPS+GLONASS+Galileo+Beidou+NavIC+QZSS |
| Operating Temperature: | -20℃ to 40℃ |
| WIFI | |
| Protocol: | WiFi Direct, Wi-Fi Display, 802.11a/b/g/n/ac Support 2 x 2 MIMO Wi-Fi |
| Operating Frequency: | 2.400 - 2.4835 GHz； 5.150 - 5.250GHz； 5.725 ‒ 5.850 GHz |
| Transmitter Power (EIRP): | 2.400 - 2.4835 GHz FCC/CE: ≤20dBm 5.150 - 5.250GHz FCC: ≤17dBm 5.725 ‒ 5.850 GHz FCC: ≤17dBm CE: ≤14dBm |
| Battery | |
| Capacity: | 8070mAh |
| Voltage: | 14.88V |
| Battery Type: | LiPo 4S |
| Energy: | 120wh |
| Net Weight: | 520g |
| Charging Temperature: | 5ºC to 45ºC(When the temperature is lower than 10° C (50° F), the selfheating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery) |
| Hot Swap: | Supported |
