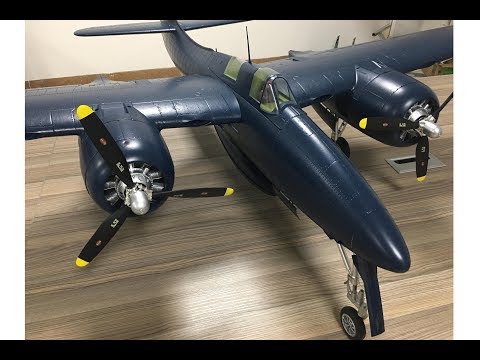

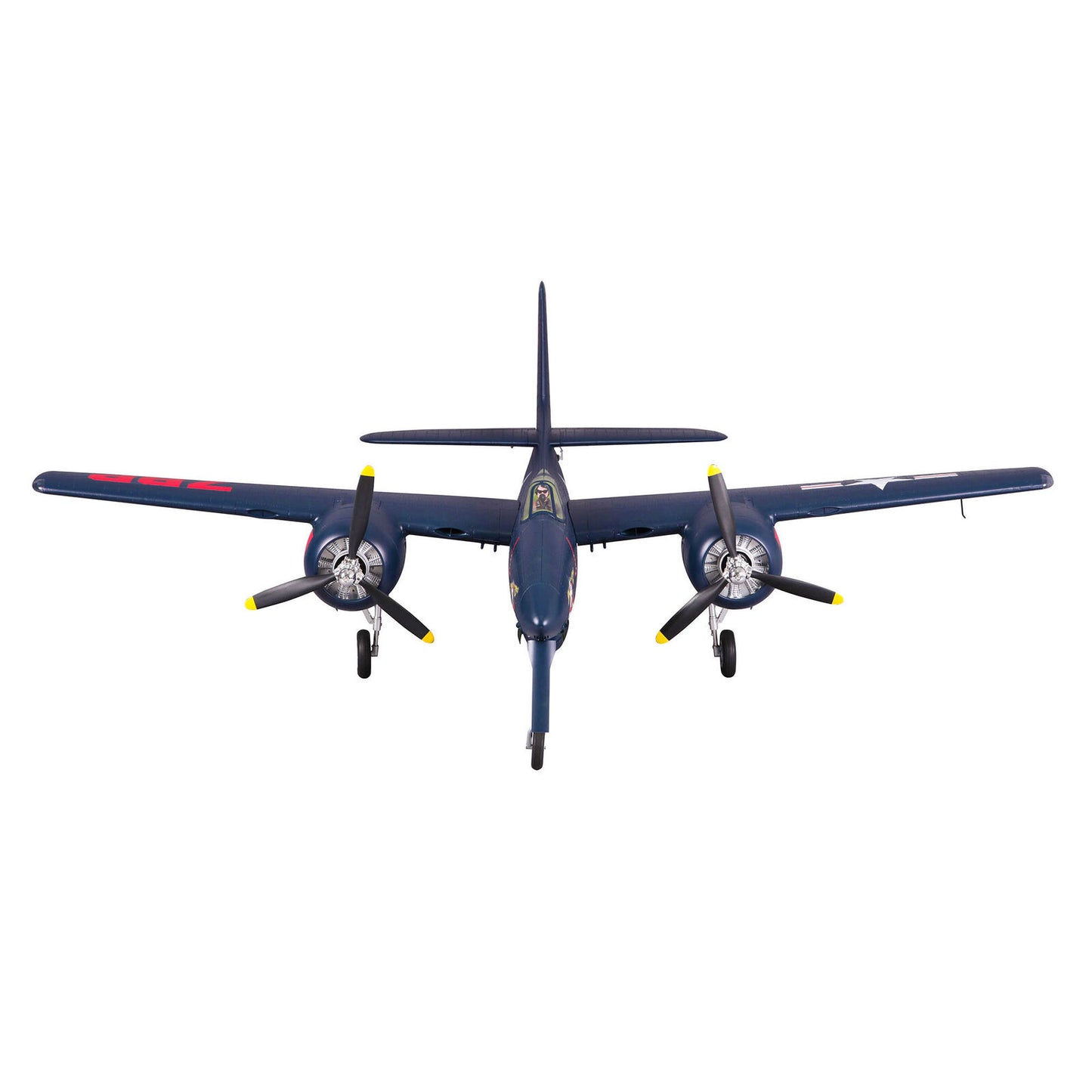

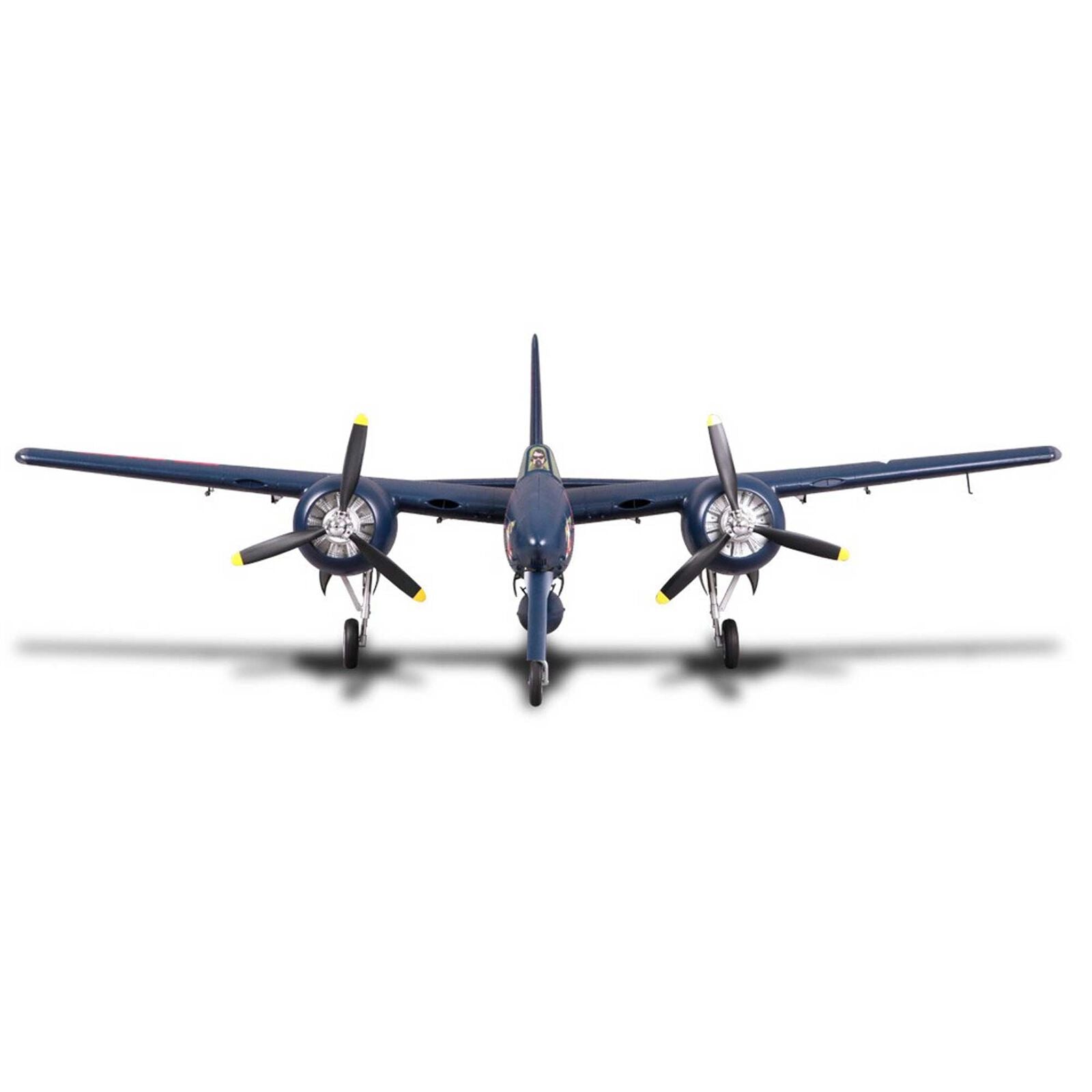

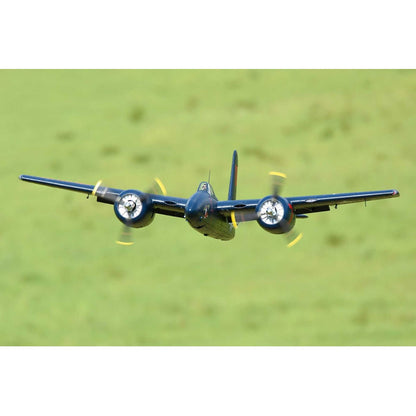

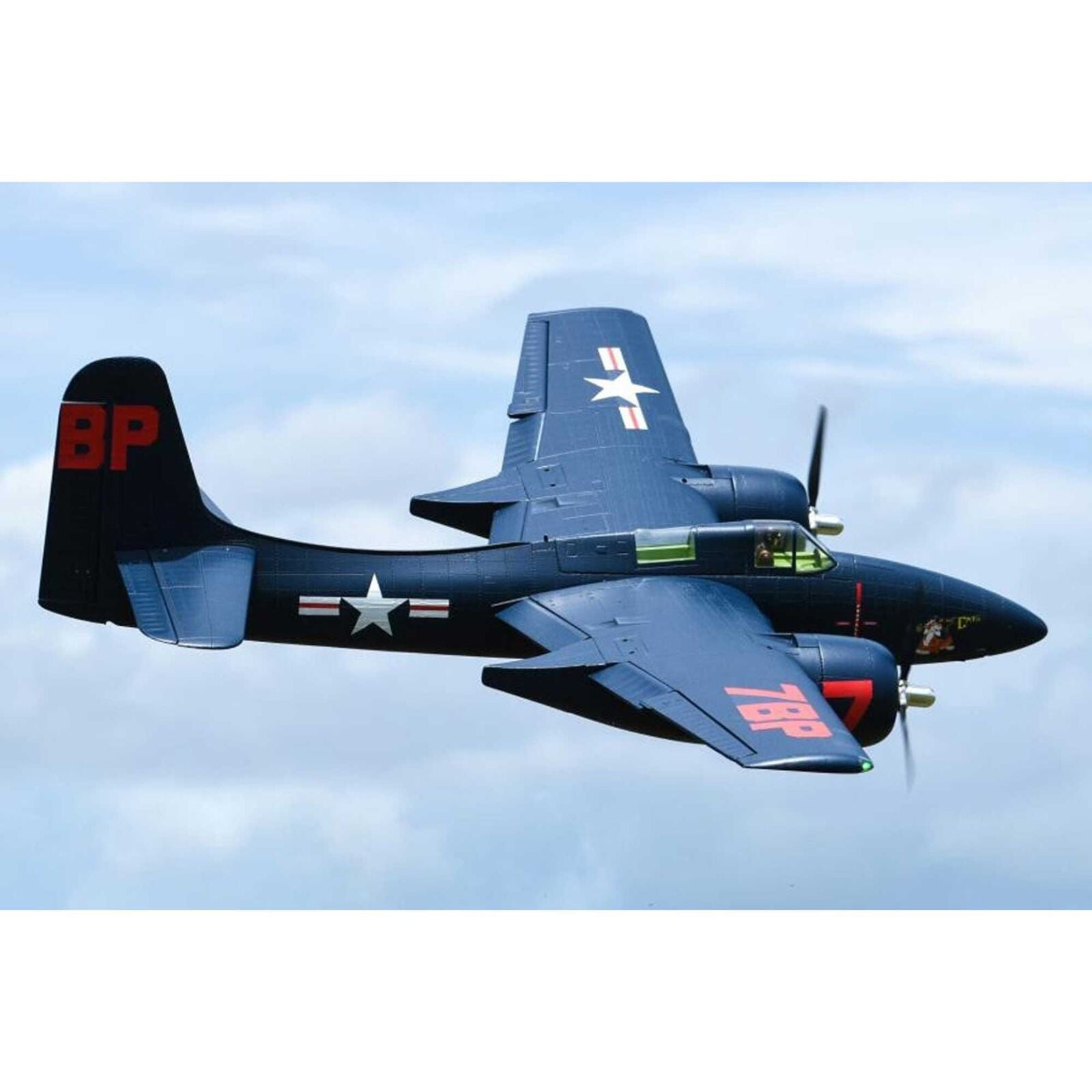

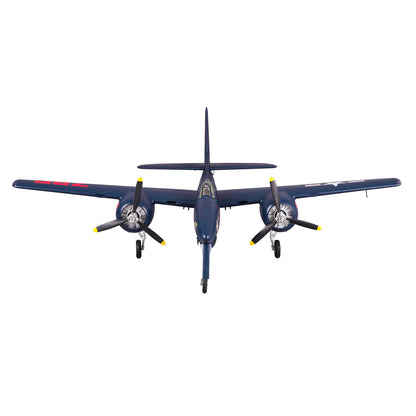

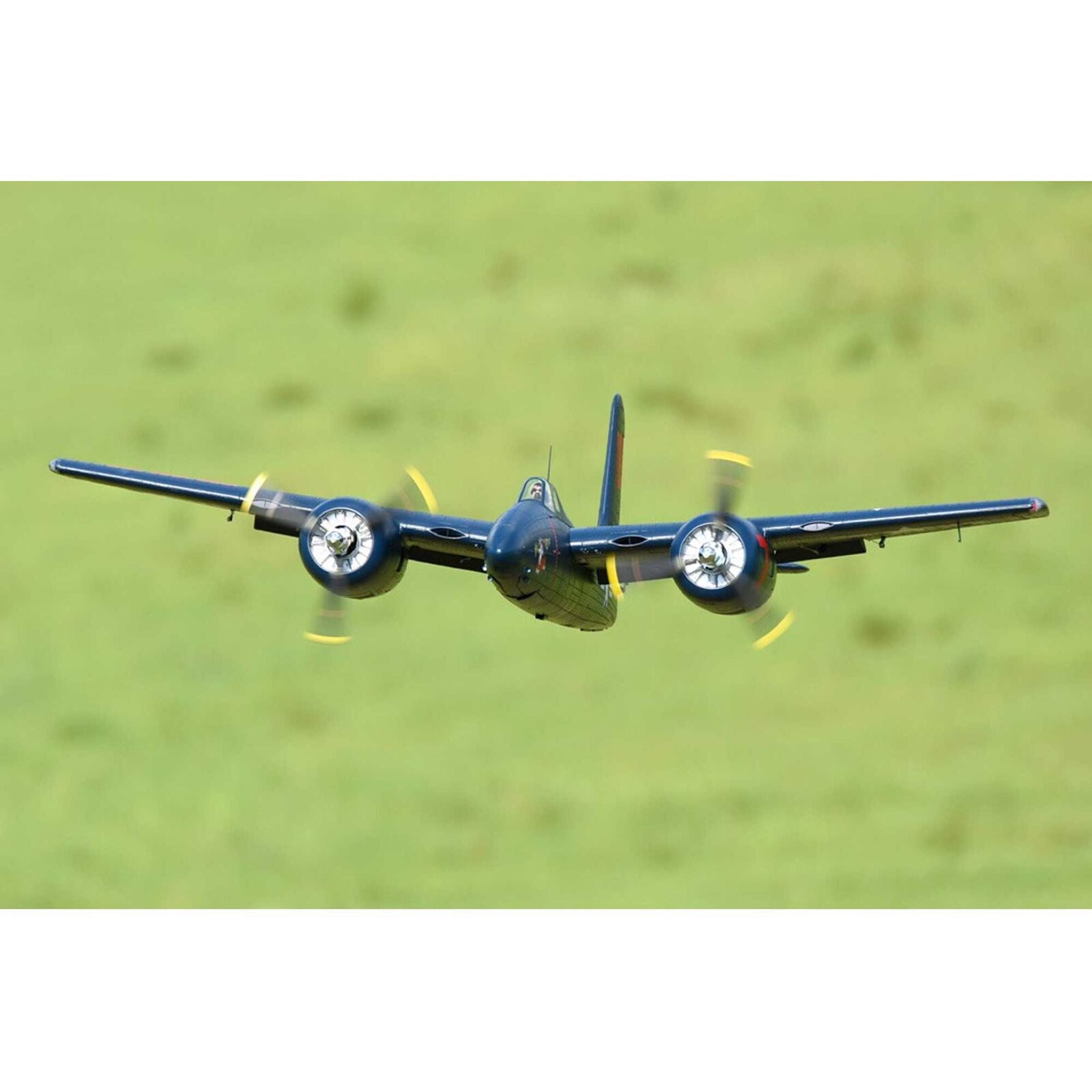

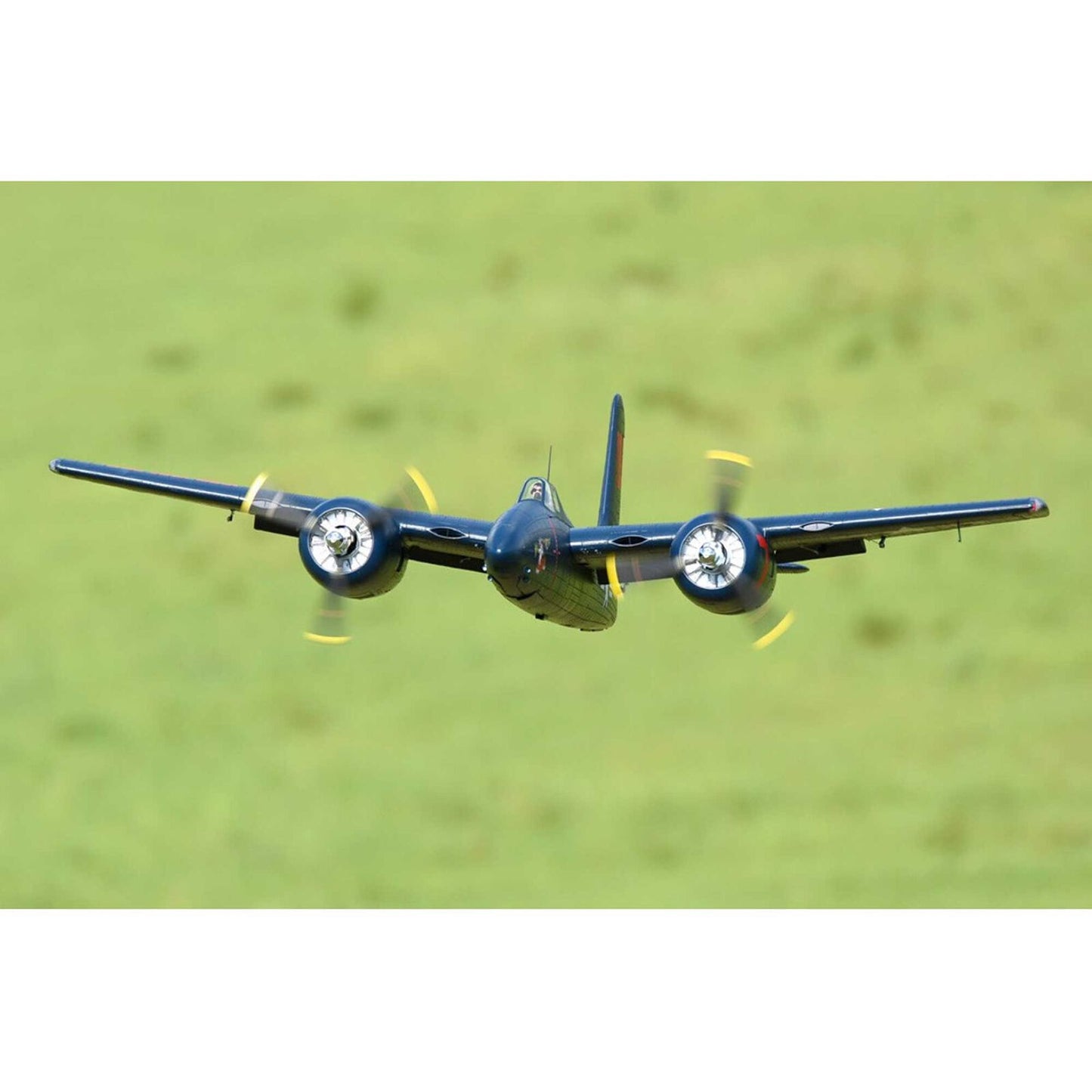

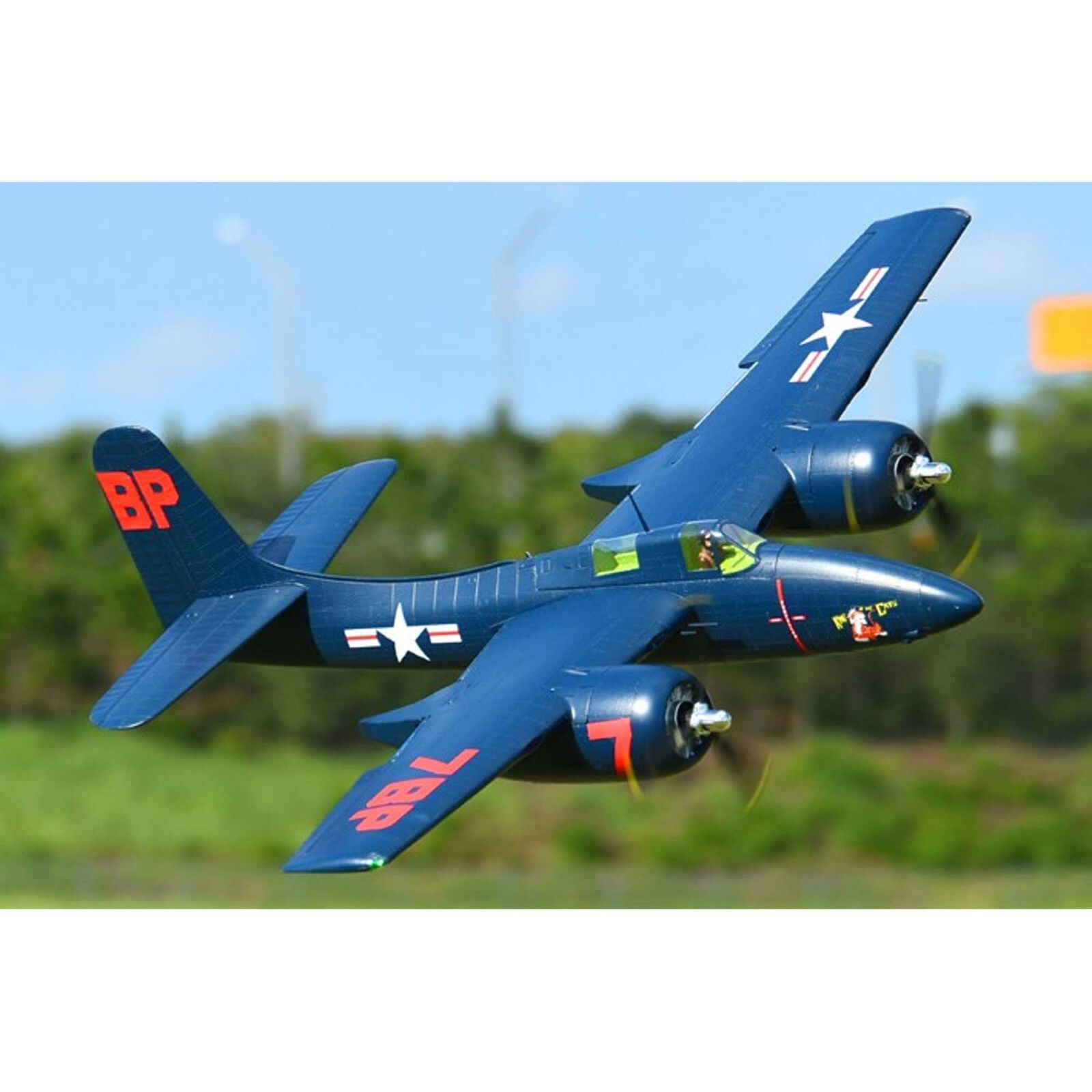

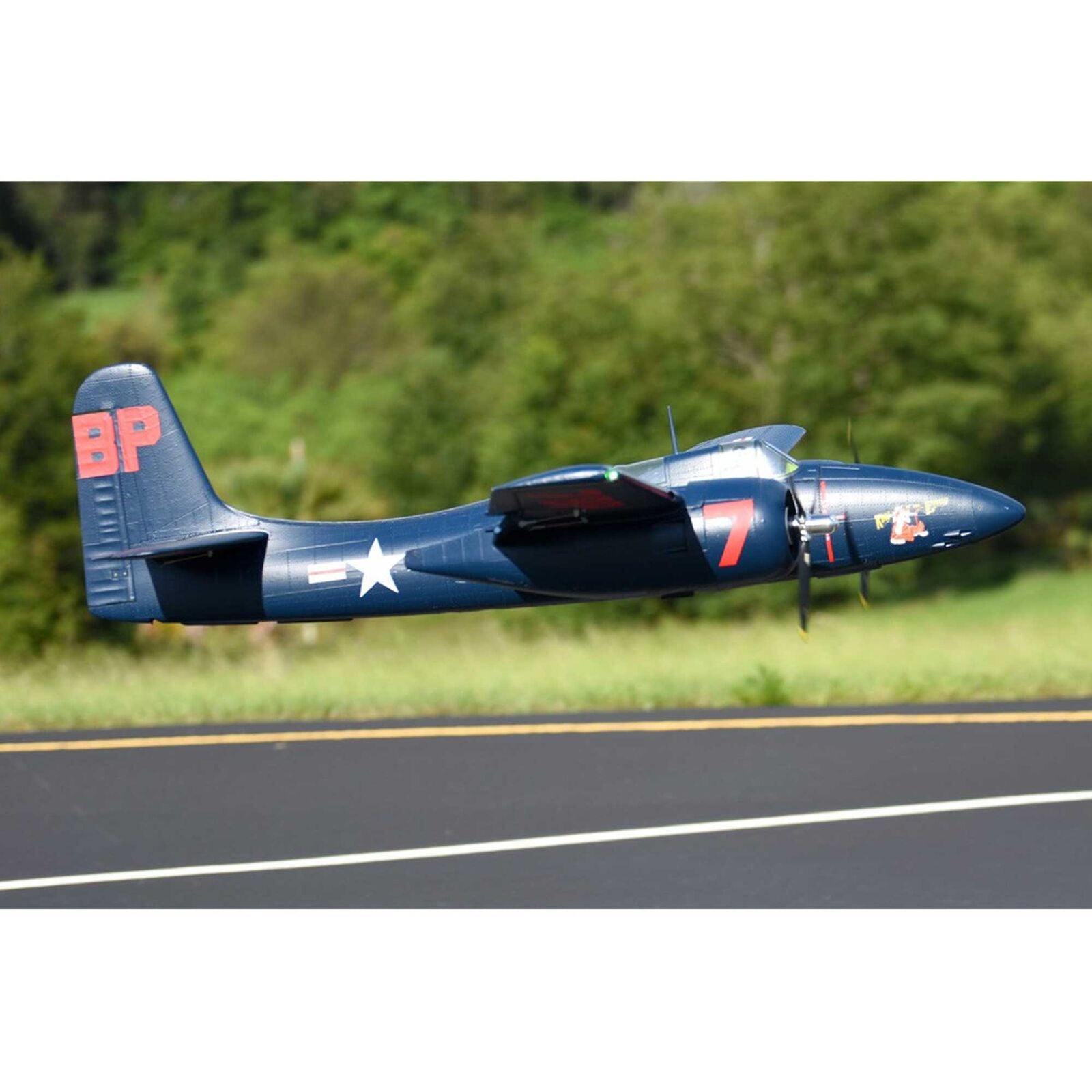

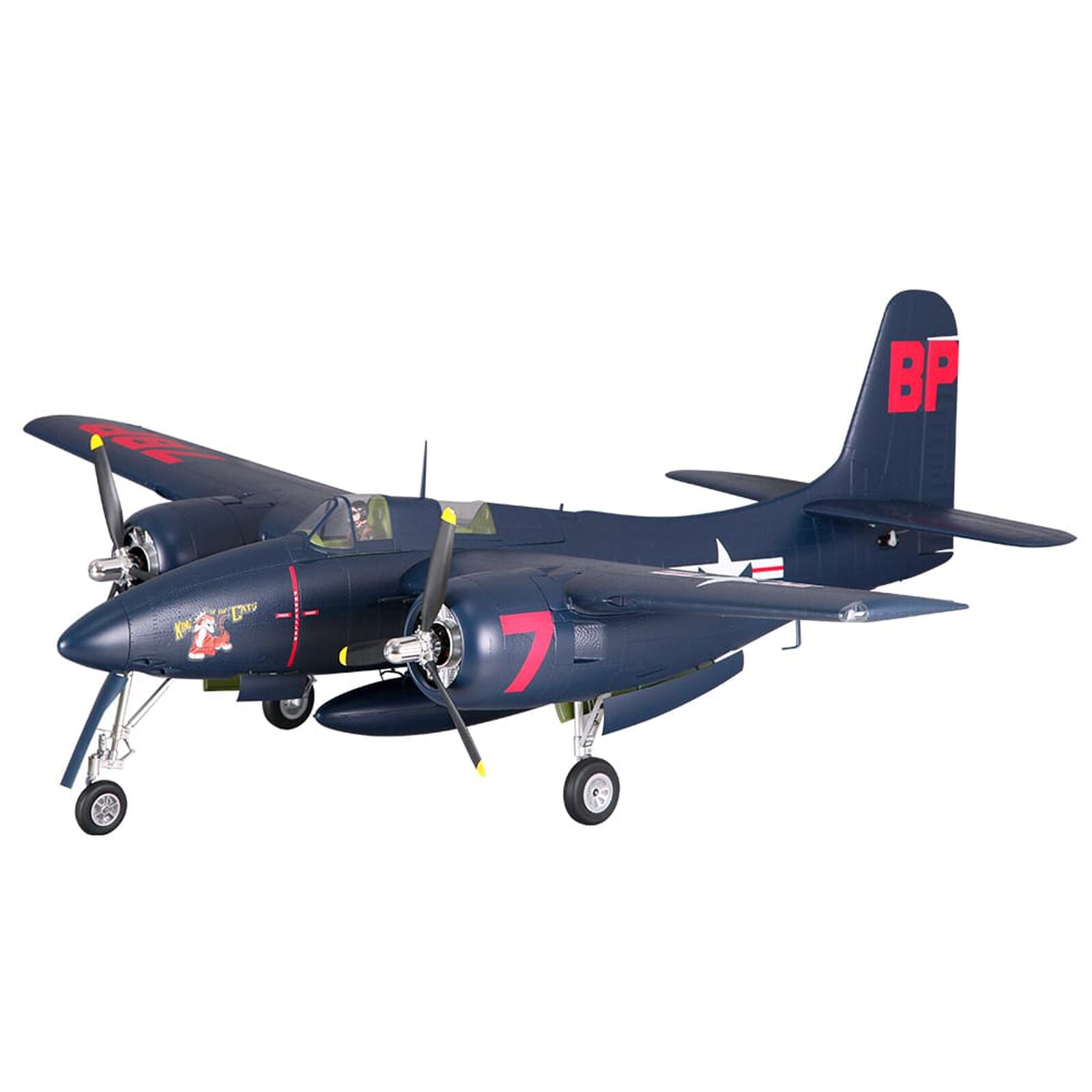

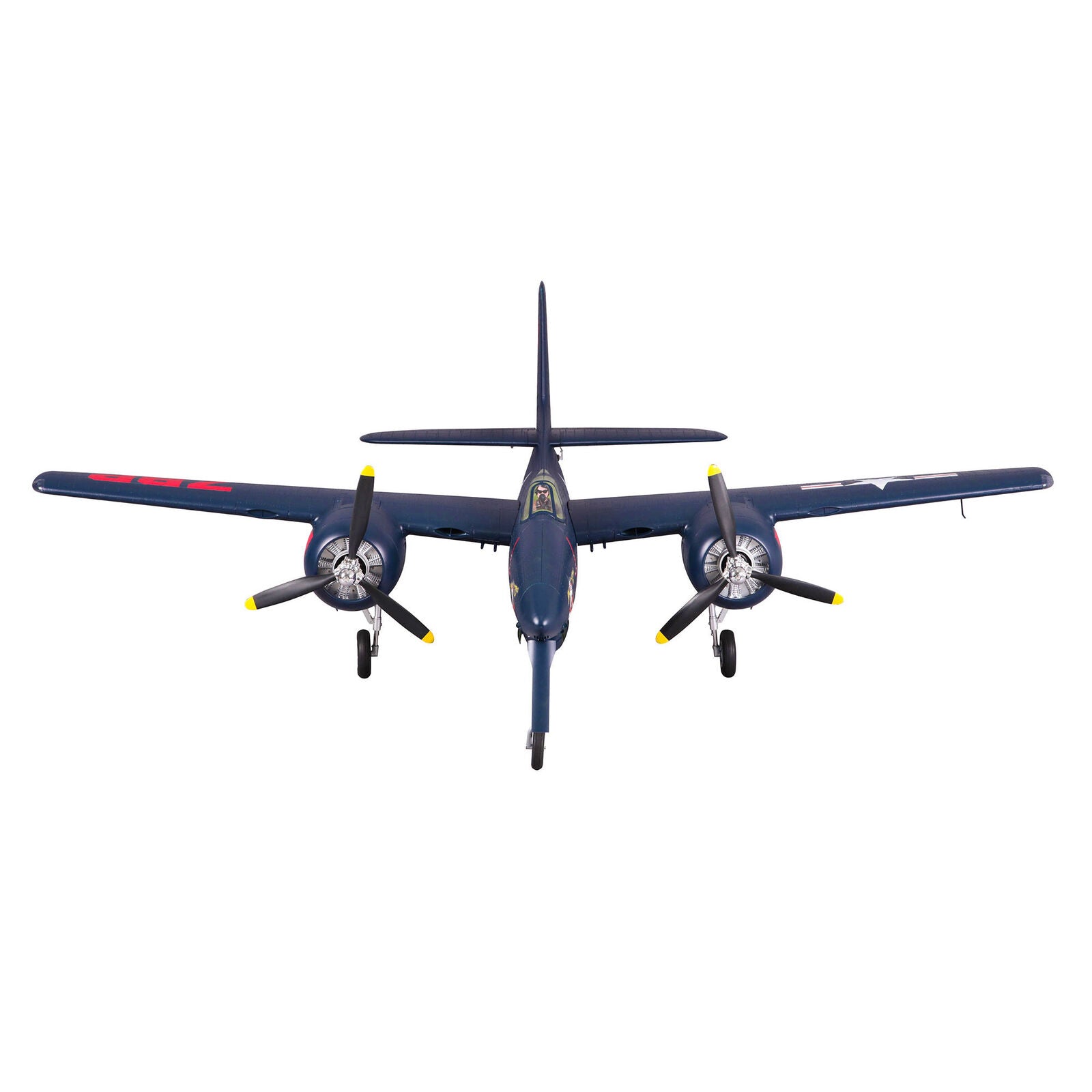

FMS F7F Tigercat 1700mm Blue PNP w/Reflex V2(SO)

F7F Tigercat 1700mm PNP with Reflex, Blue

Overview:
The FMS 1700mm Tiger Cat pools the best structural features from FMS’ classic works. It adopts the popular quick and easy assembly and disassembly structure. Screws do all assembly and disassembly work. In addition, with the latest multi-connect technology, FMS has streamlined the wing system, eliminating the wiring problems, and making it easier to install and dismantle in a short time. The well-designed battery compartment makes full use of airframe space, allowing for higher-storage batteries and more flying choices.

FMS’ warbirds are always attractive, no matter from the perspective of scaled appearance, or from excellent performance. This also applies to the Tiger Cat.

The Tiger Cat features the latest locked-rotor mode E-retract system with overcurrent protection. It also features The refined scaled CNC-processed metal landing gear set (certainly the most notable feature is that this is the most accurately scaled landing gear set FMS have ever created) for resisting those not-too-perfect landings, a 62mm diameter front wheel, and 84mm diameter rear wheels for taking off and landing on both paved and grass surfaces. The power system utilizes twin 4250-KV440 outrunner motors, twin 60A ESC (with 10A UBEC), providing surging power for scaled aerial combat maneuvers when coupled with a 6S 5000mAh 45C battery.

The Tiger Cat has a scaled appearance, with scaled plastic parts throughout the body, e.g. landing gear door, cowl, artificial engine, and machine guns. Couple that with the detailed all-around rivets, panel lines, pilot figure, high bright LED lamps, a CNC-processed shock-absorbed metal landing gear set, the Tiger Cat is reproduced flawlessly. Not only that, but also the four sets of decals in the package (blue color scheme only) allow you to make your own Tiger Cat and stand out in your airfield.

It is more than an RC model, it is one for the collectors. Go get the FMS 1700MM “Tiger Cat” to experience its magnificence.

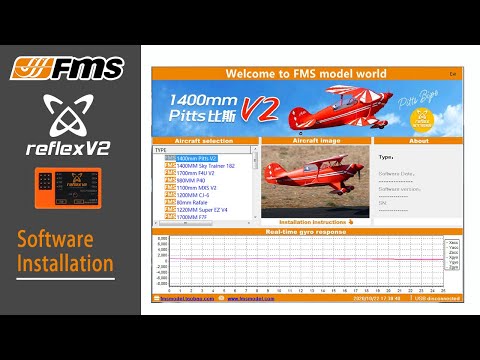

Complete System Upgrade - Reflex V2 is Compatible with Most FMS Aircraft The Reflex V2 is a user-upgradeable flight controller. Reflex V2 can be reprogrammed easily with different model files via a simple software - allowing pilots to use the same flight control unit as they progress to different aircraft. Flying is simple when you have your very own “co-pilot” — the Reflex V2!

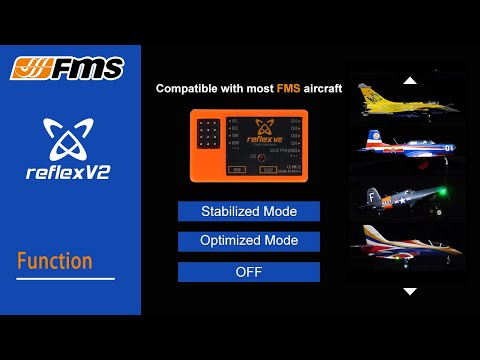

Reflex Functions Three flight modes are available: Stabilized, Optimized or Off. This is controlled with a two or three position switch on the transmitter. When assigned to a two position switch, the Reflex system changes between stabilized and optimized modes.

Stabilized mode: Designed for beginners, Reflex will rapidly level the aircraft from any attitude when this mode is activated. Stabilized mode combines accelerometer and gyro data to determine how to level the aircraft when the control sticks are released - giving pilots absolute peace of mind. Note: The aircraft will maintain level flight with 50-60% throttle, and the aircraft will climb under full throttle.

Optimized mode: Utilizing advanced solid-state gyros, the Reflex system maintains aircraft attitude by counteracting inflight upsets - for gusts to crosswinds. With Reflex, even small aircraft will fly with the confidence of something much larger!

Off: Turns off all gyro functionality, the aircraft is flown completely manually when the gyro is off.

Features:

• Powerful twin KV440 motors with twin Predator 60A ESC (with 10A UBEC)
• The latest locked-rotor mode E-retract with overcurrent protection
• Large bearings in wheel hub for better performance
• Multi-connector for one-step installation
• Metal-gear digital servos for excellent controlling capacity
• A 62mm diameter front wheel and 84mm diameter rear wheels for taking off and landing on both paved and grass surfaces.
• Button Type canopy hatch
• Four set decals for DIY (blue color scheme only), to be different.
• High-brightness LED set
• Large battery compartment
• Panel lines and all-around rivets
• Pilot figure
• Scaled CNC-processed metal landing gear set
• Screw-together construction
• The most accurately scaled landing gear set we have ever created

In The Box:
(1) F7F Tigercat PNP Airplane
(2) 60A ESC
(2) Brushless 4250-KV440 Motors
(7) 13g Metal Analog Servos
(5) 17g Metal Digital Servos
(4) Sets of Decals
(1) Product Manual

Needed to Complete:
(1) 6+ Channel Radio System
(1) Compatible Receiver
(1) 6S 5000mAh 45C LiPo Battery
(1) Compatible Charger
(1) LiPo Safe Charging Bag

F7F Tigercat 1700mm Blue PNP - Manual - English.

FMS Reflex Manual - Multilingual.
