Ghost Kit

Overview:
When we designed the GHOST, we envisioned a trainer that could do more than the typical boring trainer. The GHOST needed to offer you the opportunity to train, advance, and even have fun - all with the same airframe. And that's just what we've accomplished.

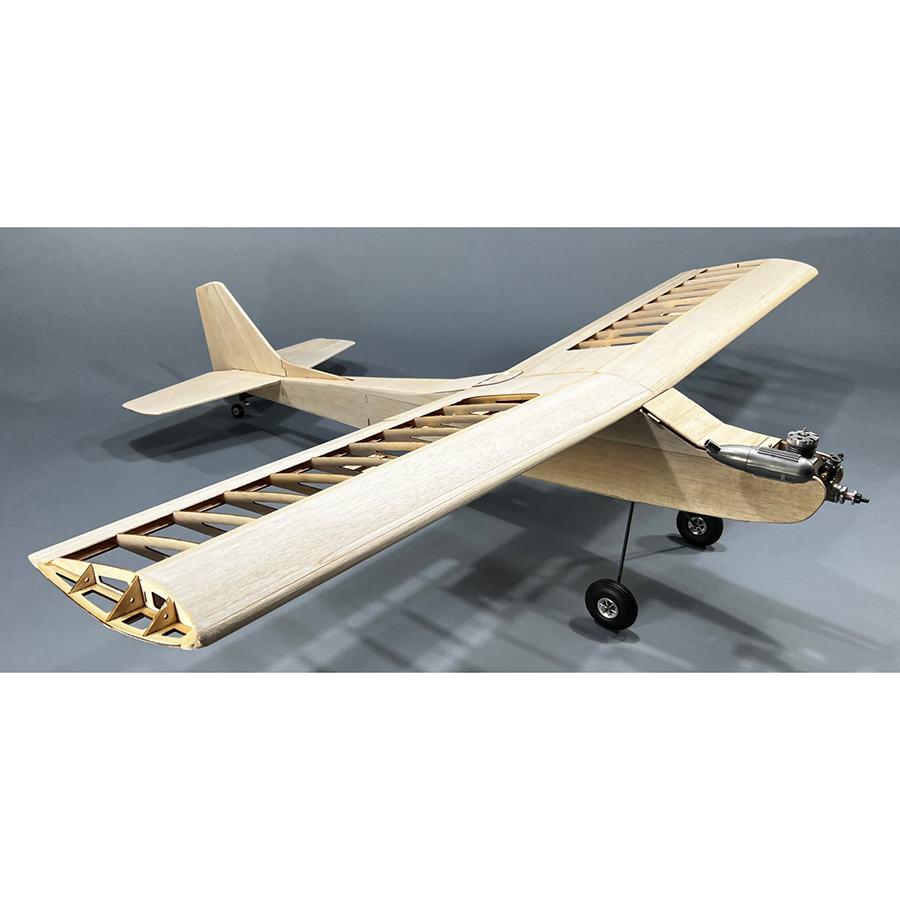

To start, the GHOST has been designed as an easy-to-build model with a wealth of laser-cut parts. Actually, most every part used in the GHOST's construction is already pre-cut for you out of hand-selected lite-ply and balsa woods.

The wing is a flat-bottomed airfoil which is a cinch to build using our exclusive laser-cut WEB-LOCK construction that not only gives you proper rib spacing, but also holds each rib at a true 90° to the building surface, without the need for additional tools.

The fuselage is also an easy build as we've engineered the fuselage sides with slots to lock in each former at the right spot - and angle. Also, we've integrated our Multi-Size Servo mounts into the fuselage sides which makes mounting the rudder, elevator, servos a breeze (and throttle - if using glow).

At first, the GHOST might appear to be just a Good Honest Old School Trainer. But as they say "Wait, there's more!".

Flaps are included - a first for an OSMW kit. These are quite effective and can slow the GHOST to a crawl in the air. Choose to install them during the initial build, or they can be added at any other time - even after you've flown the GHOST for a while!

The GHOST's tall and wide main gear makes taking off from paved or grass surfaces quite easy. Throttle up, and you'll find the GHOST takes to the air in a surprisingly short rollout.

At lower throttle settings, the GHOST is slow and stable in the air, making it easy for a new pilot to learn how to navigate the skies. Throttle up the GHOST a bit and you'll start to open up more capabilities, including some fun barnstorming. At even higher speeds, the GHOST can perform a surprising amount of aerobatics to wow the crowds.

And all of this with the same airframe that many would write off as "simply a trainer".

Even when the wind gets a bit gusty, the GHOST's smooth flying characteristics will give you the confidence you need. When it comes time to land, simply lower the throttle and gently glide down to the runway. Again, no surprises, which is just what you want in any design.

And after you've mastered flying the GHOST, add to it's capabilities by adding in one of our Fun Fly Bay kits (available separately). Once assembled, these kits will bolt up through the bottom of the GHOST's fuselage. Like the GHOSTS's flaps, these kits can be added (or swapped out) at any time - even after you've flown for a while.

GHOST Features:

  • Premium USA Hardware - Included in each Old School Model Works kit is a premium hardware package. We only source our hardware from brand-name, USA manufacturers to guarantee the best quality.
  • WEB-LOCK Construction - There's nothing else like it. Build our wings, straight and true - with a minimum amount of fuss.
  • Front hatch - This top hatch give you plenty of room to access the battery and/or fuel tank.
  • Flaps are included - Flaps can be installed during the initial build, or added after you've flown for a while - your choice.
  • Design your color scheme - Download this sheet to design your GHOST's color scheme.
All Old School Model Works kits feature:

Precision Laser-Cut Parts
Included in every Old School Model Works kit are all the wing ribs, fuselage formers, and other wood needed to build the aircraft.

Interlocking Parts
We've engineered each kit to give you the best chance of success. Each laser-cut part interlocks with the next for an accurate and secure joint.

Rolled Plans
Each of our kits contains a set of rolled plans, never folded. They are full-size, highly detailed, and computer-drawn for accuracy.

Illustrated Instructions
A step by step manual with plenty of photo illustrations is included in each kit. We also provide links to online, clear, hi-rez photos for each step.

Prebent Landing Gear
Bending your own landing gear is hard. So that's why we include pre-bent main landing gear wire ready for you to assemble.

Additional items needed to complete the GHOST kit:
• Propeller
• Engine/Motor, mount & mounting hardware
• Radio system with 4 to 7 servos (stardard-size)
• 2 “Y” servo harnesses (one for ailerons, one for flaps)
• Pushrods (28" for elevator and rudder, 9" for throttle, 6" for the ailerons and flaps)
• Clevises for the pushrods.
• Wheels: two 3" main wheels, tailwheel assembly
• Covering (typically 2 rolls - more needed for higher complexity finishes)

Wingspan: 62 inches
Wing Area: 675 sq. inches
Length (airframe only): 42 inches
Weight: 4.5-6 pounds RTF
Radio: 4 to 6 channel (4-7 standard sized servos)
Power: • Glow (.30-.46 glow)
• Electric (450+ watt, 60+ amp ESC, 3S to 4S LiPo)
