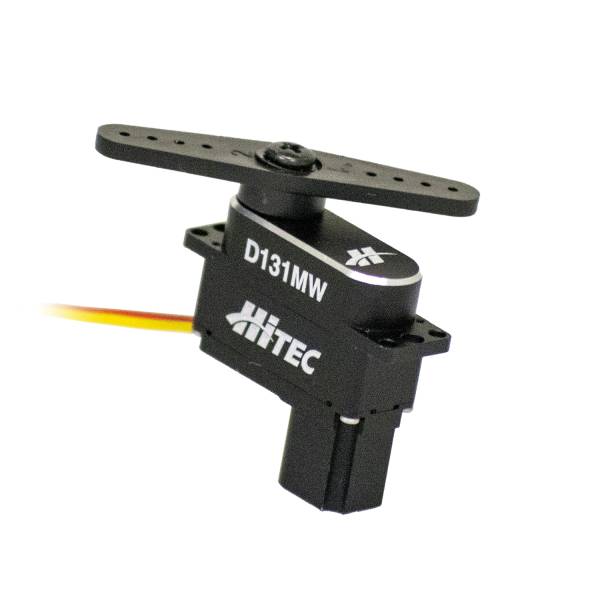

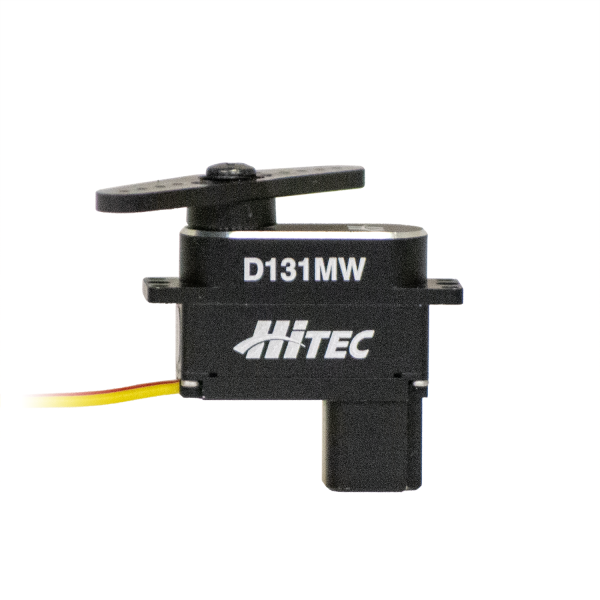

D131MW 8.5mm, Ultra-Micro, Coreless, Metal Gear, Low Profile, Wing Servo

D131MW 8.5mm, Ultra-Micro, Coreless, Metal Gear, Low Profile, Wing Servo

1 4
$59.99
$0.00 $59.99
Sale Sold out
Shipping calculated at checkout.
ⓘ $0.00 Tax Collected Outside GA
Availability: Sorry we are out of stock but have more on the way.
SKU: 100025068
Part #: 36131S
MFG: Hitec
Live Help Chat
rewards icon
You will earn 29 Electron Reward Points on this product! Click to find out more about our points program and save big!
low price promise icon
Low Price Promise! Click to find out more about our low price promise
View full details

D131MW 8.5mm, Ultra-Nano, Coreless, Metal Case, Low Profile, Wing Servo

Overview:
Featuring a low profile, machined aluminum case, high-efficiency coreless motor, and dual ball bearings, this competitively-priced servo is the most durable, longest lasting in its class. Its robust technology is perfect for pilots and drivers needing powerful torque in a nano package, and ideal for high performance, thin-wing aircraft and hand launch gliders.

Backed with the ultra-performance and reliability synonymous with Hitec, the D131MW’s quality engineering, enduring power and precision will impress the most discerning of modelers.

Features:

  • Wide Operating Voltage: 3.5~8.4V
  • 1~2-Cell LiPo Compatible
  • Coreless Motor
  • Durable Metal Gears
  • All Aluminum Case
  • Dual Ball Bearings
  • High Response, High Resolution Circuitry
  • Smart Sense Technology for Servo Analytics
  • Full Programmability w/Hitec’s DPC11 or HFP-30 (sold separately)
  • M25T Micro Output Spline
Performance Specifications
Operating Voltage Range (Volts DC): 4.8 ~ 7.4 V
Speed (Second @ 60°): 0.11 @ 7.4V
Maximum Torque Range oz. / in.: 40 @ 7.4V
Maximum Torque Range kg. / cm.: 2.9 @ 7.4V
Current Draw at Idle: 30mA @ 7.4V
No Load Operating Current Draw: 110mA @ 7.4V
Stall Current Draw: 900mA @ 7.4V
Dead Band Width: 2μs

Physical Specifications
Dimensions (Inches): 0.87 x 0.34 x 0.91) in.
Dimensions (Metric): 22.0 x 8.5 x 23.2
Weight (Ounces): 0.35
Weight (Gram): 9.8
Circuit Type: 32bit Programable Digital
Motor Type: Brushless
Gear Material: 5 Metal Gears
Bearing Type: 2 Ball Bearings
Output Shaft (type / Ømm): M25T
Case Material: Aluminum
Dust / Water Resistance: IP4X Rated
Connector Gauge (AWG) / Strand Count: 20AWG

Radio Control Applications
Parkflyer: N / A
Sport Plane: N / A
Sailplane / Glider: High Performance
3D Performance: N / A
Scale: N / A
Electric Helicopter: N / A
Gas Helicopter: N / A
On Road: 1/24th - 1/14th
Monster Truck: 1/24th - 1/14th
Buggies: 1/24th - 1/14th
Truggies: 1/24th - 1/14th
Short Course / Truck: 1/24th - 1/14th
Crawlers: 1/24th - 1/14th
Sail Boat: N / A
Power Boat: N / A
