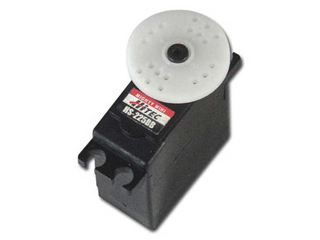

HS-225 Mini Analog

HS-225 Mini Analog

1 1
$20.99
$0.00 $20.99
Sale Sold out
Shipping calculated at checkout.
ⓘ $0.00 Tax Collected Outside GA
Availability: In stock available to ship within 24 hours.
SKU: 100001112
Part #: HRC31225S
UPC: 669962310307
MFG: Hitec
Live Help Chat
rewards icon
You will earn 10 Electron Reward Points on this product! Click to find out more about our points program and save big!
low price promise icon
Low Price Promise! Click to find out more about our low price promise
View full details

HS-225 Mini Servo

Key Features:
• Top Ball Bearing
• SMT Technology
• Ideal for applications that call for a small, lightweight, high speed, high torque servo

Overview:
The analog HS-225 series represents a good value with performance that rivals other larger and more expensive servos. Ideal for applications that call for a small, lightweight, high speed, high torque servo, the HS-225BB high performance mini servo features a top ball bearing and is built with state-of-the-art SMT technology.

Hitec Servo Specification Chart.

Dimensions: 1.27" x 0.66"x 1.22" (32.4 x 16.8 x 31mm)
Weight: 0.95oz (27g)
Operating Speed (4.8V): 0.14sec/60 degrees at no load
Operating Speed (6.0V): 0.11sec/60 degrees at no load
Stall Torque (4.8V): 54.15 oz/in. (3.9kg.cm)
Stall Torque (6.0V): 66.65 oz/in. (4.8kg.cm)
Current Drain (4.8V): 8mA/idle and 300mA no load operating
Current Drain (6.0V): 8.8mA/idle and 340mA no load operating
Operating Voltage: 4.8-6.0 Volts
Bearing Type: 1 Ball Bearing and 1 Oilite Bushing
Gear Type: Nylon
Motor Type: 3 Pole Ferrite
Potentiometer Drive: Indirect Drive
Control System: +Pulse Width Control 1500usec Neutral
Required Pulse: 3-5 Volt Peak to Peak Square Wave
Operating Temperature Range: -20 to +60 Degree C
Operating Angle: 45 Deg. one side pulse traveling 400usec
360 Modifiable: No
Direction: Clockwise/Pulse Traveling 1500 to 1900usec
Dead Band Width: 8usec
Connector Wire Length: 11.81" (300mm)
