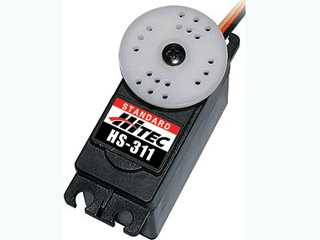

HS311 Standard Economy Servo: Universal
Overview:
The HS-311 standard servo is the ideal servo for models where low cost is important. Even though the price is low, this servo features many of the same features and reliability of more expensive servos.
A single integrated circuit board and smooth meshing gears provide great durability. Comes with a variety of different servo horns and arms with all the necessary mounting hardware.
Hitec Servo Specification Chart.
| Dimensions (LxWxH): | 1.6 x 0.8 x 1.4" 40 x 20 x 37mm |
| Weight: | 1.52oz (43g) |
| Operating Speed (4.8V): | 0.19sec/60° at no load |
| Operating Speed (6.0V): | 0.15sec/60° at no load |
| Stall Torque (4.8V): | 42 oz/in (3.0 kg/cm) |
| Stall Torque (6.0V): | 49 oz/in (4.5 kg/cm) |
| Current Drain (4.8V): | 7.4mA/idle, 160mA no load operating |
| Current Drain (6.0V): | 7.7mA/idle, 180mA no load operating |
| Operating Voltage: | 4.8-6.0 Volts |
| Bearing Type: | Top Resin Bushing |
| Gear Type: | Nylon |
| Motor Type: | Cored Metal Brush |
| Potentiometer Drive: | 4 Slider/Direct Drive |
| Control System: | +Pulse Width Control 1500usec Neutral |
| Required Pulse: | 3-5 Volt Peak to Peak Square Wave |
| Operating Temperature Range: | -20 to +60 Degree C |
| Dead Band Width: | 5usec |
| Operating Angle: | 45° one side pulse traveling 450usec |
| Direction: | Multi-directional |
| 360 Modifiable: | Yes |
| Connector Wire Length: | 11.81" (300mm) |
