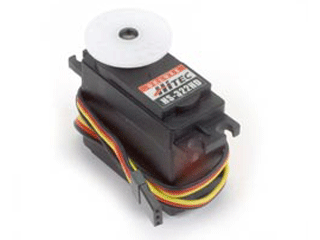

HS-322HD Standard Analog Karbonite Gear Aircraft
HS-322HD Standard Analog Karbonite Gear Aircraft
HS-322HD Standard Analog Karbonite Gear Aircraft
The HS-322HD Standard Heavy Duty Servo utilizes Hitec’s revolutionary Karbonite™ gear train which is four times stronger than our standard white nylon gears, and even after hundreds of thousands of cycles they don’t show any signs of wear.
Karbonite™ gears and a custom integrated circuit makes the HS-322HD a great choice for an economical sport servo.
Hitec Servo Specification Chart.
Dimensions (LxWxH): | 1.57" x 0.78" x 1.43" |
Weight: | 1.52oz (43g) |
Operating Speed (4.8V): | 0.19sec/60° at no load |
Operating Speed (6.0V): | 0.15sec/60° at no load |
Stall Torque (4.8V): | 42 oz/in (3.0 kg/cm) |
Stall Torque (6.0V): | 51 oz/in (3.7 kg/cm) |
Current Drain (4.8V): | 7.4mA/idle and 160mA no load operating |
Current Drain (6.0V): | 7.7mA/idle and 180mA no load operating |
Operating Voltage: | 4.8-6.0 Volts |
Bearing Type: | Top/Resin Bushing |
Gear Type: | Heavy Duty Resin |
Motor Type: | Cored Metal Brush |
Potentiometer Drive: | 4 Slider/Direct Drive |
Control System: | +Pulse Width Control 1500usec Neutral |
Required Pulse: | 3-5 Volt Peak to Peak Square Wave |
Operating Temperature Range: | -20 to +60 Degree C |
Dead Band Width: | 5usec |
Operating Angle: | 40 Deg. one side pulse traveling 400usec |
Direction: | Clockwise/Pulse Traveling 1500 to 1900usec |
360 Modifiable: | Yes |
Connector Wire Length: | 11.81" (300mm) |
