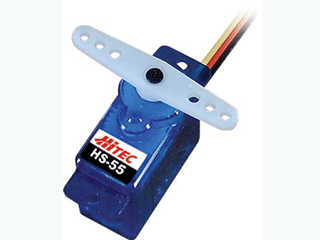

Hitec RCD is proud to introduce another breakthrough micro R/C servo product, the HS-55, sub micro economy servo. When used with the Feather micro receiver, it is a perfect match for the popular Park, Yard and Slow flyer aircraft at an affordable price.
You can count on the HS-55 to deliver quality dependable performance flight after flight.
You can count on the HS-55 to deliver quality dependable performance flight after flight.
Hitec Servo Specification Chart.
| Dimensions: | 0.89" x 0.45"x 0.94" (22.8 x 11.6 x 24mm) |
| Weight: | 0.28oz (8g) |
| Operating Speed (4.8V): | 0.17sec/60 degrees at no load |
| Operating Speed (6.0V): | 0.14sec/60 degrees at no load |
| Stall Torque (4.8V): | 15.27 oz/in. (1.1kg.cm) |
| Stall Torque (6.0V): | 18.05 oz/in. (1.3kg.cm) |
| Operating Voltage: | 4.8-6.0 Volts |
| Operating Temperature Range: | -20 to +60 Degree C |
| Gear Type: | All Nylon |
| Bearing Type: | None, outer case serves as bearing |
| Motor Type: | 3 Pole Ferrite |
| Potentiometer Drive: | Direct Drive |
| Current Drain (4.8V): | 5.4mA/idle and 150mA no load operating |
| Current Drain (6.0V): | 5.5mA/idle and 180mA no load operating |
| Control System: | +Pulse Width Control 1500usec Neutral |
| Required Pulse: | 3-5 Volt Peak to Peak Square Wave |
| Operating Angle: | 40 Deg. one side pulse traveling 400usec |
| 360 Modifiable: | Yes |
| Direction: | Clockwise/Pulse Traveling 1500 to 1900usec |
| Dead Band Width: | 8usec |
| Connector Wire Length: | 6.29" (160mm) |
