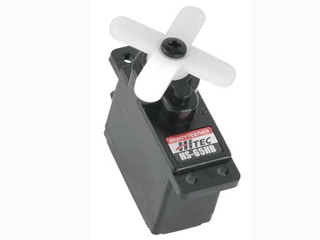

HS-65HB Sub-Micro Analog Karbonite Gear
HS-65HB Sub-Micro Analog Karbonite Gear
Overview:
Hitec announces a new Micro class servo, the HS-65HB "Mighty Feather" has long lasting and durable Karbonite gears and is Hitec’s most powerful servo’s in the micro class, with over 26oz/in of power at 6 volts.
The HS-65HB was created for higher performance micro helicopters, electric park flyers, & 1/18 scale cars, and features a top ball-bearing for long life and positive centering.
Hitec Servo Specification Chart.
Dimensions: | .9" x .5"x .9" (34 x 12 x 24mm) |
Weight: | 0.39oz (11.2g) |
Operating Speed (4.8V): | 0.16sec/60 degrees at no load |
Operating Speed (6.0V): | 0.13sec/60 degrees at no load |
Stall Torque (4.8V): | 22 oz/in. (1.6kg.cm) |
Stall Torque (6.0V): | 26 oz/in. (1.9kg.cm) |
Operating Voltage: | 4.8-6.0 Volts |
Gear Type: | Karbonite |
Bearing Type: | Top Ball bearing |
Motor Type: | 3 Pole Ferrite |
Operating Temperature Range: | -20 to +60 Degree C |
Operating Angle: | 45 Deg. |
360 Modifiable: | No |
