Matrice 30 SP
Matrice 30 SP
Free Shipping
Regular price
$9,341.00
Regular price
$0.00
Sale price
$9,341.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Availability:
Available in warehouse.
You will earn 4670 Electron Reward Points on this product!
Click to find out more about our points program and save big!
Low Price Promise!
Click to find out more about our low price promise

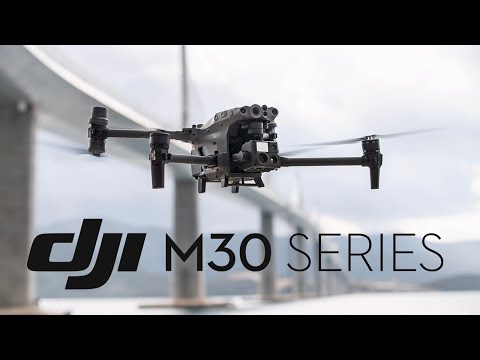

Matrice 30T Basic (SP)
Overview:
Advanced drone technology to enable everyday heros and more. A new solution for Public Safety, First Responders, Inspectors, and many mthers.

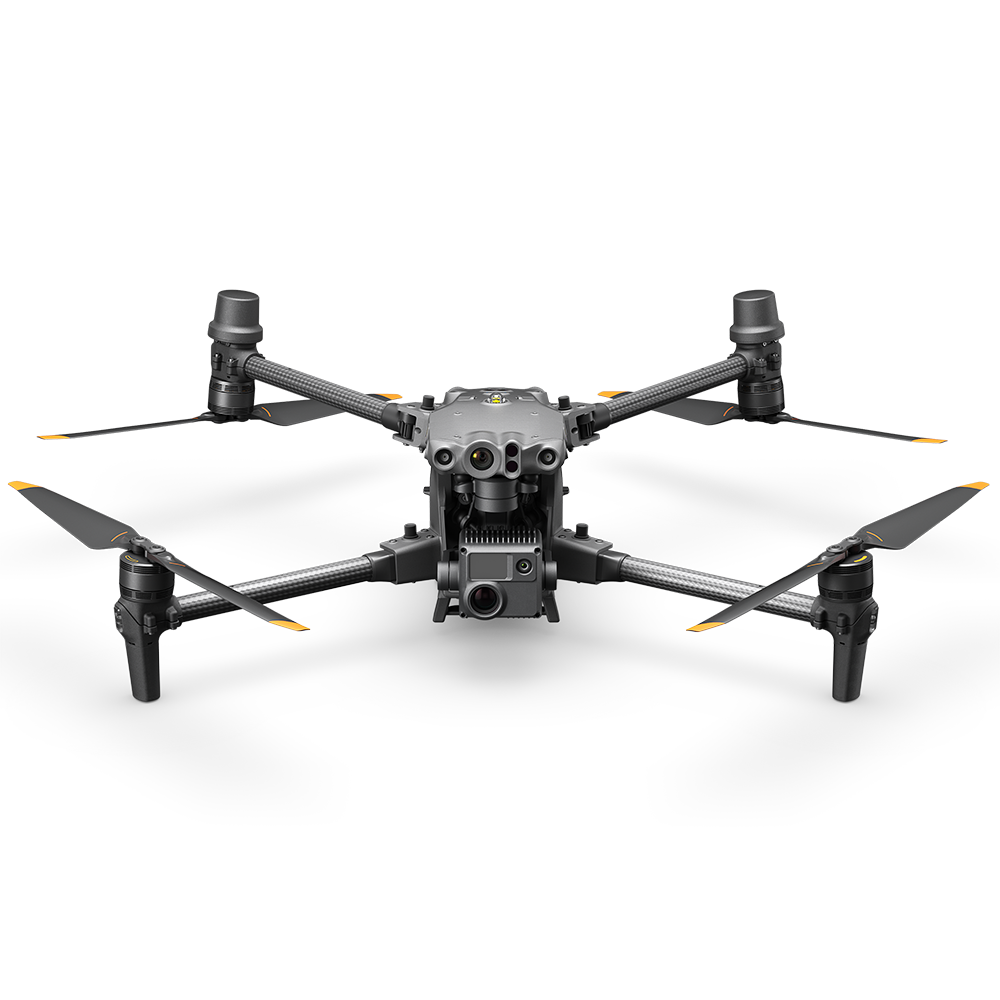

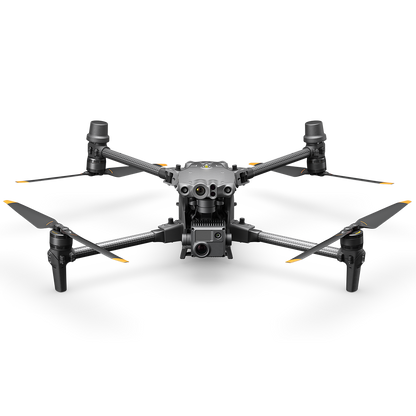

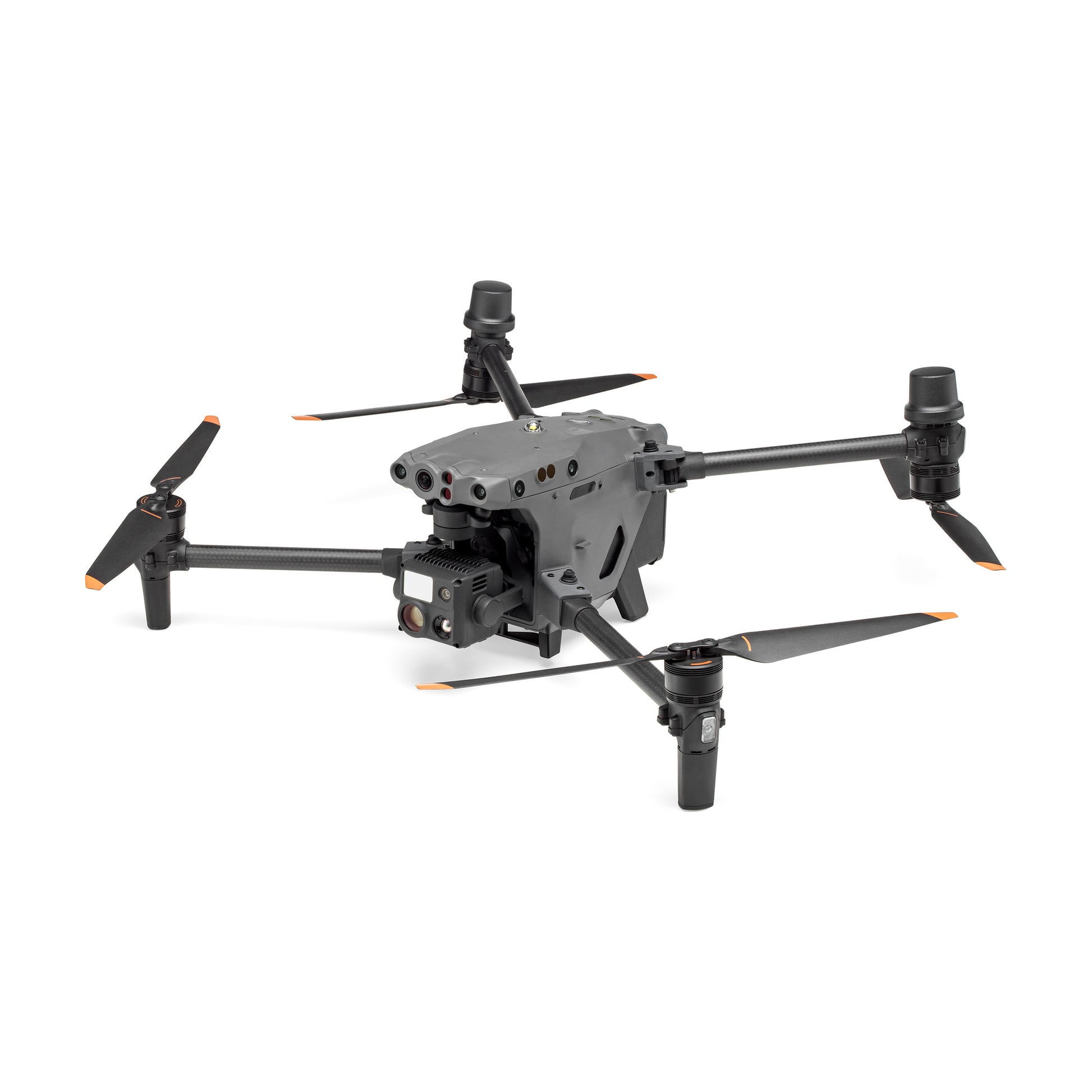

Matrice 30T
Ready, when you are, to overcome the unknown. The Matrice 30T offers a balance of power and portability that delivers higher operational efficiency. Everything the Matrice 30 offers plus thermal capabilities.

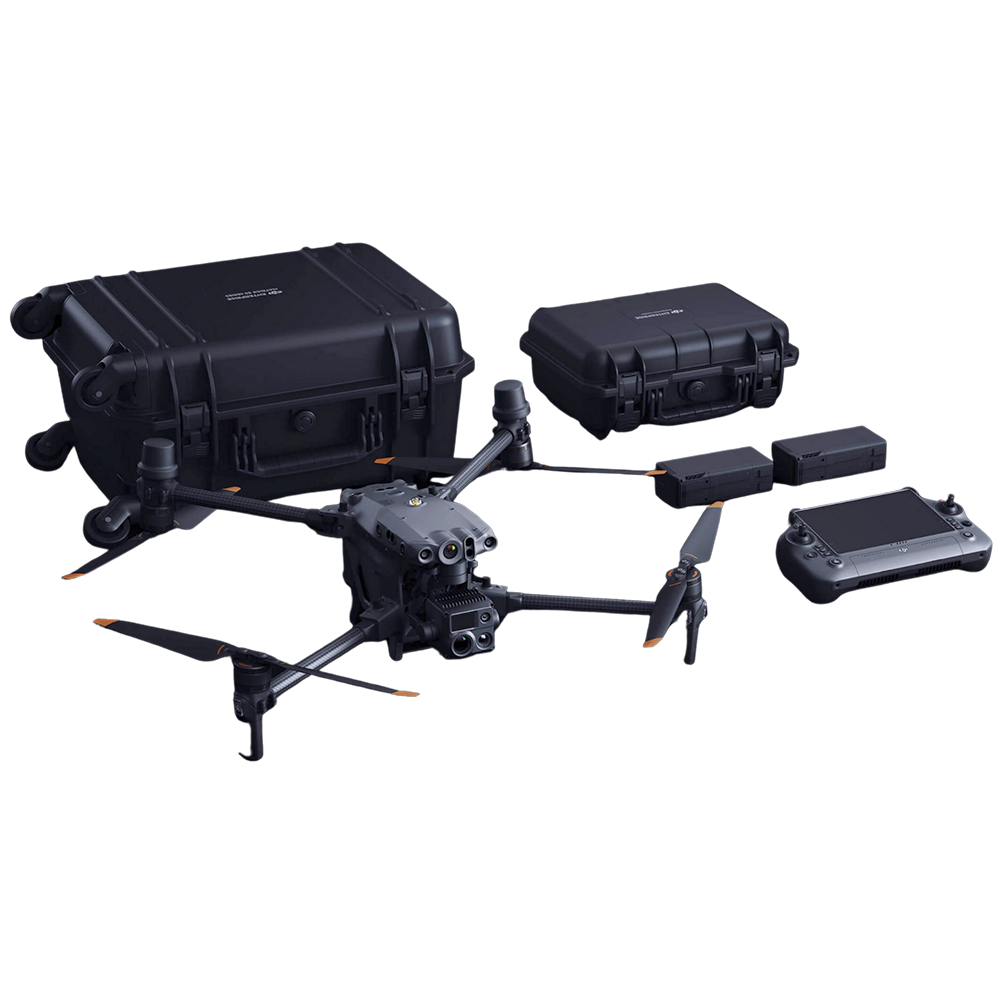

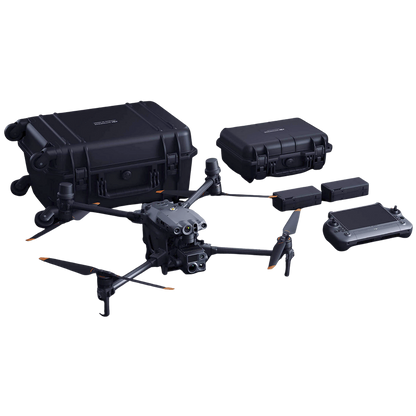

What's included in the Basic Package:
(1) Aircraft Body
(1) DJI RC Plus Remote Controller
(1) USB-C Cable
(1) USB-C to USB-C Cable
(1) Wheeled Hard-Shell Carrying Case
(1) BS30 Battery station
(2) TB30 Battery
Features:
- 41-Minute Max Flight Time
- 15m/s Wind Resistance
- 7000m Service Ceiling
- 23m/s Max Speed
- IP55 Protection
- Temperatures from -20°C to 50°C
- Dual-Vision and ToF Sensors
- ADS-B Receiver
- Built-In Advanced Redundancy Systems
- Wide Angle Camera: 12 MP 1/2" CMOS Sensor
- Zoom Camera: 48 MP 1/2" CMOS Sensor
- Thermal Imaging Camera with Laser Rangefinder

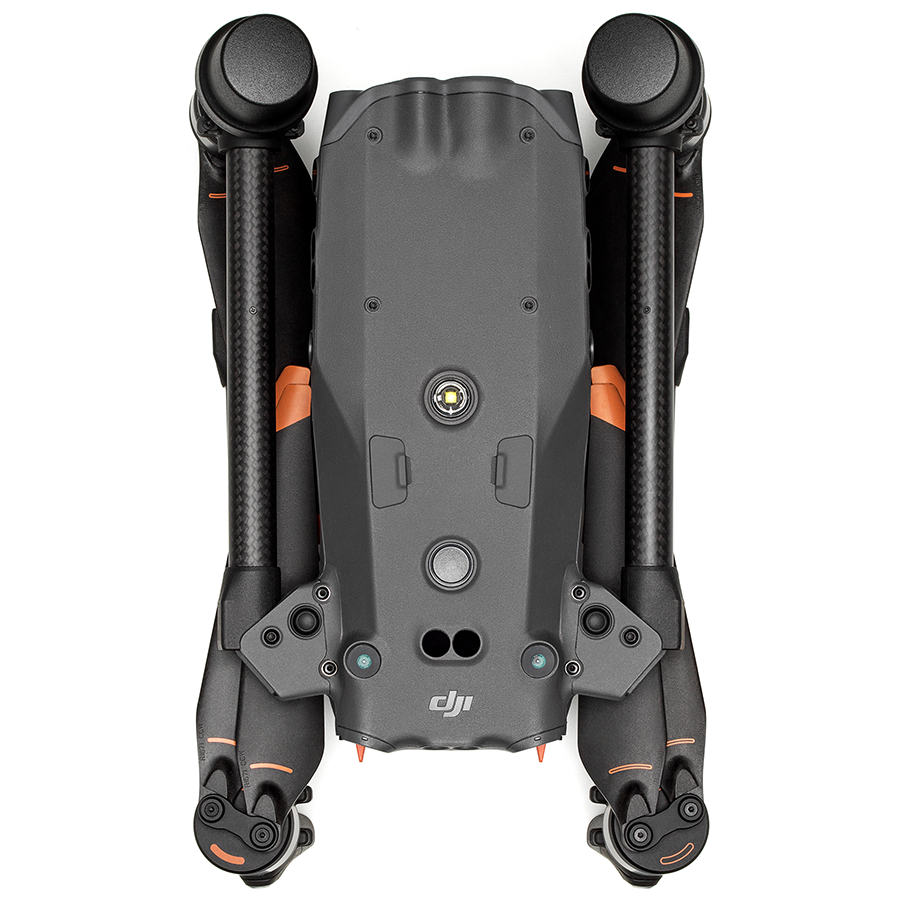

Lightweight and Portable

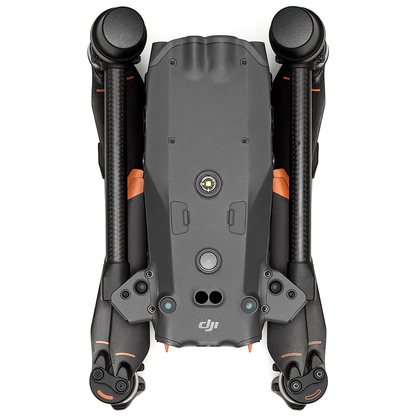

Compact and foldable, the M30 Series is easy to pack up, carry, and deploy. No matter where you need it, the M30 or M30T can be in the air in seconds.
DJI RC Plus Controller and Pilot 2
The 7-inch widescreen DJI RC Plus with dual control mode is tailor-made for Enterprise users. With IP54 protection, this controller is both water and dust proof. It is also capable in cold weather or hot weather climates - from -20°C to 50°C.
Pilot 2 is a revamped Enterprise flight interface designed to improve piloting efficiency. Drone and payload controls can be easily accessed with one tap. Clear presentation of flight details and navigational information improves user experience and flight efficiency.
Unique Aerial Intelligence to Capture Everything
The M30 Series integrates wide, zoom, and thermal cameras (M30T only) with a laser rangefinder, which together can capture the aerial data you need, when you need it.
Wide Camera
Equivalent Focal Length: 24 mm
DFOV: 84° 12 MP 1/2'' CMOS Sensor
Video Resolution: 4K/30fps
Zoom Camera
48 MP 1/2'' CMOS Sensor 5x-16x
Optical Zoom 200x Max. Hybrid Zoom
Photo Resolution: 8K
Video Resolution: 4K/30fps
Thermal Imaging Camera
Equivalent Focal Length: 40 mm
Resolution: 640×512
Frame Rate: 30fps
Measurement Accuracy: ±2°C or ±2%4
Laser Rangefinder
Range: 3 m - 1200 m
Accuracy: ±(0.2m+D×0.15%)5
DJI FlightHub 2
Master Your Mission Environment
FlightHub 2 offers a 2.5D Base Map for quick terrain awareness, One-Tap Panorama Sync for rapid site overviews, and Cloud Mapping for fast mapping in RGB or infrared.
Mission Live Streaming
Connect multiple users to one or many drone operations simultaneously, and keep teams updated with the latest developments thanks to low latency, high-resolution livestreaming.
Live Annotations
Highlight objects or areas of interest for efficient mission management and resource distribution. Annotations are visible to ground teams, pilots, or any team member for timely project alignment and task distribution.
Streamlined Team Communication
Synchronize valuable information such as teams position, drone status, mission details and more, in real-time and across multiple device types, making team collaboration easier than ever.
| Aircraft | |
| Dimensions (unfolded, excl. propellers): | 470×585×215 mm (L×W×H) |
| Dimensions (folded): | 365×215×195 mm (L×W×H) |
| Diagonal Wheelbase: | 668 mm |
| Weight (incl. two batteries): | 3770 ± 10 g |
| Max Takeoff Weight: | 4000 g |
| Operation Frequency [1]: | 2.4000-2.4835 GHz; 5.725-5.850 GHz |
| Transmitter Power (EIRP): | 2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC) 5.8 GHz: <33 dBm (FCC/SRRC); <14 dBm (CE) |
| Hovering Accuracy (windless or breezy): | Vertical: ±0.1 m (Vision System enabled); ±0.5 m (N-mode with GPS); ±0.1 m (RTK) Horizontal: ±0.3 m (Vision System enabled); ±1.5 m (N-mode with GPS); ±0.1 m (RTK) |
| RTK Positioning Accuracy (fixed RTK enabled): | 1 cm+1 ppm (horizontal) 1.5 cm+1 ppm (vertical) |
| Max Angular Velocity: | Pitch: 150°/sec.; Yaw: 100°/sec. |
| Max Tilt Angle: | 35° (N-mode and Forward Vision System enabled: 25°) |
| Max Ascent/Descent Speed: | 6 m/s, 5 m/s |
| Max Tilt Descent Speed: | 7 m/s |
| Max Horizontal Speed: | 23 m/s |
| Max Service Ceiling Above Sea Level (without other payload): | 5,000 m (with 1671 propellers) 7,000 m (with 1676 propellers) |
| Max Wind Resistance: | 15 m/s 12 m/s during taking off and landing |
| Max Hover Time [2]: | 36 min |
| Max Flight Time [2]: | 41 min |
| Motor Model: | 3511 |
| Propeller Model: | 1671 1676 High Altitude (not included) |
| Ingress Protection Rating [3]: | IP55 |
| GNSS: | GPS+Galileo+BeiDou+GLONASS (GLONASS is supported only when RTK module is enabled) |
| Operating Temperature: | -20° to 50° C (-4° to 122° F) |
| Gimbal | |
| Angular Vibration Range: | ±0.01° |
| Controllable Range: | Pan: ±90° Tilt: -120° to +45° |
| Mechanical Range: | Pan: ±105° Tilt: -135° to +60° Roll: ±45° |
| Zoom Camera | |
| Sensor: | 1/2" CMOS, Effective pixels: 48M |
| Lens: | Focal length: 21-75 mm (equivalent: 113-405 mm) Aperture: f/2.8-f/4.2 Focus: 5 m to ∞ |
| Wide Camera | |
| Sensor: | 1/2" CMOS, Effective pixels: 12M |
| Lens: | DFOV: 84° Focal length: 4.5 mm (equivalent: 24 mm) Aperture: f/2.8 Focus: 1 m to ∞ |
| Thermal Camera | |
| Thermal Imager: | Uncooled VOx Microbolometer |
| Lens: | DFOV: 64° Focal length: 9.1 mm (equivalent: 40 mm) Aperture: f/1.0 Focus: 5 m to ∞ |
| Infrared Temperature Measurement Accuracy [4]: | :±2°C or ±2% (using the larger value) |
| FPV Camera | |
| Resolution: | 1920×1080 |
| DFOV: | 161° |
| Frame Rate: | 30 fps |
| Laser Module | |
| Wavelength: | 905 nm |
| Max Laser Power: | 3.5 mW |
| Single Pulse Width: | 6 ns |
| Measurement Accuracy: | ± (0.2 m + D×0.15%)D is the distance to a vertical surface |
| Measuring Range: | 3-1,200 m (0.5×12 m vertical surface with 20% reflectivity) |
| Vision Systems | |
| Obstacle Sensing Range: | Forward: 0.6-38 m Upward/Downward/Backward/Sideward: 0.5-33 m |
| FOV: | 65° (H), 50° (V) |
| Operating Environment: | Surfaces with clear patterns and adequate lighting (> 15 lux) |
| Infrared Sensing Systems | |
| Obstacle Sensing Range: | 0.1 to 10 m |
| FOV: | 30° |
| Operating Environment: | Large, diffuse, and reflective obstacles (reflectivity >10%) |
| TB30 Intelligent Flight Battery | |
| Capacity: | 5880 mAh |
| Voltage: | 26.1 V |
| Battery Type: | LiPo 6S |
| Energy: | 131.6 Wh |
| Net Weight: | Approx. 685 g |
| Operating Temperature: | -20° to 50° C (-4° to 122° F) |
| Storage Temperature: | 20° to 30° C (68° to 86° F) |
| Charging Temperature: | -20° to 40° C (-4° to 104° F)(When the temperature is lower than 10° C (50° F), the self-heating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery) |
| Chemical System: | LiNiMnCoO2 |
| Auxiliary Lights | |
| Effective Illumination Distance: | 5 m |
| Illumination Type: | 60 Hz, solid glow |
| Remote Controller | |
| Screen: | 7.02 inch LCD touchscreen, with a resolution of 1920×1200 pixels, and high brightness of 1200 cd/m2 |
| Internal Battery: | Type: Li-ion (6500 mAh @ 7.2 V) Charge Type: Supports battery station or USB-C charger maximum rated power 65W (max voltage of 20V) Charge Time: 2 hours Chemical System: LiNiCoAIO2 |
| External Battery(WB37 Intelligent Battery): | Capacity: 4920 mAh Voltage: 7.6 V Battery Type: Li-ion Energy: 37.39 Wh Chemical System: LiCoO2 |
| Operating Time [5]: | Internal Battery: Approx. 3 hours 18 minInternal Battery + External Battery: Approx. 6 hours |
| Ingress Protection Rating [3]: | IP54 |
| GNSS: | GPS+Galileo+BeiDou |
| Operating Temperature: | -20° to 50° C (-4° to 122° F) |
| O3 Enterprise | |
| Operating Frequency [1]: | 2.4000-2.4835 GHz, 5.725-5.850 GHz |
| Max Transmission Distance (unobstructed, free of interference): | 2.4000-2.4835 GHz: 15 km (FCC); 8 km (CE/SRRC/MIC) |
| Max Transmission Distance (with interference): | Strong Interference (urban landscape, limited line of sight, many competing signals): 1.5-3 km (FCC/CE/SRRC/MIC) Medium Interference (suburban landscape, open line of sight, some competing signals): 3-9 km (FCC); 3-6 km (CE/SRRC/ MIC) Weak Interference (open landscape abundant line of sight, few competing signals): 9-15 km (FCC); 6-8 km (CE/ SRRC/MIC) |
| Transmitter Power (EIRP): | 2.4 GHz: <33 dBm (FCC); <20 dBm (CE/ SRRC/MIC) 5.8 GHz: <33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC) |
| Wi-Fi | |
| Protocol: | Wi-Fi 6 |
| Operating Frequency [1]: | 2.4000-2.4835 GHz; 5.150-5.250 GHz; 5.725-5.850 GHz |
| Transmitter Power (EIRP): | 2.4 GHz: <26 dBm (FCC); <20 dBm (CE/ SRRC/MIC) 5.1 GHz: <26 dBm (FCC); <23 dBm (CE/ SRRC/MIC) 5.8 GHz: <26 dBm (FCC/SRRC); <14 dBm(CE) |
| Bluetooth | |
| Protocol: | Bluetooth 5.1 |
| Operating Frequency: | 2.4000-2.4835 GHz |
| Transmitter Power (EIRP): | <10 dBm |
| BS30 Intelligent Battery Station | |
| Dimensions: | 353×267×148 mm |
| Net Weight: | 3.95 kg |
| Compatible Battery Type: | TB30 Intelligent Flight Battery WB37 Intelligent Battery |
| Input: | 100-240 VAC, 50/60 Hz |
| Output: | TB30 Battery Port: 26.1 V, 8.9 A (supported up to two outputs simultaneously) WB37 Intelligent Battery: 8.7 V, 6 A |
| Output Power: | 525 W |
| USB-C port: | Max. output power of 65 W |
| USB-A port: | Max. output power of 10 W (5 V, 2 A) |
| Power Consumption (when not charging battery): | <8 W |
| Output Power (when warming up battery): | Approx. 30 W |
| Operating Temperature: | -20° to 40° C (-4° to 104° F) |
| Ingress Protection Rating [3]: | IP55 (with the cover closed properly) |
| Charging Time [6]: | Approx. 30 min (charging two TB30 batteries from 20%-90%) Approx. 50 min (charging two TB30 batteries from 0%-100%) |
| Protection Features: | Anti-Backflow Protection Short Circuit Protection Over Voltage Protection Over Current Protection Temperature Protection |
| Other | |
| Footnotes: | [1] 5.8 and 5.1GHz frequencies are prohibited in some countries. In some countries, the 5.1GHz frequency is only allowed for use indoors. [2] The maximum flight time and the hover time were tested in a lab environment and is for reference only. [3] This protection rating is not permanent and may reduce over time after long-term use. [4] Infrared temperature measurement accuracy was tested in a lab environment and is for reference only. [5] The maximum operating time was tested in a lab environment and is for reference only. [6] The charging time was tested in a lab environment at room temperature. The value provided should be used for reference only. |
