OSMW Robinhood 25 Kit

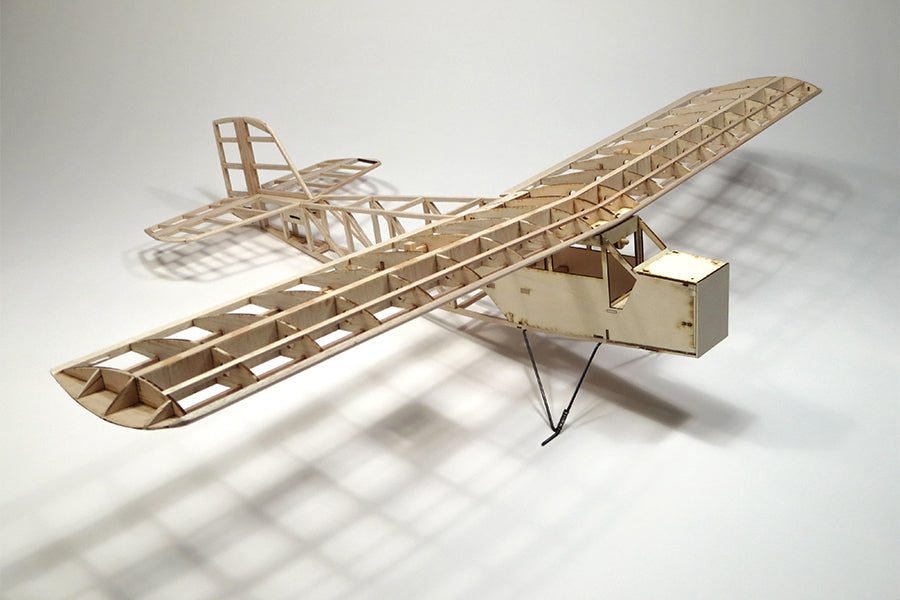

Robinhood 25 Laser-Cut R/C Kit

Overview:
The Robinhood is a fun-scale version of the Curtiss Robin built back in the 1920's Originally marketed through World Engines, this model retains all the good, clean looks of the original and retains all the great flying characteristics that make a good sport airplane.

In the air, the Robinhood 25 is a true barnstormer. Don't mistake this for a 3-D hovering machine and resist the urge to overpower it. The Robinhood 25 is at it's best when cruising on a lazy afternoon or performing some gentle aerobatics. Also, no problems with mown-grass runway takeoffs and landings.If you want to go truly "old school", it can be built for simple 3-channel control (rudder, elevator and throttle). For even more control, the included ailerons can be made fully functional (4 channel control).

The Robinhood can be powered with either an electric or glow power plant. We've designed the fuselage with a built-in hatch so you have quick access to either your batteries or fuel tank.

Struts were a necessity on the full-scale Curtiss Robin, but are optional for the Robinhood 25. Instructions are included on how to implement them if you'd like to give your Robinhood 25 a touch of Old-School elegance.

Features:

• Premium USA Hardware
  Included in each Old School Model Works kit is a premium hardware package. We only source our hardware from brand-name, USA manufacturers to guarantee the best quality.

• 3 or 4 channels
  You decide - go true "old-school" with 3 channel control, or opt for functional ailerons (4 channel).

• WEB-LOCK Construction
  There's nothing else like it. Build our wings, straight and true - with a minimum amount of fuss.

• Bolt on Wing
  Staying true to the original, we have replicated the original bolt-on system for the wing..

• Front hatch
  Held in with your choice of screws or magnets, this gives you easy access to batteries or fuel.

Required Radio:
3 or 4 channel system
(2) 40-70 in./oz. servos for elevator and rudder
(2) 40-70 in./oz. servos for ailerons if making a 4 channel model
(1) 40-70 in./oz. servo for throttle (if using a glow engine)

Required Power:
Glow (.20-.25 engine, 4-6 ounce tank, fuel tubing)
Electric (.25 equivalent brushless motor, 60 amp ESC, 3S LiPo)

Additional items needed to complete the Robinhood 25 kit:
   • Propeller
   • Engine/Motor mount & mounting hardware
   • "Y” servo harness (for ailerons)
   • Pushrods (two 5” for ailerons, two 24” for elevator & rudder, one 12” for throttle if glow powered)
   • Clevises for the pushrods (8 if electric, 10 if glow).
   • 2 - 3.5” diameter wheels
   • 1 - tailwheel assembly
   • Covering
