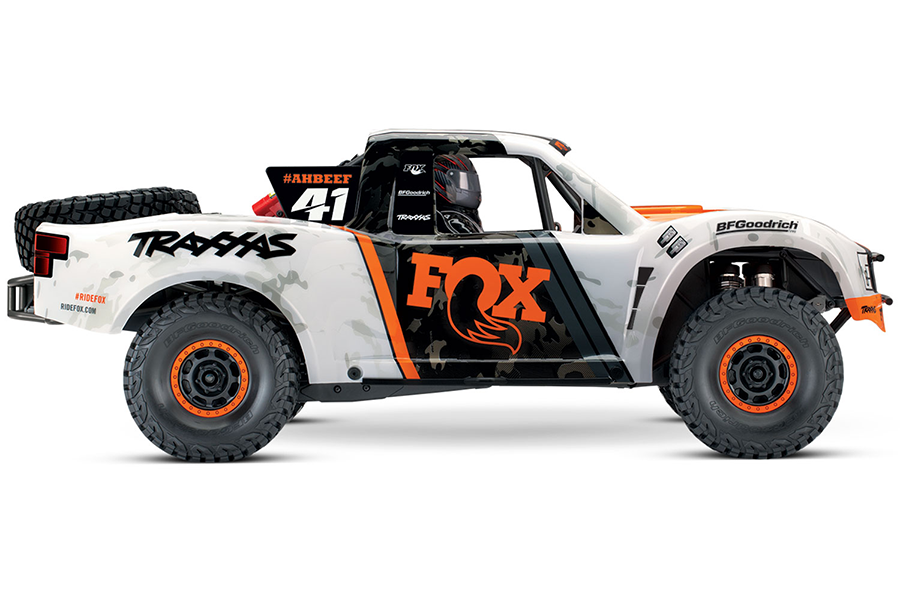

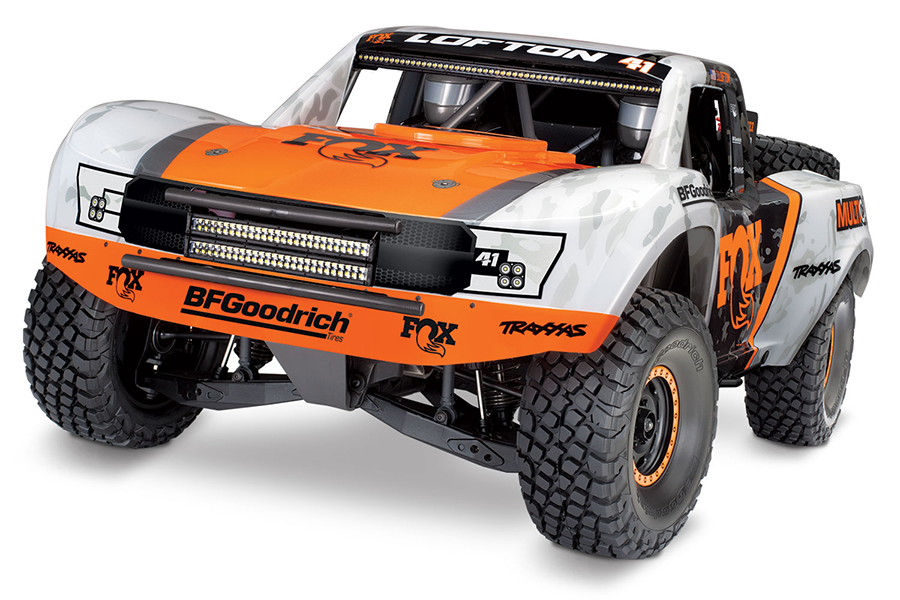

Traxxas 1/10 4WD Unlimited Desert Racer with Lights: Fox

Overview:
The Unlimited Desert Racer combines Pro-Scale™ performance with extreme 6S power for the most thrilling RC driving experience possible. It drives like a real desert truck because it’s engineered like a real desert truck. A 4-link solid rear axle provides huge suspension travel with authentic driving dynamics. From the cantilever sway bars to the GTR shocks, Traxxas accurately reproduced a true desert racer in both form and function. Now includes factory installed LED lighting.

Features:

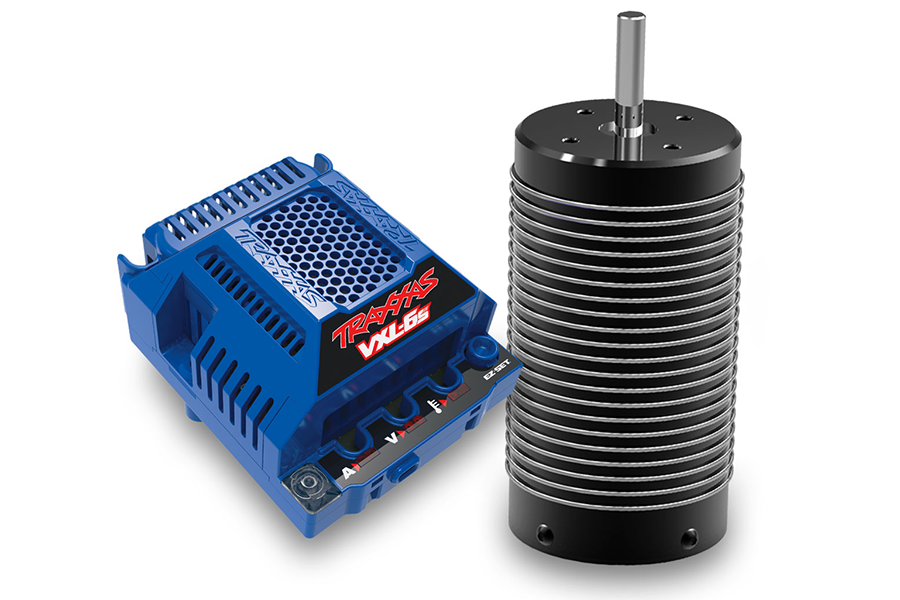

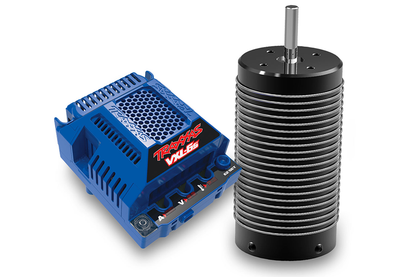

  • VXL-6s™ Waterproof Electronic Speed Control
    • 6S LiPo compatible
    • Integrated cooling fan
    • Real-time telemetry via Traxxas Link
    • Machined heat sink
    • 3-LED status indicators
    • Powered accessory ports
    • 10-gauge silicone wire

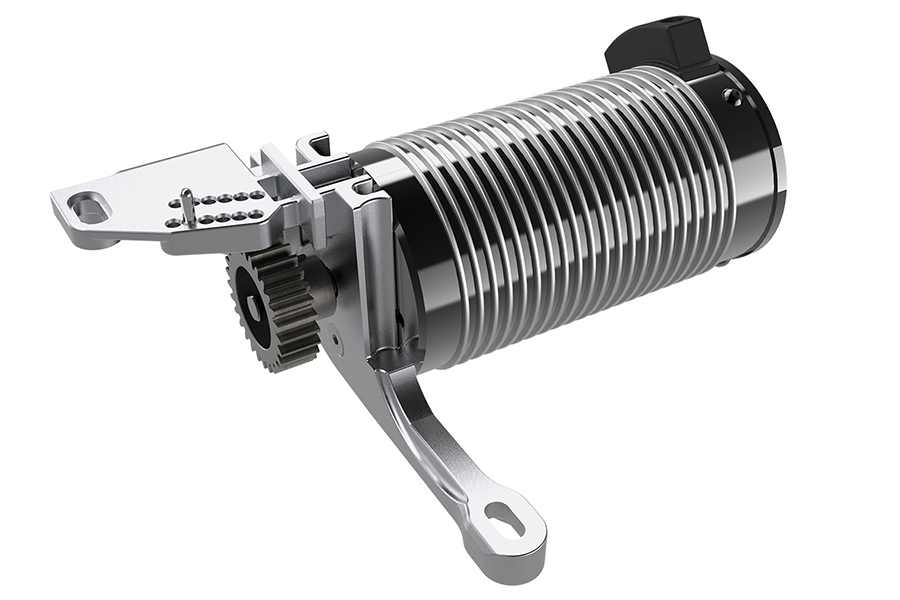

  • Velineon® 2200kV Brushless Motor
    • 4-pole 2200kV brushless motor
    • 5mm output shaft
    • Finned can for better heat dissipation
  • Up to 50+ mph with Two 3s LiPo Batteries
  • Traxxas Stability Management® (TSM)
    • Improves straight line acceleration and braking on low-traction surfaces
    • Maintains steering composure to allow throttle-on powerslides
    • Never dulls throttle or slows the truck
    • Adjusts from off to 100% assistance from the transmitter
  • TQi™ 2.4GHz High Output Radio System
    • TQi 2-channel transmitter
    • Automatically stores and loads settings for up to 30 Traxxas Link enabled models
    • Programmable multi-function knob
    • Adjustable steering and throttle percentage (dual rates)
    • Adjustable steering and throttle sensitivity (exponential)
    • Adjustable steering and throttle end points
    • High 13ms frame rate and near-zero latency for responsive control
    • 5-channel micro receiver (#6533) with fail-safe security

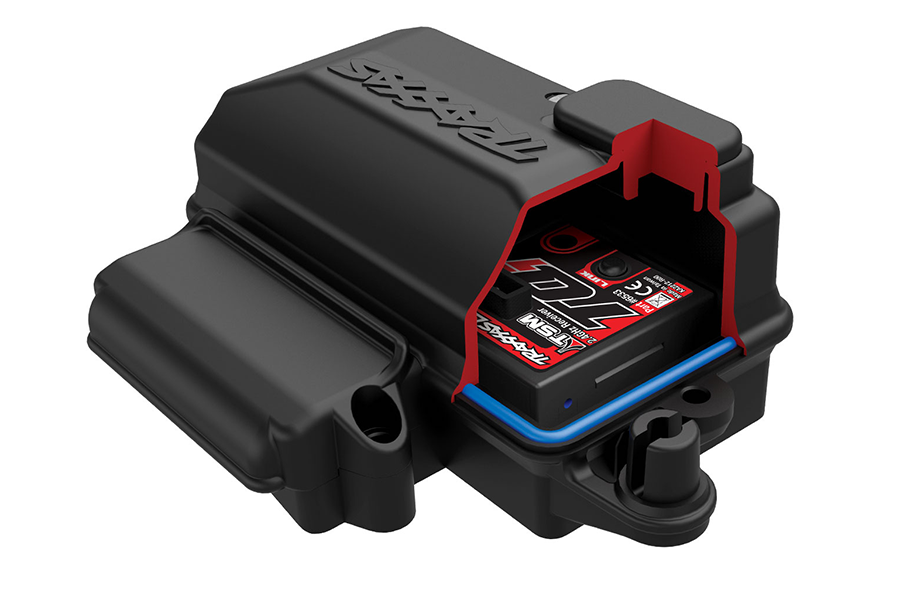

    • Patented waterproof receiver box with easy-access plug
  • Large Pro-Scale™ Body with Highly Detailed Replica Parts
    • Heavy-duty truck body mounts to chassis in multiple locations

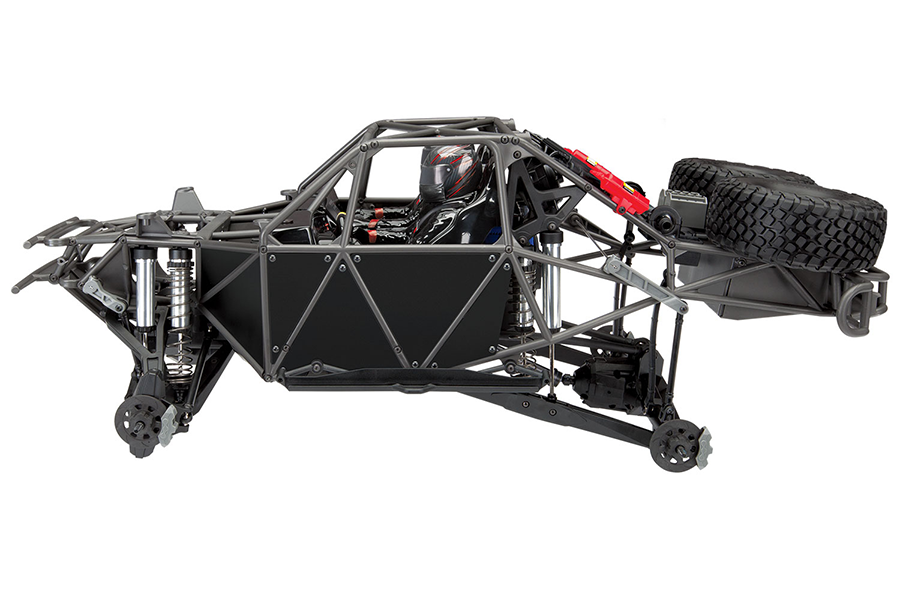

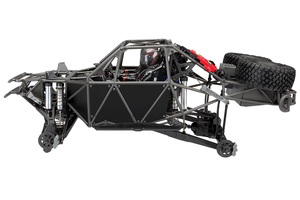

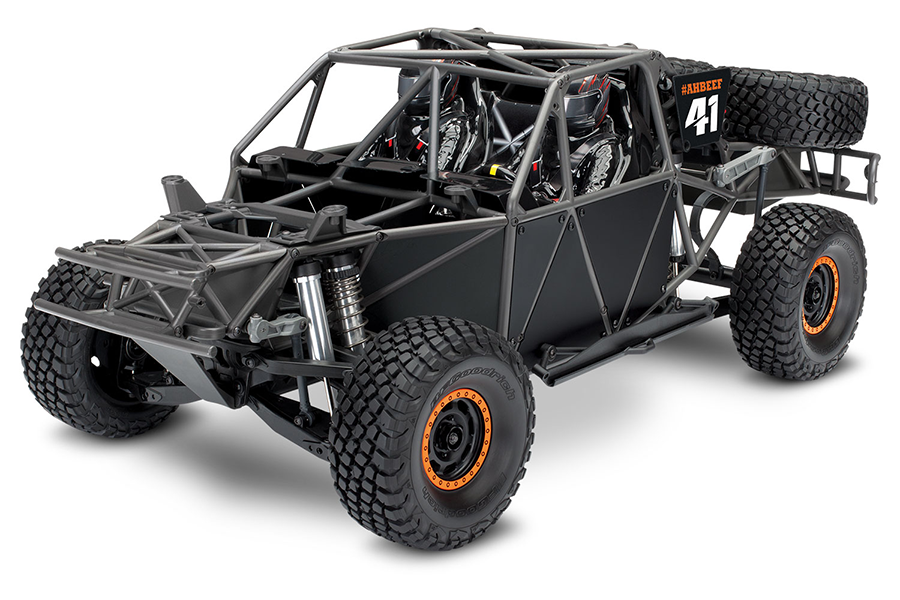

    • Strong and functional tube frame mimics full-size off-road racers

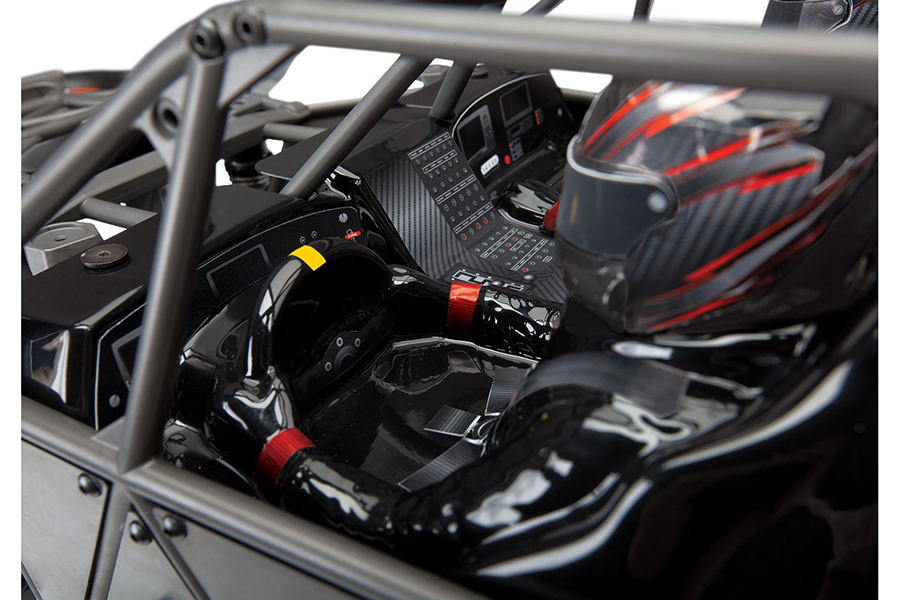

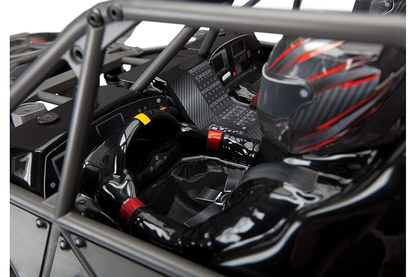

    • Detailed interior cabin with driver figures
    • Replica brake calipers and discs with integrated 17mm wheel hubs

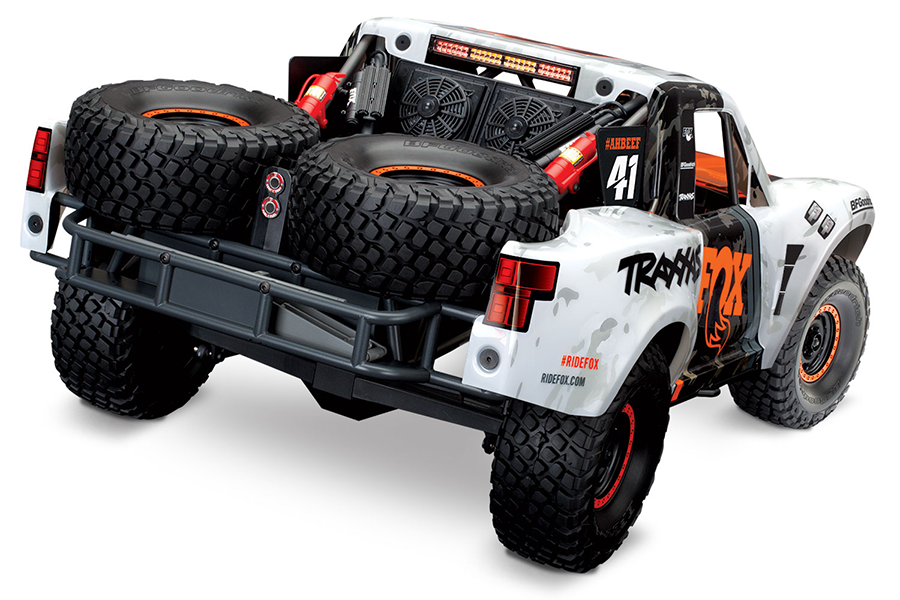

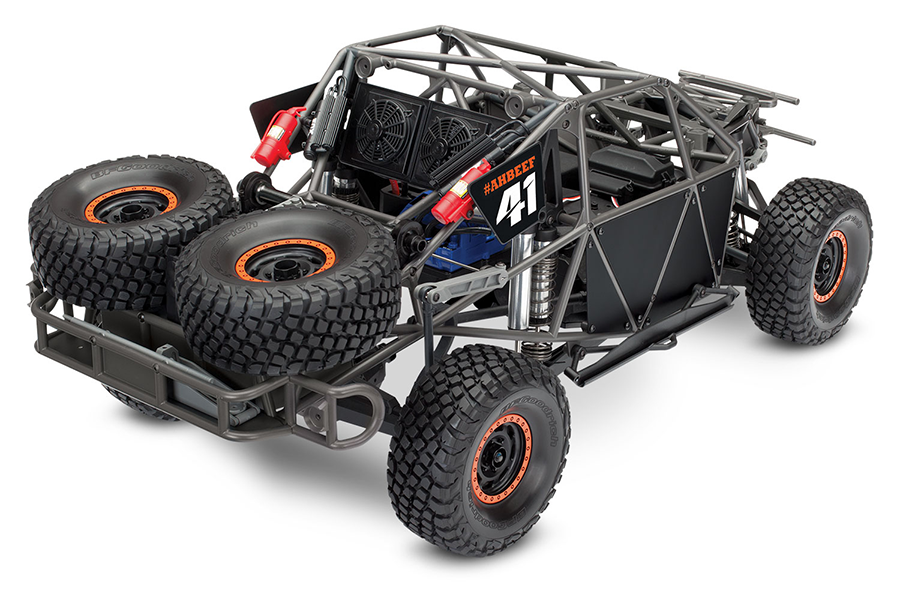

    • Two fully-functional spare tires and functional spare driveshaft
    • Highly detailed replica parts: fire extinguishers, shock reservoirs, jack, and tools
    • Realistic side plates mount to tube frame

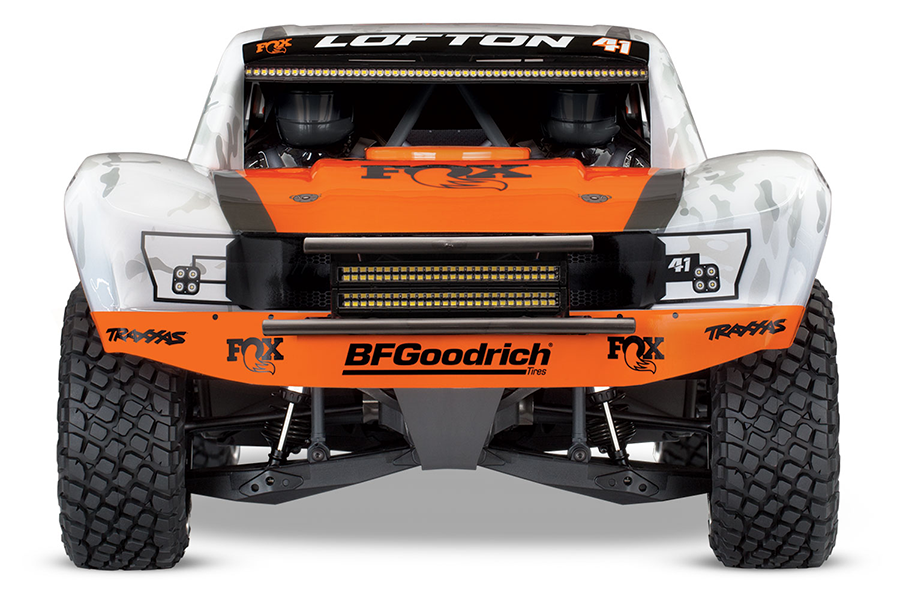

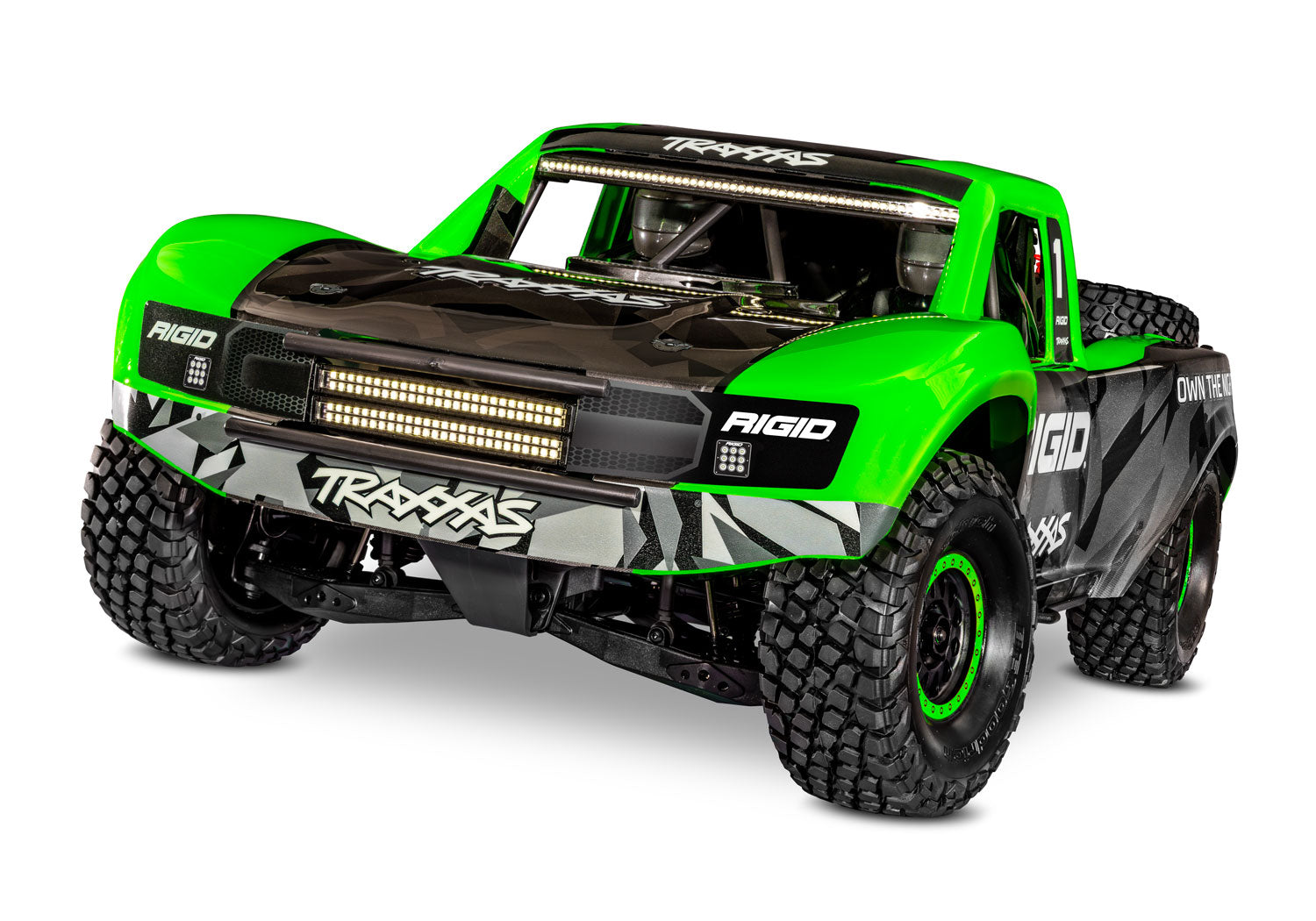

    • Factory-installed LED lighting
  • Light Kit Features
    • Fully waterproof for all-season fun and adventure
    • Brake lights work in both forward and reverse direction
    • Three default lighting modes controlled from the power amplifier
    • Low and high beam brightness settings
    • Regulated output for stable lighting performance (no flickering or dimming as the battery voltage changes)
    • Customize lighting modes and operate lights remotely with Traxxas Link app

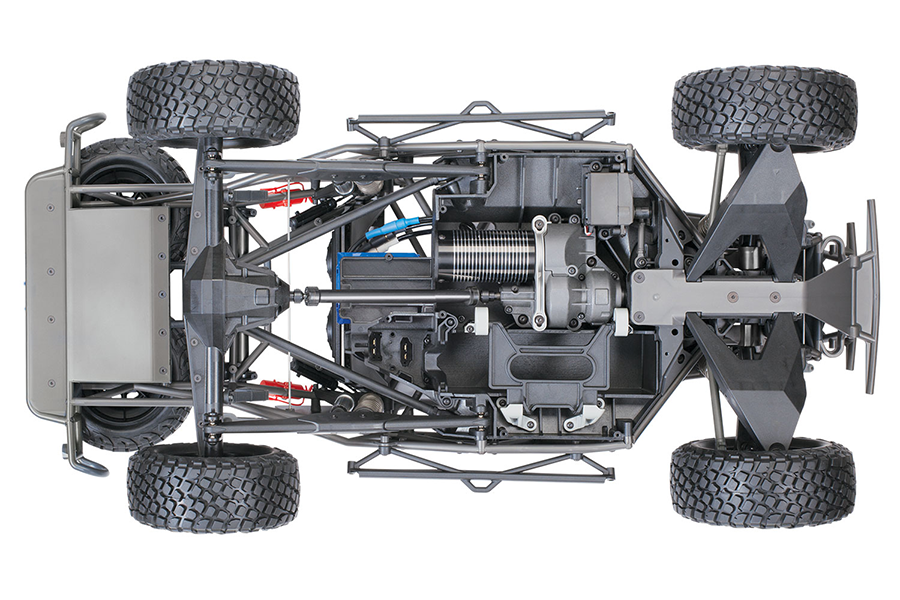

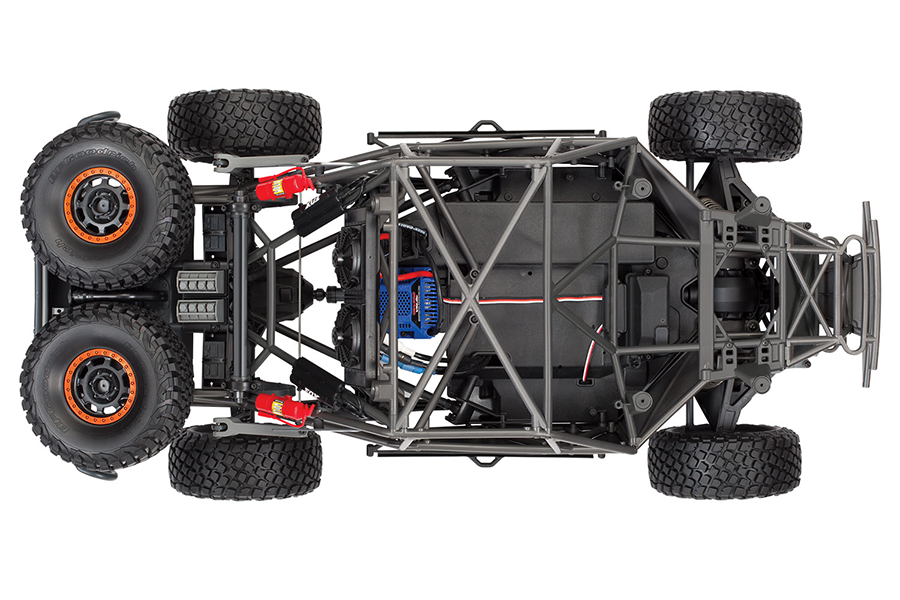

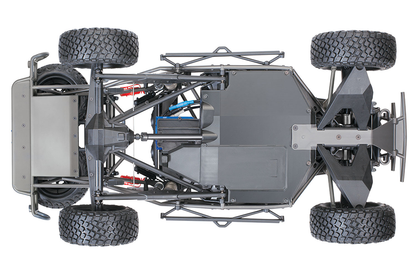

  • Chassis

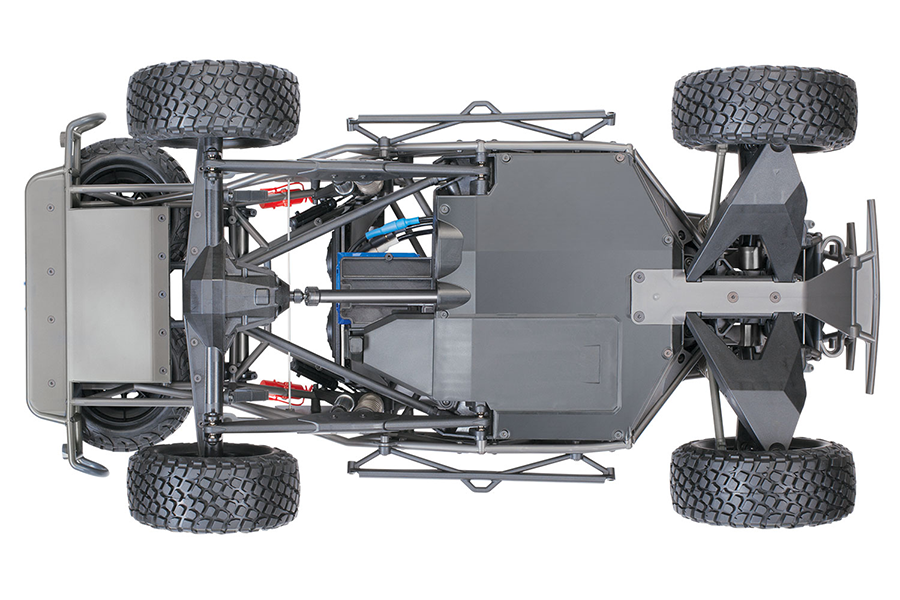

    • Composite inverted tub design
      • Makes maintenance easier
      • Lowers center of gravity (CG) for improved handling
      • Allows easy access to components
    • Tough skid plates protect critical components

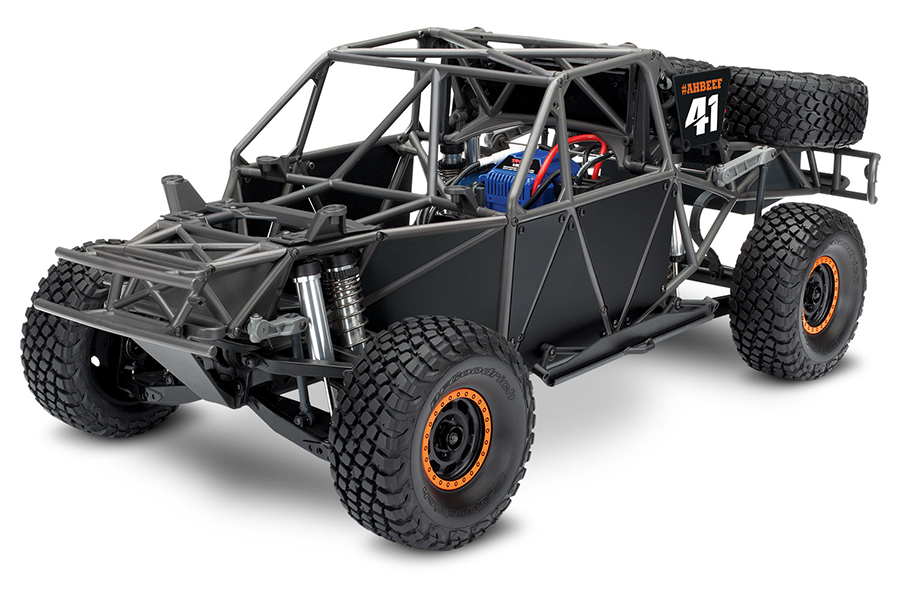

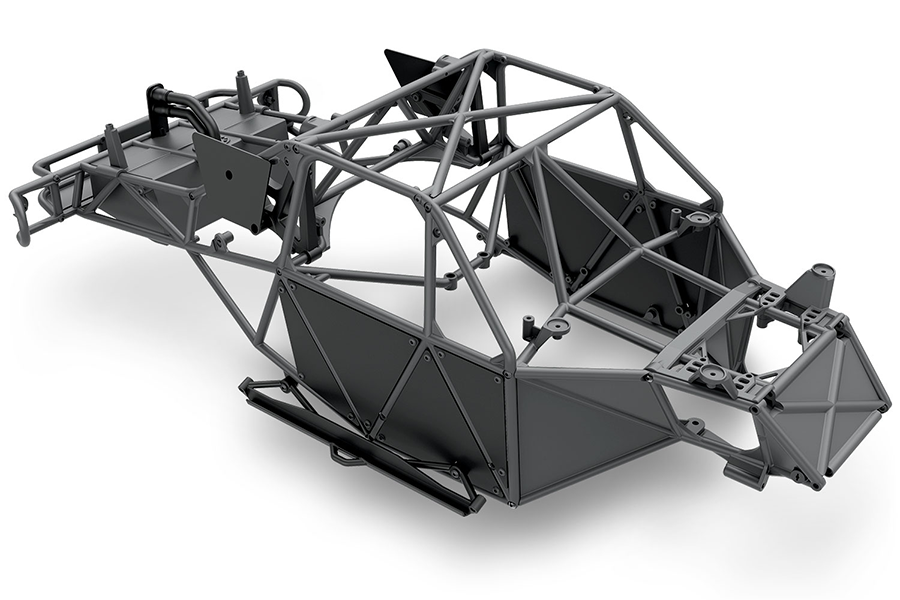

    • Fully integrated tube frame for scale appearance and added rigidity
    • Reinforced bumpers to absorb impacts
    • ESC battery plugs hard mounted to chassis
  • Innovative Battery Compartment
    • Accommodates single 4-cell LiPo or dual 2-cell or 3-cell LiPo batteries
    • Opens from underneath without removing body
    • Fixed oversized battery strap locks batteries securely into place
    • Separate skid plate to protect batteries
  • Suspension
    • Provides scale looks and authentic off-road driving dynamics

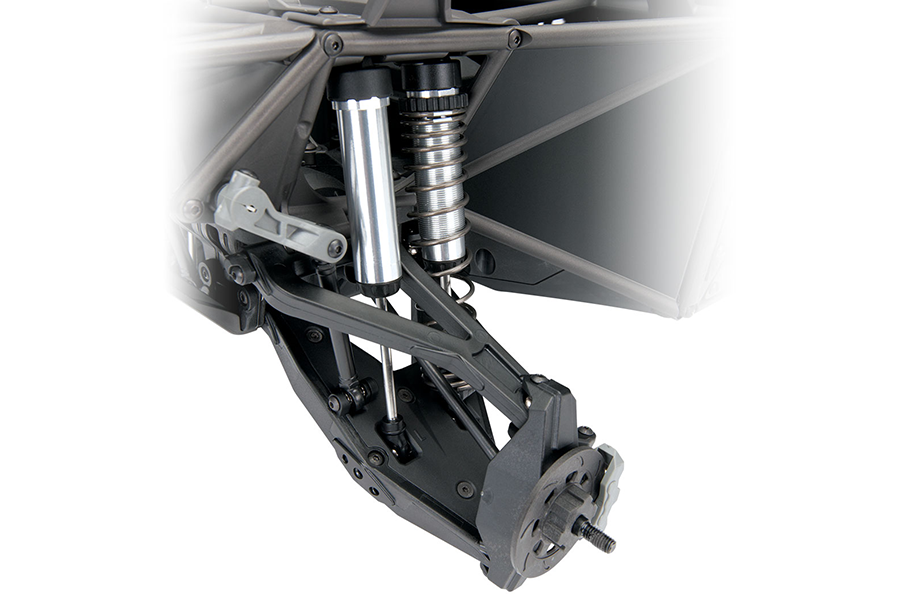

    • Tough independent double-wishbone front suspension with captured rod ends

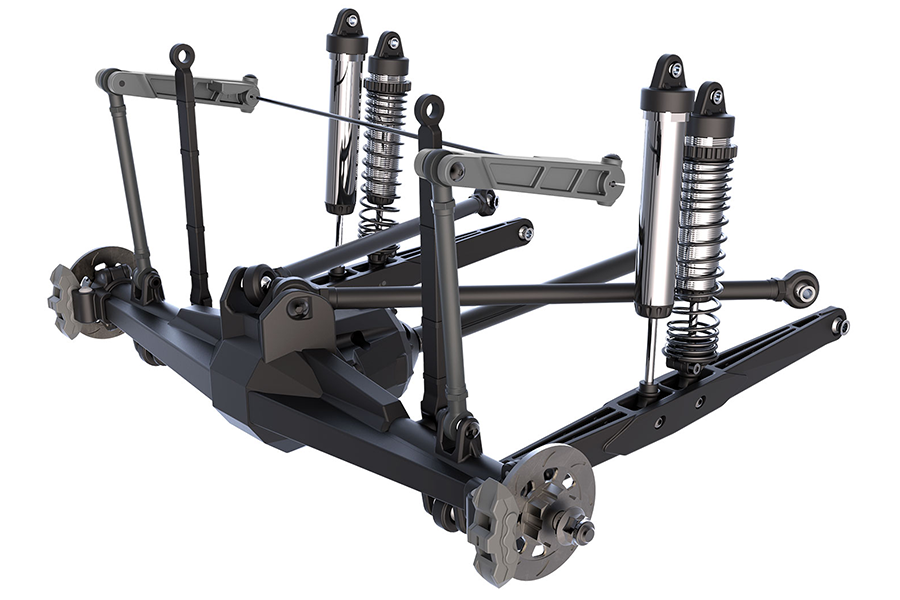

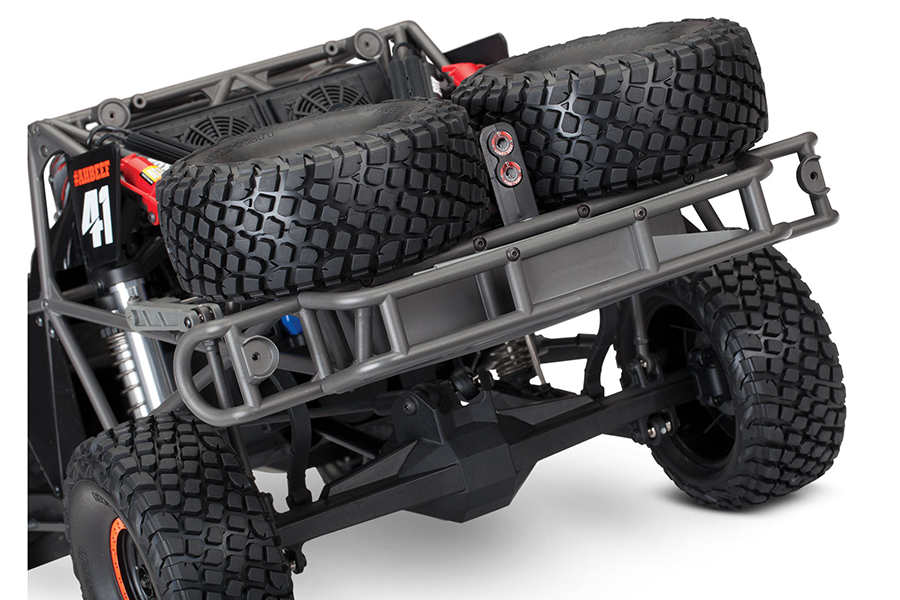

    • Triangulated 4-link rear suspension with solid rear axle (patent pending)
    • Tough composite trailing arms
    • Steel upper links with 3 optional positions for suspension tuning

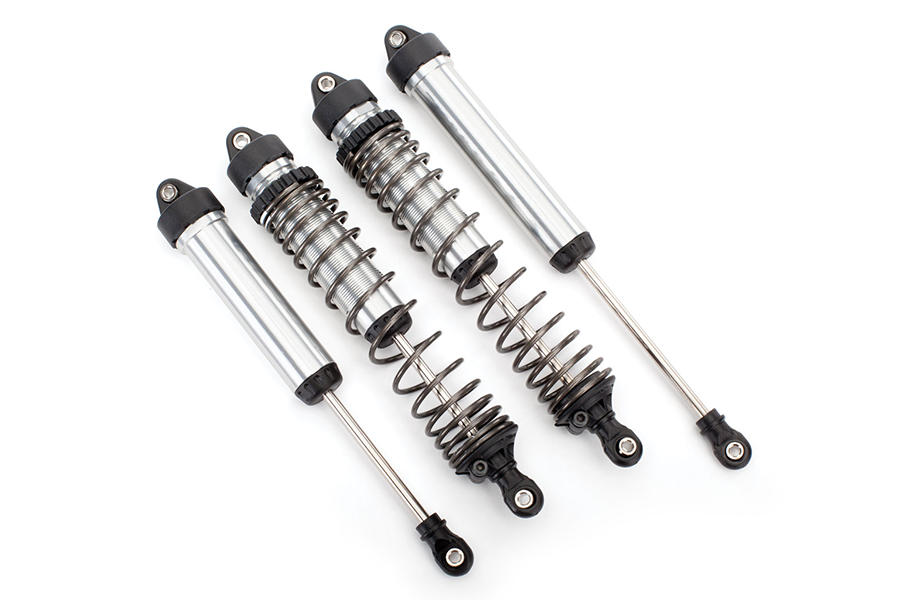

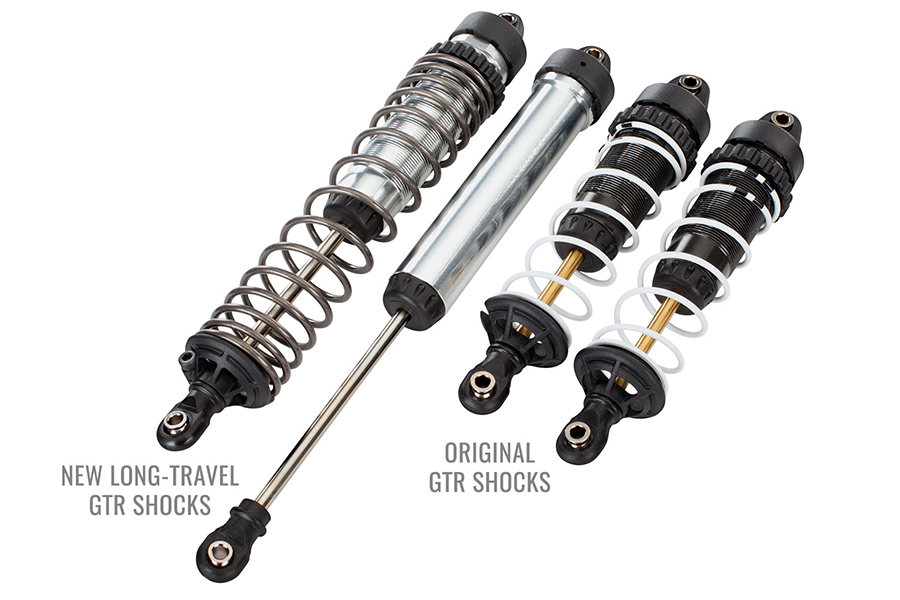

    • Eight long-travel aluminum GTR shocks; four with springs and adjustable ride height collars

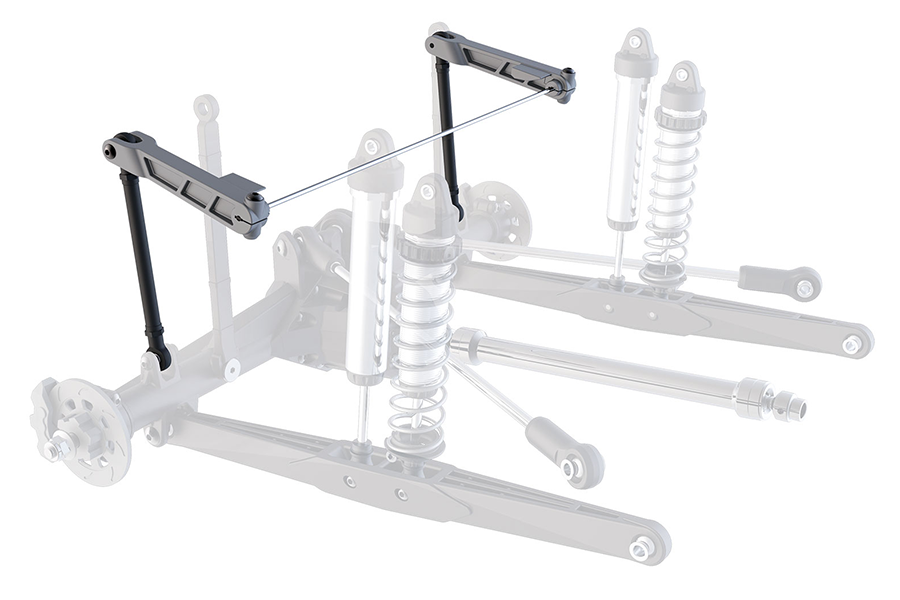

    • Realistic and functional front and rear sway bars

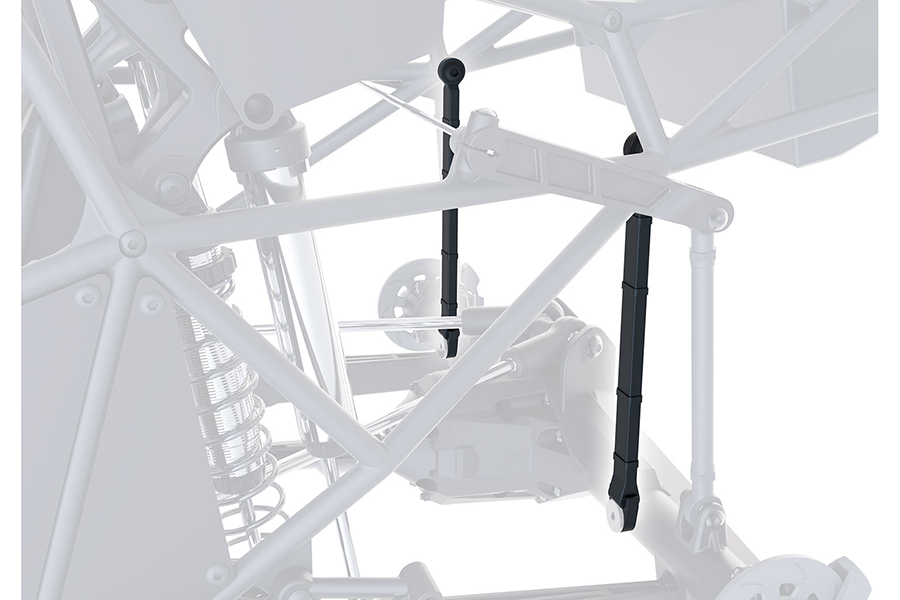

    • Detailed functional limit straps on rear axle
  • Steering

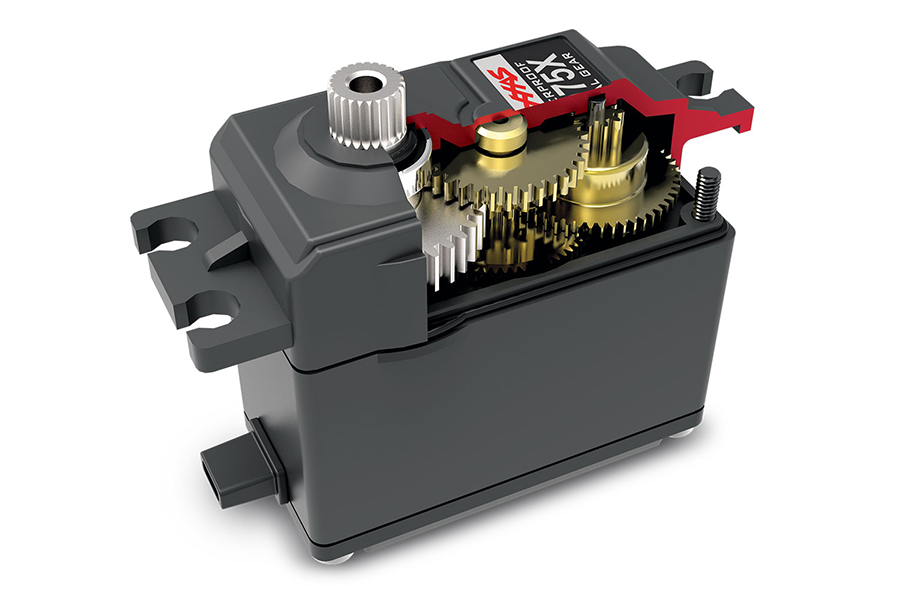

    • Chassis mounted #2075X metal-gear servo

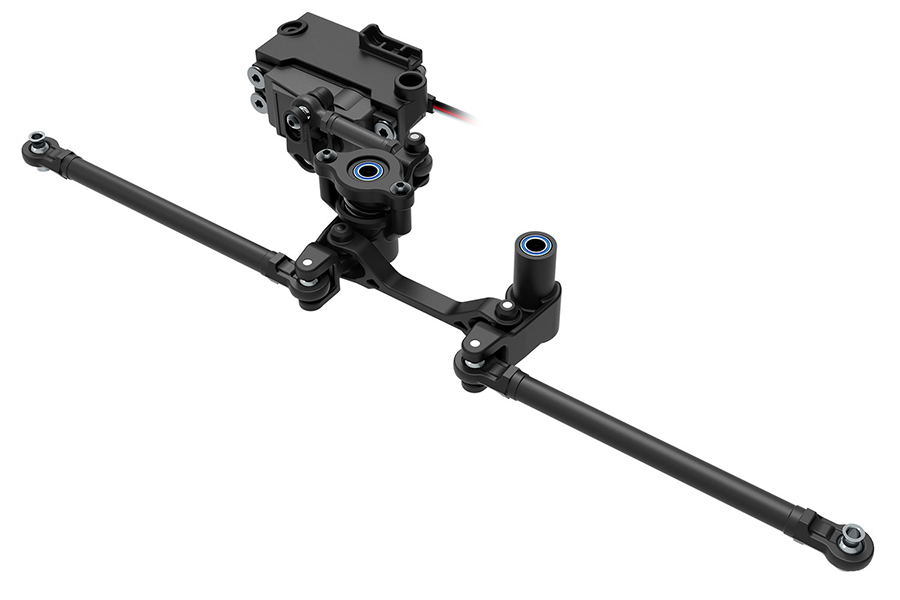

    • Dual bellcrank design with bearings and integrated servo saver
    • Solid non-adjustable steering links for rugged durability
  • Drivetrain

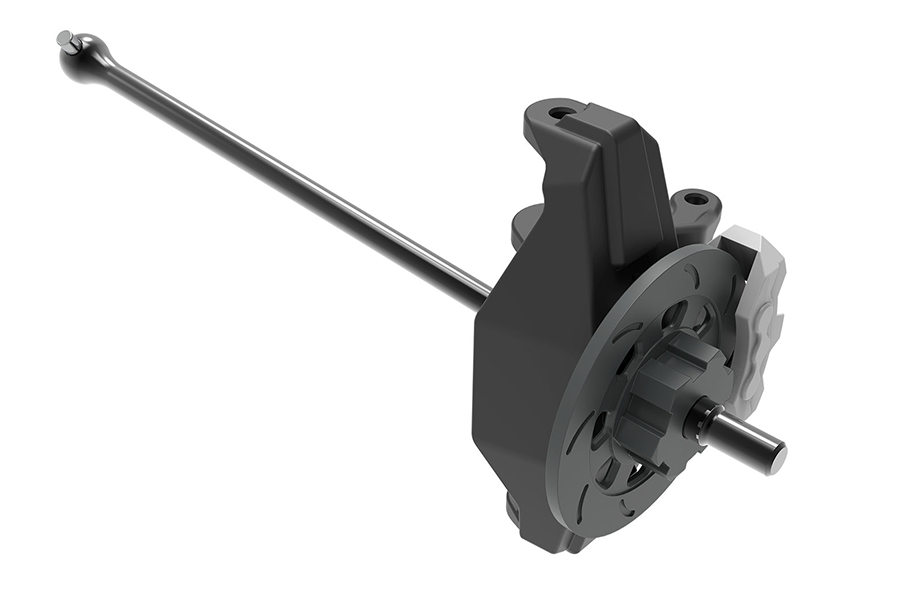

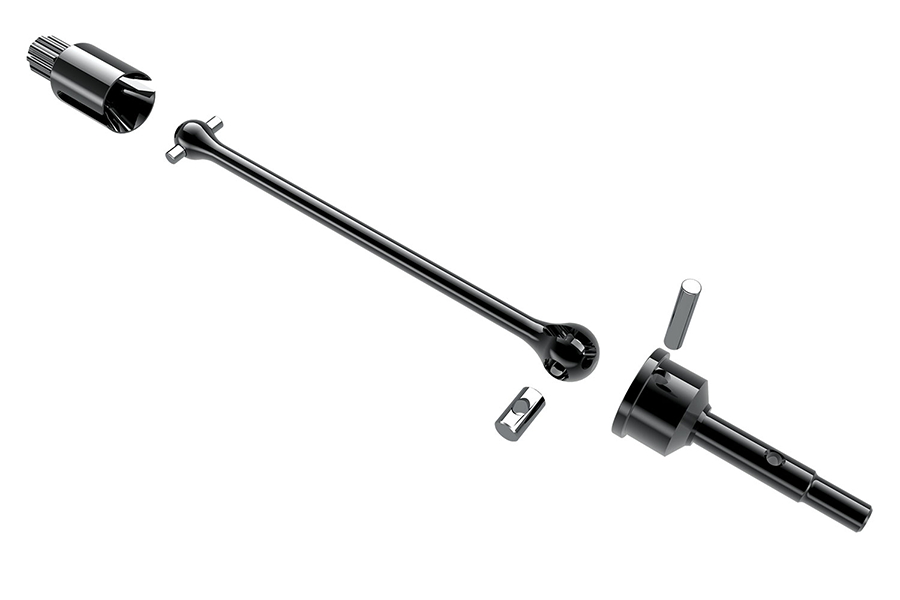

    • Steel CV driveshafts (front) with 6mm stub axles

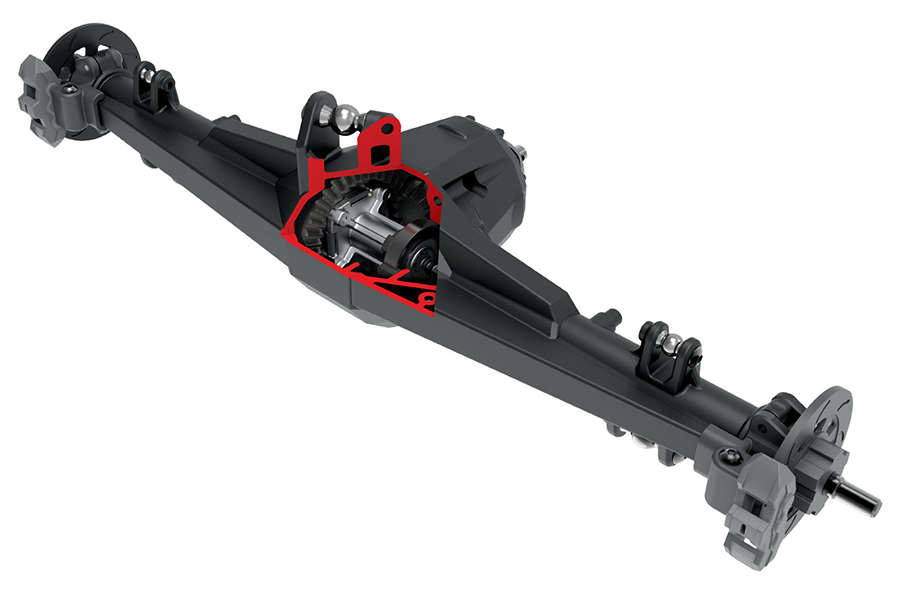

    • Steel straight axle (rear)

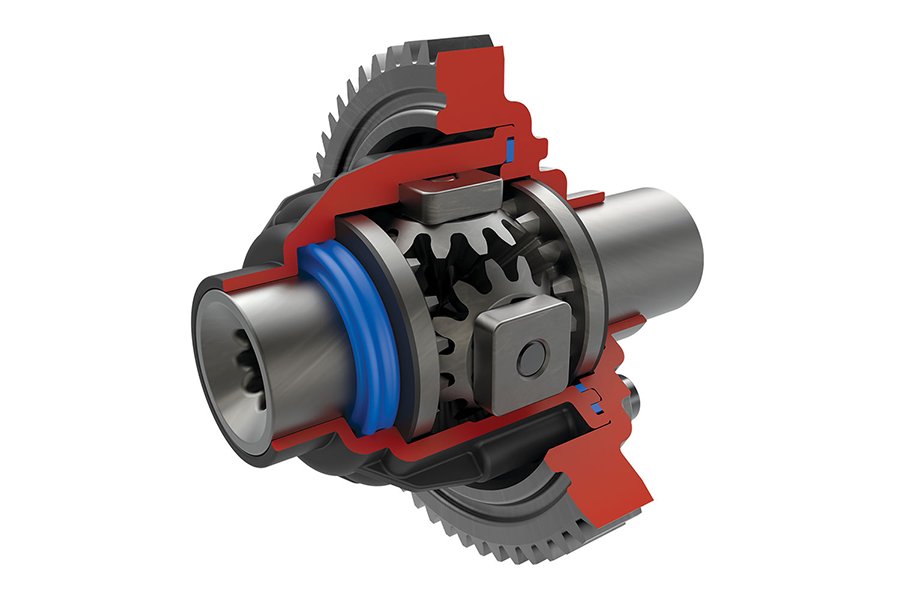

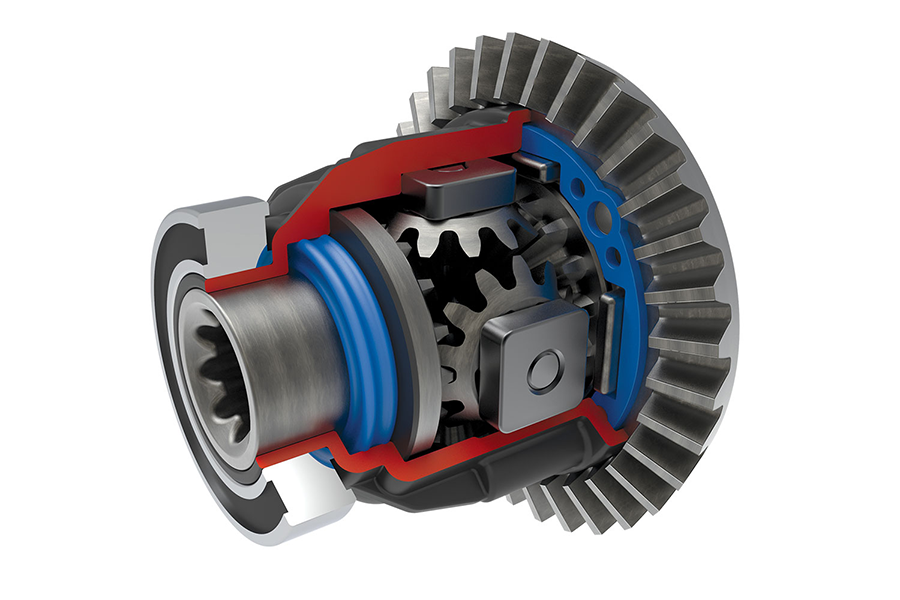

    • Oil-filled limited slip front differential
    • Locked steel spool (rear)

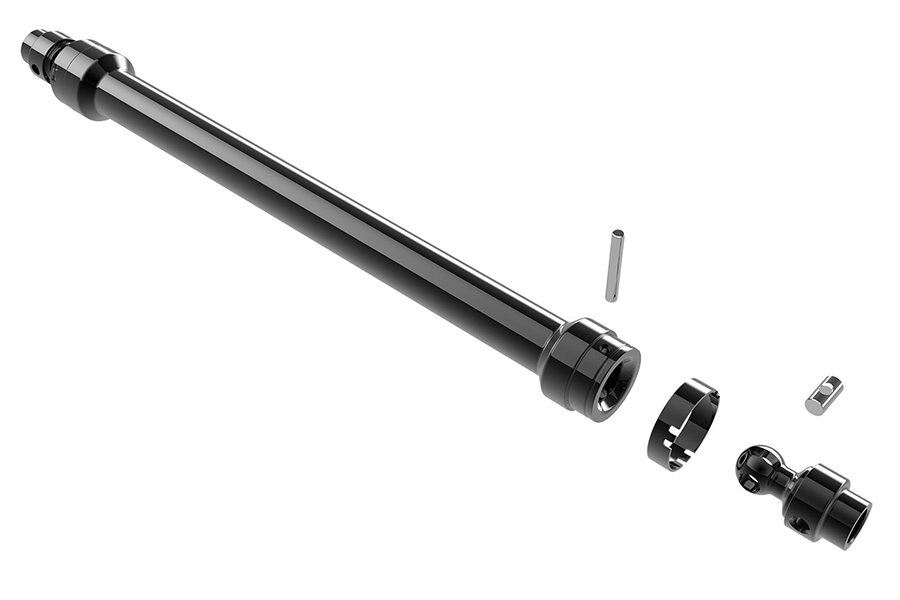

    • Heavy-duty splined front driveshaft
    • Fixed-length steel rear driveshaft

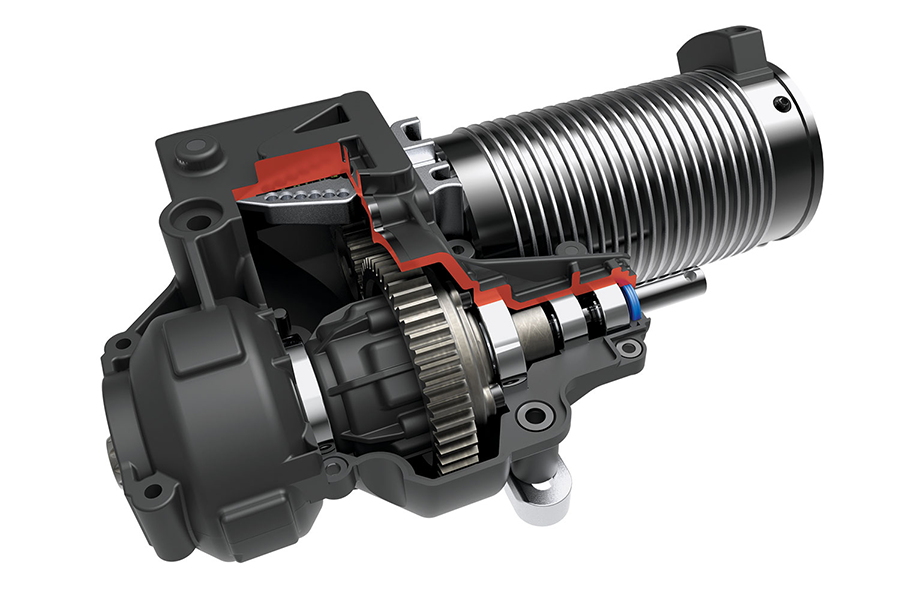

  • Transmission
    • All-steel gear direct drive transmission
    • Torque-Biasing Center Drive™
    • Removes as a single piece for easy maintenance
    • Fixed-pin gear mesh system
  • Wheels and Tires

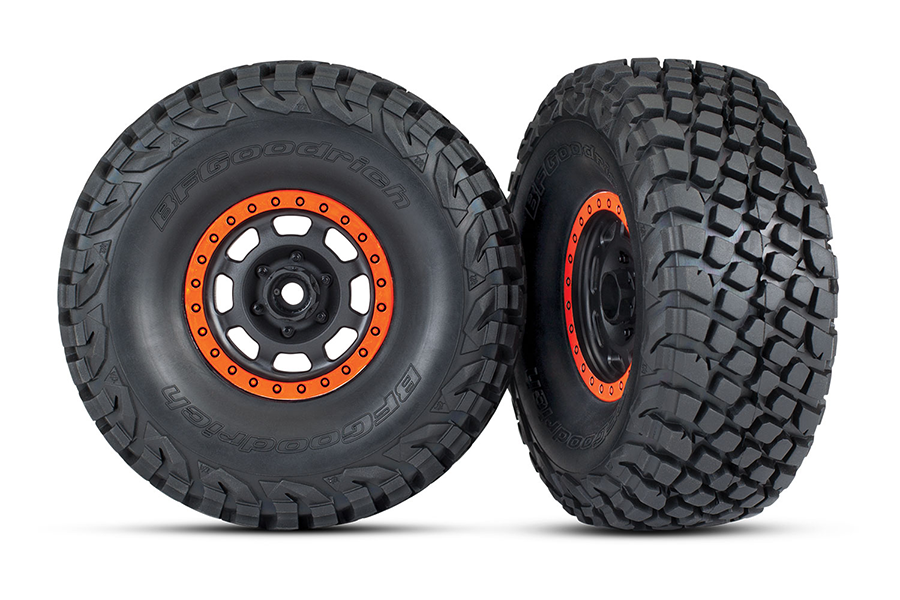

    • Replica BFGoodrich® KR3 off-road tires
    • Beadlock-style 17mm dual-diameter wheels
  • Sealed Ball Bearings
  • Hex Hardware with Rust-Resistant Black Oxide Coating



Length: 27.32 inches (694mm)
Front Track: 13.57 inches (345mm)
Rear Track: 13.57 inches (345mm)
Ground Clearance: 2.27 inches (58mm)
Weight: 13.4lb (6.1kg)
Height: 10.29 inches (261mm)
Wheelbase: 16.53 inches (420mm)
Front Shock Length: 5.28 inches (134mm)
Front Threaded Shock Length: 5.28 inches (134mm)
Rear Shock Length: 6.3 inches (160mm)
Rear Threaded Shock Length: 5.55 inches (139mm)
Tires (pre-glued): 134mm x 57mm BFGoodrich® KR3 replicas
Wheels: Dual diameter 40mm x 56/81mm
Speed Control: Velineon® VXL-6s
Motor (electric): 2200kV
Transmission: Direct-drive with Torque-Biasing Center Drive
Overall Drive Ratio: 17.89:1
Front Differential Type: Sealed, 4-gear
Rear Differential Type: Locked spool
Center Differential Type: Sealed, 4-gear (1M weight oil)
Chassis Structure / Material: Inverted composite tub
Brake Type: Electronic
Drive System: Shaft driven 4WD
Steering: Dual bellcranks with ball bearings
Radio System: TQi™ 2-channel transmitter with 6533 TSM receiver
Servo: 2075X Metal Gear
Top Speed (stock gearing): 4S LiPo – 30+ mph, 6S LiPo – 50+ mph
Skill Level: 5
Battery Compartment: 181mm x 46mm x 56mm
