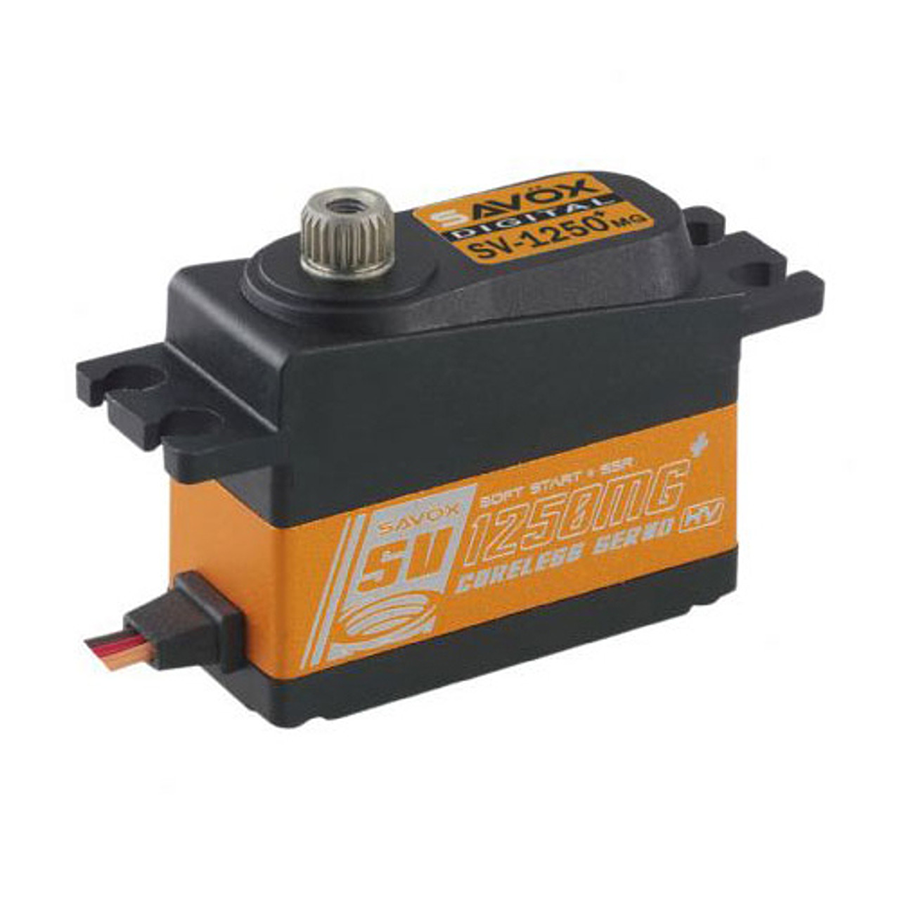

Savox SV-1250MGP High Voltage Micro Tail Servo with Soft Start

Overview:
This is the Savox SV-1250MGP High Voltage Micro Tail Servo with Soft Start. The SV-1250MG mini-sized, metal-geared digital servo is extremely powerful for its size and is capbable of operating at higher voltages than most mini/micro servos on the market. New Savox "Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features:

  • Steel gear train provide durability against heavy use.
  • Capable of HV operation.
  • Aluminum middle case allows for cooler operating temperatures.
  • Ideal where torque is needed in a small mounting space.
  • "Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Technical Details:

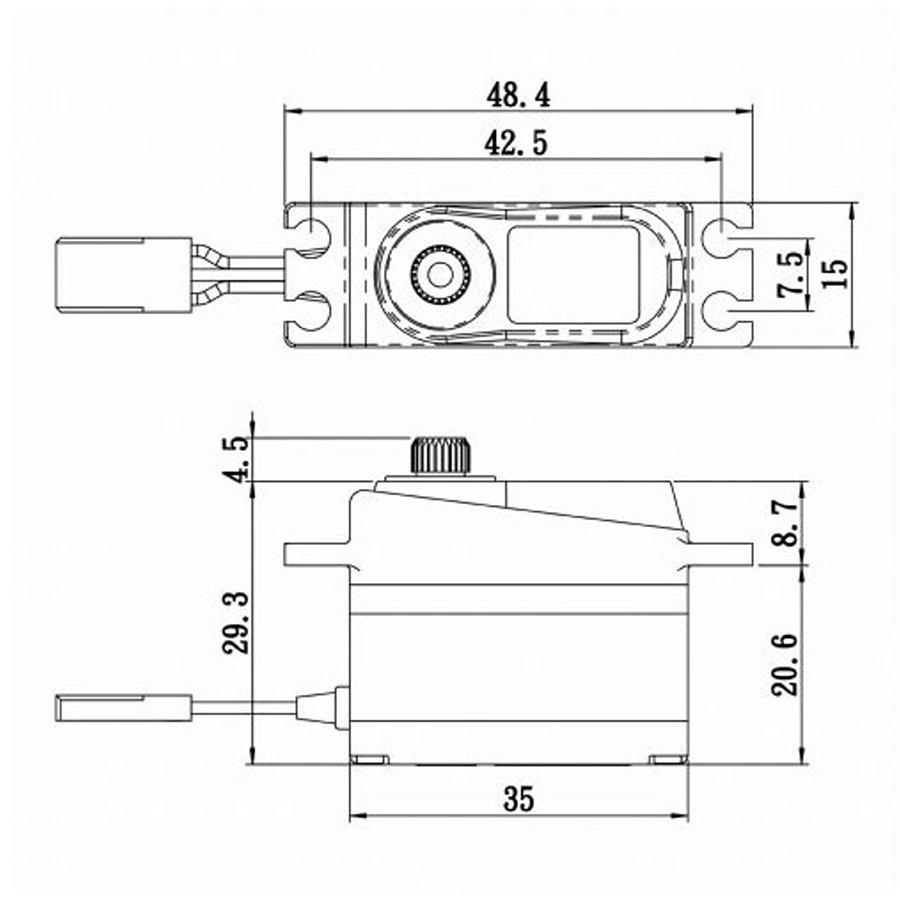

  • Dimensions (mm): 35.0 X 15.0 X 29.2
  • Weight (g): 29.6
  • Speed (@6.0V sec/60): .11
  • Torque (@6.0V oz-in): 63.9
  • Speed (@7.4V sec/60): .095
  • Torque (@7.4V oz-in): 111.1
  • Gear: Metal
  • Bearing: 2BB
  • Case: Aluminum Middle
  • Horn gear spline: 25-Tooth
