Tazer Twin 540 Brushless Motor<br>ESC Combo: 2WD,3000kv(SO)
Tazer Twin 540 Brushless Motor<br>ESC Combo: 2WD,3000kv(SO)

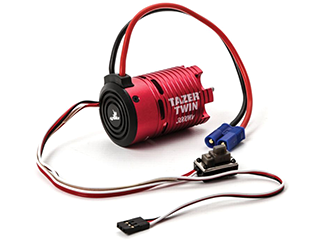

Tazer Twin 2-in-1 Brushless Motor/ESC Combo, 3000Kv: 1/10 2WD
Features:
• 2-in-1 Motor/ESC Unit for 2WD 1/10 scale cars
• Dynamite Sensorless Brushless Technology
• Designed for LiPo and NiMH batteries
• High performance 4-pole motor
• 3 Different Mounting Positions
• CNC Machined aluminum case with high efficiency cooling
• Forward/brake and forward/brake/reverse
• High Grade Silicone Wires
• Overheat protection system
• Battery low voltage cut-off system
• Status control by LED and audio tone
• Plug & Play: no soldering required, easy setup
• High current EC3 connector
• Waterproof design
• 3000Kv brushless motor
• 1/8”/3.17mm output shaft diameter
Overview:
The Dynamite Tazer Twin 2-1 System combines the motor and ESC inside a single aluminum case specifically designed for the task. With the speed control and motor combined, we have been able to improve performance and reliability by making a simpler system, composed of fewer components and electrical connections.
The Tazer Twin System is very easy to install and operate, making it the perfect upgrade for all 2WD brushed 1/10 scale vehicles. The unit is fully programmable and waterproof to keep the fun going in all environments.
Application: | 1/10th scale 2WD vehicle |
Input Connector: | EC3 |
Input Voltage: | 4.5–8.4V |
Length: | 2.3 in (58mm) |
Outer Diameter: | 1.4 in (36mm) |
Maximum Continuous Current: | 45A |
RPM/Volt (Kv): | 3000 Kv |
Material: | Aluminum |
Wire Gauge: | 14 AWG |
