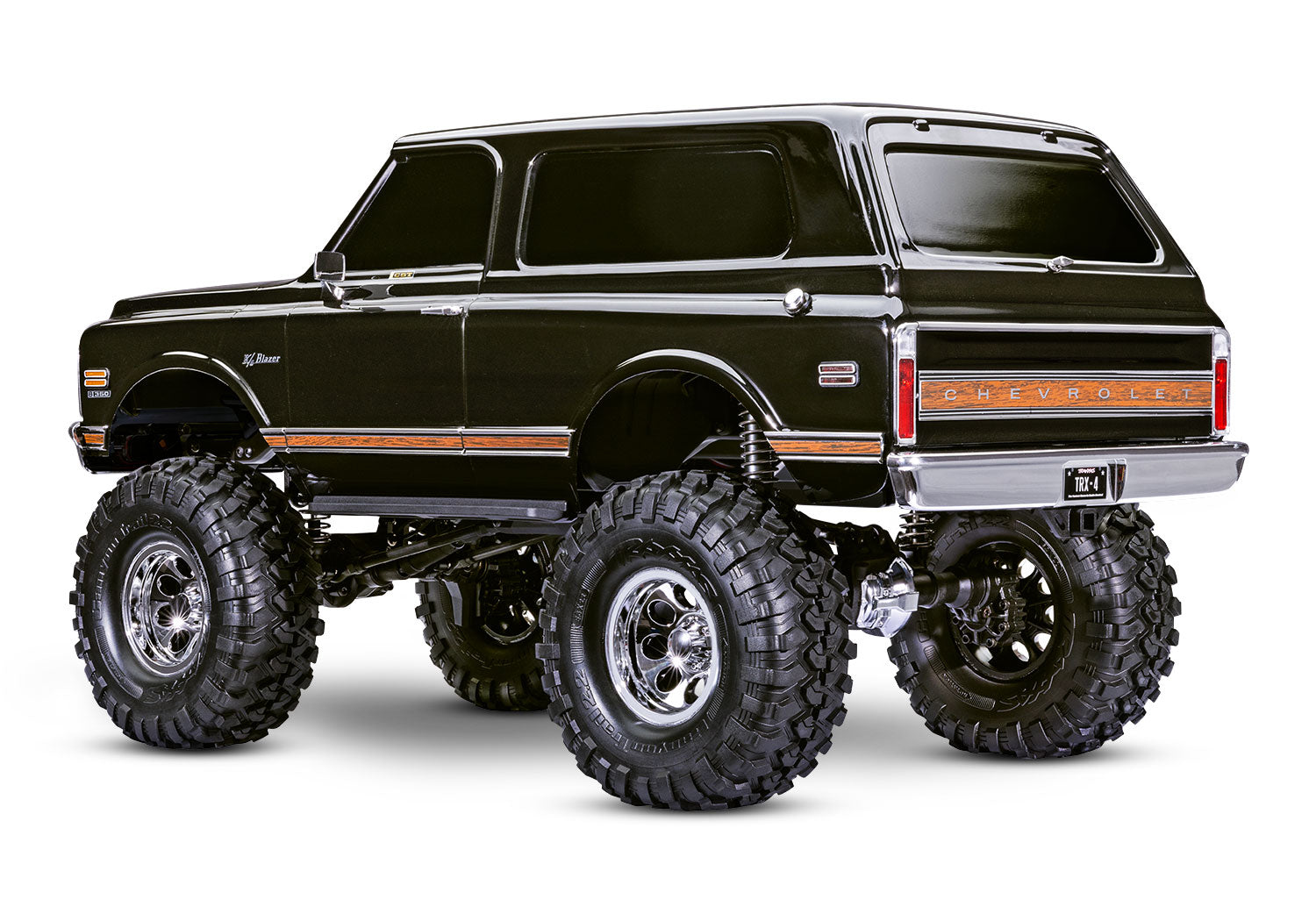

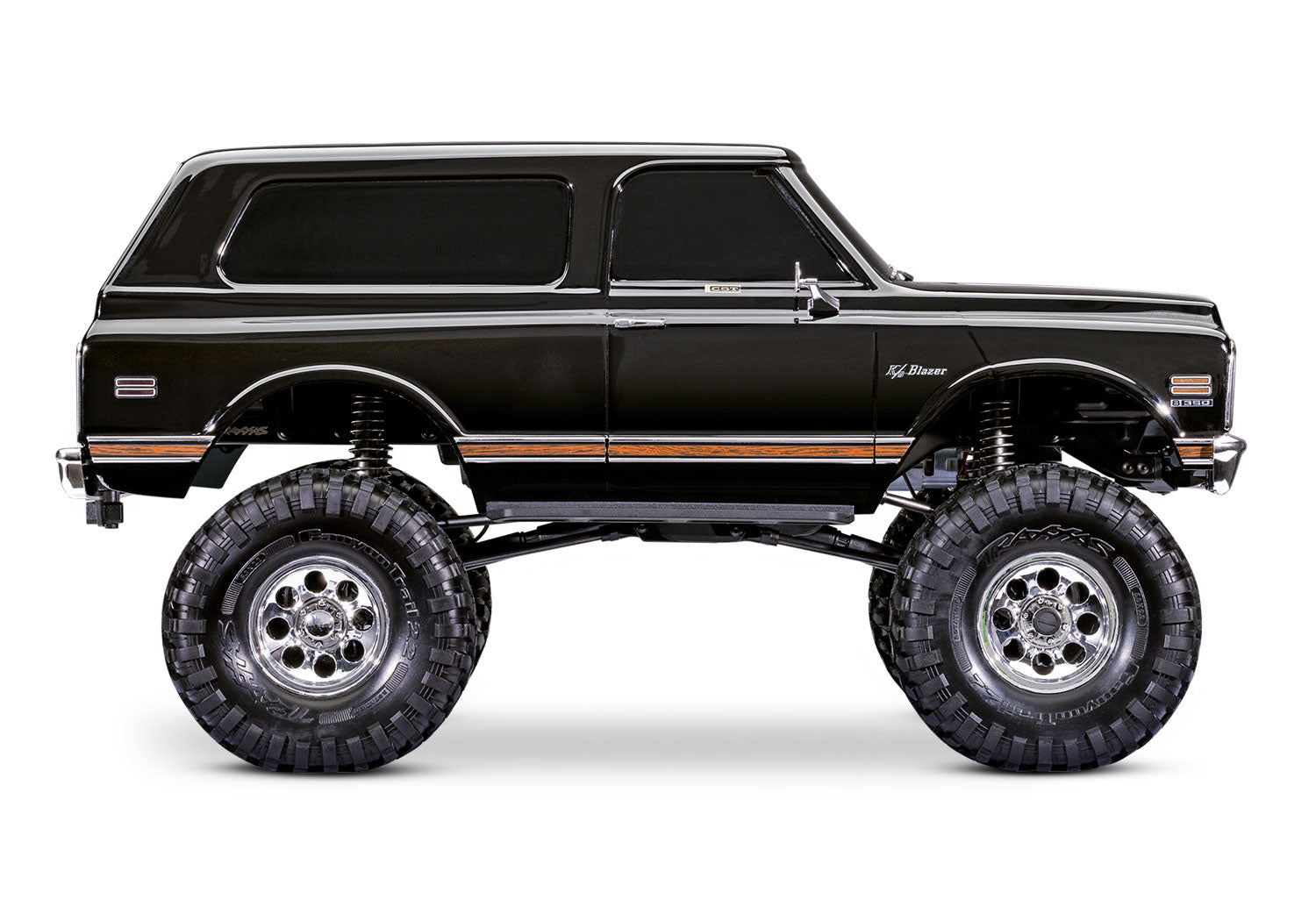

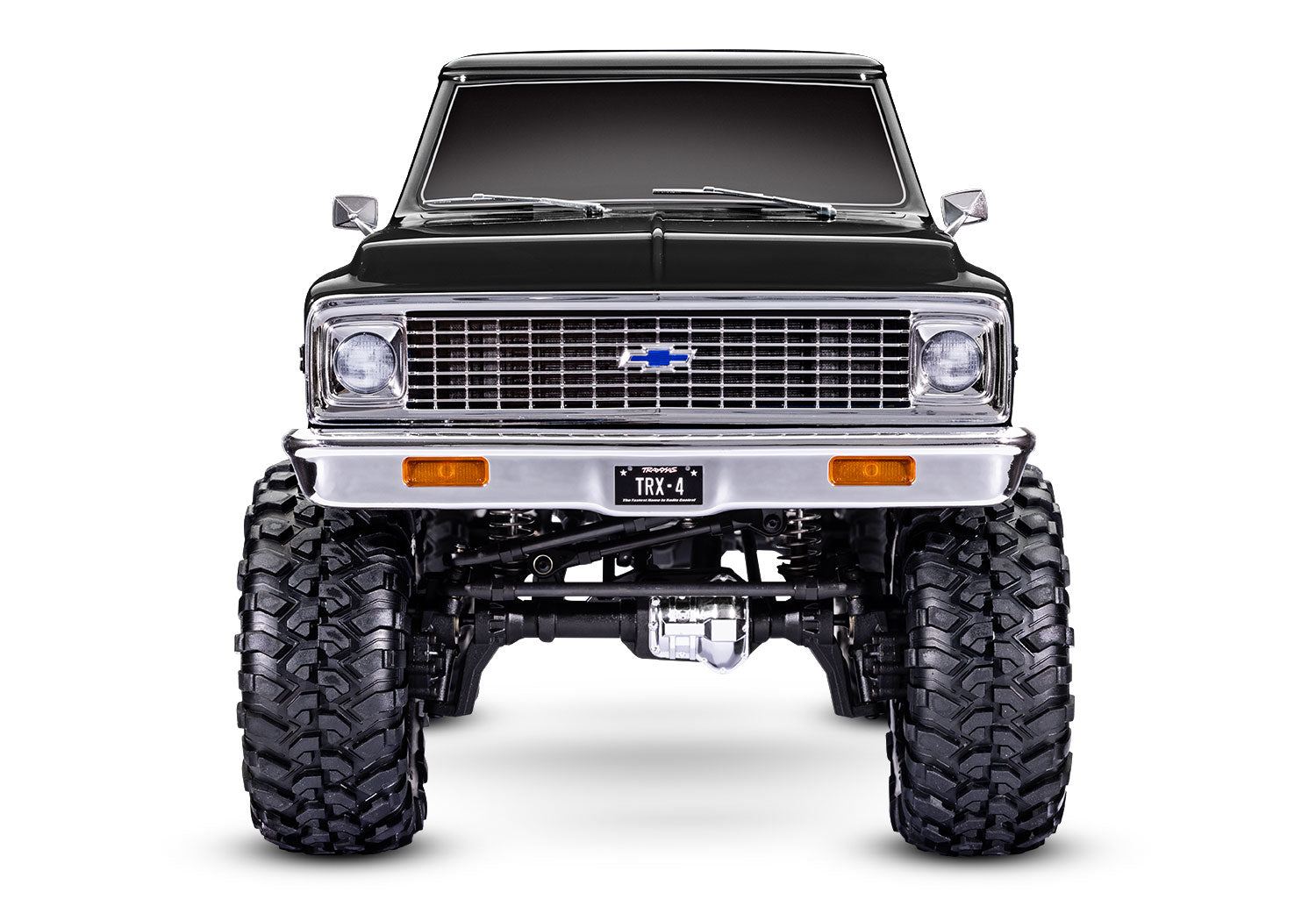

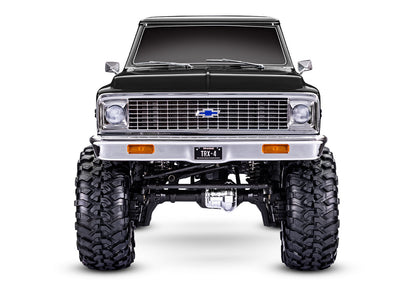

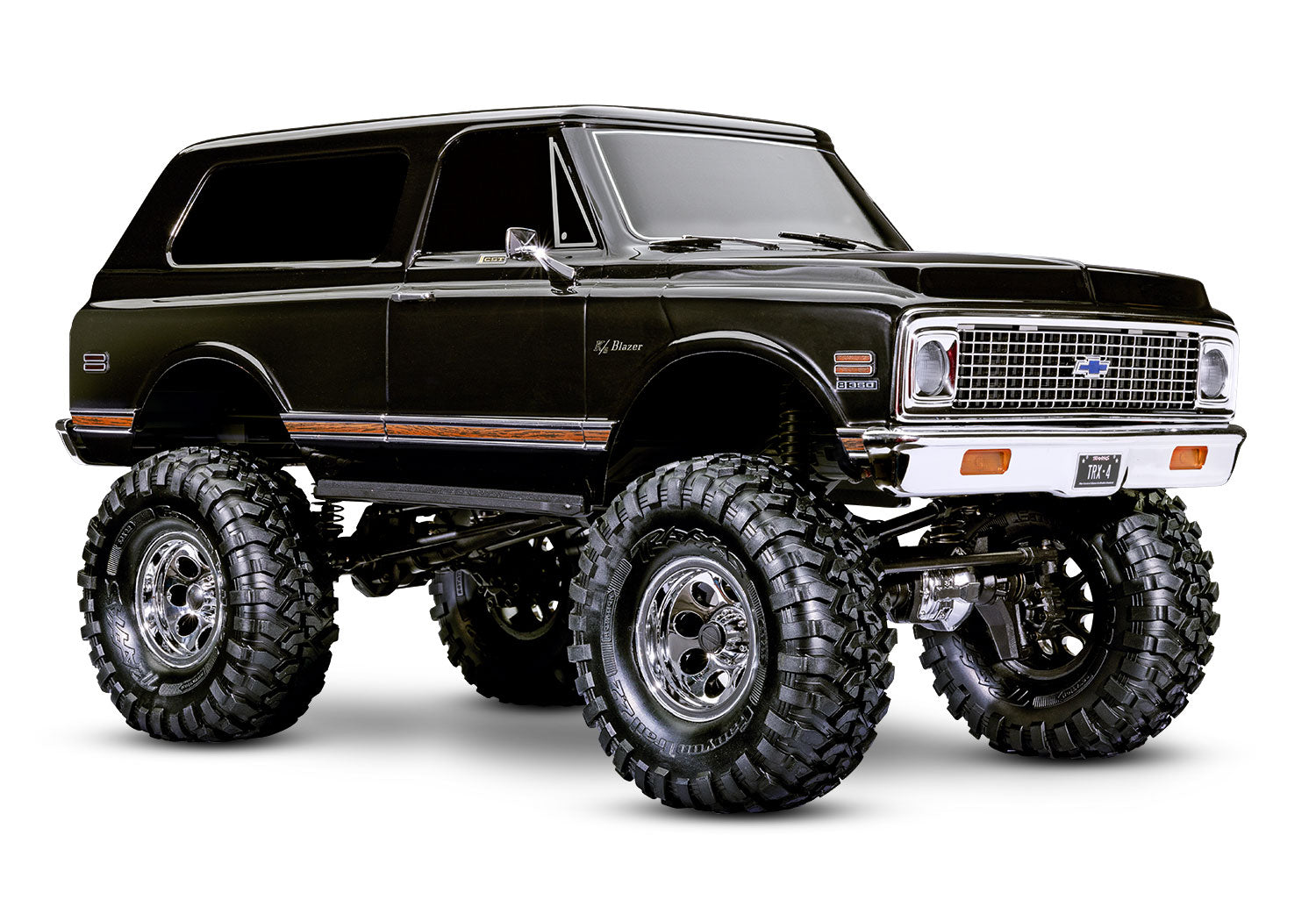

TRX-4 Chevrolet 1972 K5 Blazer High Trail: Black (Without Battery or Charger)

Overview:

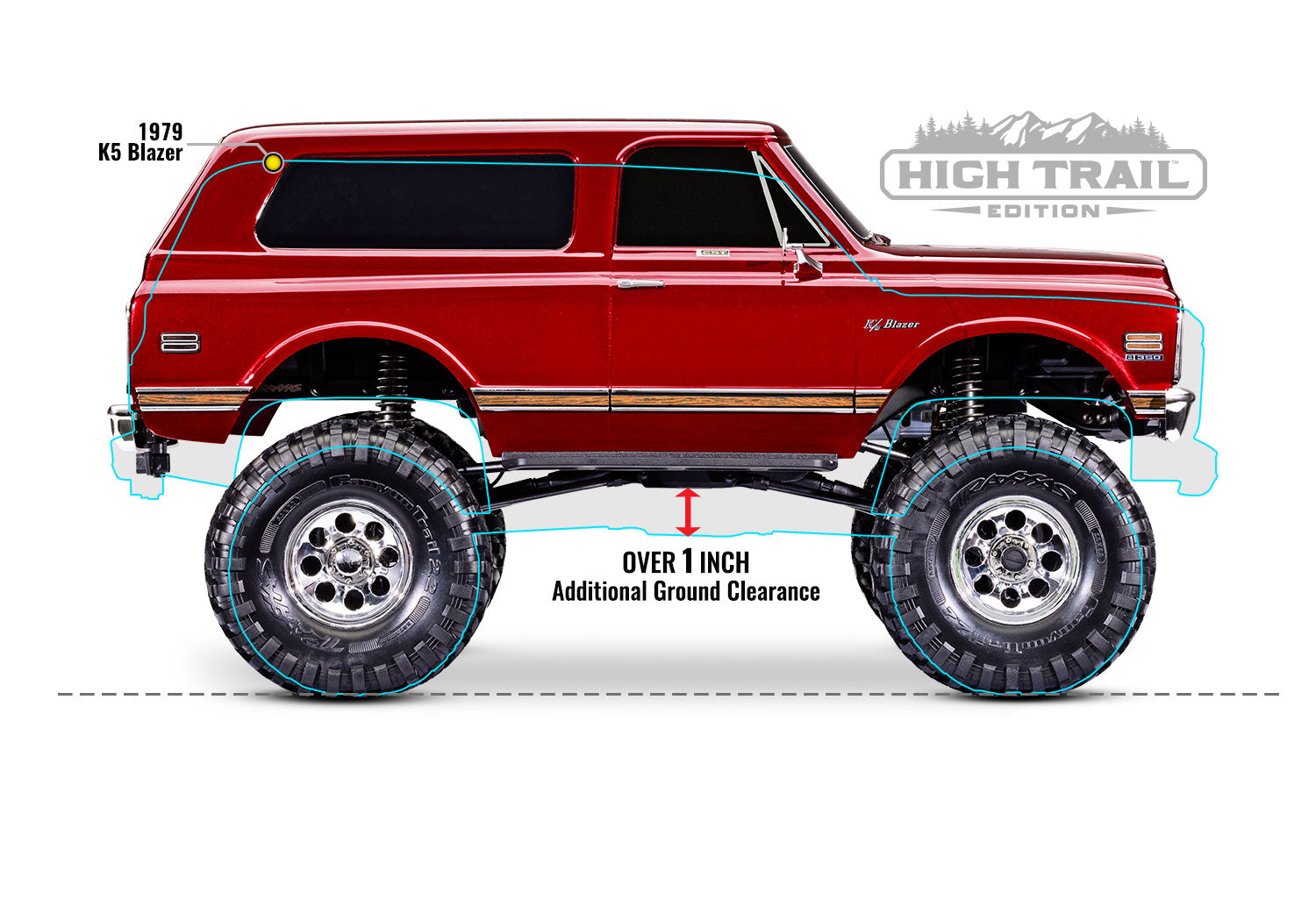

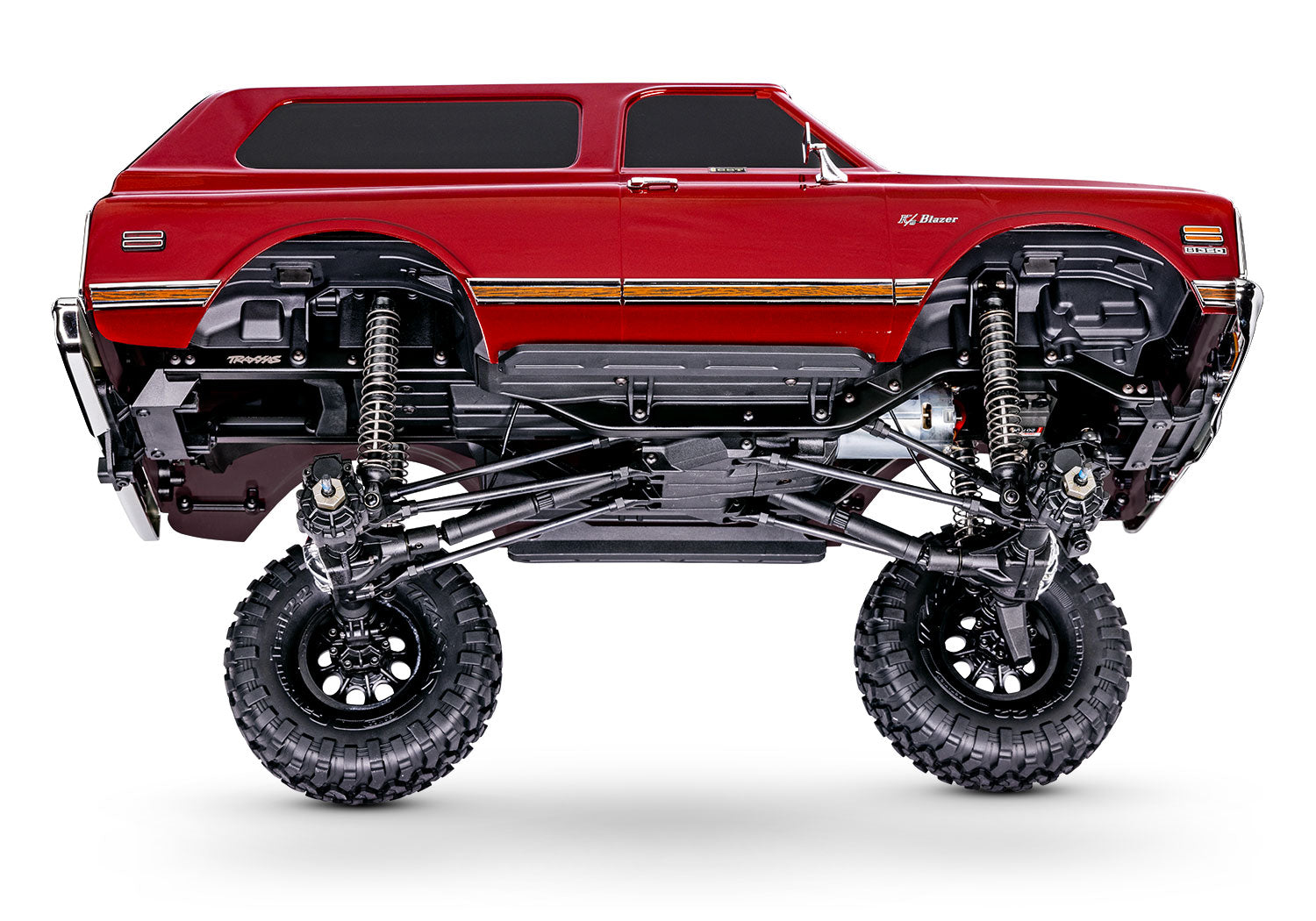

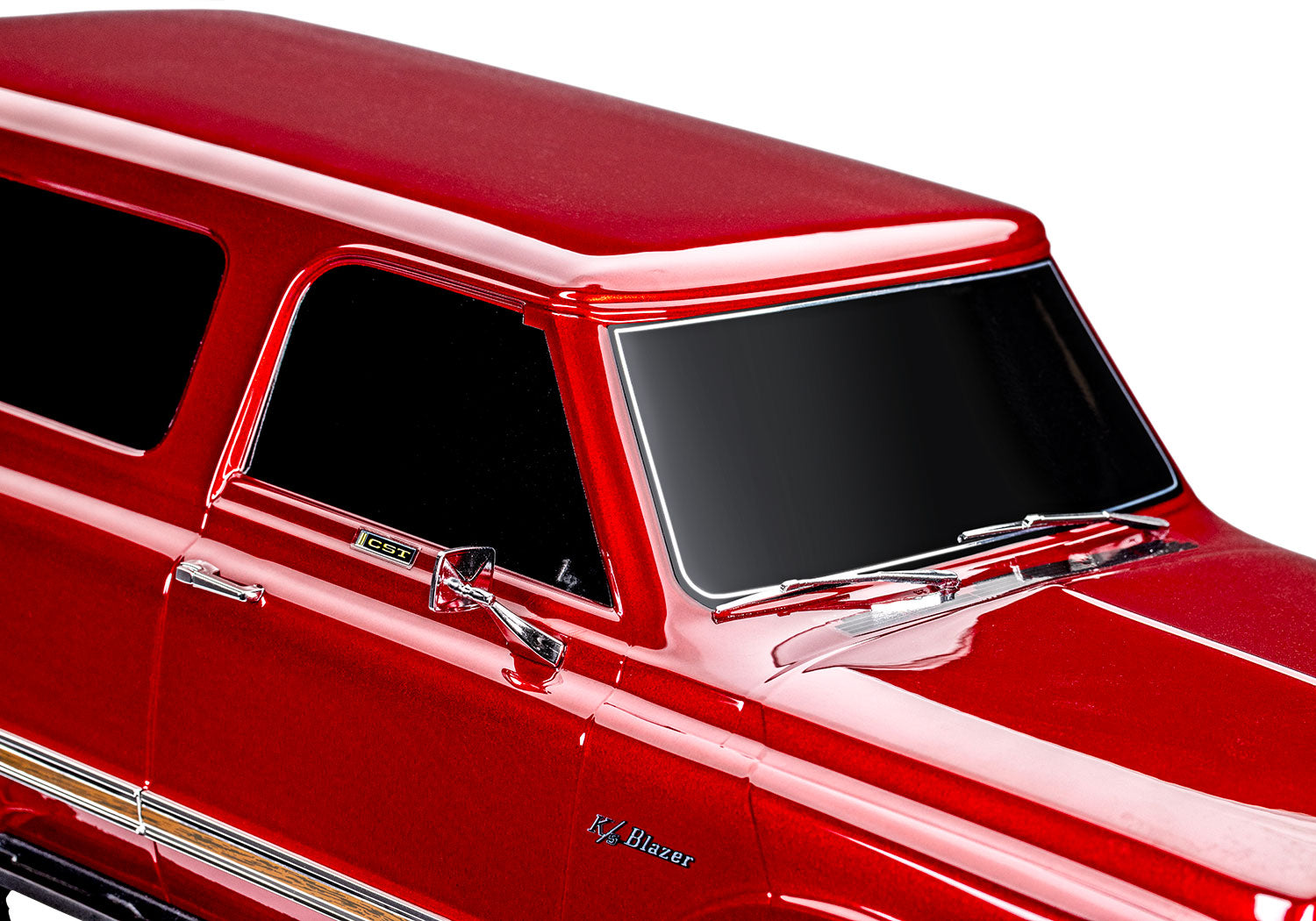

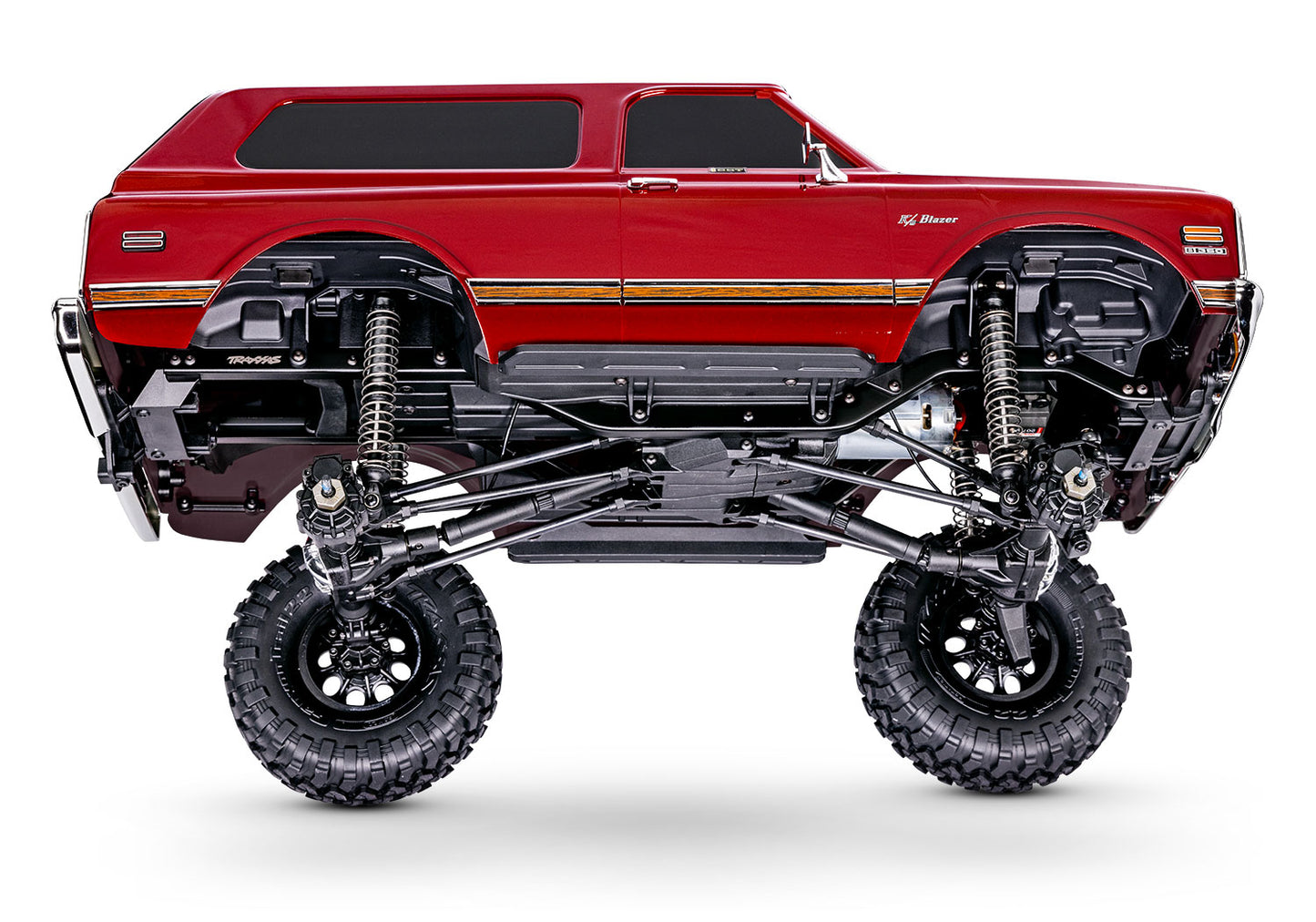

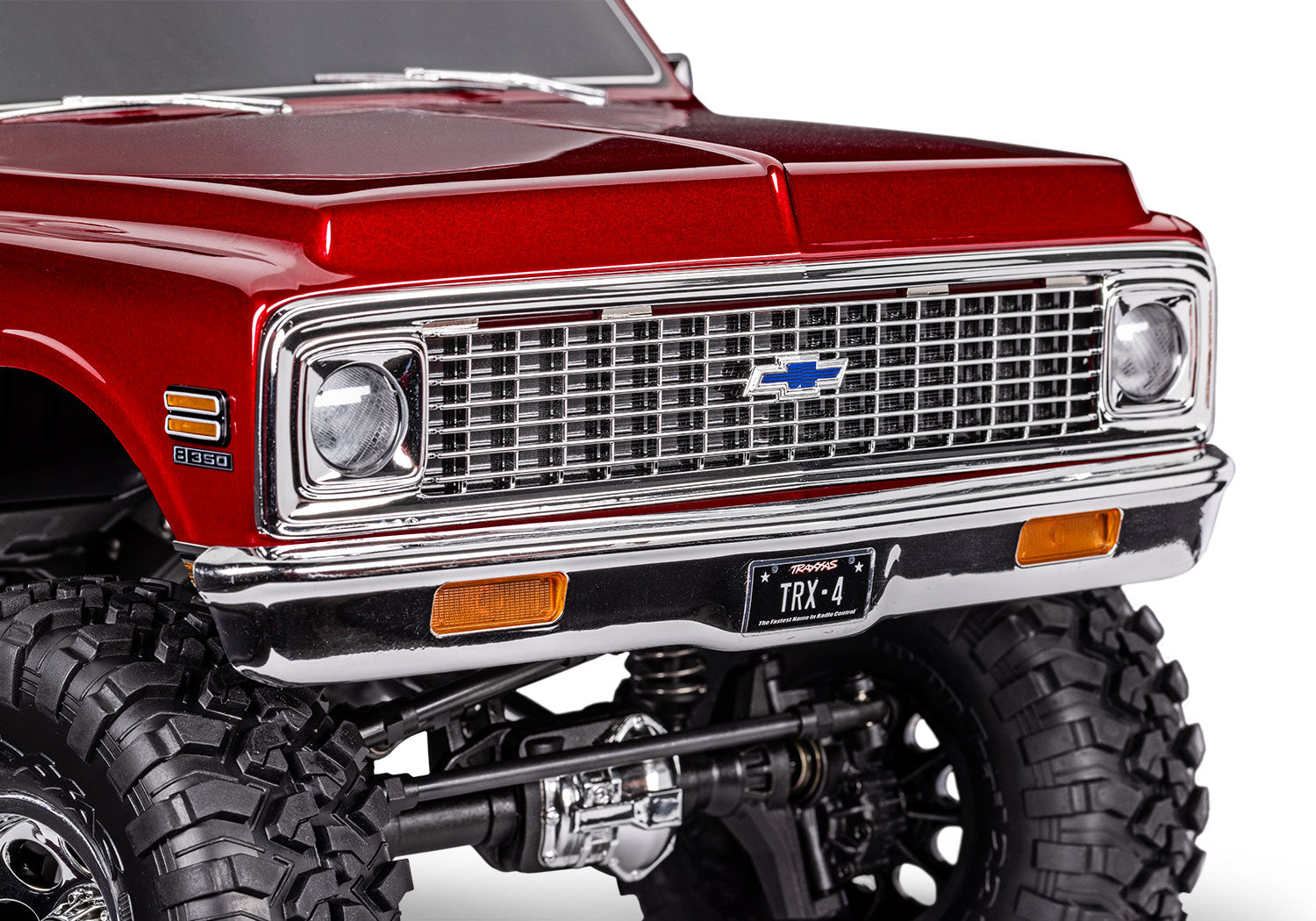

Traxxas High Trail Edition™ TRX-4 models are the biggest and baddest trucks on the trail and now classic Blazer fans have reason to celebrate. The 1972 Chevrolet® K5 Blazer gets the full High Trail treatment with a big, lifted stance and beautifully detailed body. The factory-installed Long Arm Lift Kit boosts the Blazer’s ground clearance by more than an inch with larger 2.2″ wheels and tires to conquer the roughest terrain. K5 Blazer High Trail Edition delivers more of what you crave—extreme all-terrain capability, stunning scale looks, and Traxxas-Tough™ durability.

What’s In The Box:
(1) TRX-4, Ready-To-Race® model
(1) XL-5 HV waterproof electronic speed control
(1) Titan® 21T reverse rotation motor
(1) TQi™ 2.4GHz radio system with cruise control
(1) High quality maintenance tools

What You’ll Need:
(1) Battery: TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2S–3S) batteries.
(1) Charger: Traxxas EZ-Peak® Live charger is recommended for easy and fast charging performance (model #2971).
(4) AA Alkaline Batteries: Four AA alkaline batteries for the transmitter.

Vehicle
Length:	20.67 inches (525mm)
Front Track:	10.63 inches (270mm)
Rear Track:	10.63 inches (270mm)
Center Ground Clearance:	4 inches (99mm)
Weight (w/o battery):	7.26lbs (3.30kg)
Height (overall):	11.22 inches (285mm)

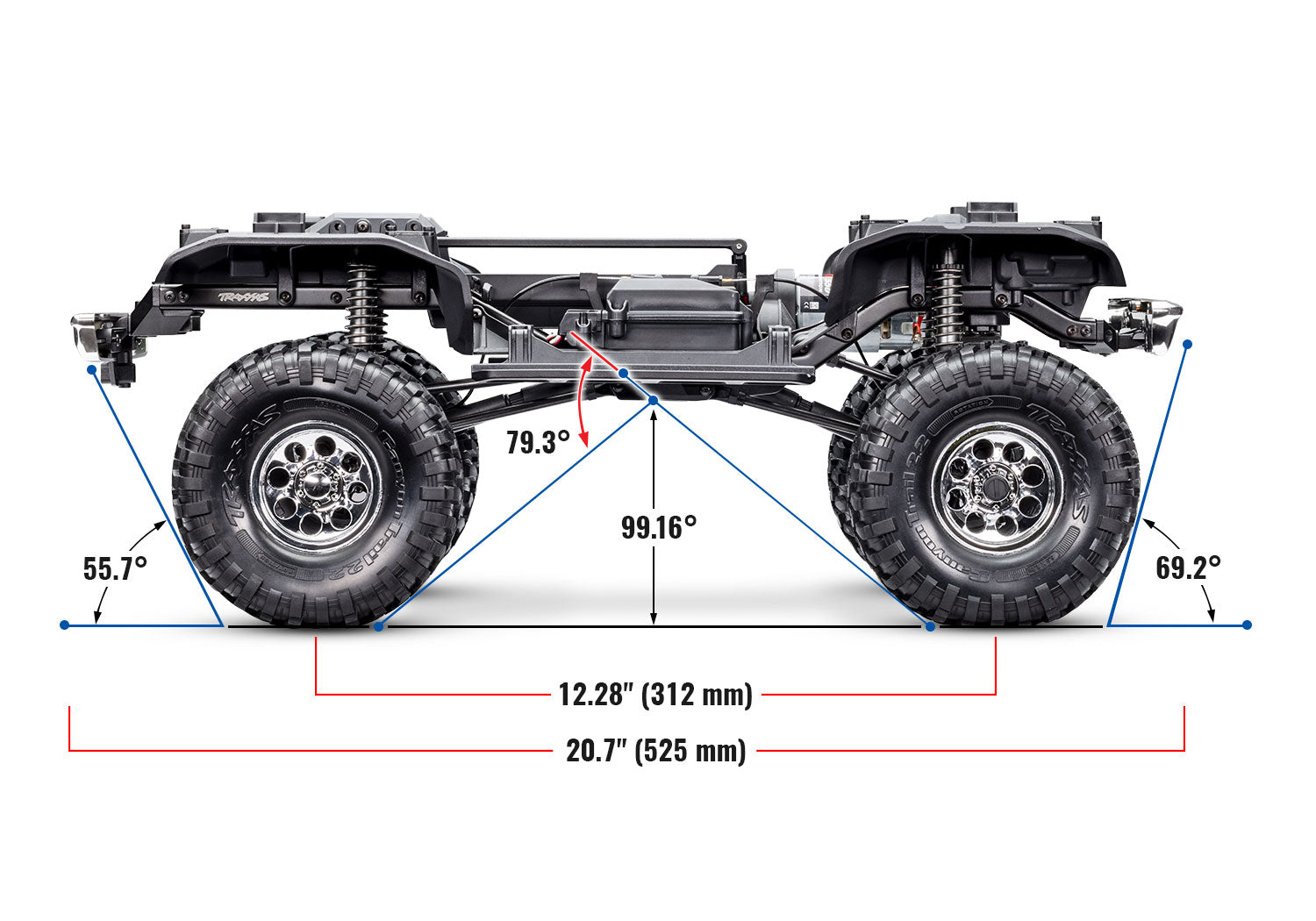

Wheelbase:	12.28 inches (312mm)

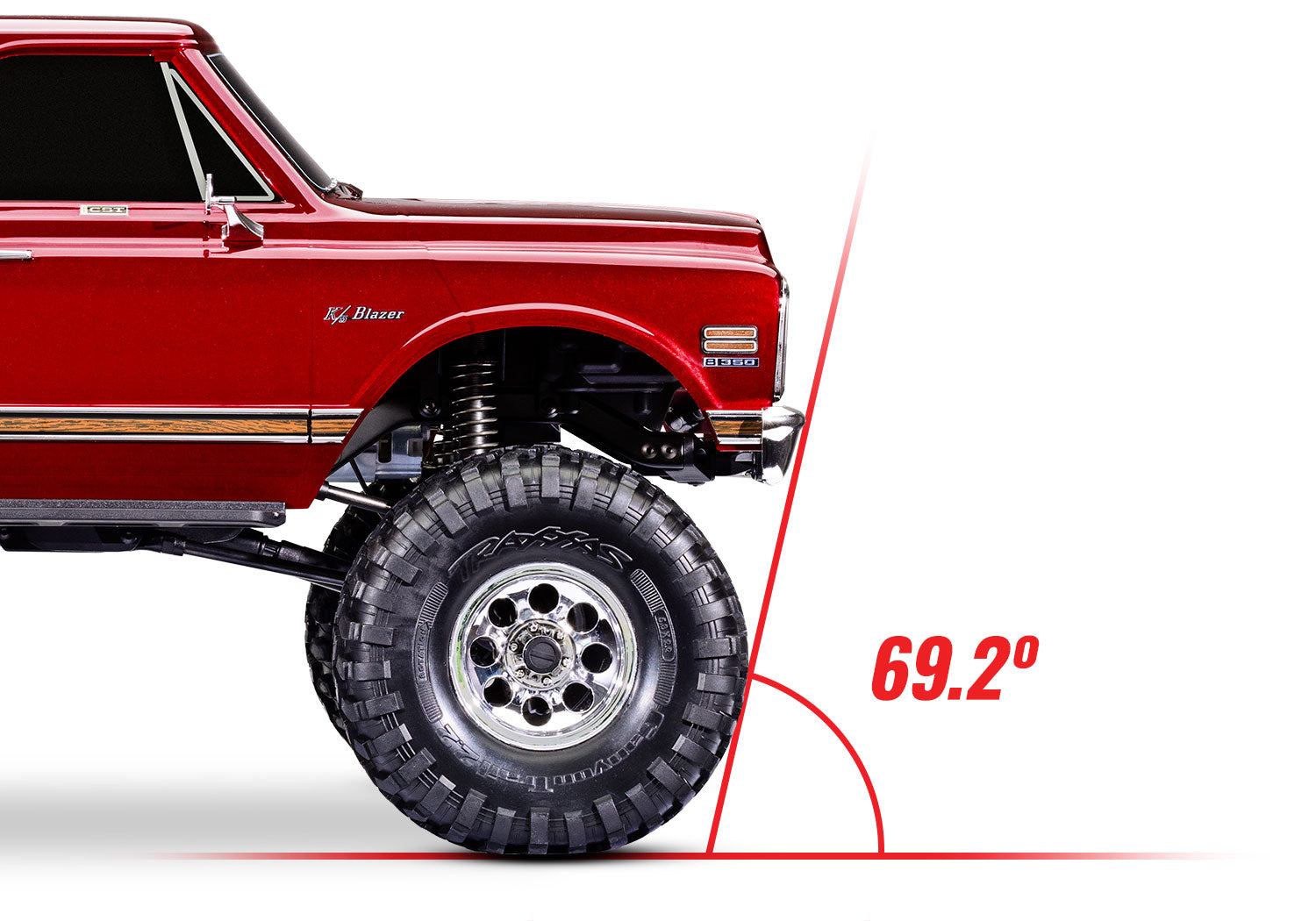

Approach Angle:	69.2°
Departure Angle:	55.7°
Breakover Angle:	79.3°

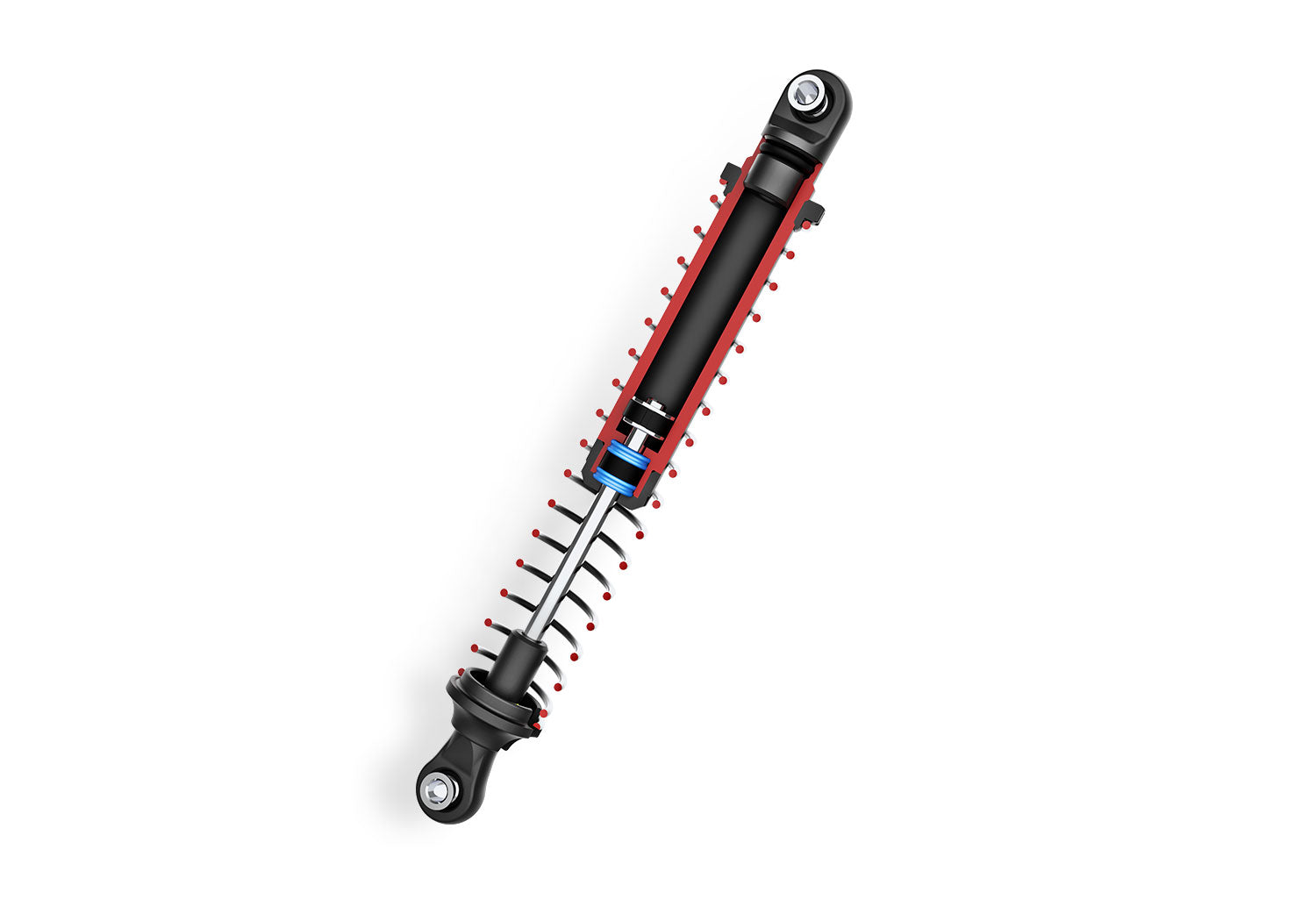

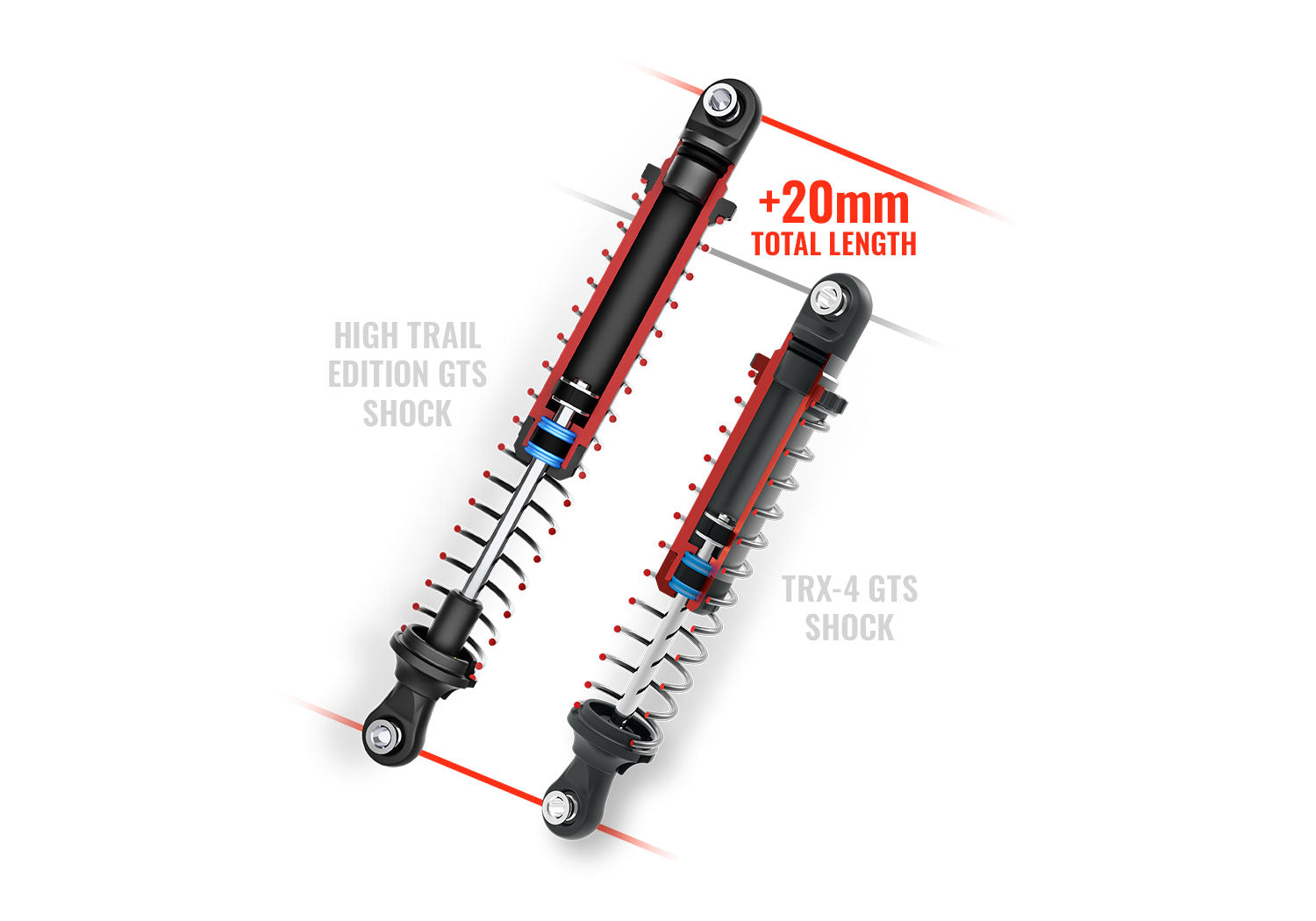

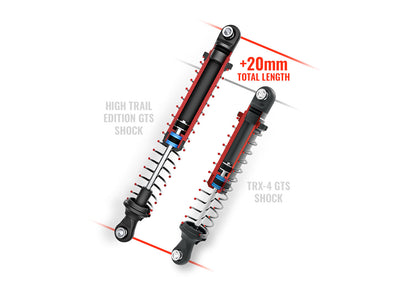

Front Shock Length:	4.33 inches (110mm)
Rear Shock Length:	4.33 inches (110mm)

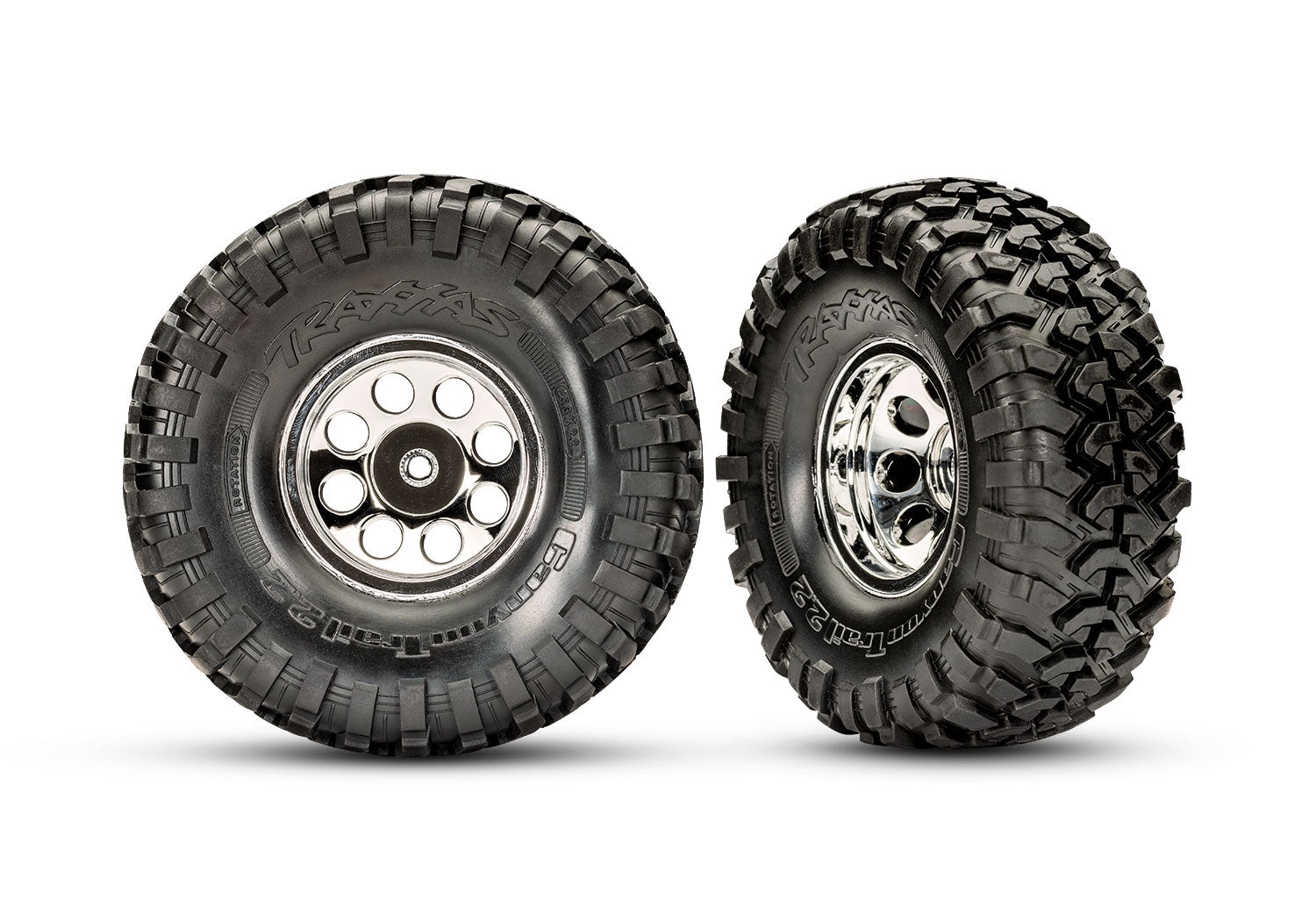

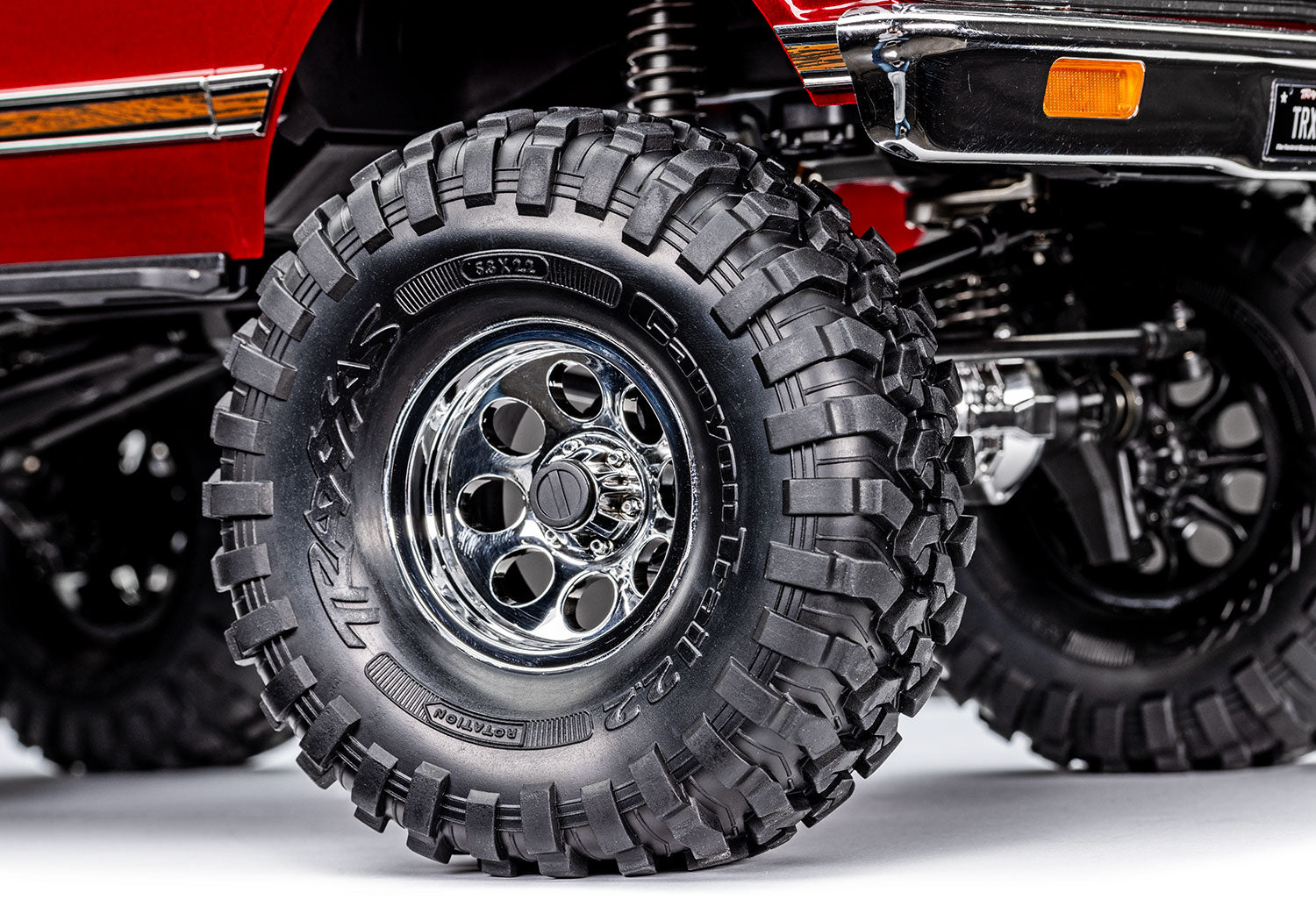

Front Wheels:	2.2 x 1.34 inches (56 x 34mm)
Rear Wheels:	2.2 x 1.34 inches (56 x 34mm)

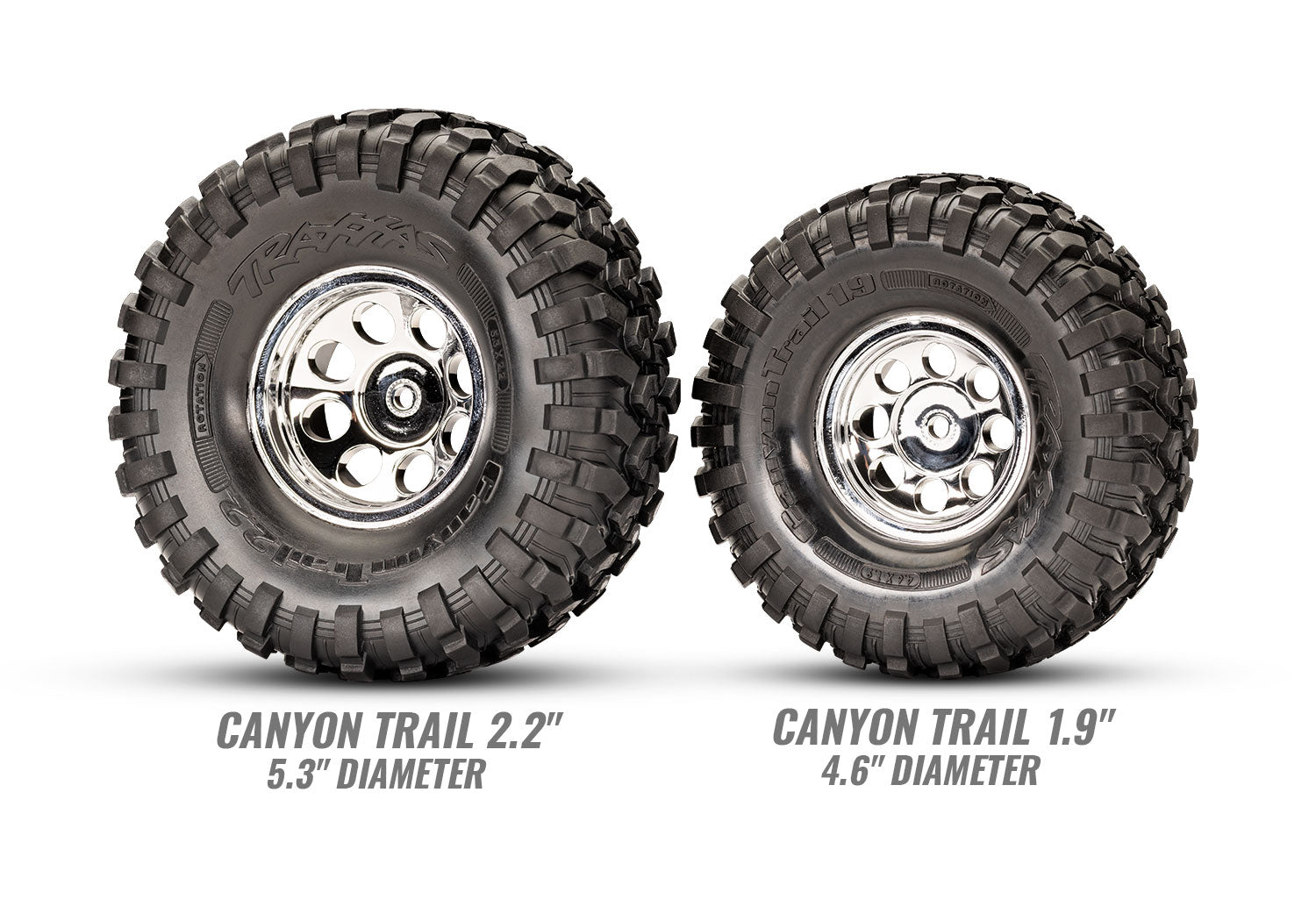

Front Tires:	5.3 x 2.14 inches (135 x 54mm)
Rear Tires:	5.3 x 2.14 inches (135 x 54mm)
Hex Size:	12mm
Speed Control:	XL-5 HV
Motor (electric):	21T Reverse Rotation

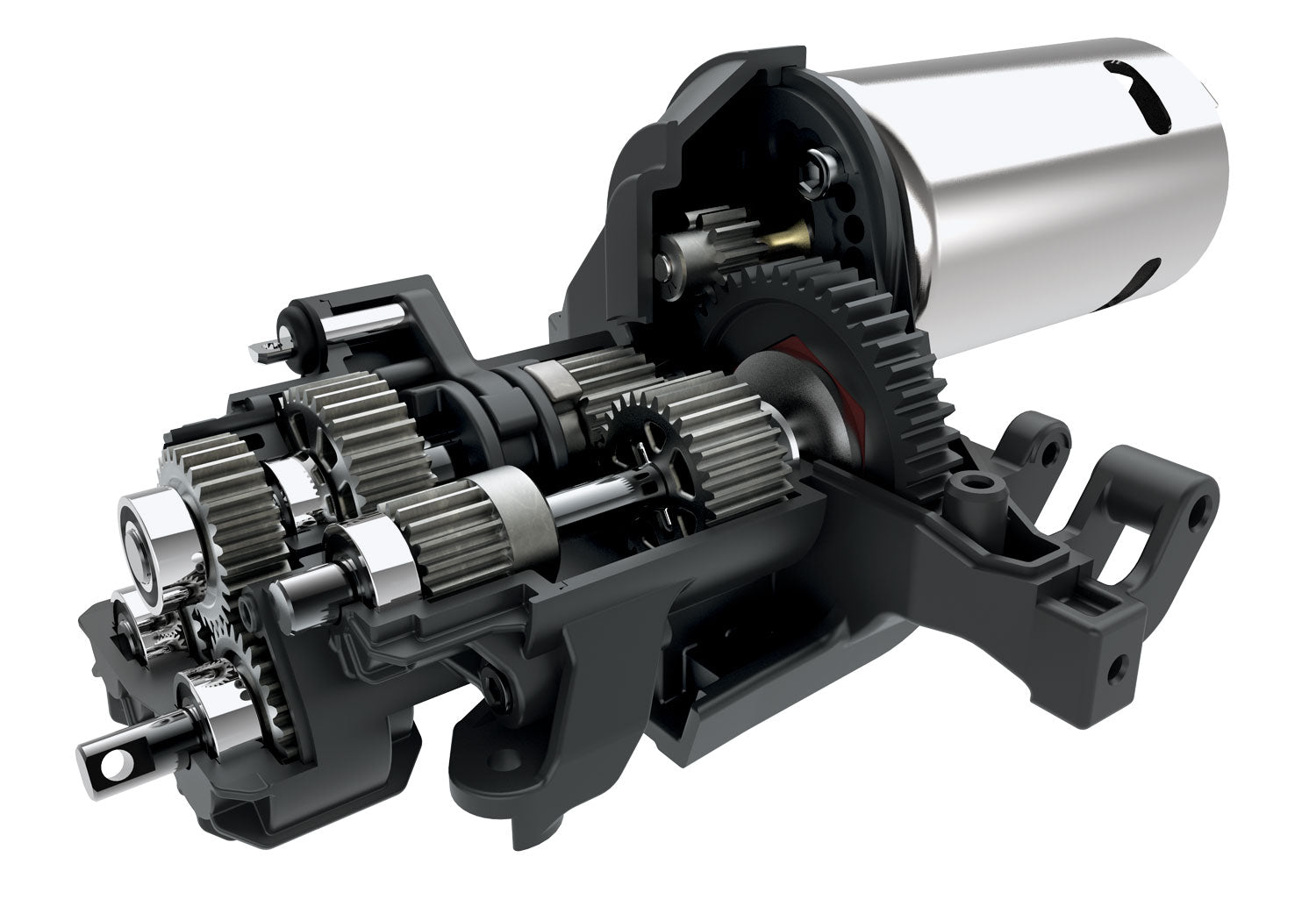

Transmission:	2-speed High/Low, Remote Shifting
Gear Pitch:	32P

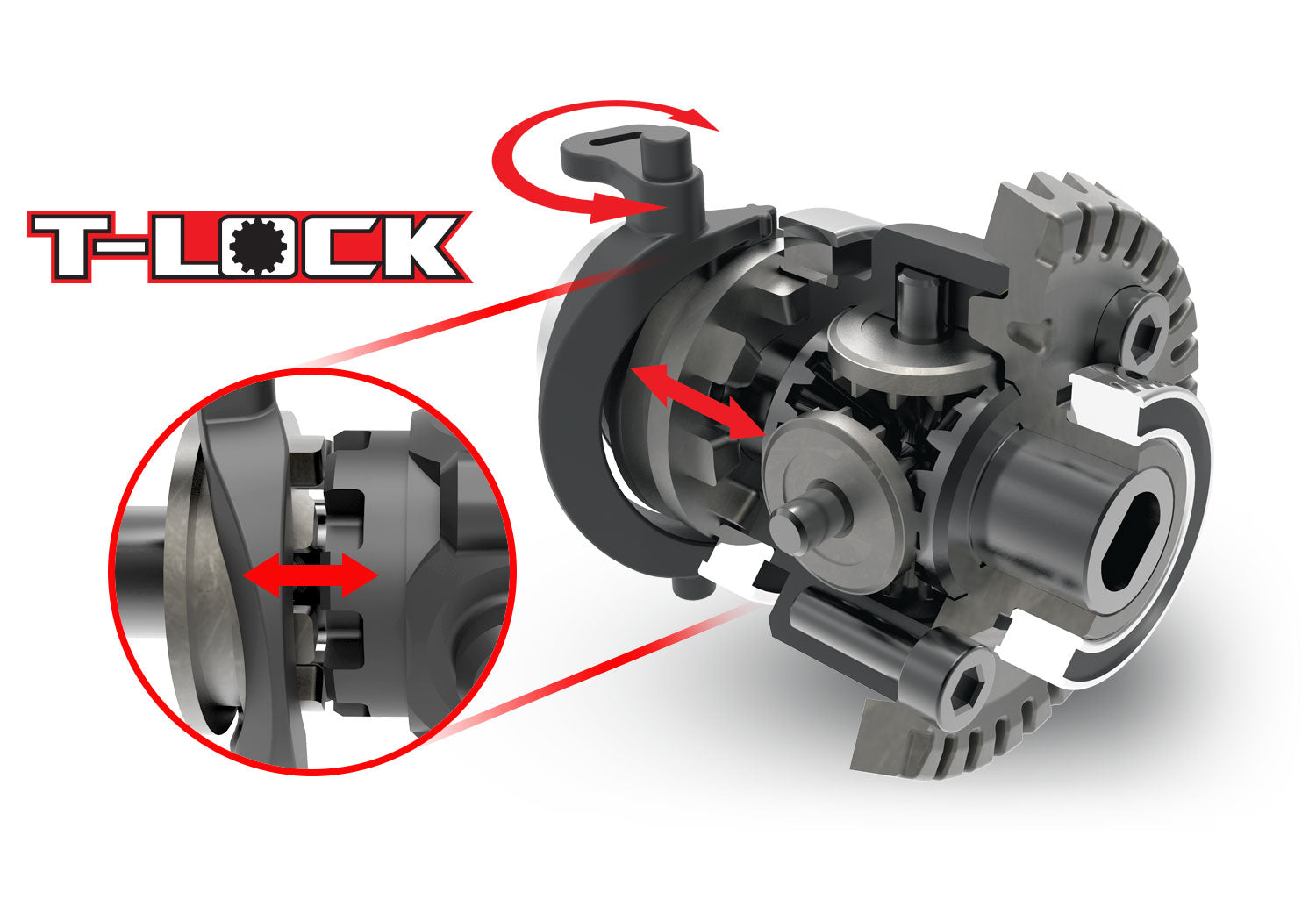

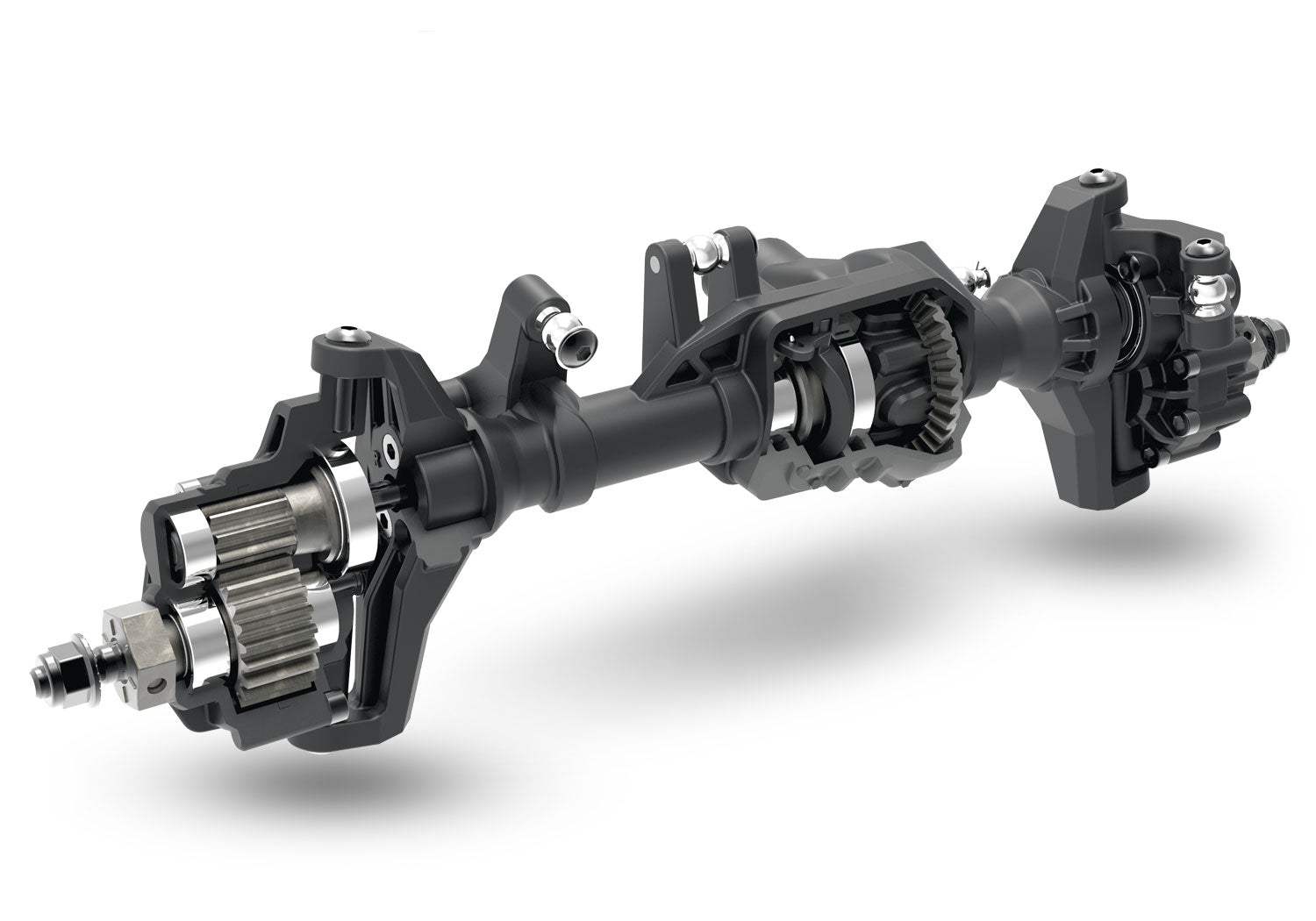

Differential Type:	4 Gear, Remote Locking

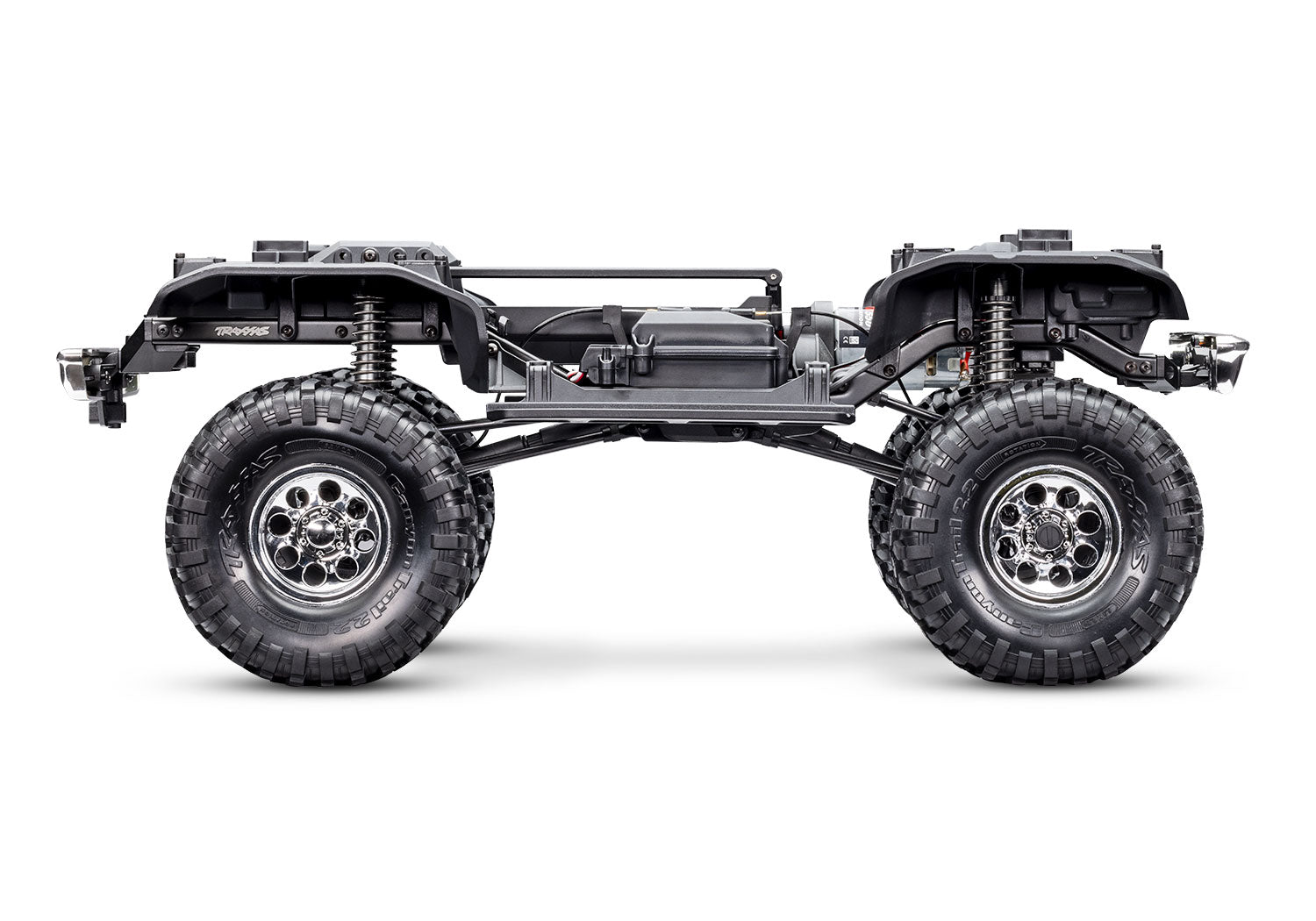

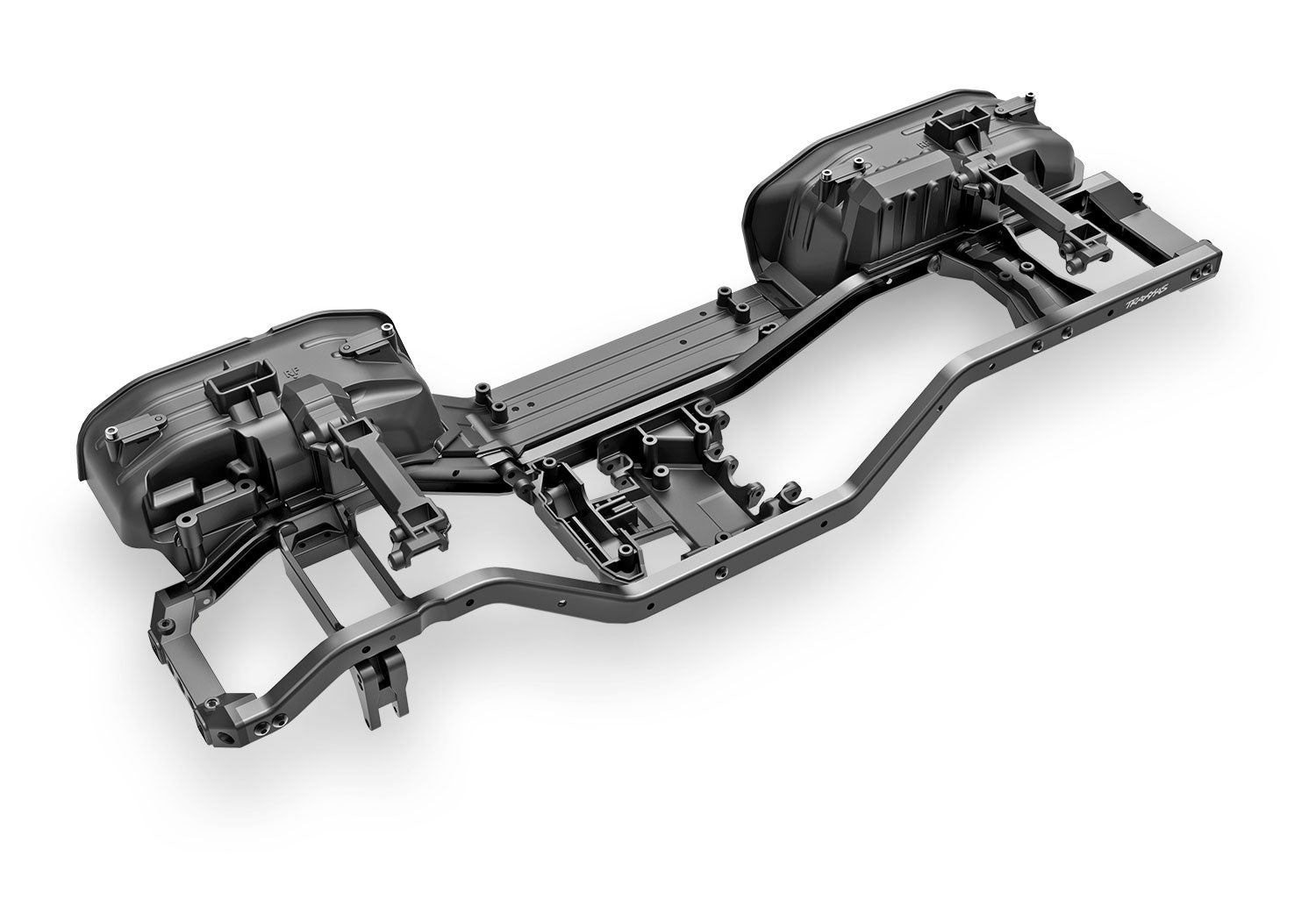

Chassis Structure / Material:	Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type:	Electronic “Hill Hold”
Drive System:	Shaft Driven 4WD
Steering:	Chassis Mounted Servo

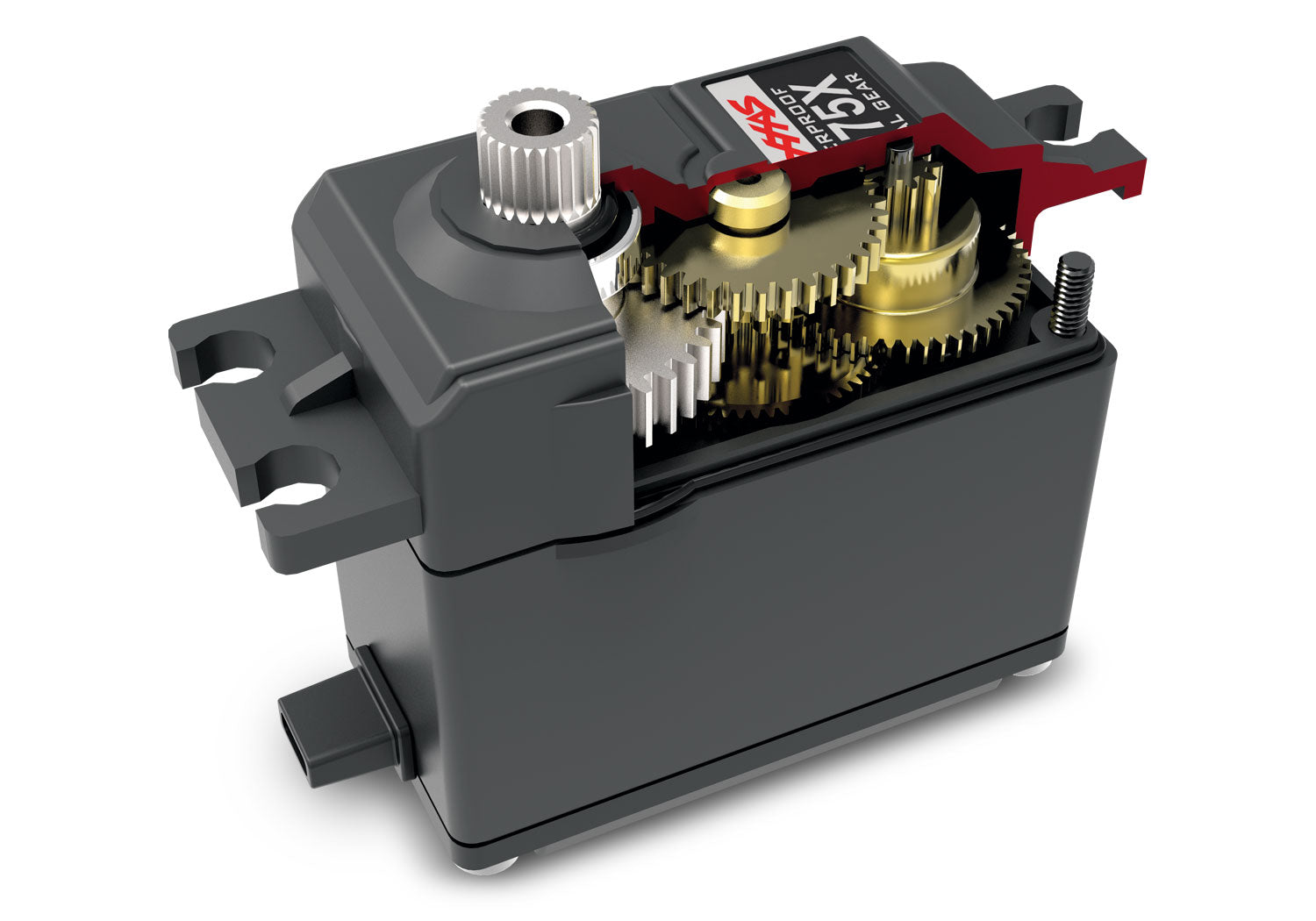

Servo:	2075X Metal Gear
Transmitter:	TQi™ 2.4 GHz 4-Channel Transmitter
Receiver:	6533
Skill Level:	1
Battery Tray:	158.75 L x 47 W x 23/26mm H

Motor
Type:	High-torque brushed motor
Size:	550
Weight:	390g (13.76oz)
Length:	3.071″ (78mm) overall length, 2.25″ (57mm) can length, 1.532″ (38.9mm diameter)
Turns:	21T reverse rotation
Voltage:	16.8V

Electronic Speed Control
Input Voltage:	6–7 Cells NiMH, 2–3s LiPo
Case Size:	1.23” W x 2.18” D x 1.04” H
Weight:	2.6oz (74g)
Motor Limit:	21-turns (550 size)
On Resistance Forward:	0.004 Ohms
On Resistance Reverse:	0.004 Ohms
Peak Current - Forward:	100A
Peak Current - Reverse:	100A
Braking Current:	60A
Continuous Current:	18A
BEC Voltage:	6.0 VDC
BEC Current:	1A
Power Wire:	14 Gauge / 5”
Input Harness Wire:	26 Gauge / 14.5”
Transistor Type:	MOSFET
PWM Frequency:	1700Hz
Low Voltage Detection (LVD):	2-Stage indicators, switchable (on or off)
Thermal Protection:	Thermal Shutdown
Profile selection:	Sport Mode: 100% FWD, 100% brakes, 100% REV Race Mode: 100% FWD, 100% brakes, no REV Training Mode: 50% FWD, 100% brakes, 50% REV Trail Mode: 100% FWD, 100% Brake, 100% REV, Trail-Tuned Brake on Neutral Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral
Single-button setup:	Yes, Traxxas EZ-Set®
