Overview:
The first Hangar 9® Ultra Stick™ ARF revolutionized the Stick genre with innovative design twists that really spiced up performance such as a large, double beveled control surface for 3D flight, extra-large control surfaces and optional quad flaps.

Building on the legacy of this popular design, the Ultra Stick 30cc ARF provides intermediate to expert pilots a giant-scale sport plane with a wide flight envelope. It features durable construction and an abundance of power options so you can make it as mild or wild as you want. As with its predecessors, the flaps and ailerons are double-beveled so you can take advantage of flaperon and crow mixes. These control surfaces, along with the rudder and elevator, have been oversized for even better 3D capability than before.

Hardware and mounting options for gas and electric power are included. You can even add floats (sold separately). Enjoy an intoxicating blend of sport-flying fun with this superbly crafted ARF that more than lives up to its name.

Features:

  • Outstanding flight performance: tried and true Ultra Stick design
  • Flaps for expanded flight envelope
  • Covered in genuine UltraCote™
  • Tail dragger landing gear adds to its sportier looks

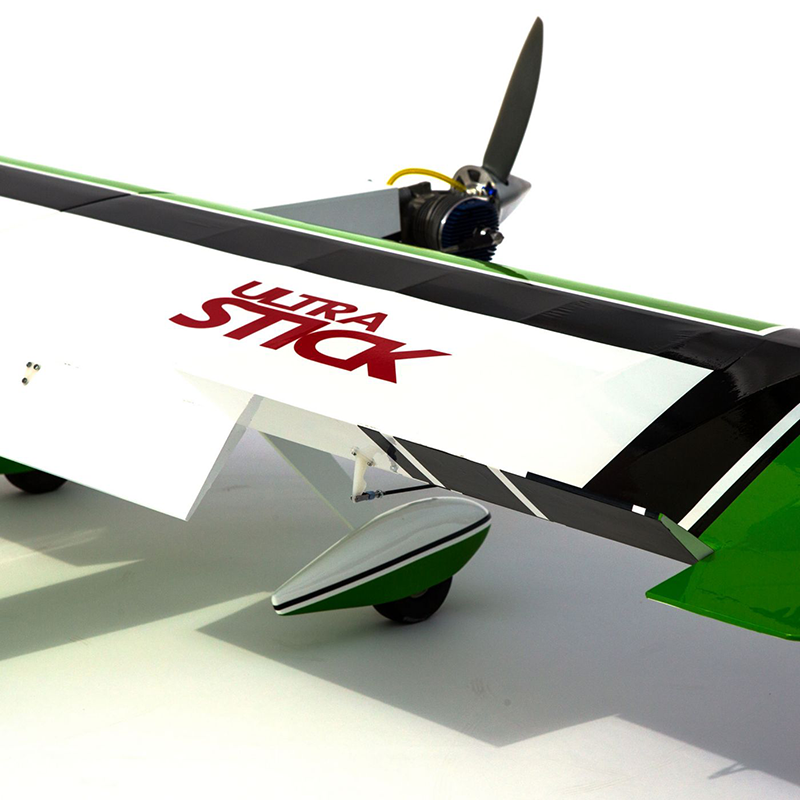

  • Large, double beveled control surfaces
  • Two piece plug in wings with aluminum tube provides easy transport and assembly
  • Lightweight balsa/balsa-plywood construction that's strong

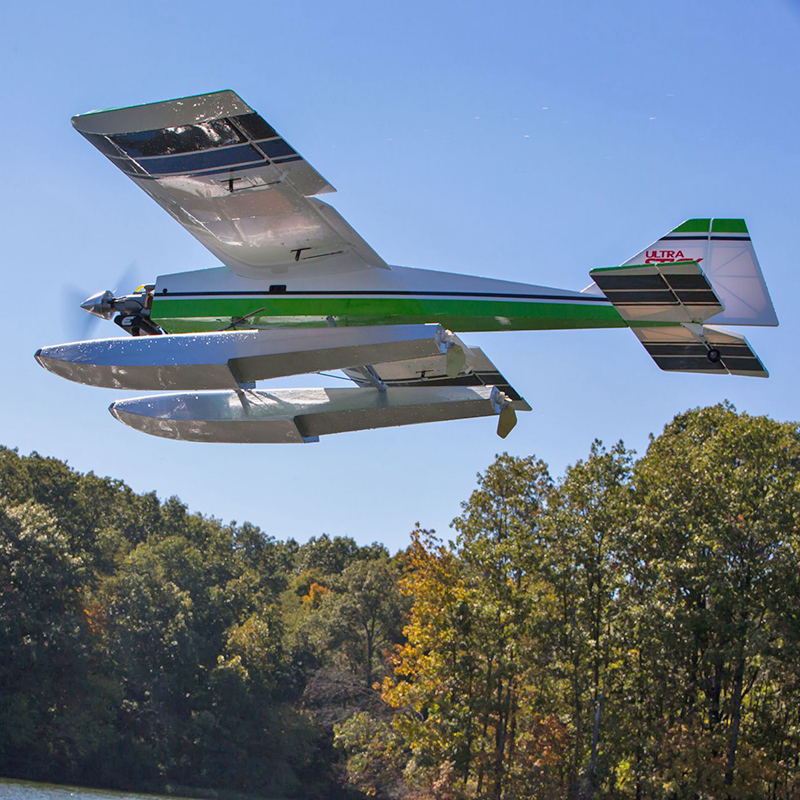

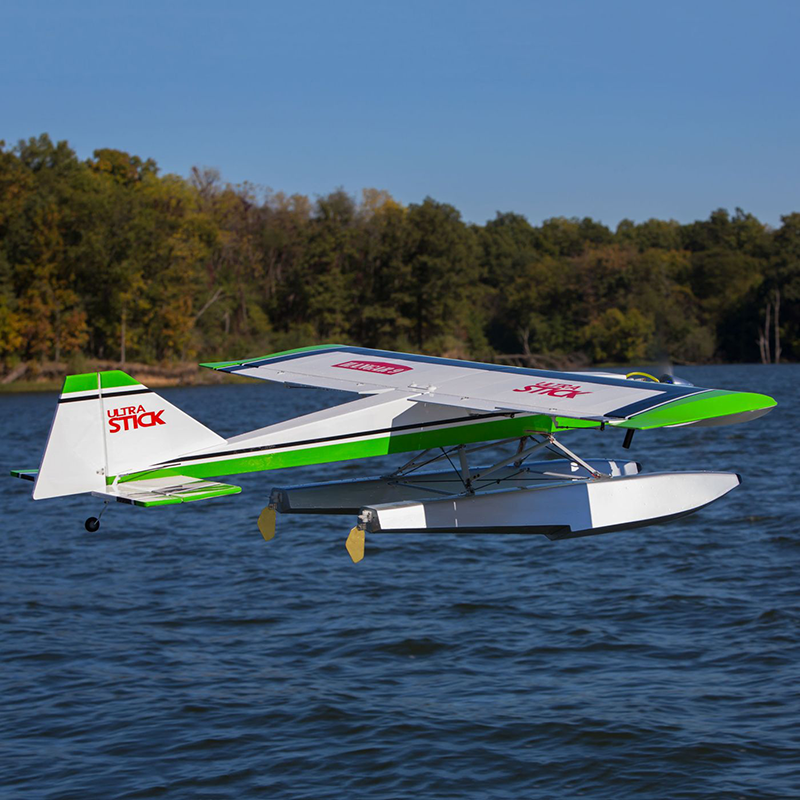

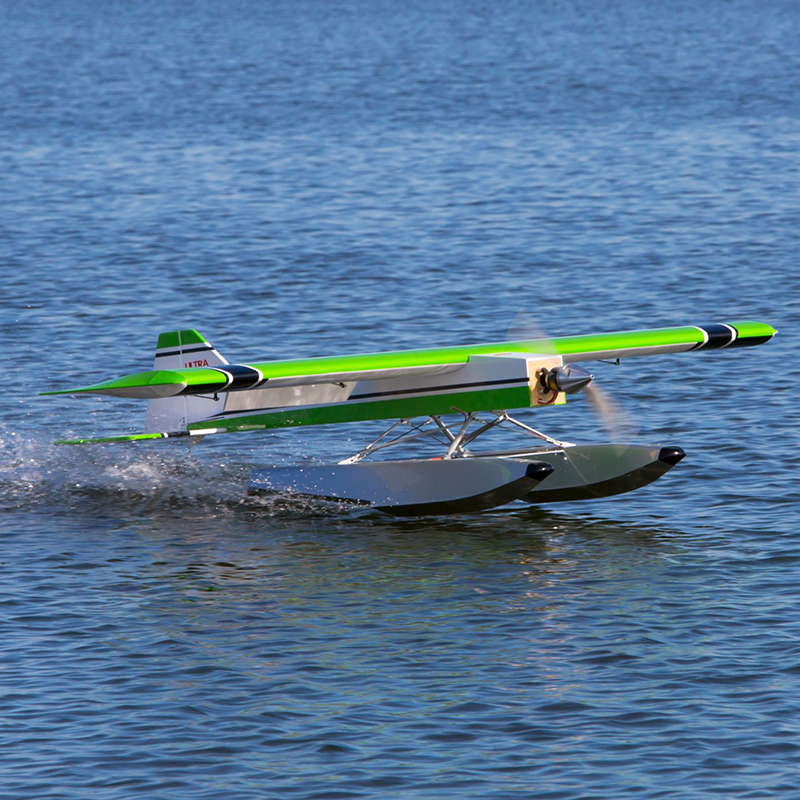

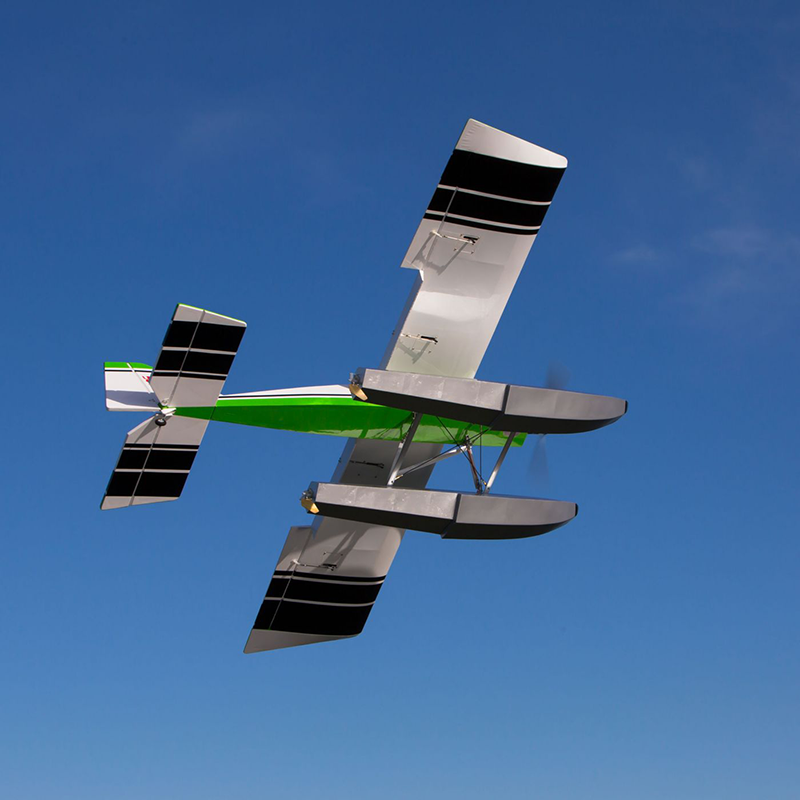

  • Float-ready-hard points for mounting the Hangar 9® 1/5-scale Float Set (sold separately) are already built into the fuselage

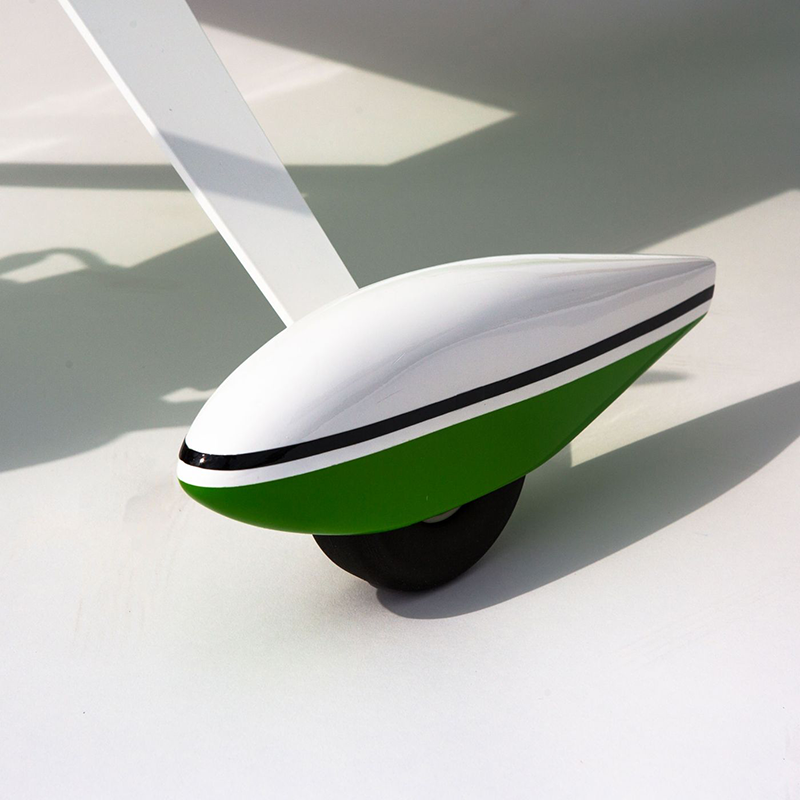

  • Finished fiberglass wheel pants match UltraCote colors

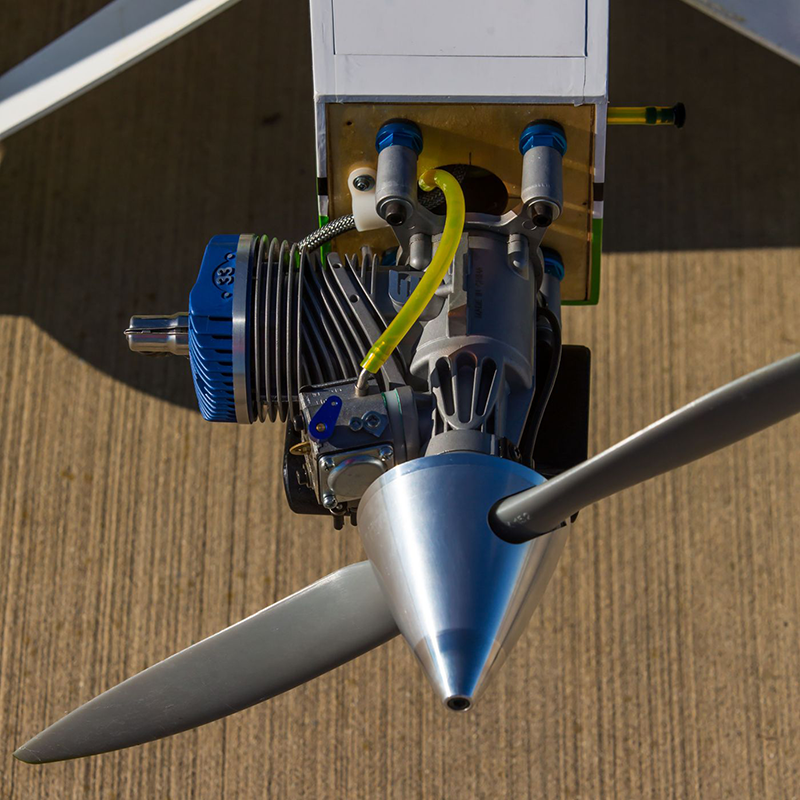

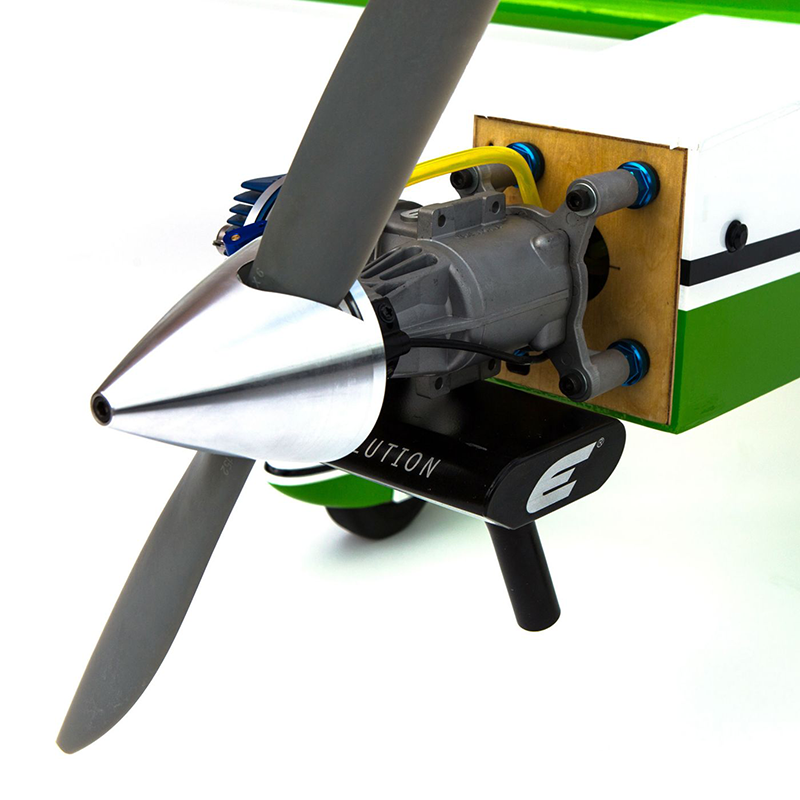

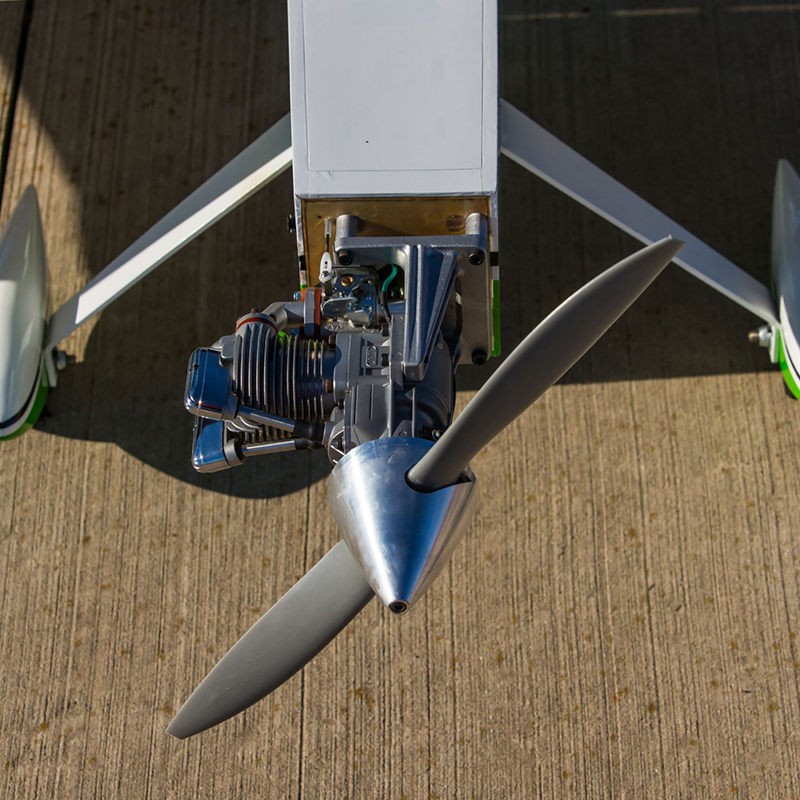

  • Ready to mount the Evolution® 33GX Gasoline Engine

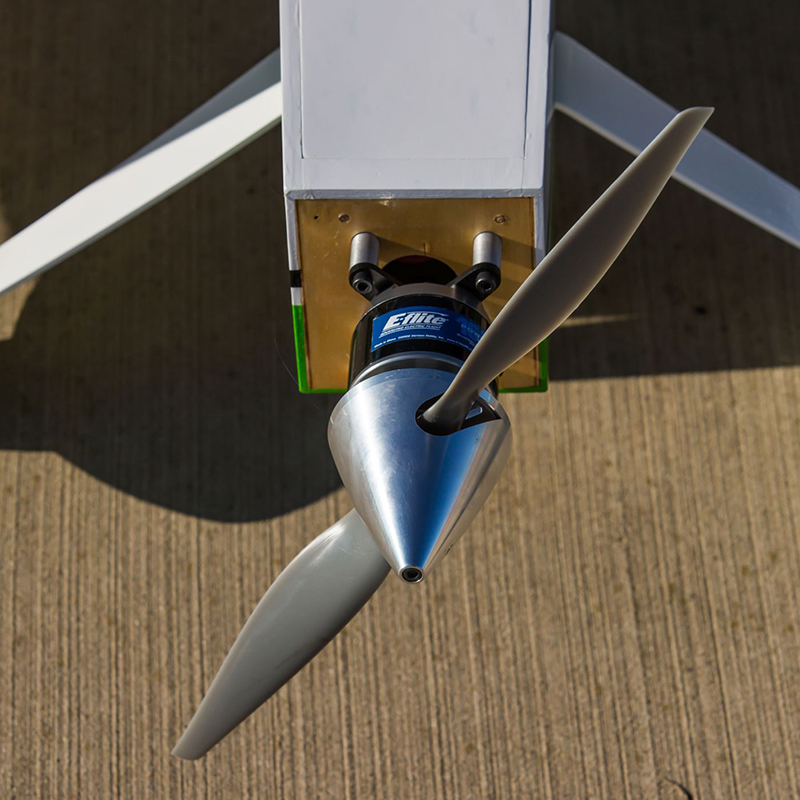

  • Electric motor mount included makes it EP friendly
  • Complete quality hardware included
  • Practice flying this aircraft in the RealFlight® simulator!

What's in the box?
(1) Ultra Stick 30cc ARF

Needed to Complete:
(1) Radio System
(1) 33GX Engine and Receiver Battery or Electric Power System
(1) Prop: 17 x 6 - 18 x 10 (8) Servos
(1) Tools and Adhesives for Assembly

Completion Level: Almost Ready-To-Fly
Approximate Assembly Time: 10-15 Hours
Approximate Flight Time: 6 Mins
Wingspan: 80.75" (205 cm )
Length: 74" (188 cm)
Flying Weight: 12-14 lbs (5.4 - 6.35kg)
Wing Area: 1360.3 sq in (87.76 sq dm)
Wing Loading: 22.02oz./sq.ft.
CG (Center of Gravity): 4-5.25" Rearward of wing leading edge
Airfoil Shape: Symmetrical
Engine Size: 30cc (sold separately)
Expo (Ailerons): 25%
Expo (Elevator): 20%
Expo (Rudder): 20%
Flaps: Yes
Material: Balsa
Minimum Required Radio: 6ch
Minimum Speed Control: 80 amp
Motor Size: Power 160 (sold separately)
Propeller Size: 17x6 - 18x10 (sold separately)

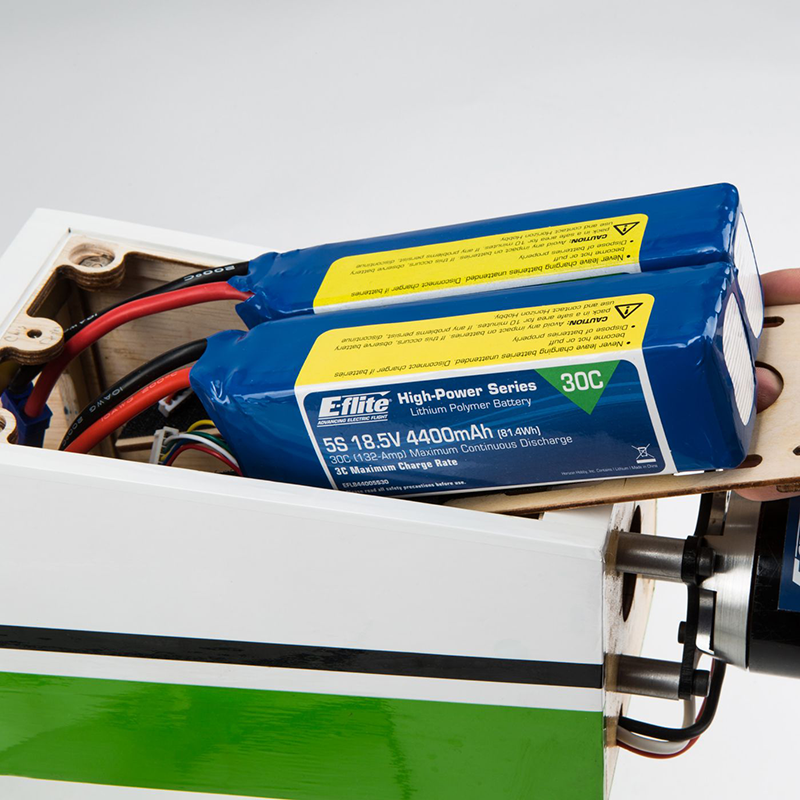

Recommended Motor Battery: 10S 4400mAh
Recommended Receiver Battery: 6.6V 2200mAh 2S LiFe Receiver Battery (sold separately)
Retracts: No
Servos: A6180 Digital Aircraft Servos (sold separately)
Spinner Size: 3"
Trim Scheme Colors: White (HANU870), Black (HANU874), Apple Green (HANU903)
Wing Tube Length: 65cm
Wing Tube OD: 31cm
