Zenmuse H20T Quad Sensor Camera SB

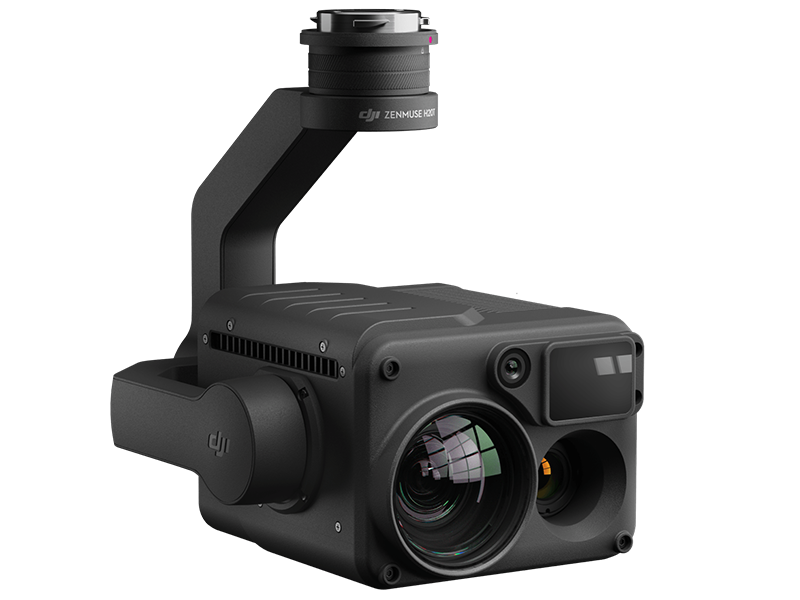

DJI Zenmuse H20T Camera

"H” For Hybrid
Multi-sensor payloads that bring a whole new meaning to mission efficiency. The unique intelligence and integrated design provide unprecedented aerial imaging capabilities for a range of commercial drone applications. Welcome to DJI’s first hybrid sensor solution – the Zenmuse H20 Series.

All The Sensors You Need – In One
Capture everything. Up close or from a distance. In true living color or thermal. An integrated laser rangefinder (LRF) measures the distance to an object at up to 1200 m away. A powerful, integrated payload that unleashes advanced intelligent capabilities for DJI’s industrial drone platforms.

H20 – Quad-Sensor Solution
• 20 MP Zoom Camera
• 12 MP Wide Camera
• 1200 m LRF
• 640×512 px Radiometric Thermal Camera

Powerful Zoom Camera
   • 23× Hybrid Optical Zoom, 200× Max Zoom
   • 20 MP 1/1.7” CMOS Sensor
   • Video Resolution: 4K/30fps

Everything in View - Wide Camera
   • Equivalent Focal Length: 24mm, DFOV: 82.9°
   • 12 MP 1/2.3” CMOS Sensor

Precise Distance Data - Laser Rangefinder
   • Range: 3 m – 1200 m
   • Accuracy: ± (0.2 m + D×0.15%)

See the Unseen - Radiometric Thermal Camera
   • DFOV: 40.6°
   • Resolution: 640×512, Frame Rate: 30fps
   • Thermal Sensitivity: = 50mk@f1.0 (NEDT)

Multi-Sensor Payloads
See the full picture without missing any details wherever, whenever your mission takes place.

Seamless User Interface
A new integrated user interface lets you quickly switch between wide, zoom, and thermal camera views, and preview the zoom FOV while in wide or thermal camera view.

• AI Spot-Check
  Automate routine inspections and capture consistent results every time. Onboard AI recognizes the pre-marked subject of interest in subsequent automated missions to ensure consistent framing.


• High-Res Grid Photo
  Frame an area of interest in wide camera view, and the zoom camera will automatically capture a set of 20 MP images of the area. These images are stored together with an overview image that can be viewed in greater detail.


• PinPoint
  A quick tap marks an object in view, advanced sensor fusion algorithms immediately deliver its coordinates.


• Smart Track
  Identify and follow moving subjects like people, vehicles, and boats with the auto-zoom function, while continuously acquiring the subject’s dynamic location.
